SeriesSR2 Series

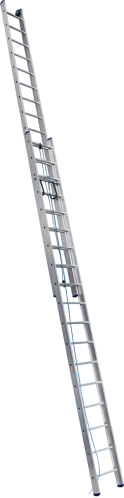

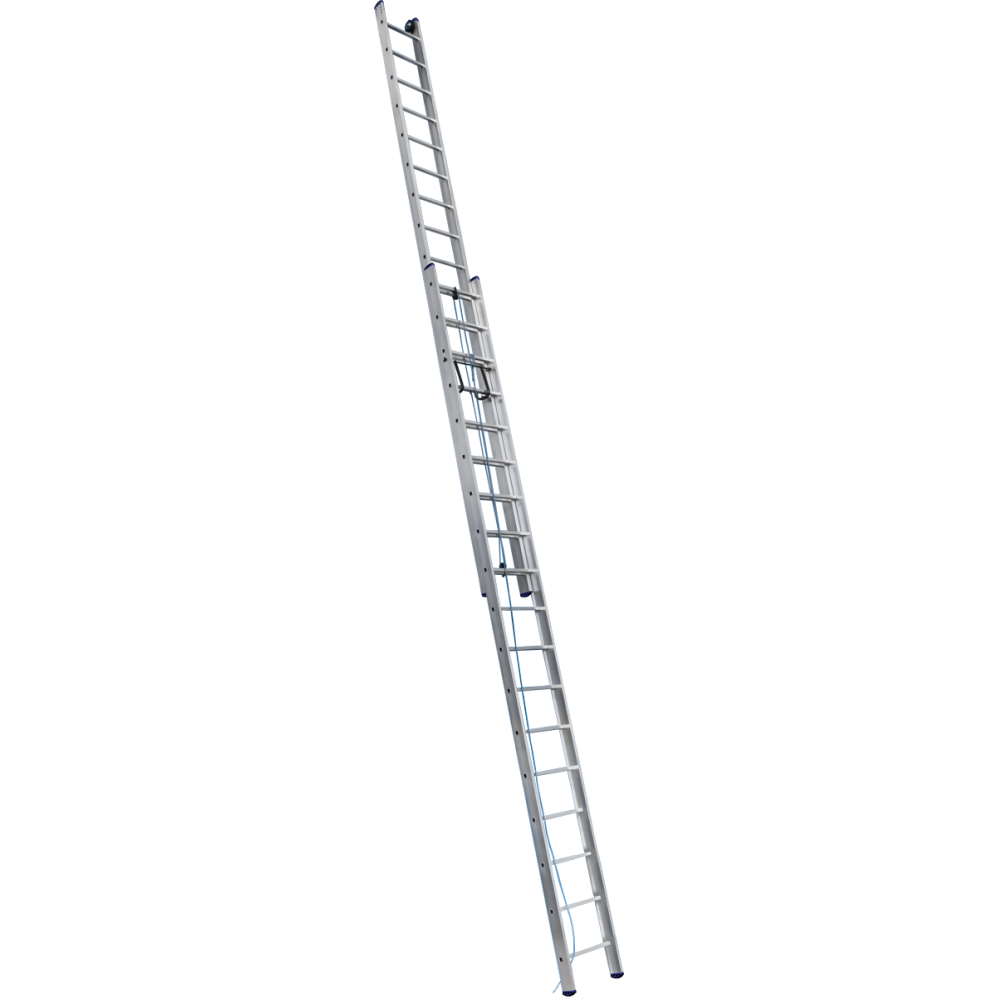

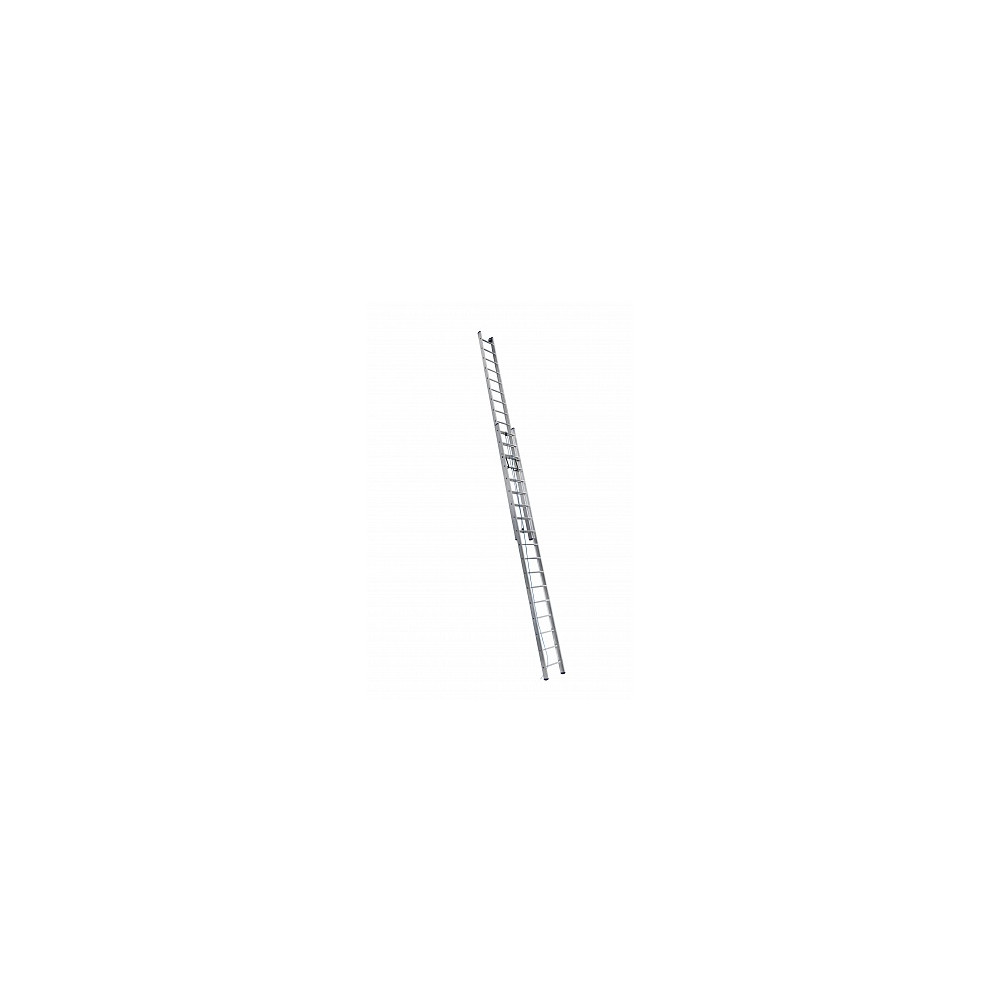

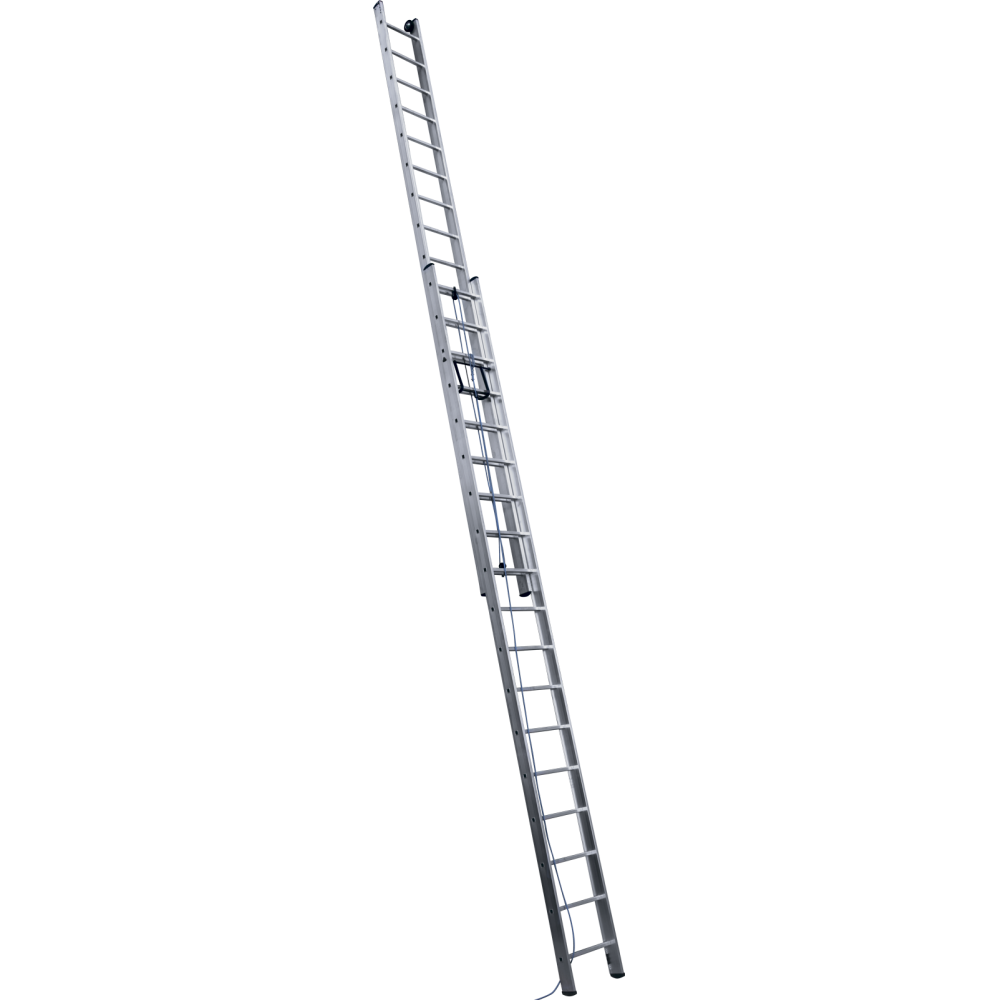

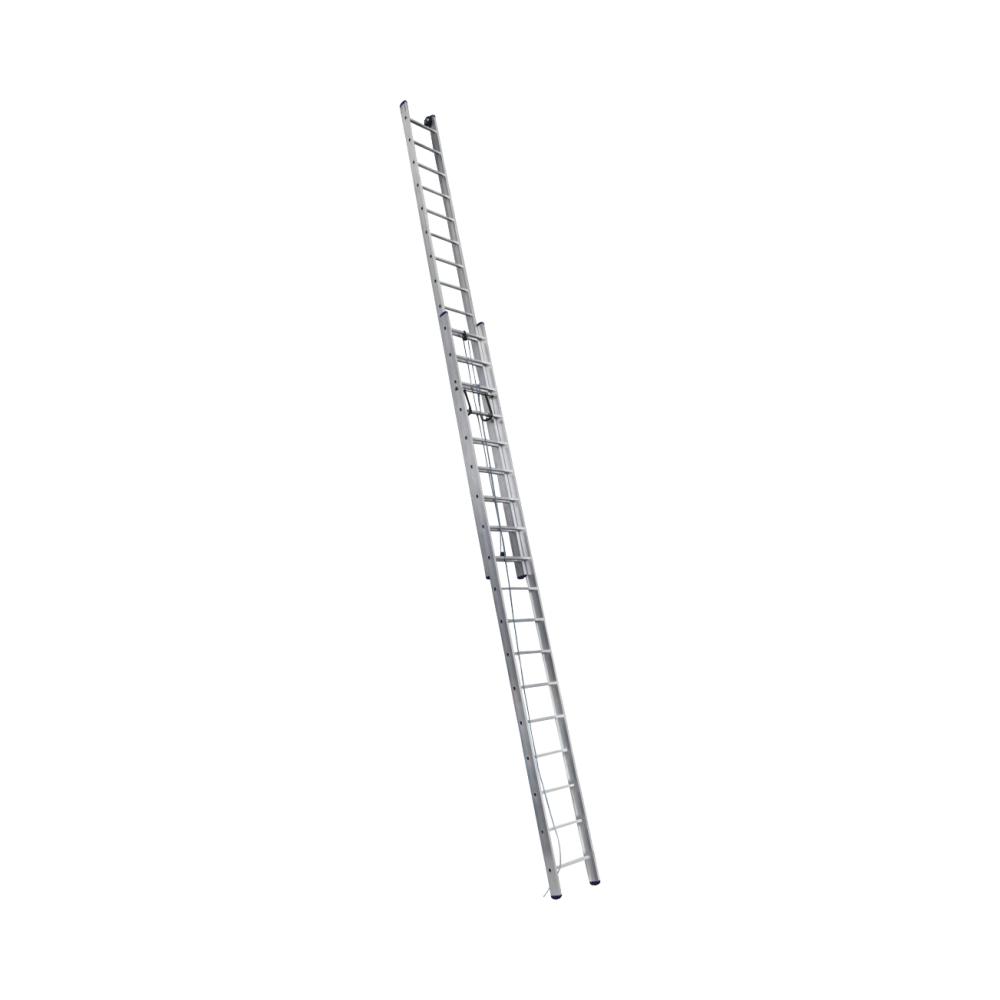

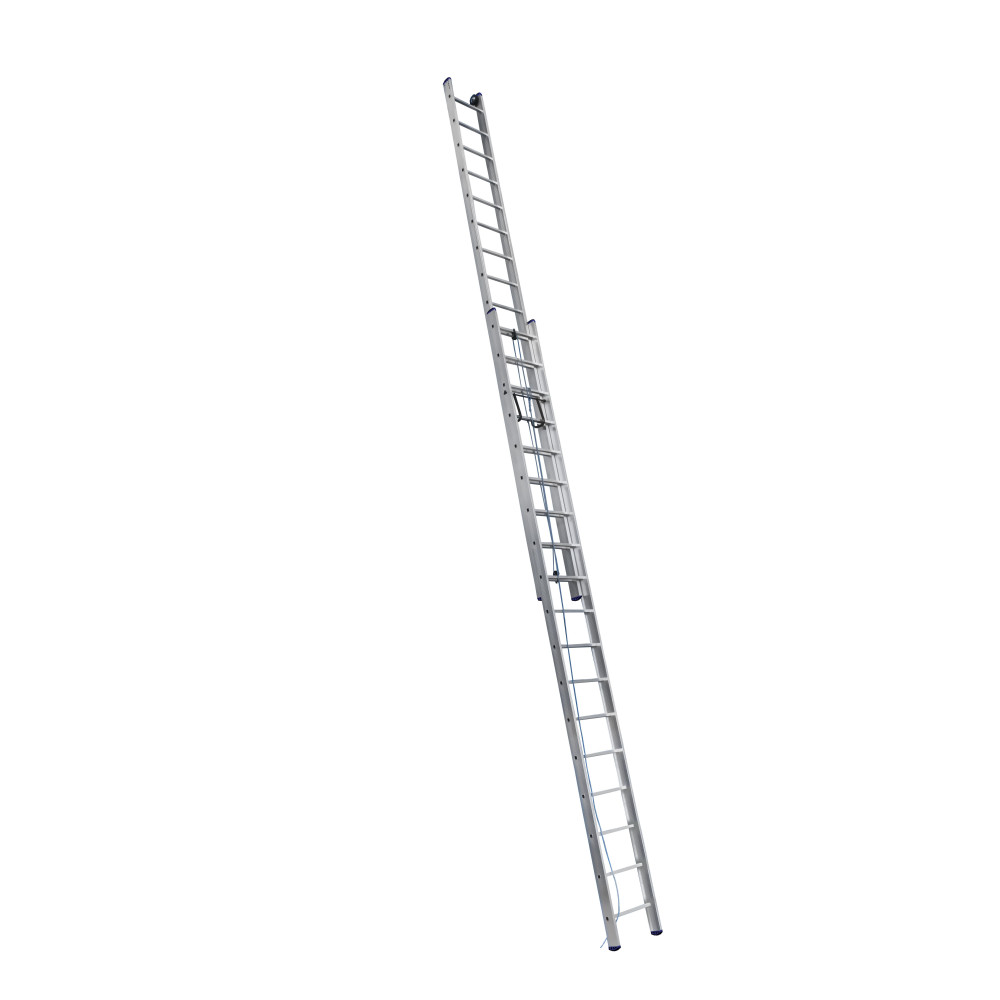

Aluminum Professional Double Section Straight Ladder with Rope-and-Pulley System

Specifications

Series SR2 Series

Vendor code
SR2 3210
  • SR2 3210
2x10 2.94 4.62 0.41/0.49 5.52 15.1
SR2 3212
  • SR2 3212
2x12 3.5 5.74 0.41/0.49 6.64 17.4
SR2 3215
  • SR2 3215
2x15 4.34 7.42 0.41/0.49 8.32 23.0
SR2 3218
  • SR2 3218
2x18 5.18 9.1 0.41/0.49 10 28.3
SR2 3219
  • SR2 3219
2x19 5.46 9.66 0.41/0.49 10.56 32.0
SR2 3220
  • SR2 3220
2x20 5.74 10.22 0.41/0.49 11.12 33.6
SR2 3225
  • SR2 3225
2x25 7.1 13.02 0.41/0.49 13.93 44.2

Product features

The feasibility of using such ladders arises from the required urgency or speed of work (extreme situation: fire, people’s rescue, etc.), as well as in cases where it is difficult or impossible to carry out the work by other means.

The ladder in the transport position is placed against the wall and with the help of the ladder rope, the pulley is extended out and fixed at the desired height. The movement of the upper section against the wall is carried out with the help of wheels.

The ladder has enough strength but requires an additional backing up from the ground.

Similar products

Accessories and spare parts

Technical documentation

Profile: aluminum
Stage: aluminum
