Vendor code |
Number of steps
|
Length
|
Height
|
Height max
|
Height max
|
Height max
|
Width
|
Stabilizer length
|
Weight
|
---|---|---|---|---|---|---|---|---|---|
T 203 | 2x3 | 0.89 | 0.84 | 1.74 | 1.74 | 2.64 | 0.33 | 0.7 | 6.0 |
T 204 | 2x4 | 1.22 | 1.11 | 2.42 | 2.01 | 3.32 | 0.33 | 0.7 | 6.8 |
T 205 | 2x5 | 1.49 | 1.37 | 2.97 | 2.27 | 3.87 | 0.33 | 0.8 | 8.0 |
T 206 | 2x6 | 1.77 | 1.64 | 3.54 | 2.54 | 4.44 | 0.33 | 0.8 | 8.8 |
T 207 | 2x7 | 2.05 | 1.9 | 4.1 | 2.8 | 5 | 0.33 | 0.8 | 9.8 |
T 208 | 2x8 | 2.33 | 2.31 | 4.66 | 3.21 | 5.56 | 0.33 | 0.8 | 10.8 |
T 209 | 2x9 | 2.63 | 2.59 | 5.22 | 3.49 | 6.12 | 0.33 | 0.8 | 11.8 |
T 210 | 2x10 | 2.91 | 2.87 | 5.78 | 3.77 | 6.68 | 0.33 | 0.8 | 12.8 |

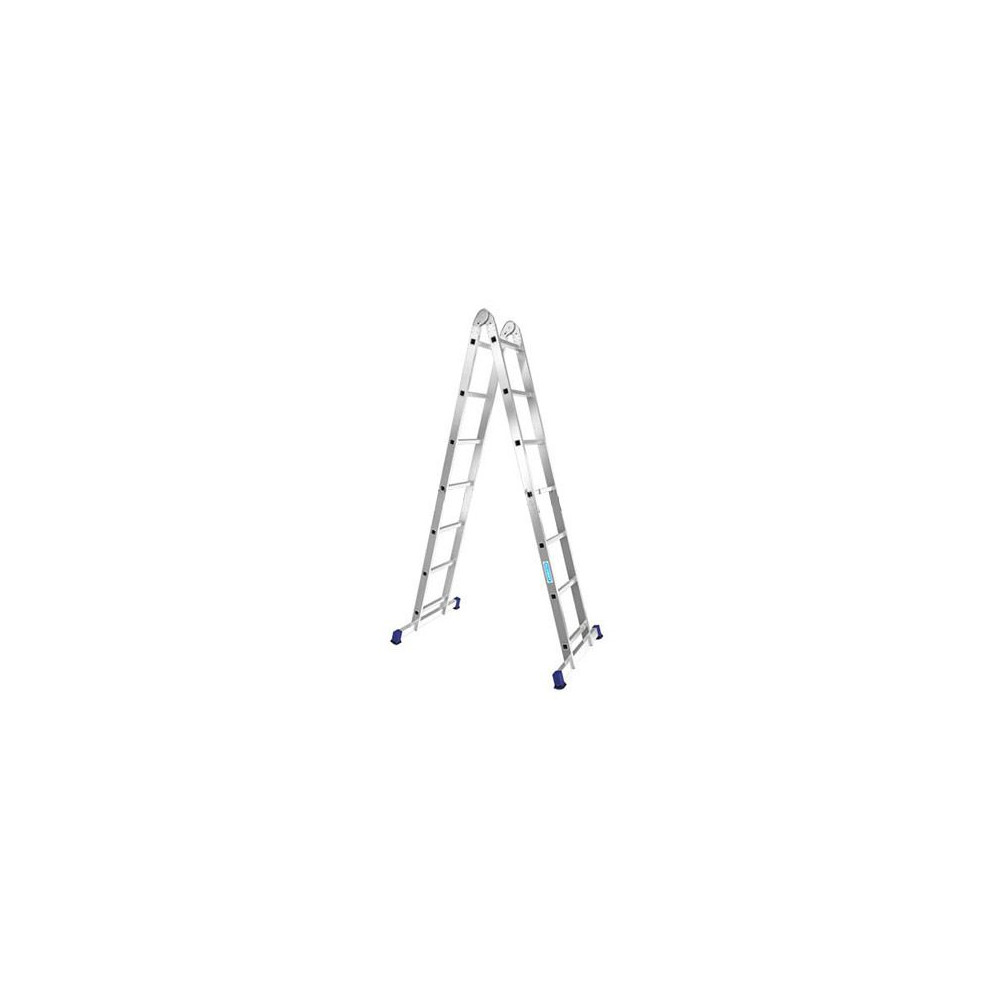

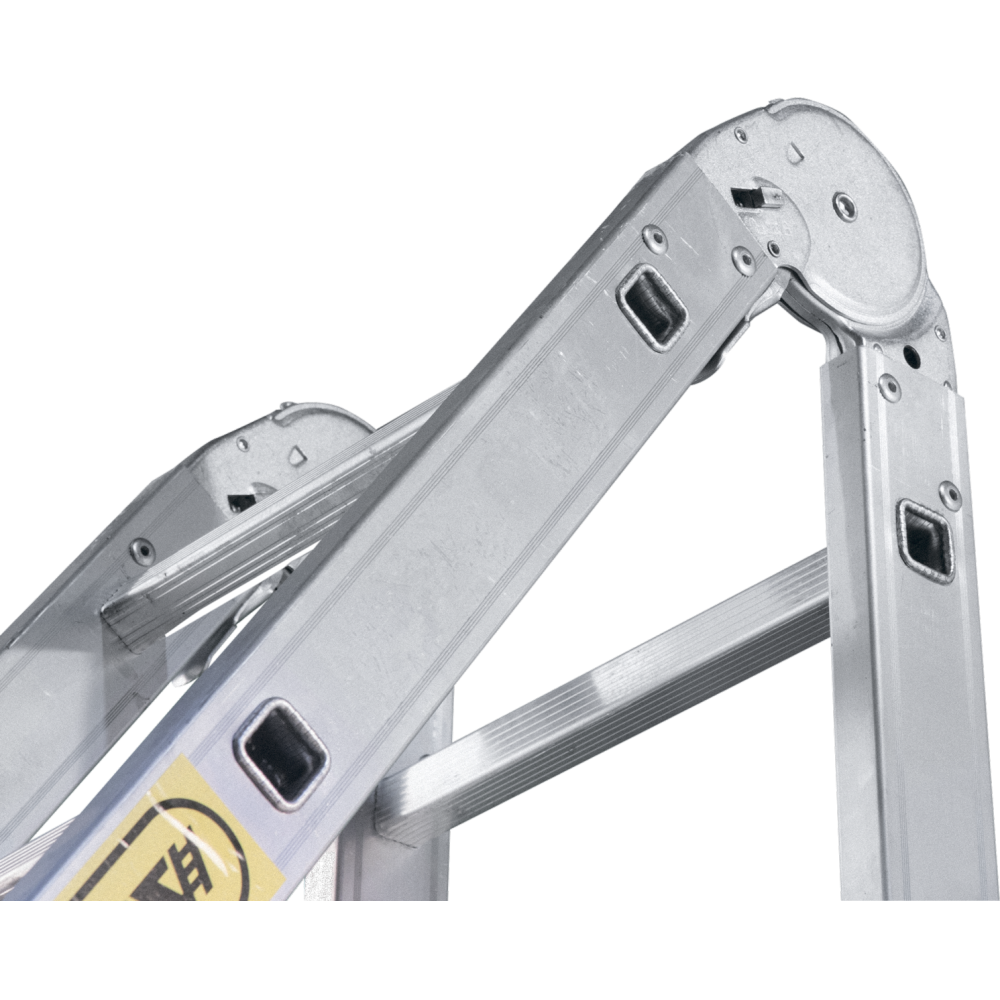

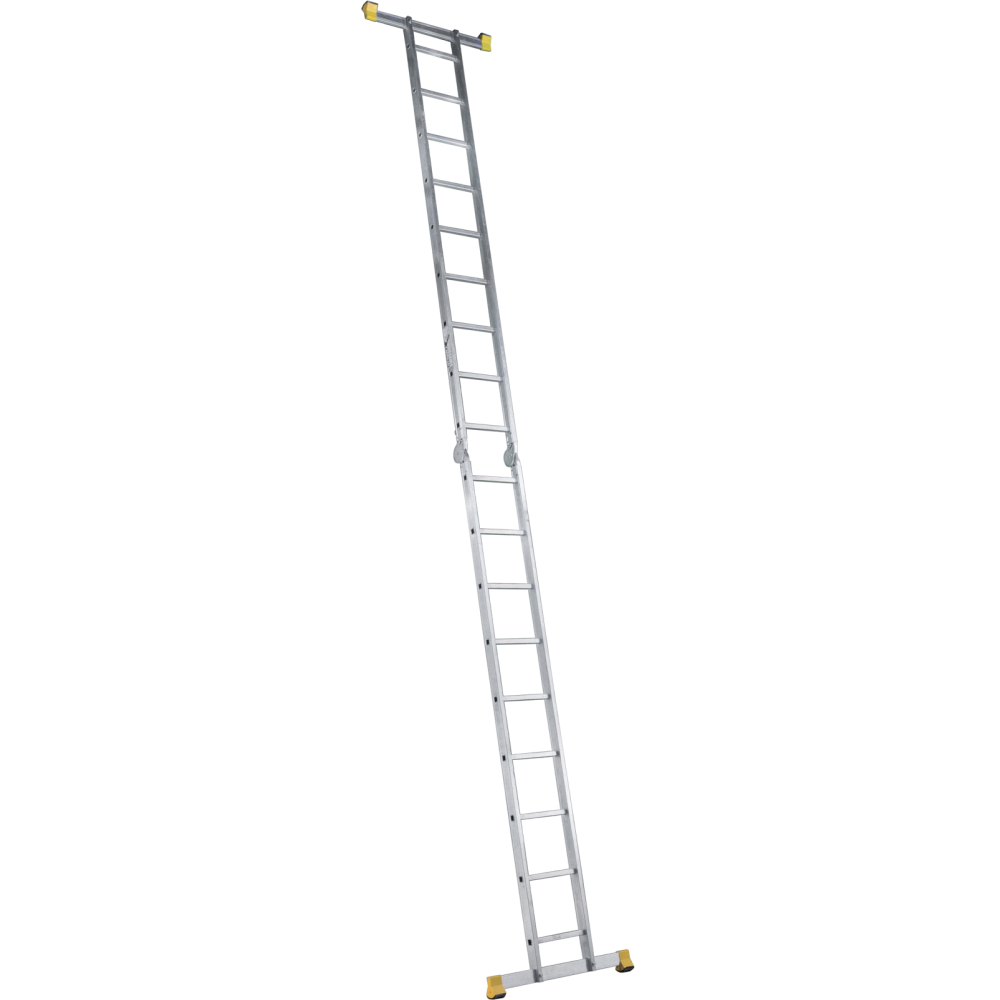

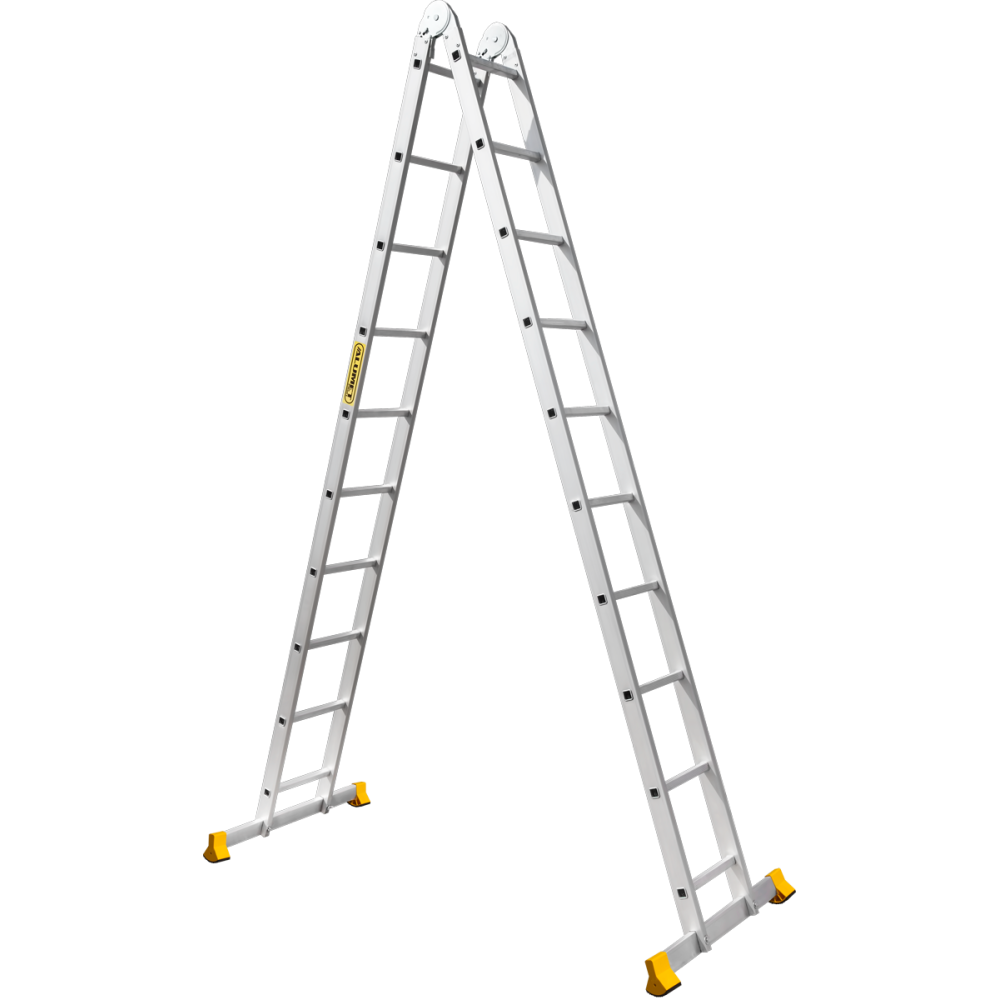

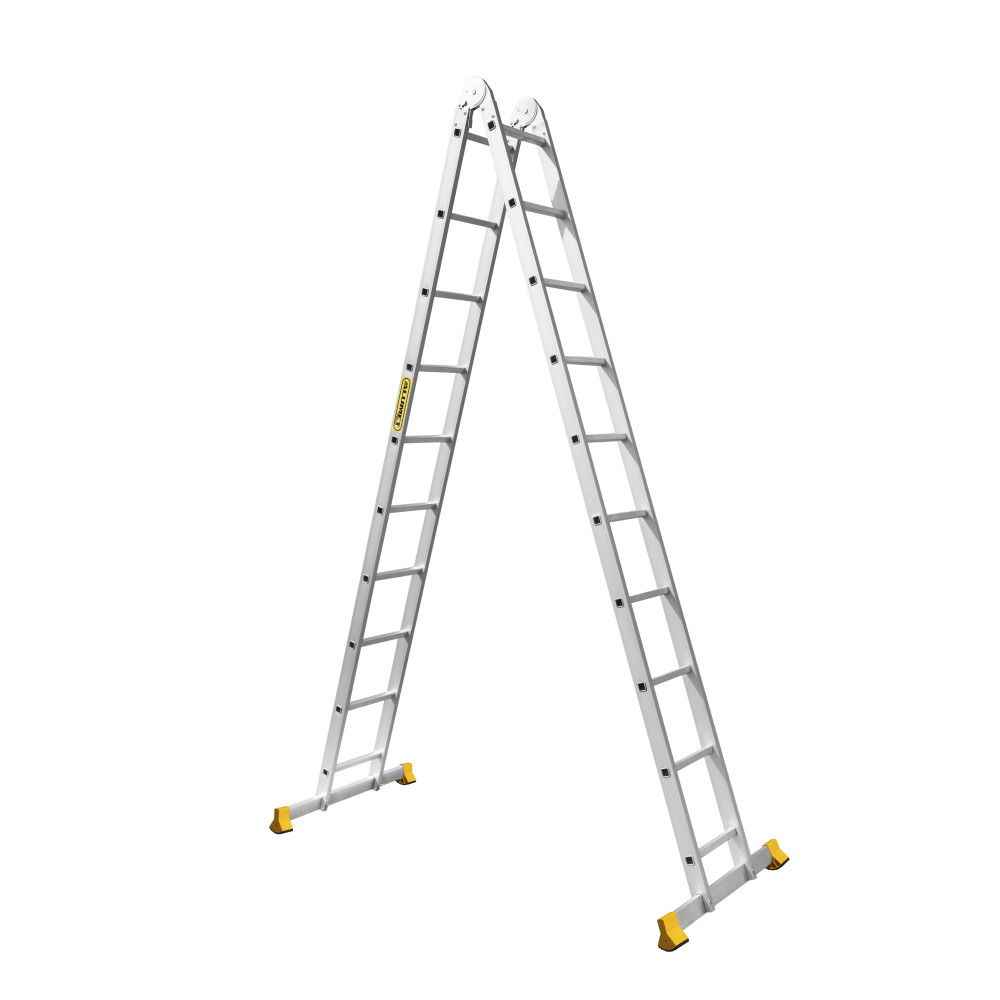

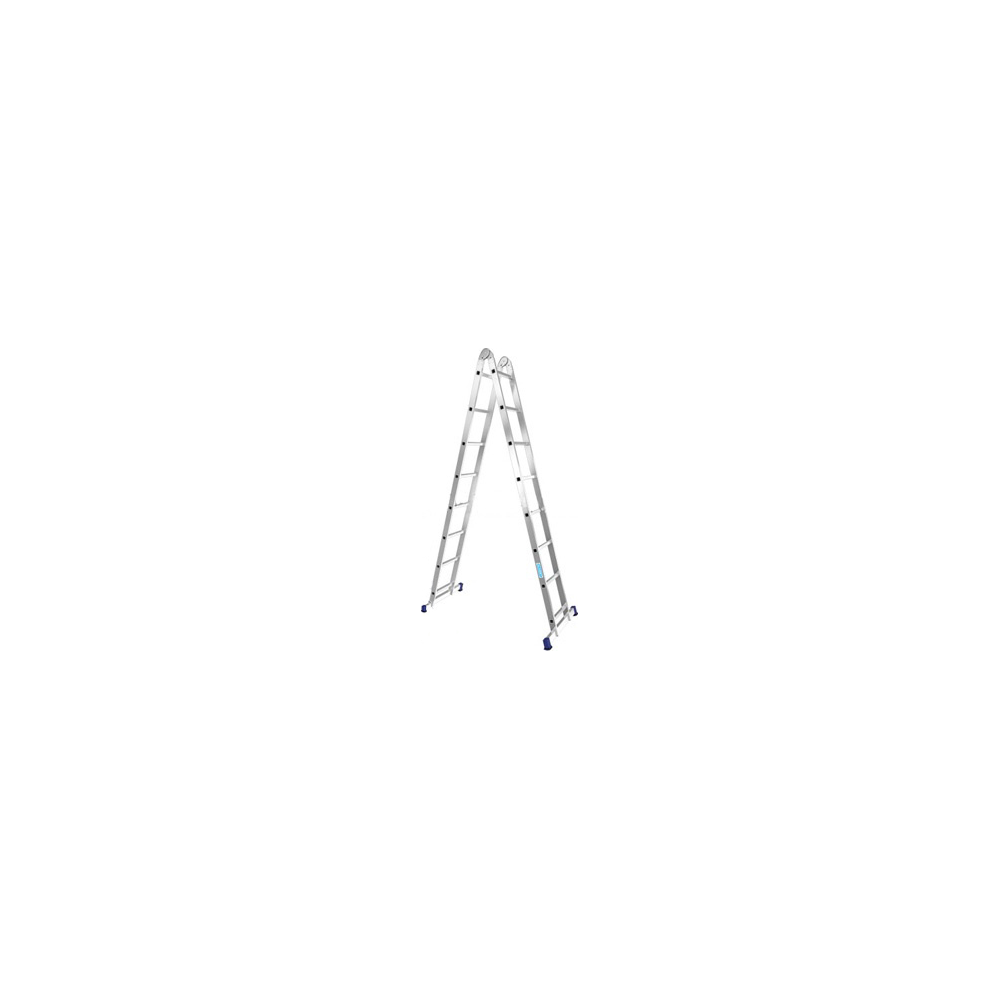

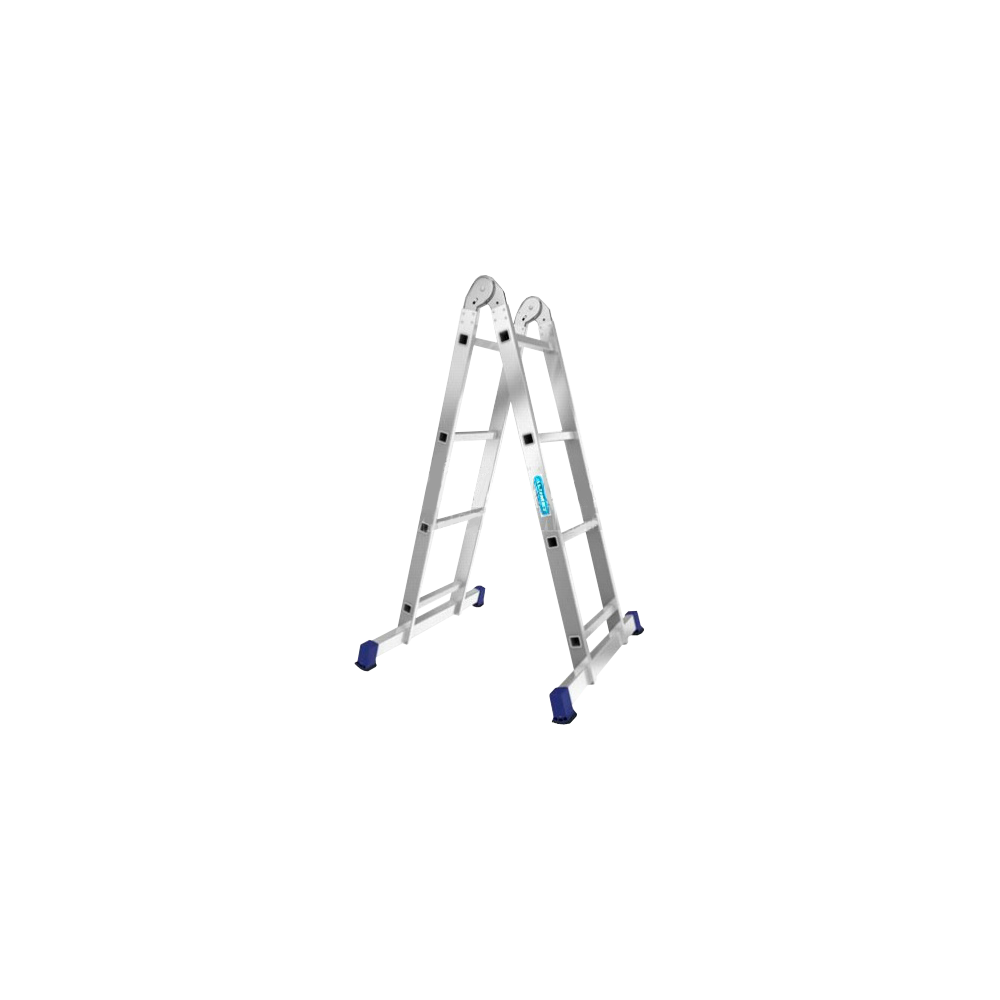

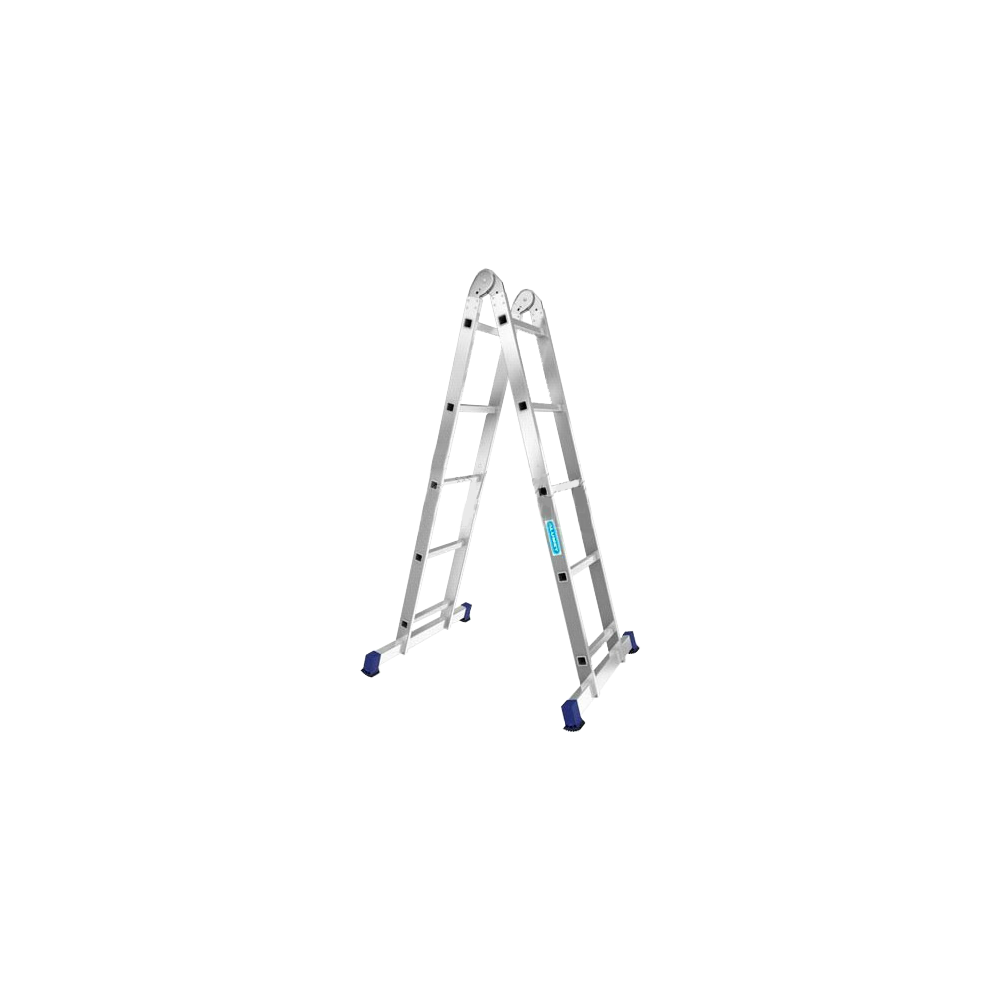

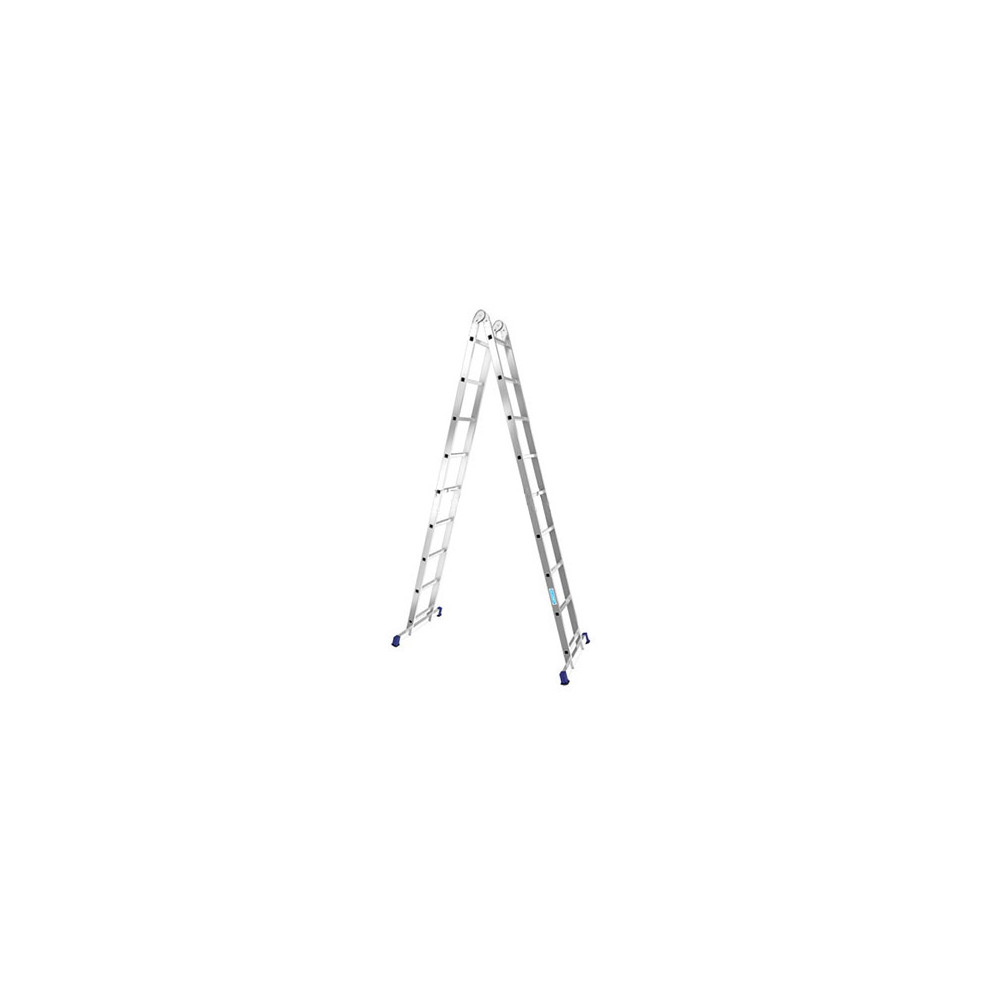

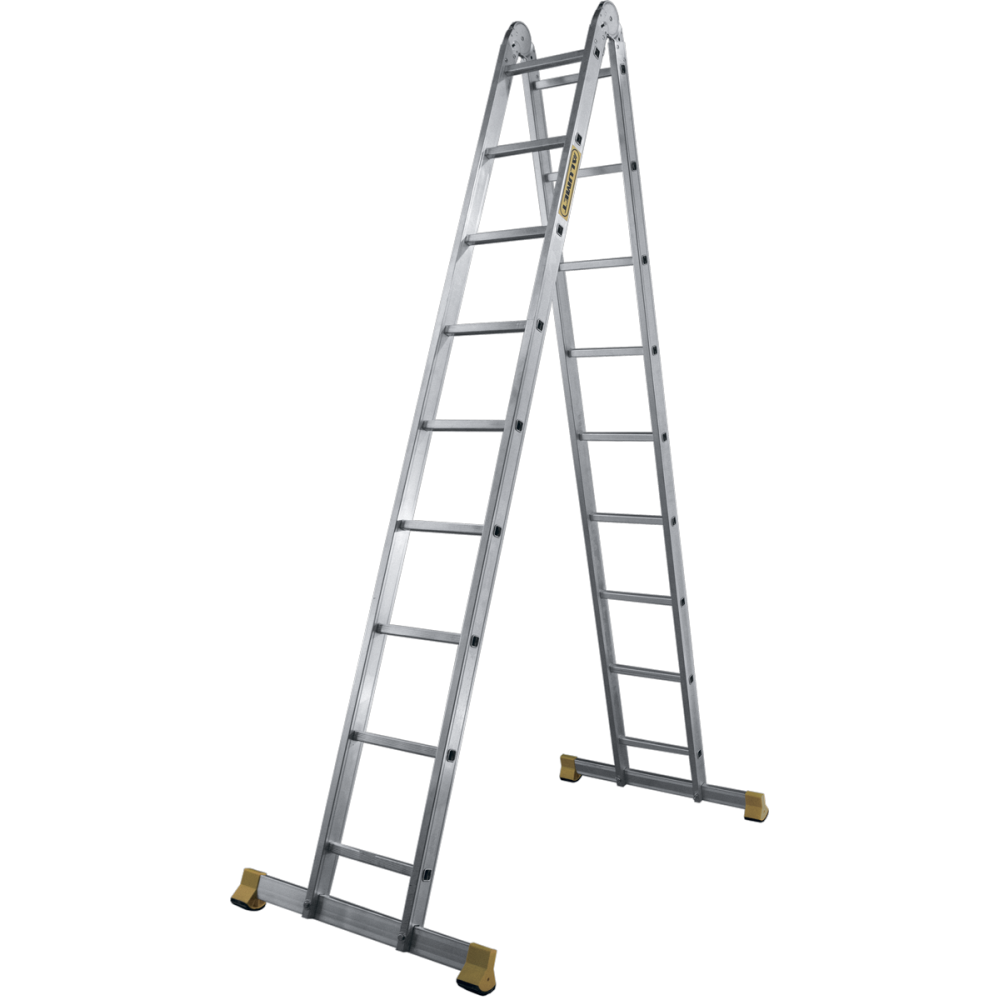

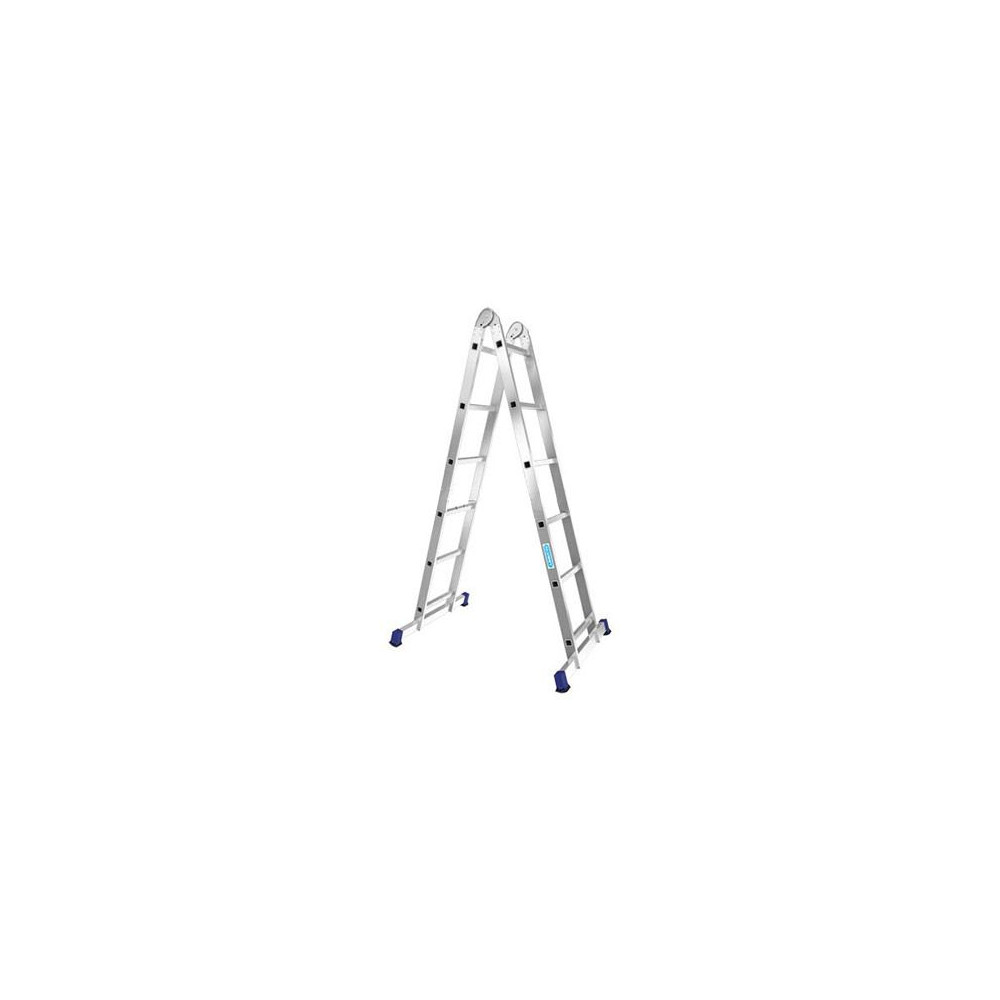

The ladder consists of two sections, interconnected by steel ladder hinges with fixing angles of 35, 105 and 180 degrees. Such ladder can be set up as a twin step ladder and a straight ladder.
The maximum number of rungs in a section for strength reasons is ten.
