Серия H3 и HS3

Aluminum Triple Section Multipurpose Ladder

Article:

H3 5306

Vendor code H3 5306
Number of steps 3x6
Section length 1.69
Length of two sections 2.54
Length of three sections 3.38
Height max 2.59
Height of two sections 3.44
Höhe von drei Abschnitten 4.28
Width 0.33/0.39/0.44
Stabilizer length 0.70
Profile 54x20

H3 5307

Vendor code H3 5307
Number of steps 3x7
Section length 1.97
Length of two sections 2.82
Length of three sections 3.94
Height max 2.87
Height of two sections 3.72
Höhe von drei Abschnitten 4.84
Width 0.33/0.39/0.44
Stabilizer length 0.70
Profile 54x20

H3 5308

Vendor code H3 5308
Number of steps 3x8
Section length 2.25
Length of two sections 3.10
Length of three sections 5.01
Height max 3.15
Height of two sections 4.00
Höhe von drei Abschnitten 5.91
Width 0.33/0.39/0.44
Stabilizer length 0.80
Profile 60x20

H3 5309

Vendor code H3 5309
Number of steps 3x9
Section length 2.53
Length of two sections 4.22
Length of three sections 5.62
Height max 3.43
Height of two sections 5.12
Höhe von drei Abschnitten 6.52
Width 0.33/0.39/0.44
Stabilizer length 0.8
Profile 60x20

H3 5310

Vendor code H3 5310
Number of steps 3x10
Section length 2.81
Length of two sections 4.30
Length of three sections 6.46
Height max 3.71
Height of two sections 5.70
Höhe von drei Abschnitten 7.36
Width 0.33/0.39/0.44
Stabilizer length 0.90
Profile 71.5x20

H3 5311

Vendor code H3 5311
Number of steps 3x11
Section length 3.1
Length of two sections 5.06
Length of three sections 7.3
Height max 3.99
Height of two sections 5.91
Höhe von drei Abschnitten 8.2
Width 0.33/0.39/0.44
Stabilizer length 0.9
Profile 71.5x20

H3 5312

Vendor code H3 5312
Number of steps 3x12
Section length 3.38
Length of two sections 5.62
Length of three sections 7.89
Height max 4.27
Height of two sections 6.52
Höhe von drei Abschnitten 8.79
Width 0.33/0.39/0.44
Stabilizer length 1.00
Profile 71.5x20

H3 5313

Vendor code H3 5313
Number of steps 3x13
Section length 3.66
Length of two sections 6.18
Length of three sections 8.70
Height max 4.58
Height of two sections 7.08
Höhe von drei Abschnitten 9.60
Width 0.33/0.39/0.44
Stabilizer length 1.00
Profile 71.5x20

H3 5314

Vendor code H3 5314
Number of steps 3x14
Section length 3.94
Length of two sections 6.74
Length of three sections 9.26
Height max 4.83
Height of two sections 7.64
Höhe von drei Abschnitten 10.16
Width 0.33/0.39/0.44
Stabilizer length 1
Profile 71.5x20

HS3 6312

Vendor code HS3 6312
Number of steps 3x12
Section length 3.39
Length of two sections 5.89
Length of three sections 8.43
Height max 4.20
Height of two sections 6.79
Höhe von drei Abschnitten 9.33
Width 0.33/0.39/0.44
Stabilizer length 1.00
Profile 82x20

HS3 6313

Vendor code HS3 6313
Number of steps 3x13
Section length 3.67
Length of two sections 6.45
Length of three sections 9.27
Height max 4.57
Height of two sections 7.35
Höhe von drei Abschnitten 10.17
Width 0.33/0.39/0.44
Stabilizer length 1.00
Profile 82x20

HS3 6314

Vendor code HS3 6314
Number of steps 3x14
Section length 3.95
Length of two sections 7.01
Length of three sections 10.11
Height max 4.85
Height of two sections 7.91
Höhe von drei Abschnitten 11.01
Width 0.33/0.39/0.44
Stabilizer length 1.00
Profile 82x20

HS3 6315

Vendor code HS3 6315
Number of steps 3x15
Section length 4.23
Length of two sections 7.57
Length of three sections 10.95
Height max 5.13
Height of two sections 8.41
Höhe von drei Abschnitten 11.85
Width 0.33/0.39/0.44
Stabilizer length 1.00
Profile 82x20

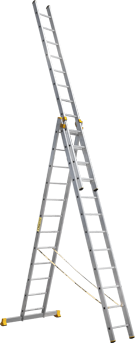

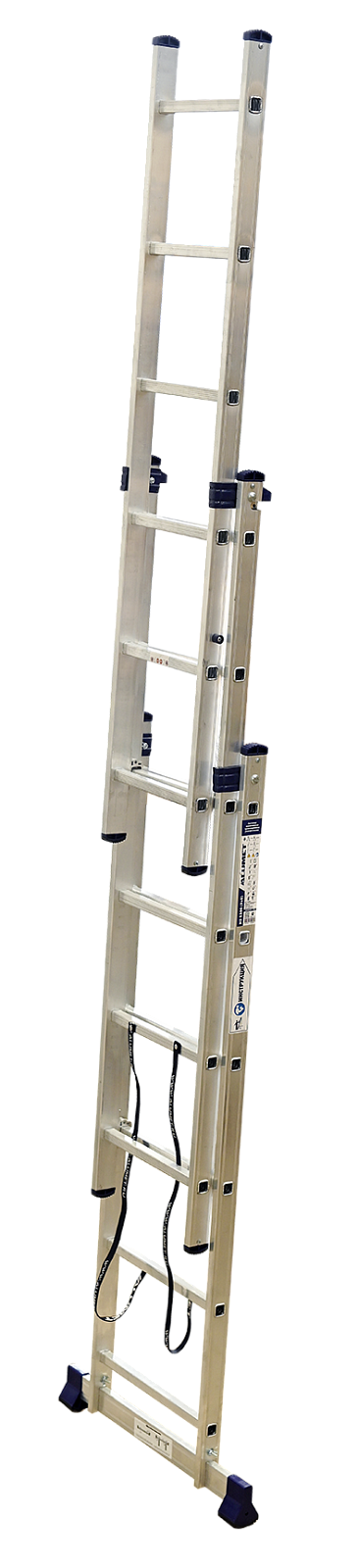

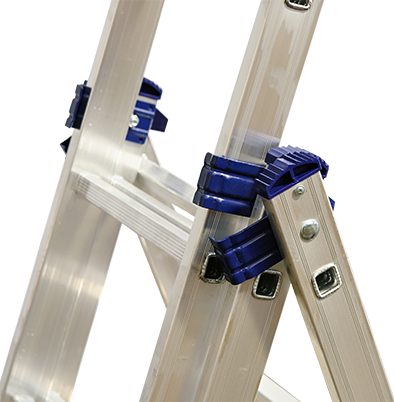

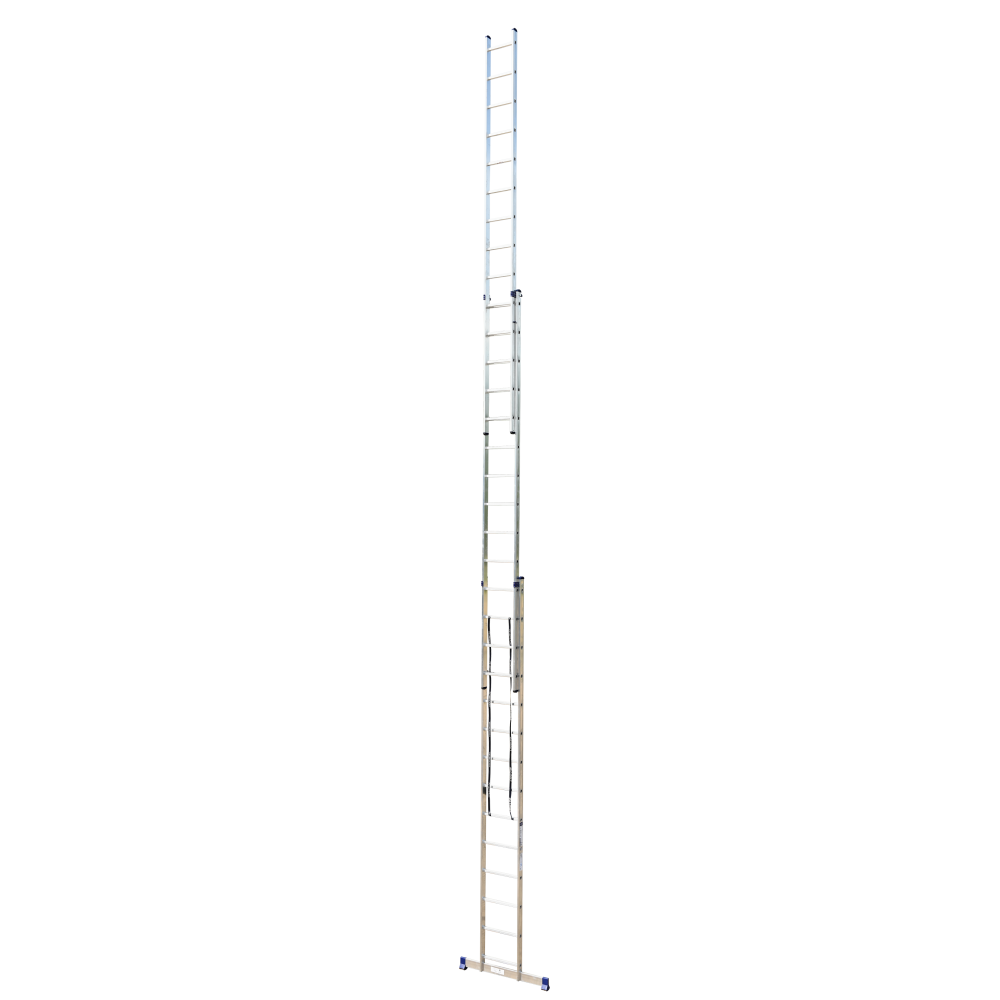

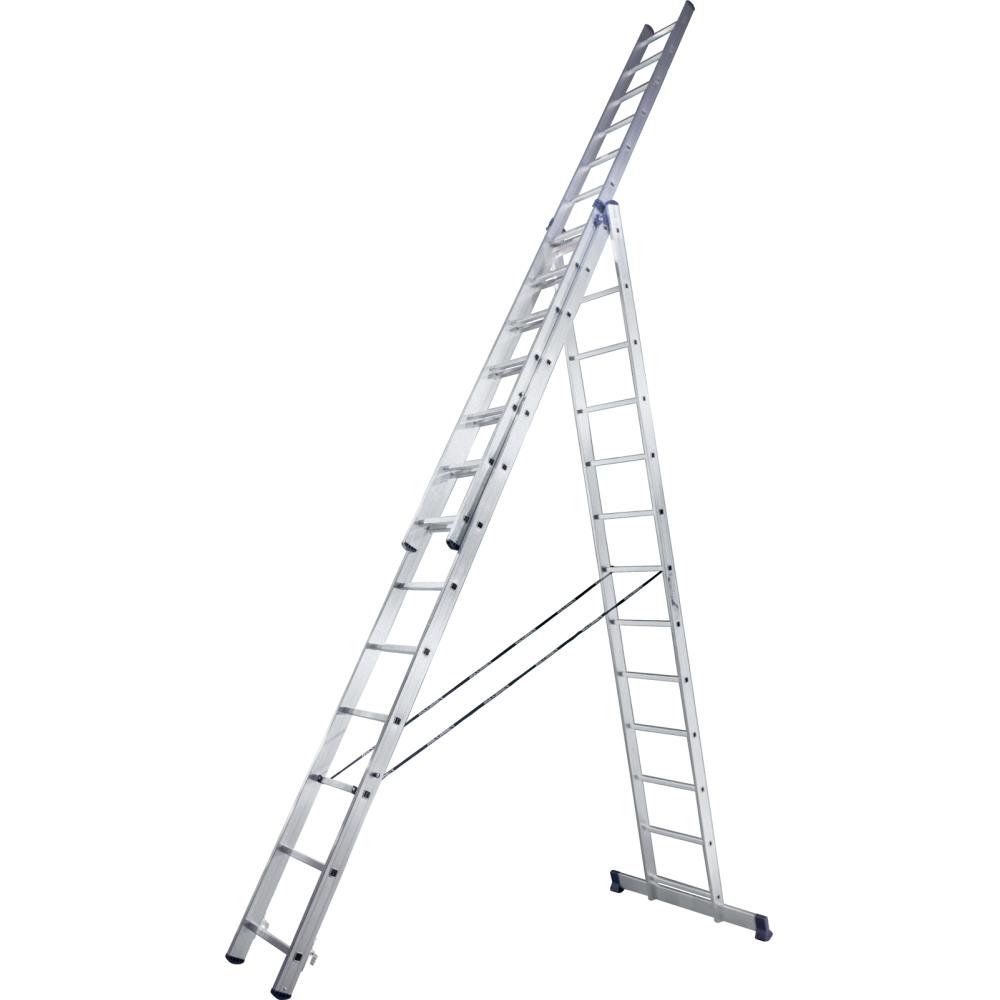

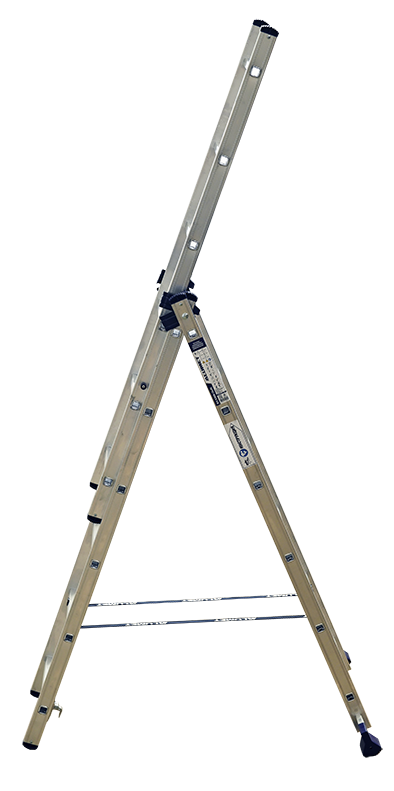

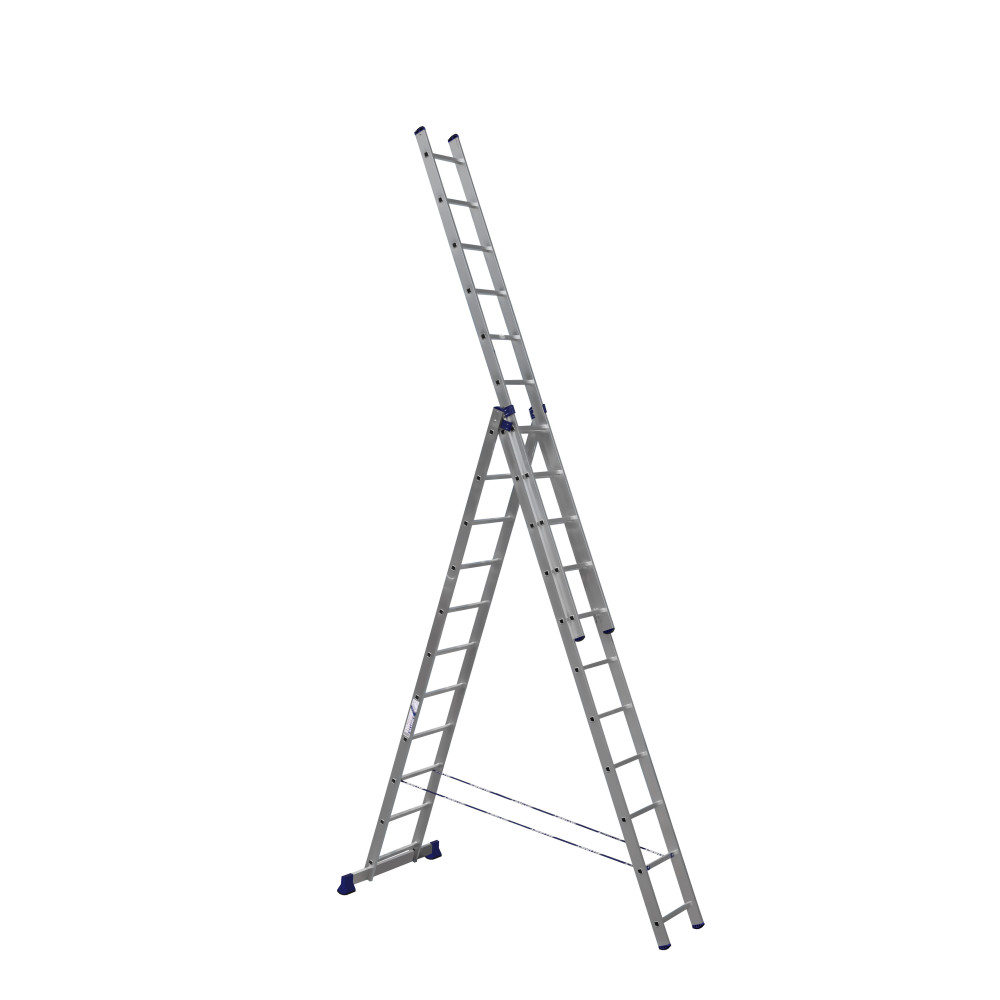

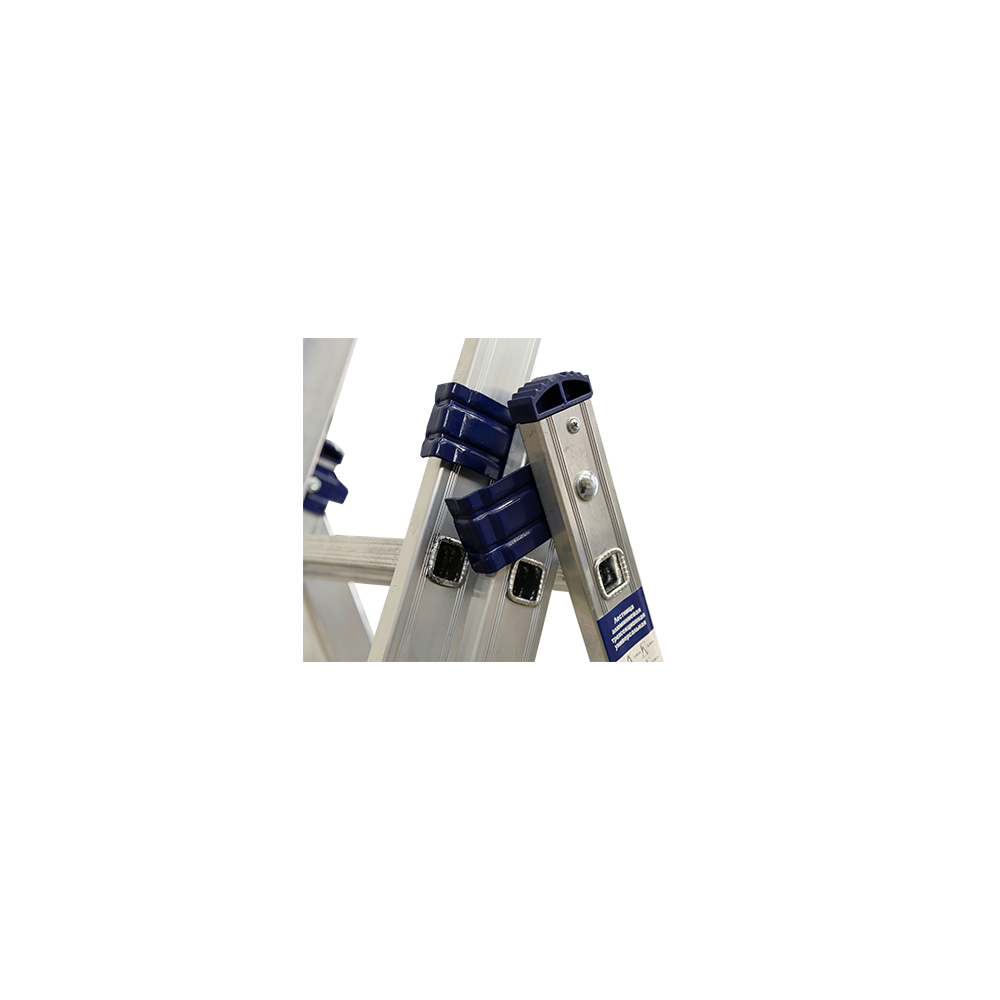

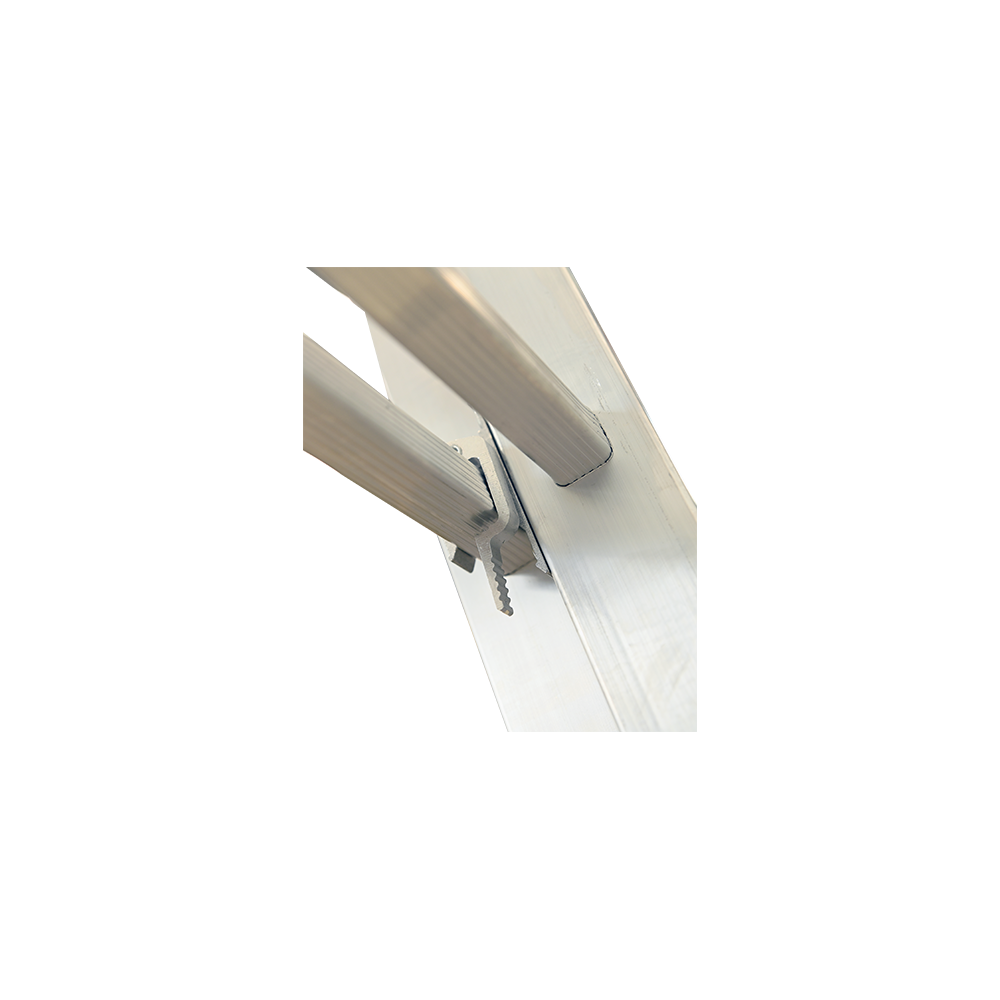

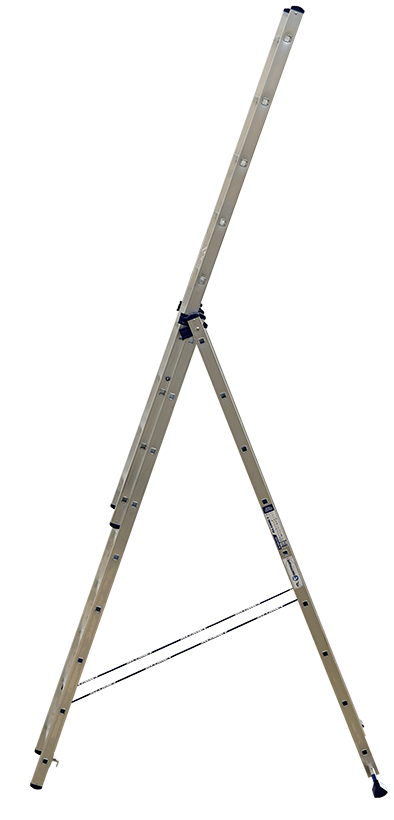

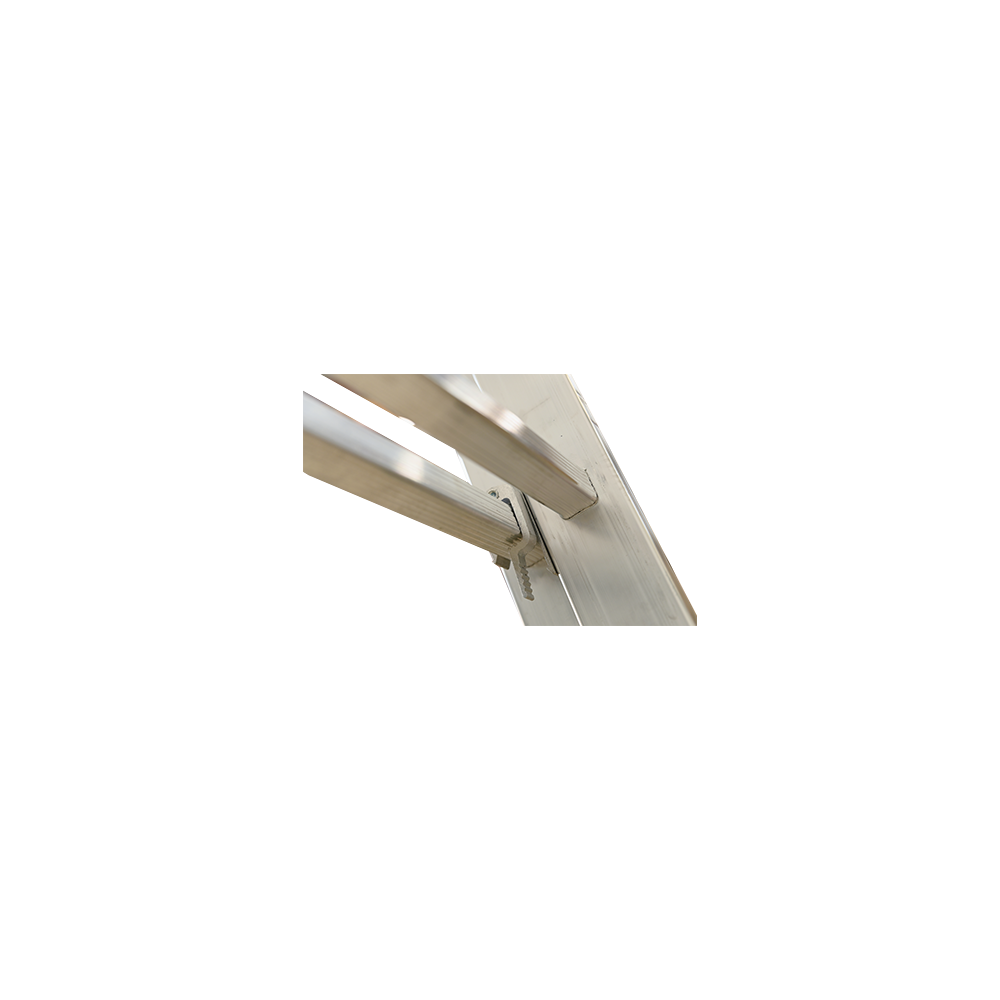

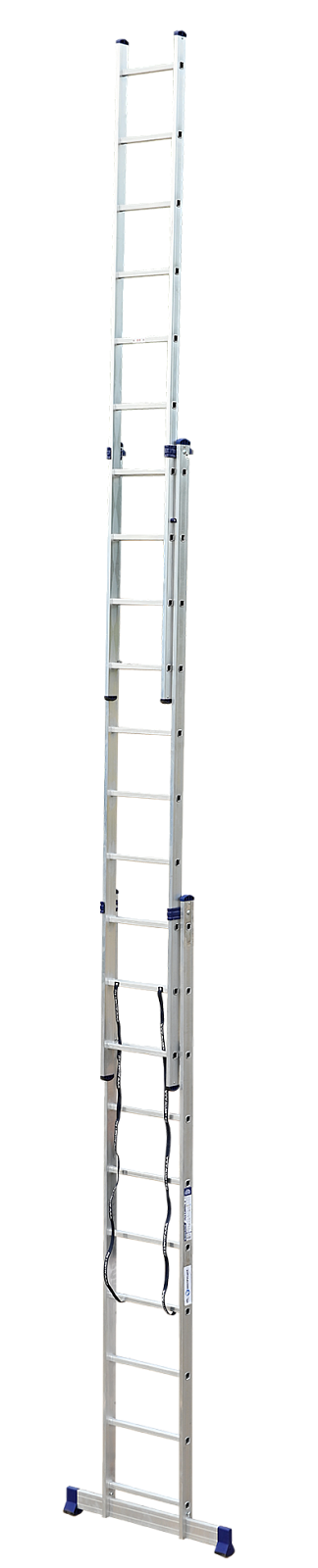

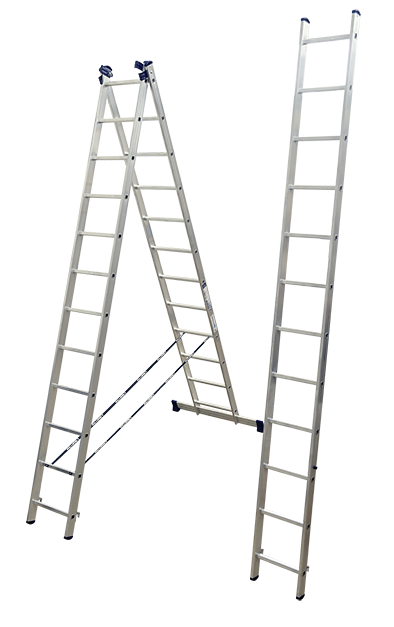

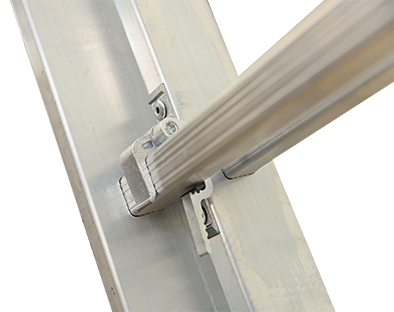

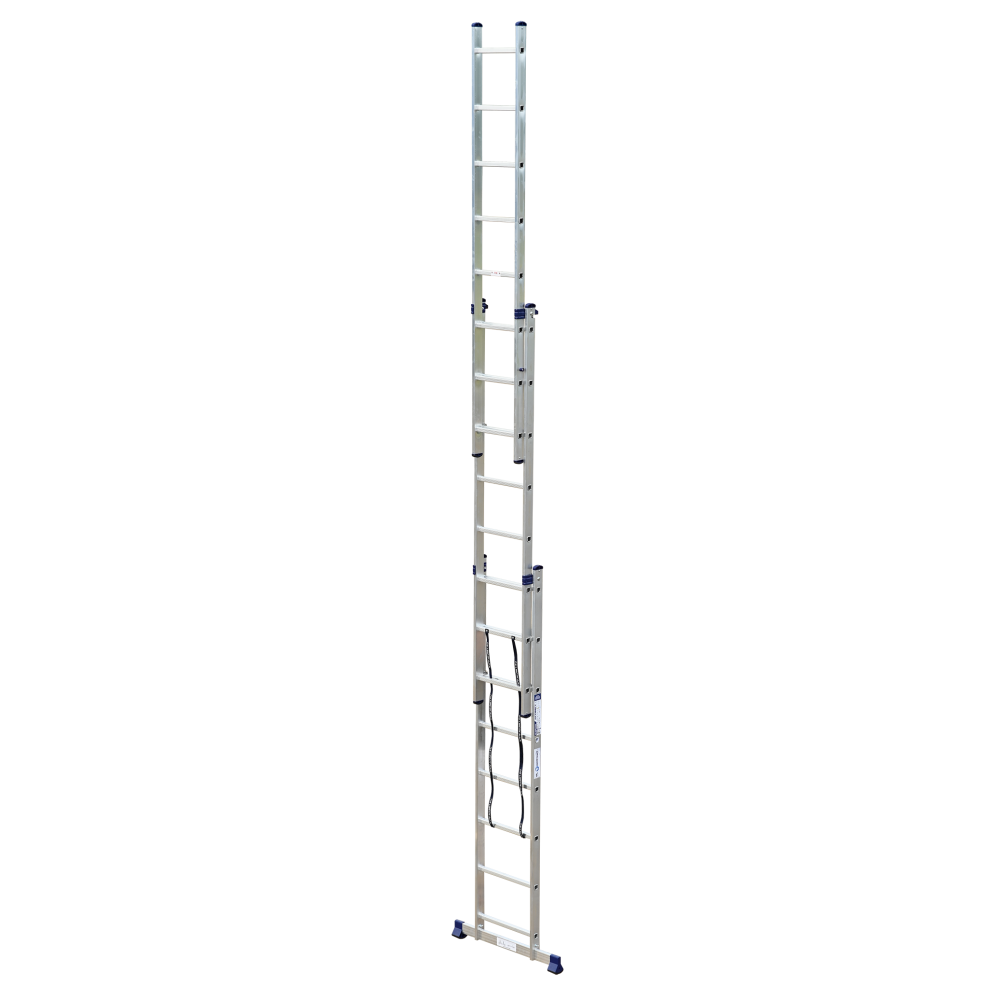

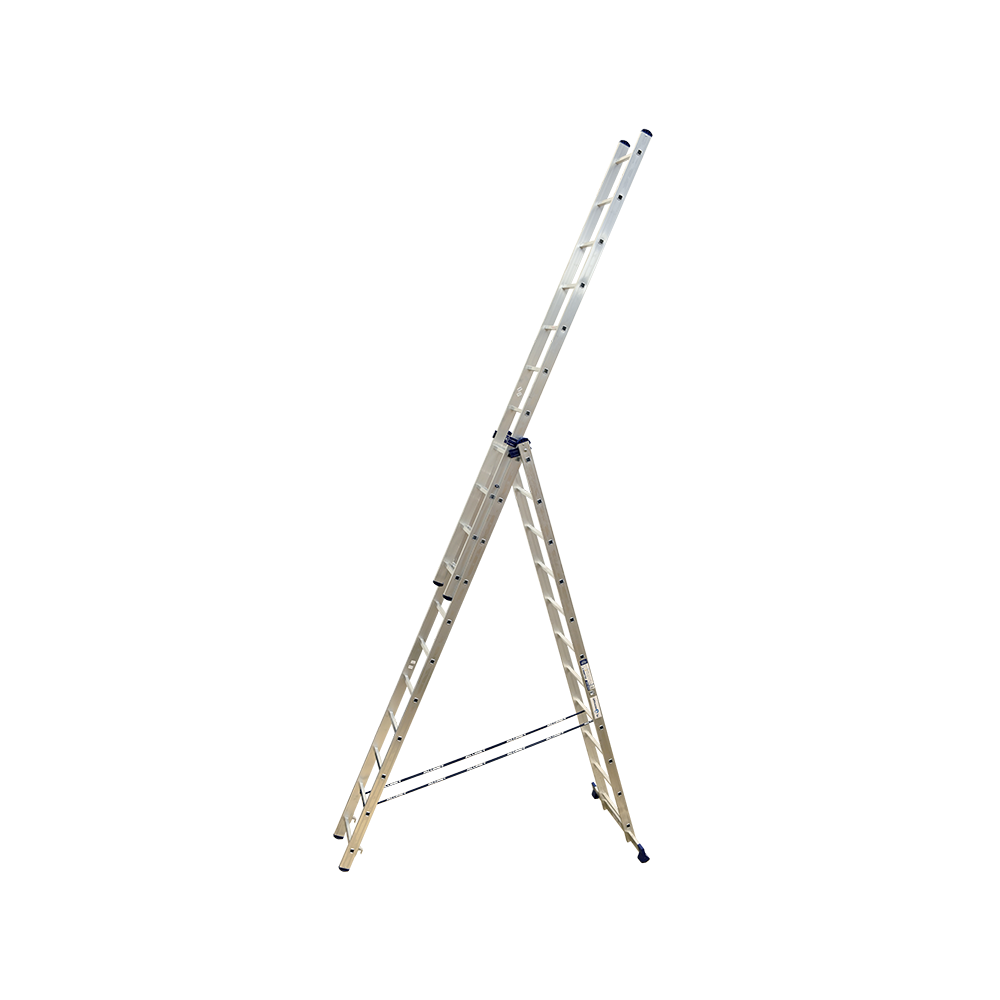

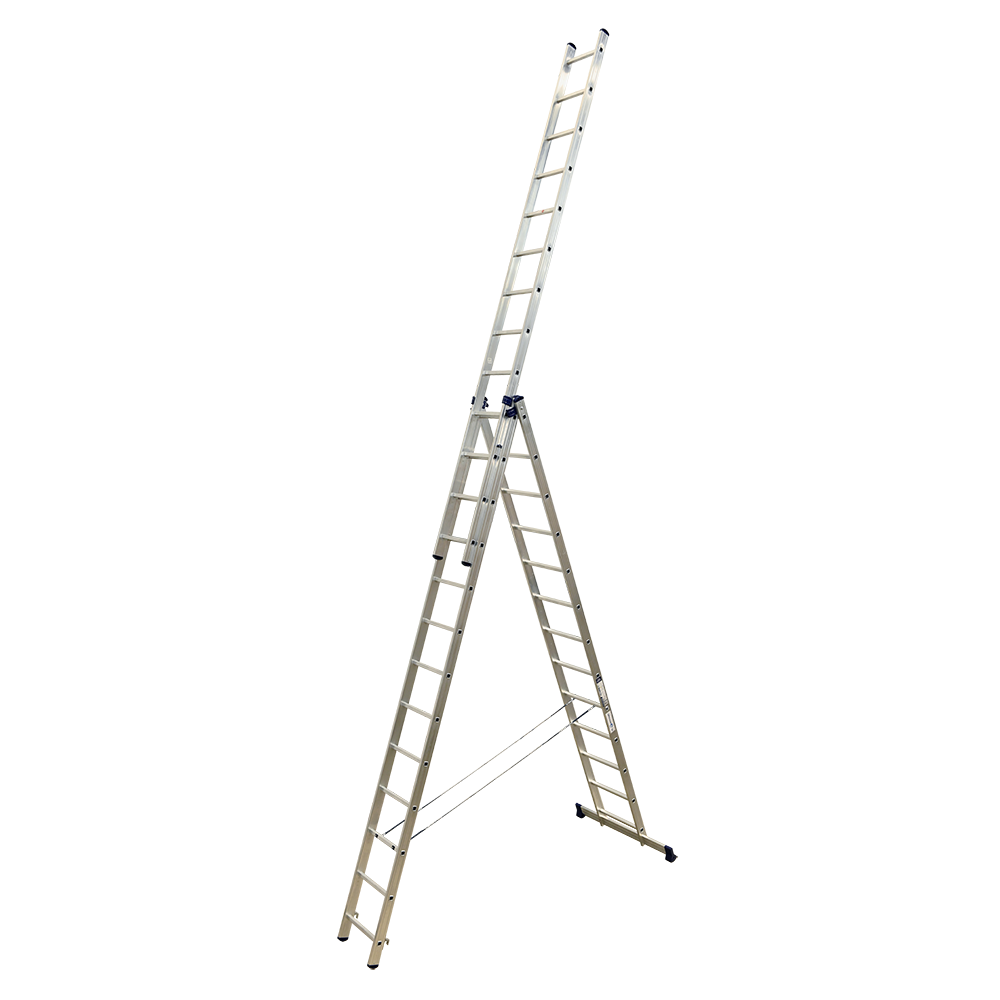

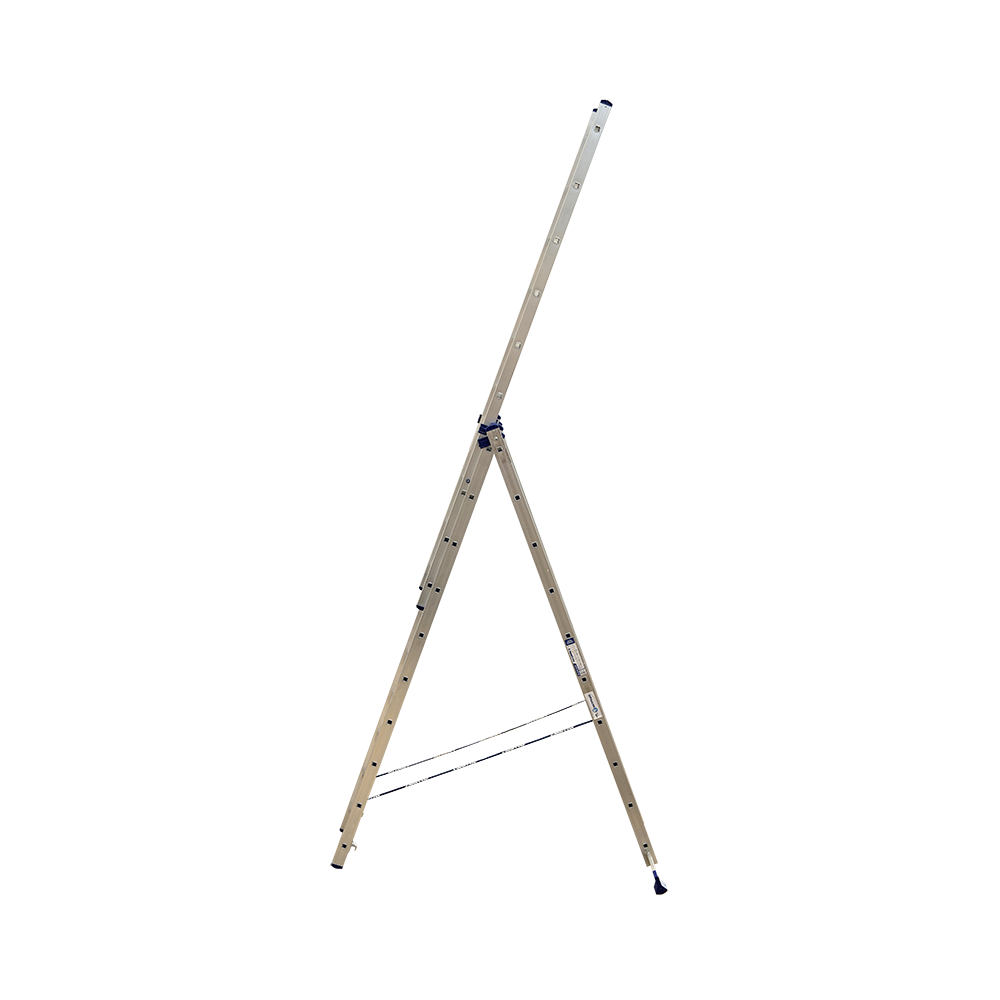

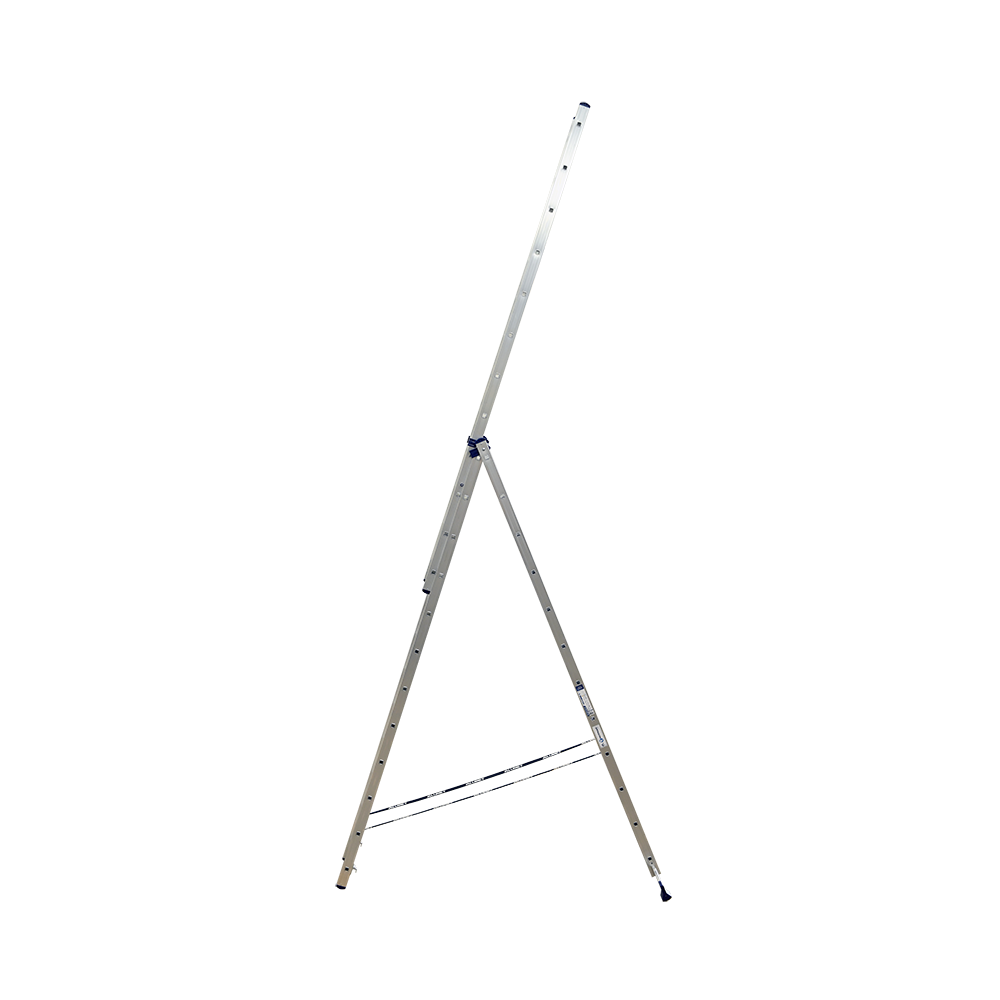

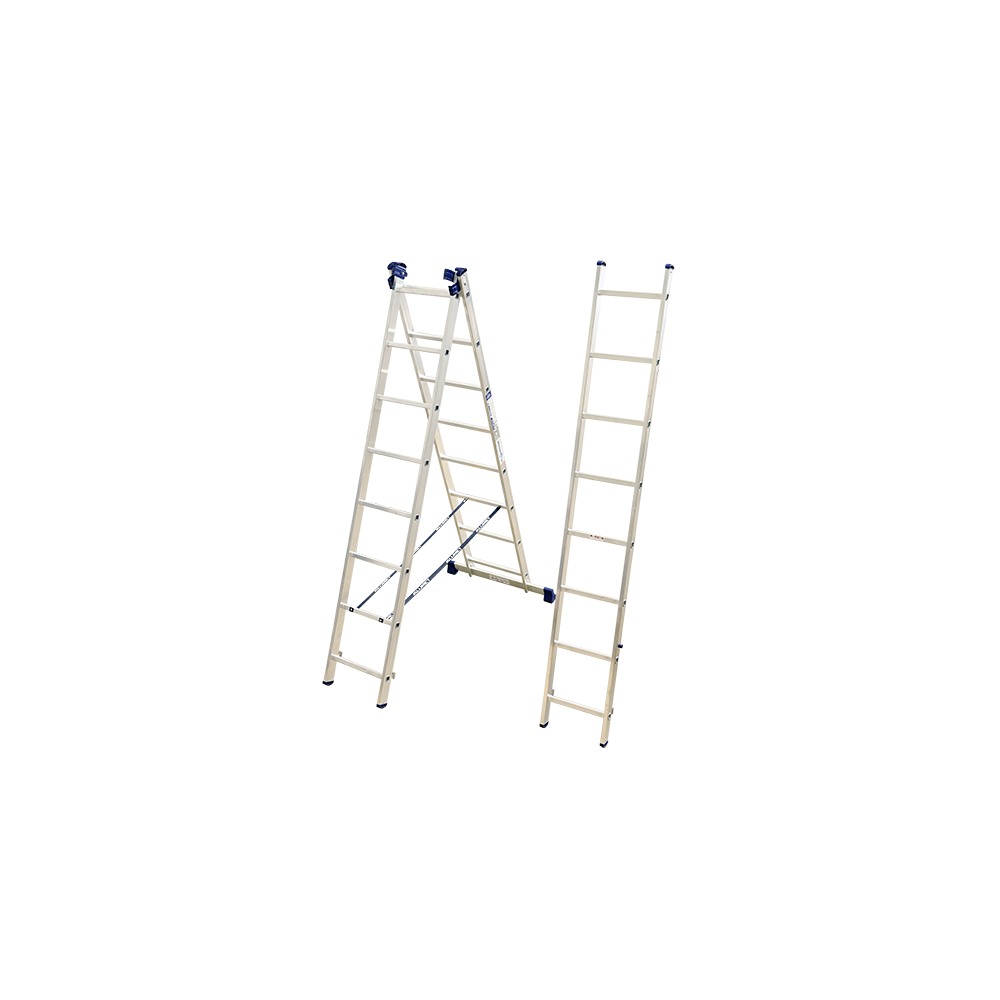

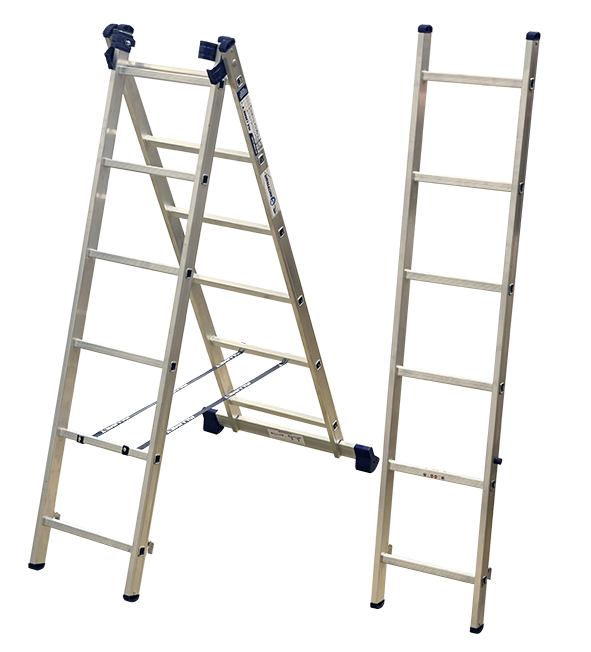

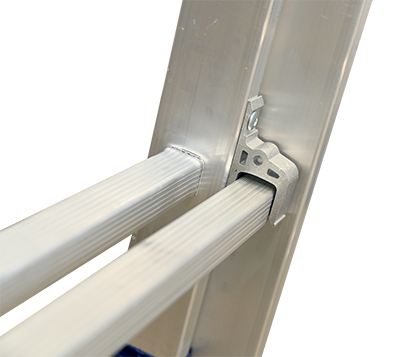

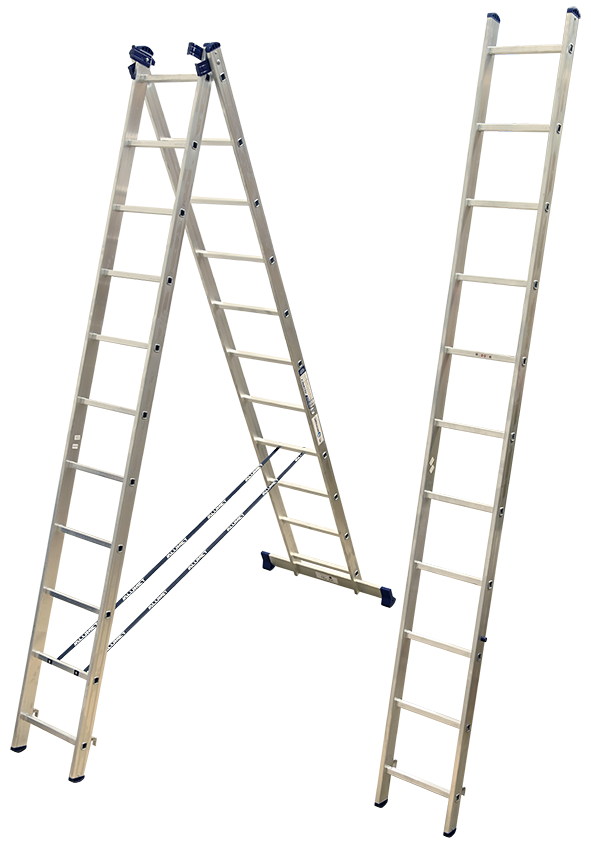

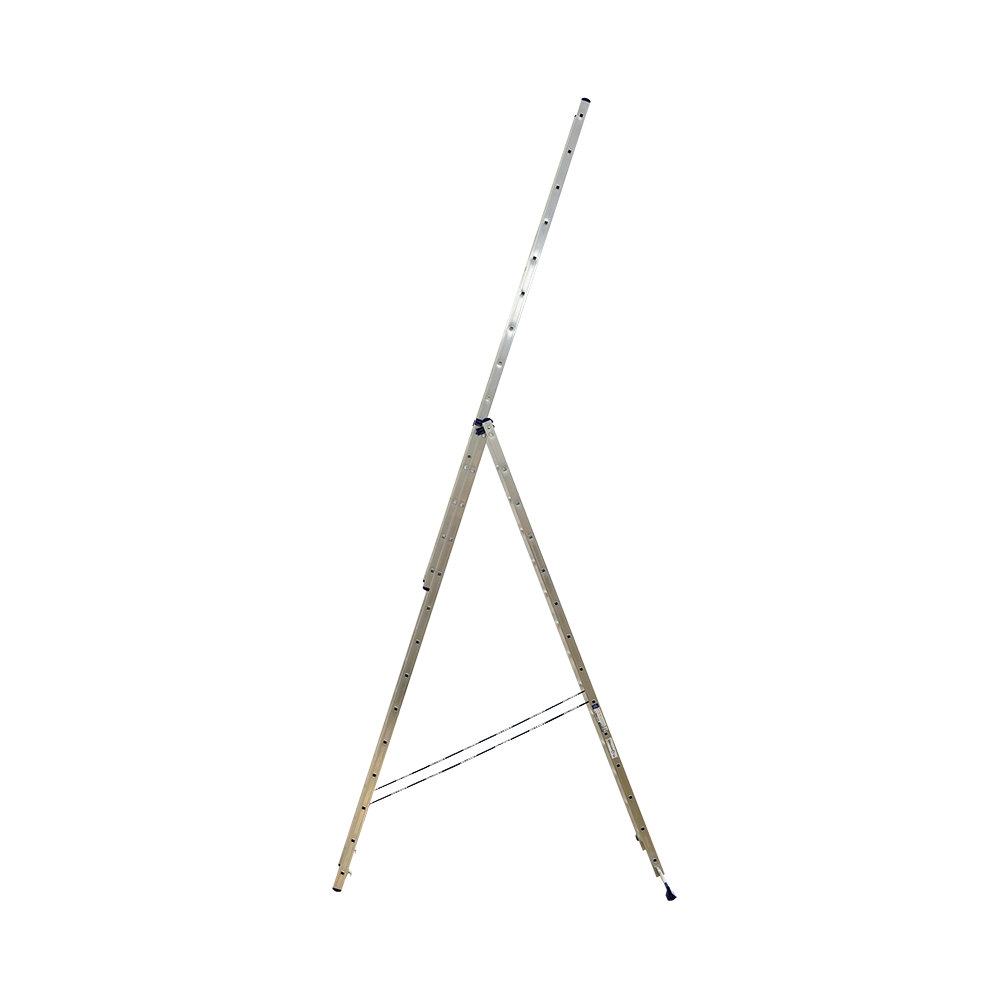

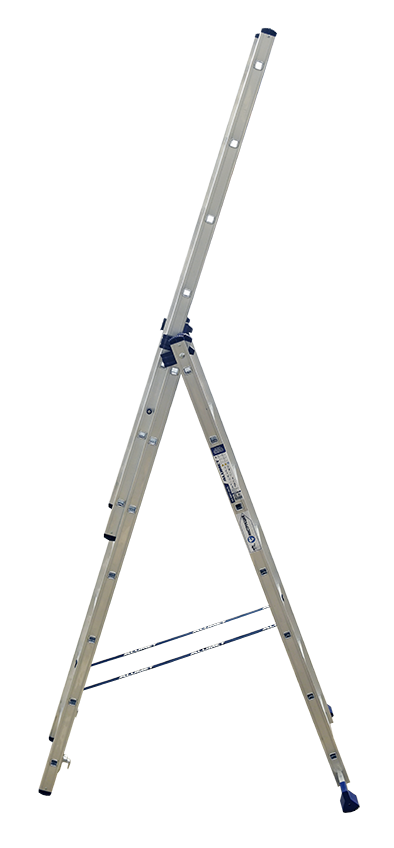

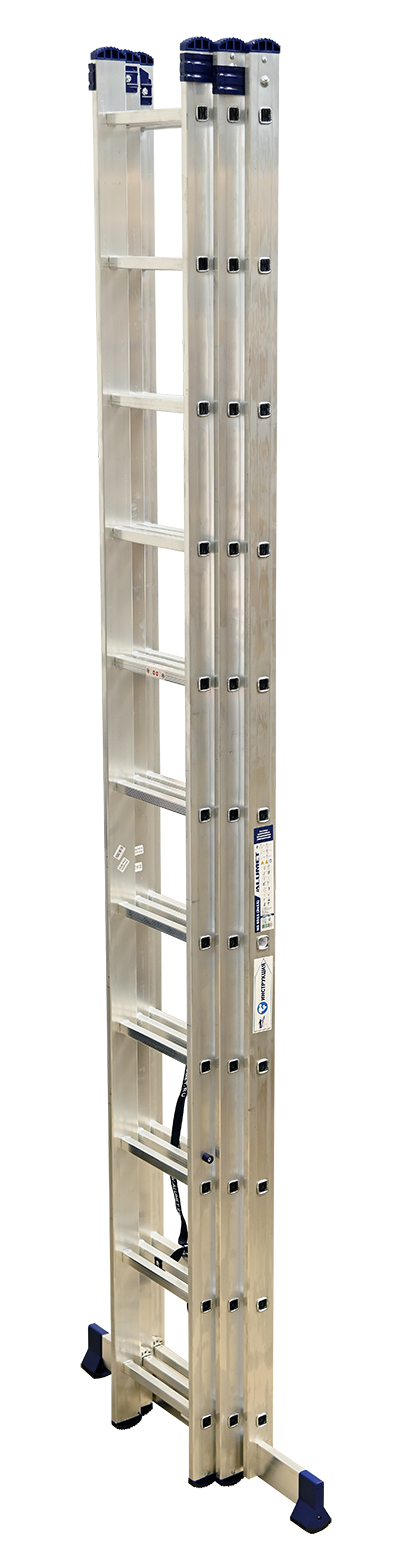

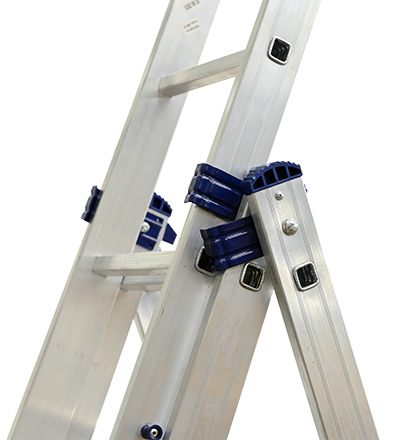

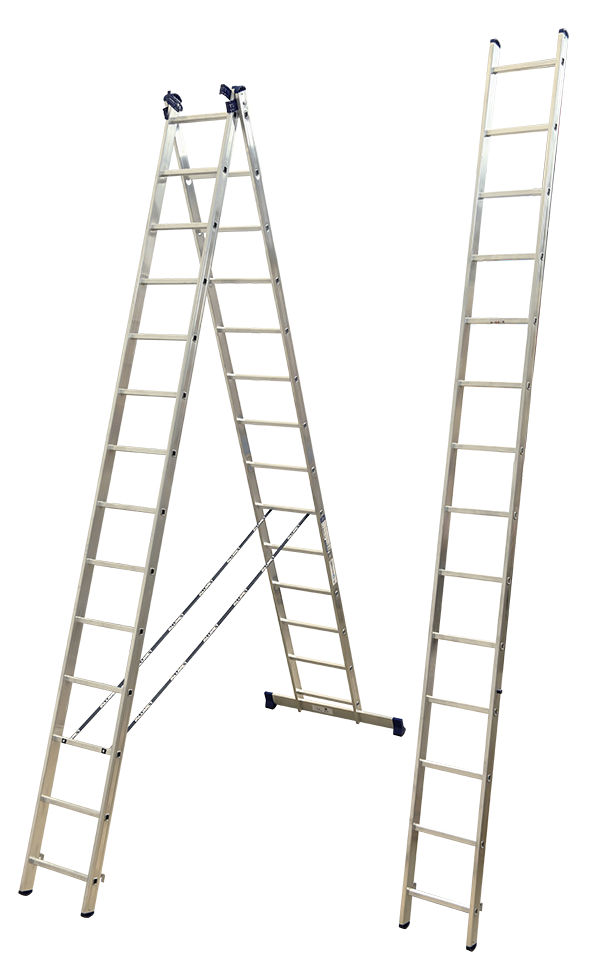

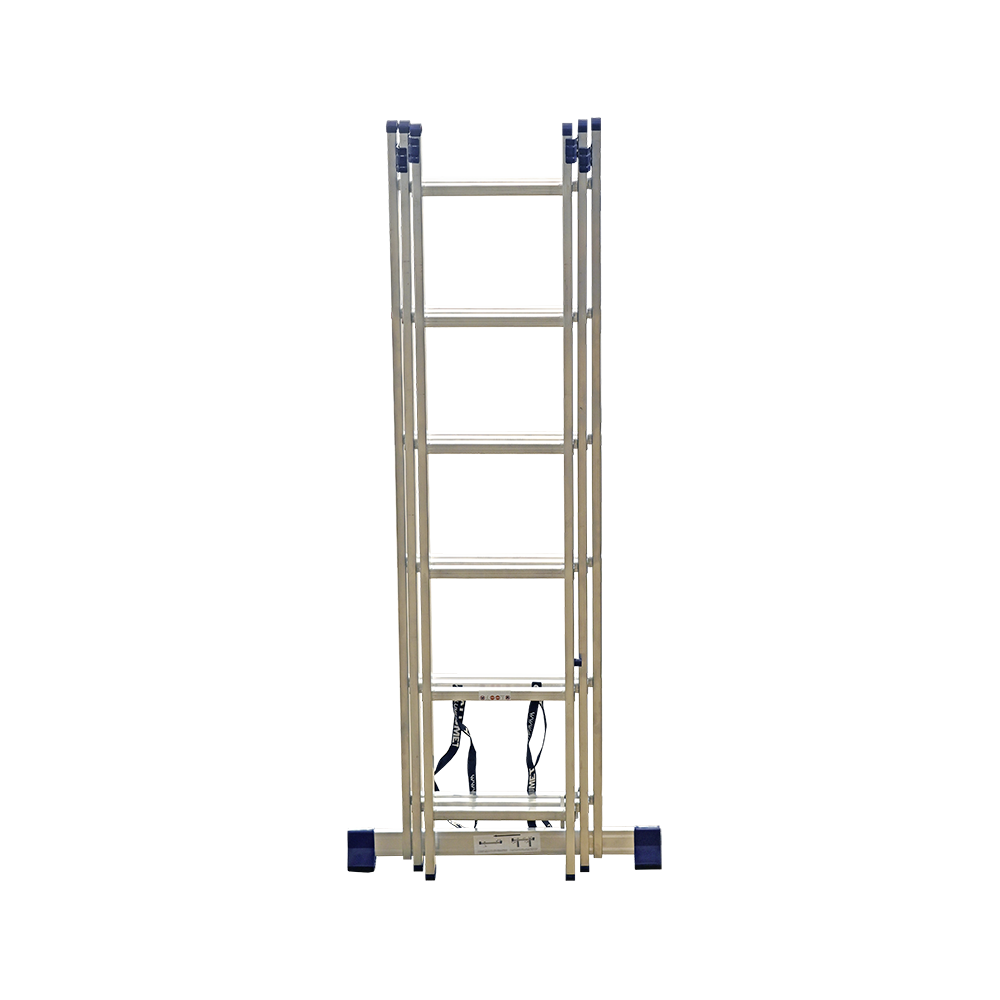

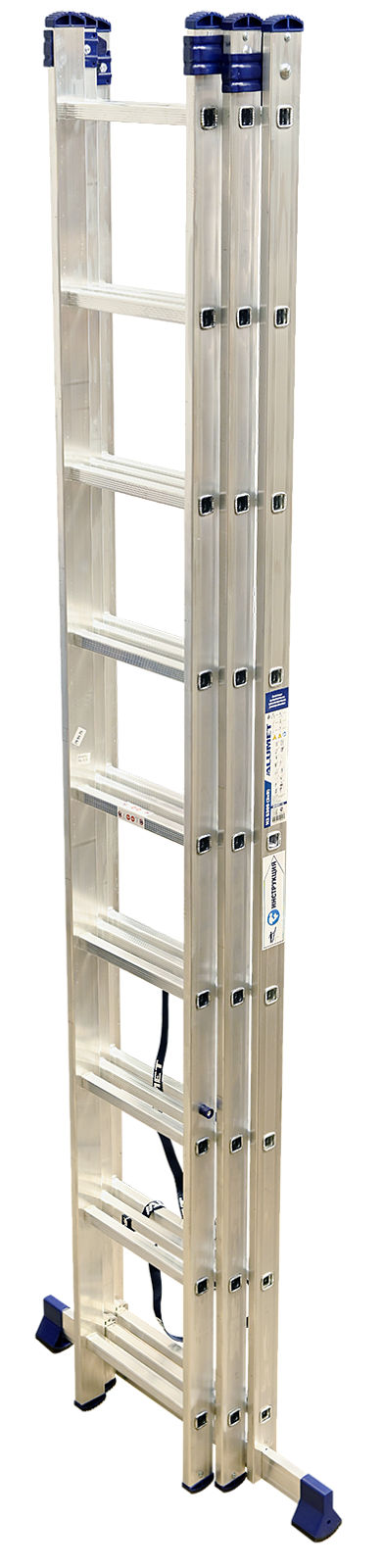

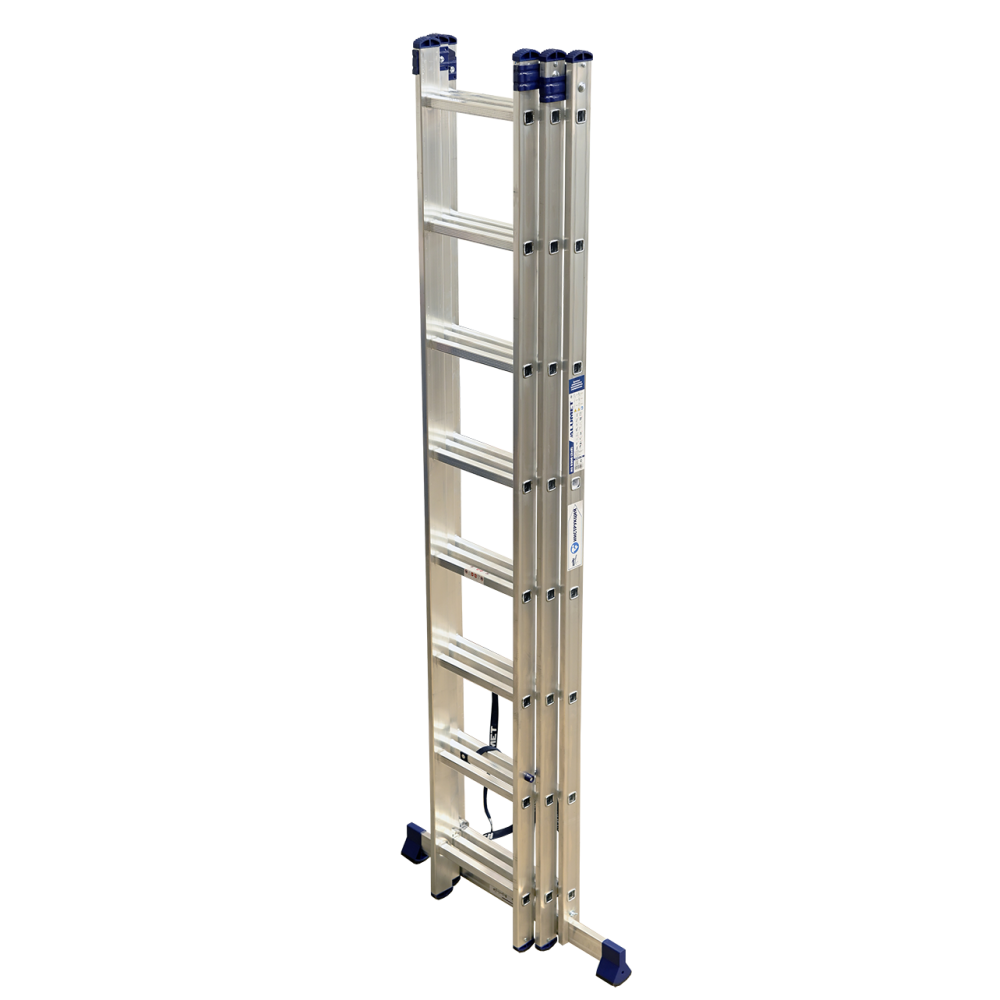

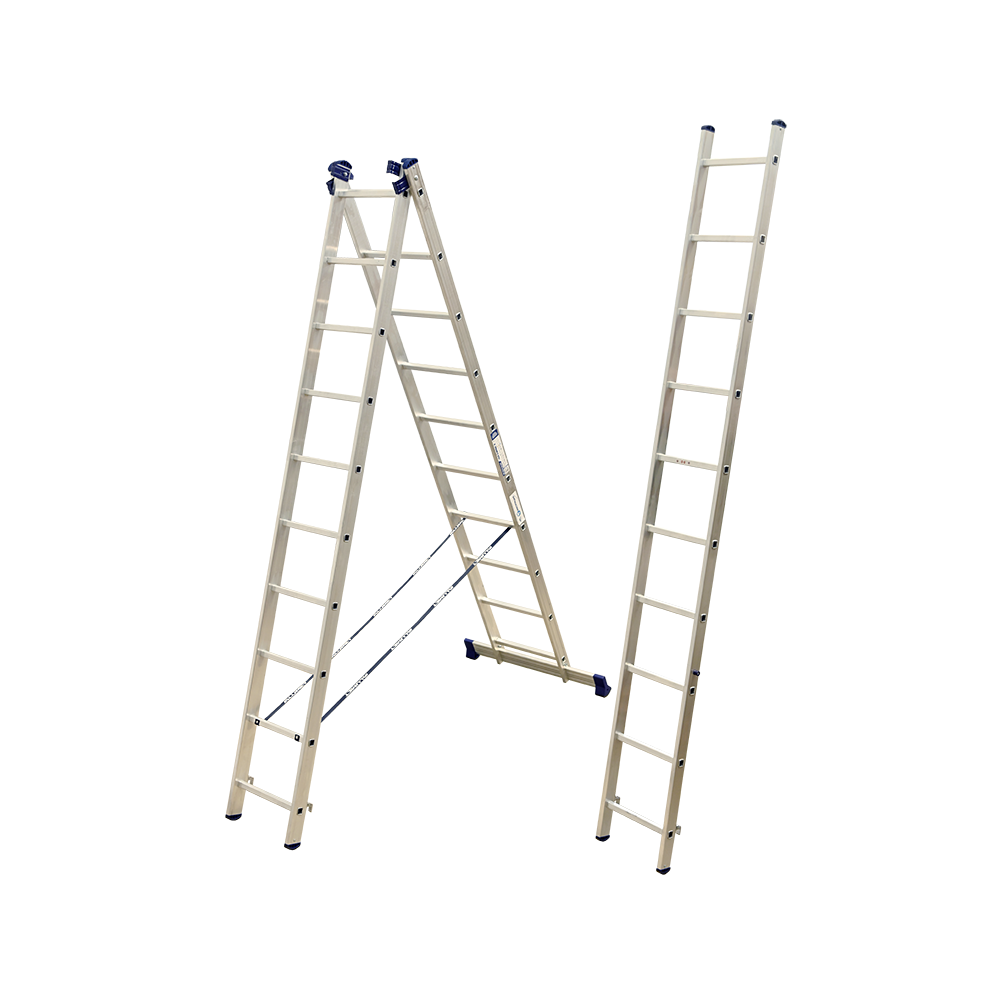

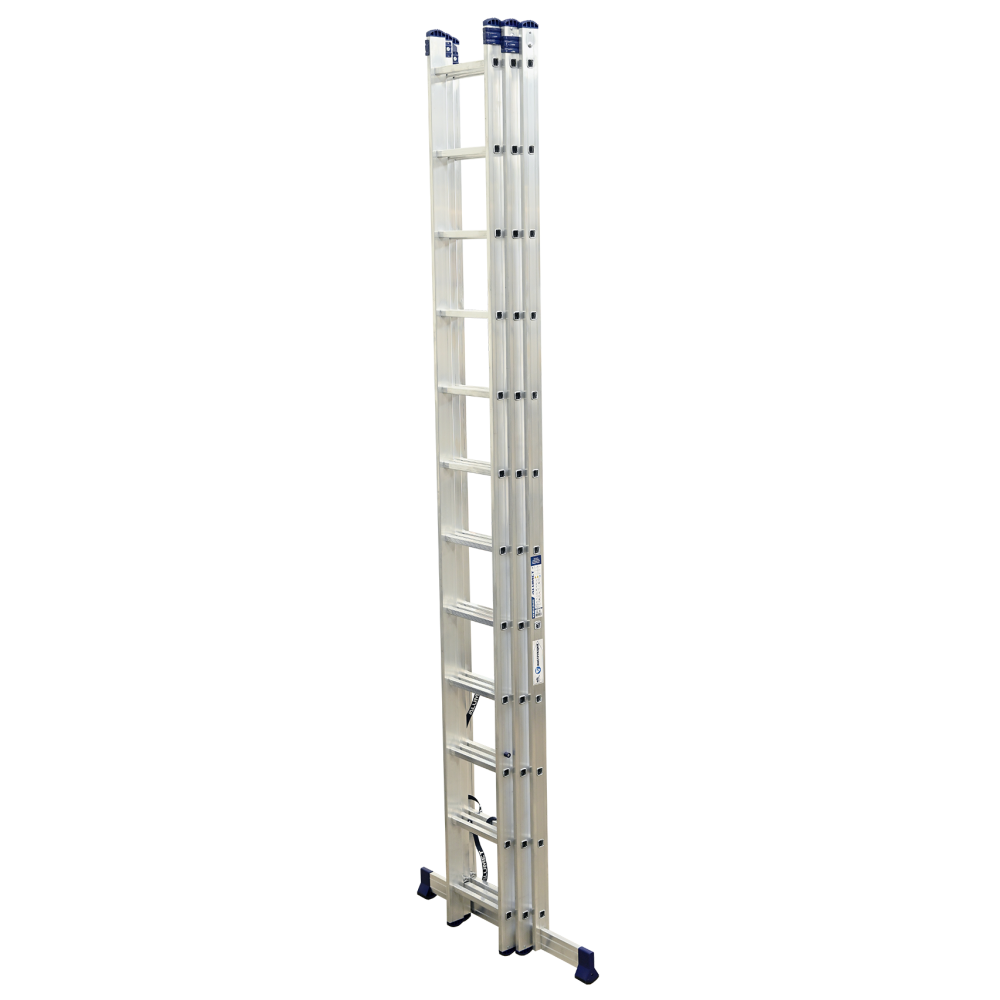

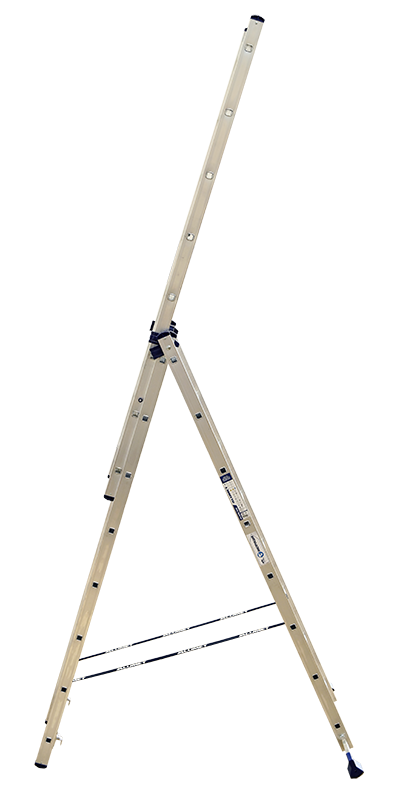

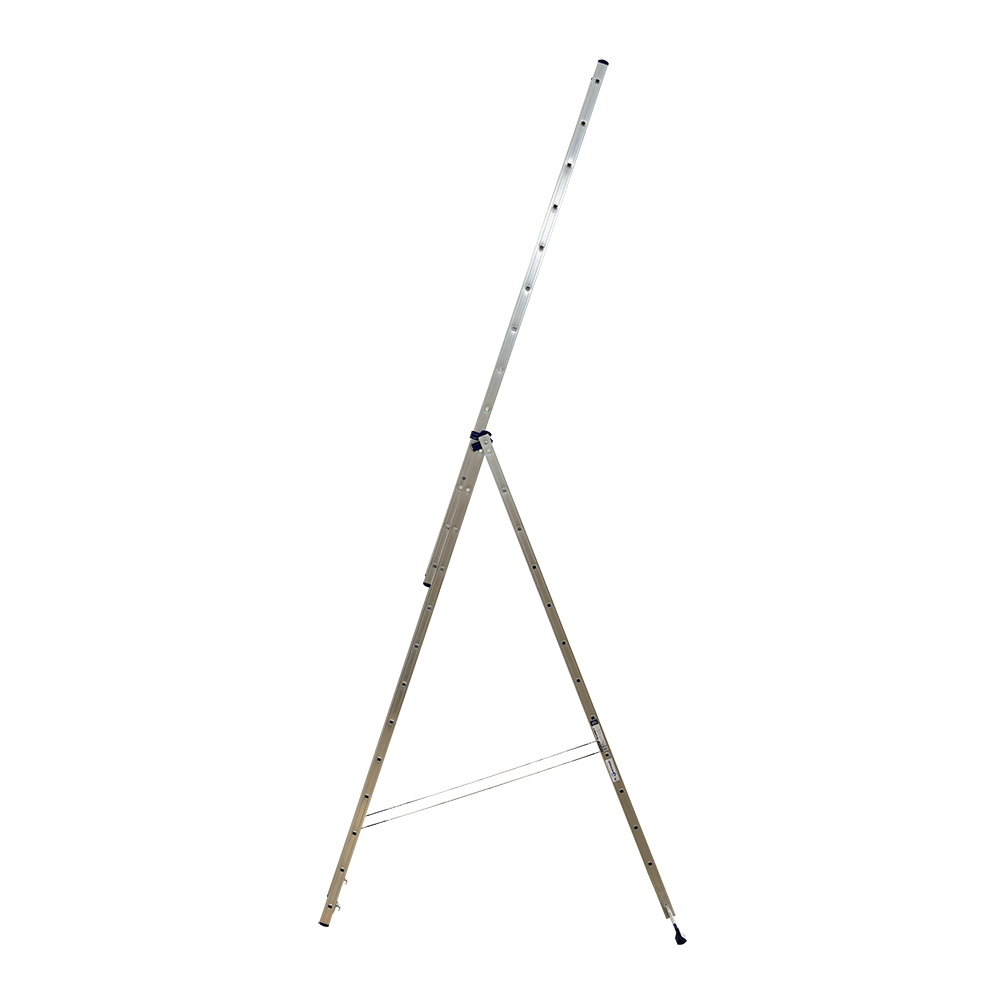

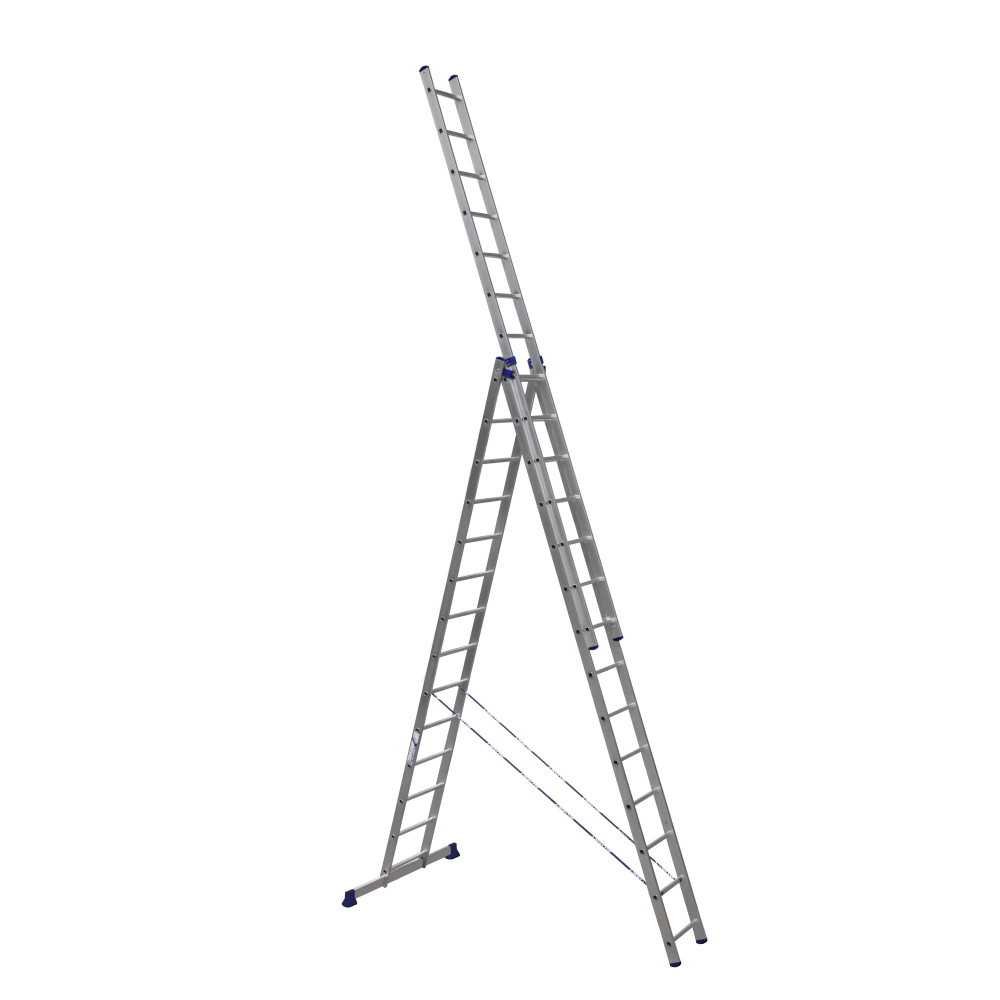

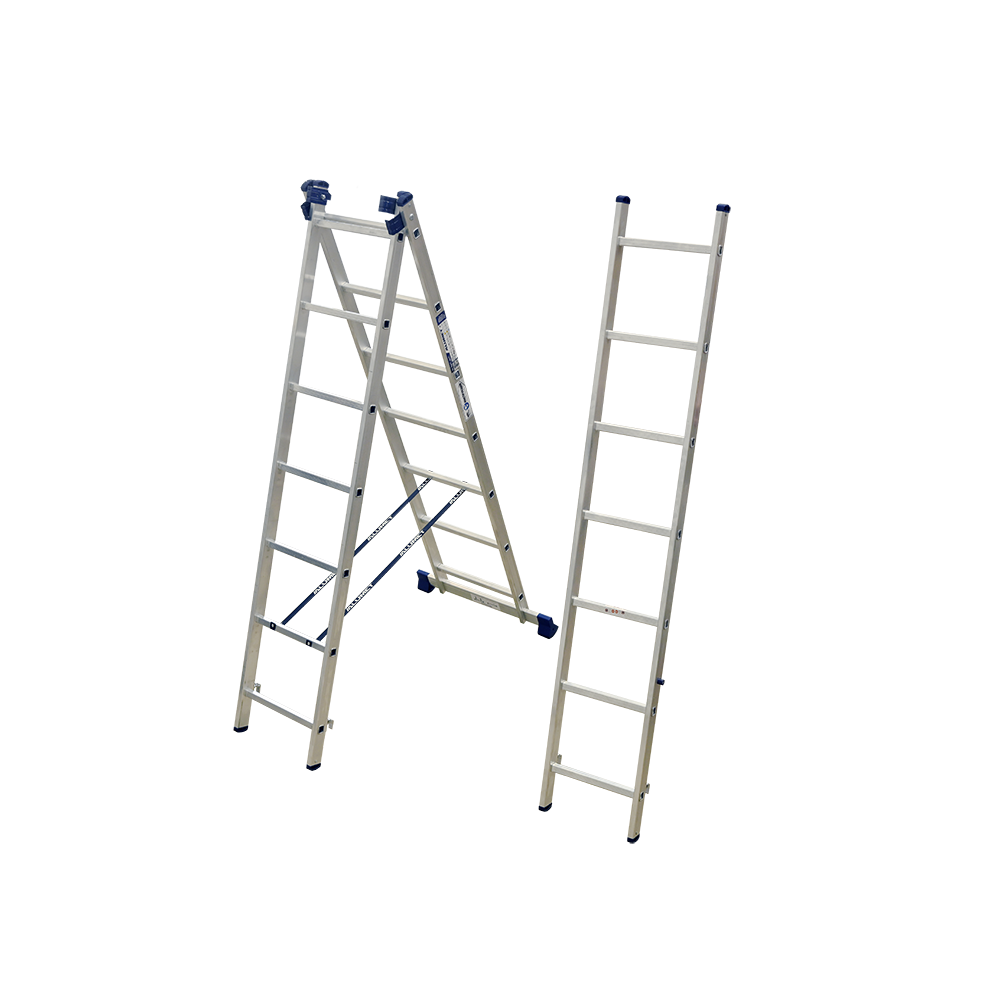

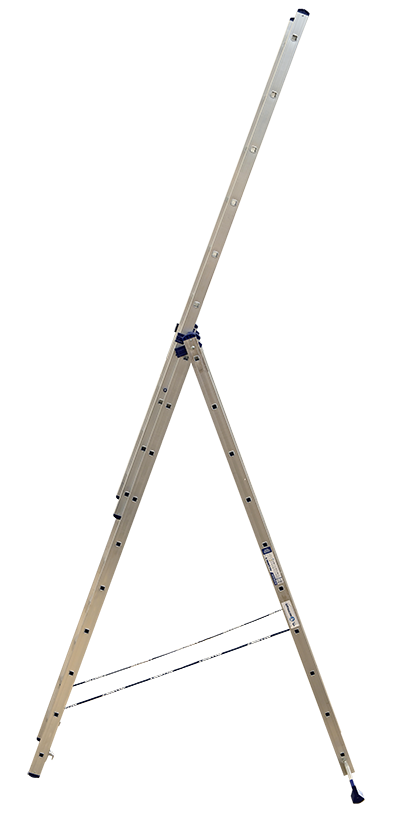

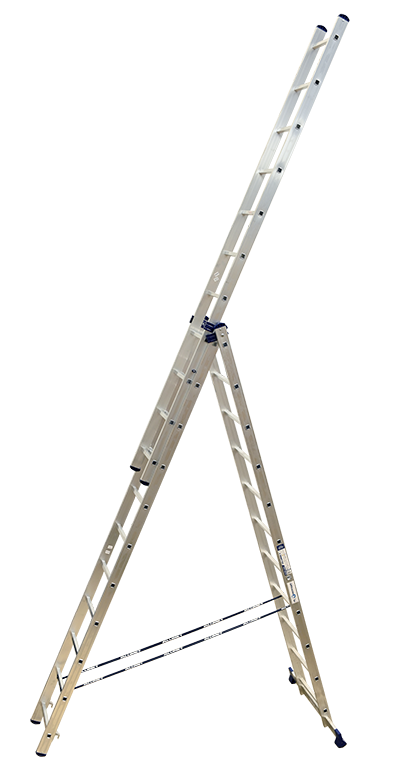

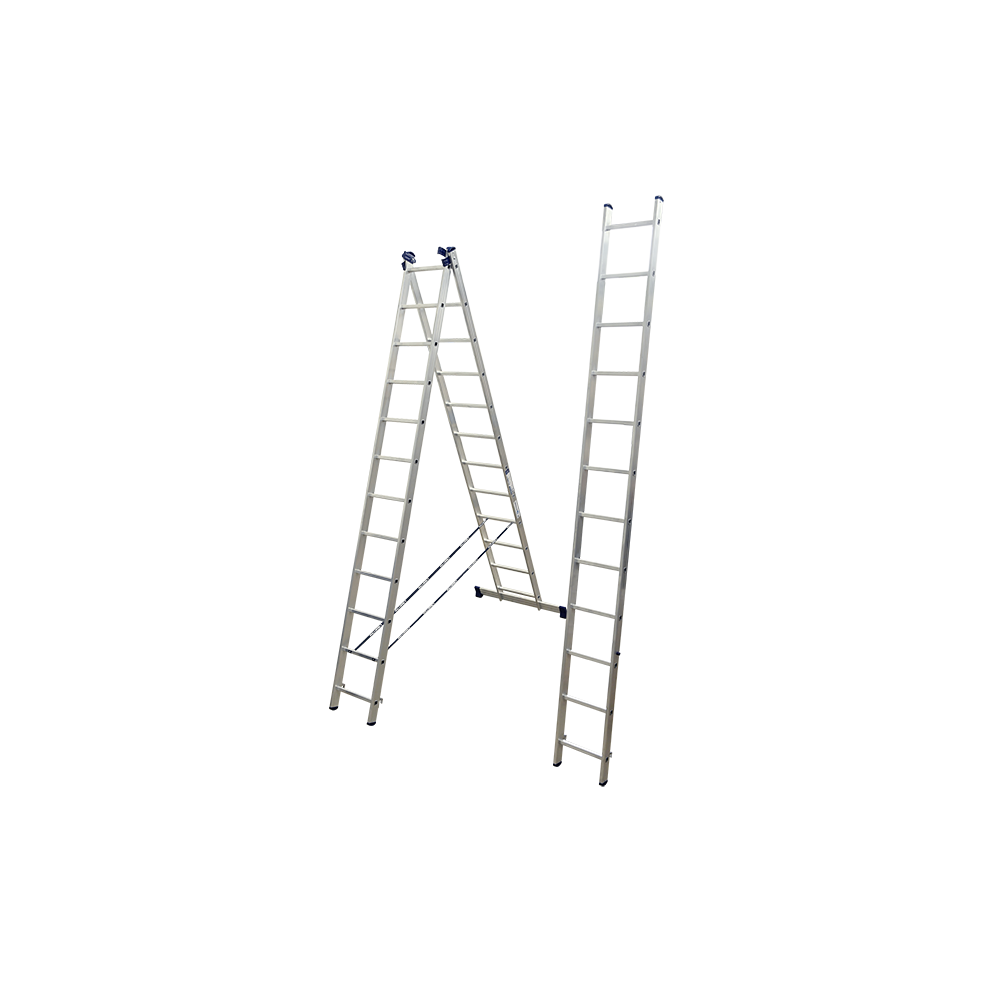

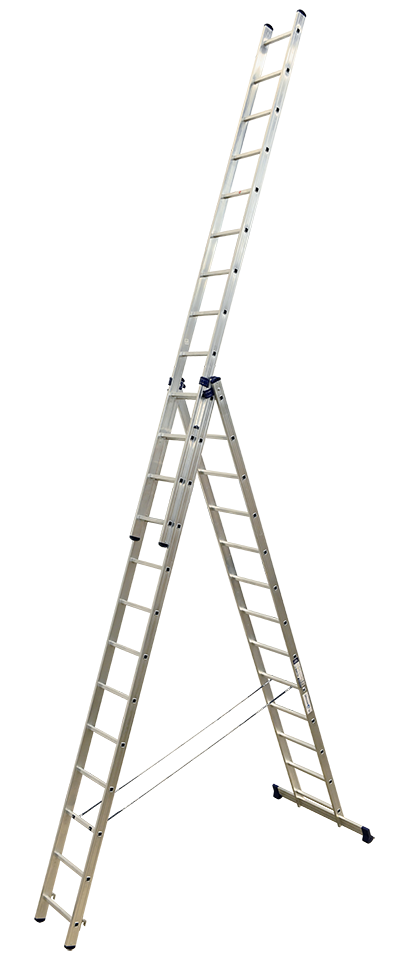

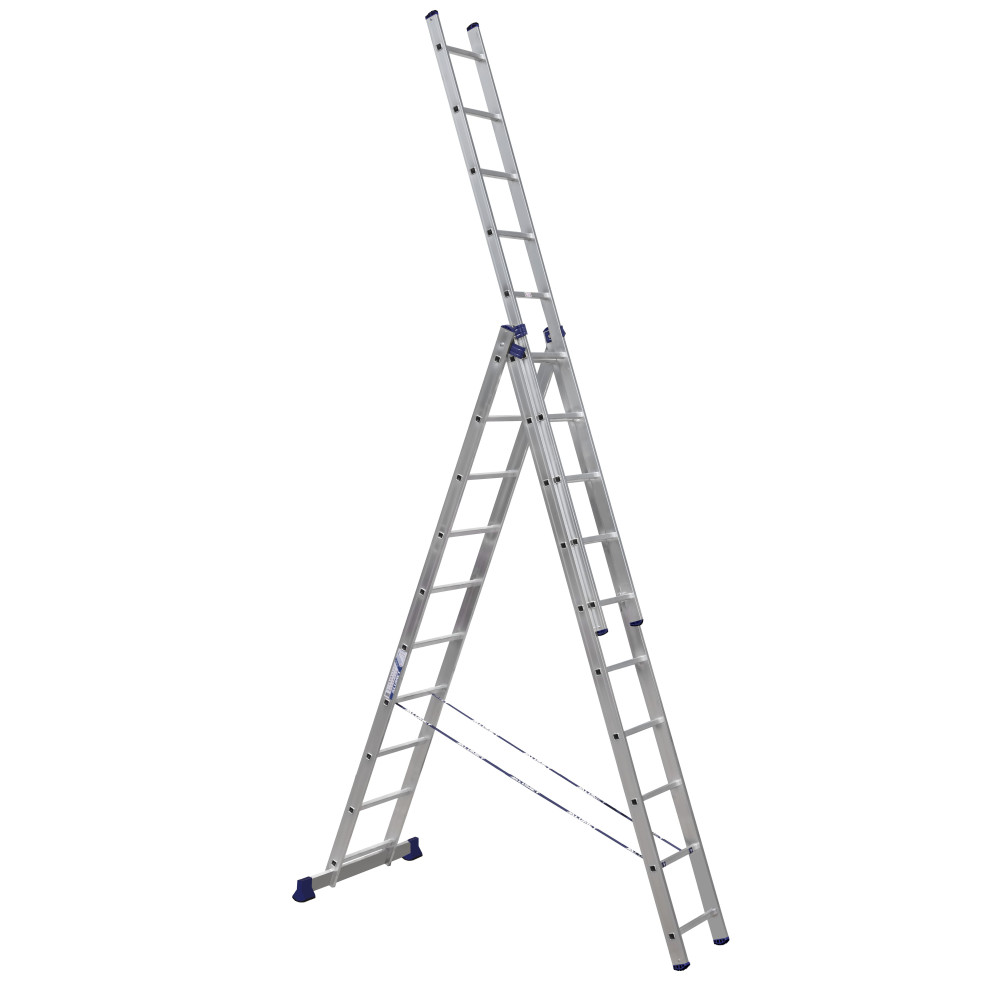

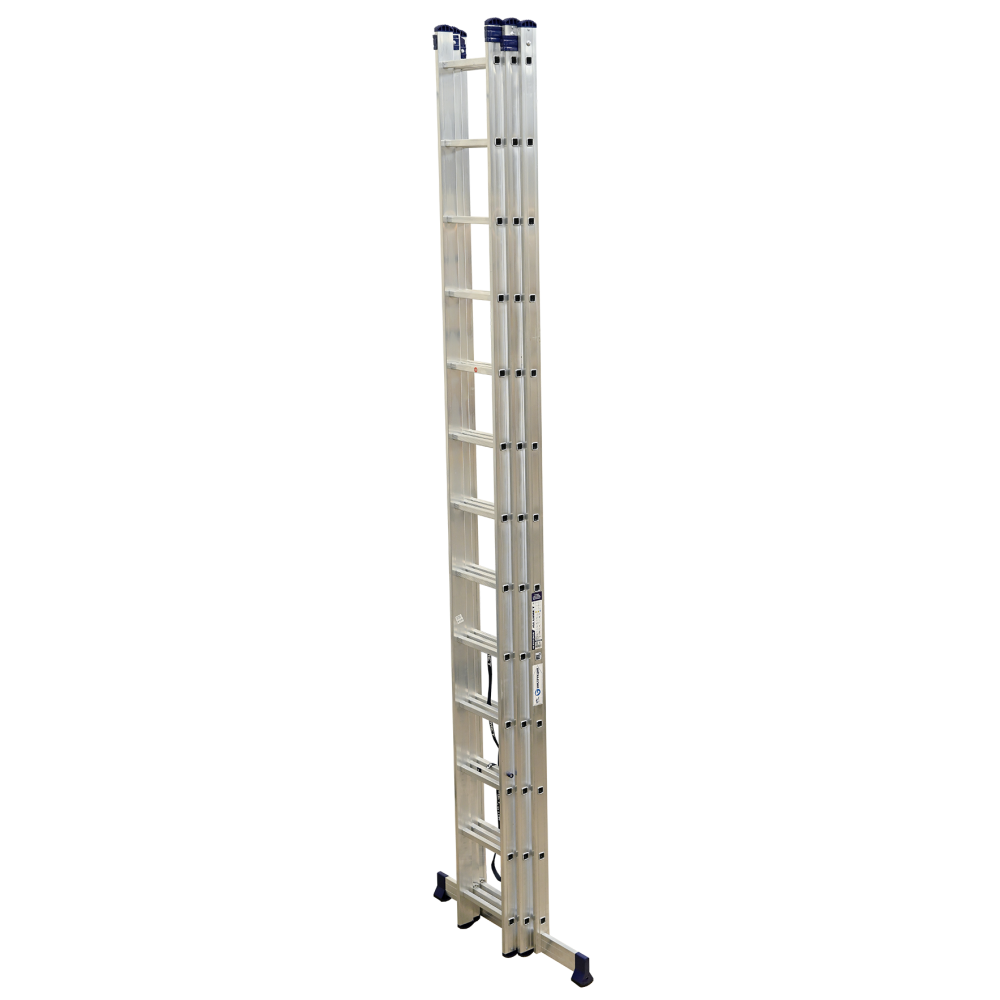

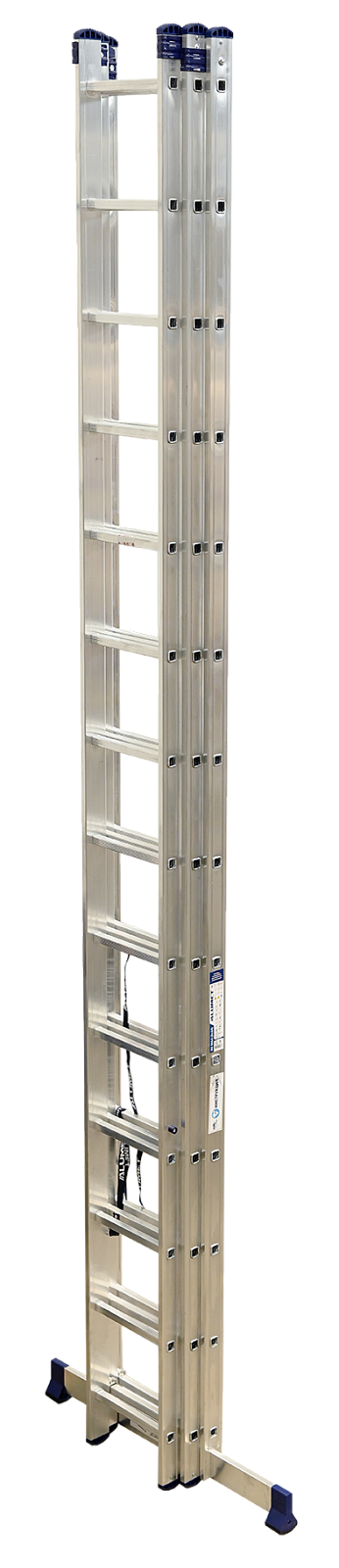

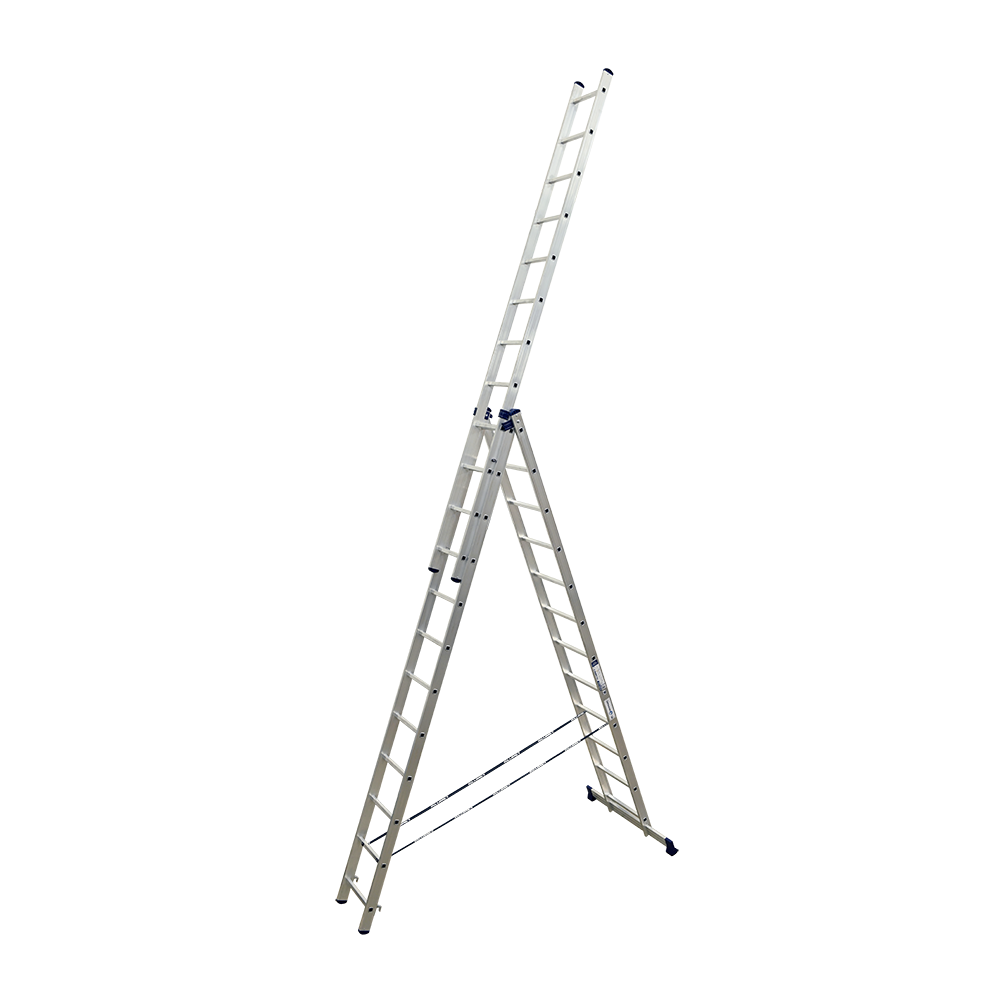

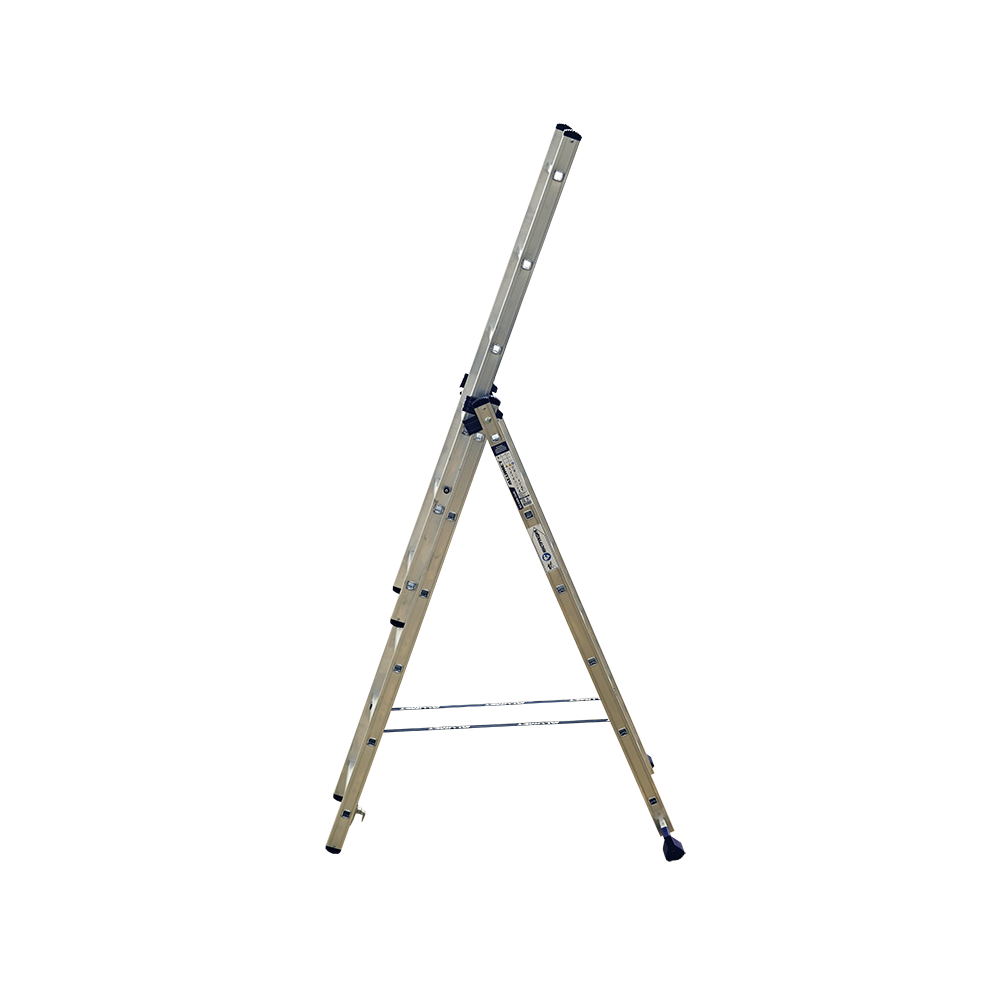

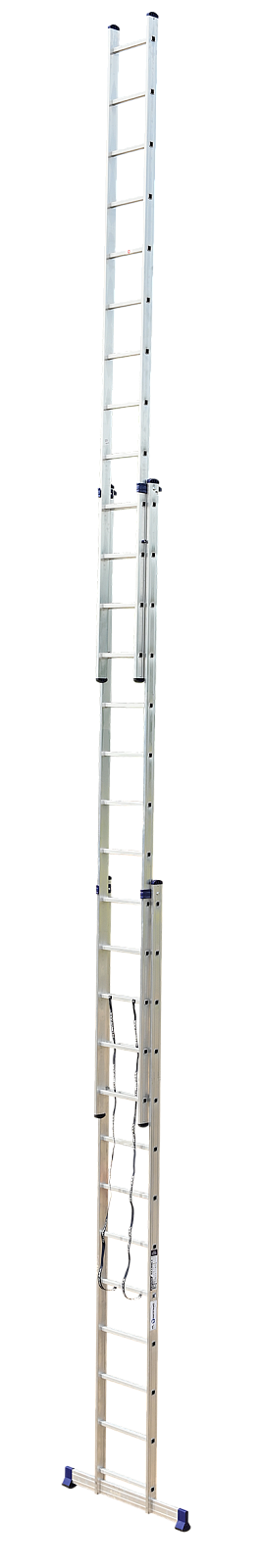

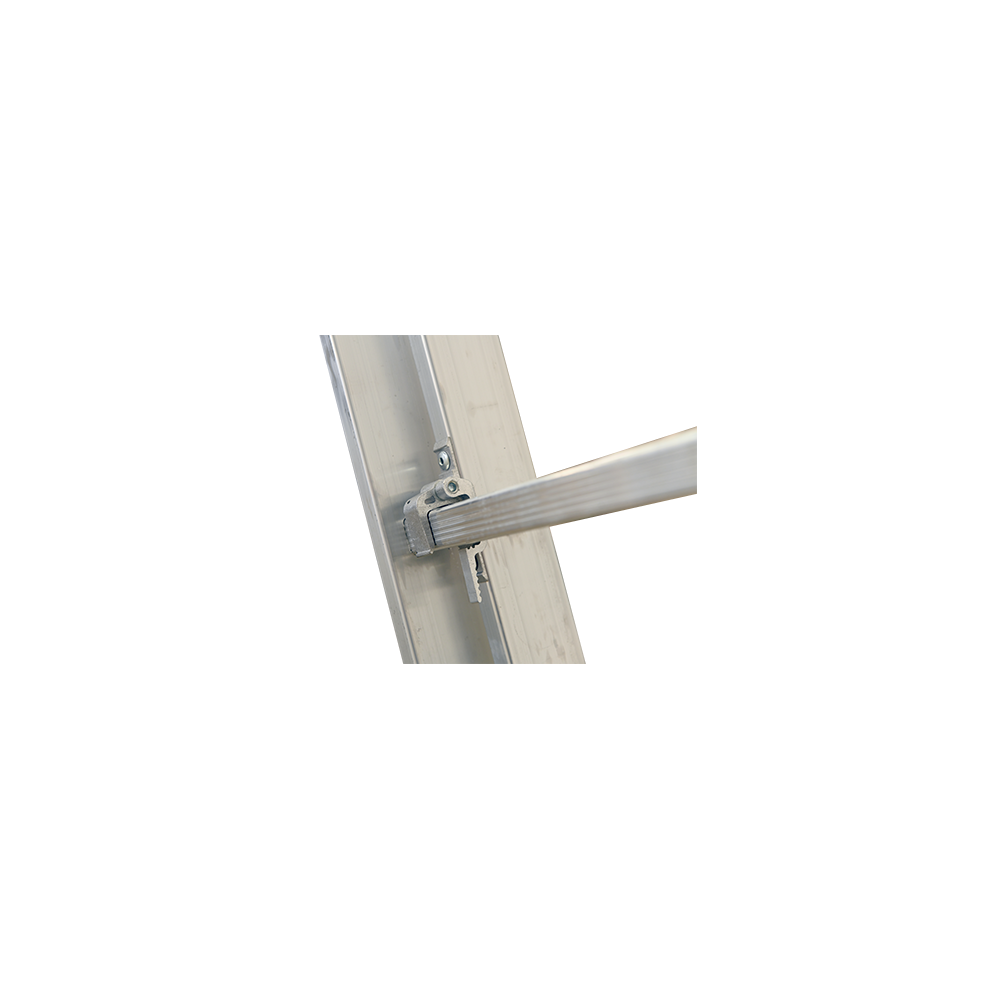

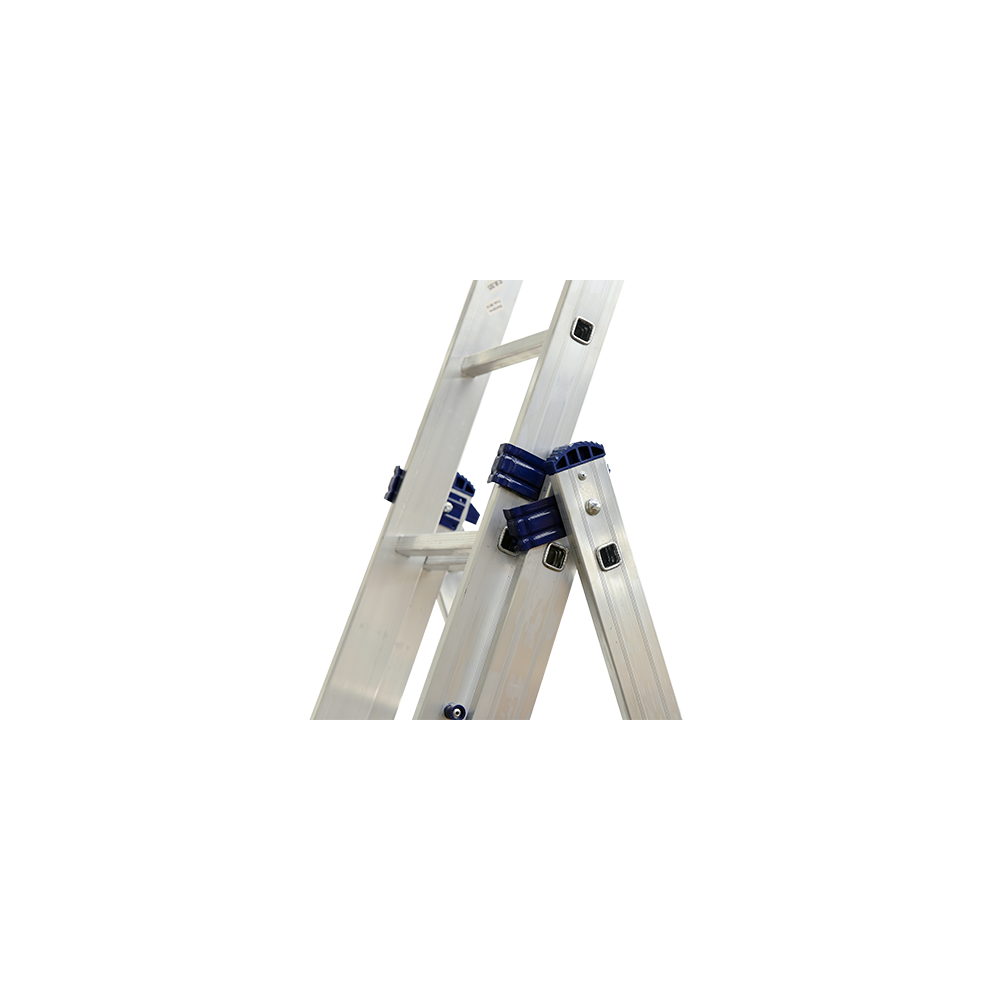

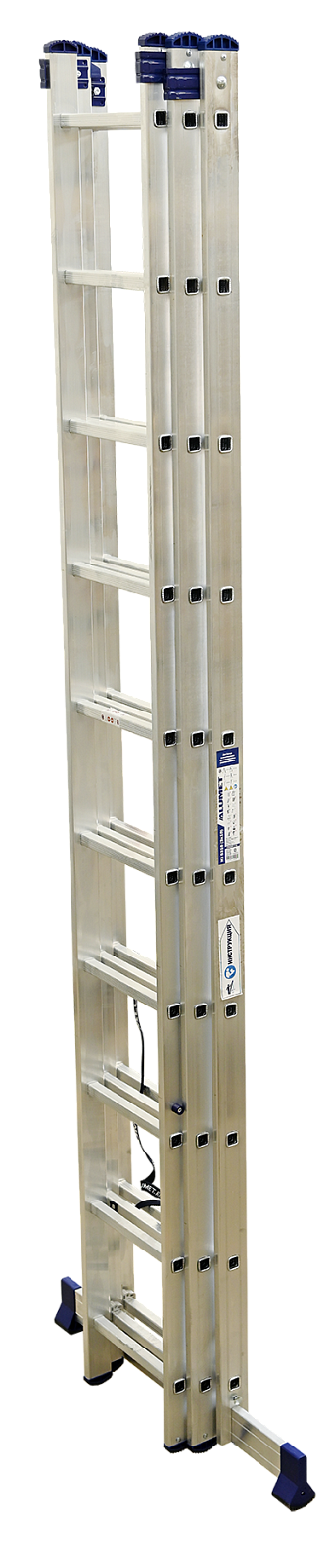

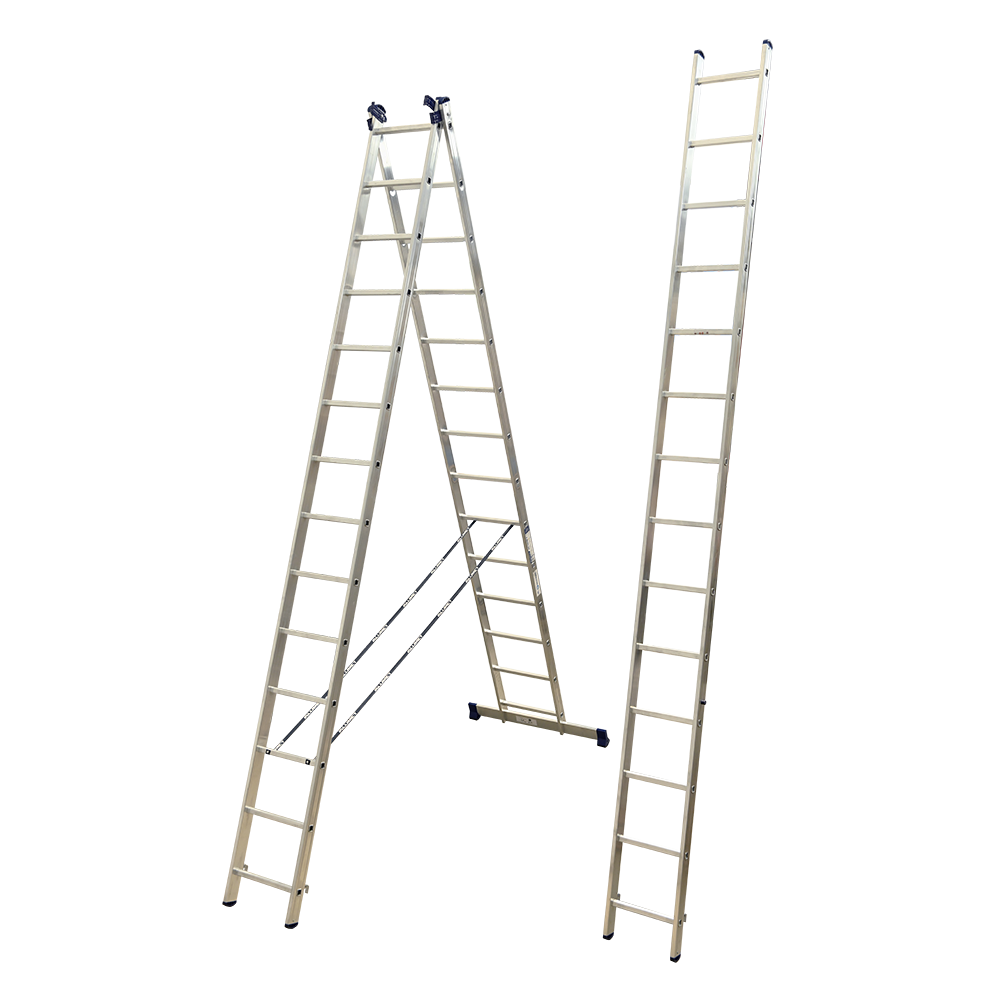

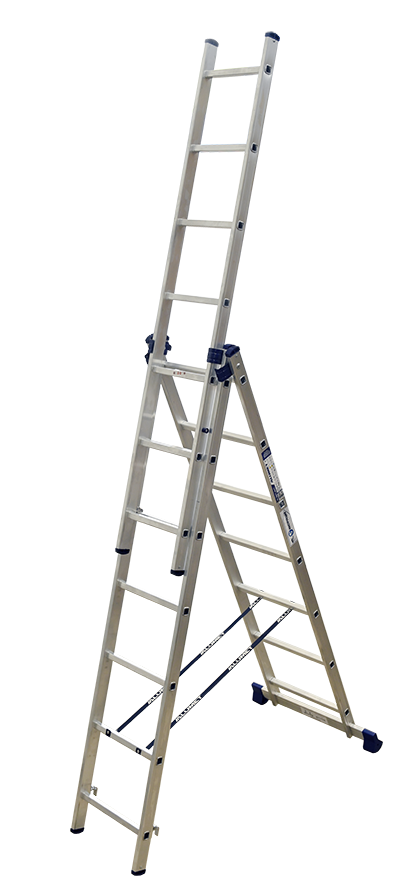

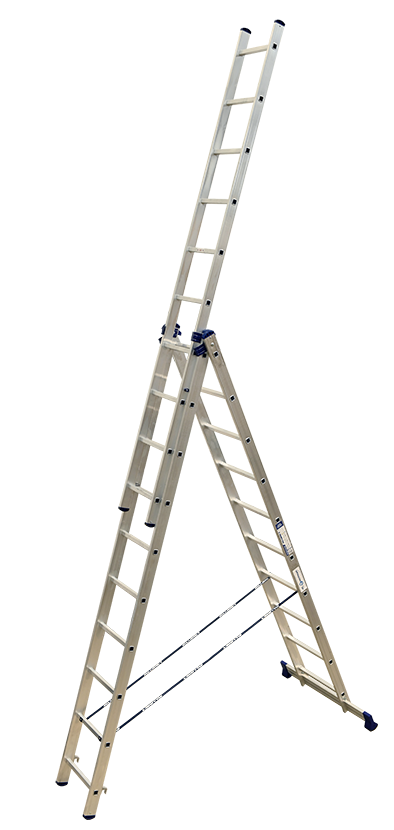

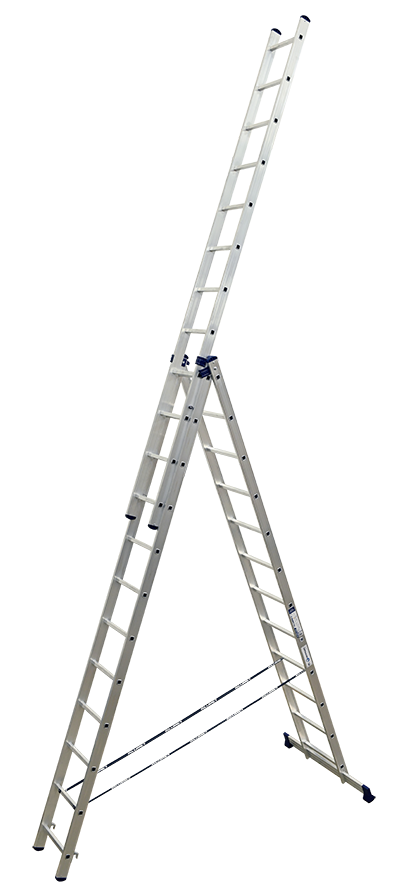

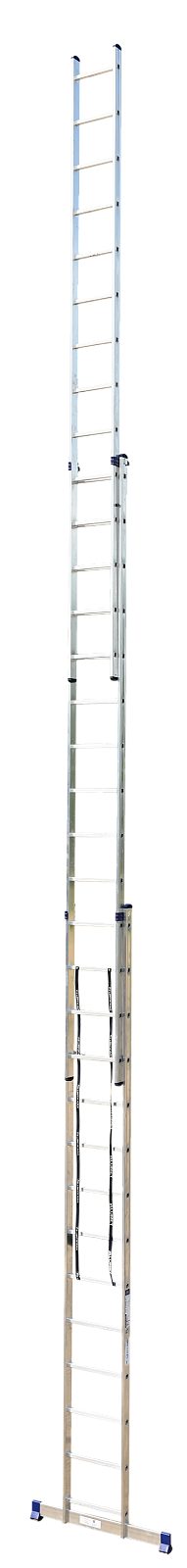

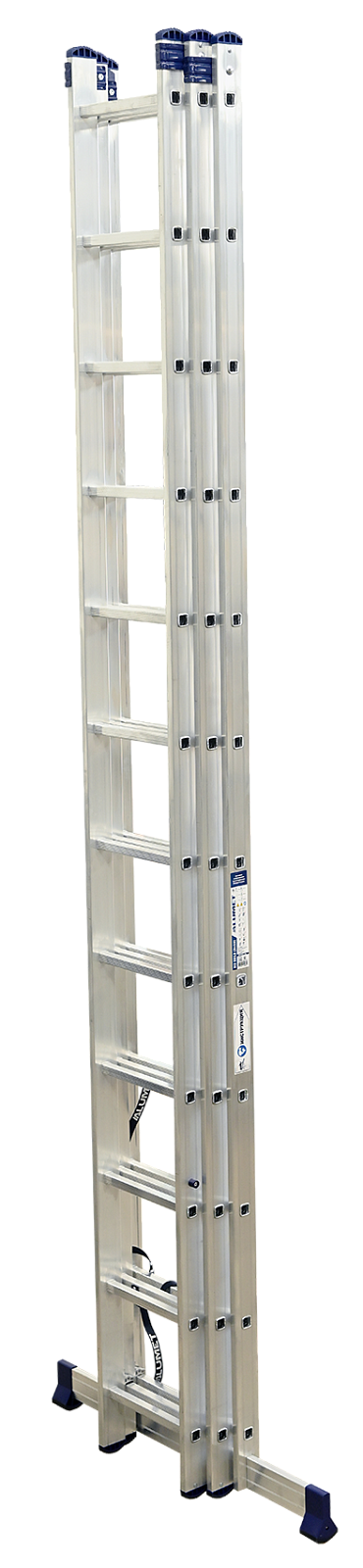

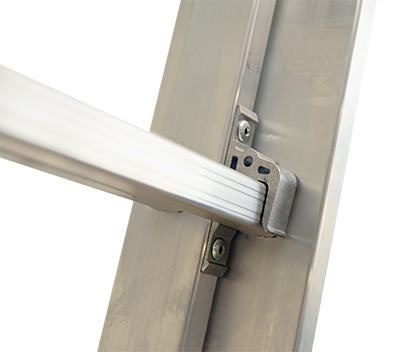

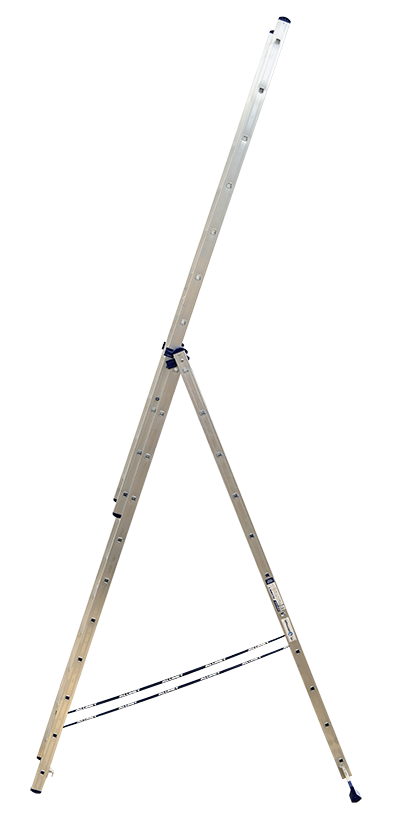

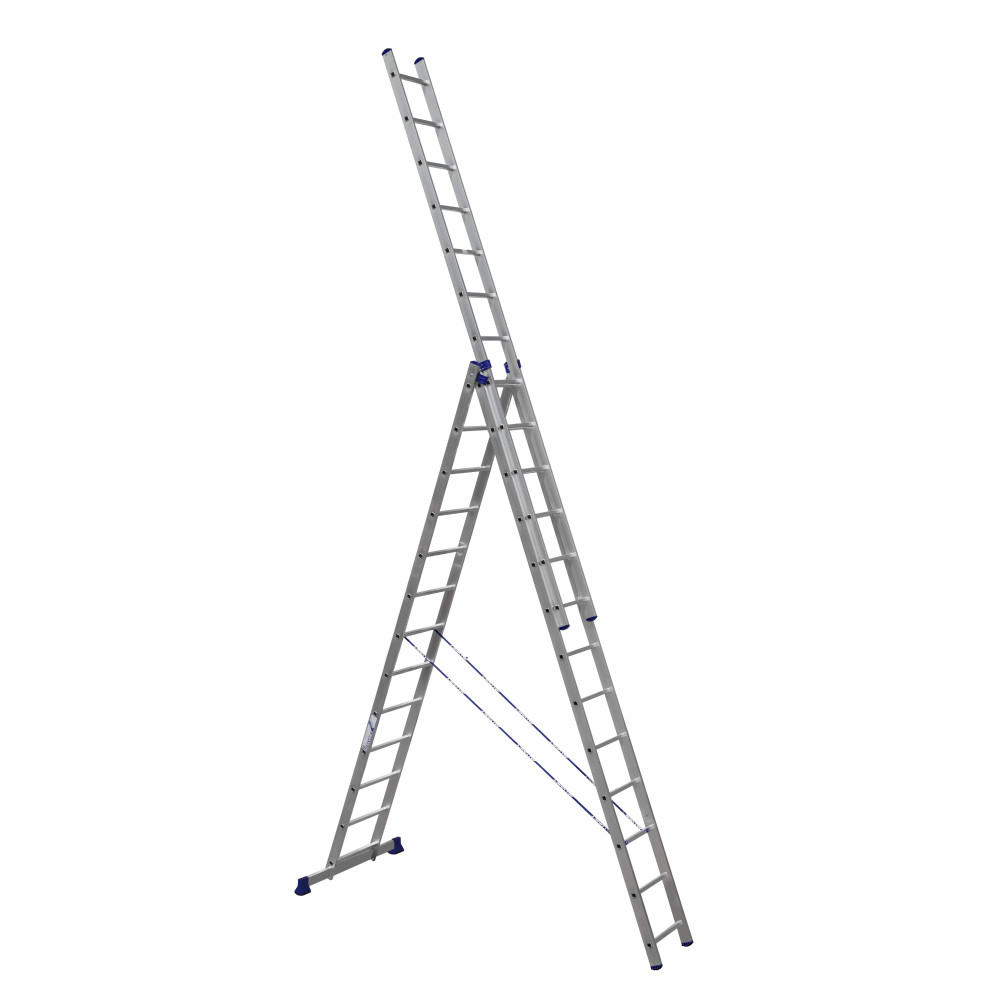

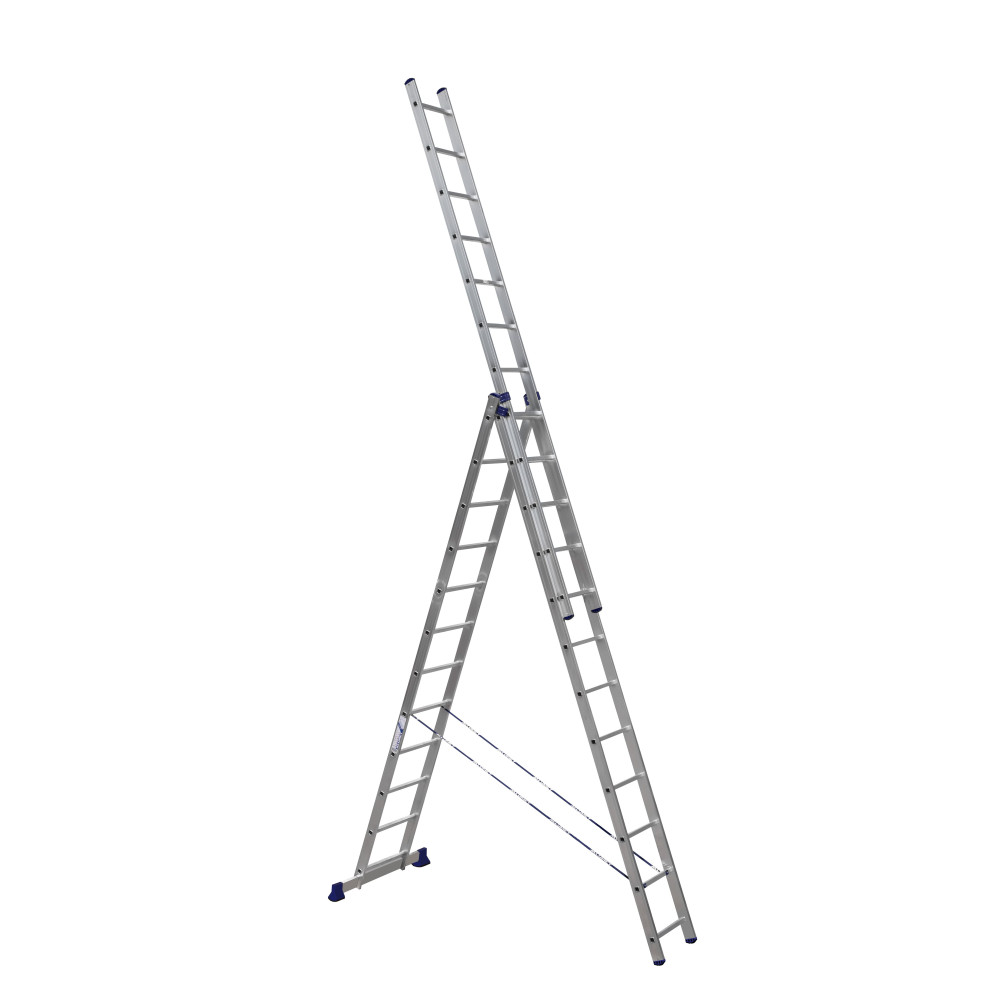

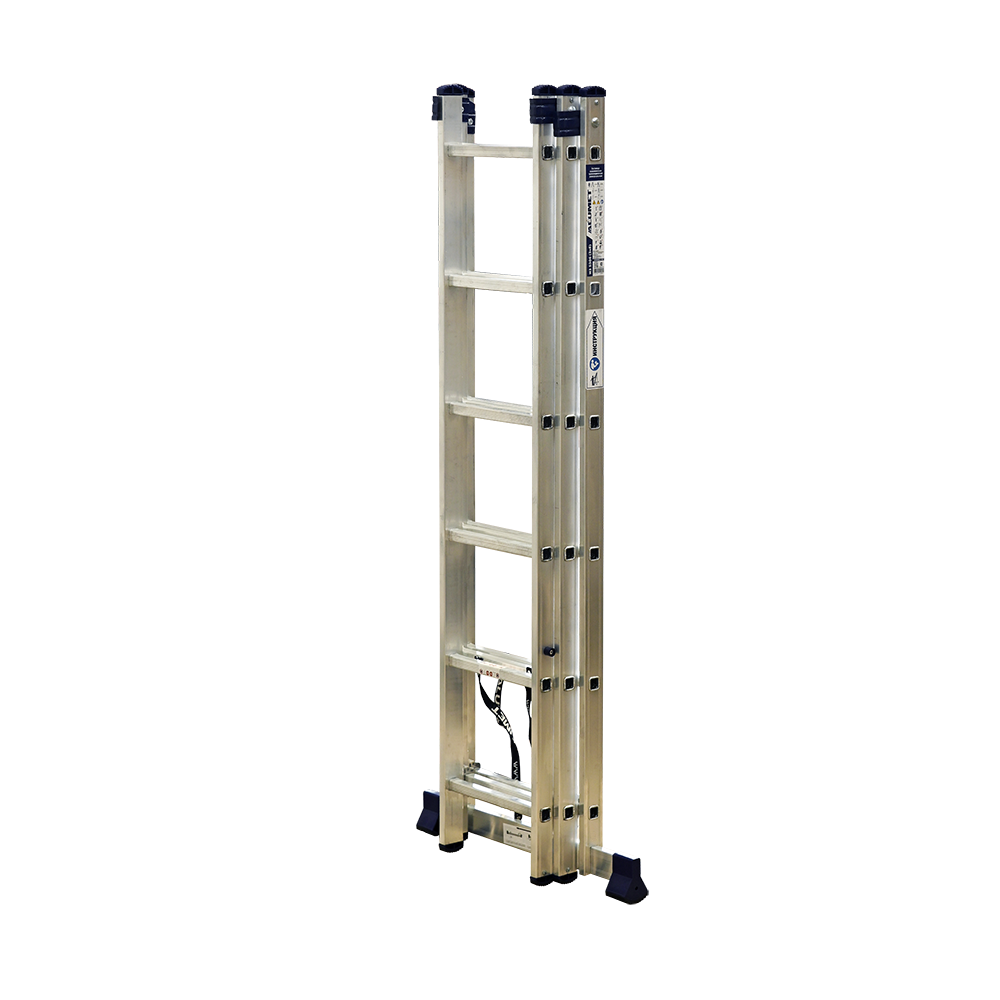

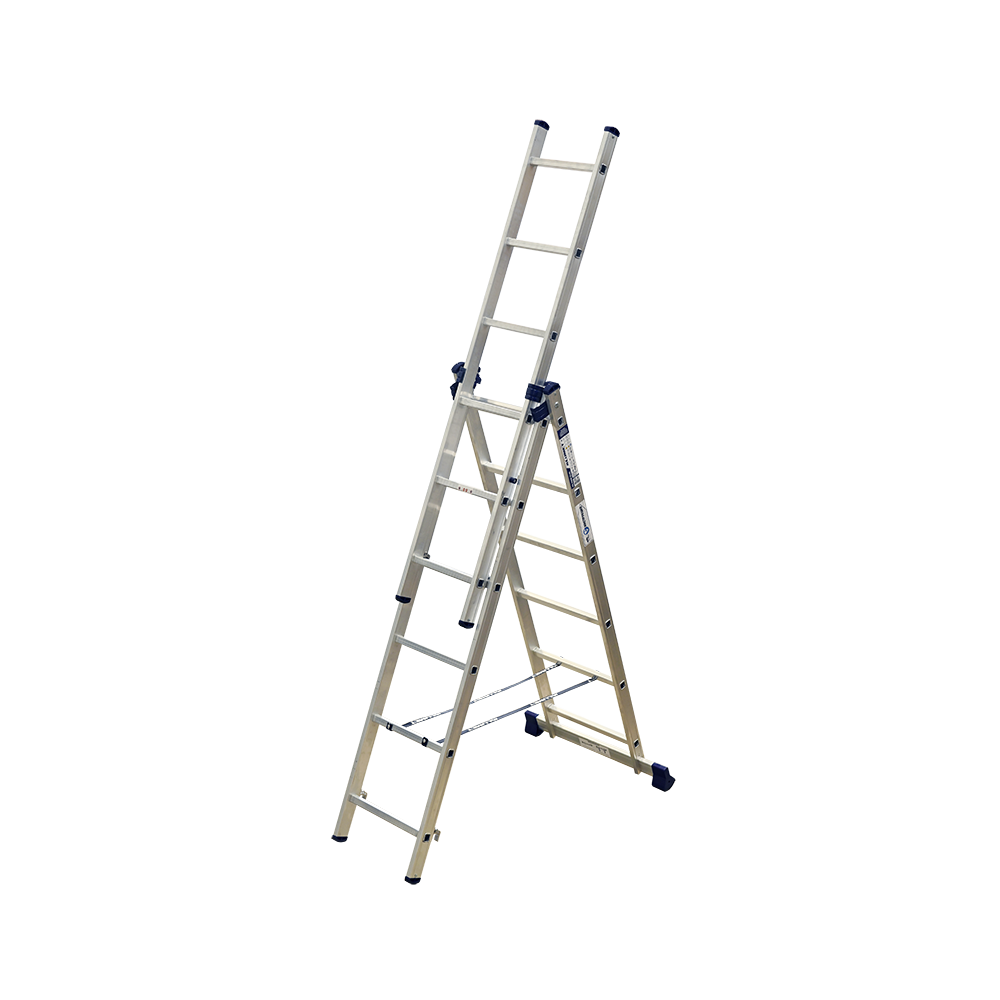

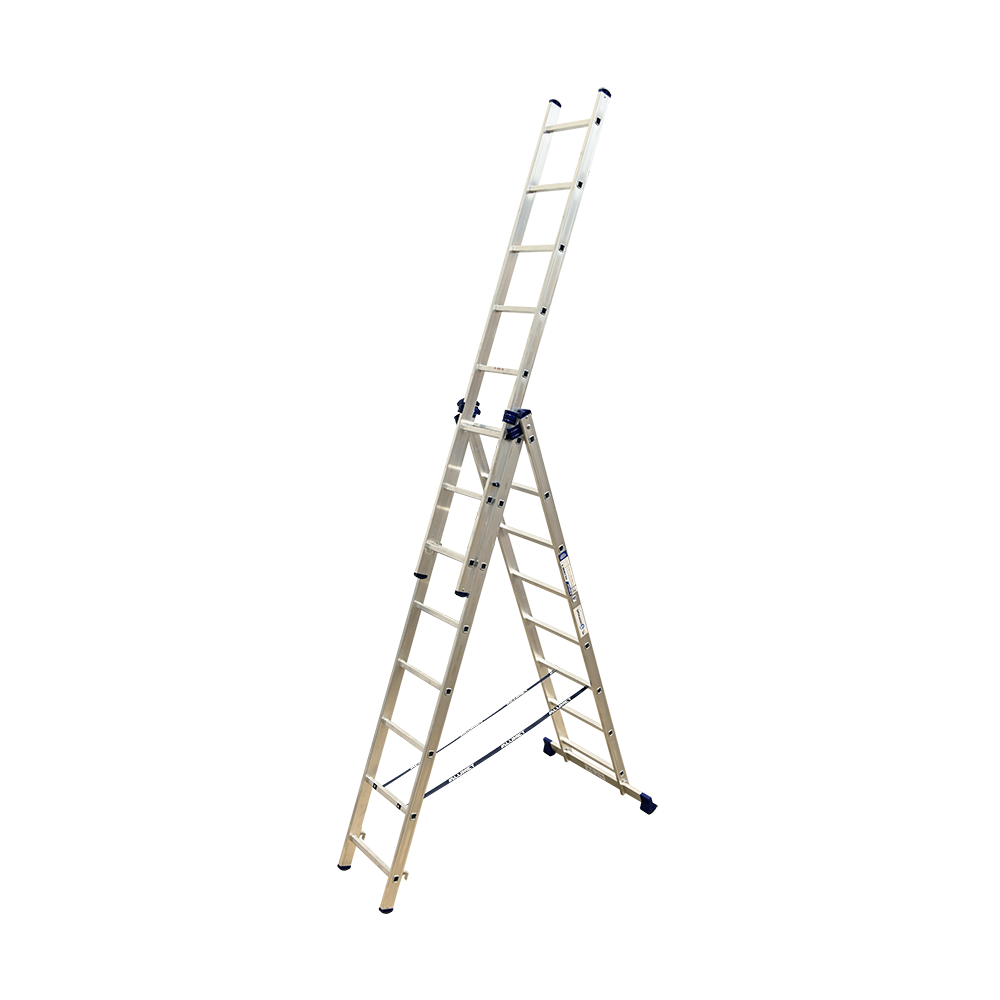

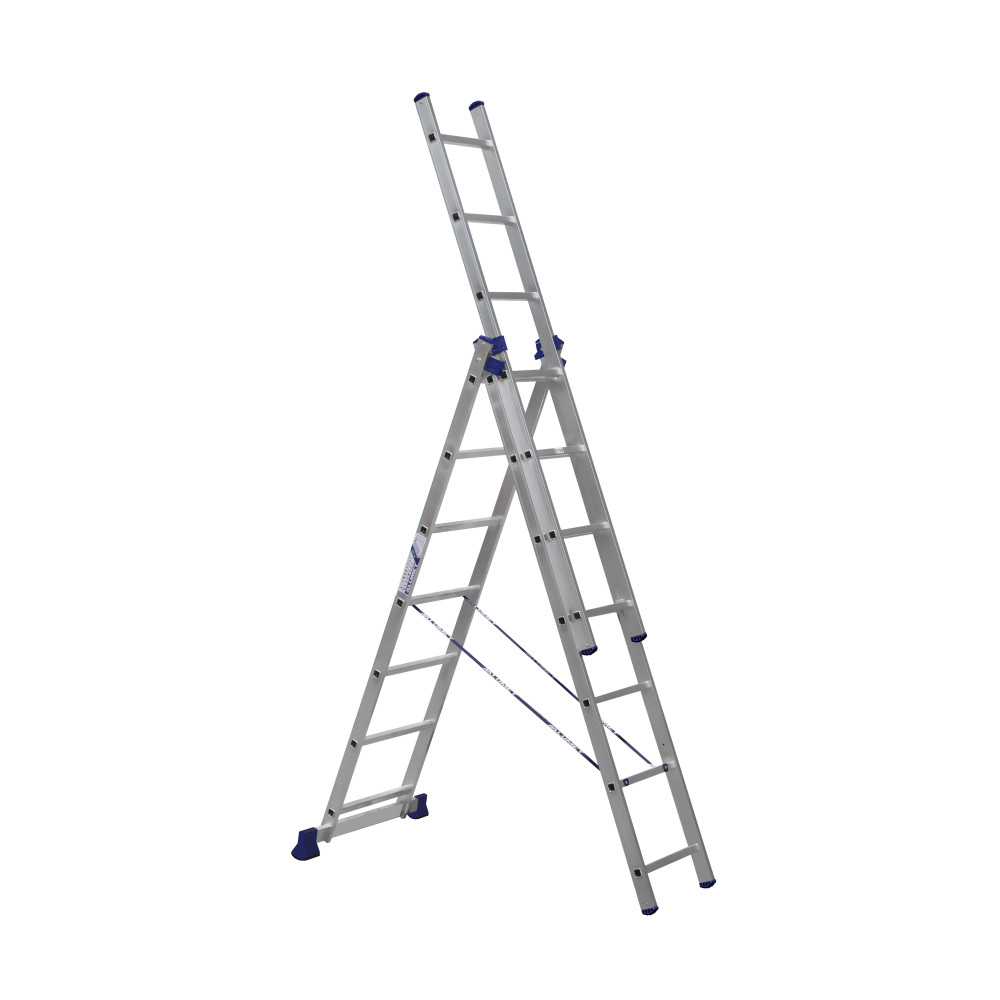

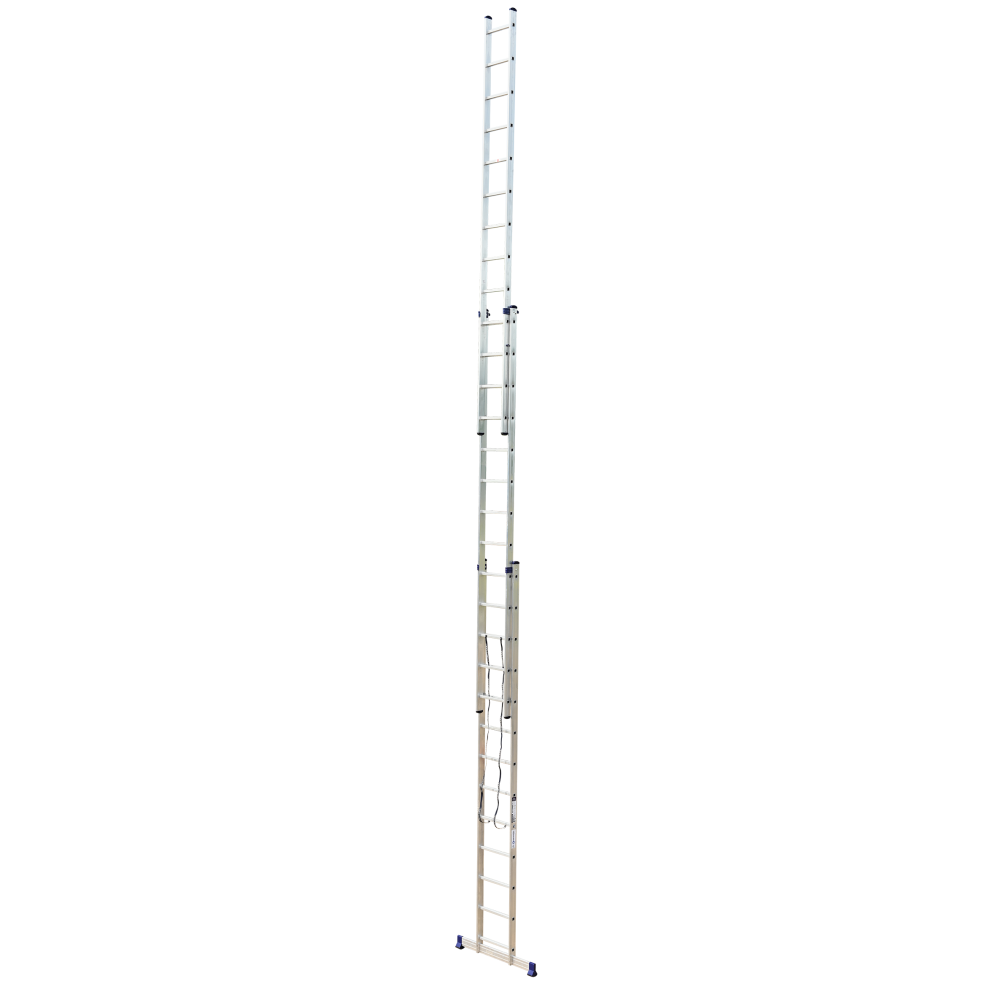

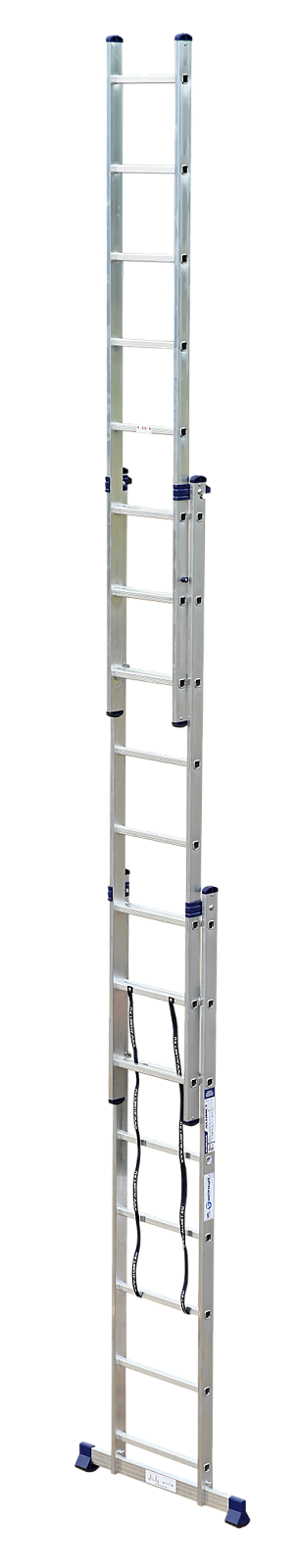

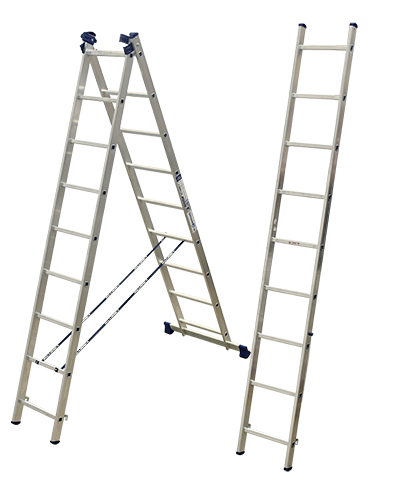

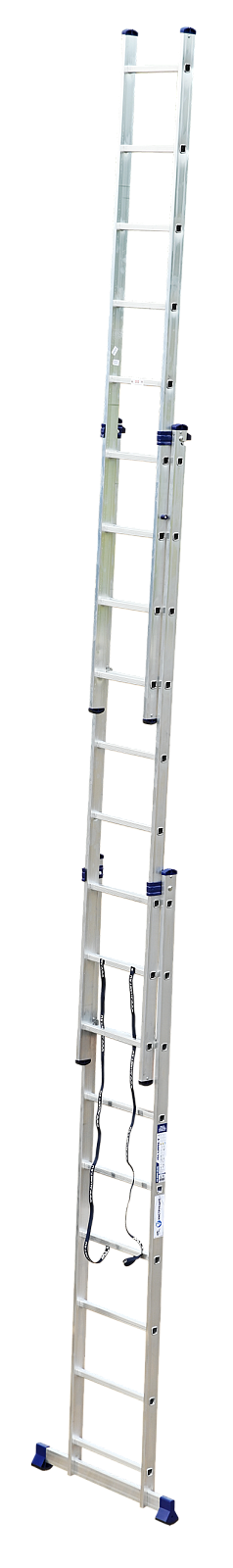

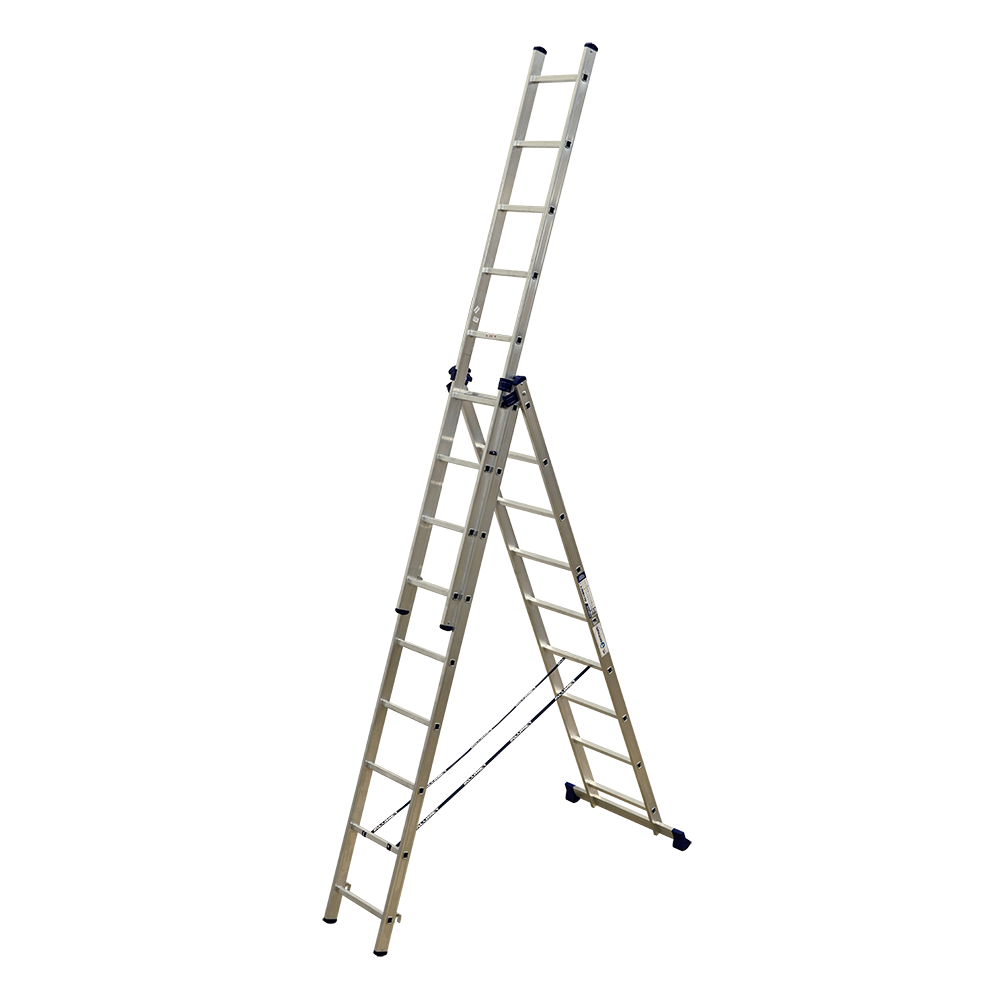

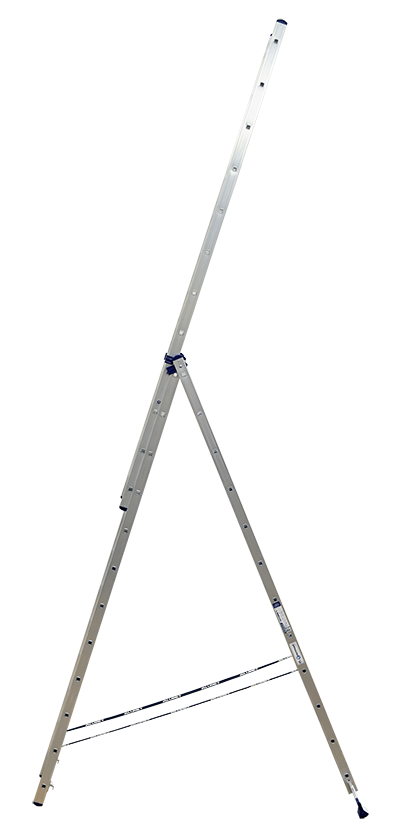

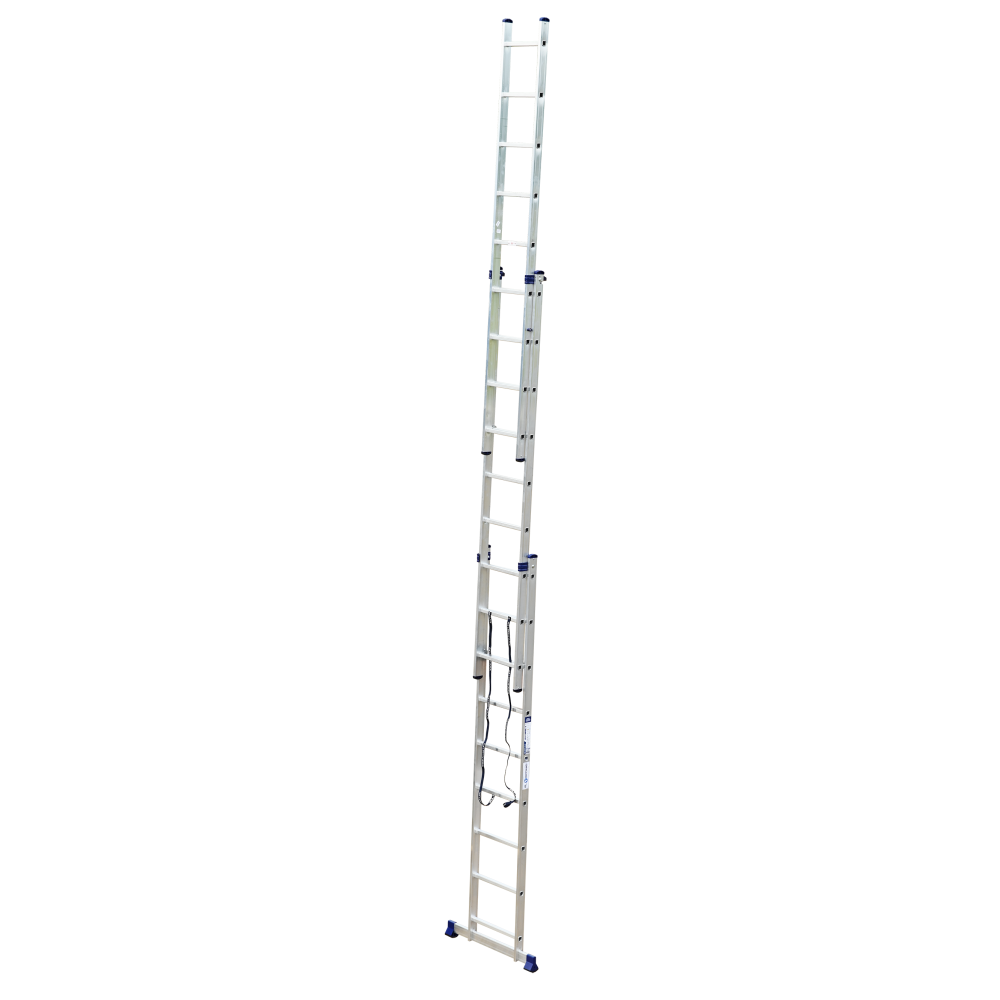

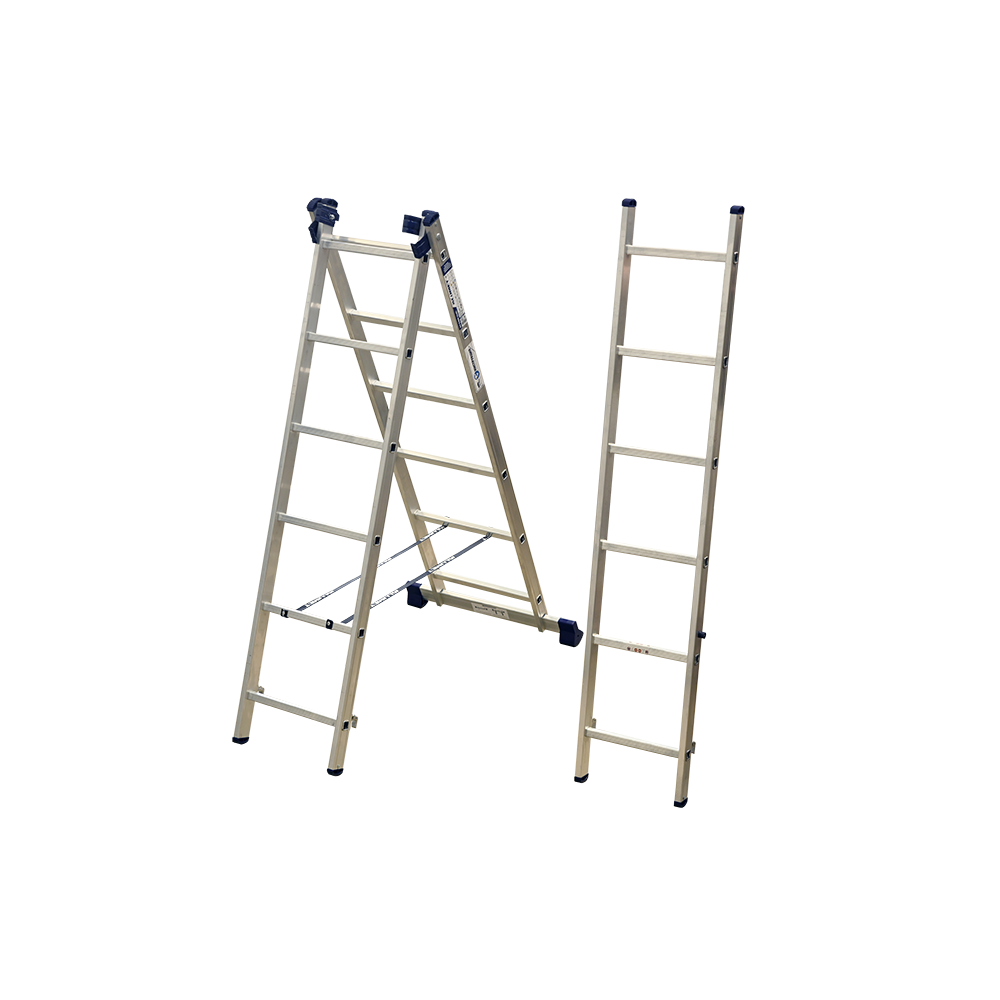

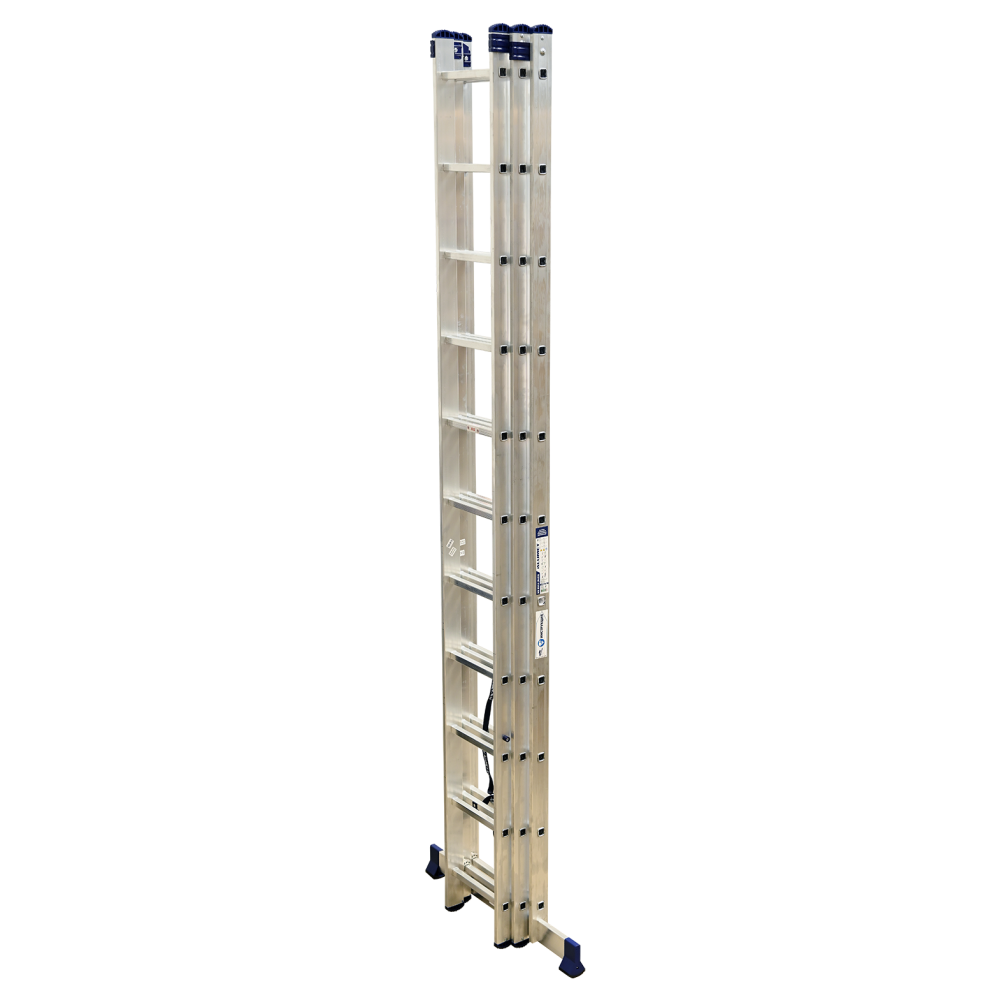

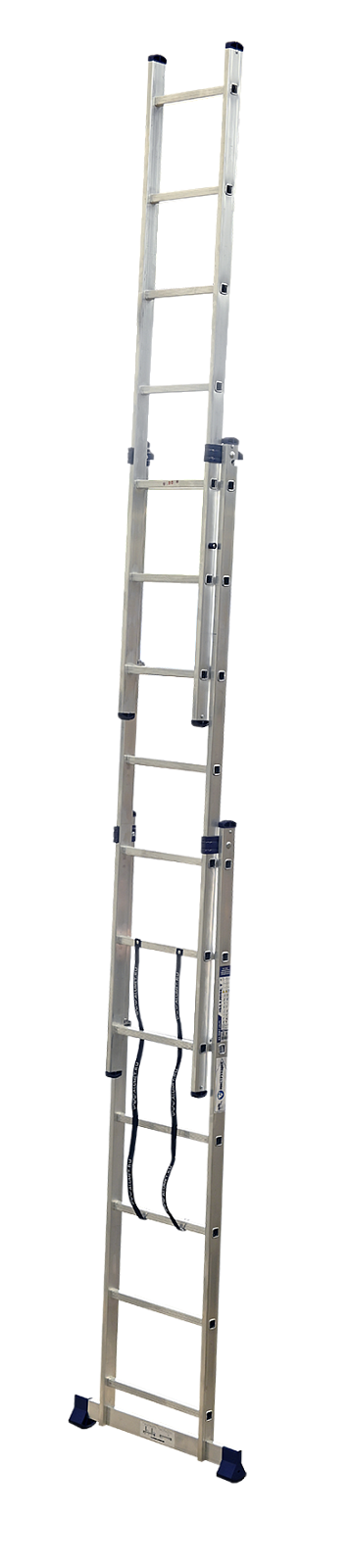

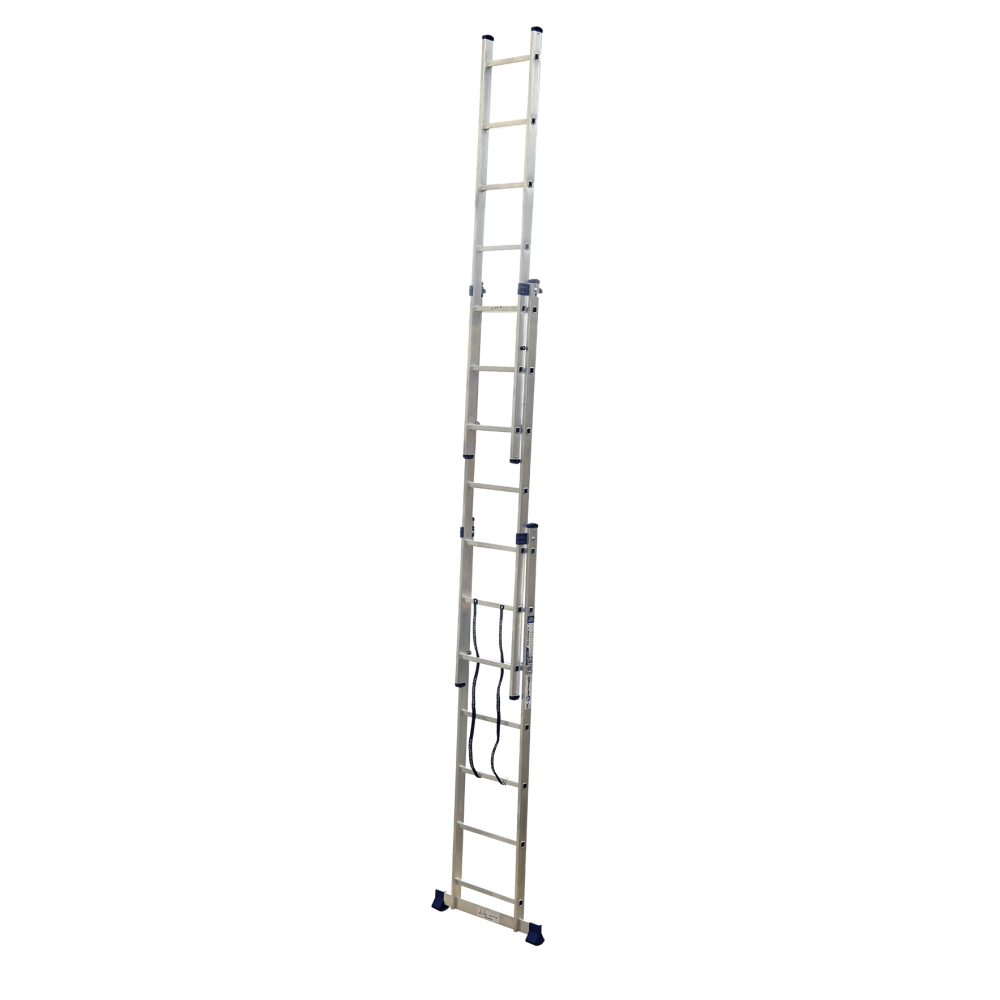

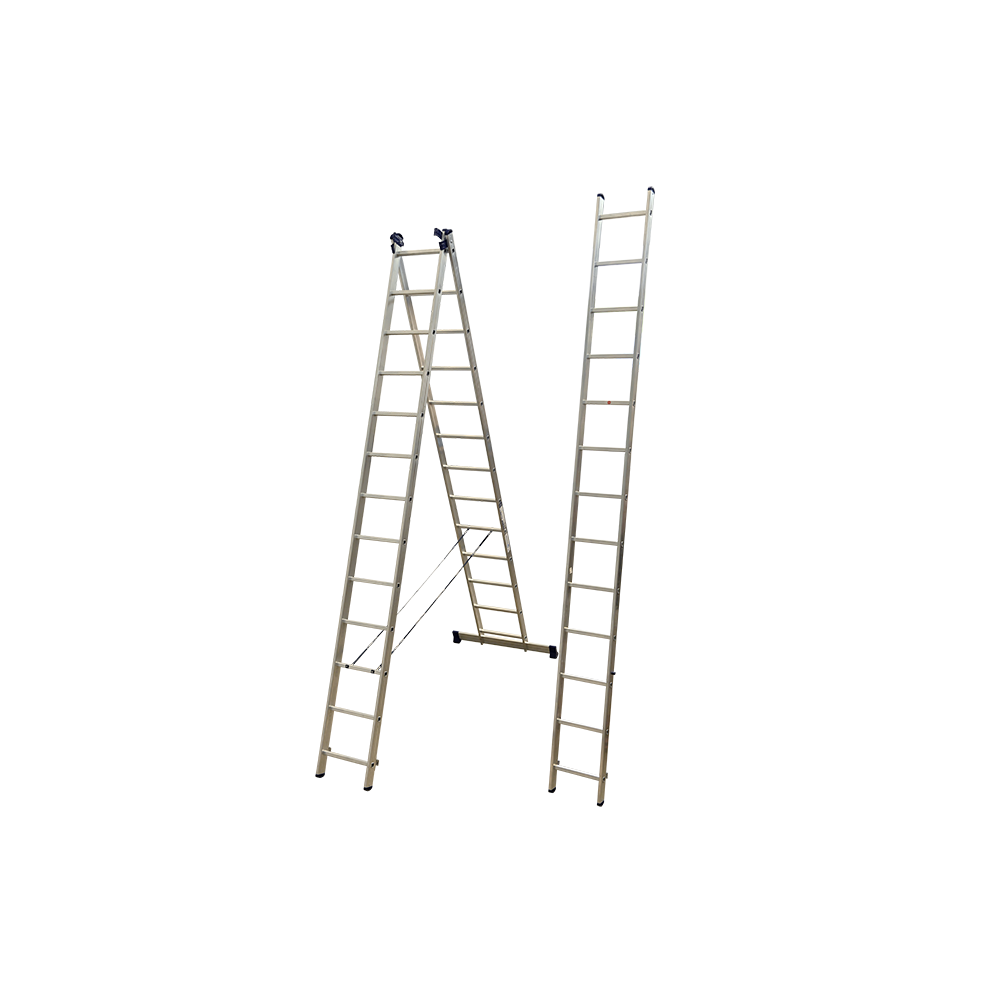

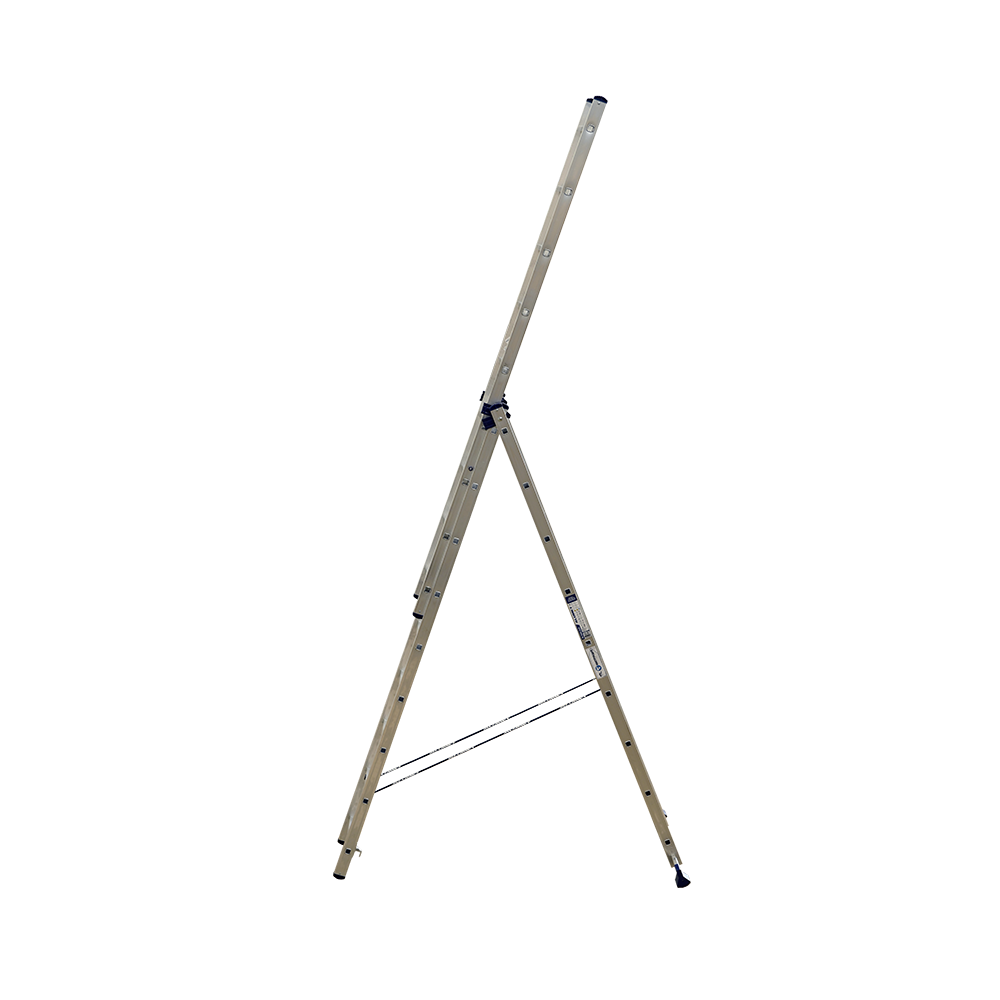

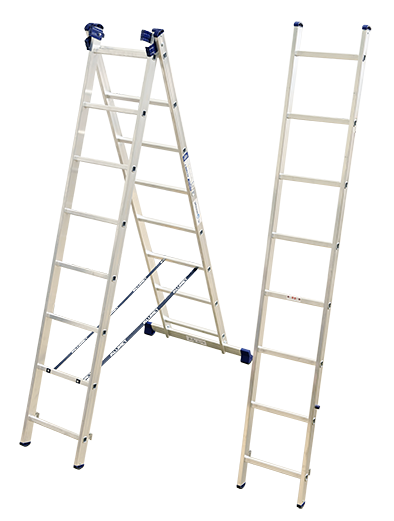

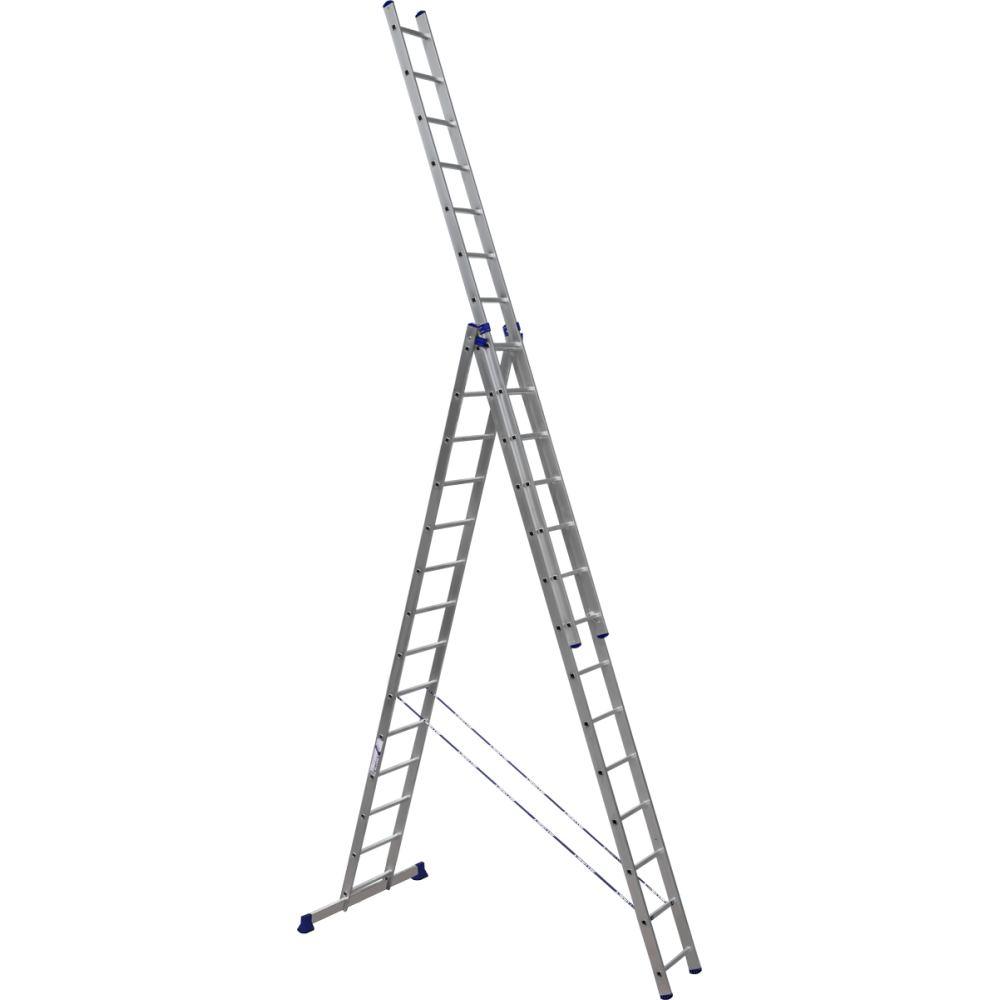

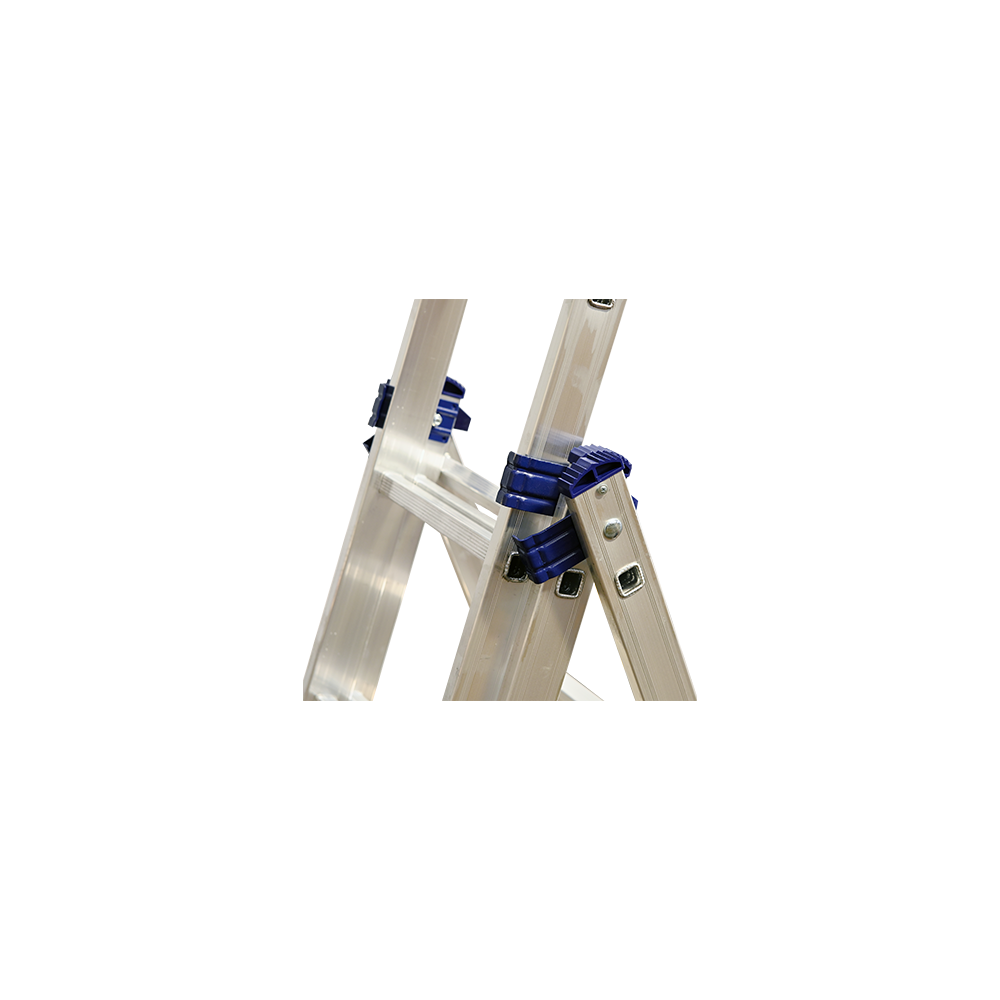

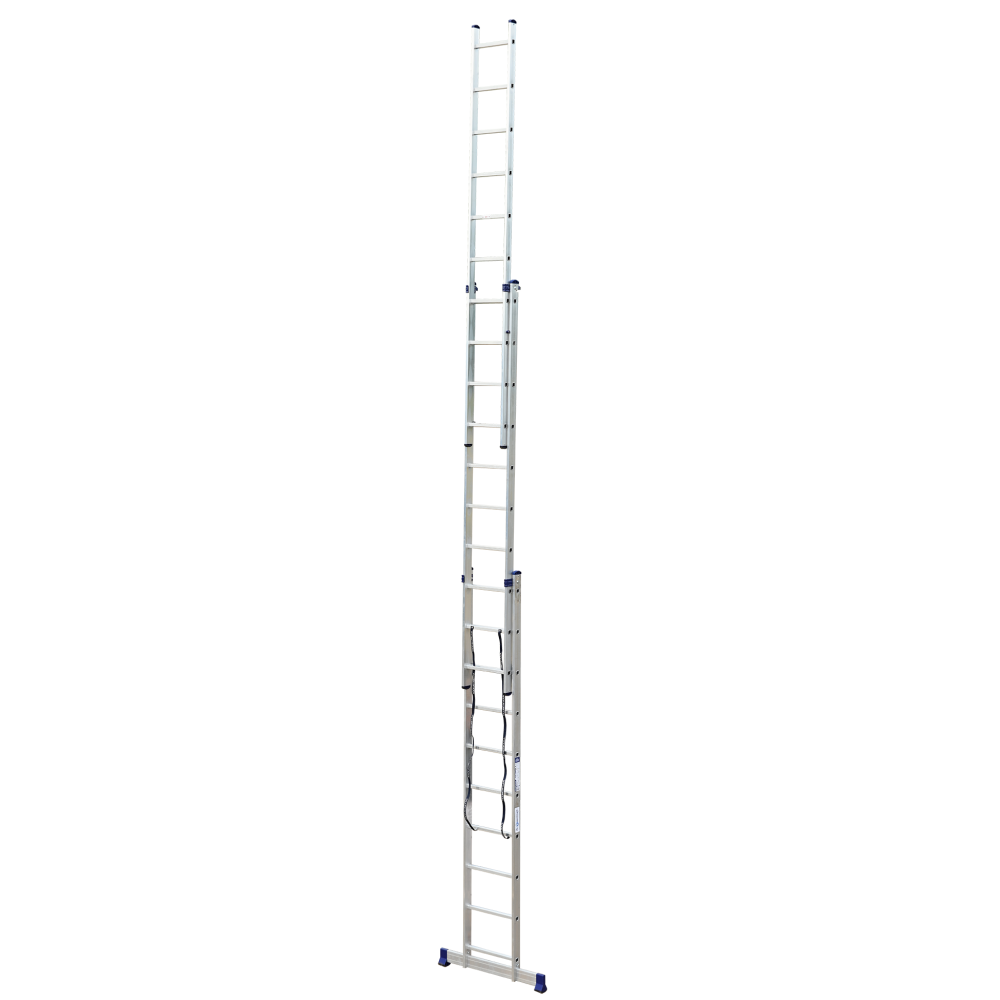

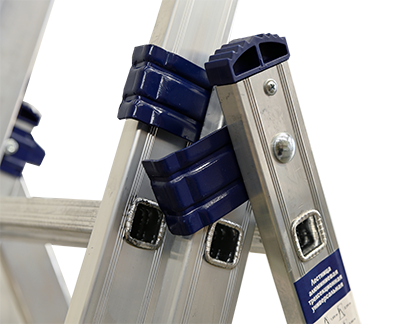

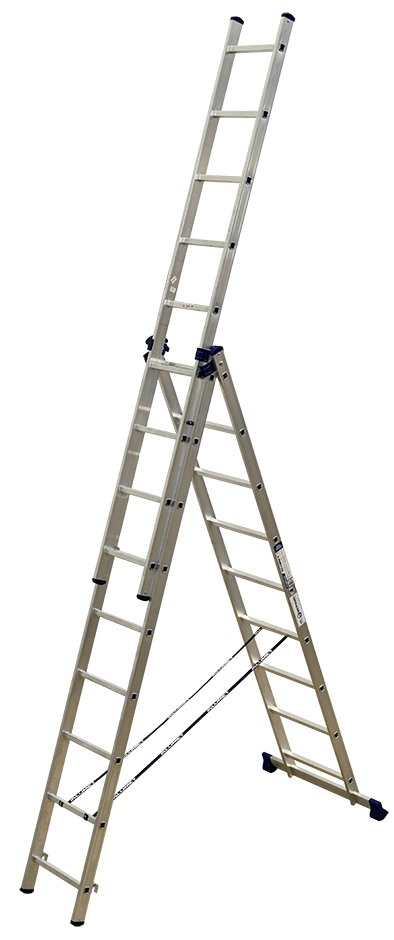

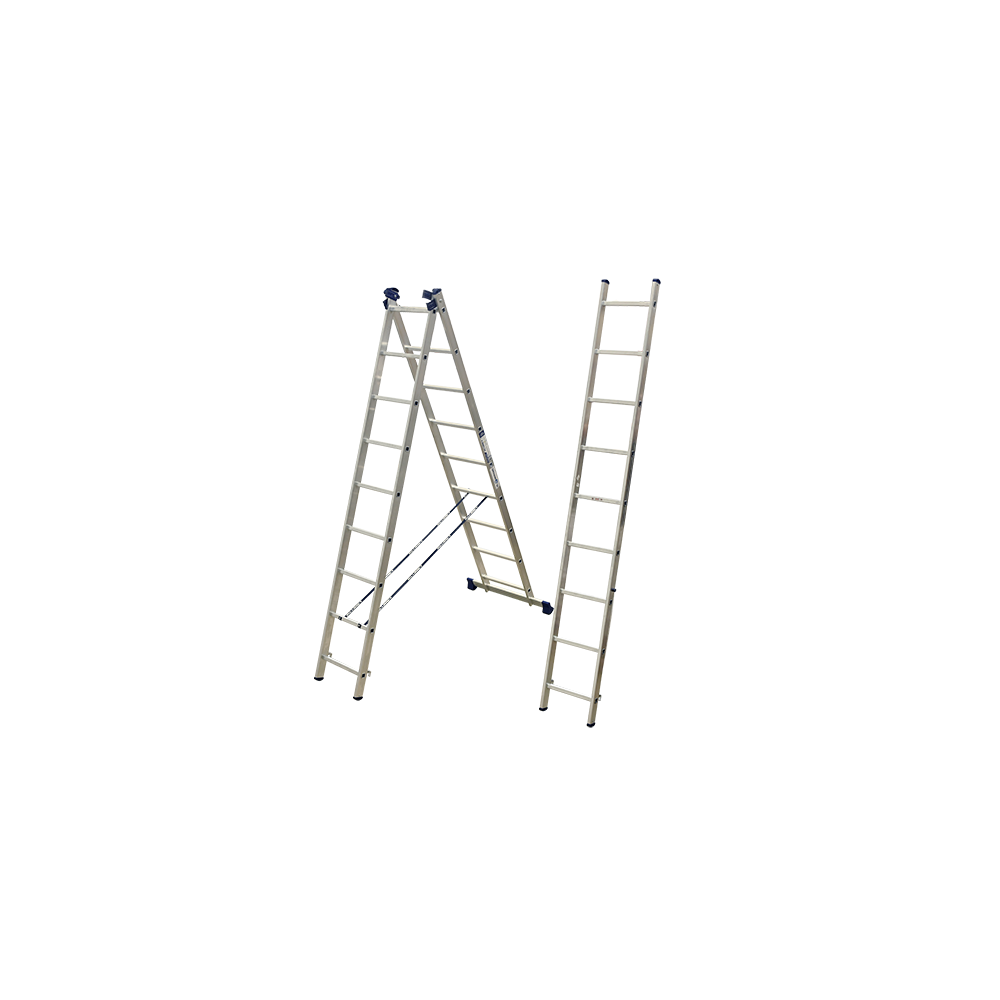

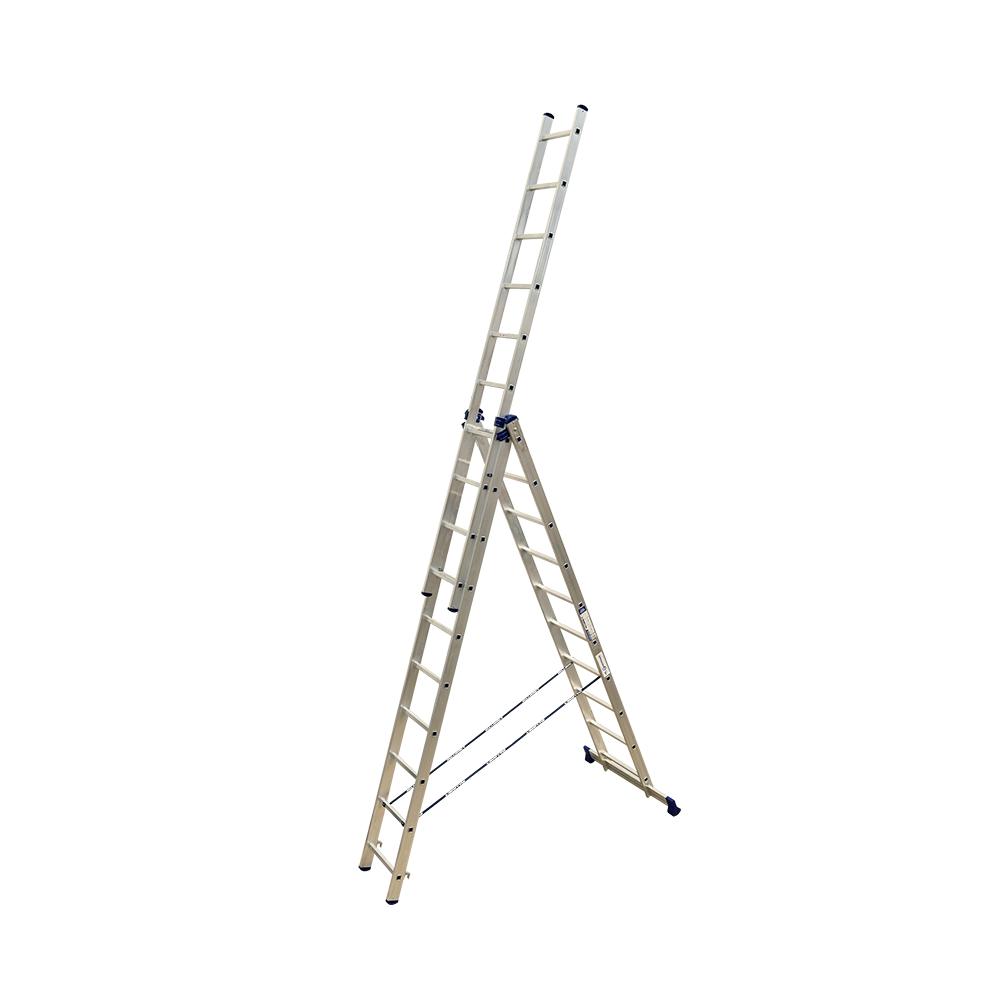

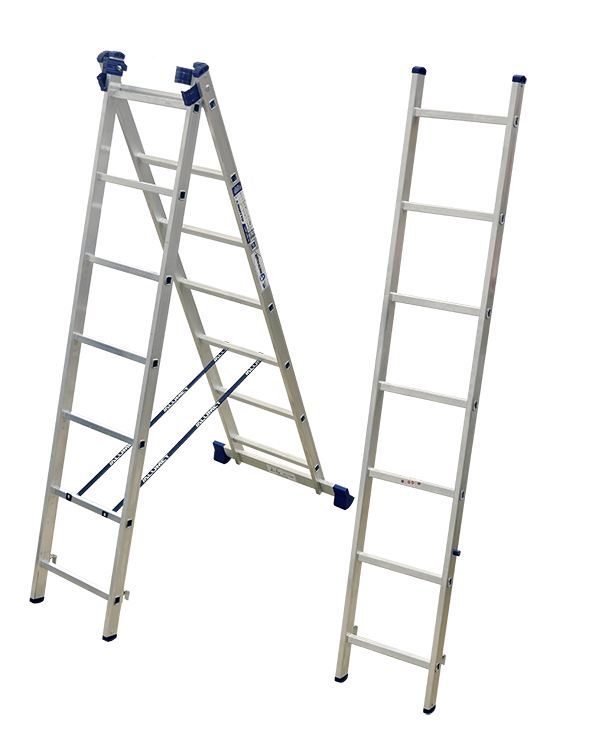

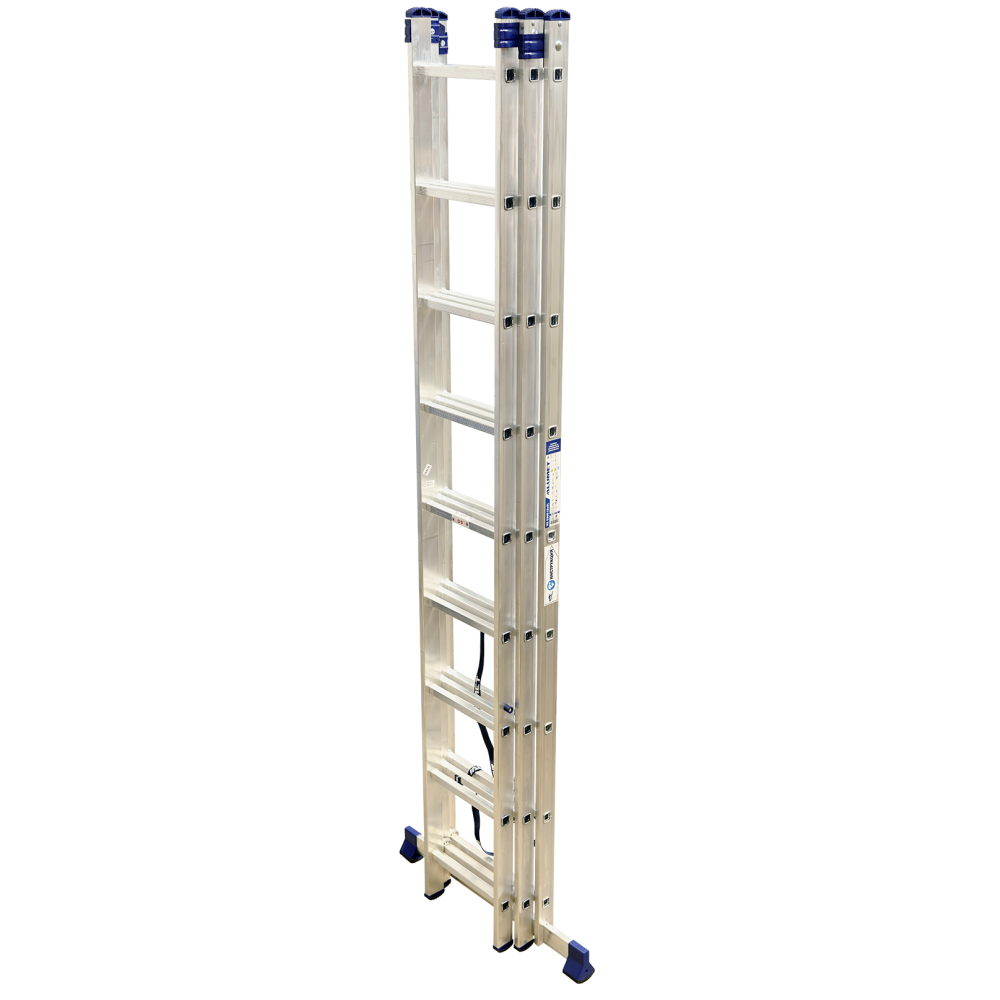

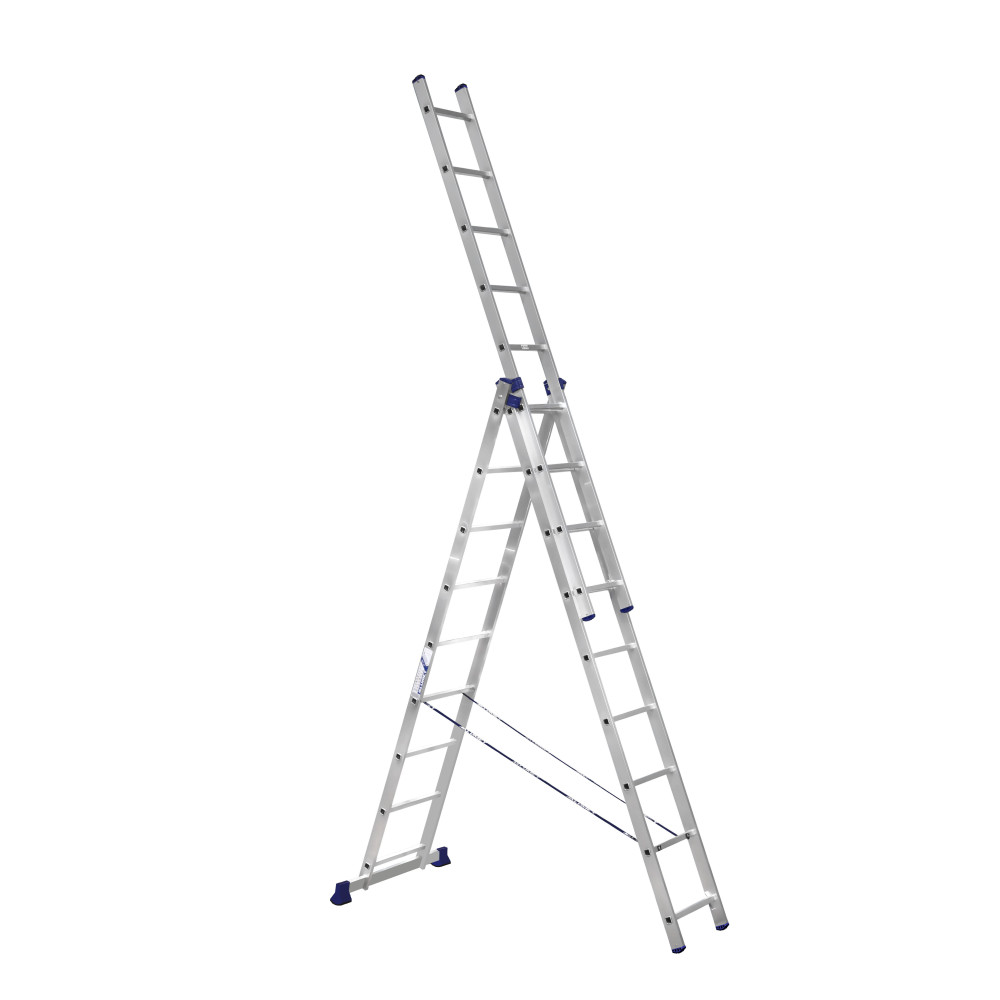

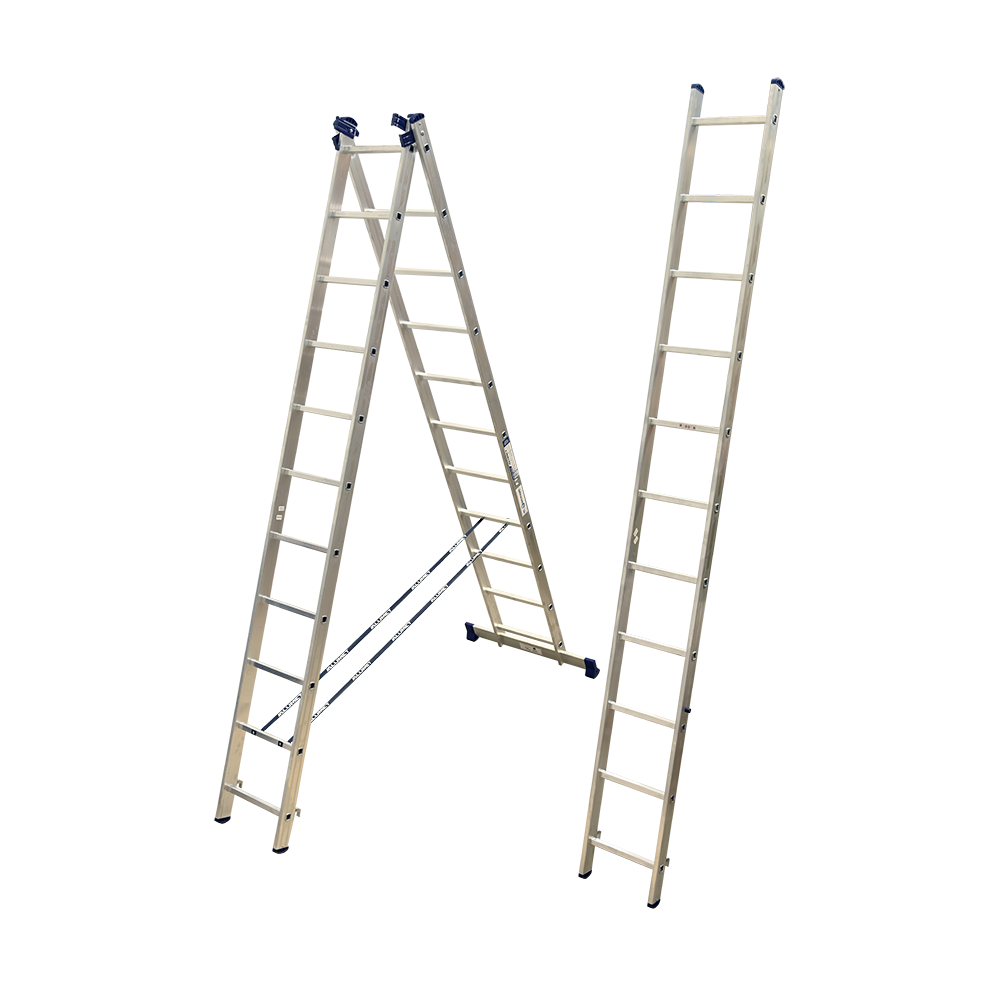

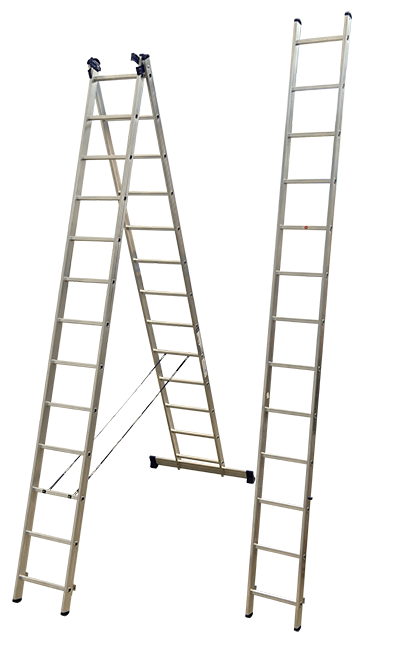

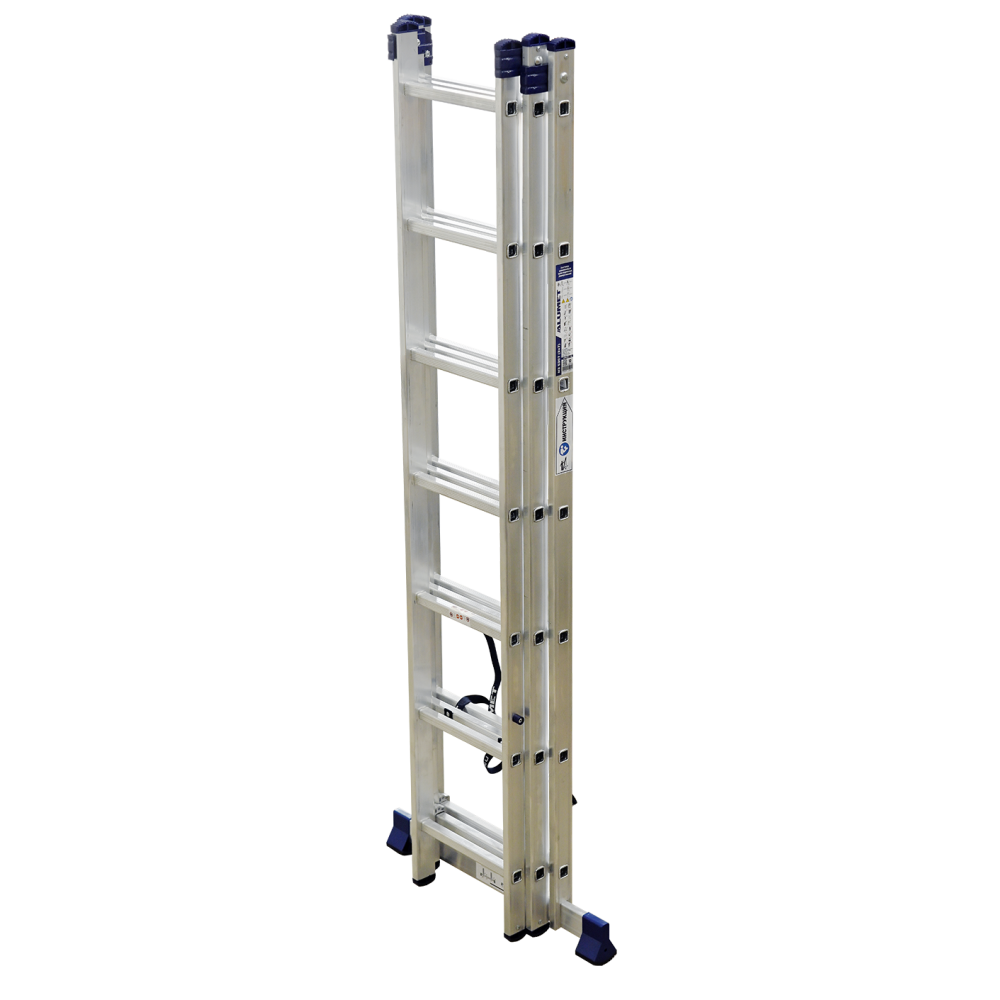

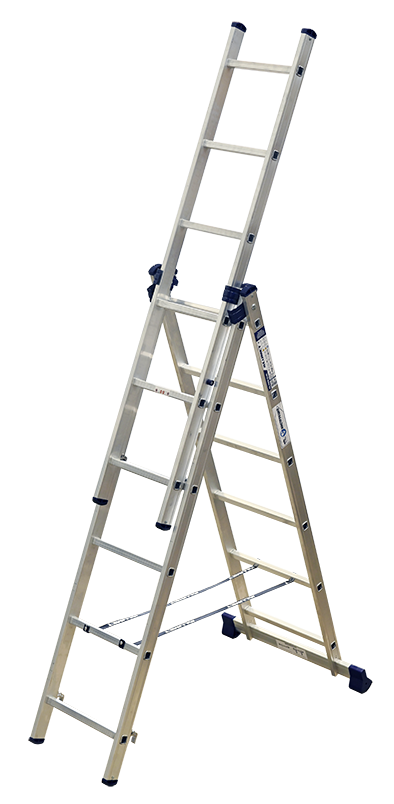

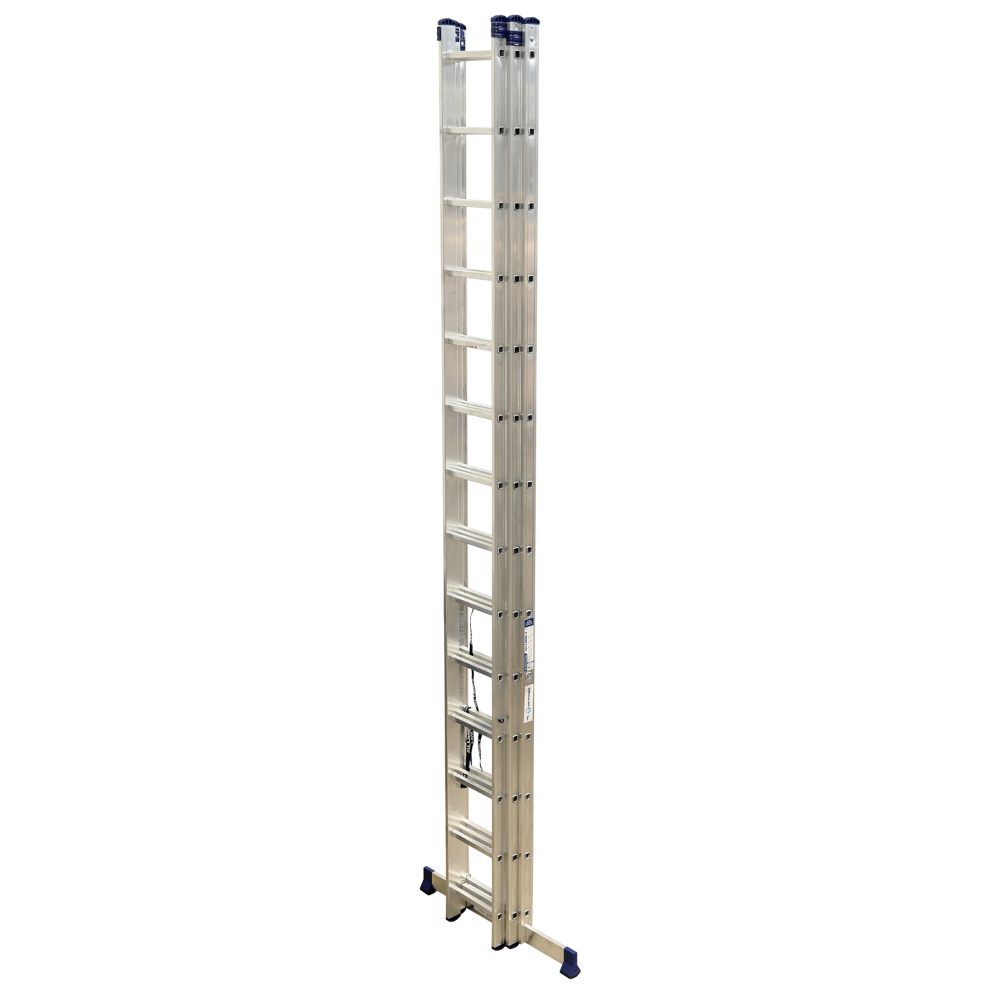

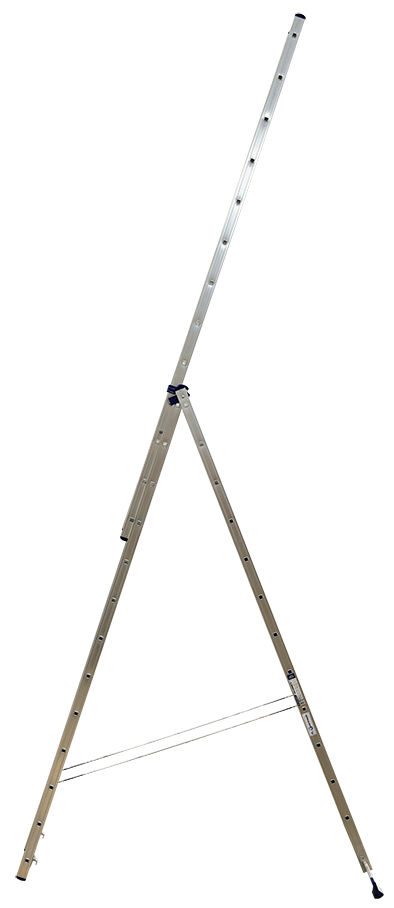

This versatile ladder can be used as a triple section extension ladder, as well as a self-supporting step ladder (in the shape of an inverted Russian letter ‘У’). Moreover, the third section is removable, and it can be used separately as a straight ladder, while the remaining part can be used as a double multipurpose ladder. This ladder is by right the most multipurpose of all, and despite the necessary pairwise overlap of sections both in the ‘extension ladder’ and the ‘step ladder’ configurations, which complicates the design, makes the ladder heavier and therefore increases its cost, it is the most popular option due to its exceptional versatility. The overlap of the second and third sections, necessary for stability, is provided by a side support. It is impossible to insert the third section from above through the upper connection point and miss this side support. The wall thickness of HS3 ladders is significantly higher, which increases the feeling of comfort when using these ladders in comparison to H3 series.

Technical specifications

Vendor code	Number of steps	Section length	Length of two sections	Length of three sections	Height max	Height of two sections	Höhe von drei Abschnitten	Width	Stabilizer length	Profile	Weight
H3 5306	3x6	1.69	2.54	3.38	2.59	3.44	4.28	0.33/0.39/0.44	0.70	54x20	8.0
H3 5307	3x7	1.97	2.82	3.94	2.87	3.72	4.84	0.33/0.39/0.44	0.70	54x20	9.2
H3 5308	3x8	2.25	3.10	5.01	3.15	4.00	5.91	0.33/0.39/0.44	0.80	60x20	10.7
H3 5309	3x9	2.53	4.22	5.62	3.43	5.12	6.52	0.33/0.39/0.44	0.8	60x20	11.9
H3 5310	3x10	2.81	4.30	6.46	3.71	5.70	7.36	0.33/0.39/0.44	0.90	71.5x20	14.3
H3 5311	3x11	3.1	5.06	7.3	3.99	5.91	8.2	0.33/0.39/0.44	0.9	71.5x20	16.1
H3 5312	3x12	3.38	5.62	7.89	4.27	6.52	8.79	0.33/0.39/0.44	1.00	71.5x20	17.5
H3 5313	3x13	3.66	6.18	8.70	4.58	7.08	9.60	0.33/0.39/0.44	1.00	71.5x20	18.9
H3 5314	3x14	3.94	6.74	9.26	4.83	7.64	10.16	0.33/0.39/0.44	1	71.5x20	20.3

Vendor code	Number of steps	Section length	Length of two sections	Length of three sections	Height max	Height of two sections	Höhe von drei Abschnitten	Width	Stabilizer length	Profile	Weight
HS3 6312	3x12	3.39	5.89	8.43	4.20	6.79	9.33	0.33/0.39/0.44	1.00	82x20	21.5
HS3 6313	3x13	3.67	6.45	9.27	4.57	7.35	10.17	0.33/0.39/0.44	1.00	82x20	23.2
HS3 6314	3x14	3.95	7.01	10.11	4.85	7.91	11.01	0.33/0.39/0.44	1.00	82x20	24.9
HS3 6315	3x15	4.23	7.57	10.95	5.13	8.41	11.85	0.33/0.39/0.44	1.00	82x20	26.6
