SeriesM and ML Series

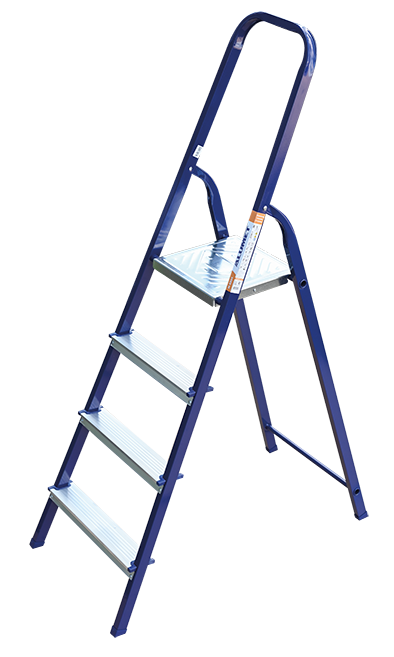

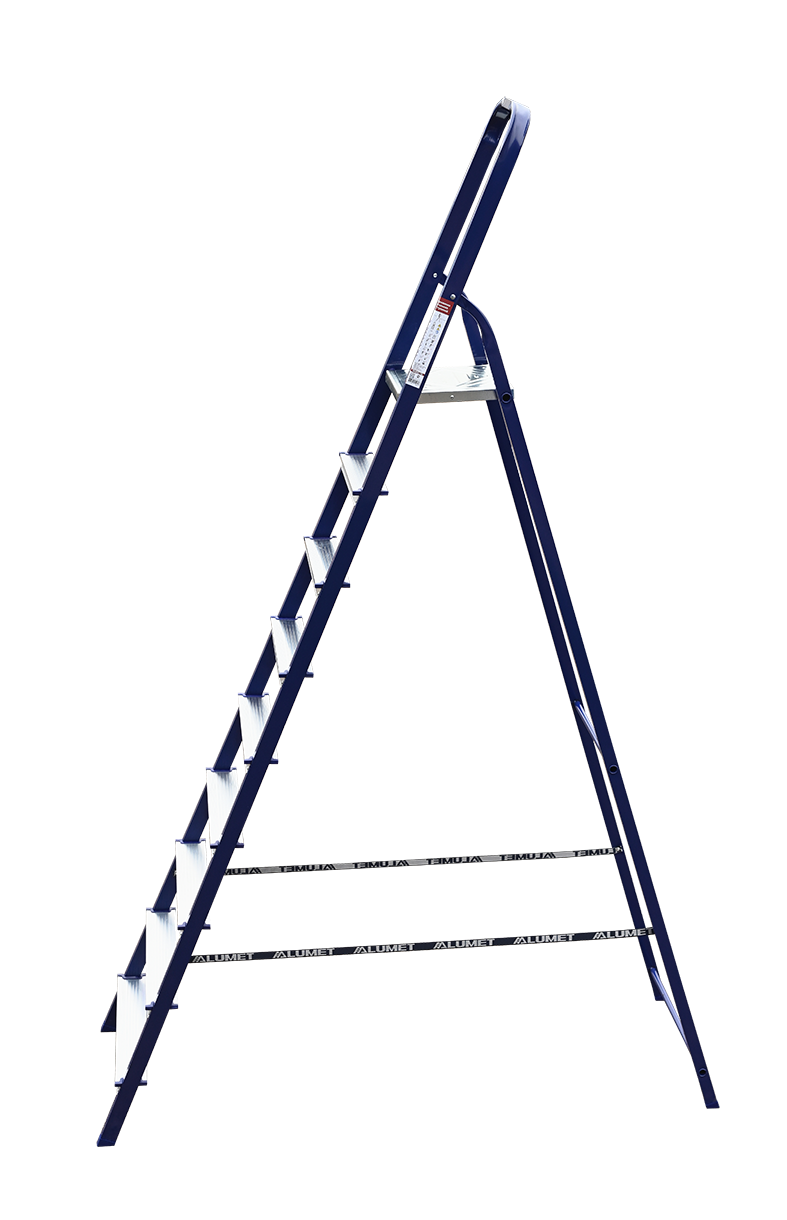

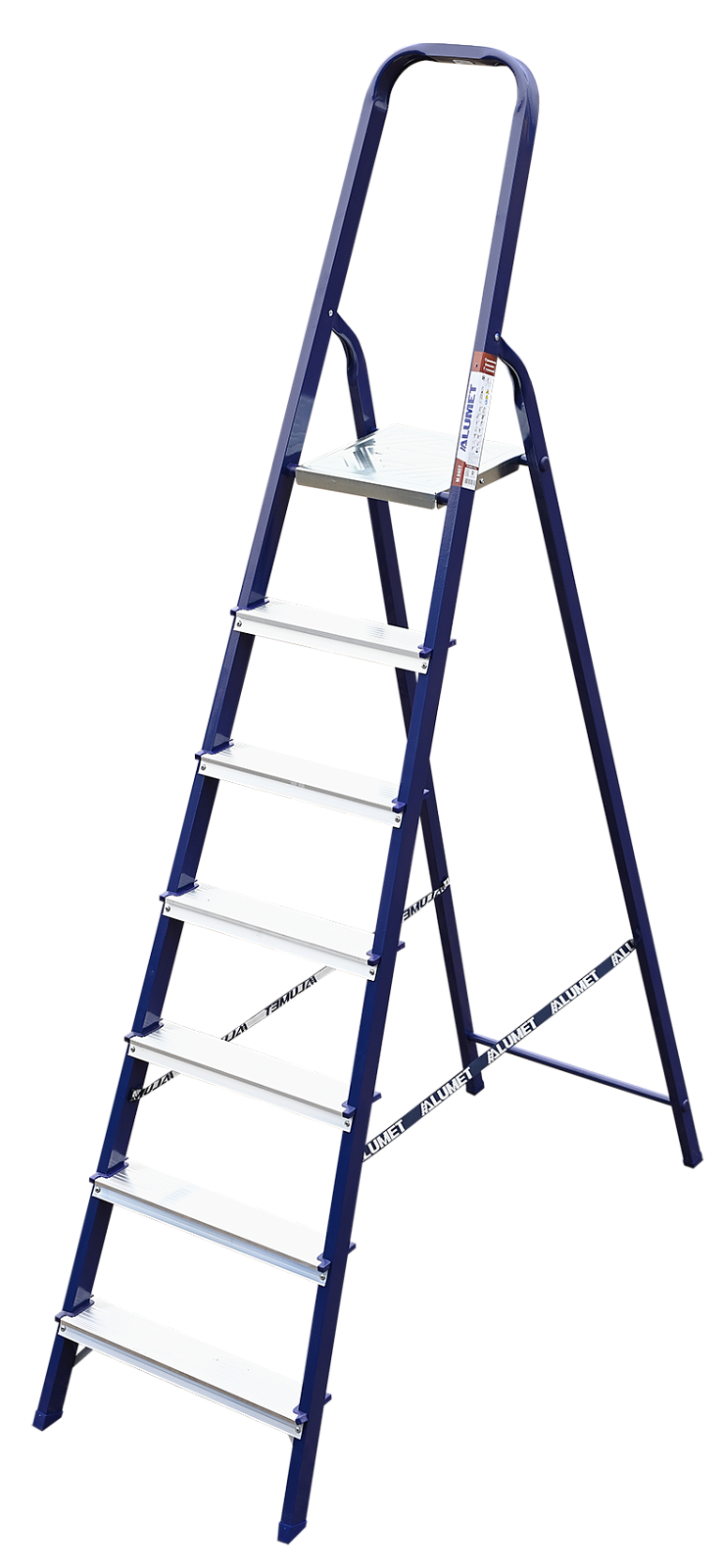

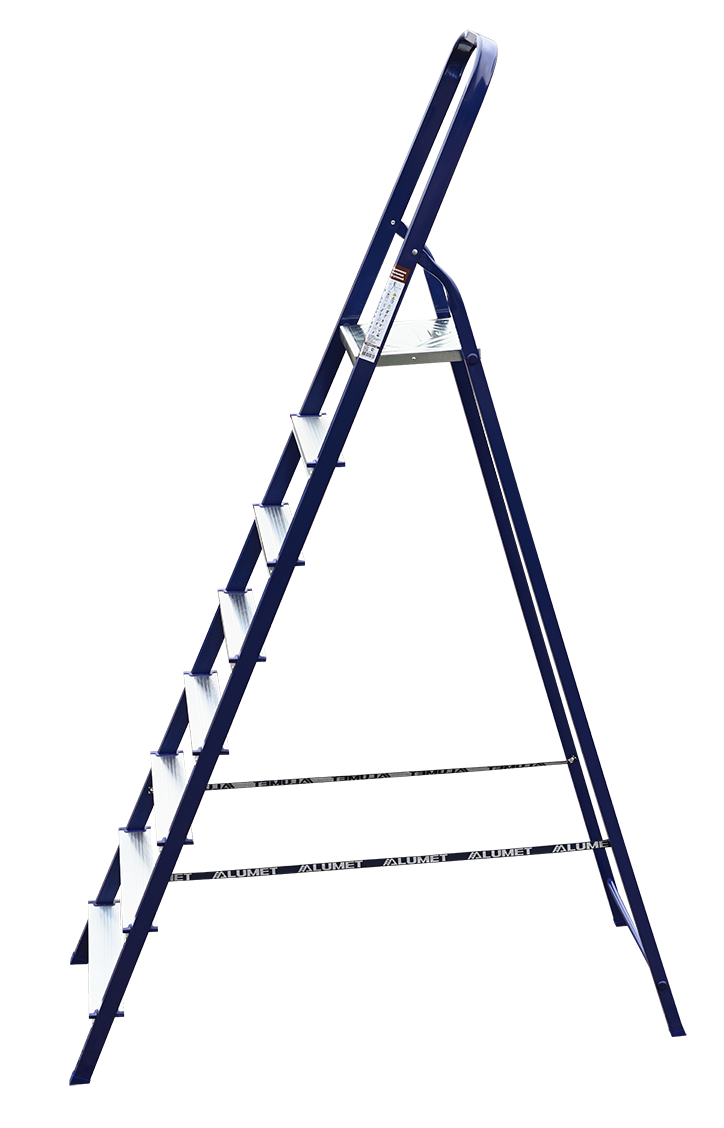

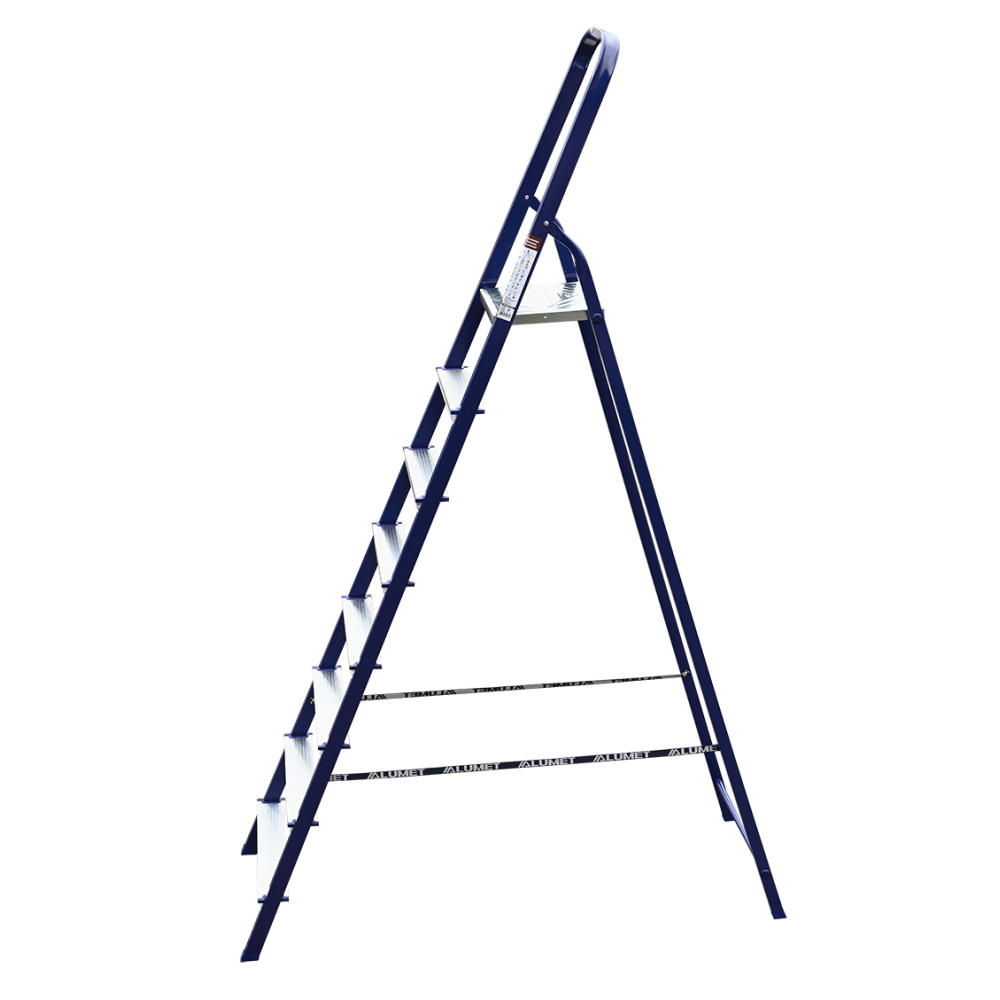

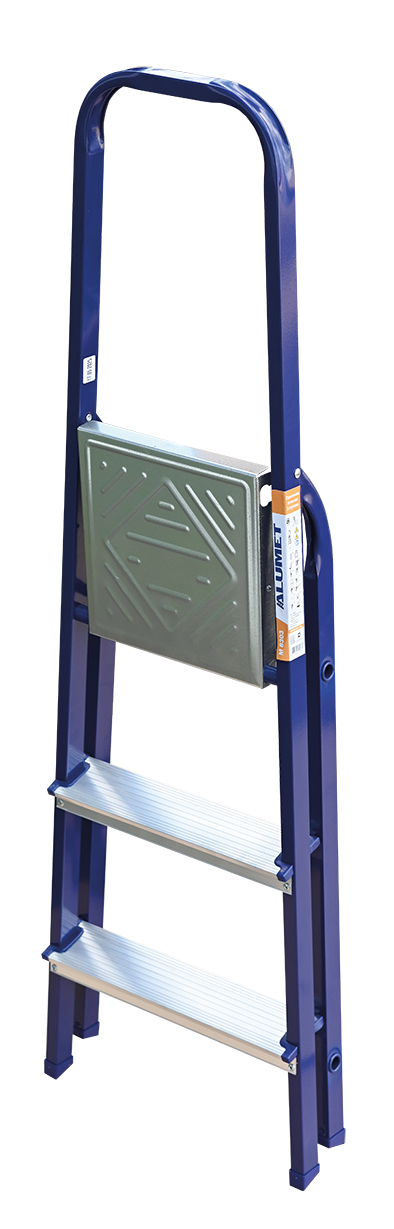

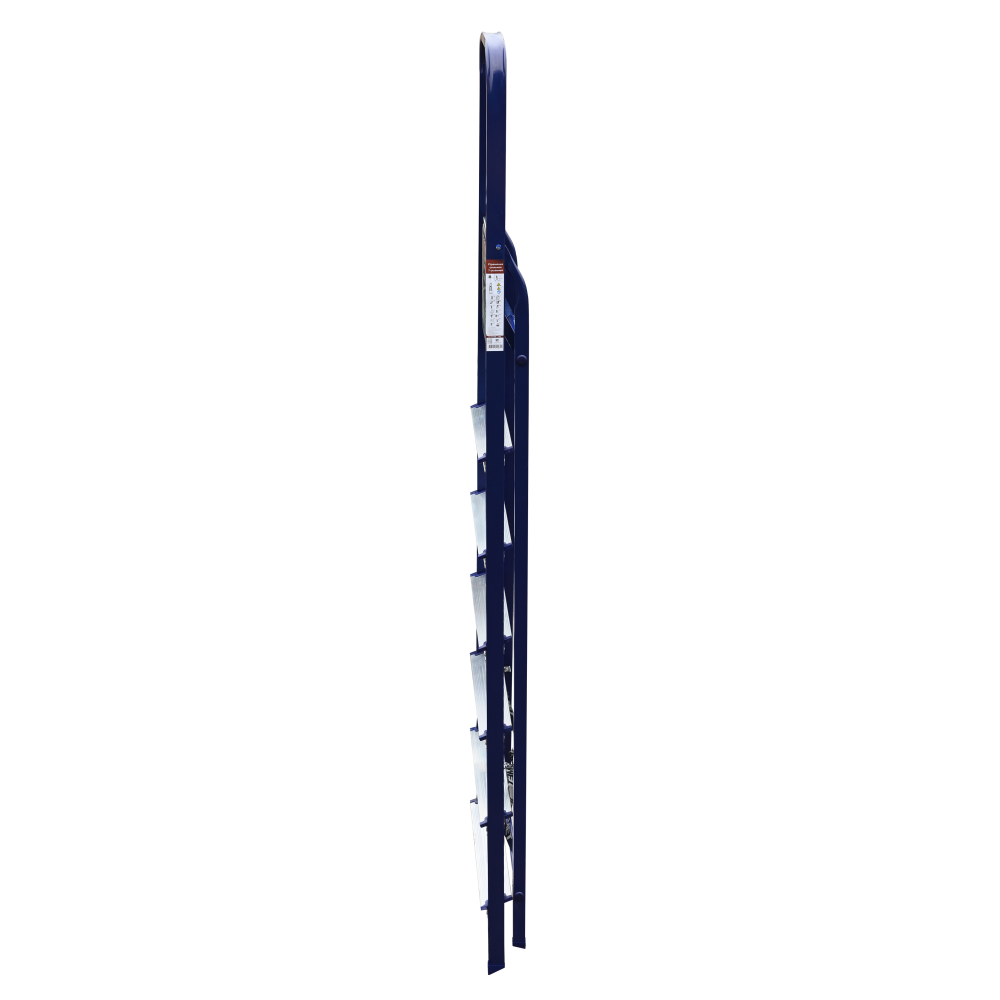

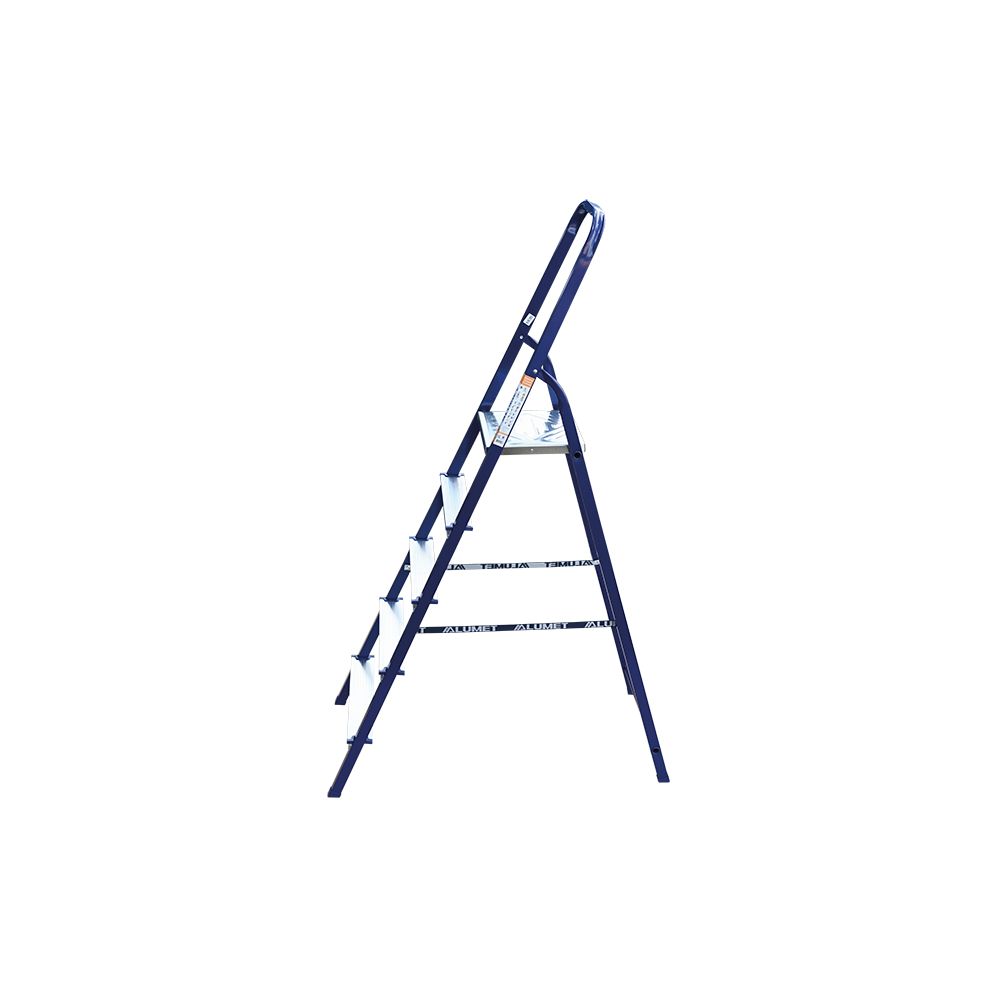

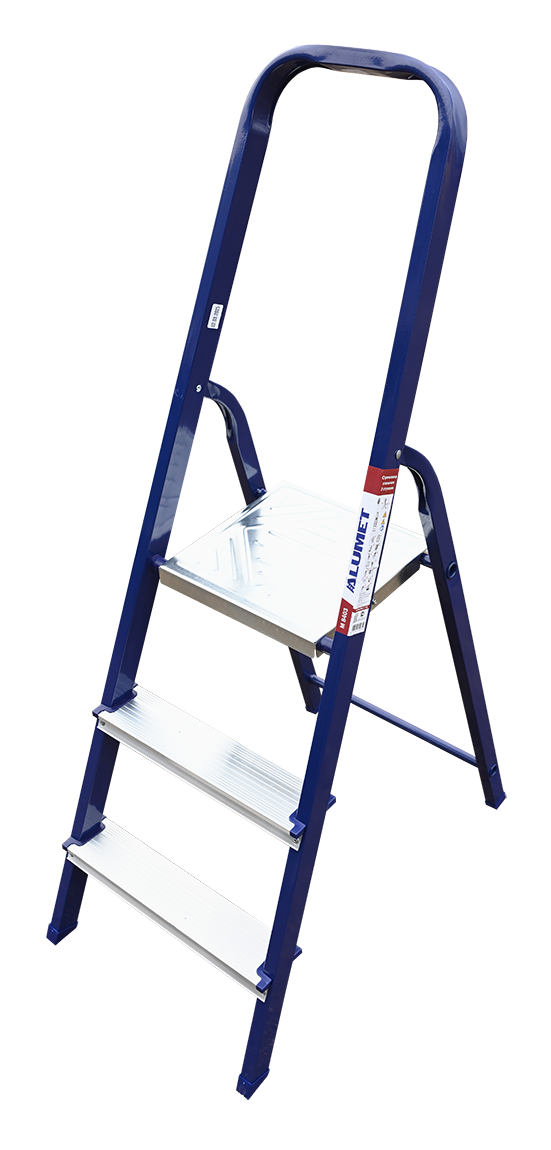

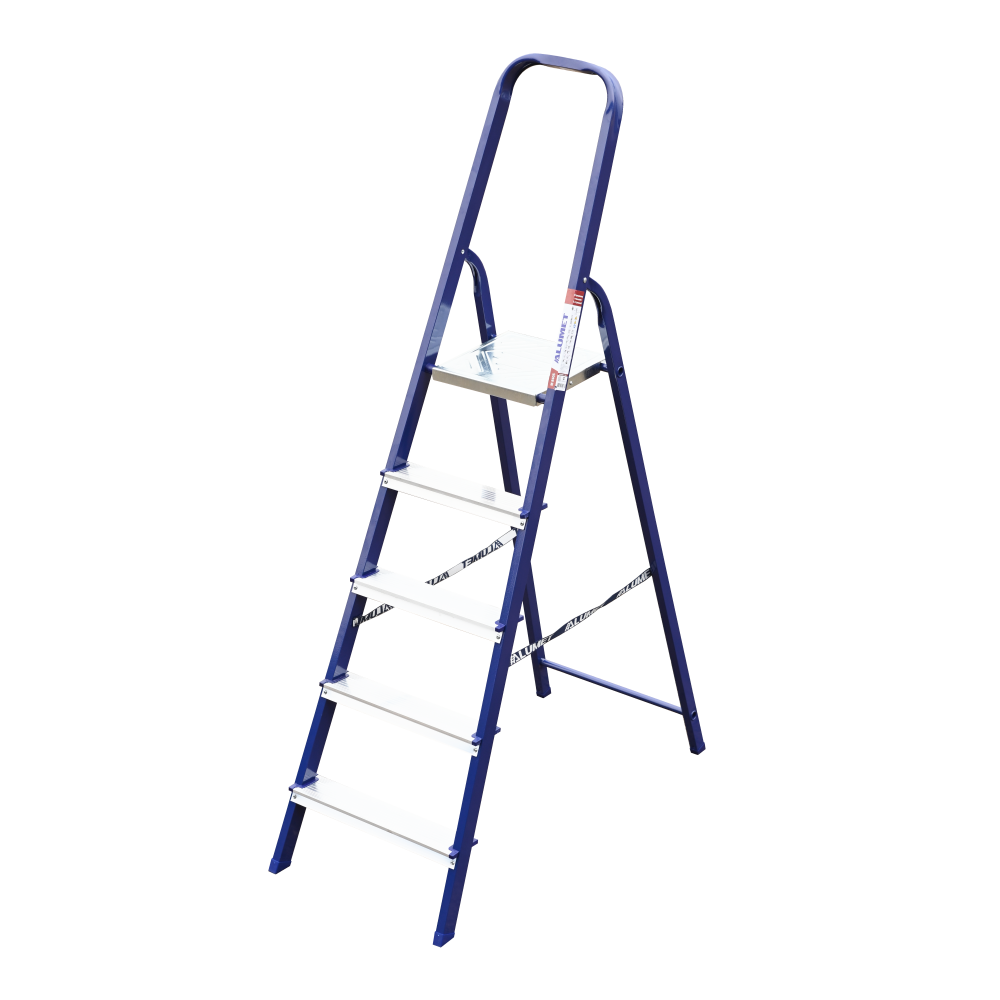

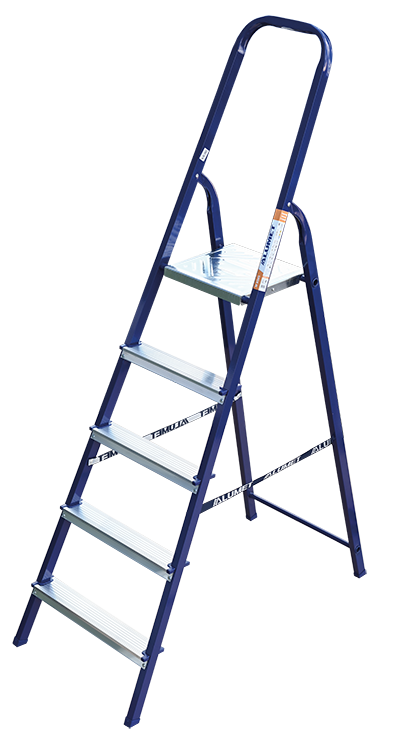

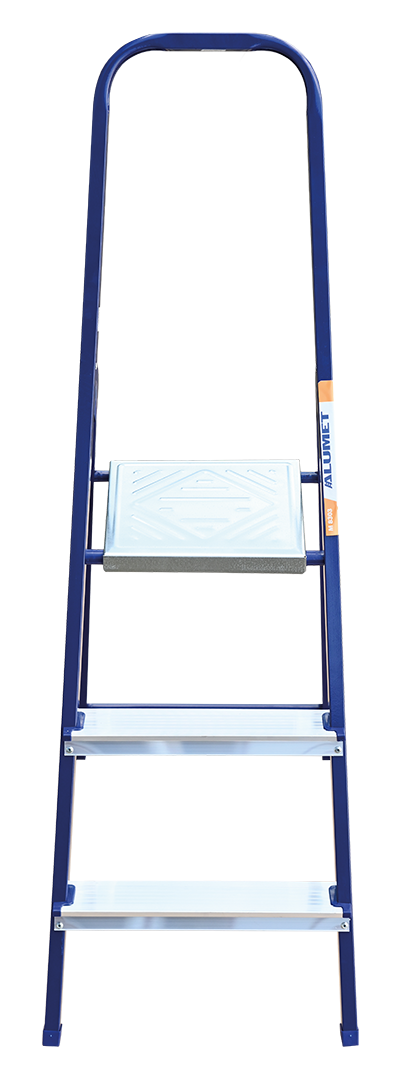

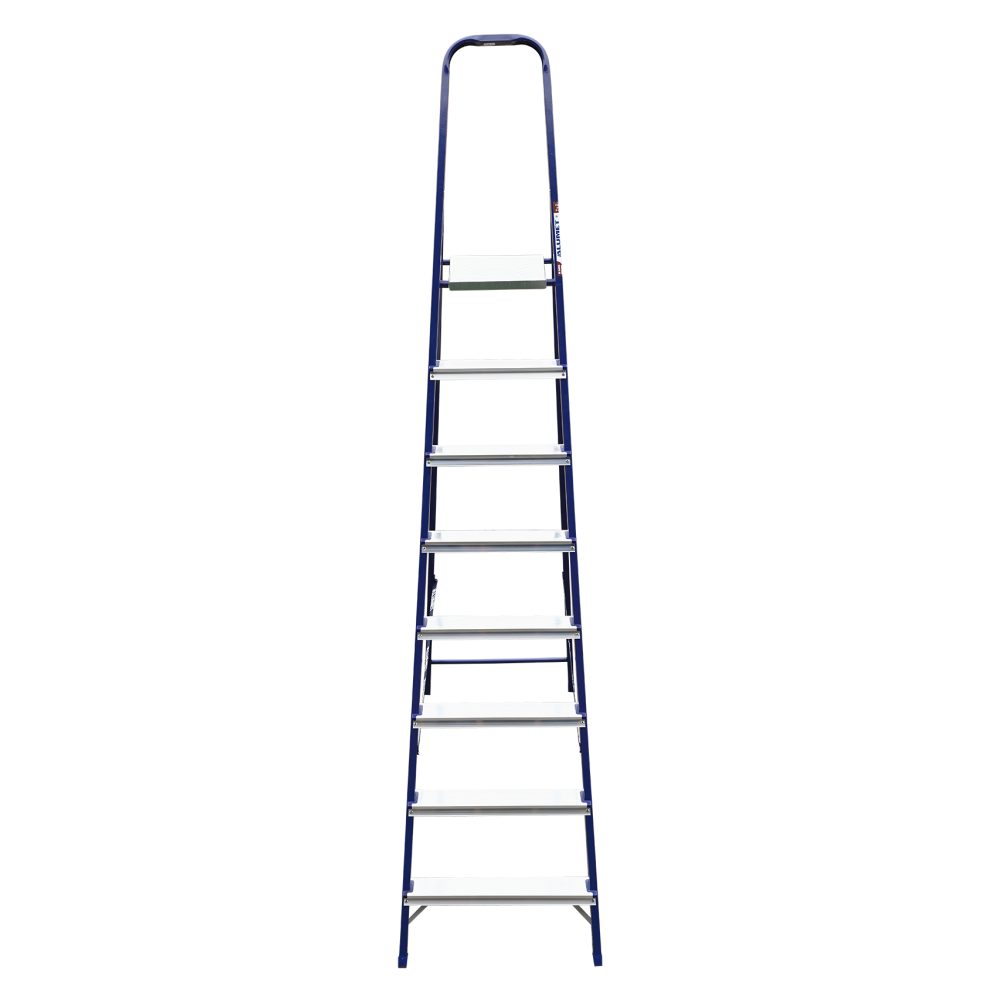

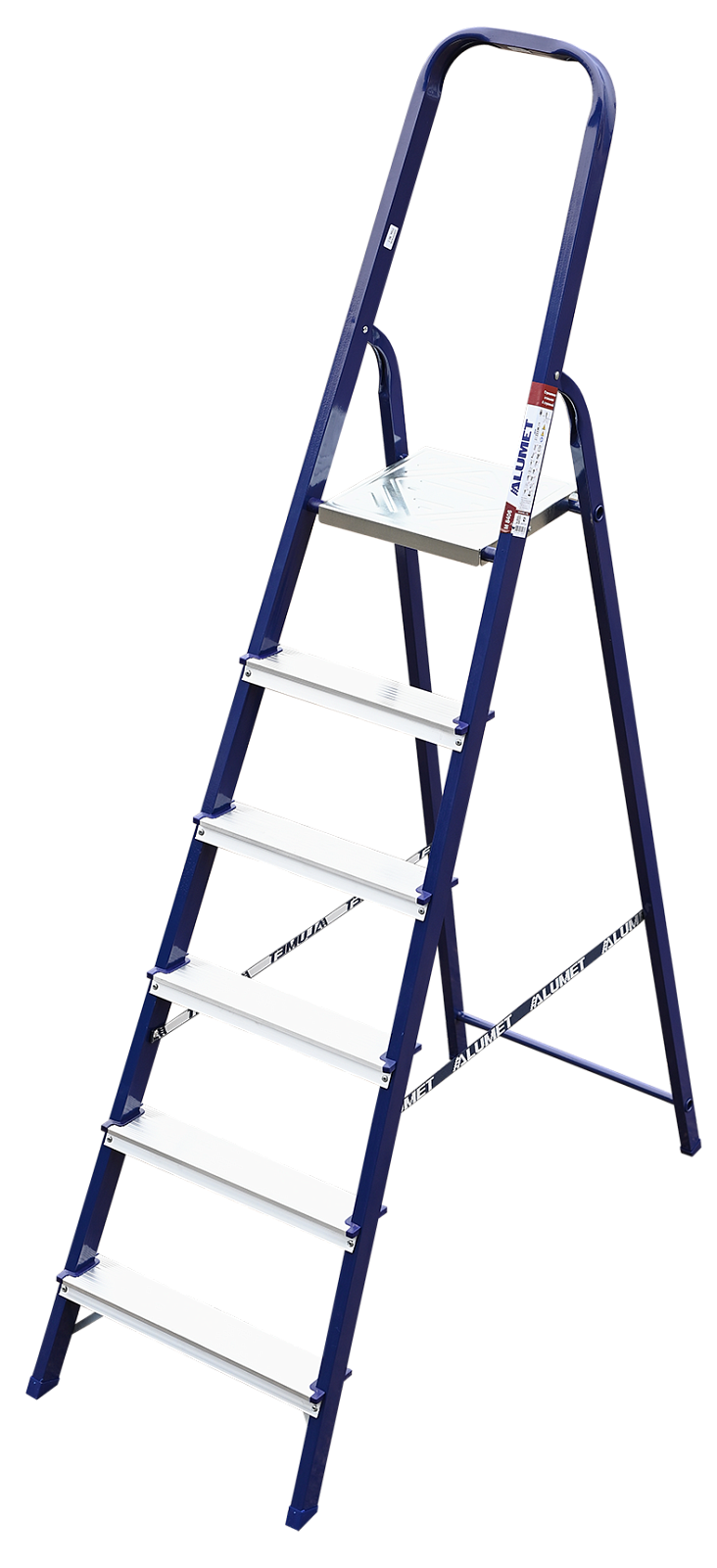

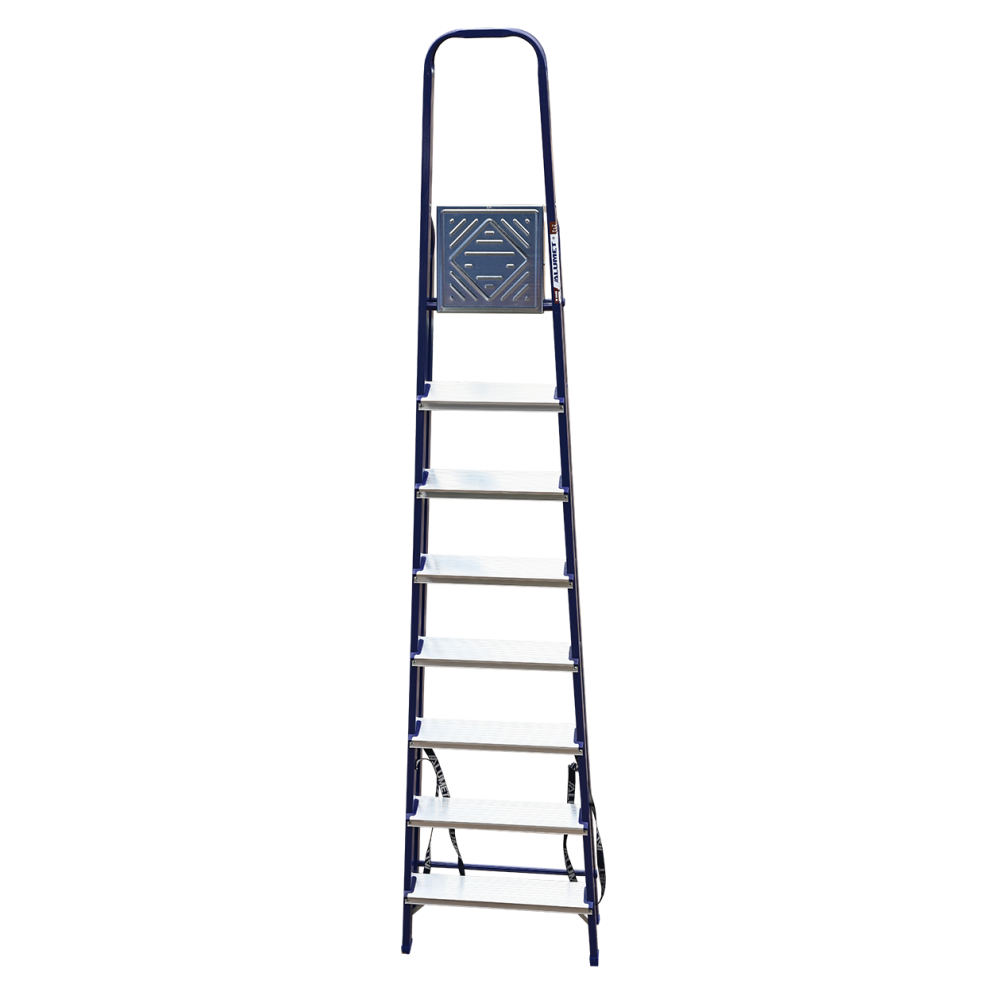

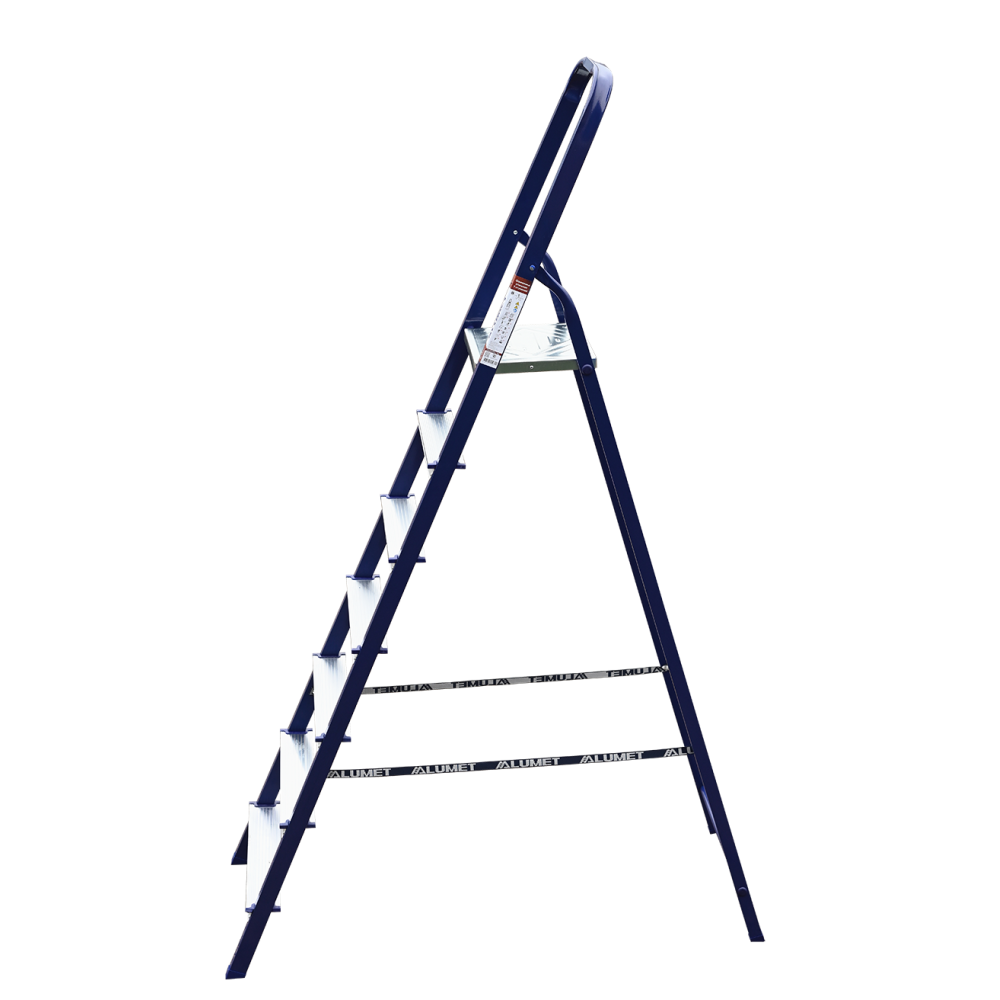

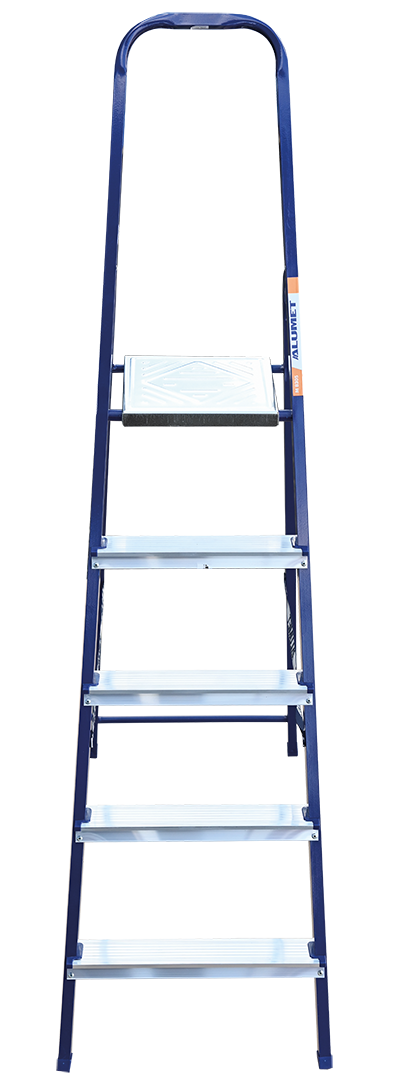

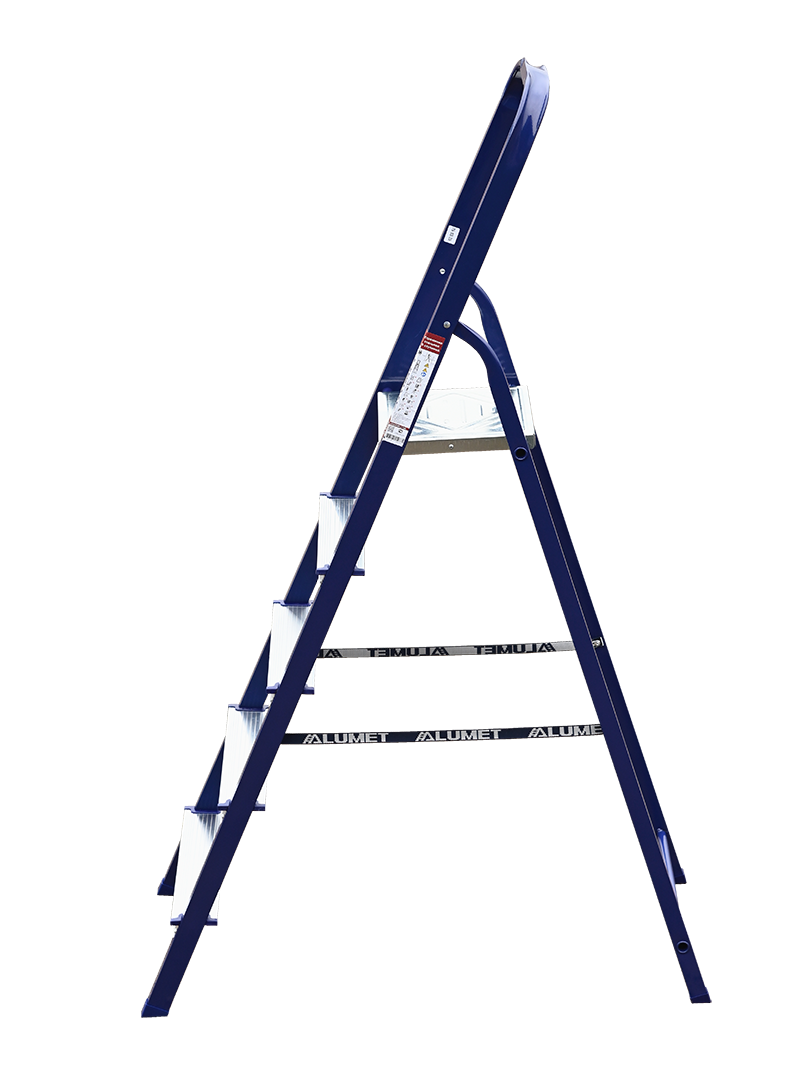

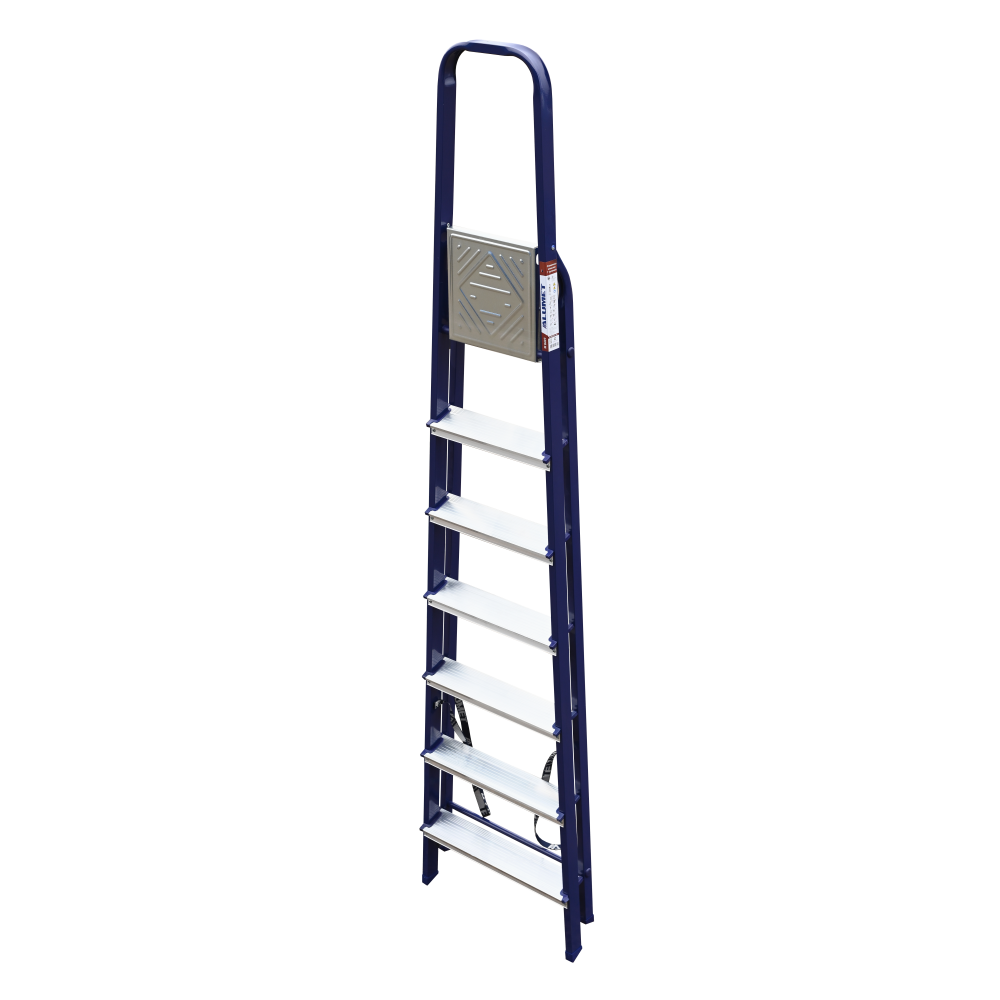

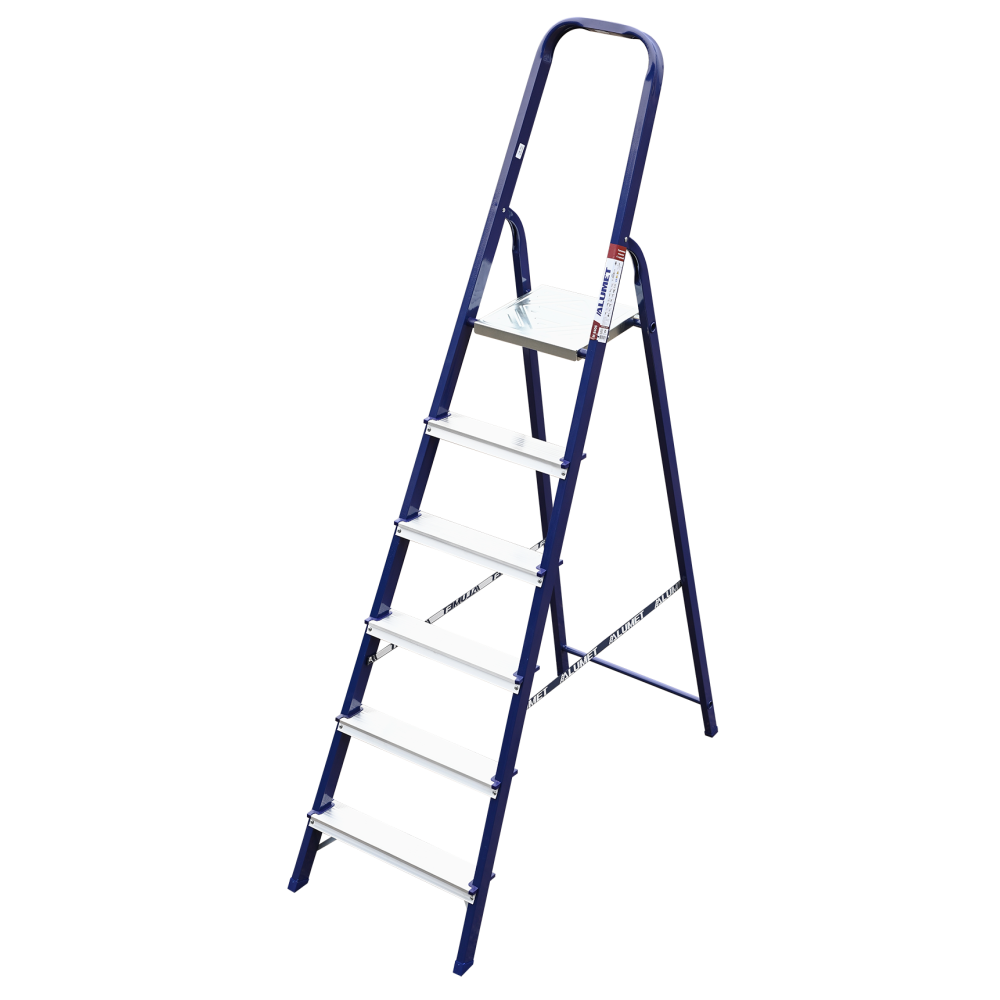

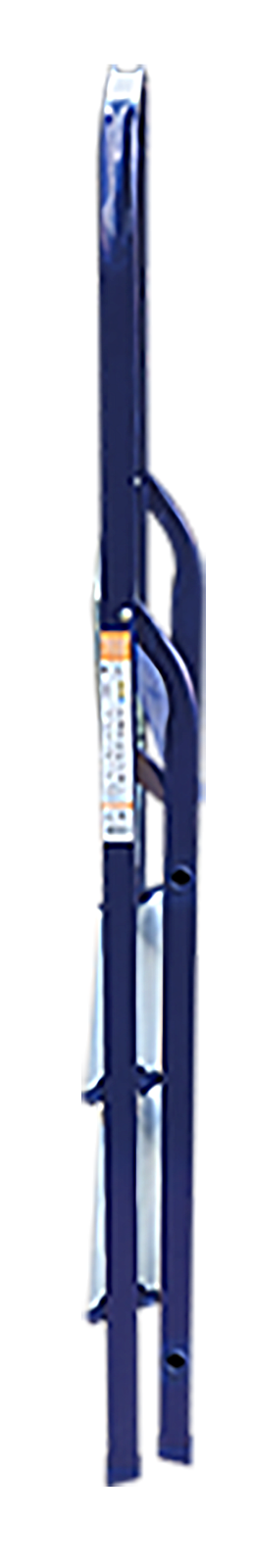

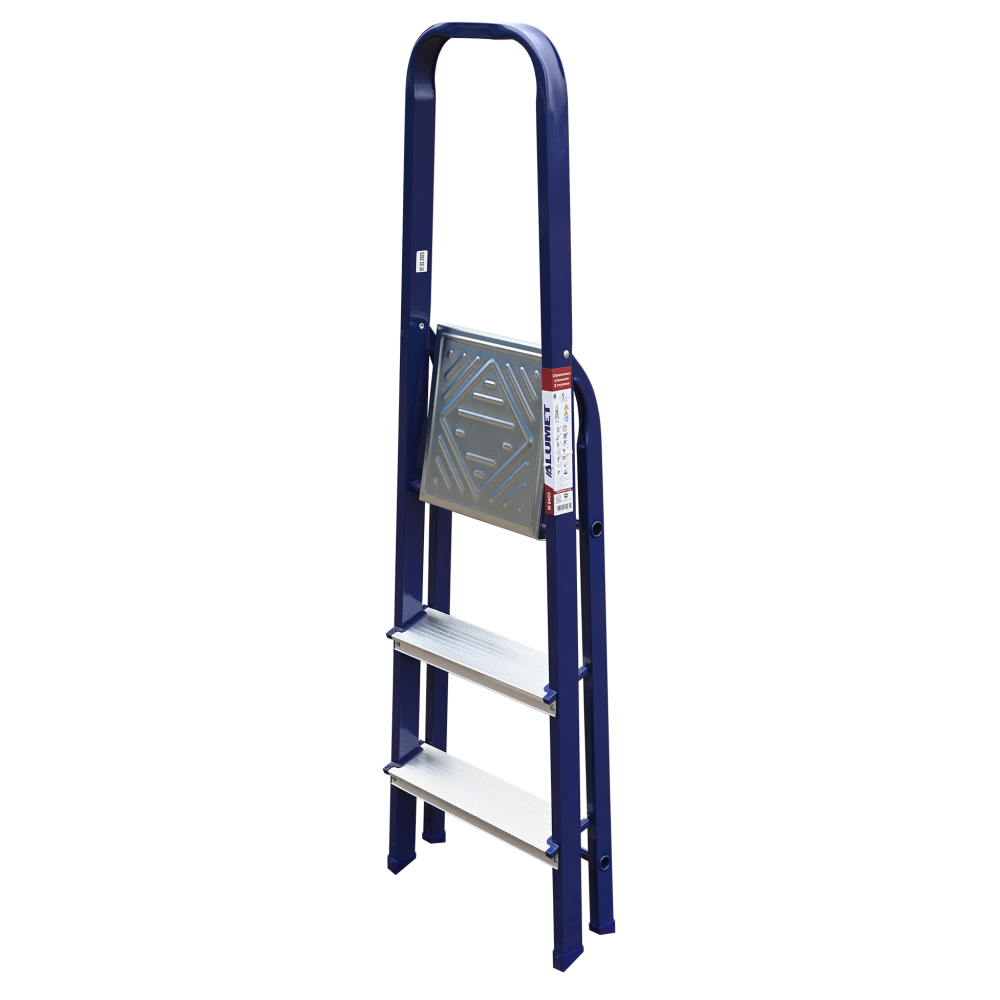

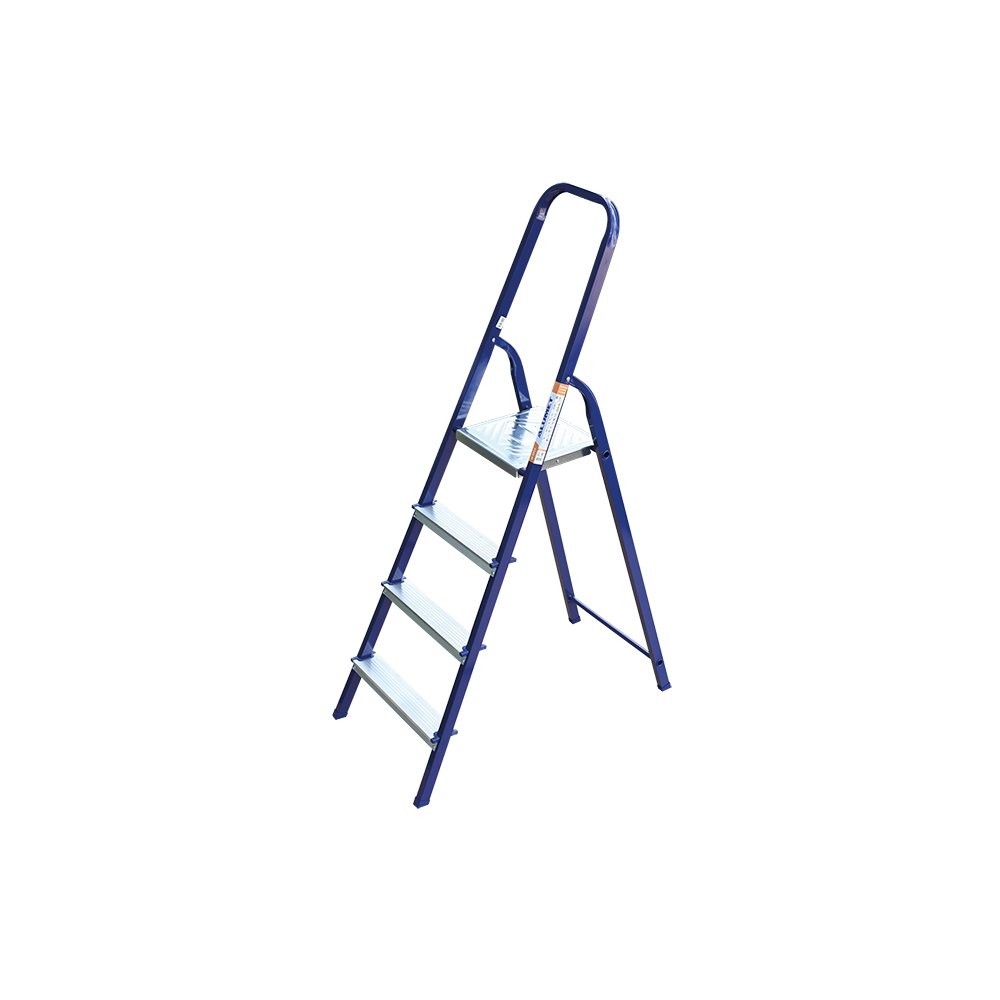

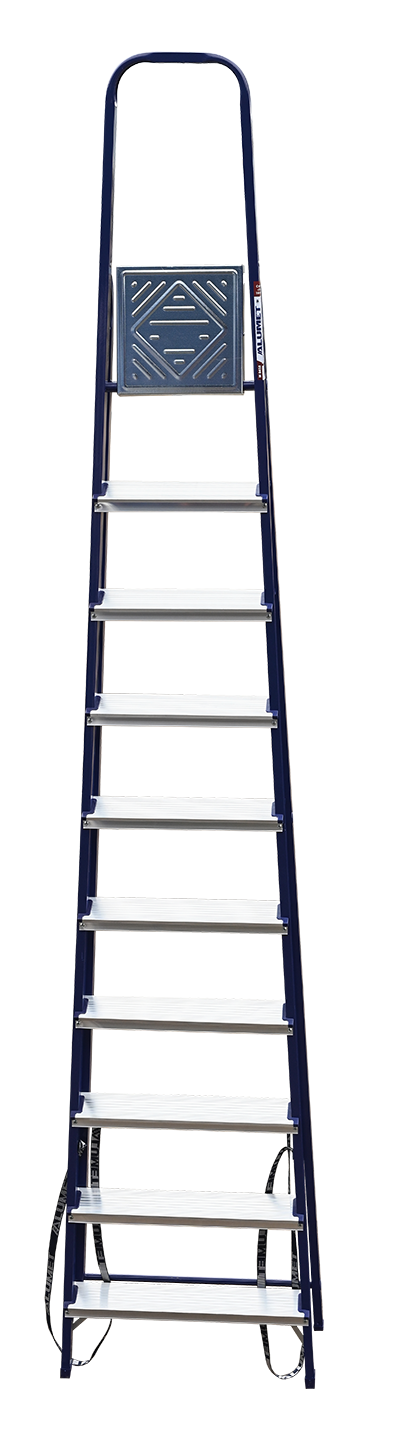

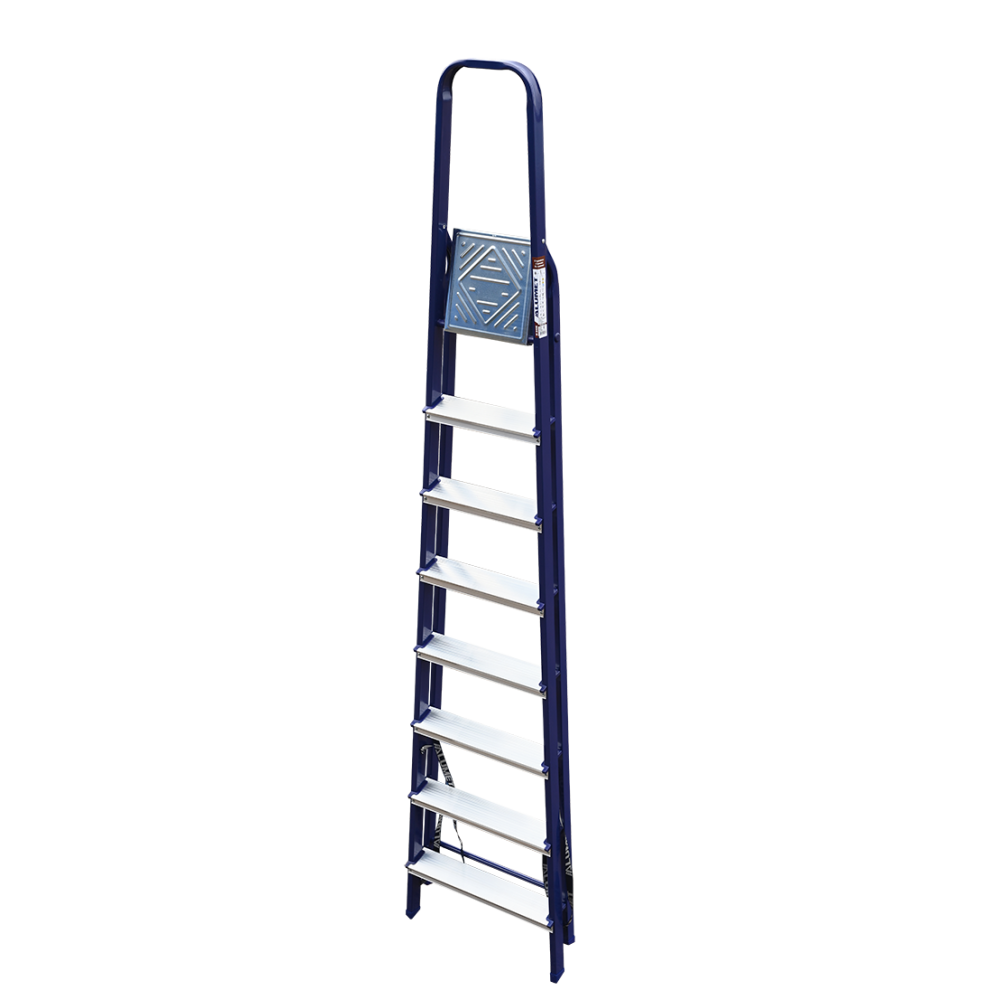

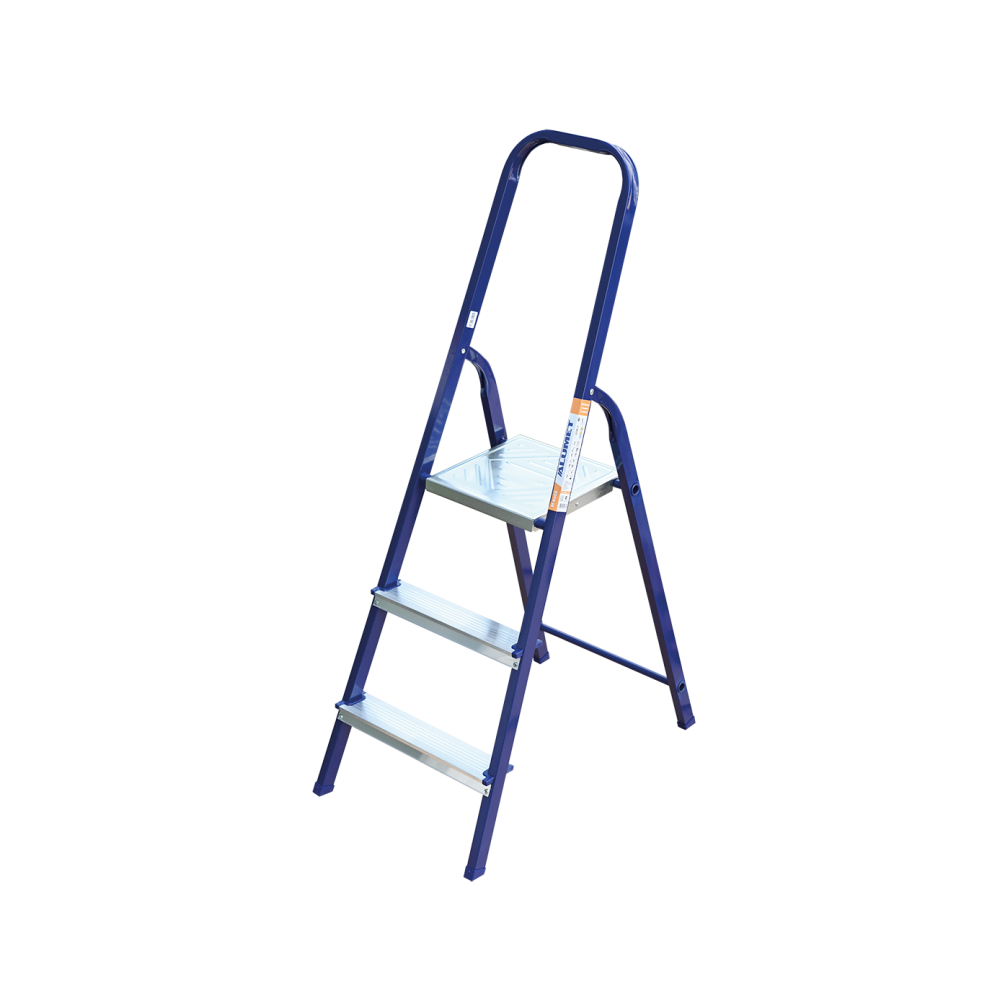

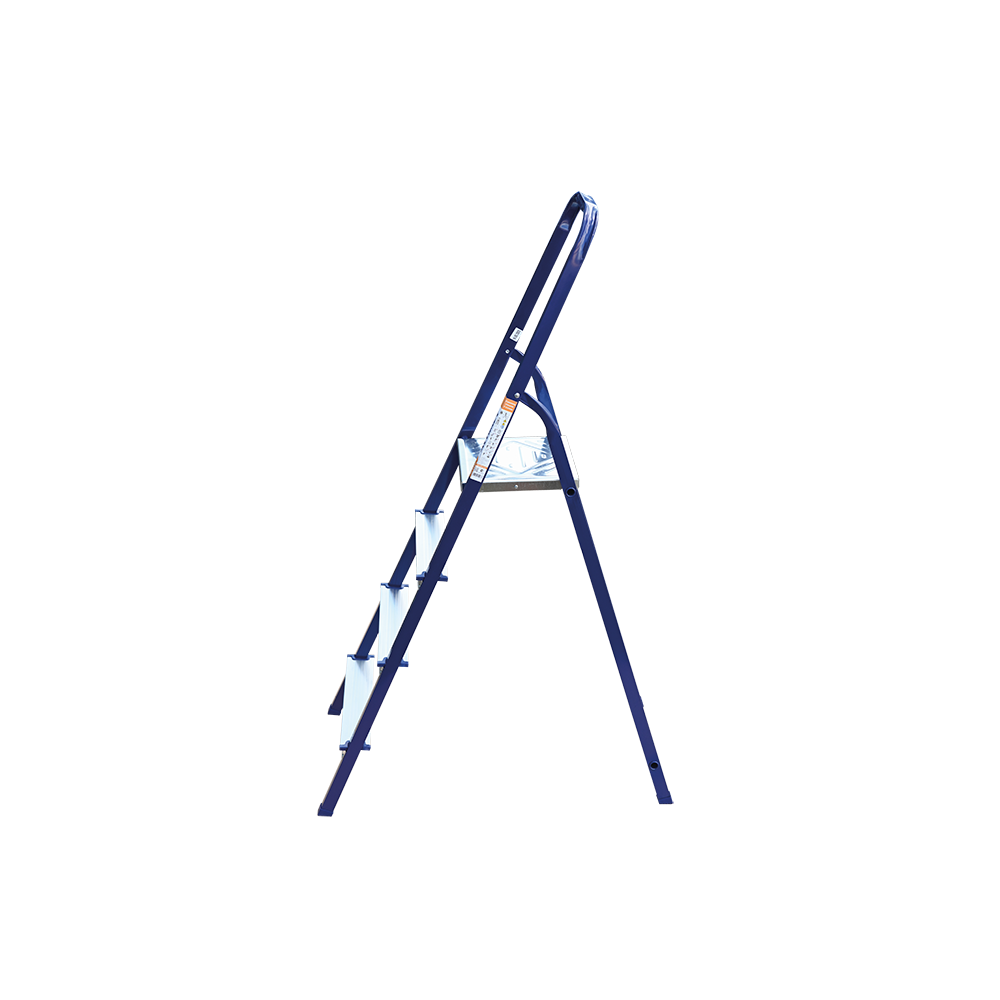

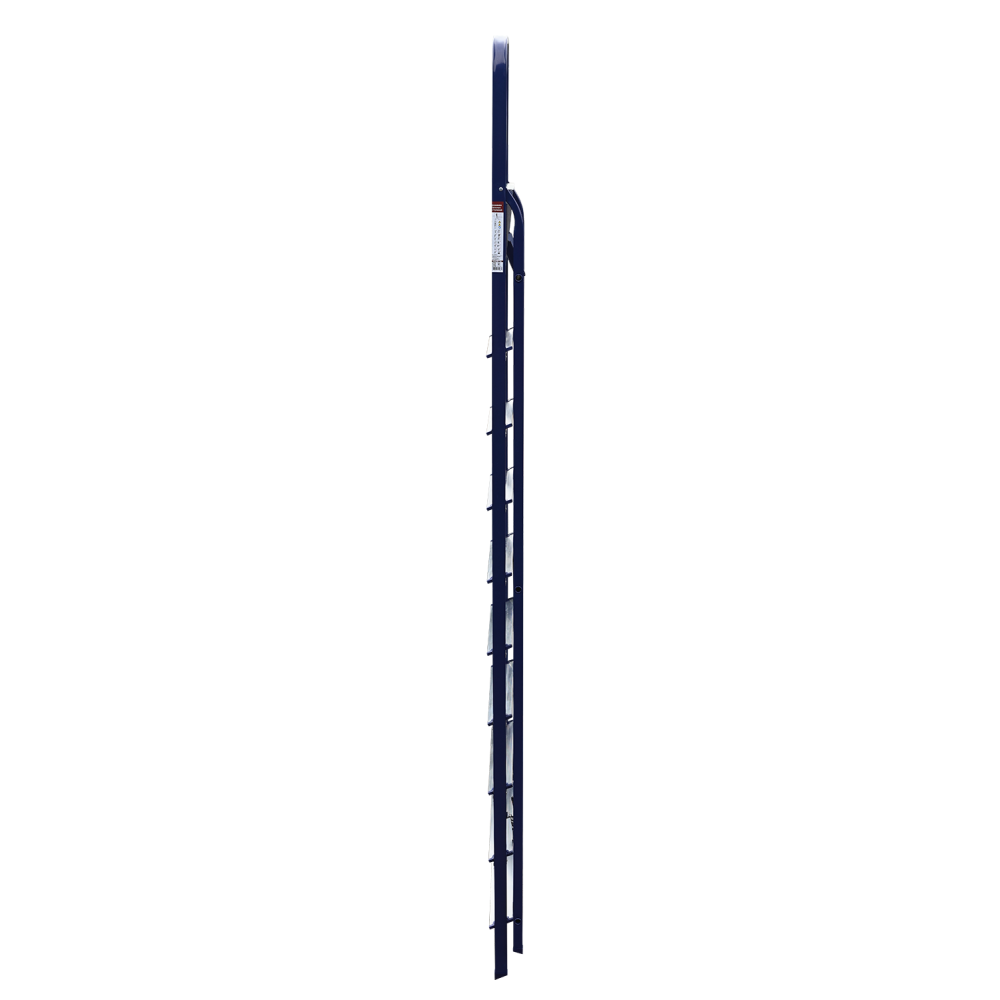

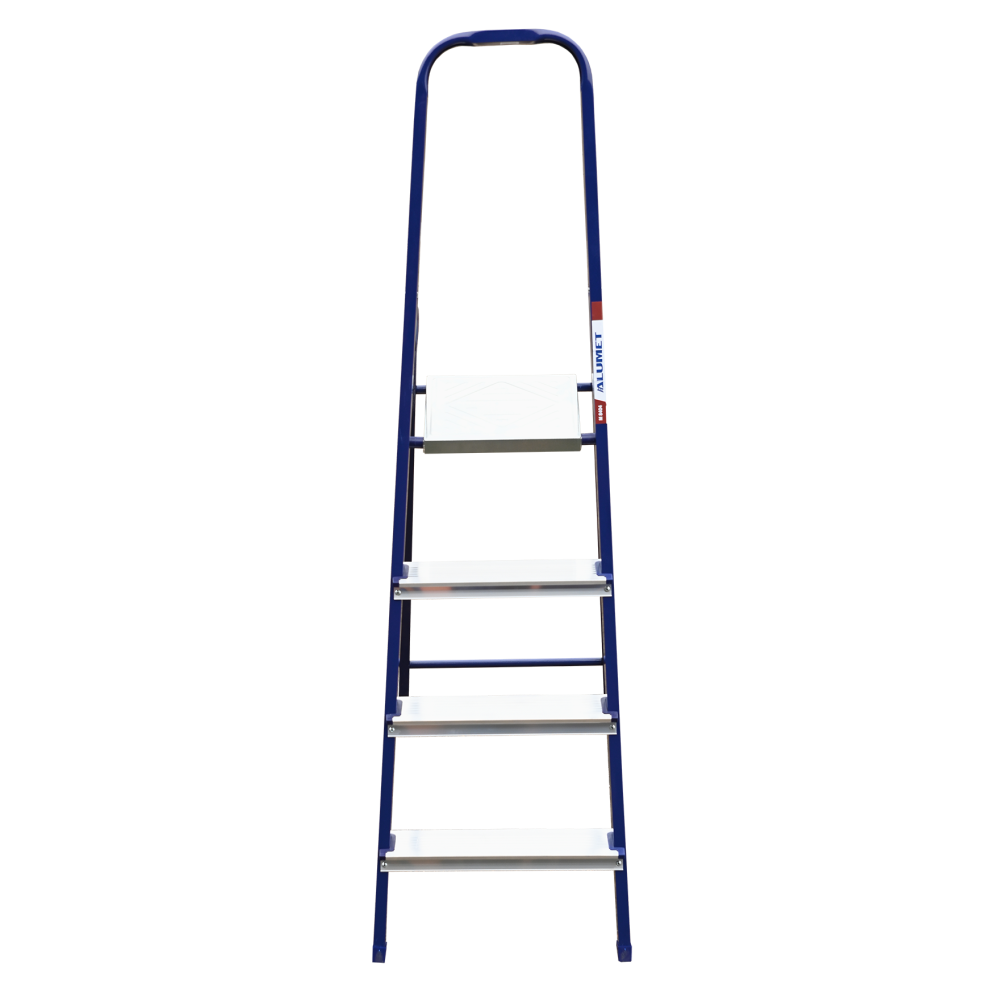

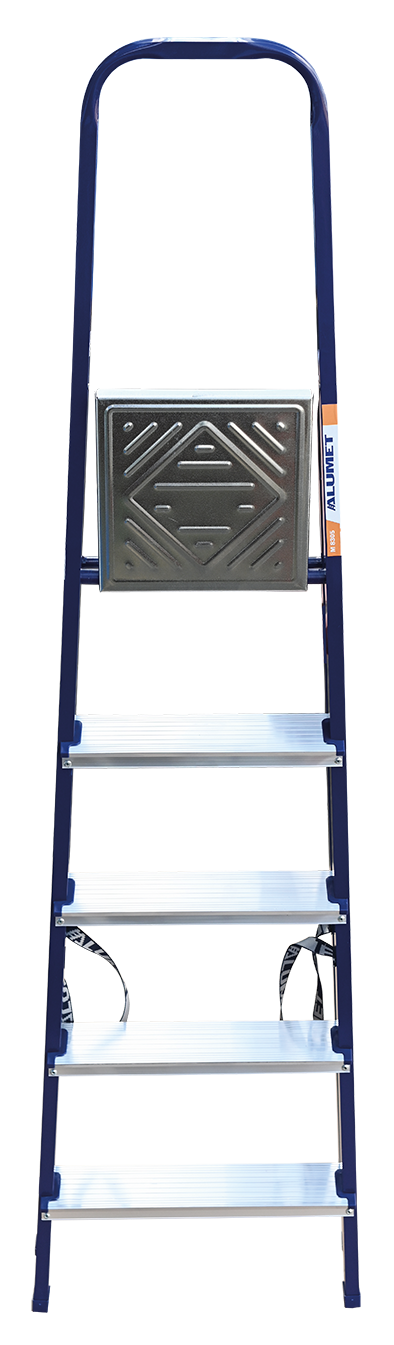

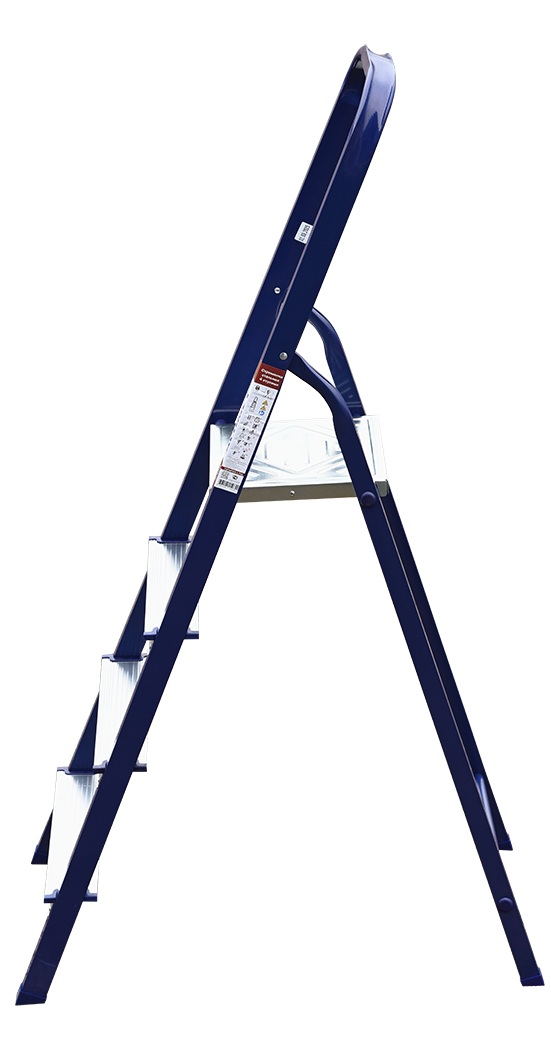

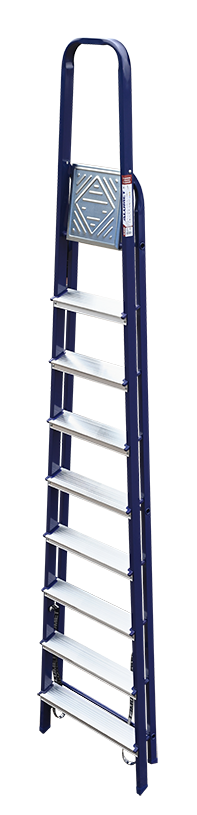

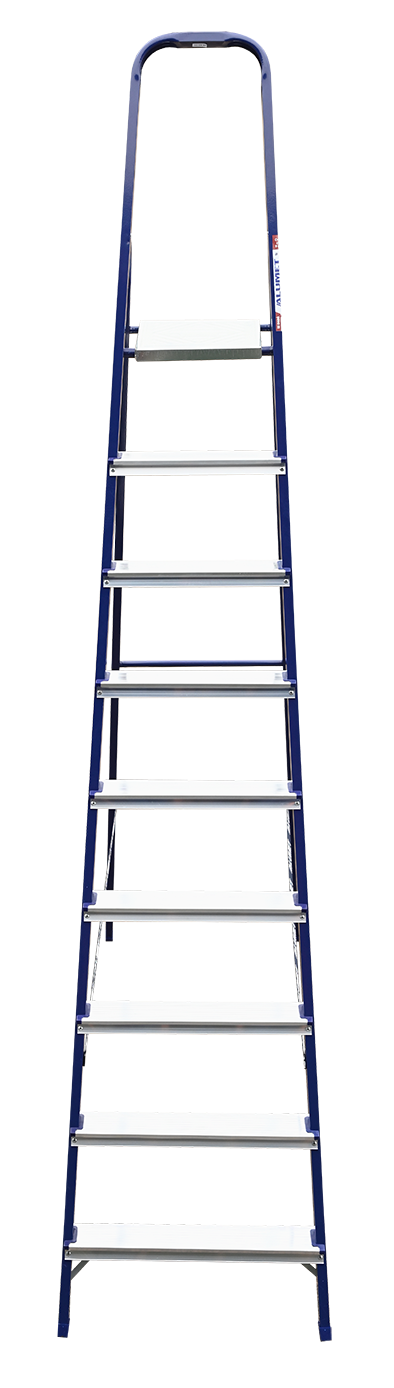

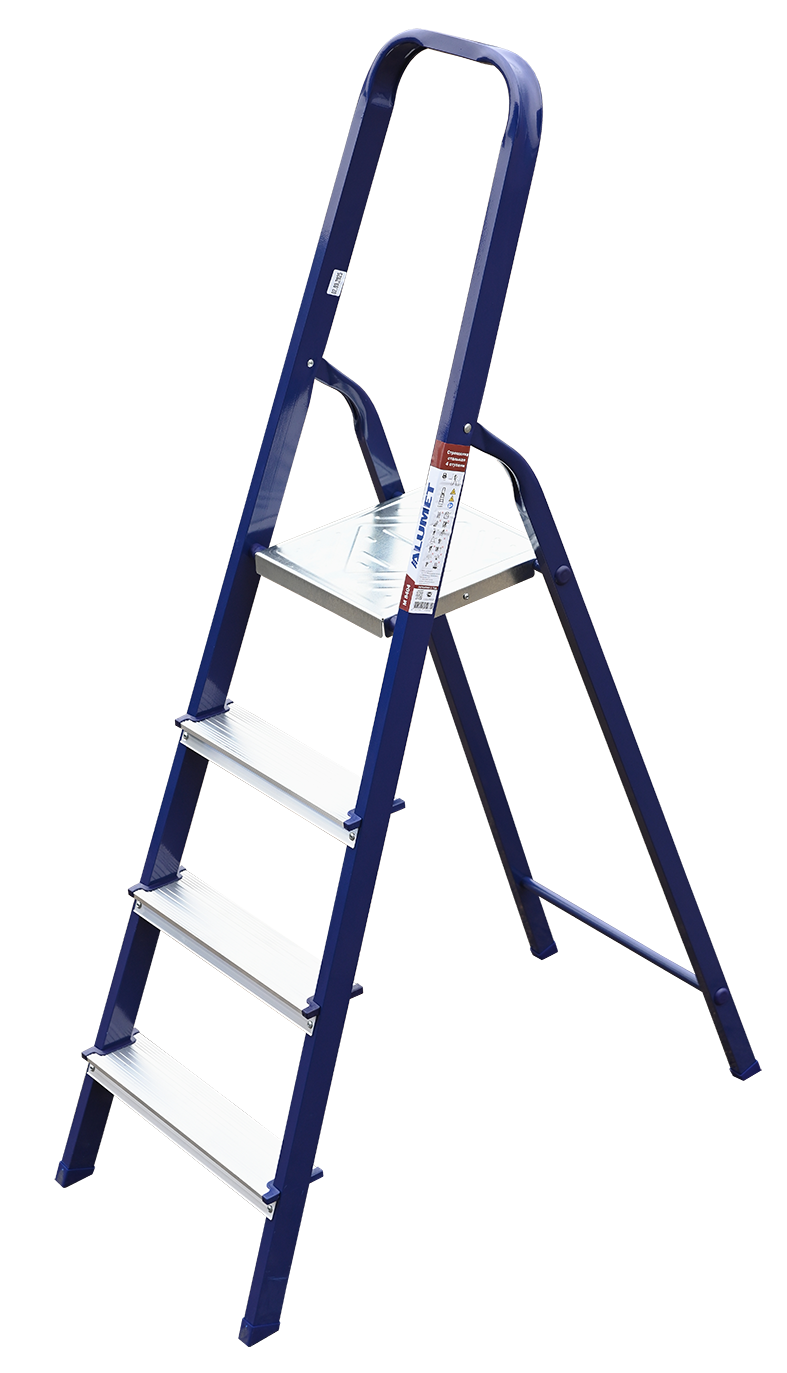

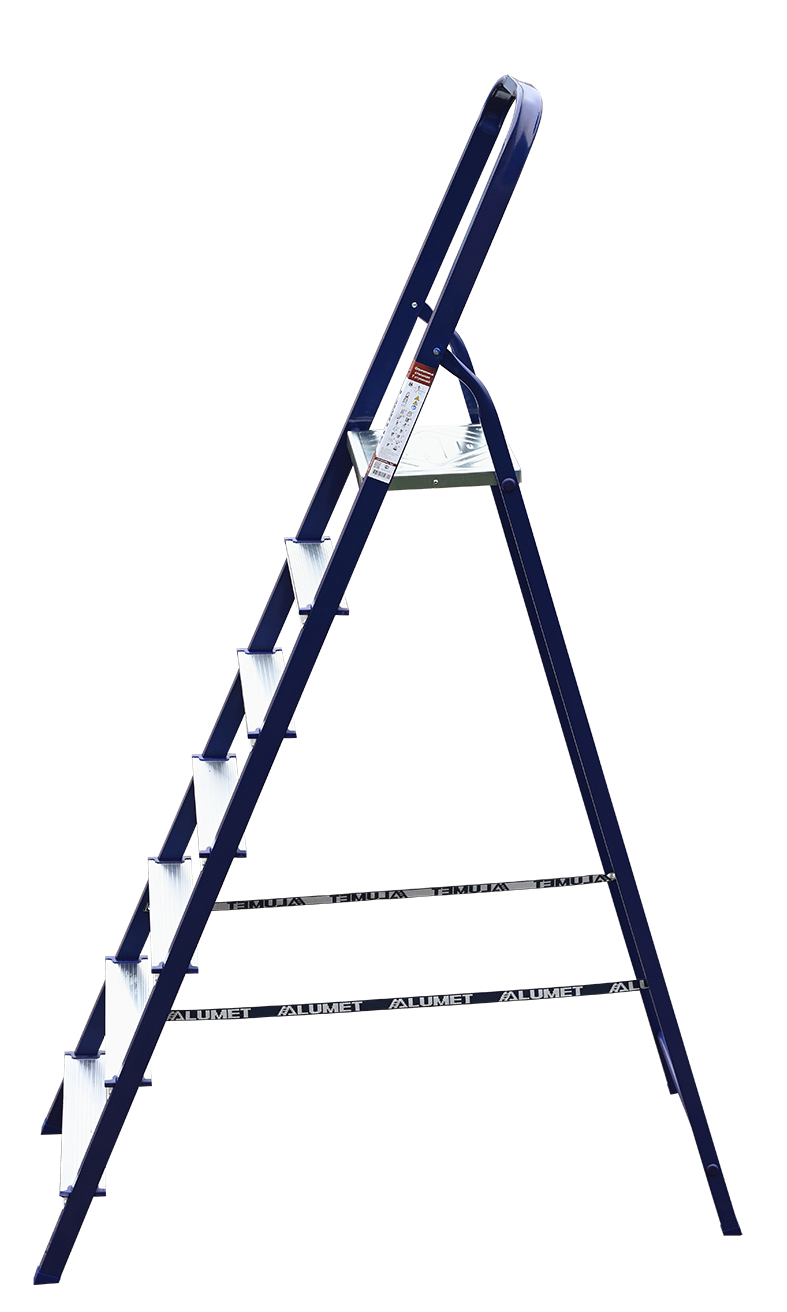

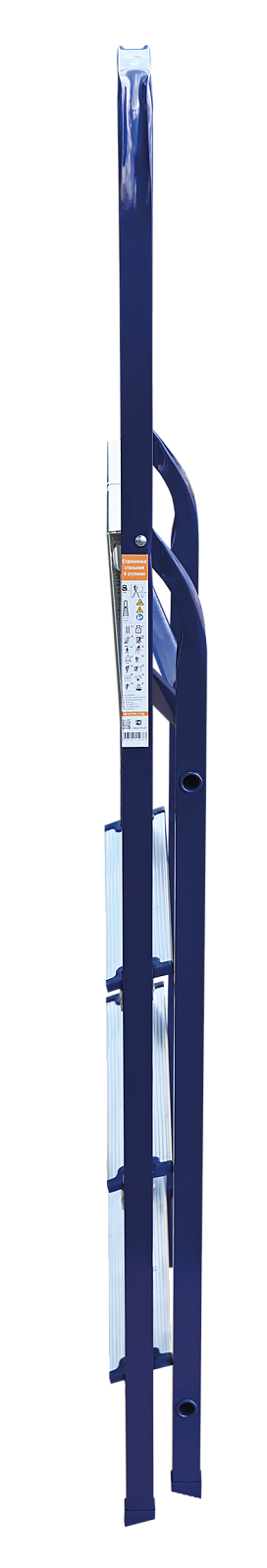

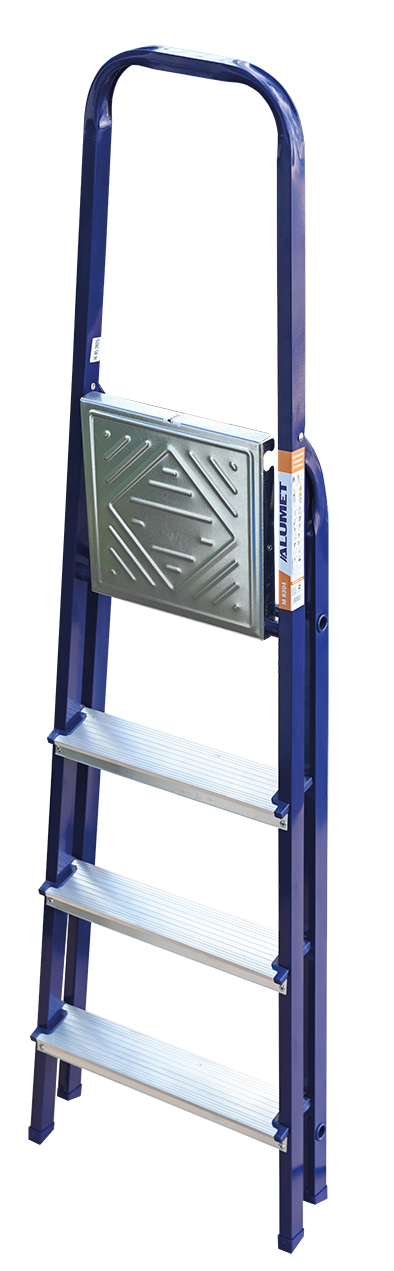

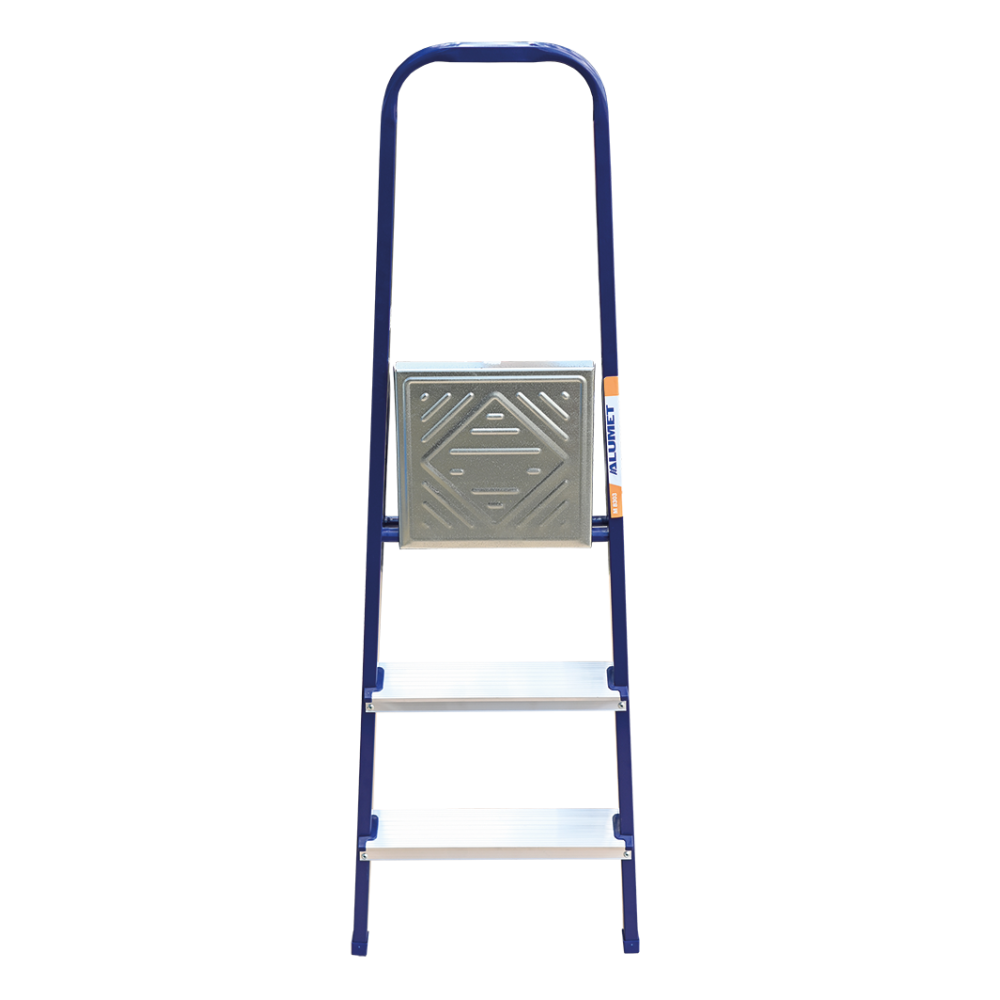

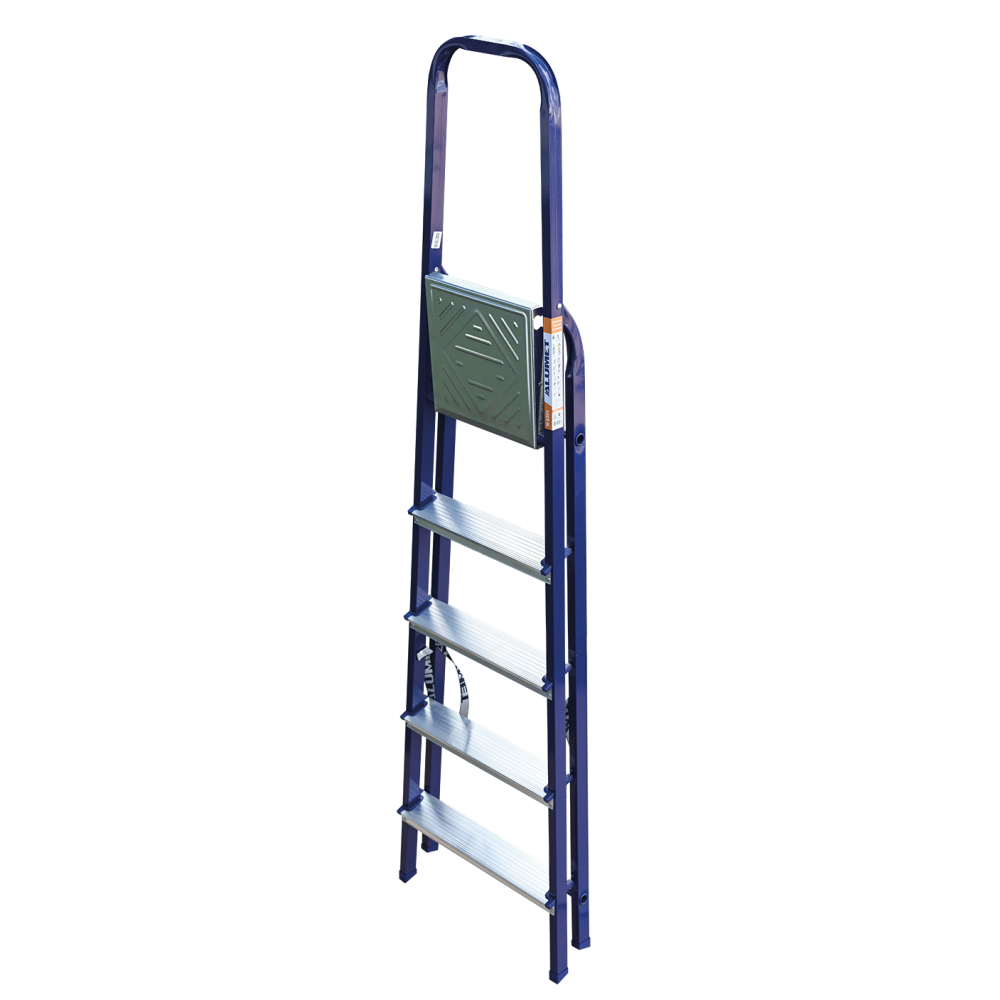

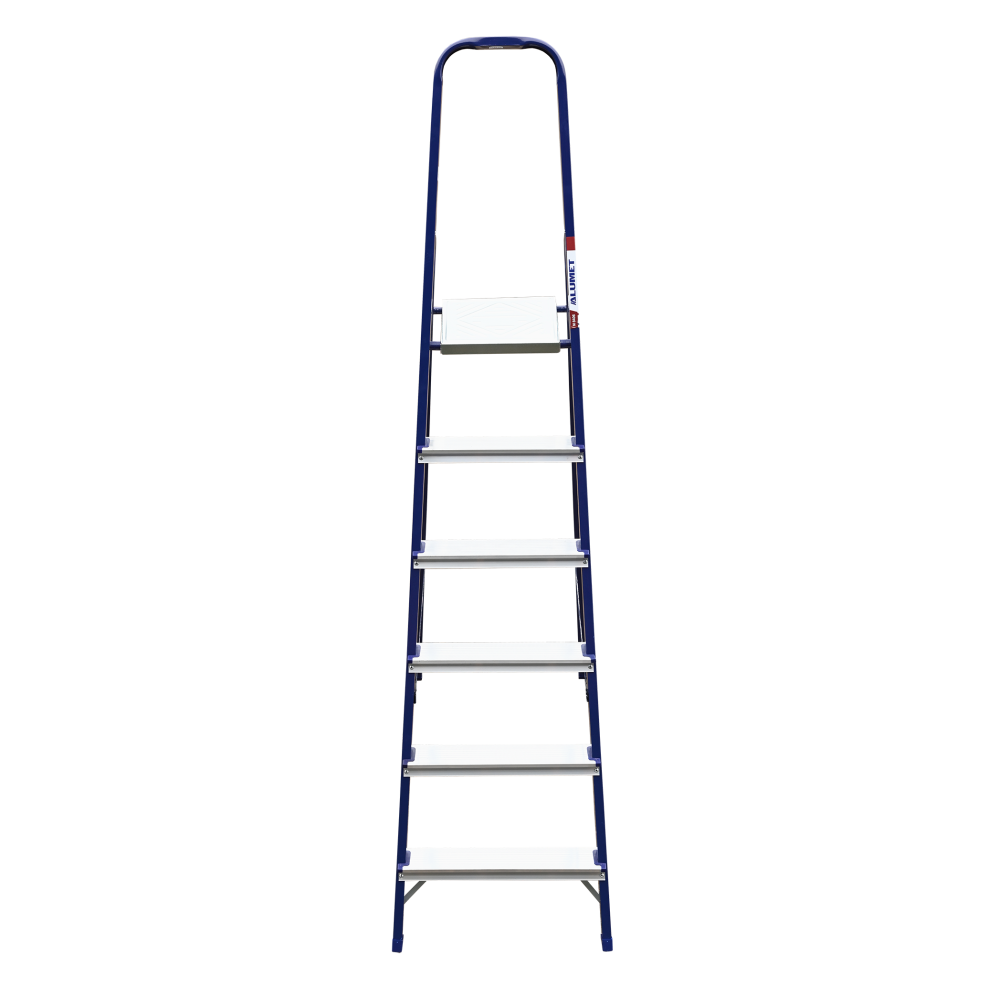

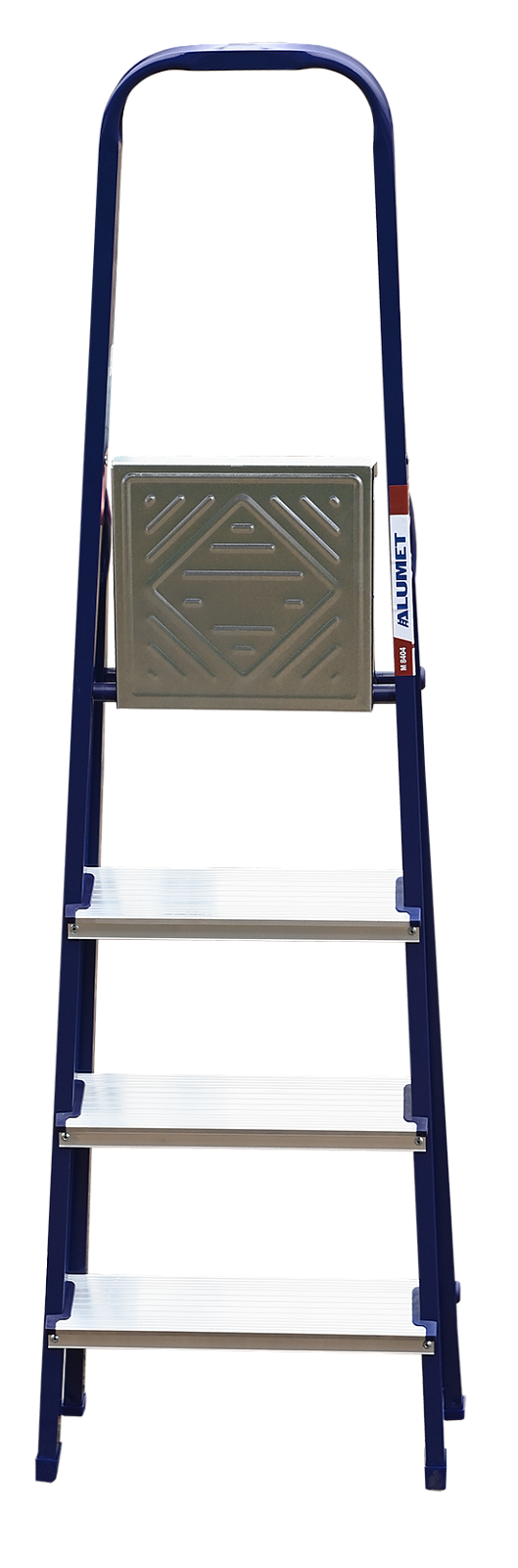

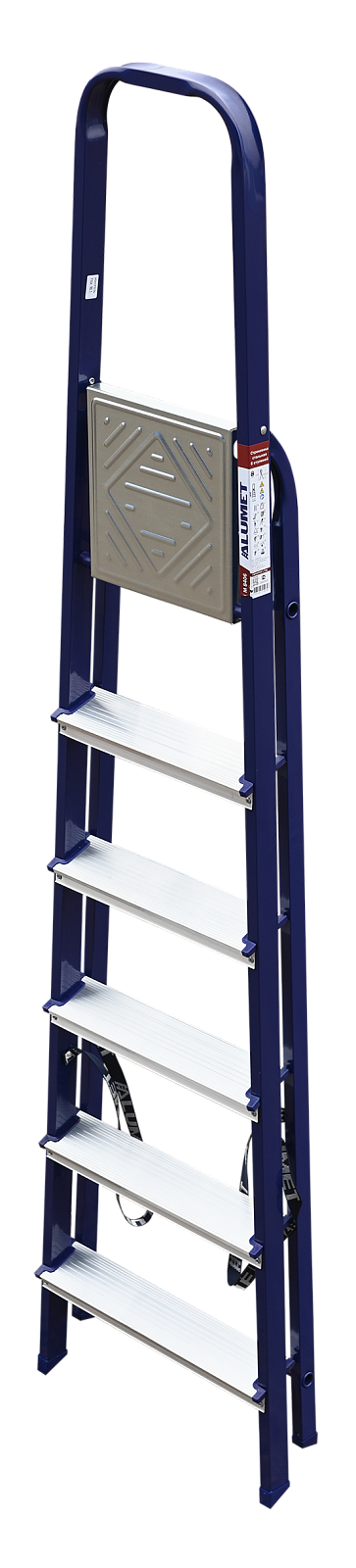

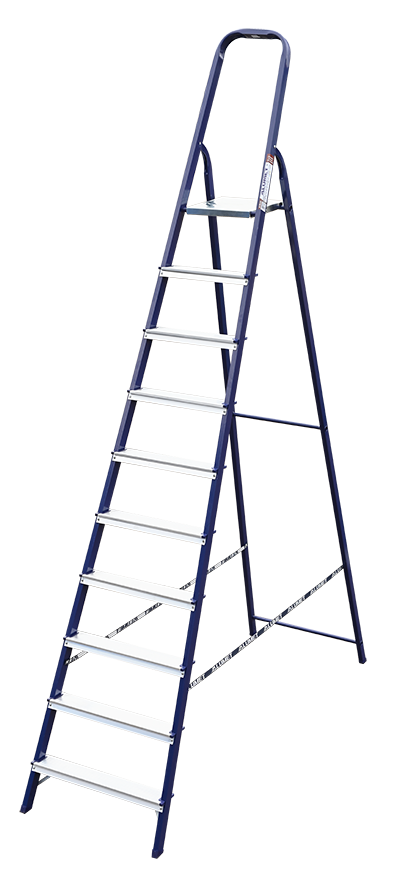

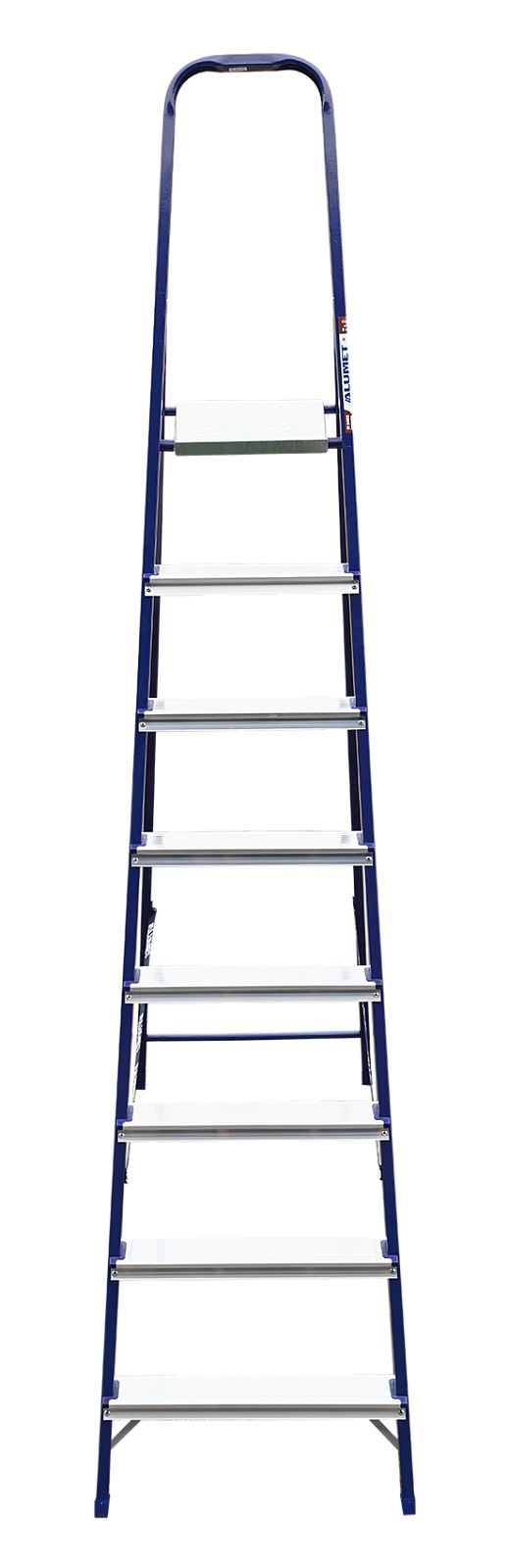

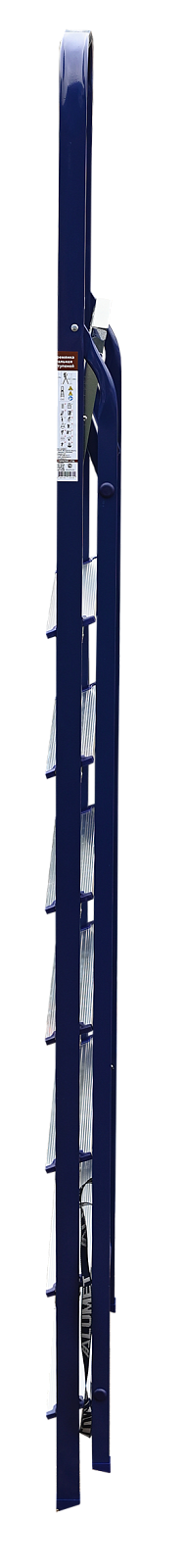

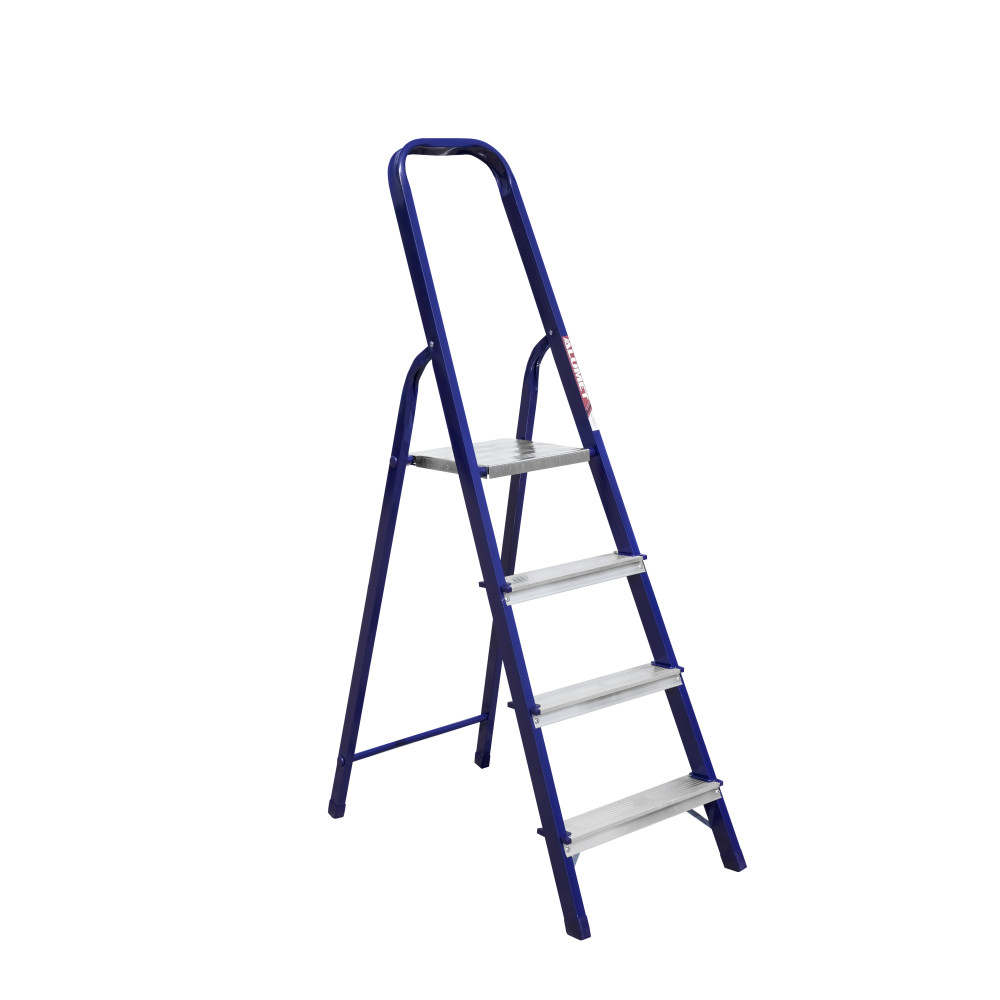

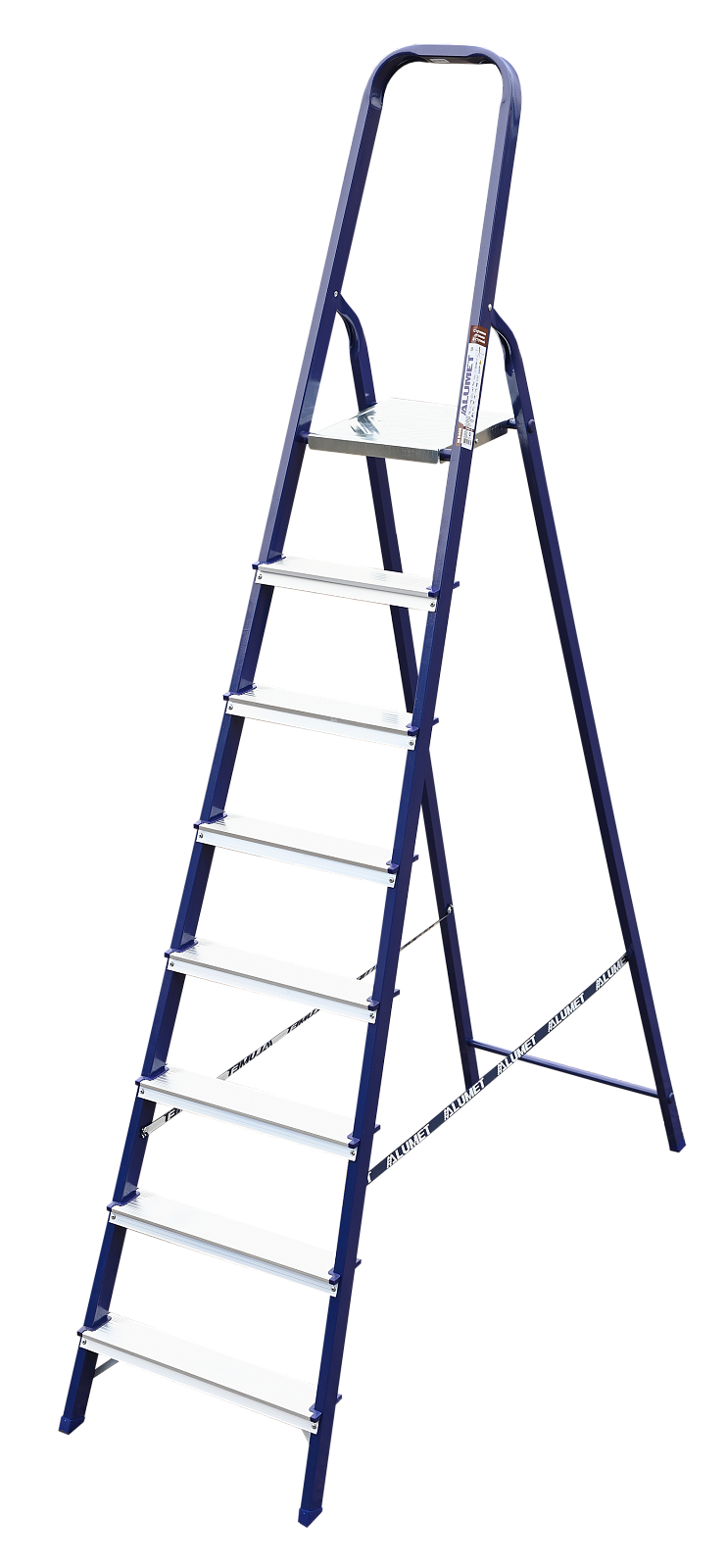

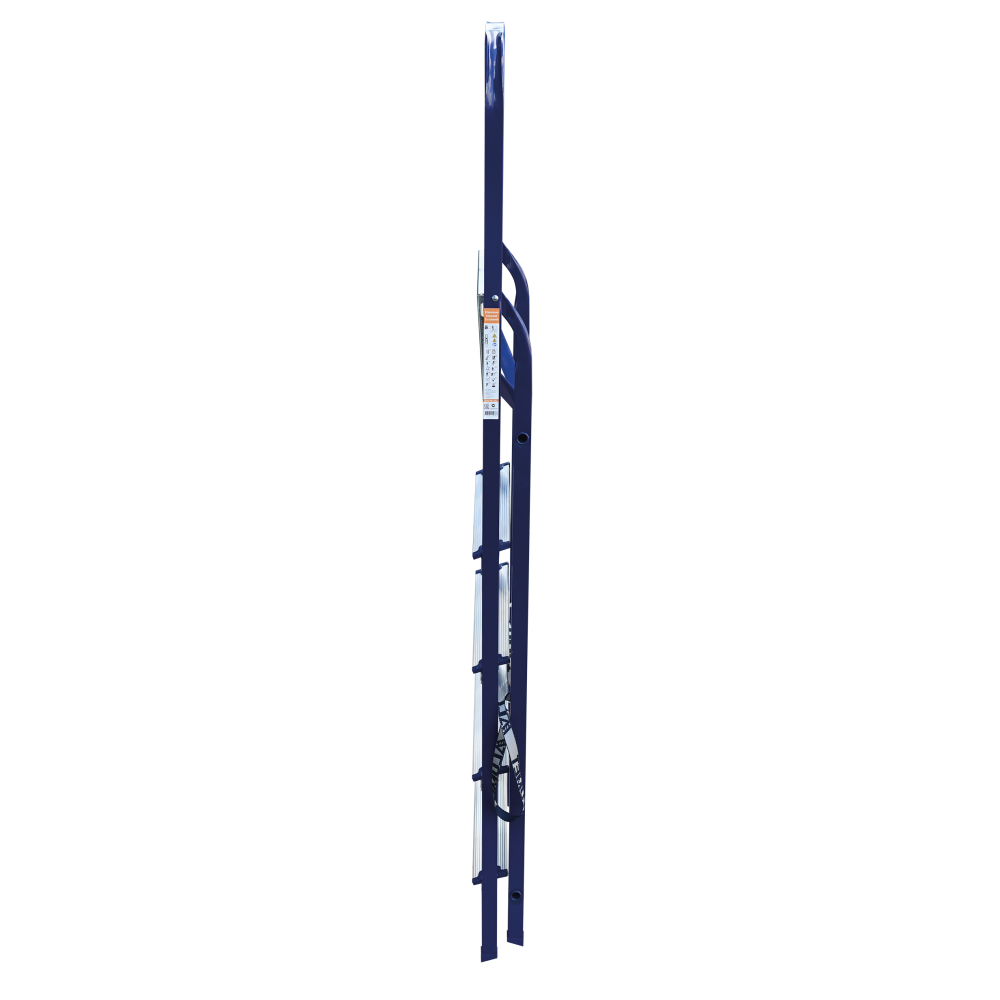

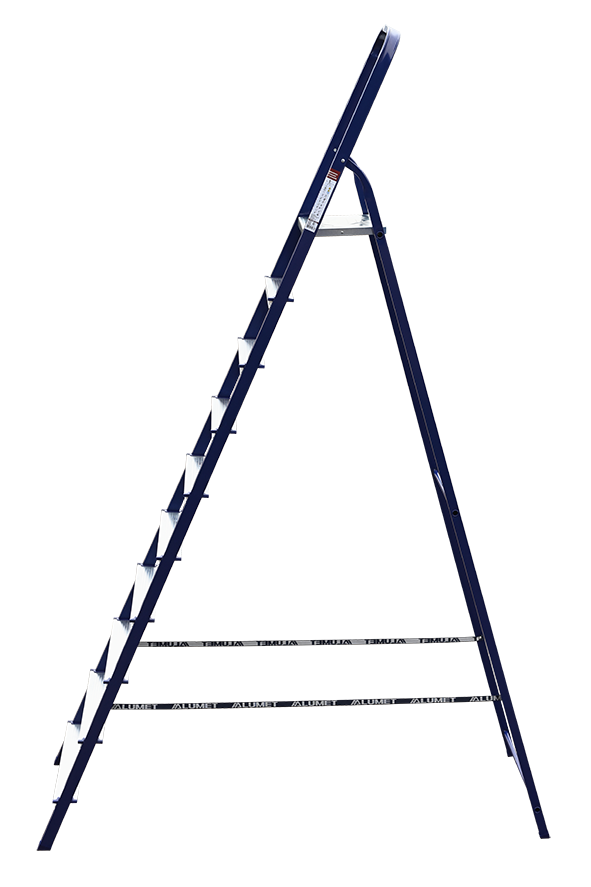

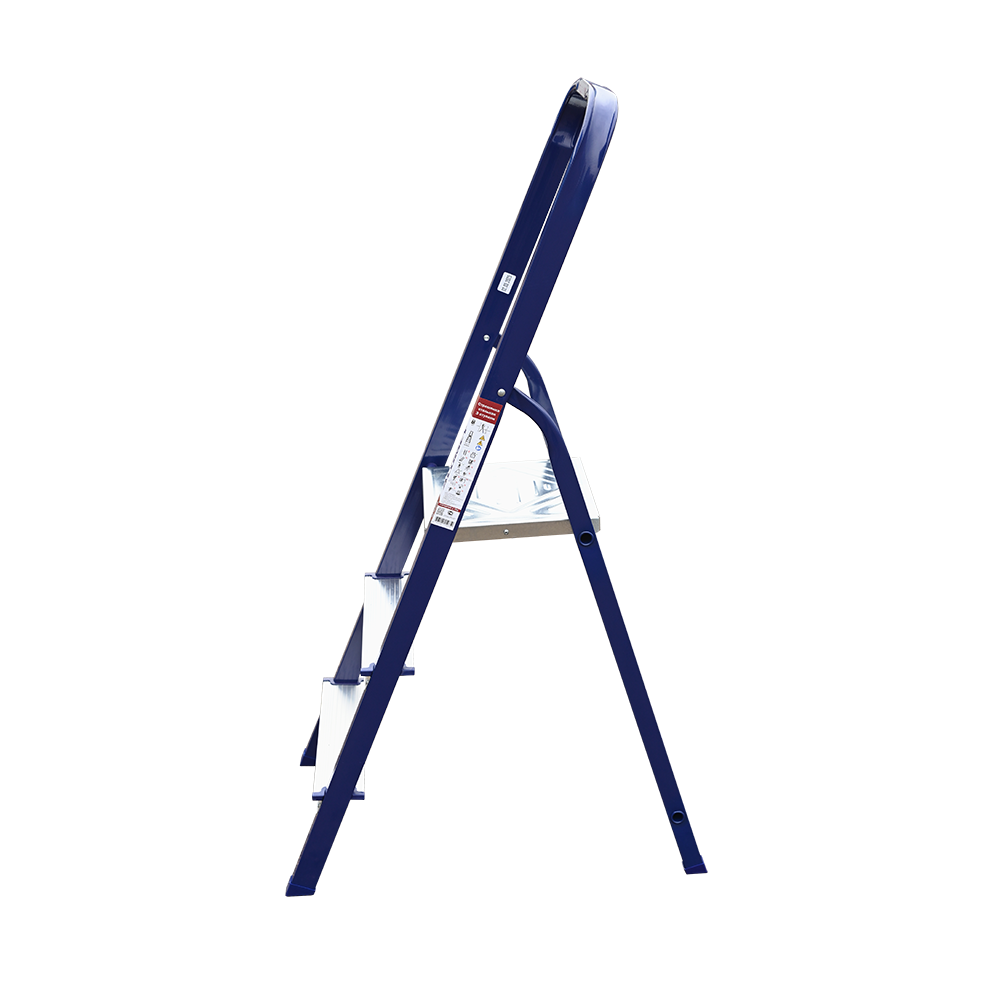

Steel Step Ladder

Product Features:
  • Profile: steel painted
  • Stage: aluminum
  • Playground: steel galvanized
The step ladder is a self-supporting portable ladder, tapering off to the top, having a front side (a front foot), a support side (a support foot), and a work platform and spreading out for a specific...
All features
Article number
Specifications
  • Vendor code: M 8403
  • Number of steps: 3
  • Height: 0.60
  • Length: 1.31
  • Height max: 2.70
  • Width: 0.42
  • Front arch profile: 40x20
  • Rear leg profile: 30x20
  • Weight: 4.3
Specifications

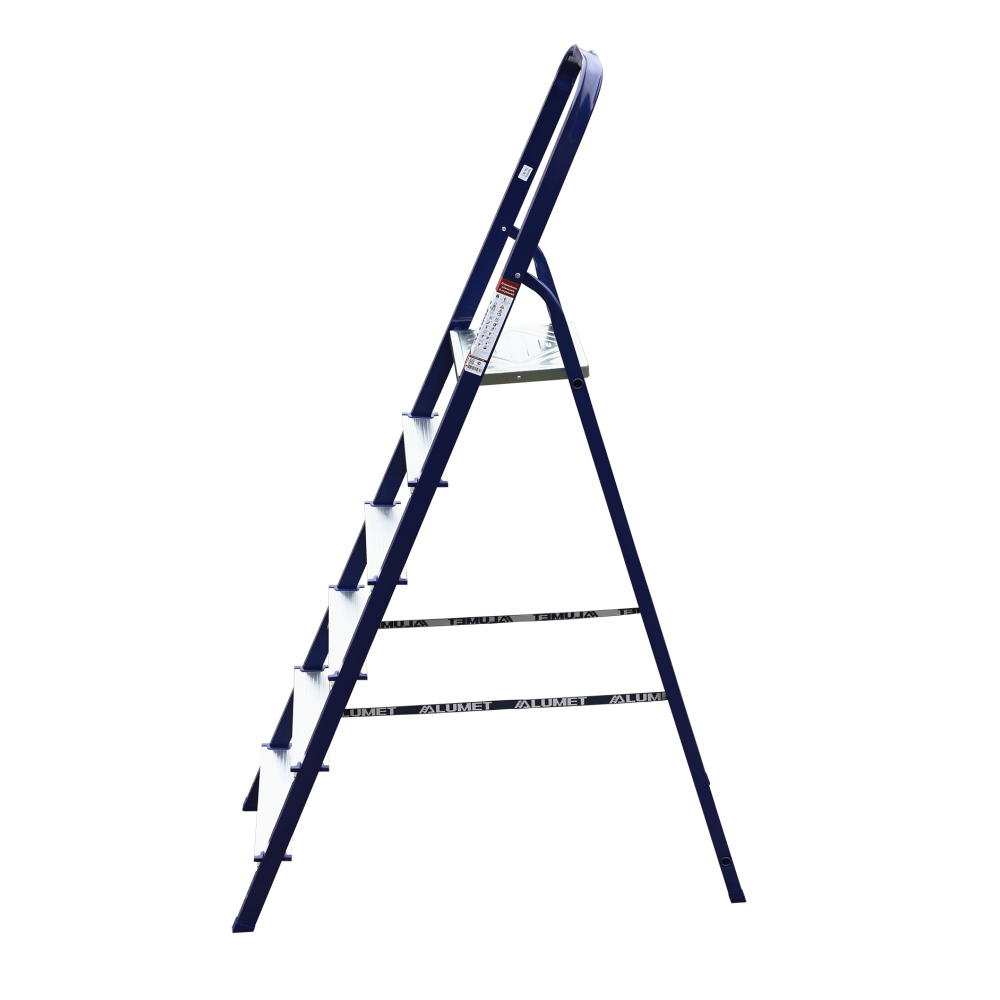

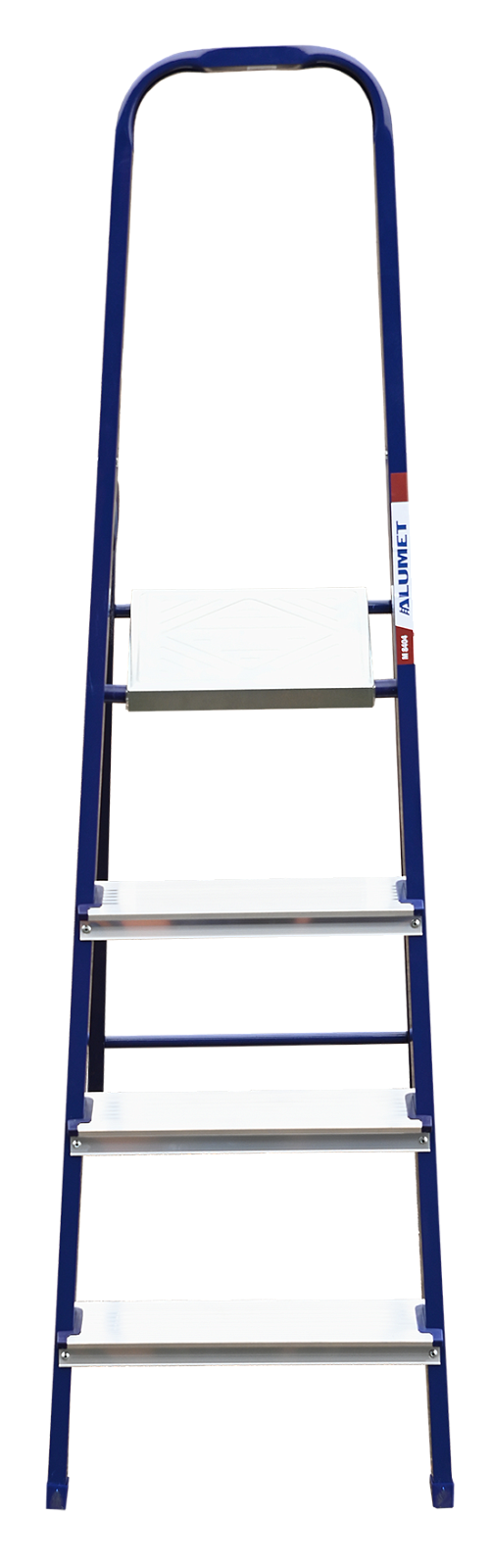

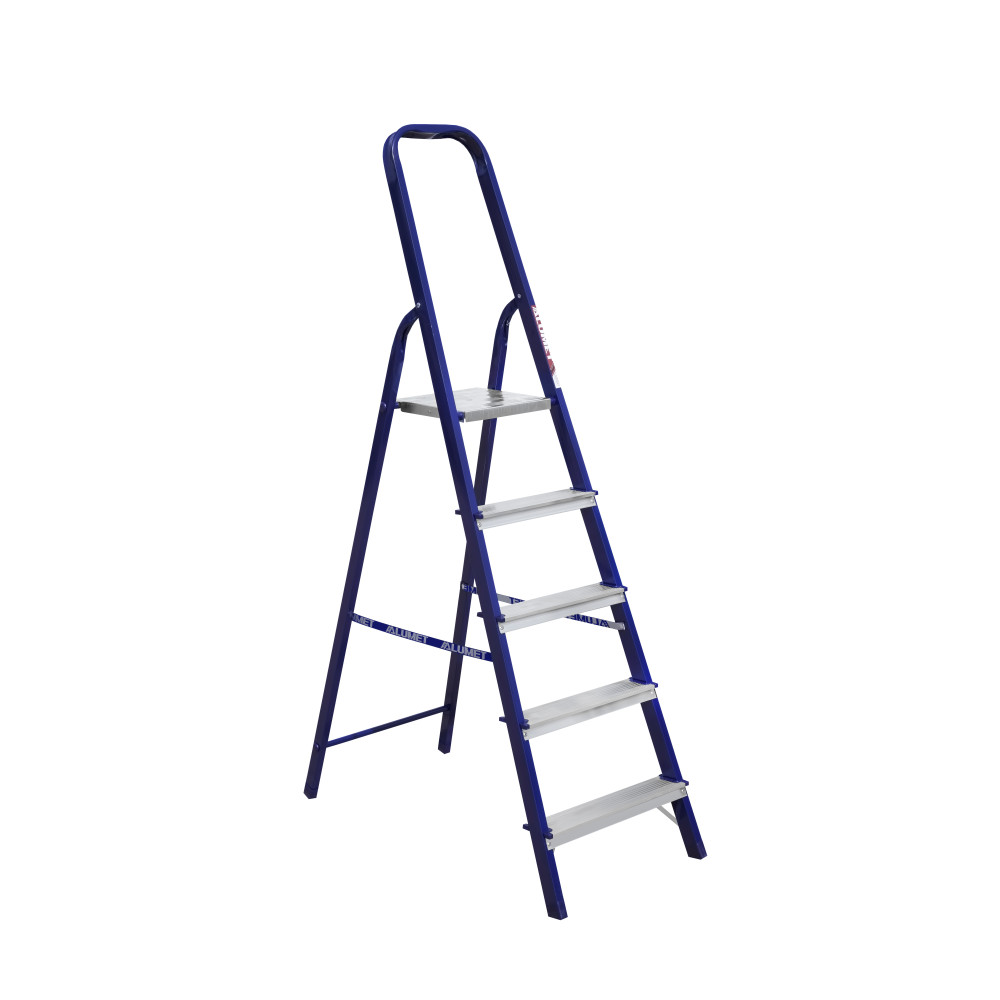

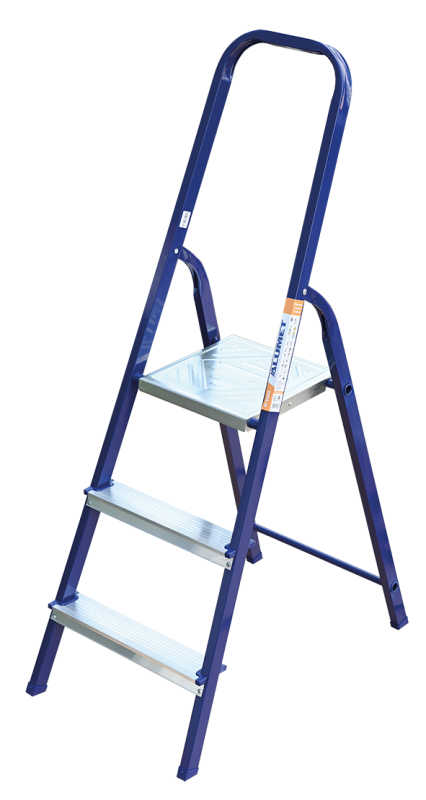

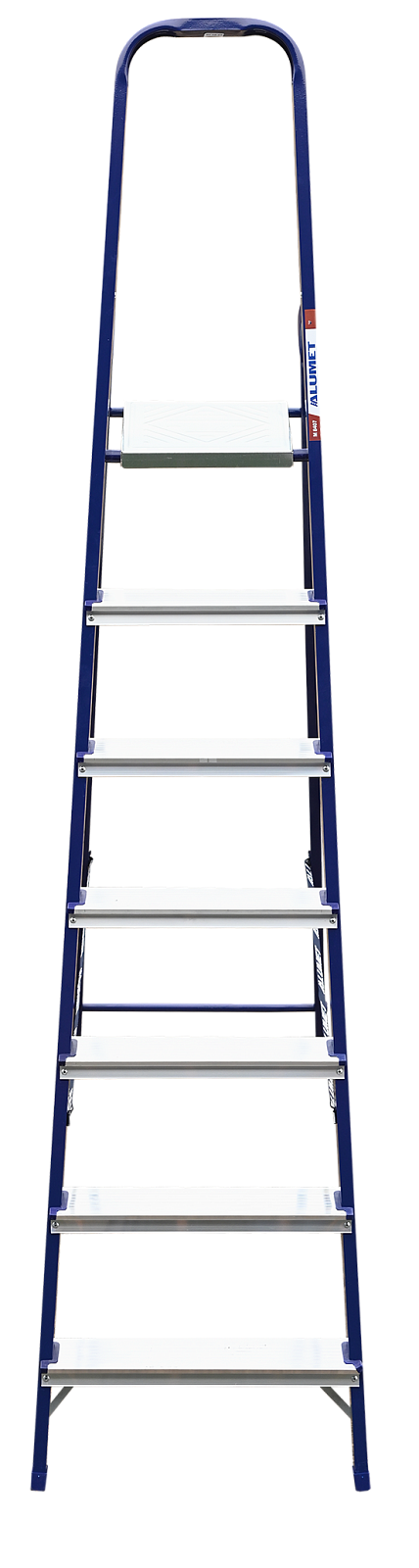

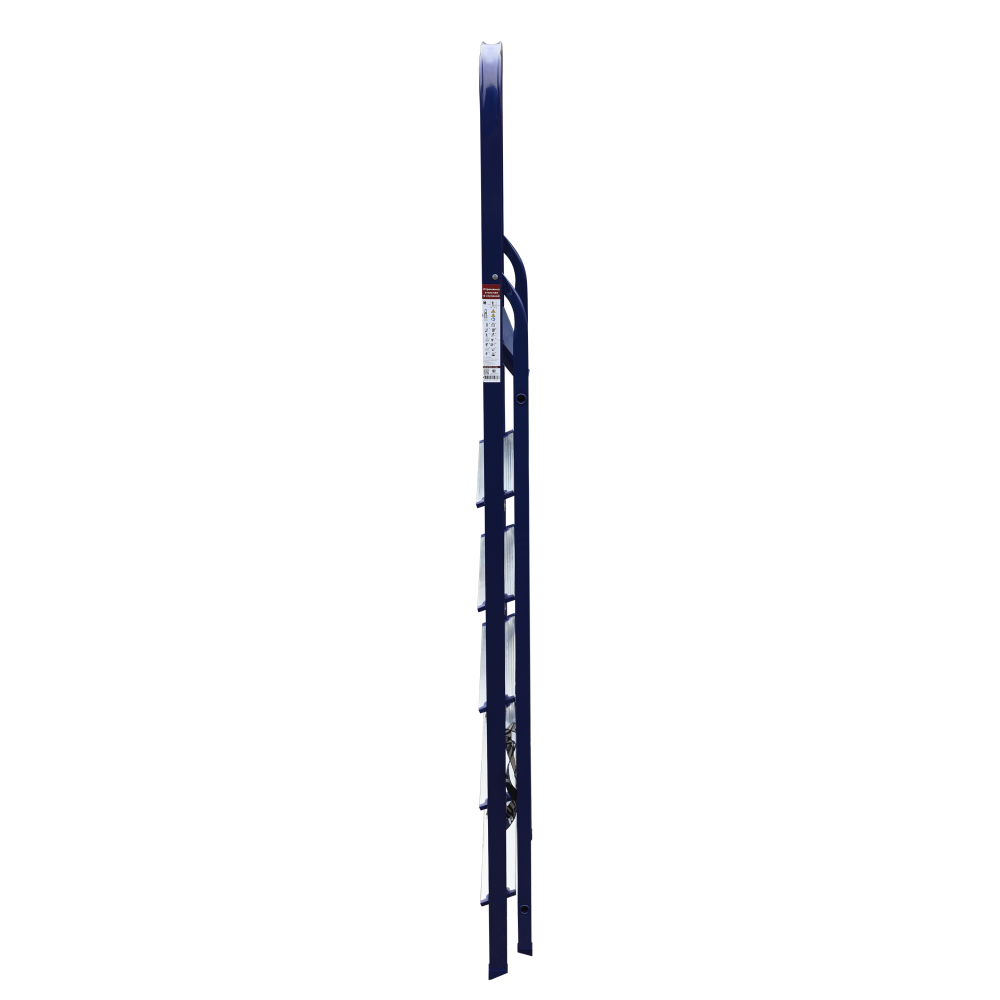

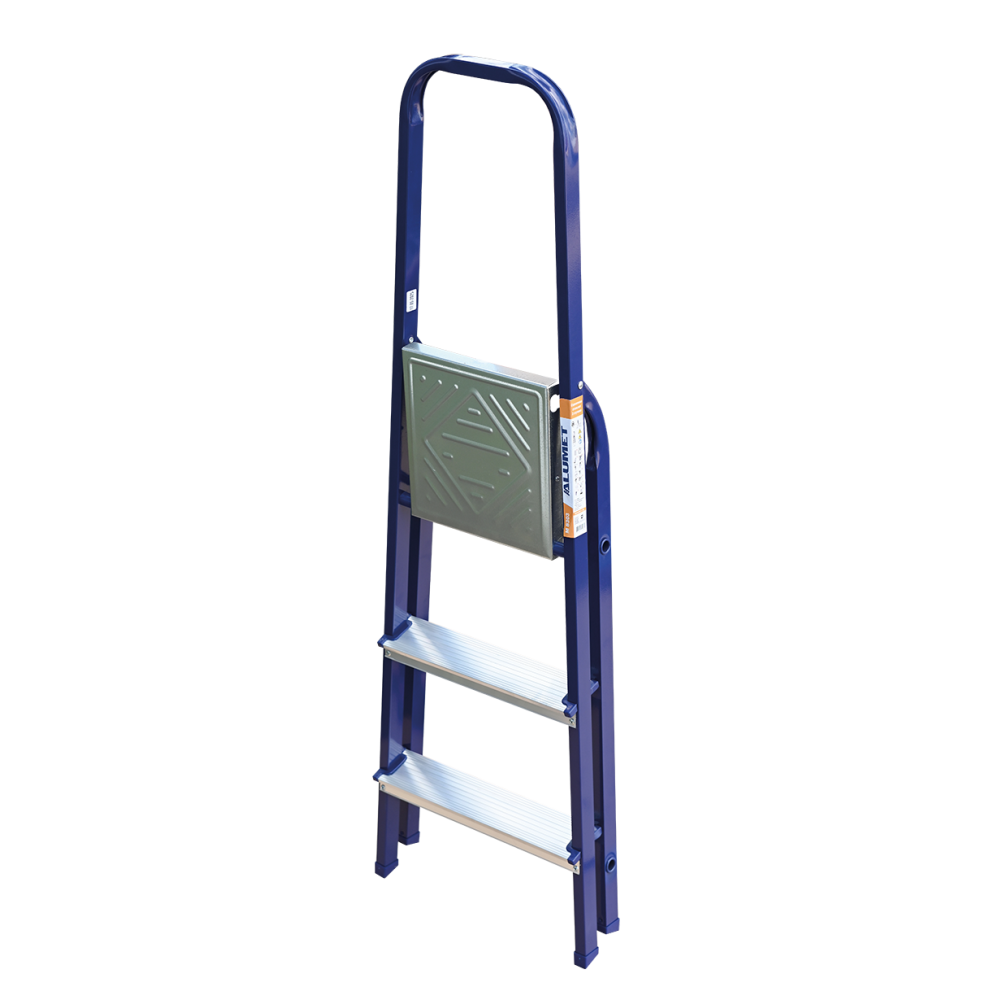

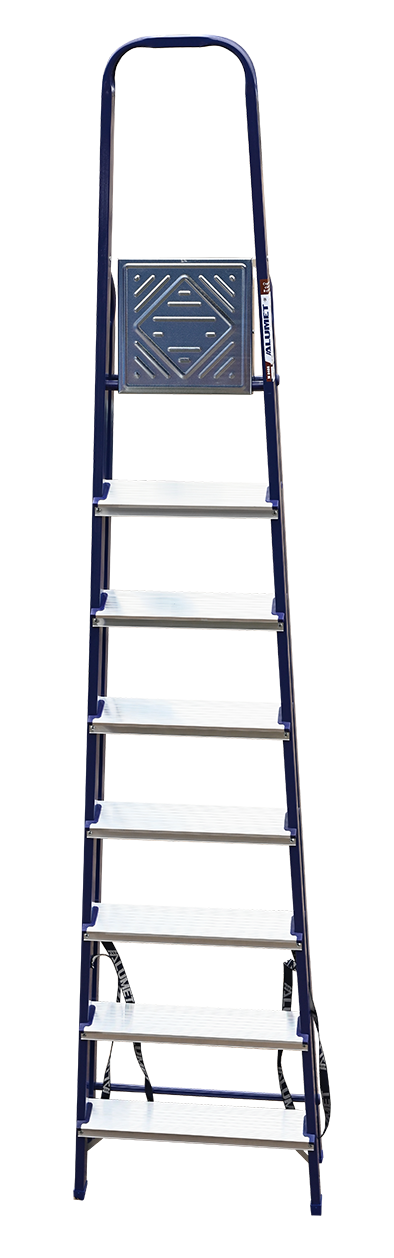

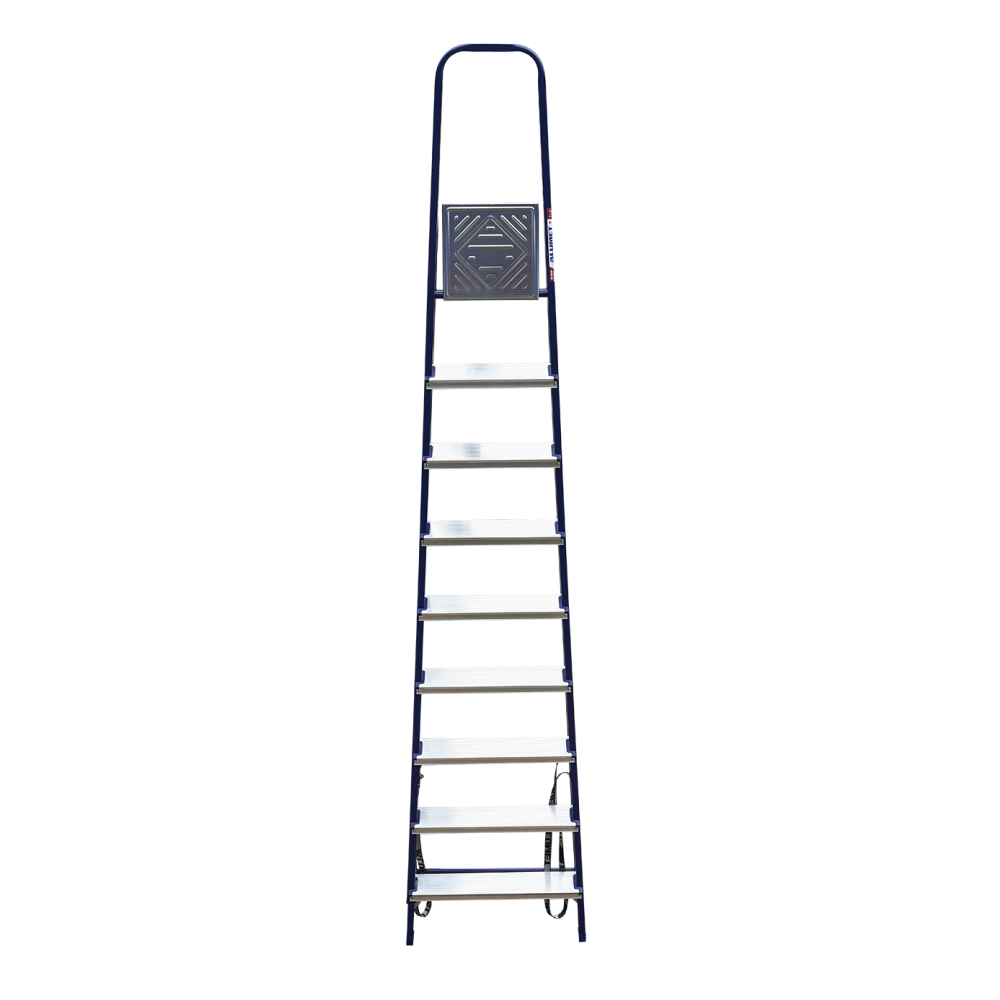

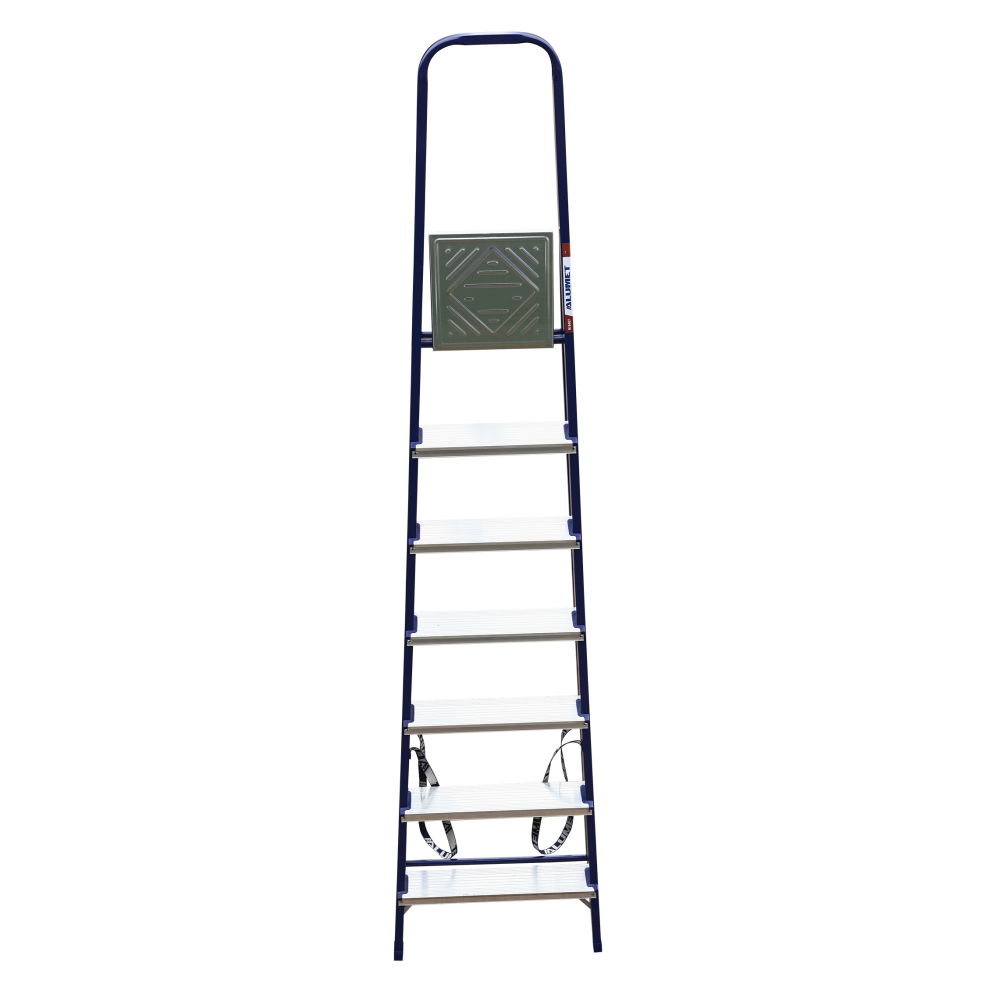

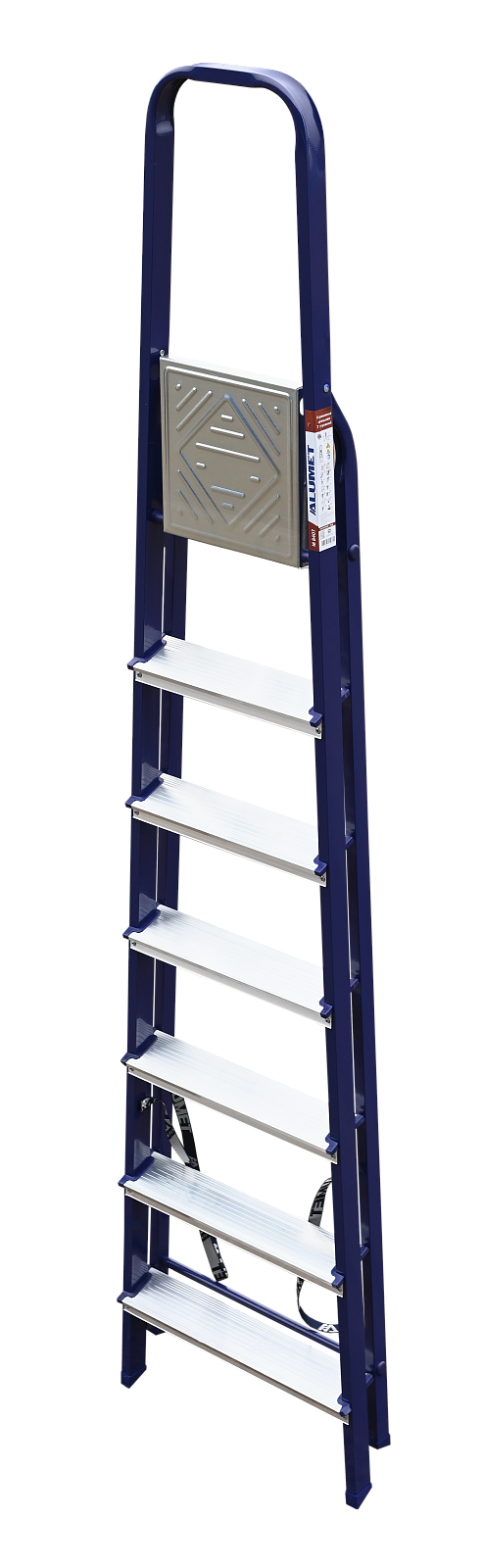

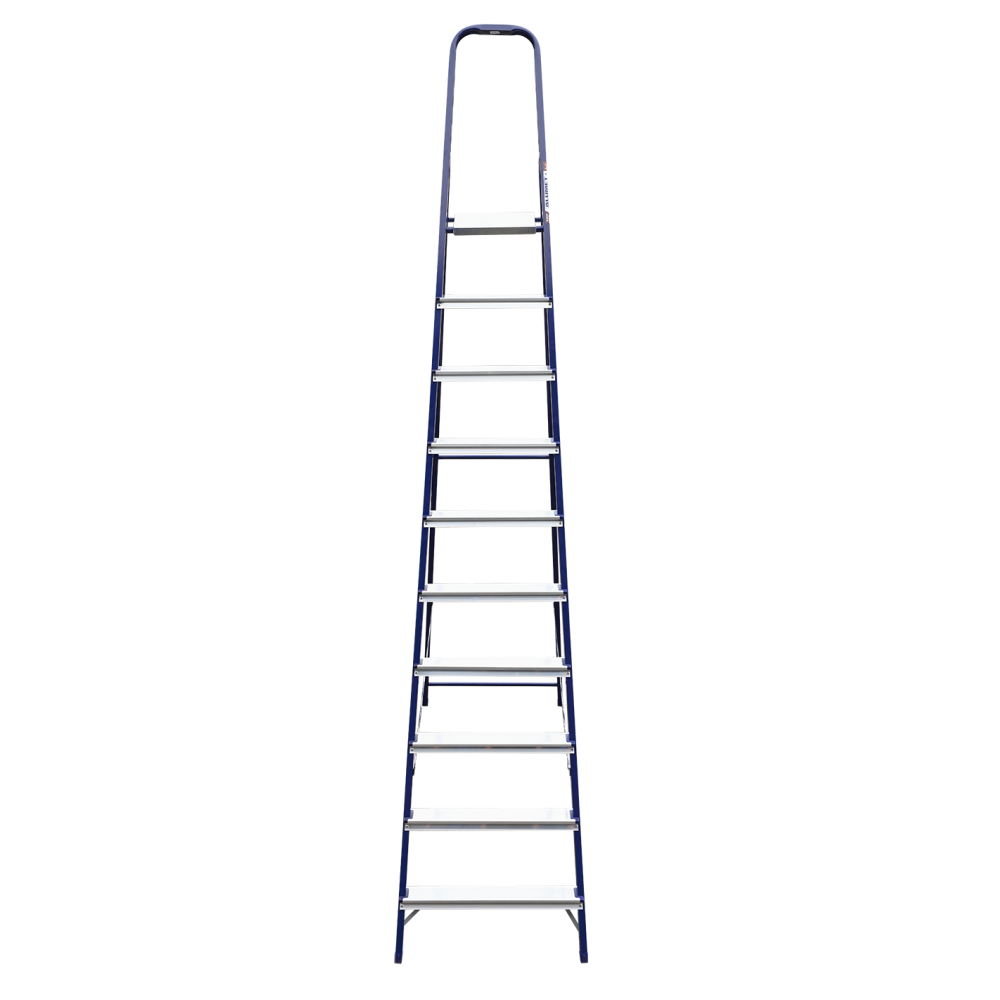

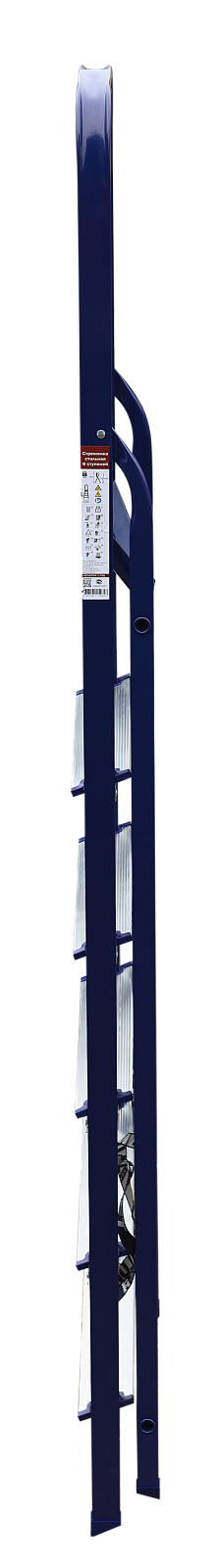

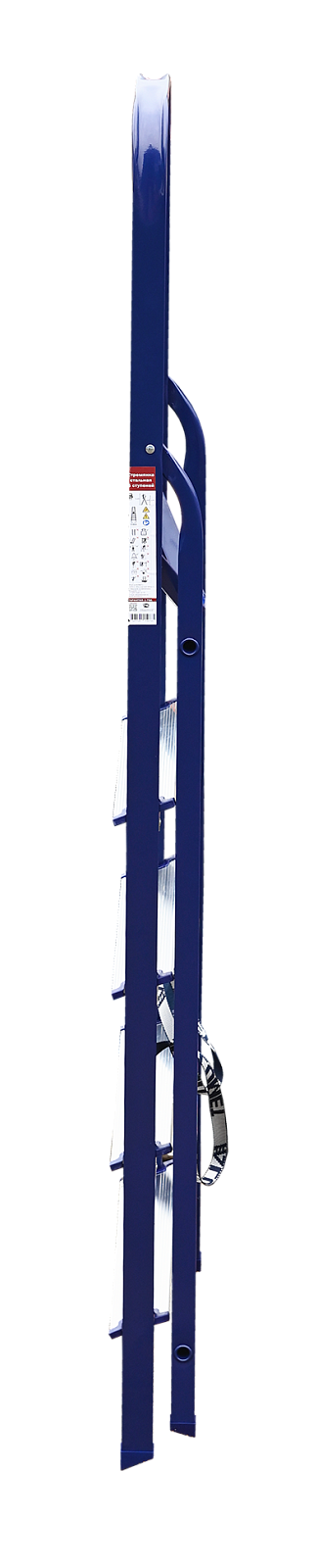

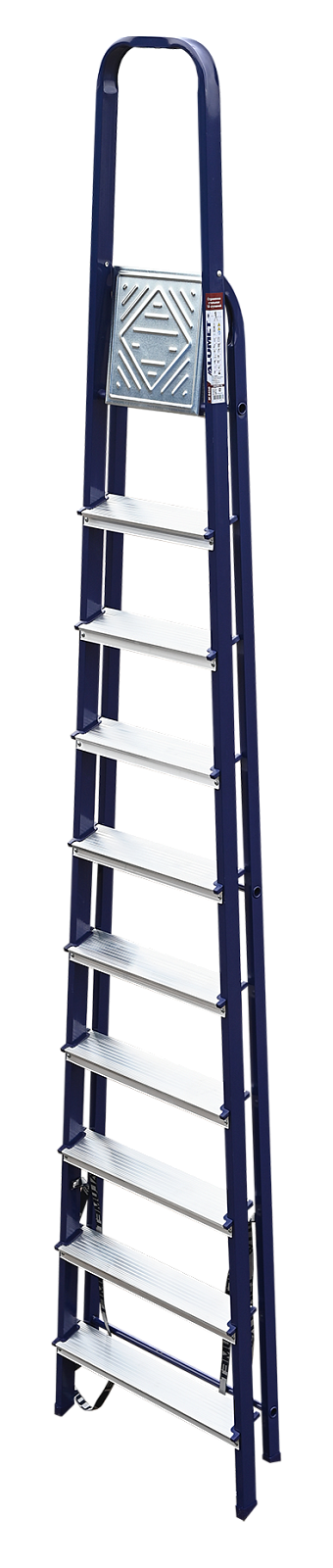

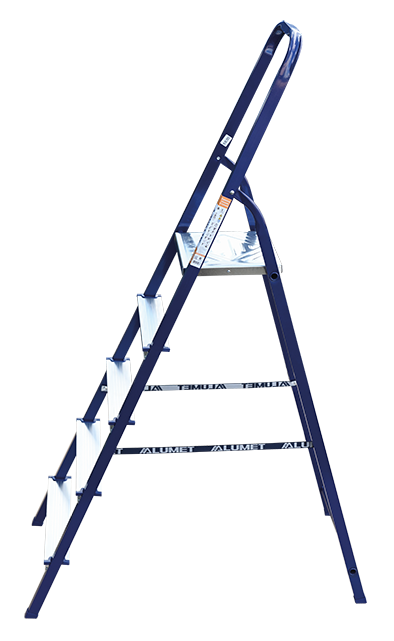

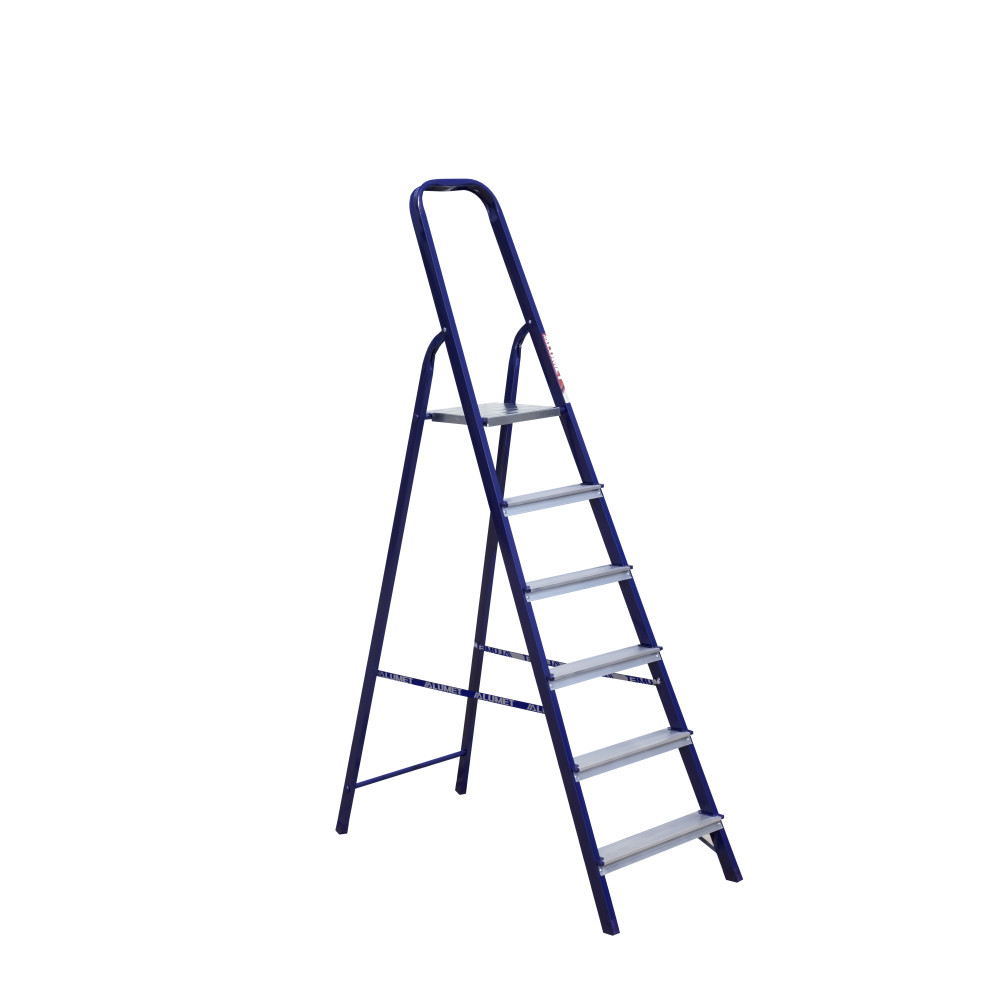

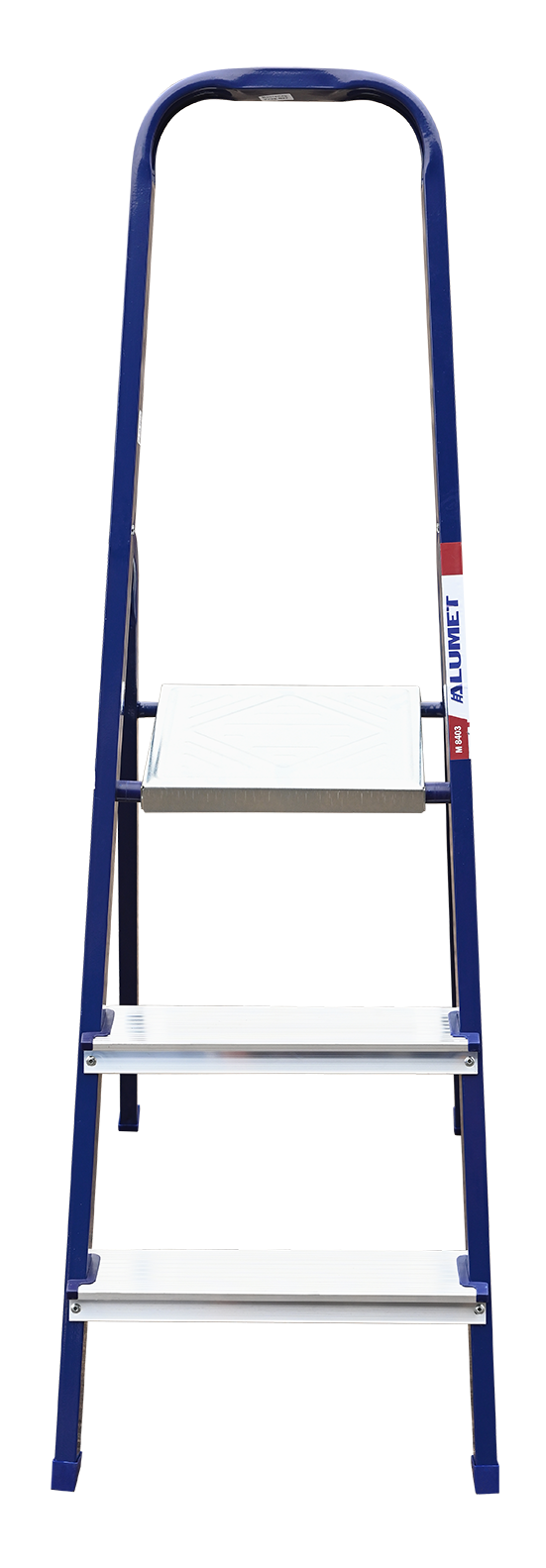

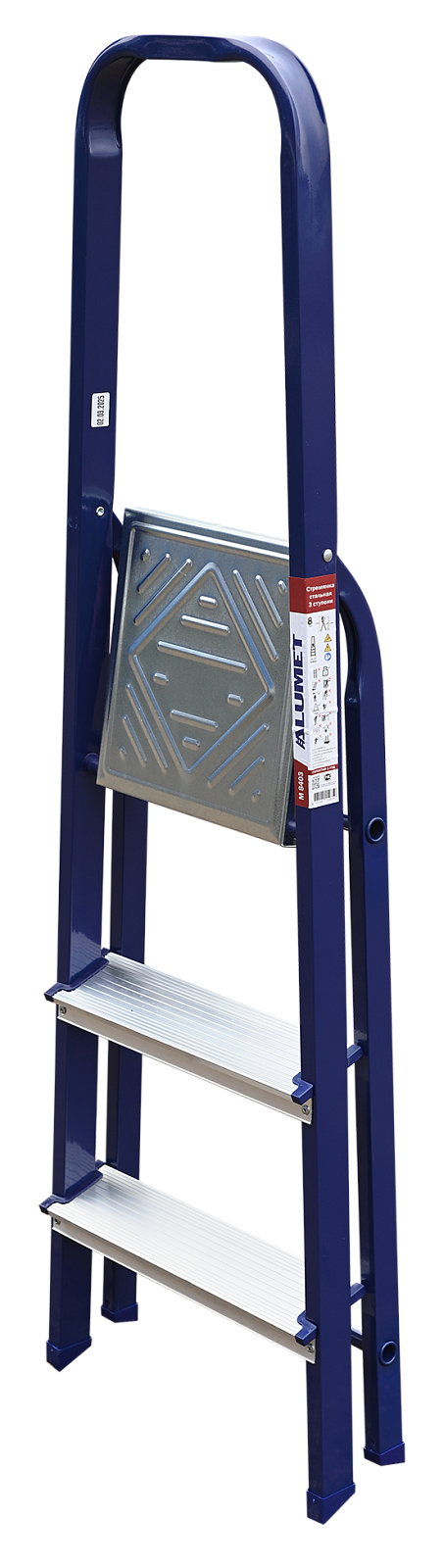

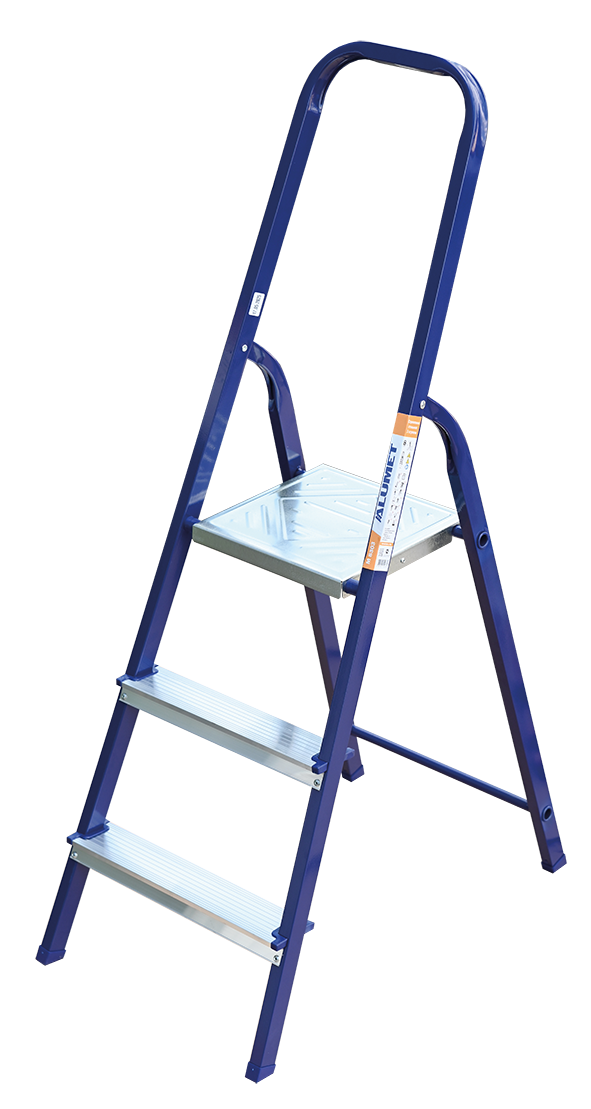

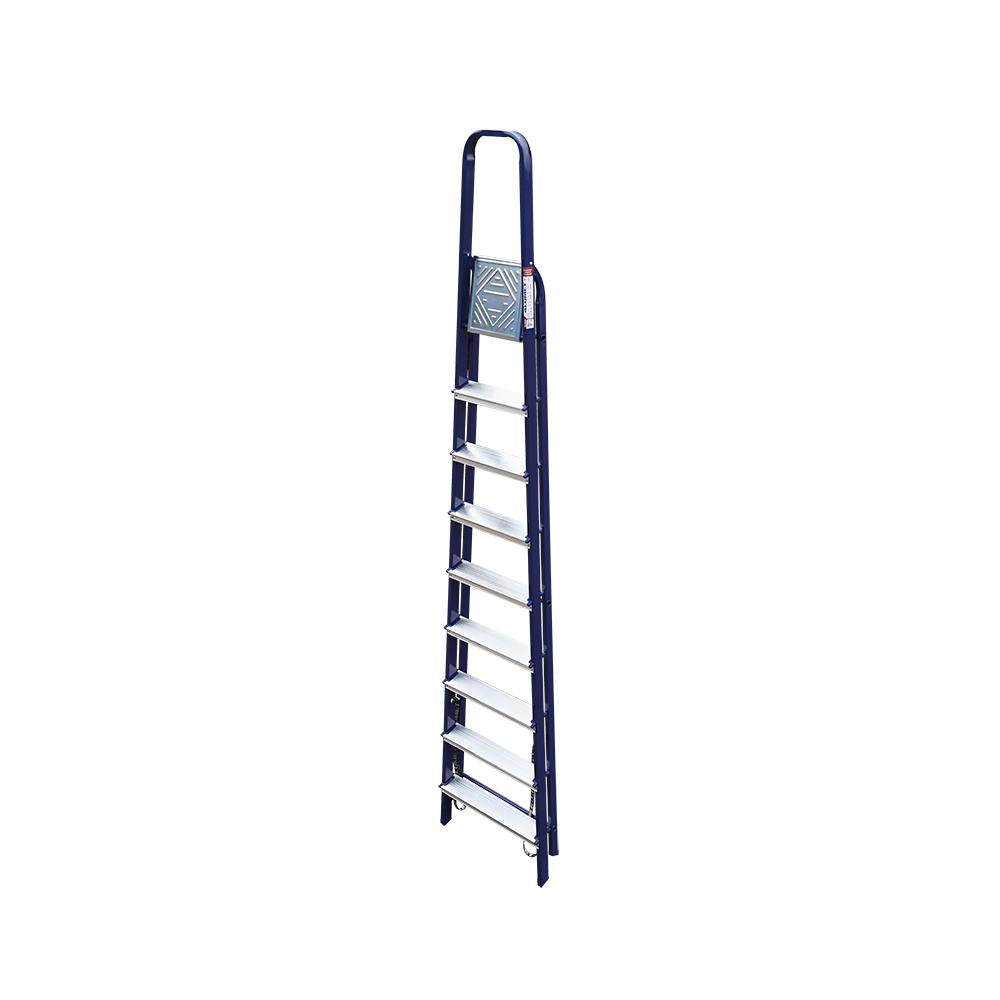

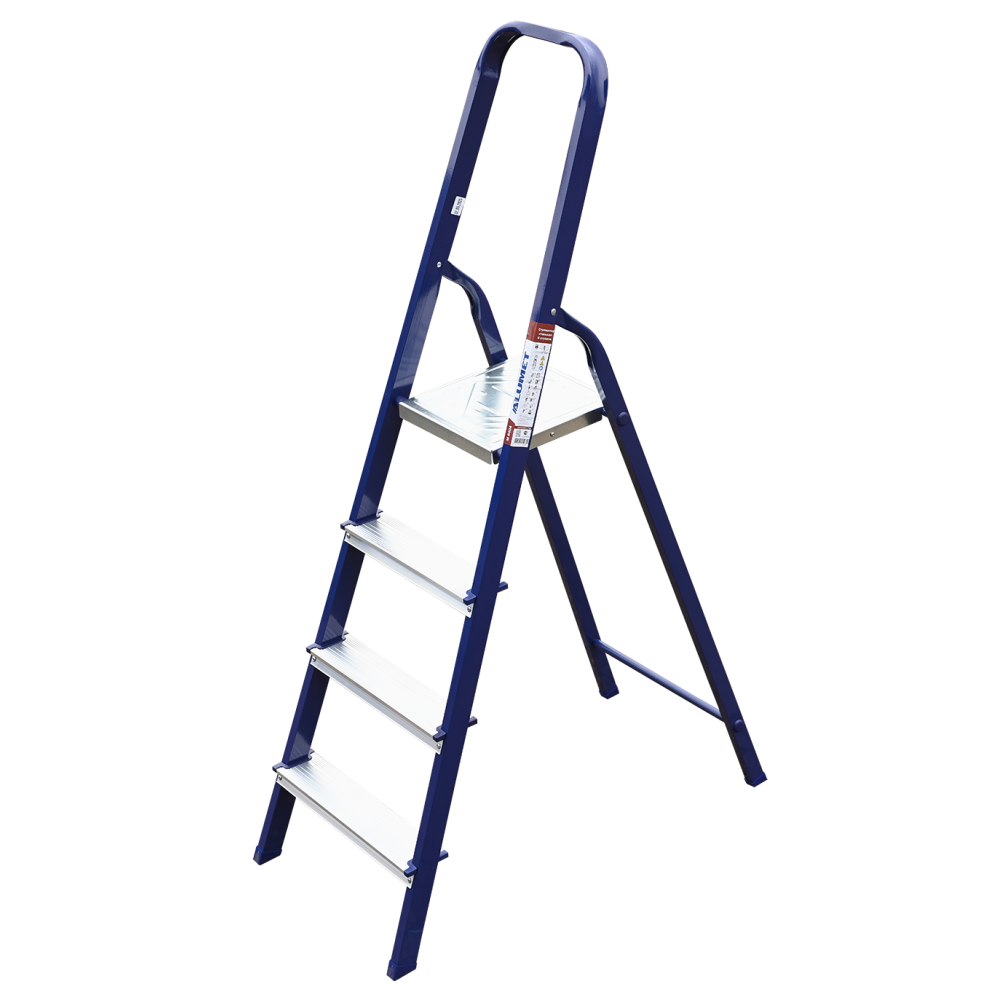

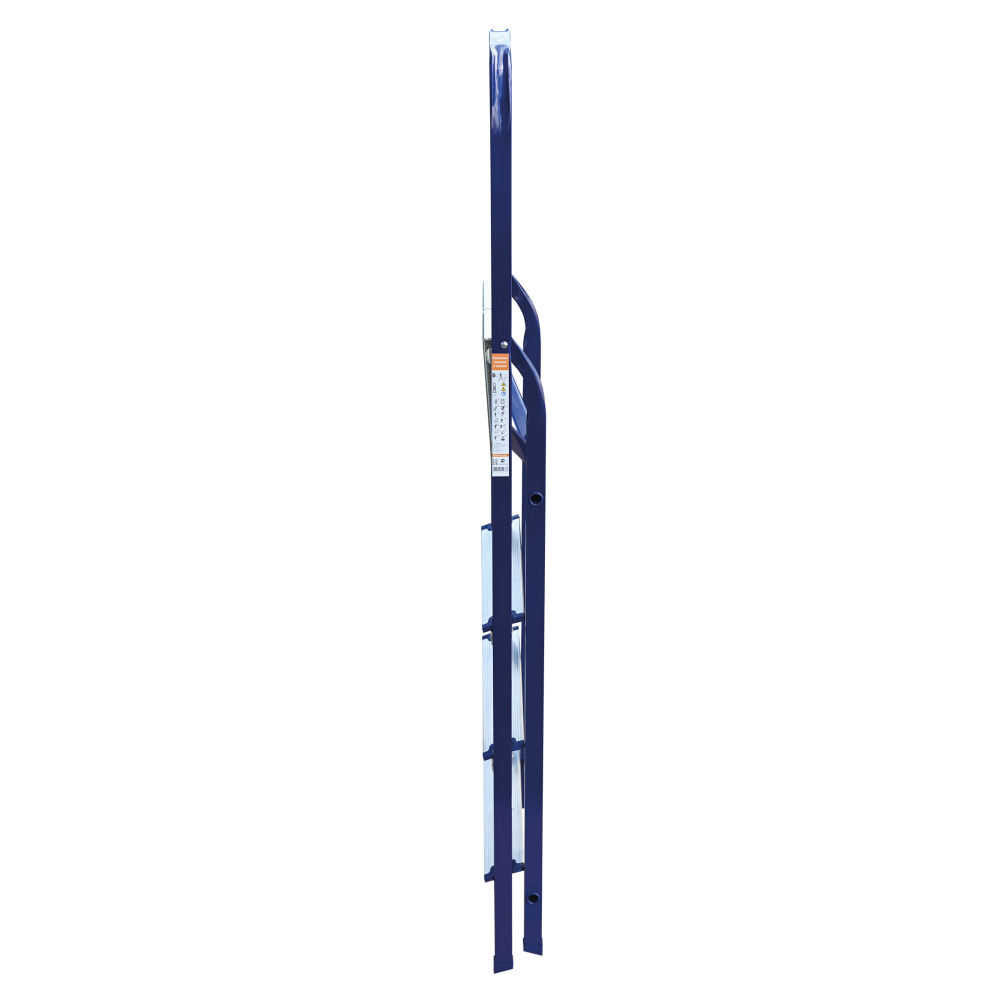

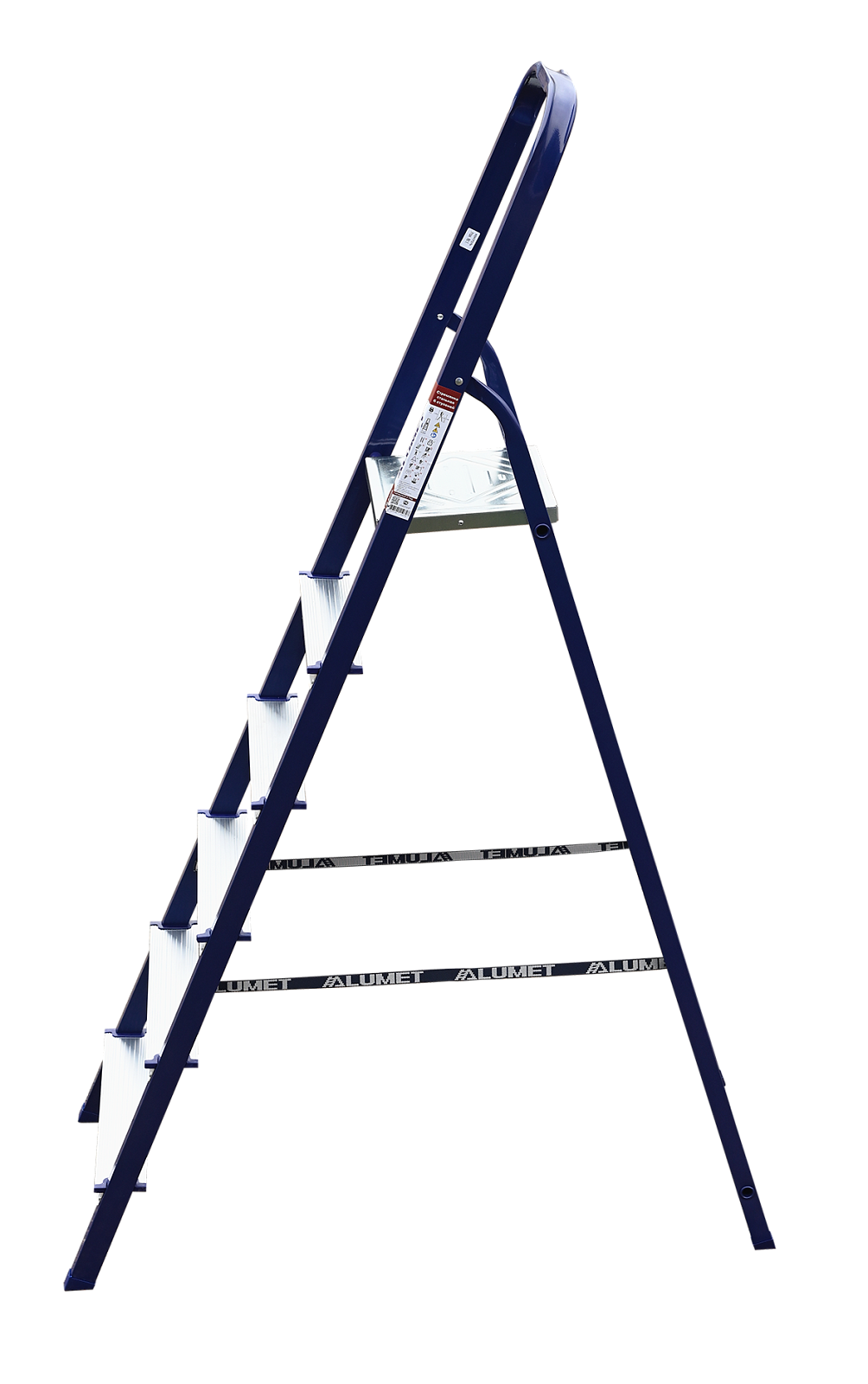

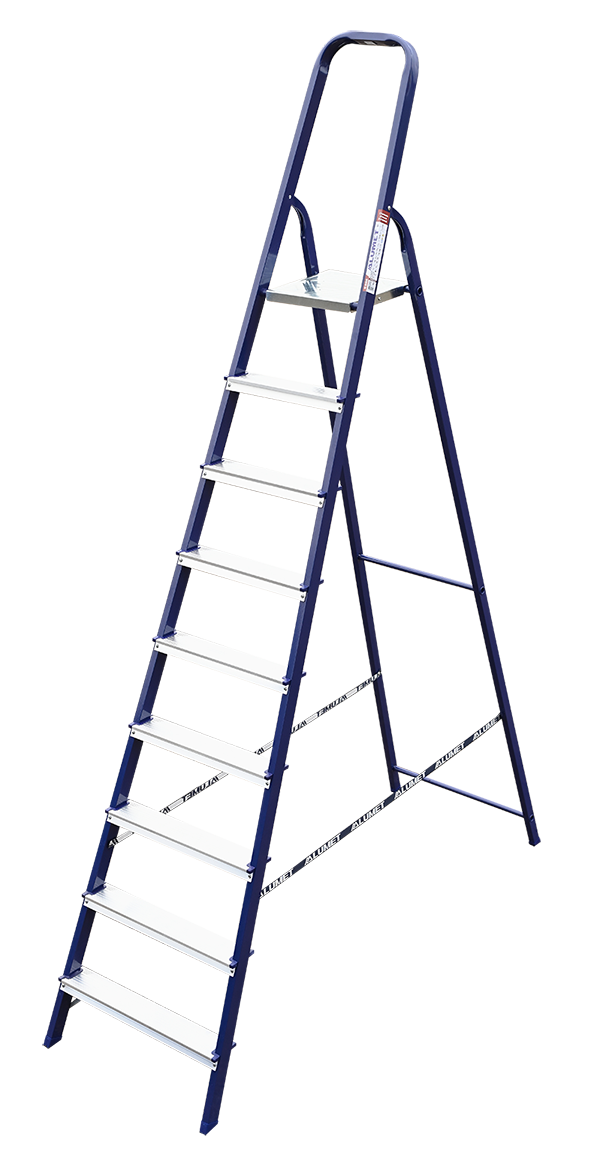

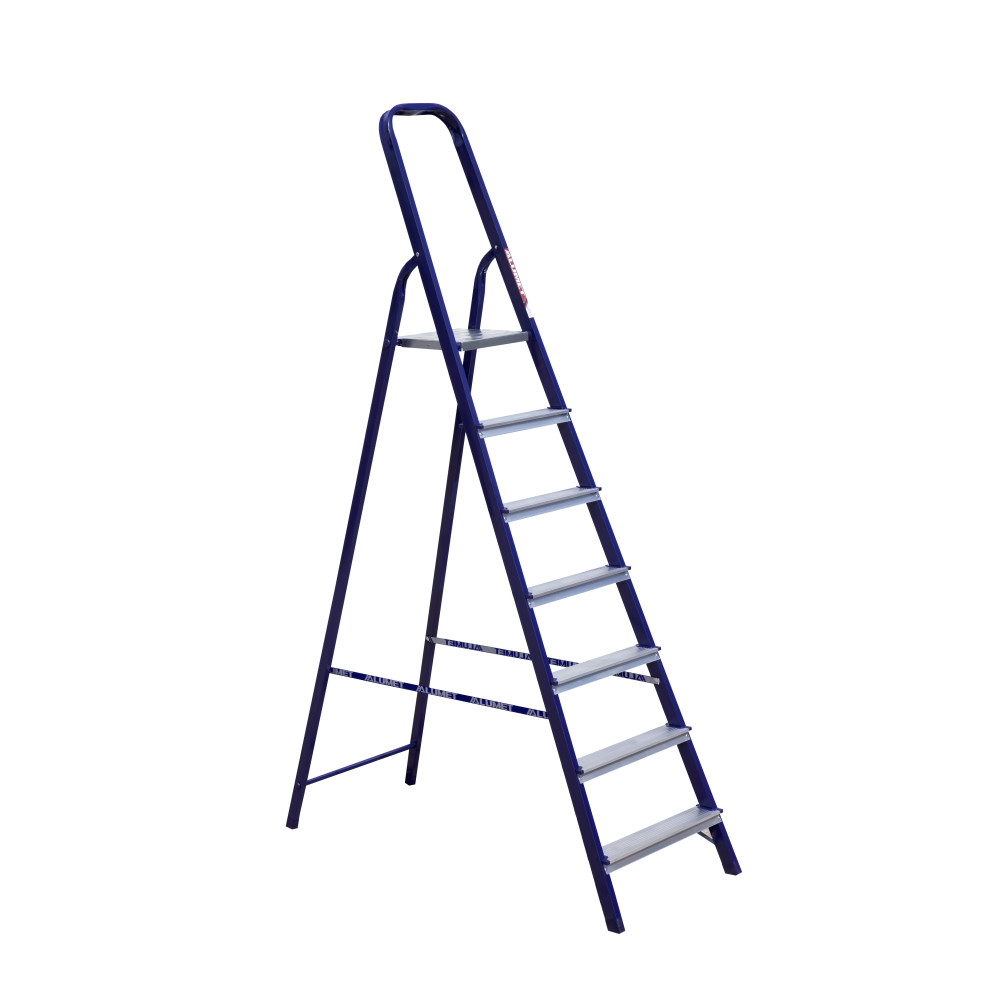

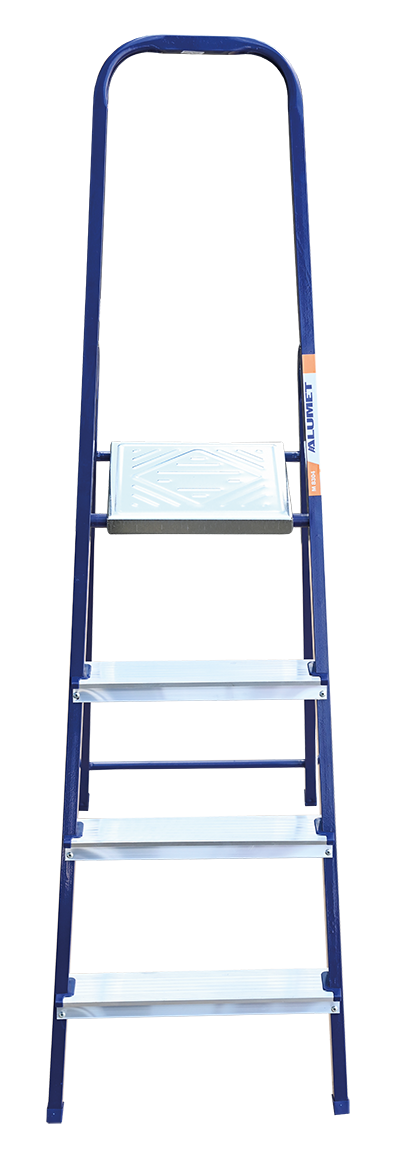

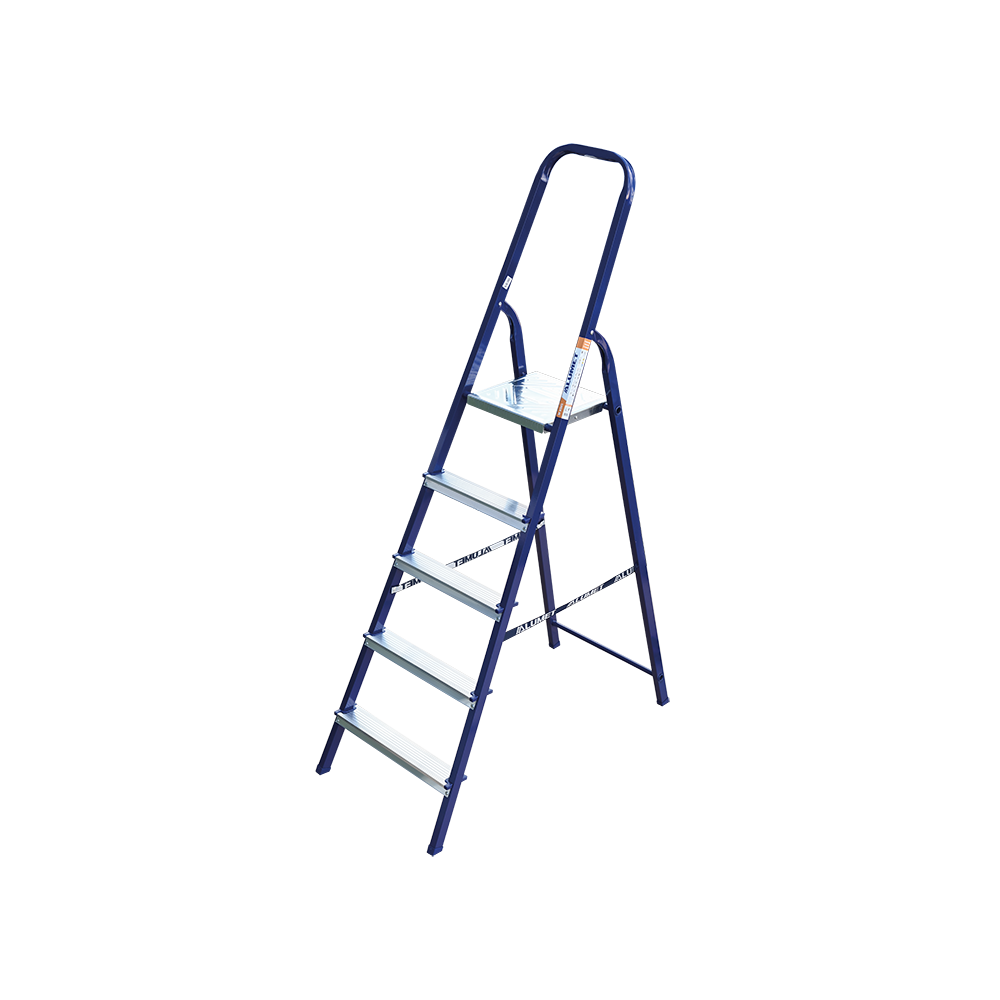

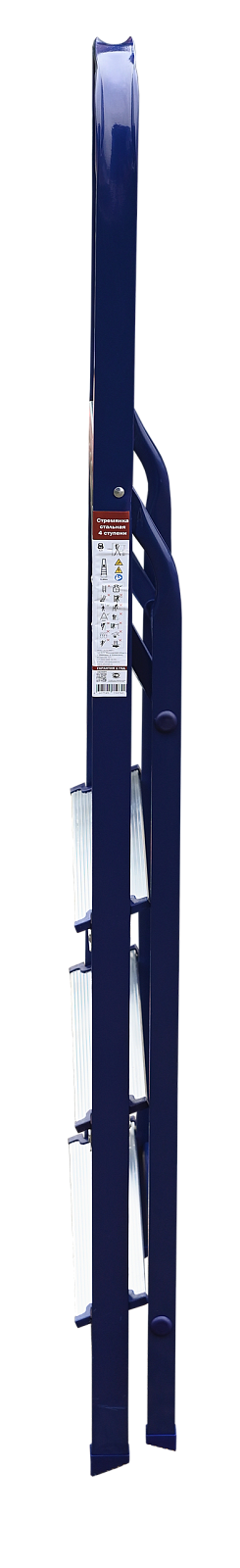

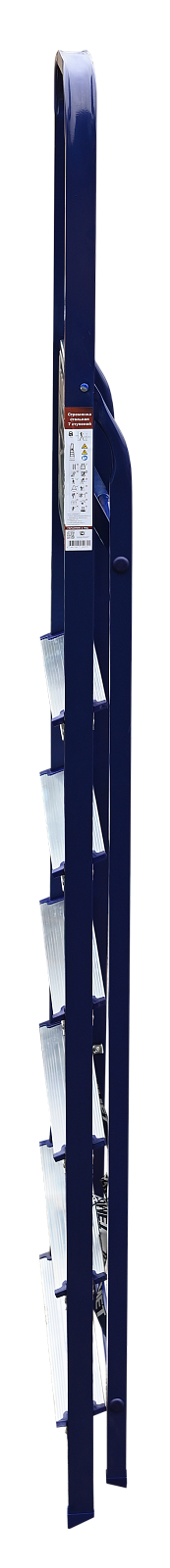

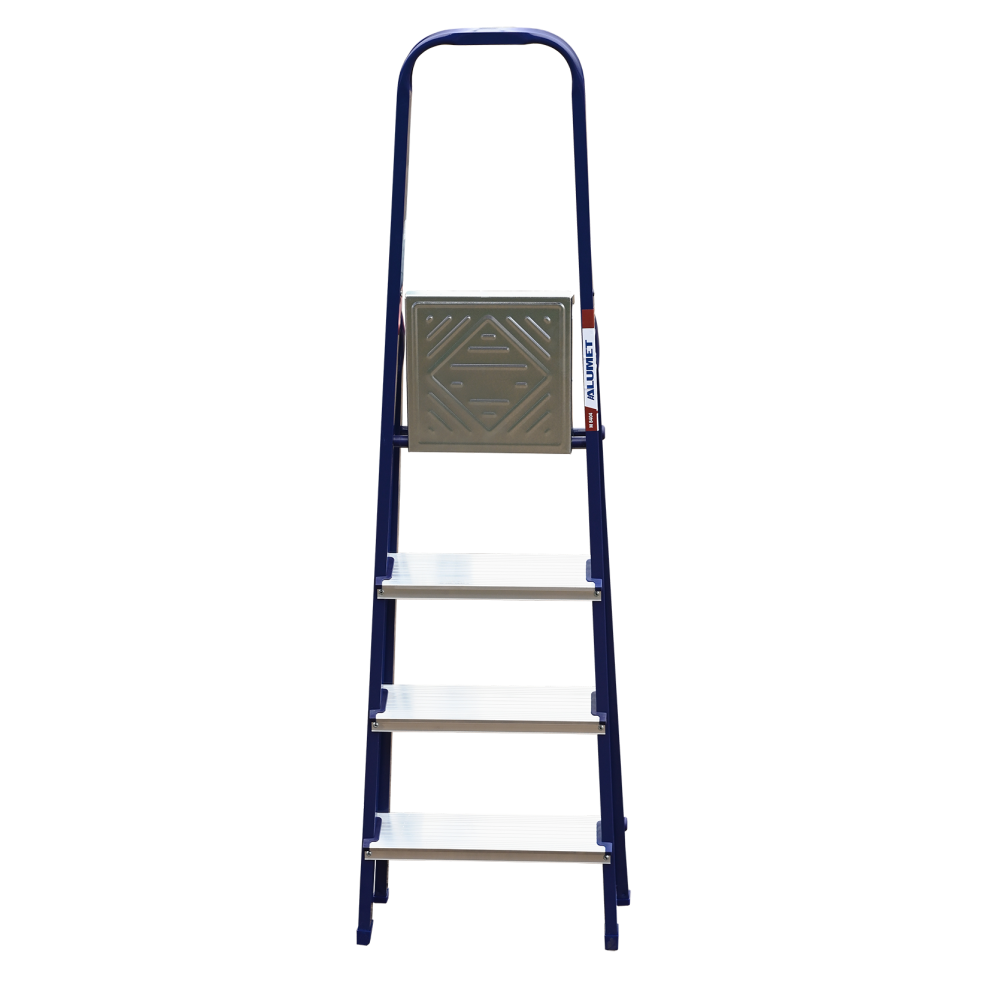

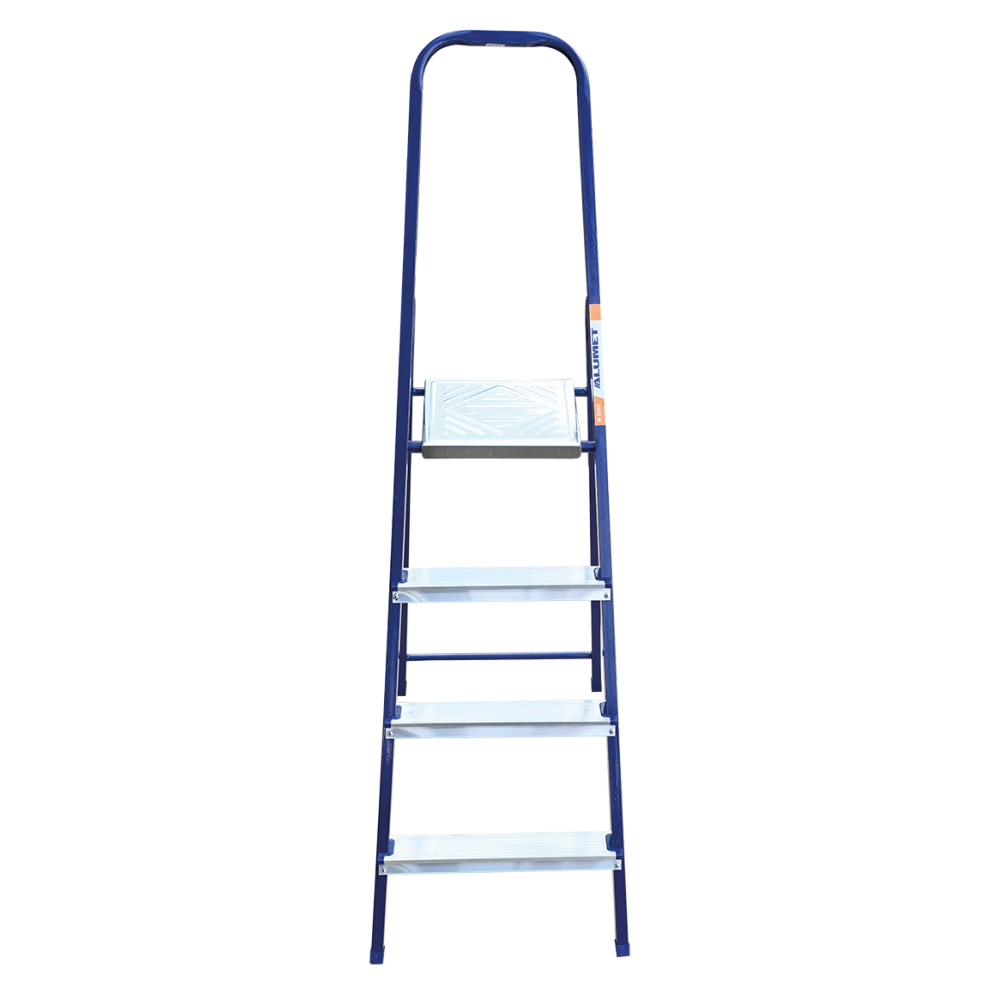

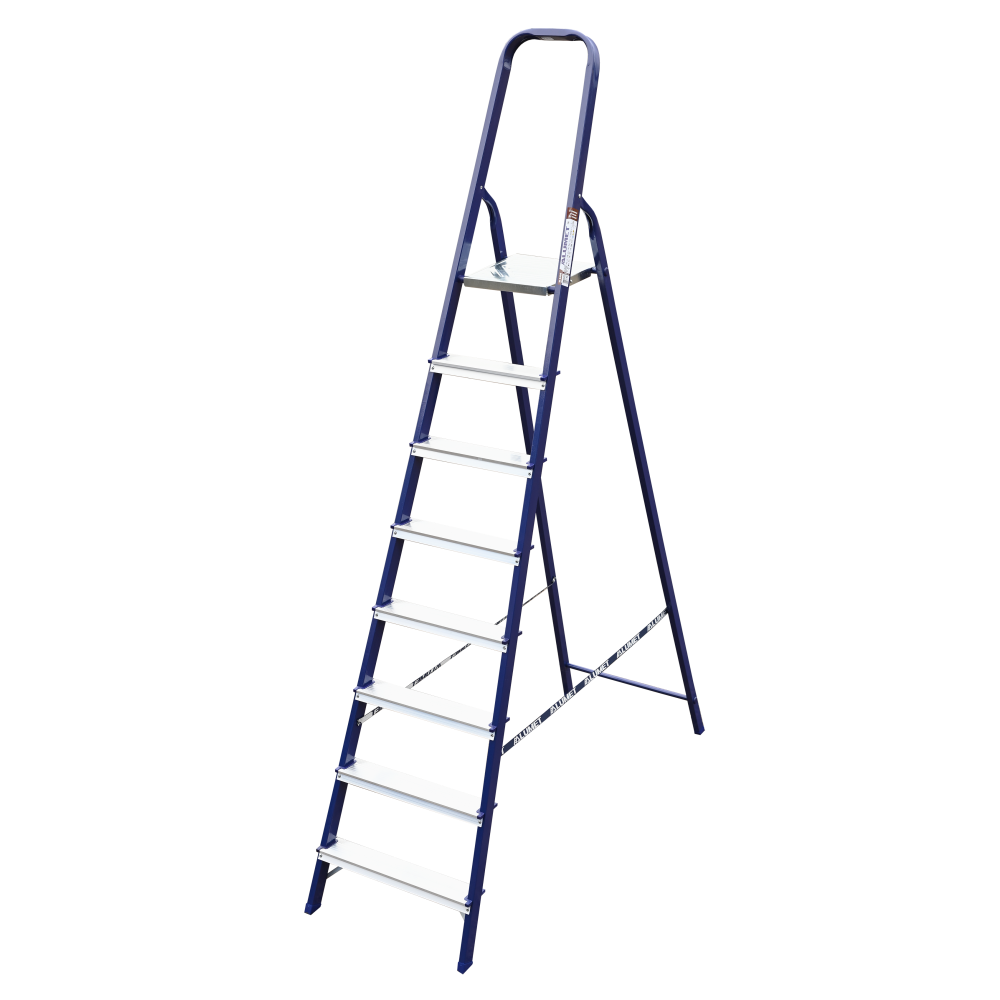

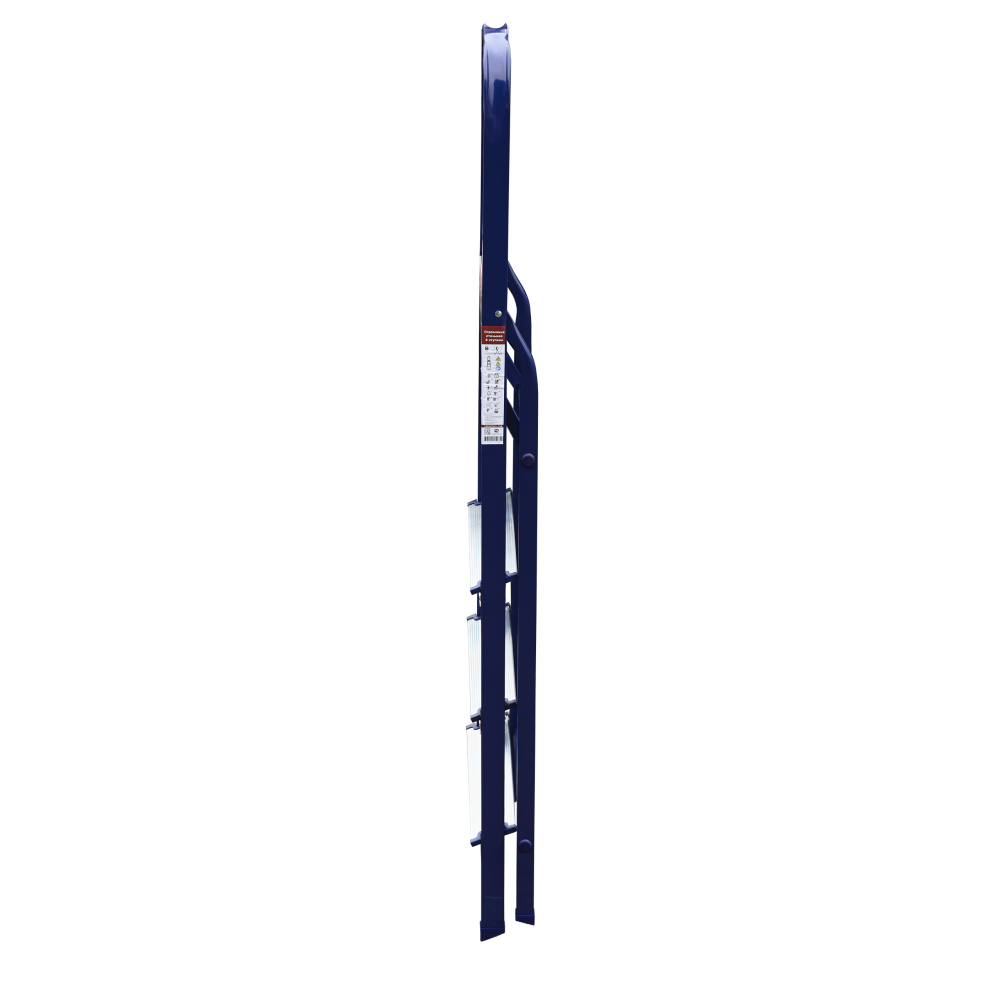

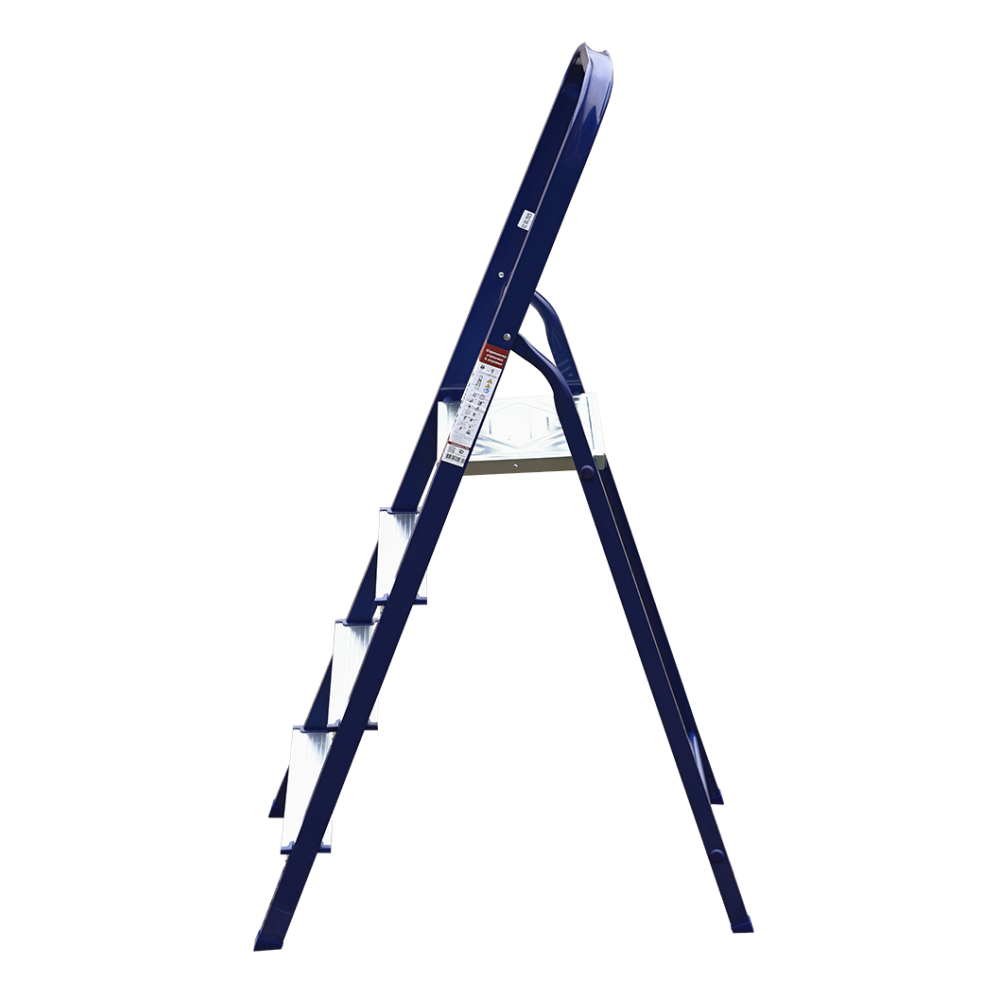

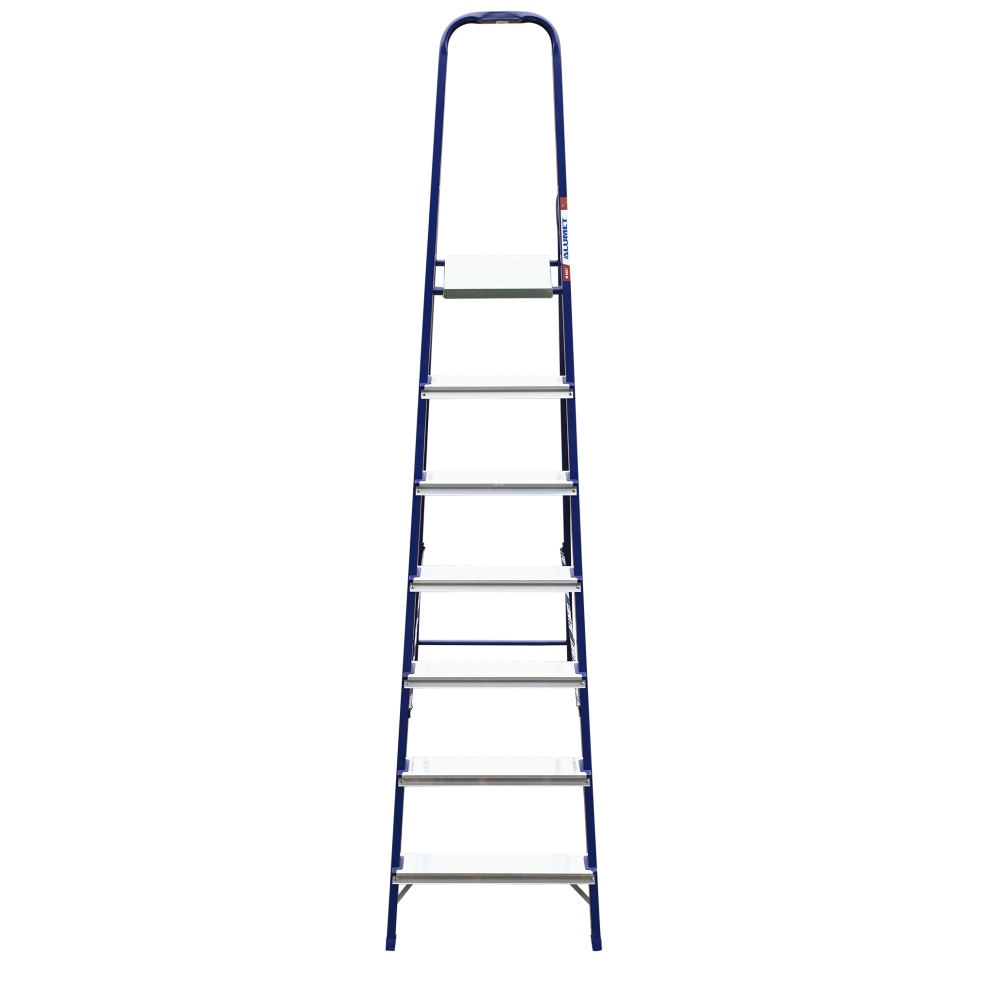

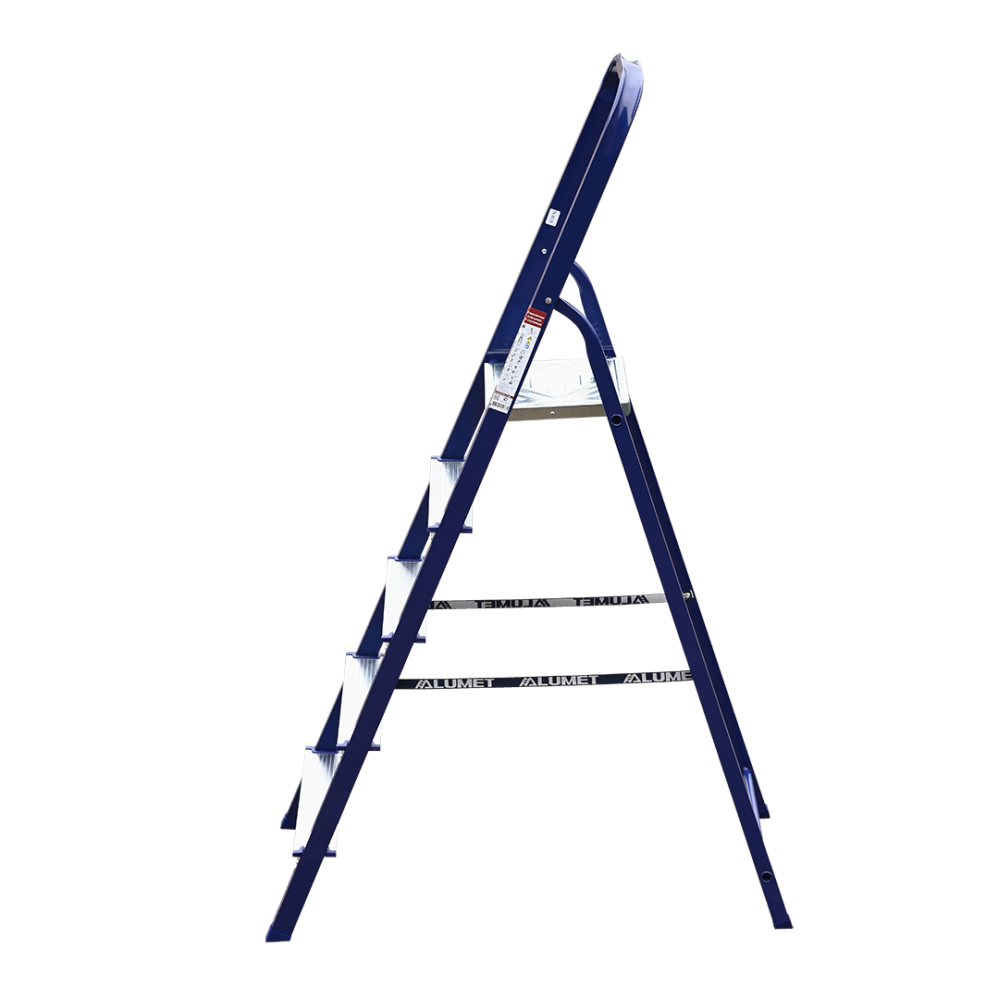

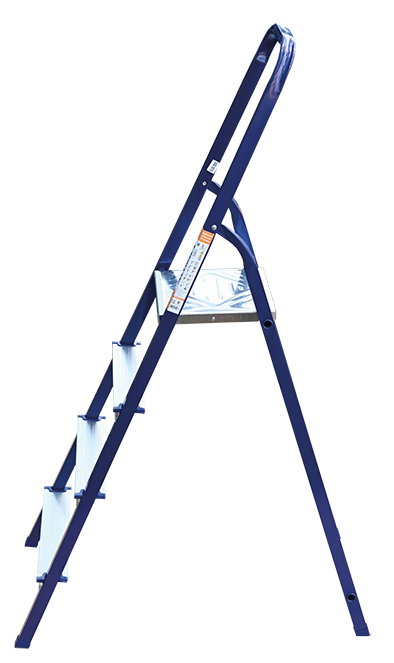

Photo gallery
Technical specifications

Series M

Vendor code
Number of steps Number of steps
Height Height
Length Length
Height max Height max
Width Width
Front arch profile Front arch profile
Rear leg profile Rear leg profile
Weight Weight
M 8403
  • M 8403
3 0.60 1.31 2.70 0.42 40x20 30x20 4.3
M 8404
  • M 8404
4 0.81 1.54 2.91 0.44 40x20 30x20 5.0
M 8405
  • M 8405
5 1.02 1.77 3.12 0.46 40x20 30x20 5.8
M 8406
  • M 8406
6 1.23 2.00 3.33 0.49 40x20 30x20 6.6
M 8407
  • M 8407
7 1.45 2.23 3.55 0.51 40x20 30x20 7.4
M 8408
  • M 8408
8 1.66 2.46 3.76 0.54 40x20 30x20 8.2
M 8409
  • M 8409
9 1.87 2.69 3.97 0.56 40x20 30x20 9.2
M 8410
  • M 8410
10 2.08 2.92 4.18 0.58 40x20 30x20 10.2

Series ML (lightweight)

Vendor code
Number of steps Number of steps
Height Height
Length Length
Height max Height max
Width Width
Front arch profile Front arch profile
Rear leg profile Rear leg profile
Weight Weight
M 8303
  • M 8303
3 0.60 1.31 2.70 0.42 30x20 30x20 3.9
M 8304
  • M 8304
4 0.81 1.54 2.91 0.44 30x20 30x20 4.6
M 8305
  • M 8305
5 1.03 1.77 3.12 0.46 30x20 30x20 5.3
Product Features

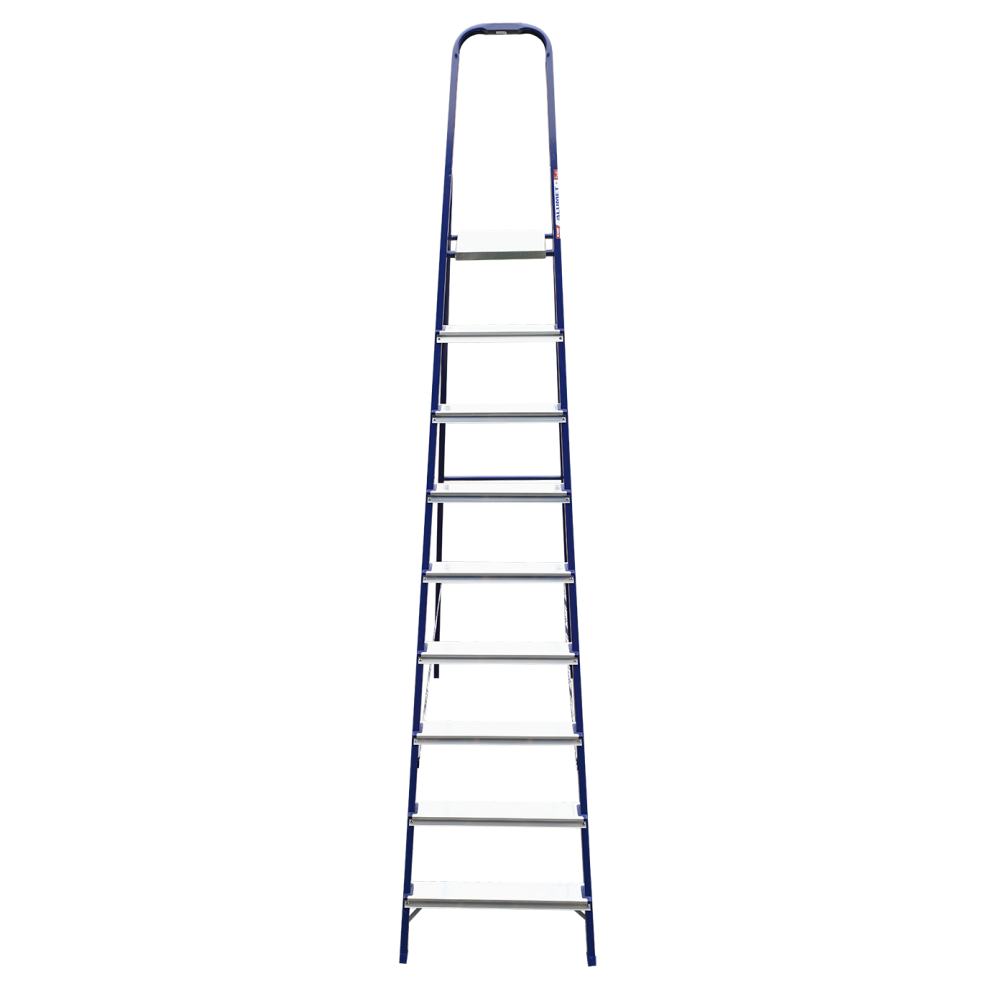

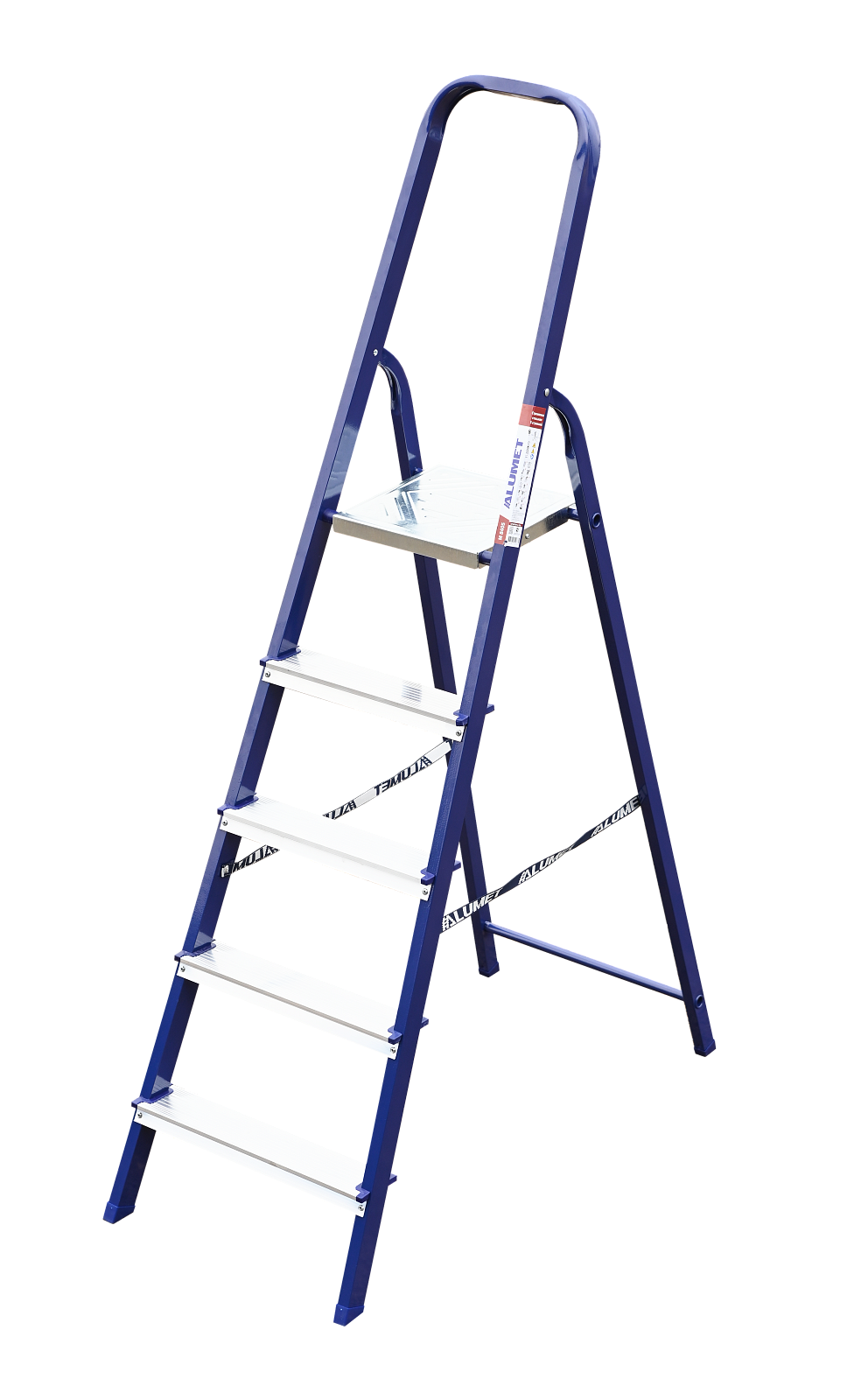

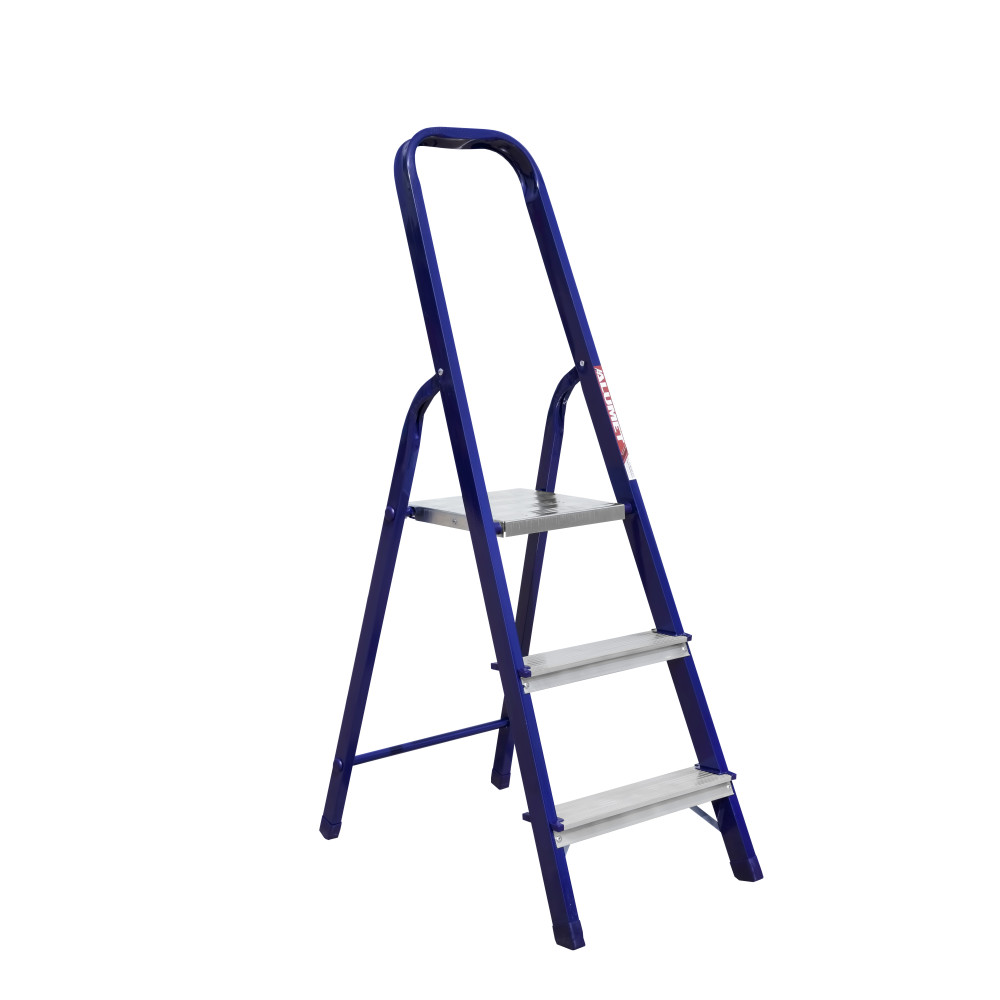

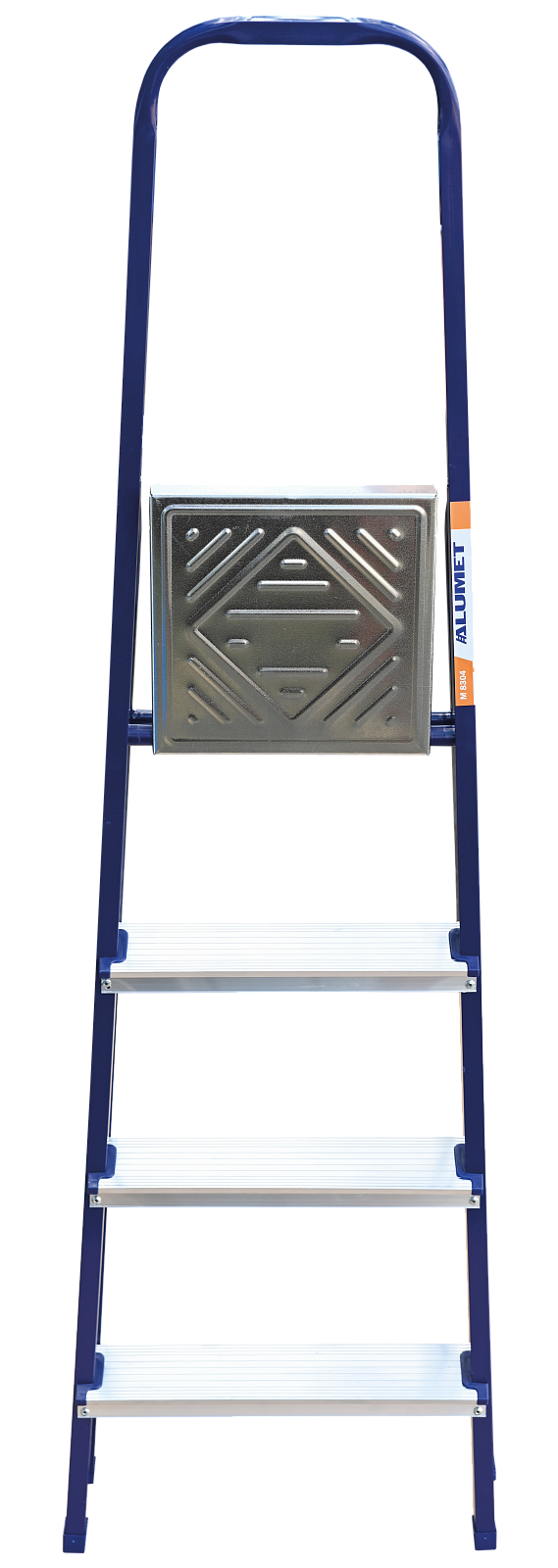

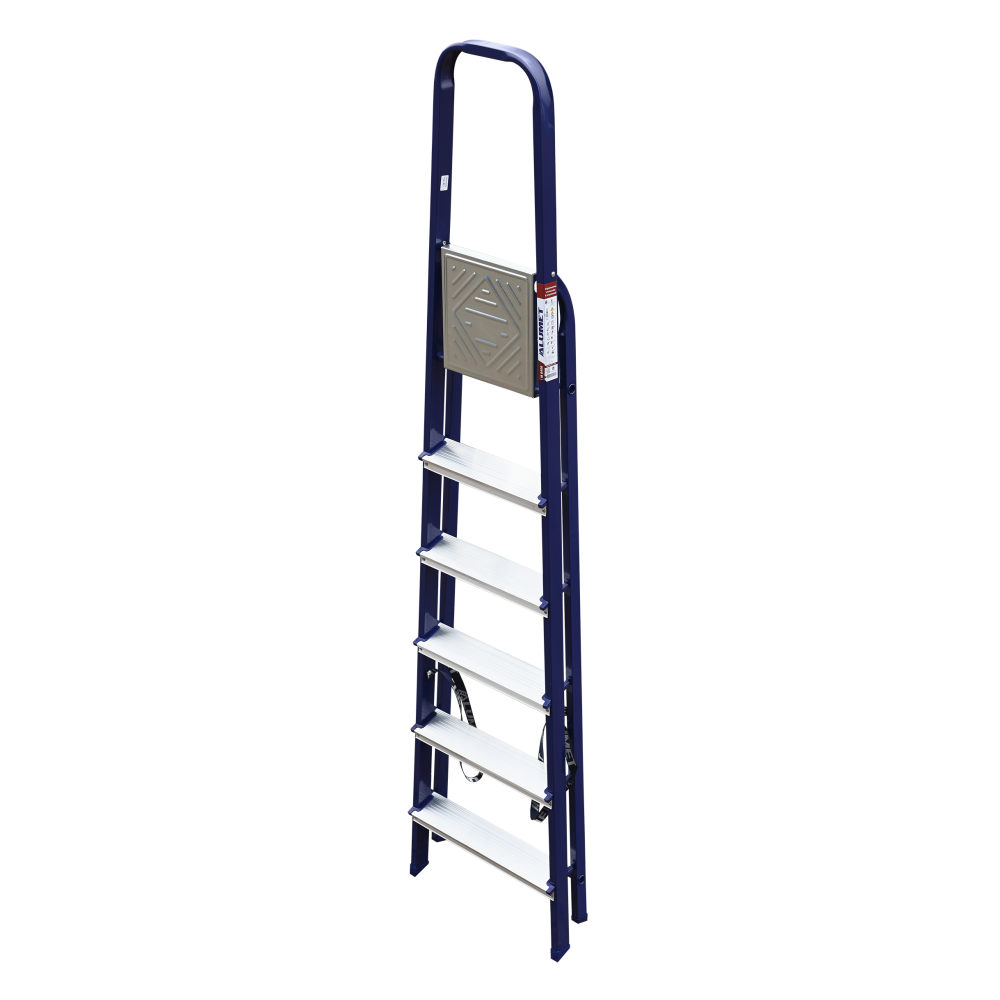

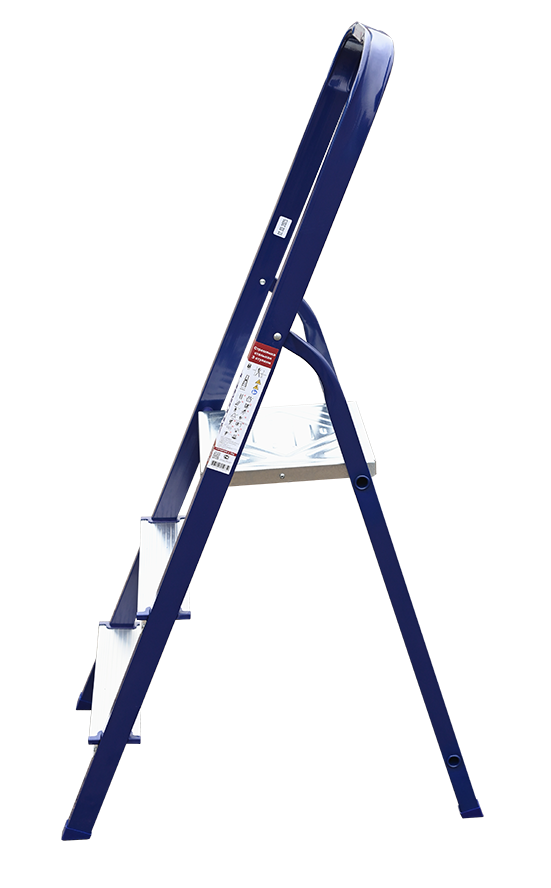

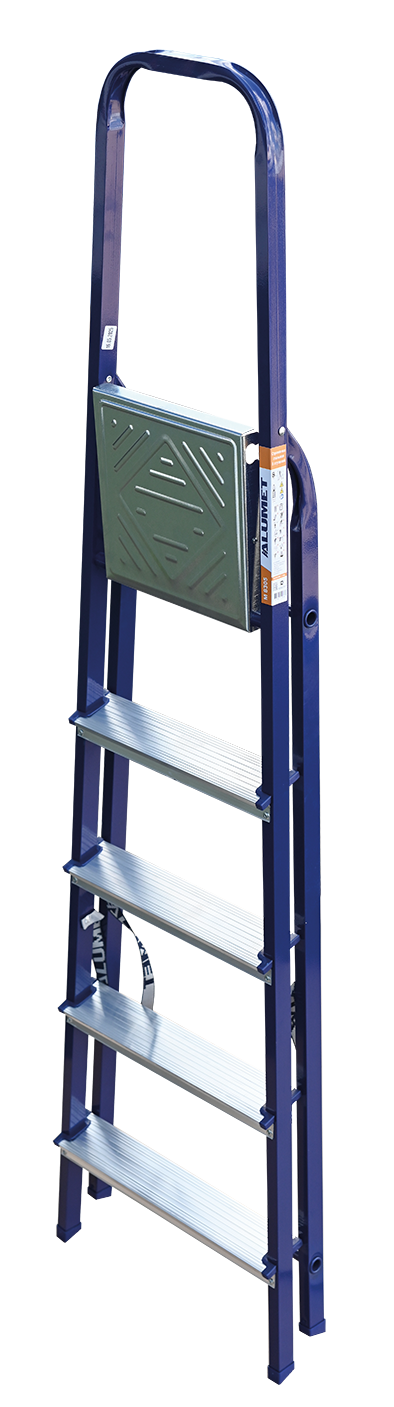

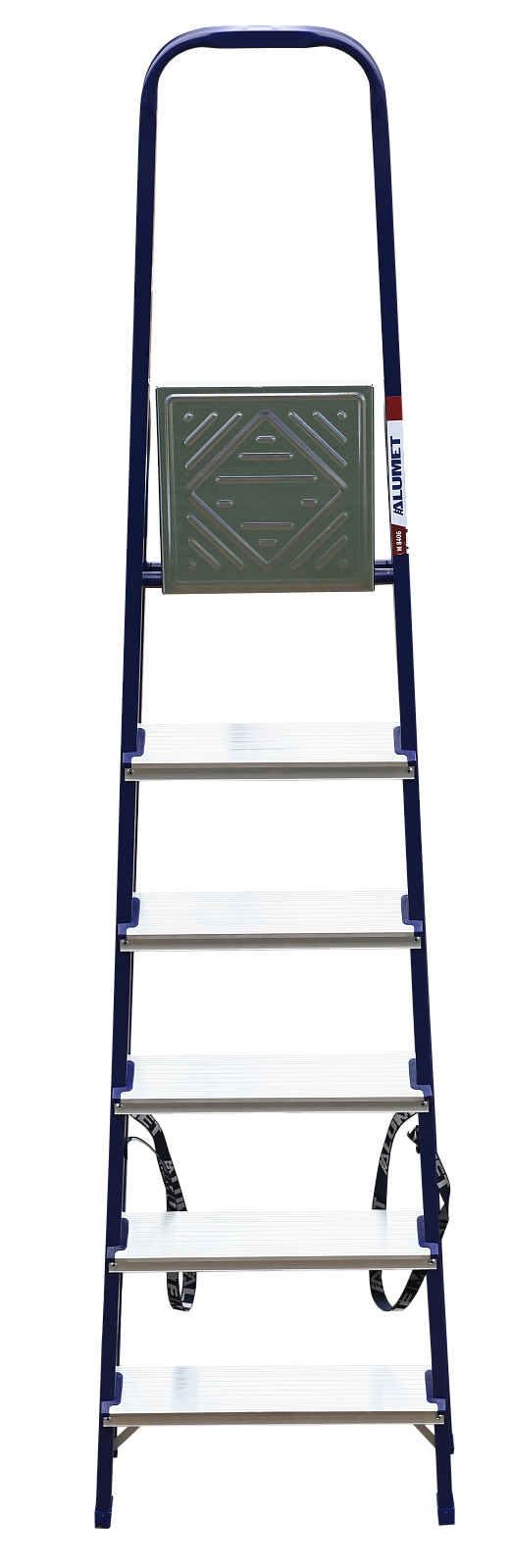

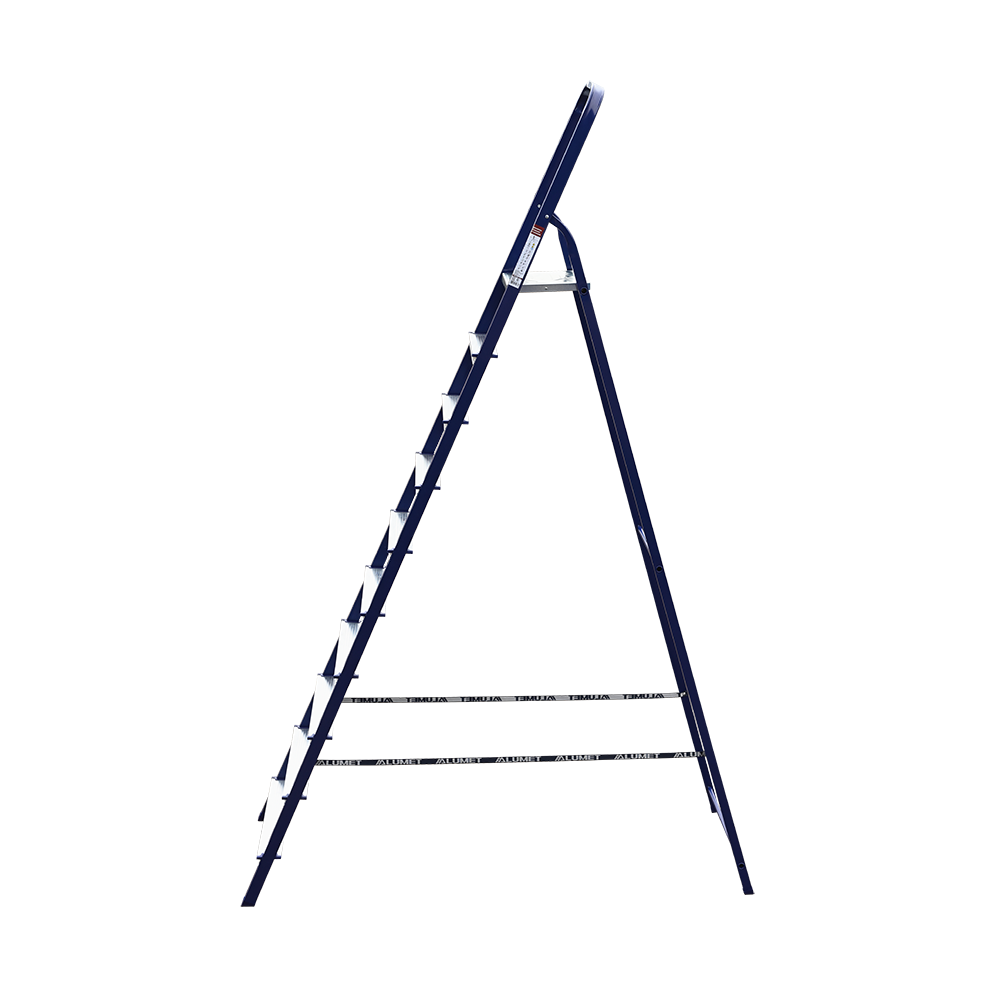

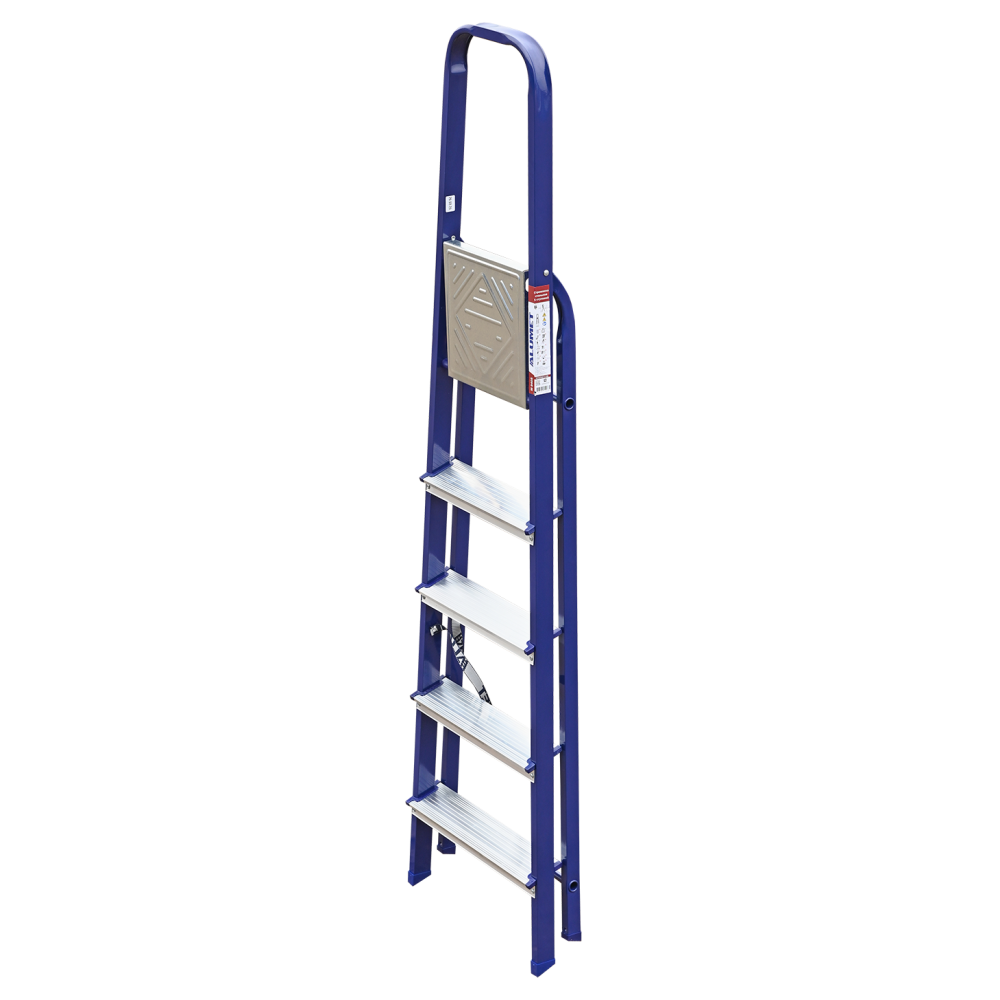

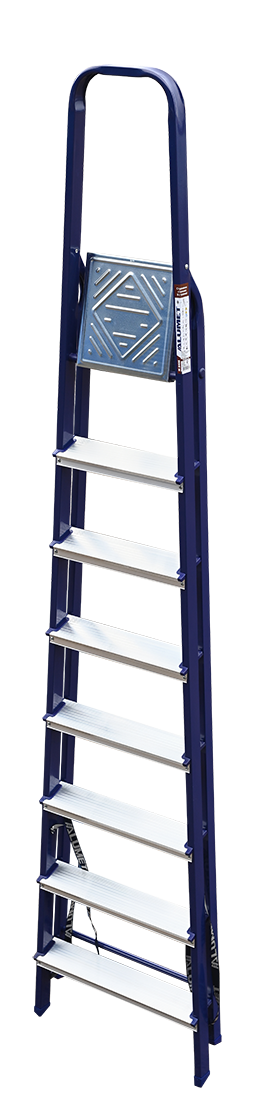

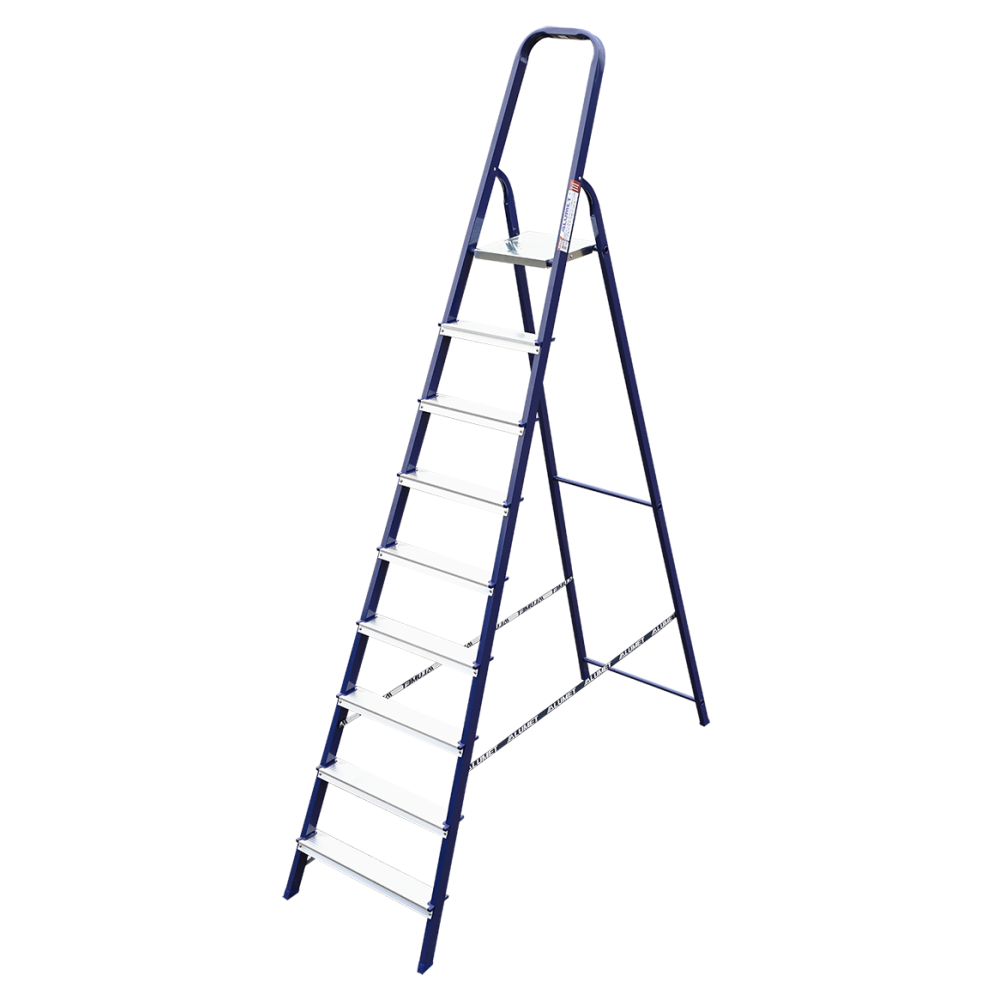

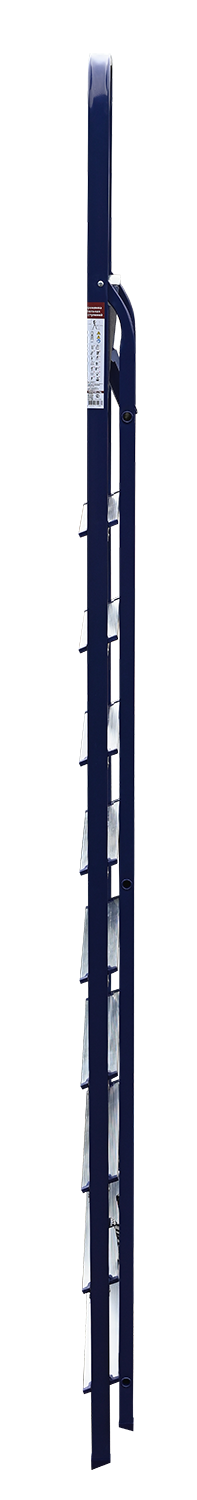

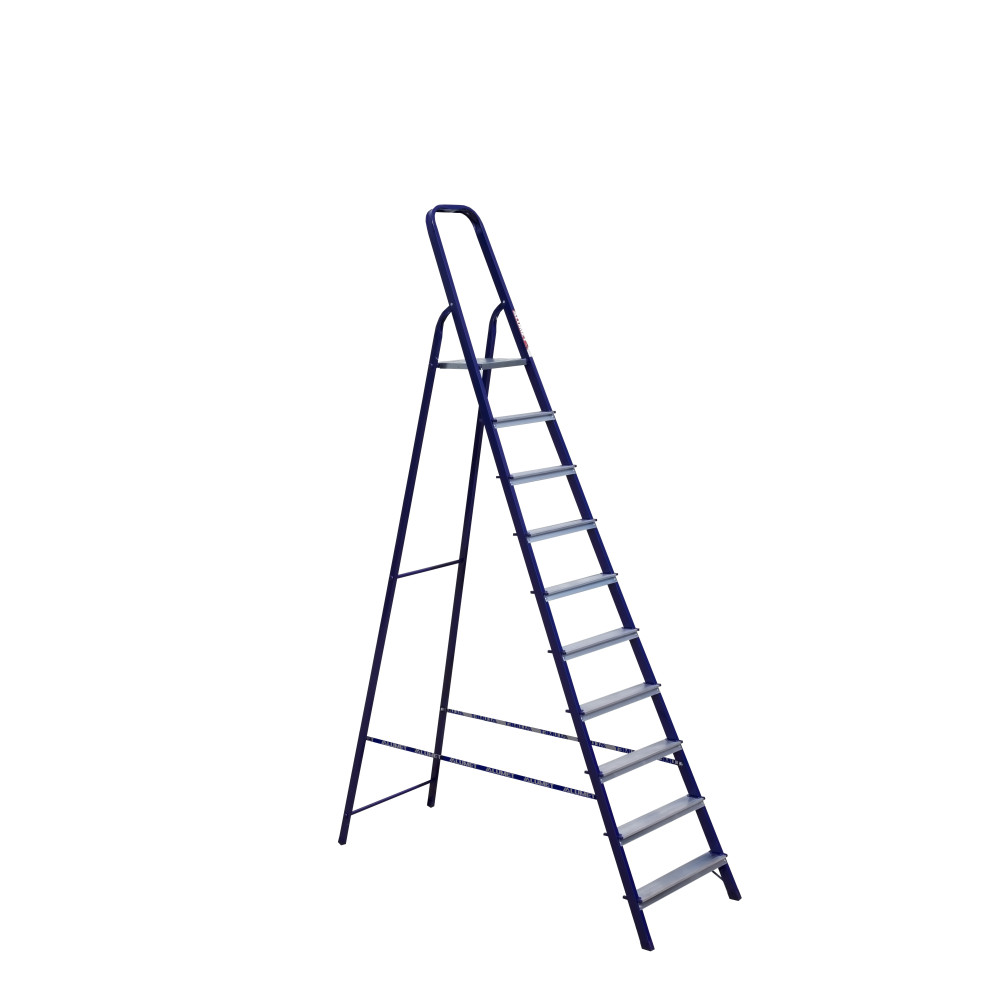

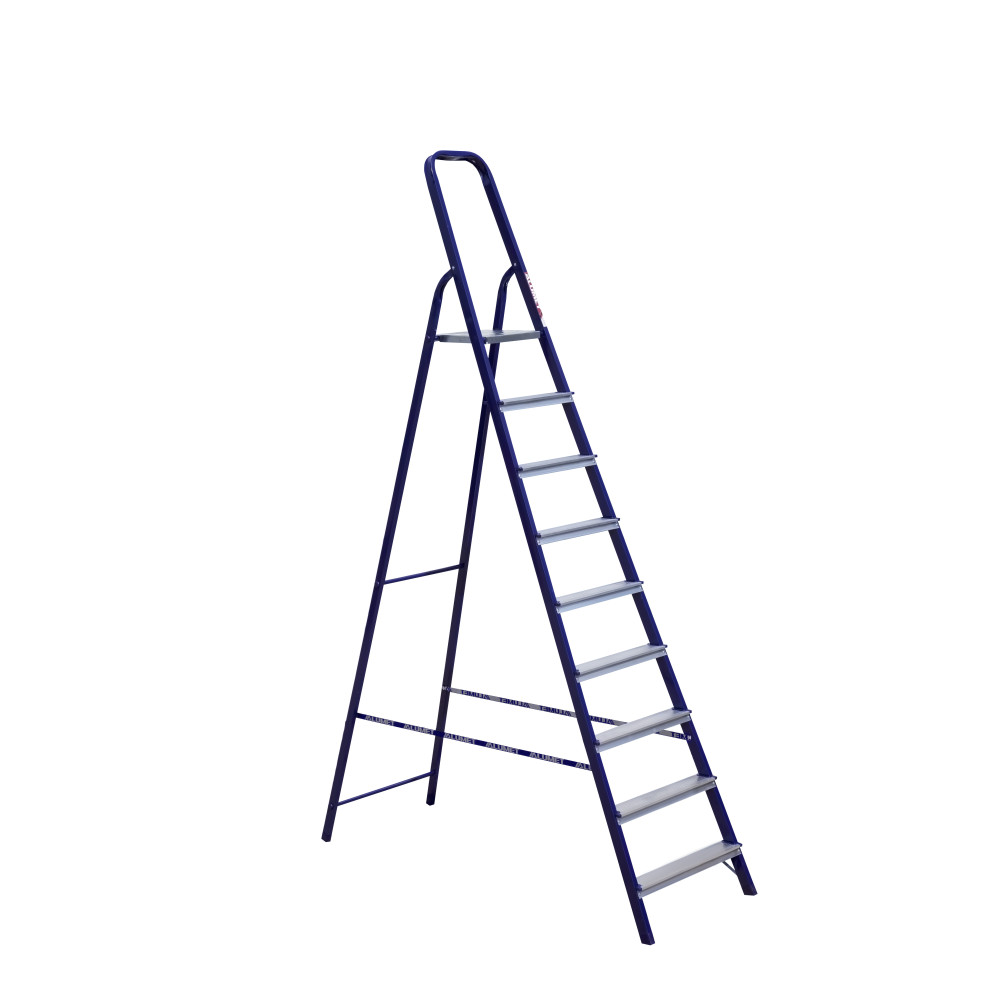

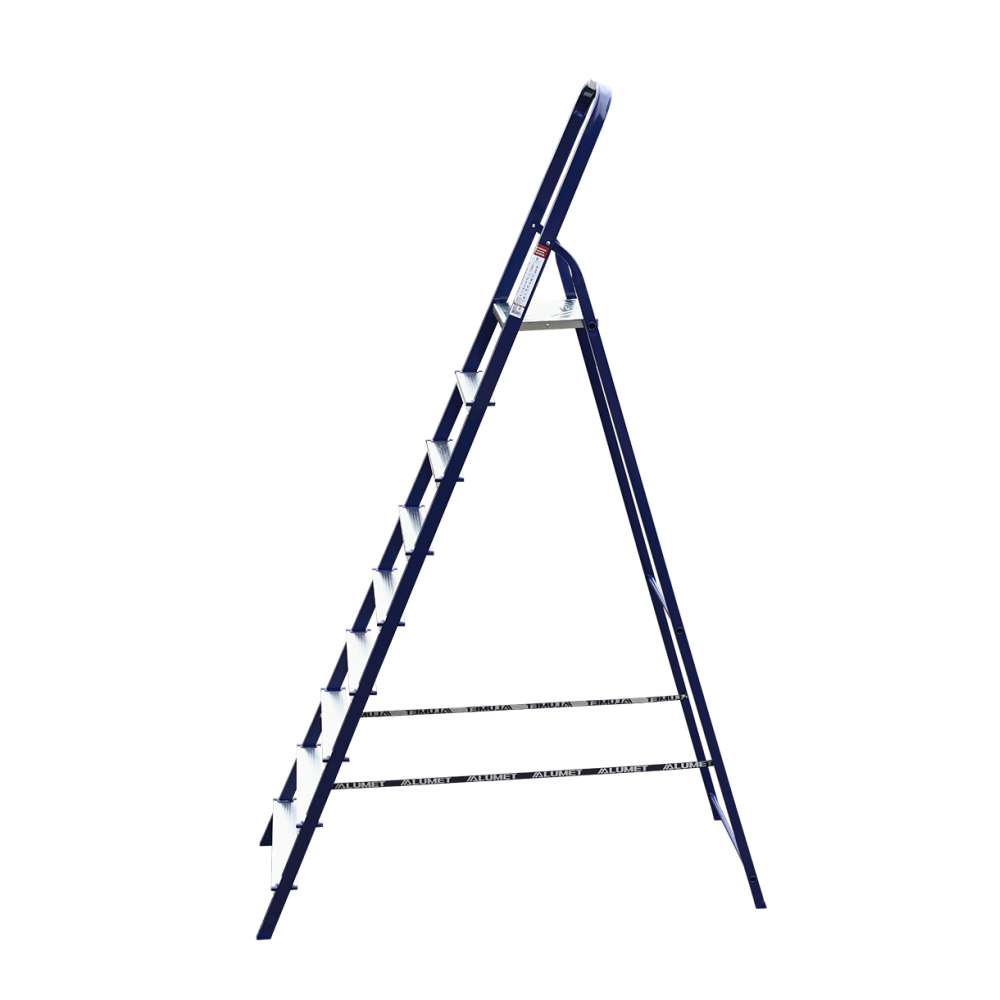

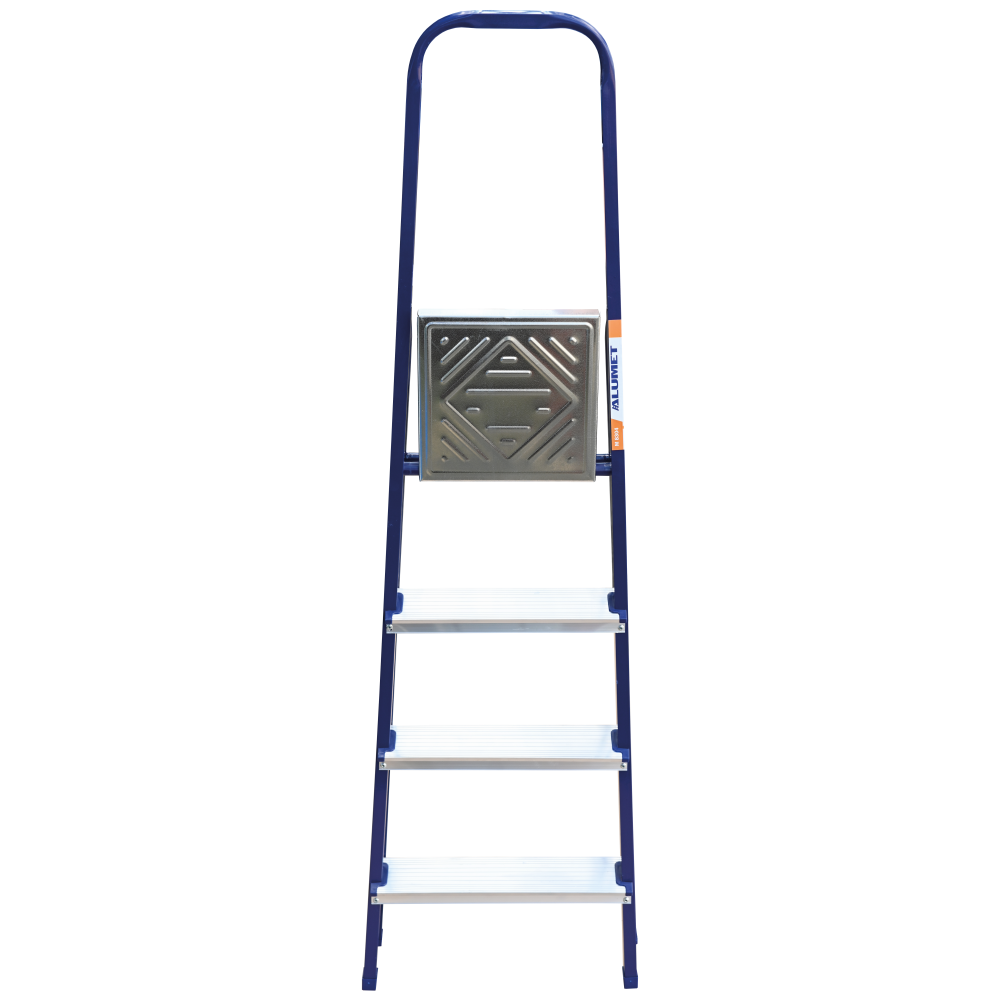

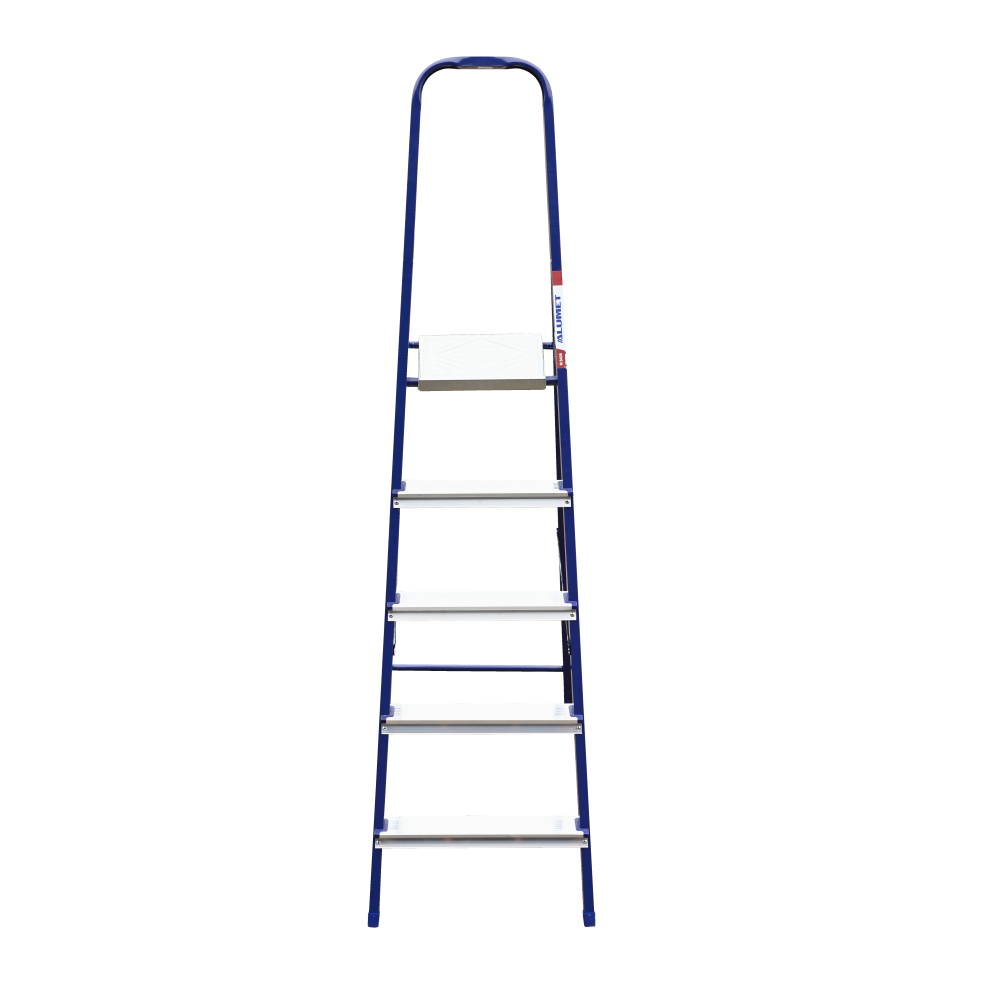

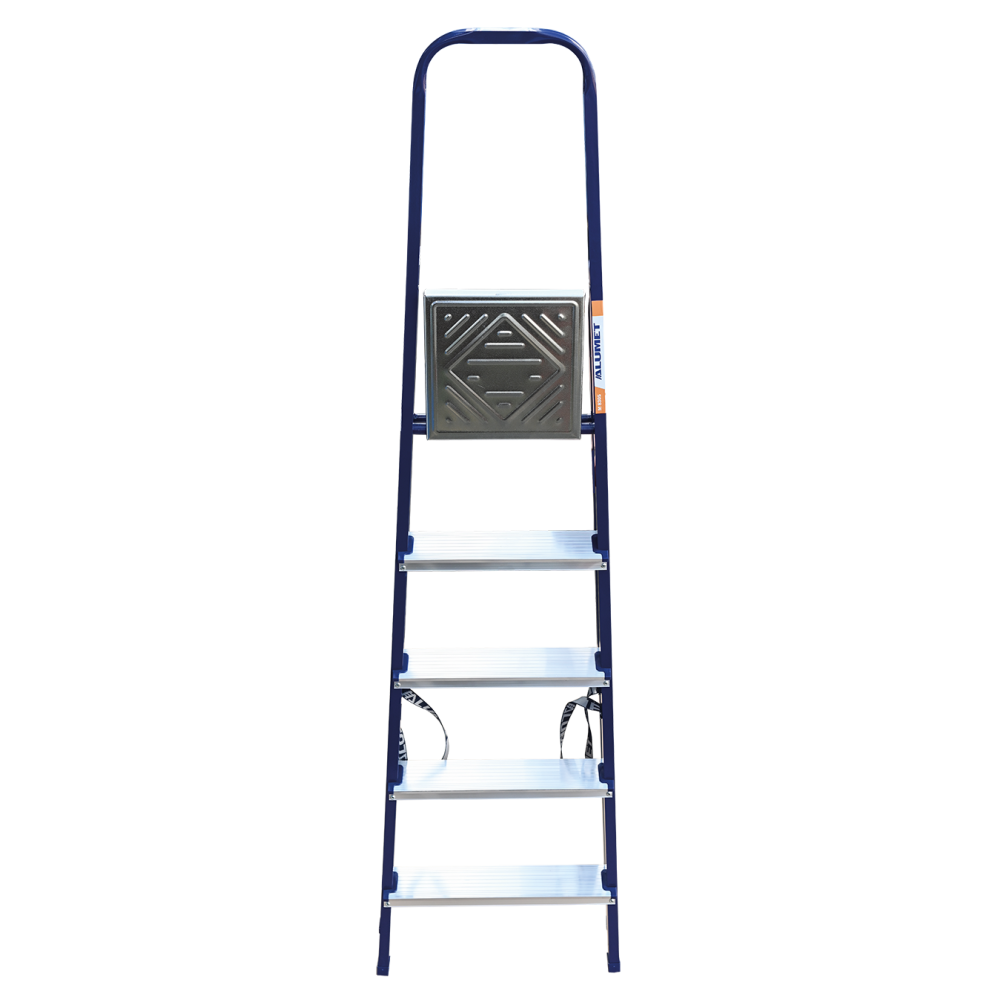

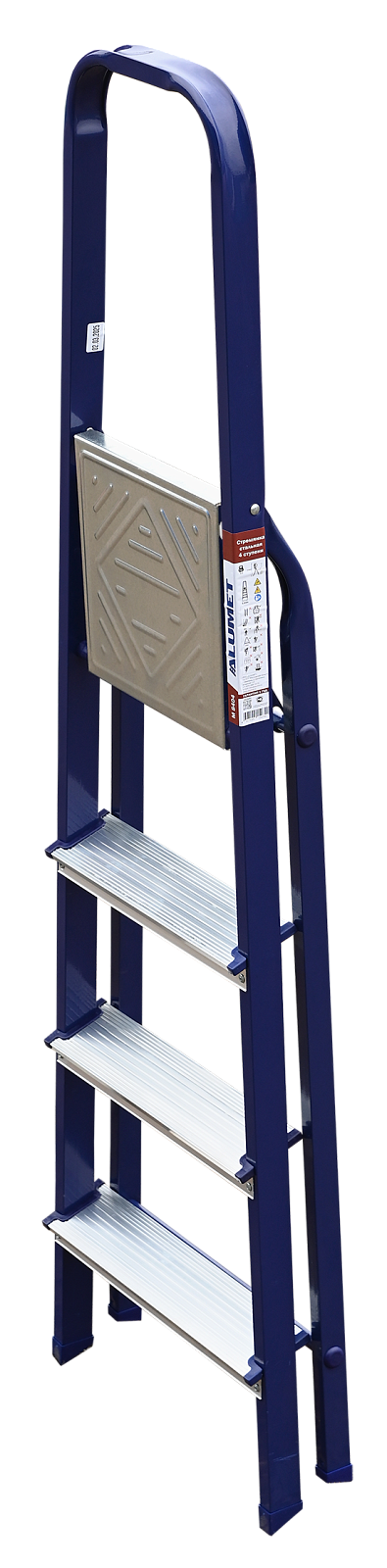

The step ladder is a self-supporting portable ladder, tapering off to the top, having a front side (a front foot), a support side (a support foot), and a work platform and spreading out for a specific task. The safety rail is structurally made in conjunction with the front side.

The strings of the step ladder are made of a high-strength steel shape protected against corrosion by epoxy powder enamel. The back and front legs are interconnected. The work platform is made of galvanized steel. The rungs have a serrated surface and are made of a high-strength aluminum shape. The shoes are made of high strength plastic. The step ladder in the working position is secured by the work platform; and for step ladders with five rungs and higher – by safety ropes. The number of rungs – from 3 to 10. M series aluminum step ladder is designed for various types of domestic and industrial work at a height of up to 4 m.

It should be noted that the production of step ladders has been automated, which excluded the influence of the ‘human error’ on product quality. At the same time, the step ladders acquired additional strength, increased reliability and durability.
