Vendor code |
Number of steps
|
Length
|
Height max
|
Width
|
Profile
|
Weight
|
---|---|---|---|---|---|---|
H1 5106 | 6 | 1.69 | 2.59 | 0.33 | 54x20 | 2.2 |
H1 5107 | 7 | 1.97 | 2.87 | 0.33 | 54x20 | 2.6 |
H1 5108 | 8 | 2.25 | 3.15 | 0.33 | 54x20 | 2.9 |
H1 5109 | 9 | 2.53 | 3.43 | 0.33 | 54x20 | 3.2 |
H1 5110 | 10 | 2.81 | 3.71 | 0.33 | 54x20 | 3.6 |
H1 5111 | 11 | 3.09 | 3.99 | 0.33 | 54x20 | 4 |
H1 5112 | 12 | 3.37 | 4.27 | 0.39 | 60x20 | 4.8 |
H1 5113 | 13 | 3.65 | 4.55 | 0.39 | 60x20 | 5.2 |
H1 5114 | 14 | 3.93 | 4.83 | 0.39 | 60x20 | 5.6 |
H1 5115 | 15 | 4.22 | 5.12 | 0.39 | 71.5x20 | 6.6 |
H1 5116 | 16 | 4.50 | 5.40 | 0.39 | 71.5x20 | 7.1 |
H1 5117 | 17 | 4.78 | 5.68 | 0.39 | 71.5x20 | 7.5 |
H1 5118 | 18 | 5.06 | 5.96 | 0.39 | 71.5x20 | 7.8 |
Vendor code |
Number of steps
|
Length
|
Height max
|
Width
|
Profile
|
Weight
|
---|---|---|---|---|---|---|
HS1 6112 | 12 | 3.39 | 4.29 | 0.39 | 82x20 | 6.7 |
HS1 6113 | 13 | 3.67 | 4.57 | 0.39 | 82x20 | 7.1 |
HS1 6114 | 14 | 3.95 | 4.85 | 0.39 | 82x20 | 7.6 |
HS1 6115 | 15 | 4.23 | 5.13 | 0.39 | 82x20 | 8.3 |
HS1 6116 | 16 | 4.51 | 5.41 | 0.39 | 82x20 | 8.6 |
HS1 6117 | 17 | 4.79 | 5.69 | 0.39 | 82x20 | 9.7 |
HS1 6118 | 18 | 5.07 | 5.97 | 0.39 | 82x20 | 10.1 |

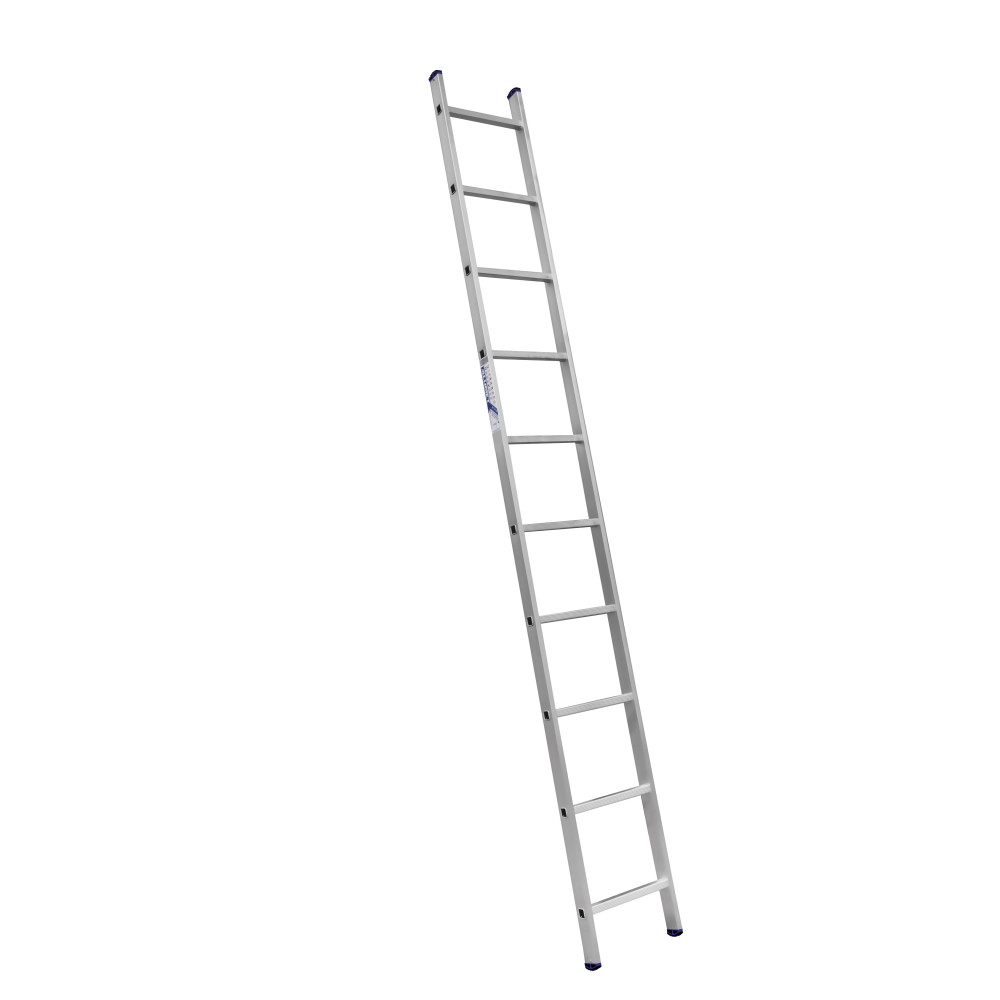

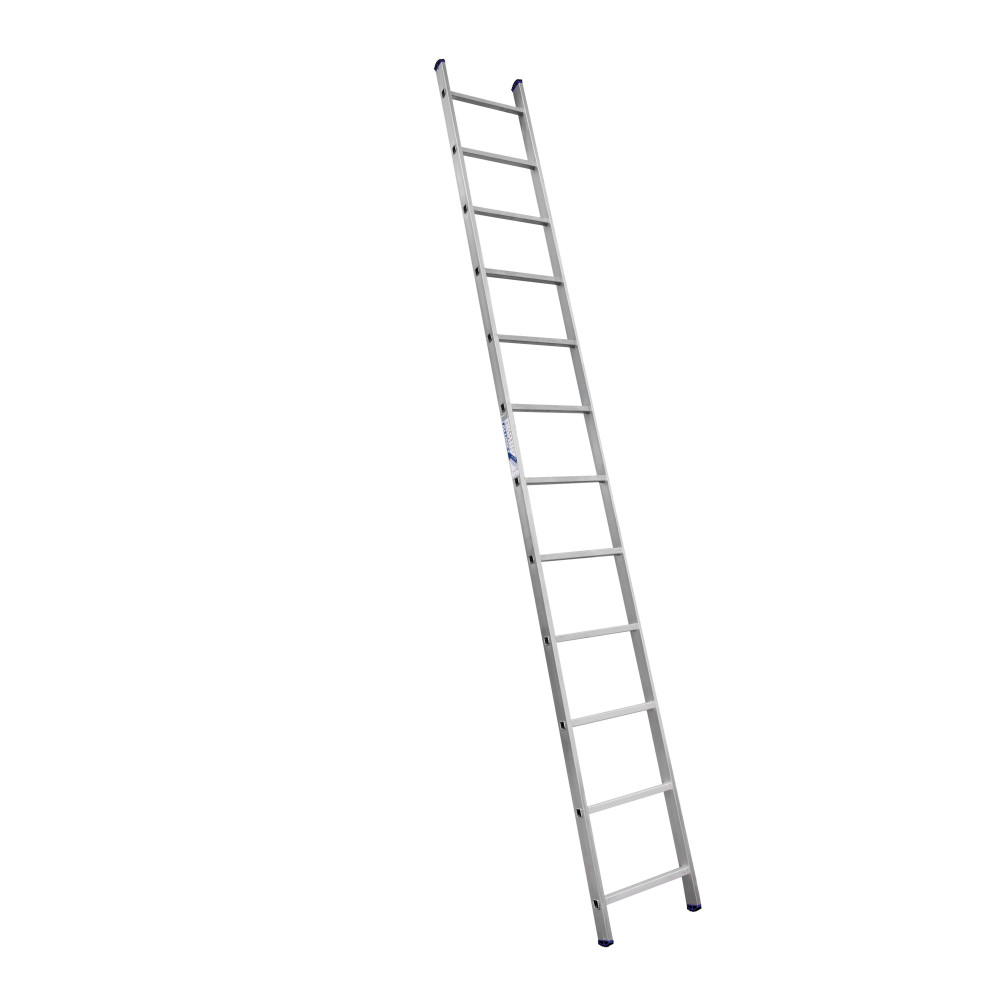

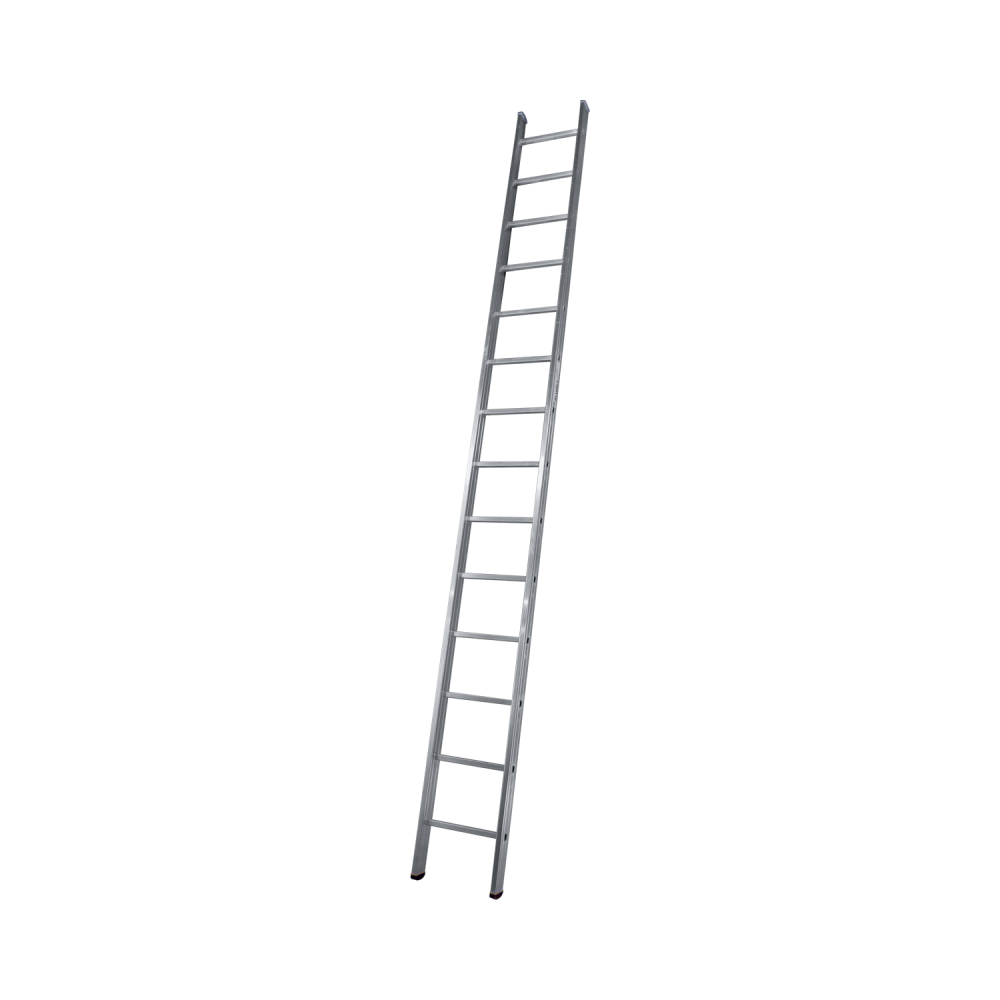

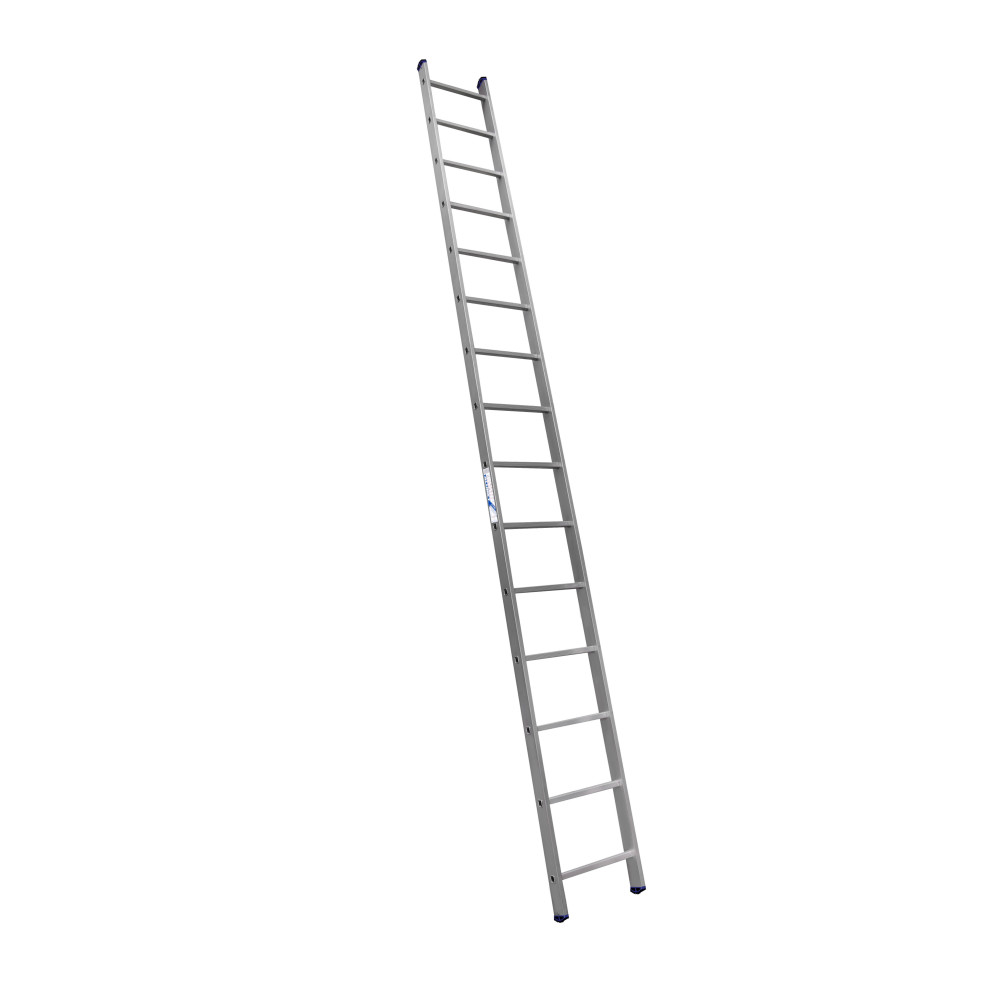

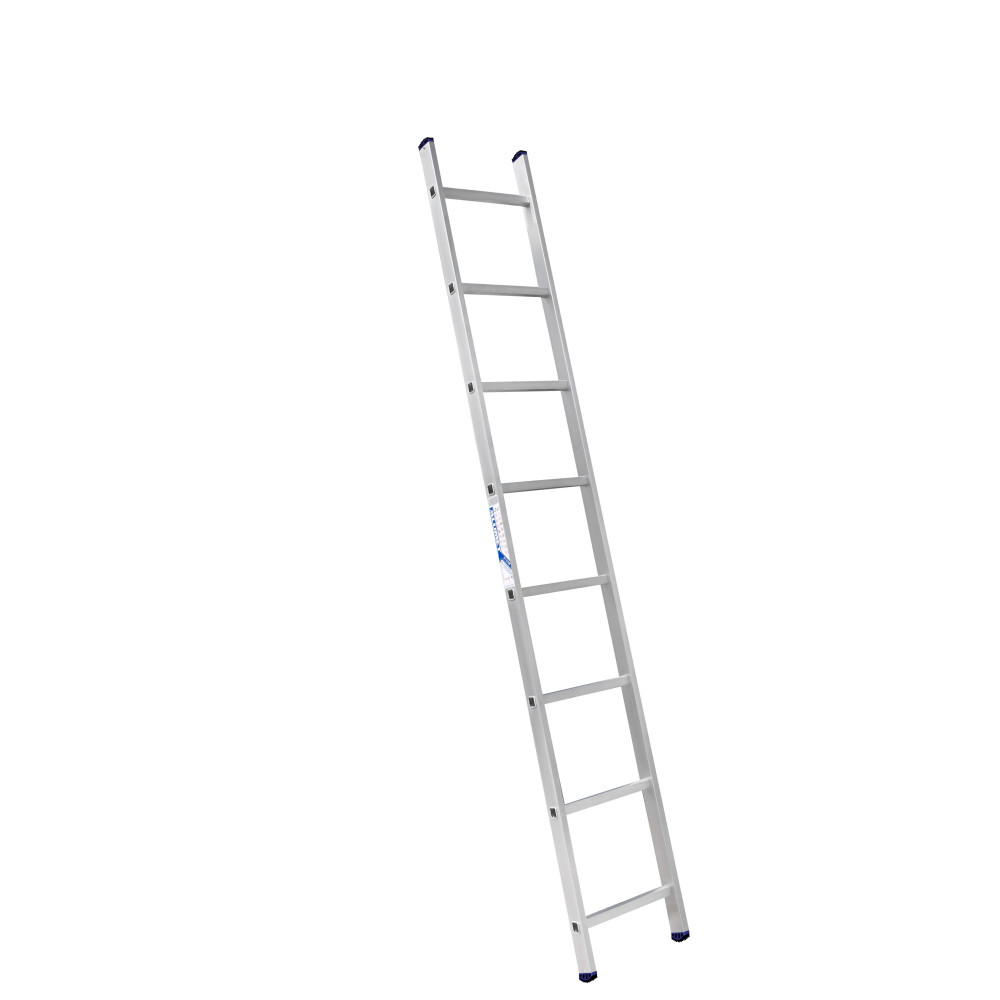

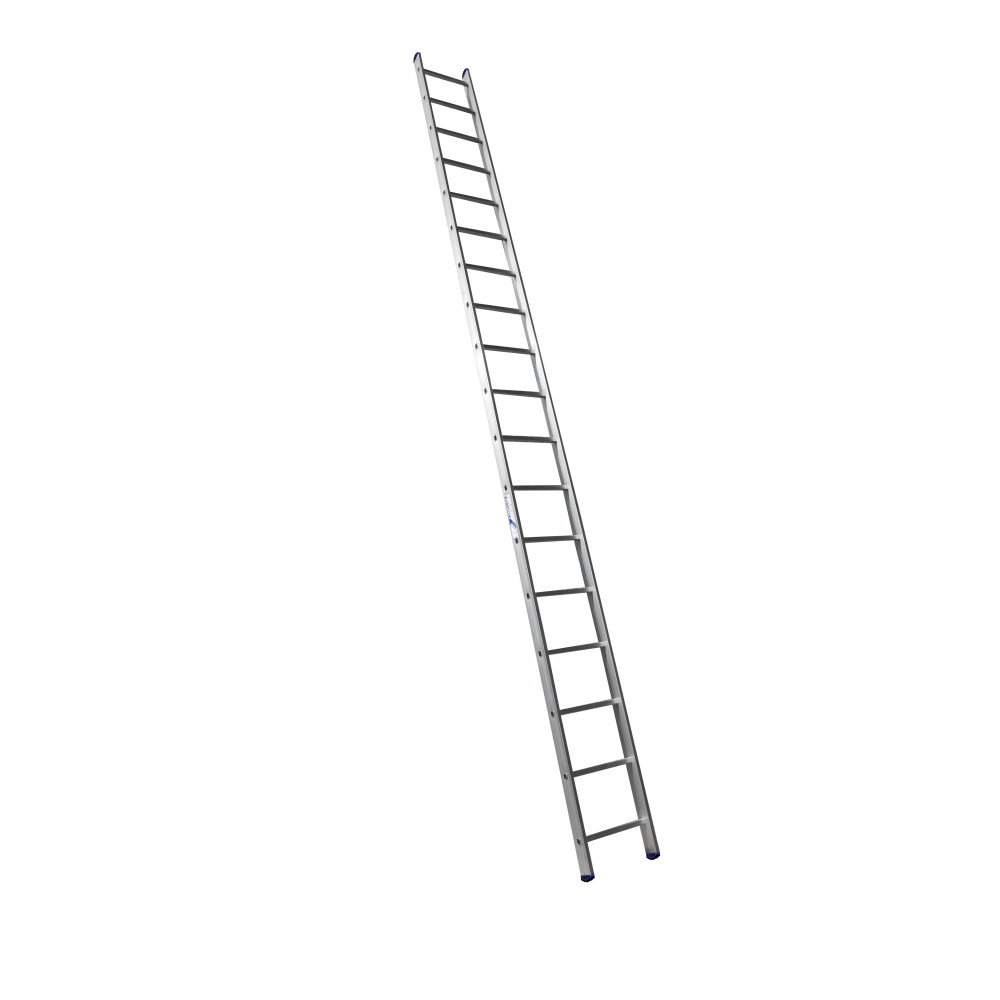

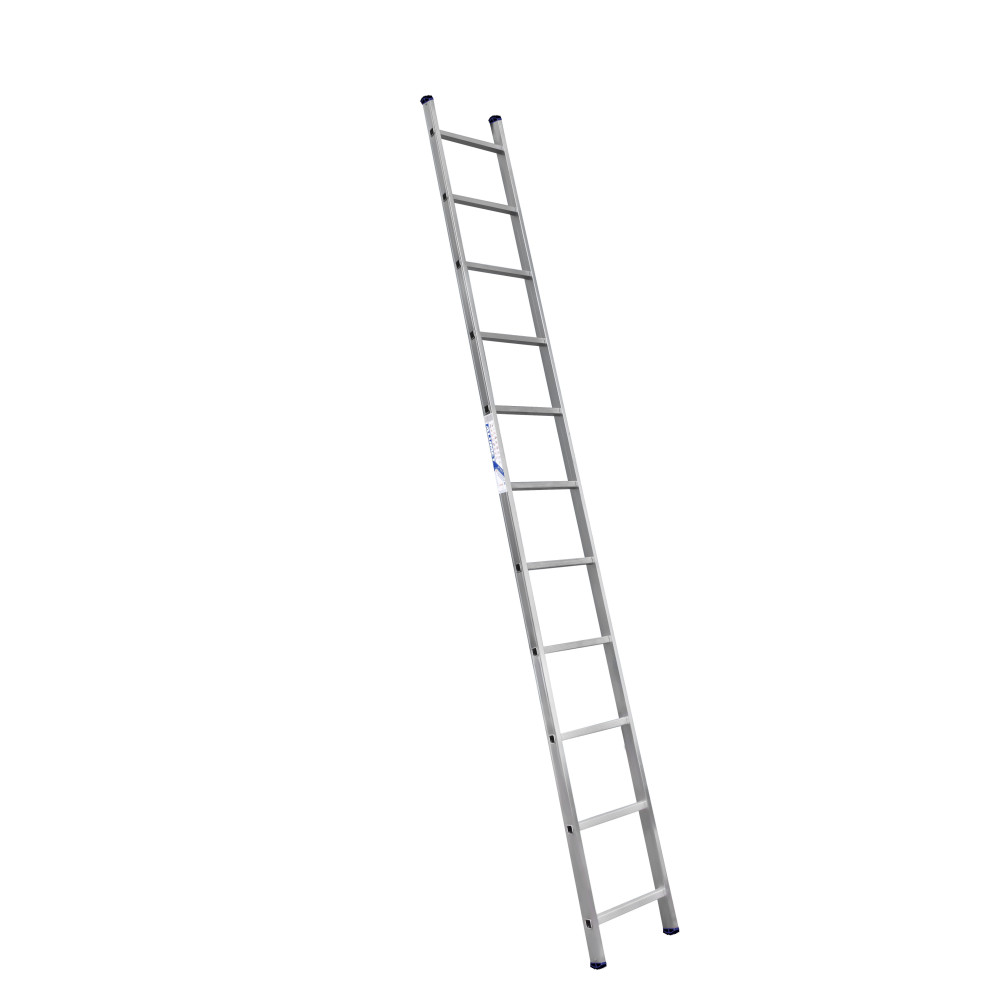

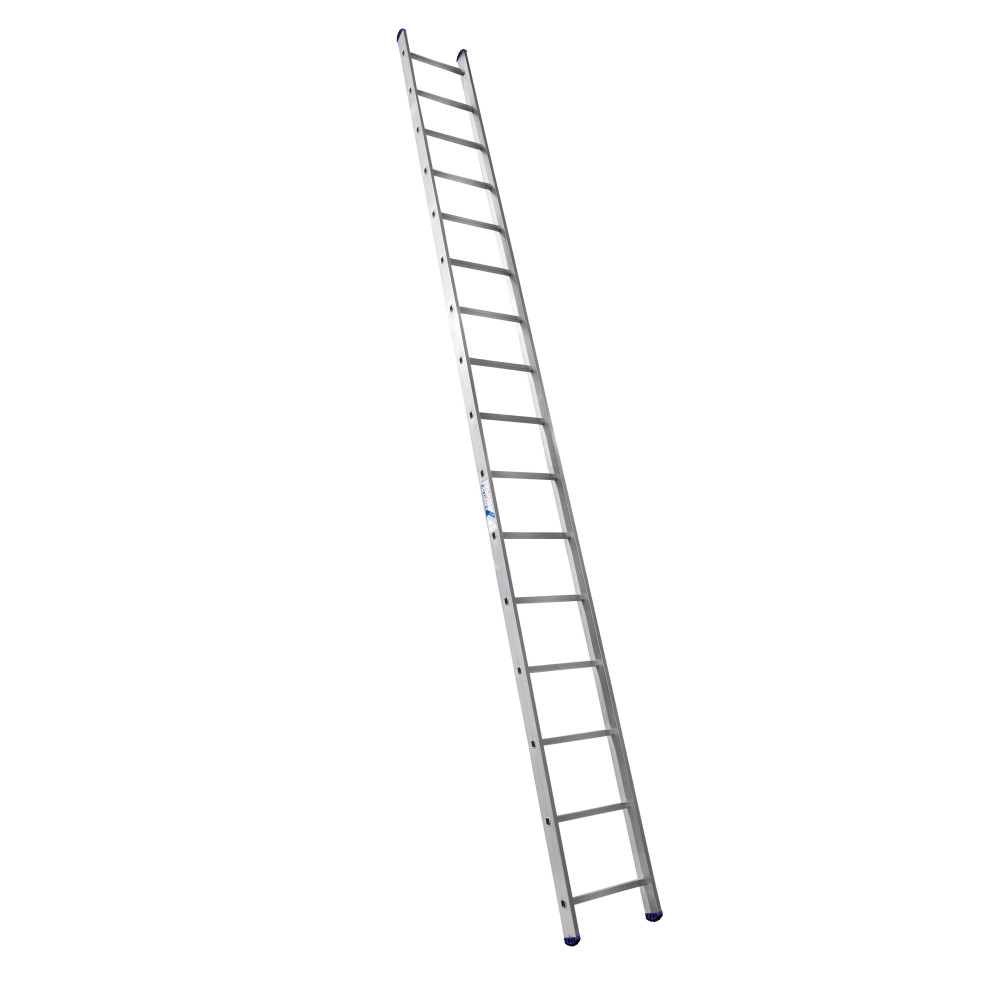

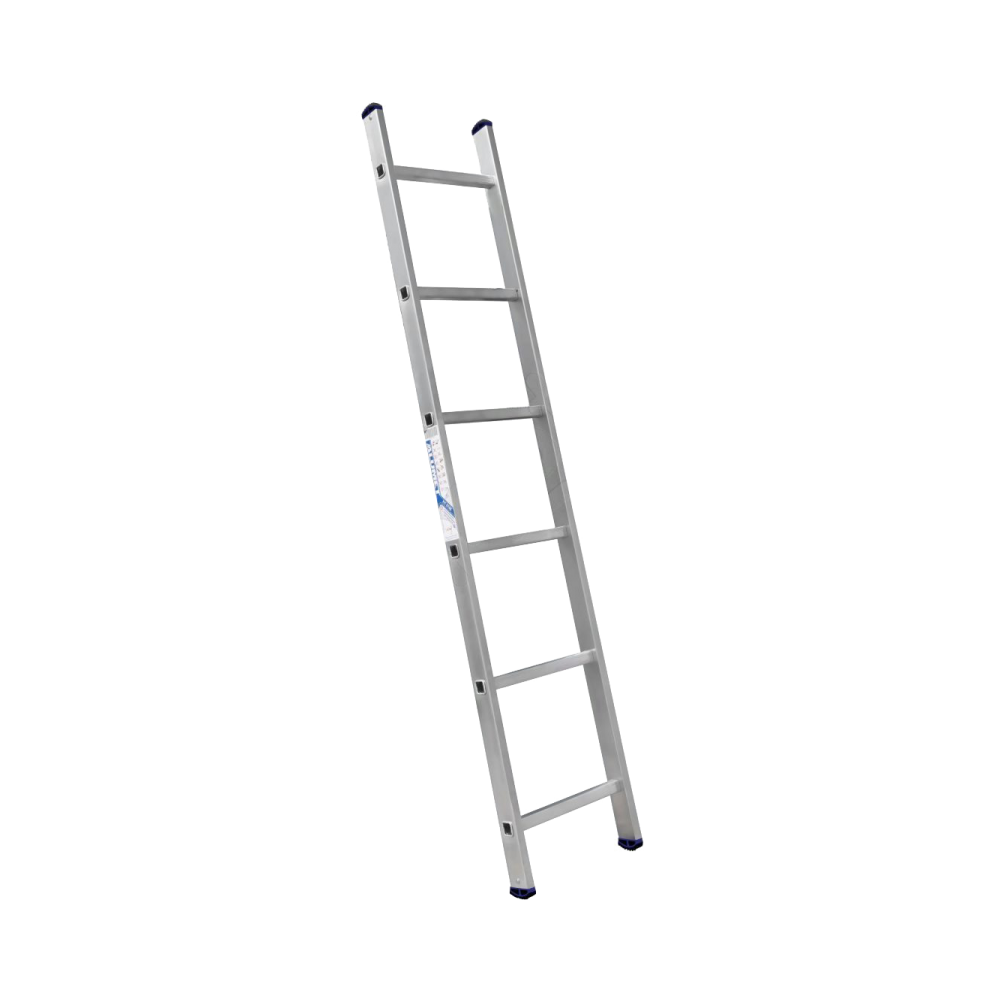

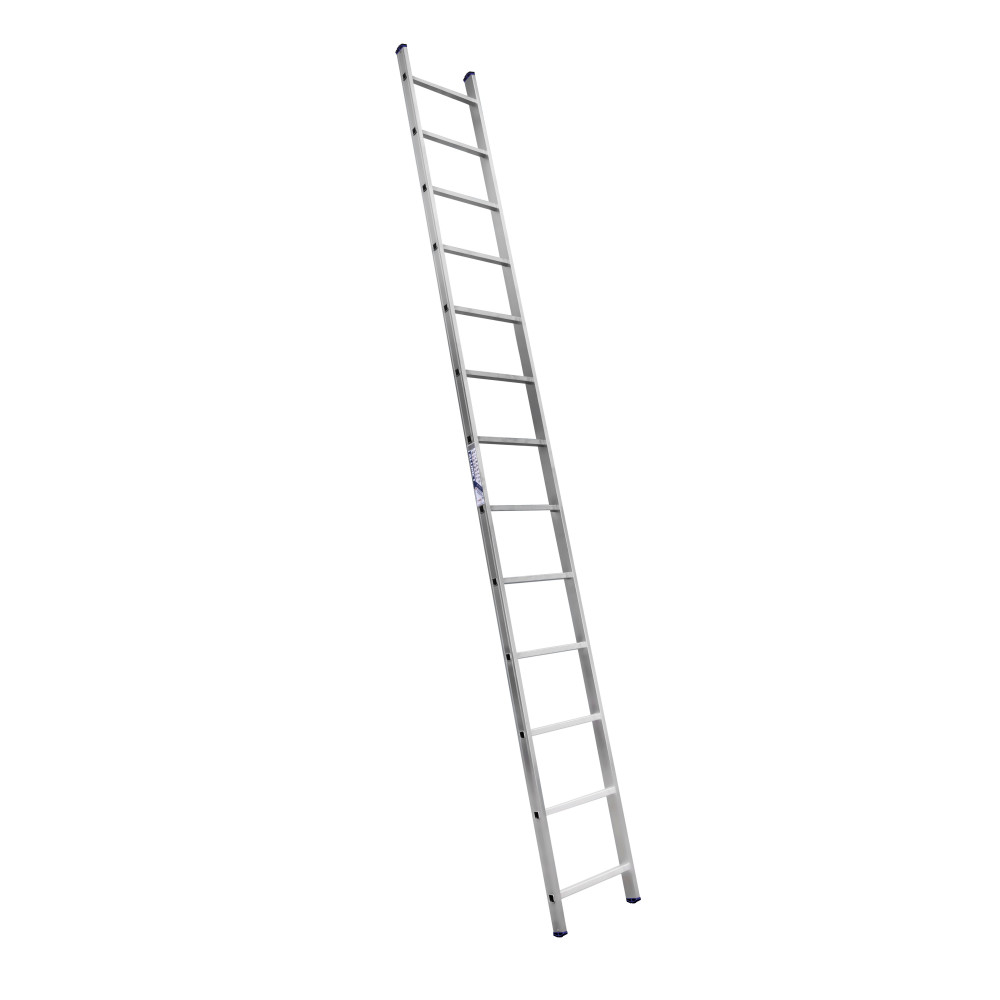

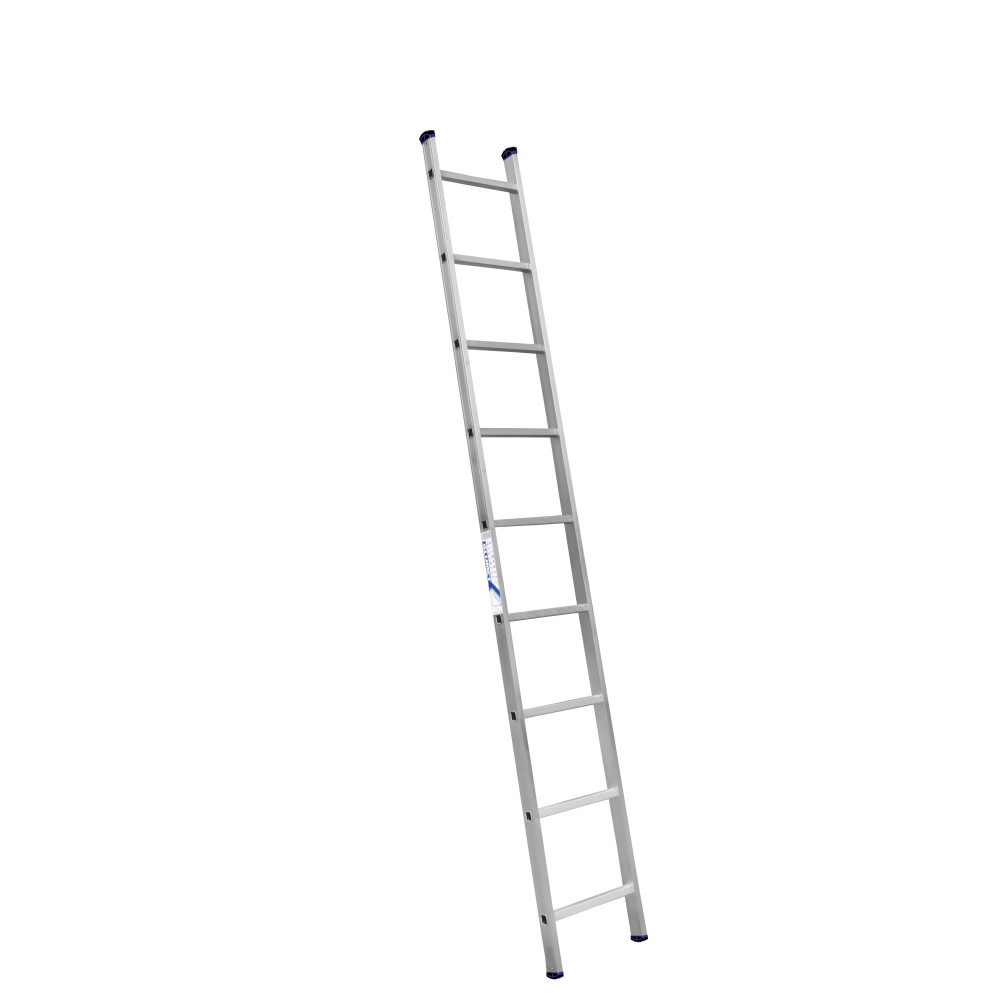

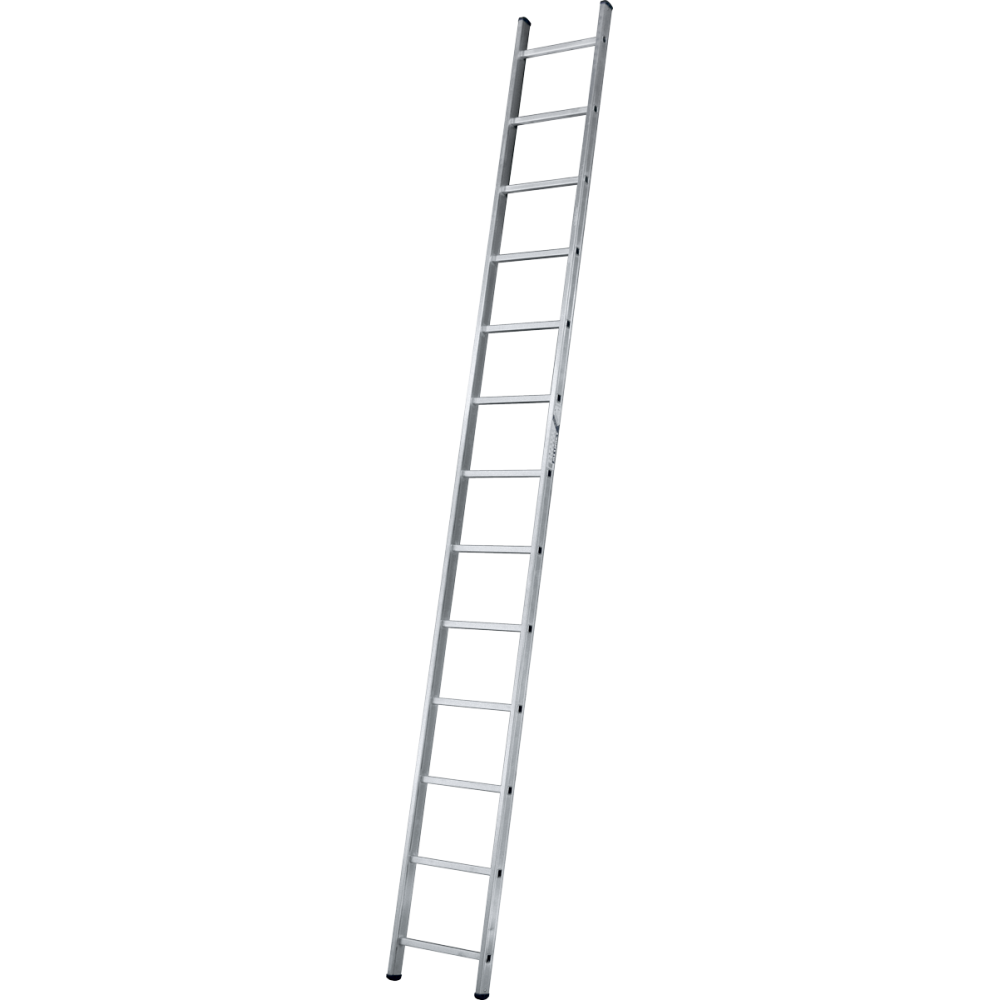

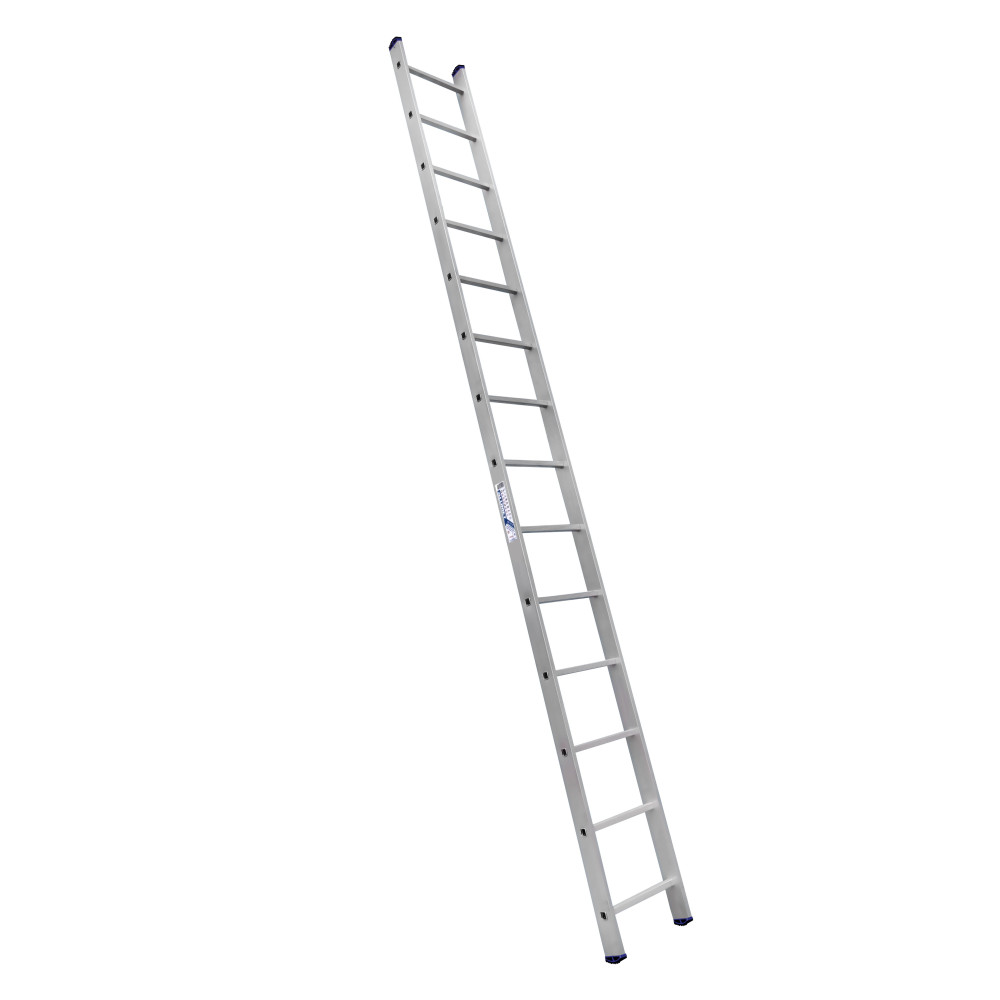

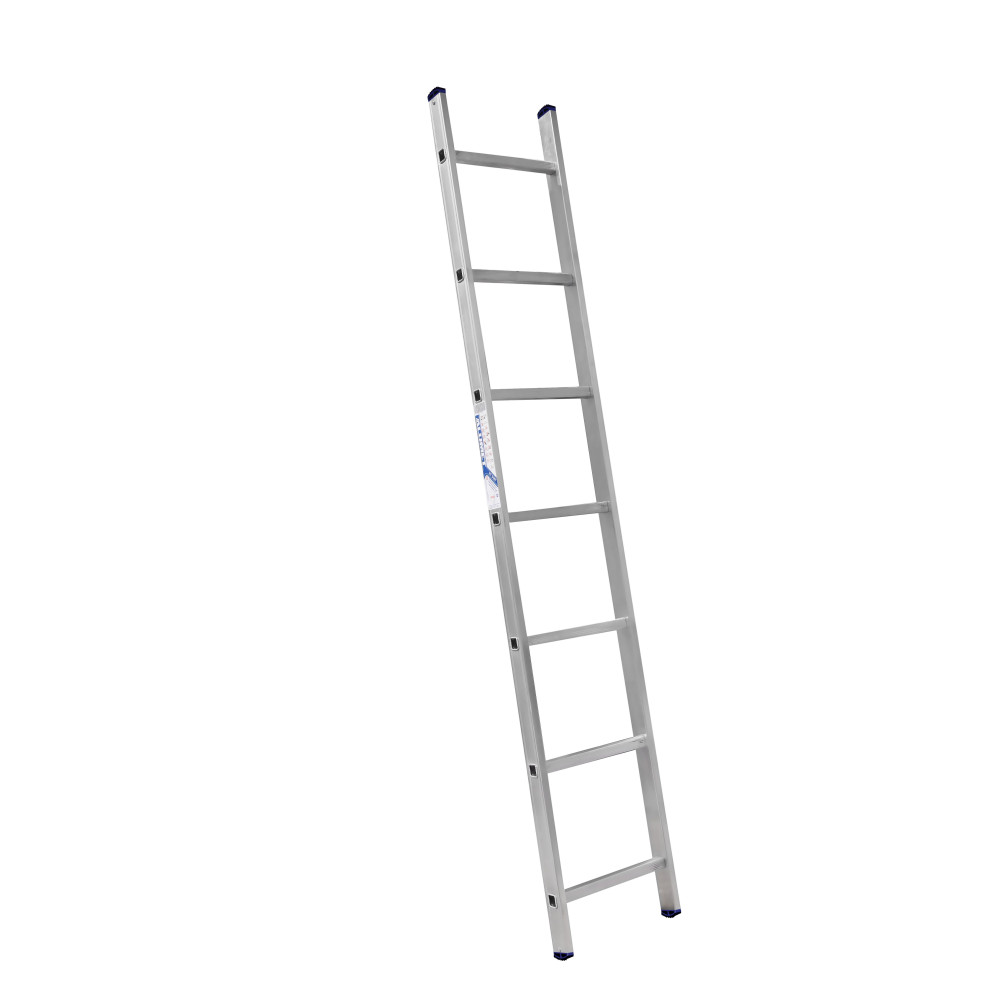

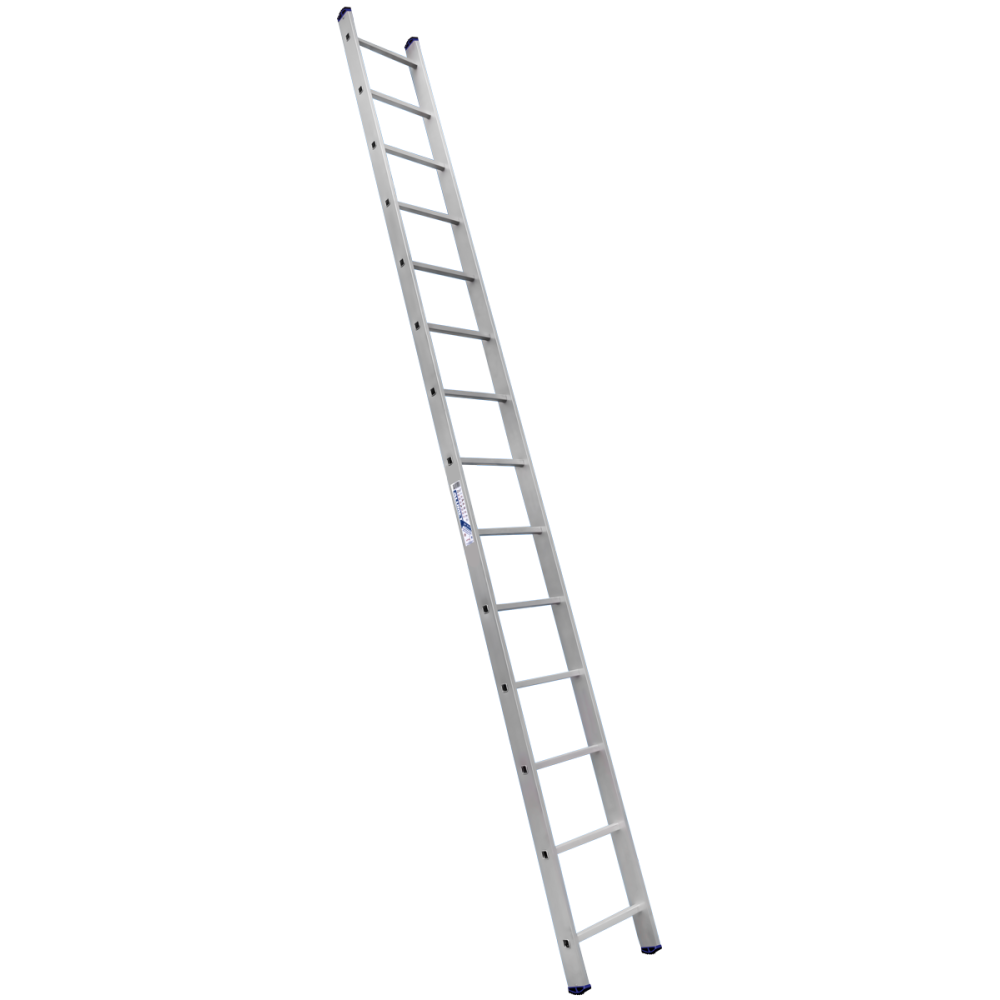

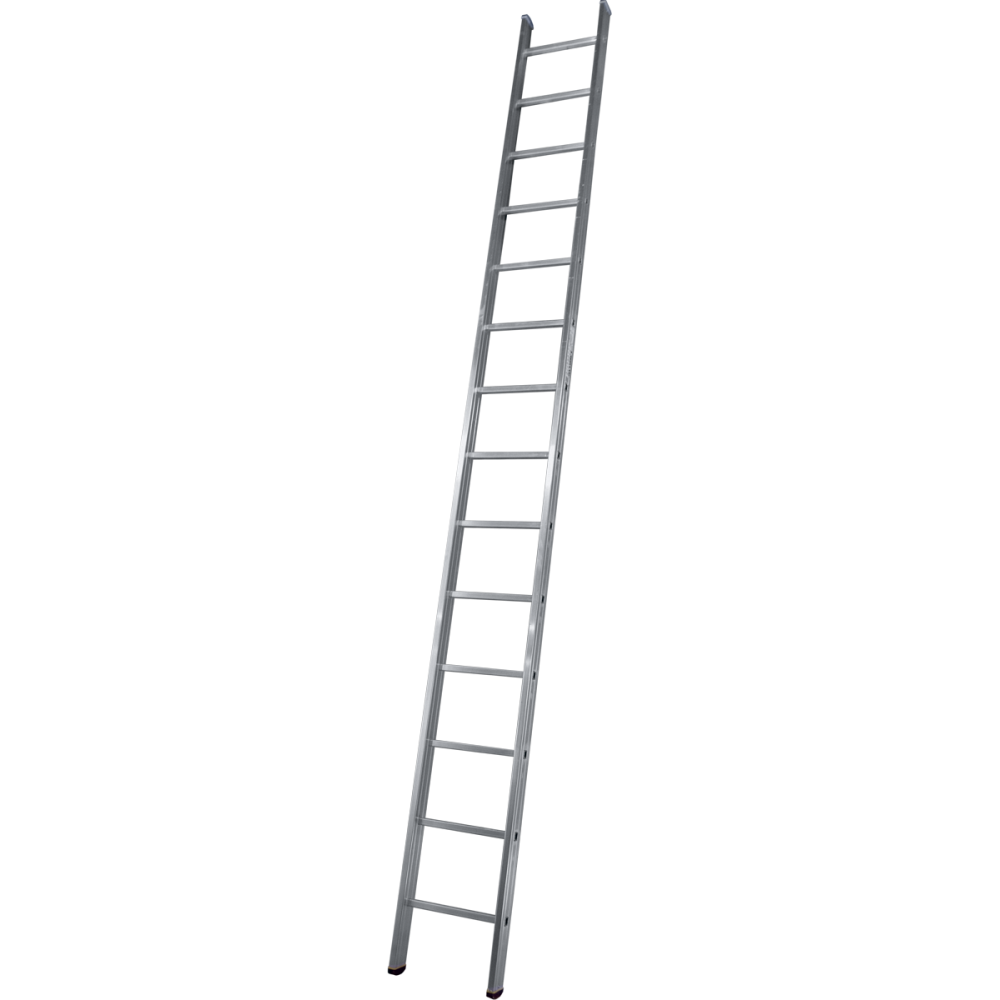

A single section ladder is the simplest of ladders and can only be used as a straight/extension ladder.
The undeniable advantage is simplicity, which makes it the lightest and, therefore, the cheapest ladder to achieve a specific height compared to other more complex ladder designs.
The ladder height does not exceed 6 meters. This is dictated by:
It should be noted that such restriction on the ladder length when folded (or in the transport position) also applies to all other more complex aluminum ladders.
The wall thickness of HS1 ladders is significantly higher, which increases the feeling of comfort when using these ladders in comparison to H1 series.
