Серия AM и AM AK

Aluminum Step Ladder

Article:

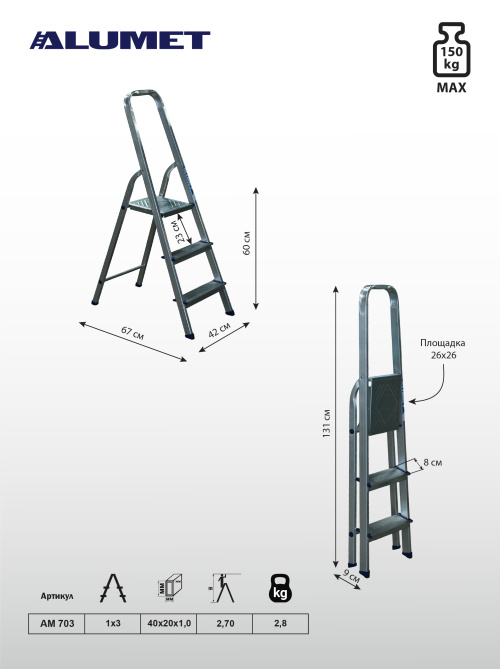

AM 703

Vendor code AM 703
Number of steps 3
Height 0.6
Length 1.31
Height max 2.7
Width 0.42
Front arch profile 40x20
Rear leg profile 30x20

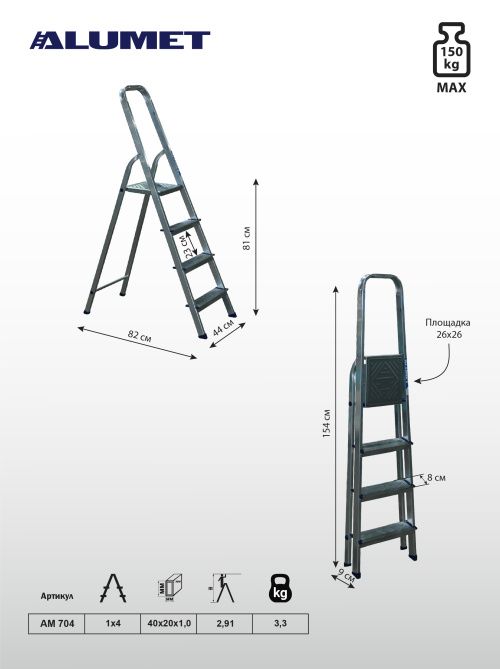

AM 704

Vendor code AM 704
Number of steps 4
Height 0.81
Length 1.54
Height max 2.91
Width 0.44
Front arch profile 40x20
Rear leg profile 30x20

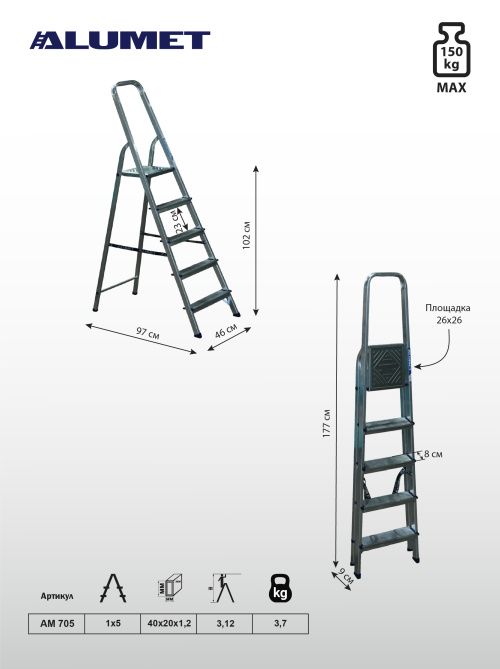

AM 705

Vendor code AM 705
Number of steps 5
Height 1.02
Length 1.77
Height max 3.12
Width 0.46
Front arch profile 40x20
Rear leg profile 30x20

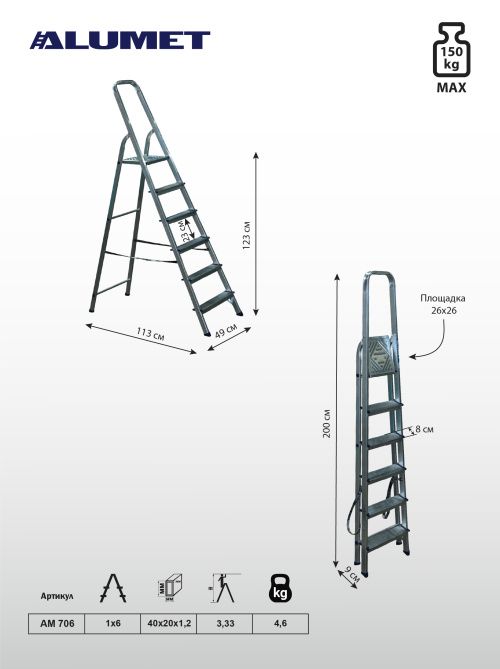

AM 706

Vendor code AM 706
Number of steps 6
Height 1.23
Length 2.00
Height max 3.33
Width 0.49
Front arch profile 40x20
Rear leg profile 33x20

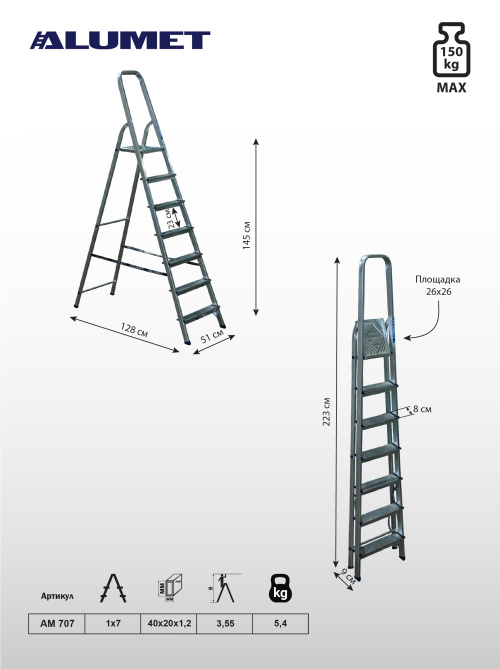

AM 707

Vendor code AM 707
Number of steps 7
Height 1.45
Length 2.23
Height max 3.55
Width 0.51
Front arch profile 40x20
Rear leg profile 33x20

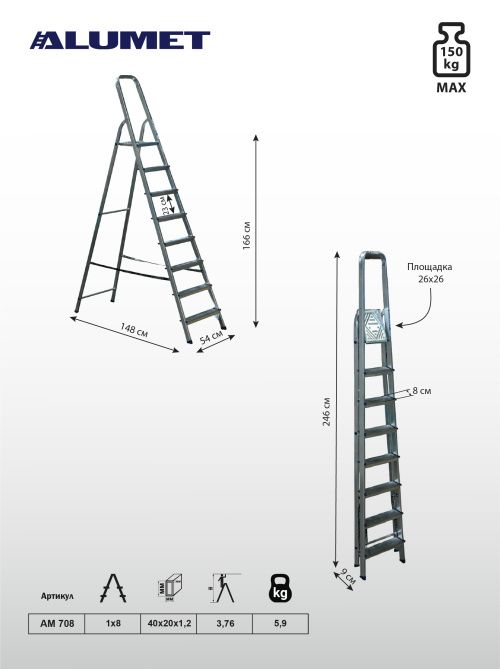

AM 708

Vendor code AM 708
Number of steps 8
Height 1.66
Length 2.46
Height max 3.76
Width 0.54
Front arch profile 40x20
Rear leg profile 33x20

AM 709

Vendor code AM 709
Number of steps 9
Height 1.87
Length 2.69
Height max 3.97
Width 0.56
Front arch profile 40x20
Rear leg profile 33x20

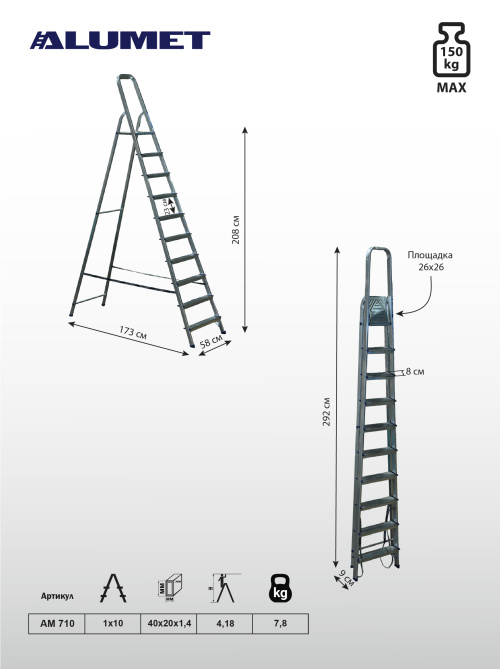

AM 710

Vendor code AM 710
Number of steps 10
Height 2.08
Length 2.92
Height max 4.18
Width 0.58
Front arch profile 40x20
Rear leg profile 33x20

AM 703AK

Vendor code AM 703AK
Number of steps 3
Height 0.6
Length 1.31
Height max 2.7
Width 0.42
Front arch profile 40x20
Rear leg profile 30x20

AM 704AK

Vendor code AM 704AK
Number of steps 4
Height 0.81
Length 1.54
Height max 2.91
Width 0.44
Front arch profile 40x20
Rear leg profile 30x20

AM 705AK

Vendor code AM 705AK
Number of steps 5
Height 1.02
Length 1.77
Height max 3.12
Width 0.46
Front arch profile 40x20
Rear leg profile 30x20

AM 706AK

Vendor code AM 706AK
Number of steps 6
Height 1.23
Length 2
Height max 3.33
Width 0.49
Front arch profile 40x20
Rear leg profile 33x20

AM 707AK

Vendor code AM 707AK
Number of steps 7
Height 1.45
Length 2.23
Height max 3.55
Width 0.51
Front arch profile 40x20
Rear leg profile 33x20

AM 708AK

Vendor code AM 708AK
Number of steps 8
Height 1.66
Length 2.46
Height max 3.76
Width 0.54
Front arch profile 40x20
Rear leg profile 33x20

AM 709AK

Vendor code AM 709AK
Number of steps 9
Height 1.87
Length 2.69
Height max 3.97
Width 0.56
Front arch profile 40x20
Rear leg profile 33x20

AM 710AK

Vendor code AM 710AK
Number of steps 10
Height 2.08
Length 2.92
Height max 4.18
Width 0.58
Front arch profile 40x20
Rear leg profile 33x20

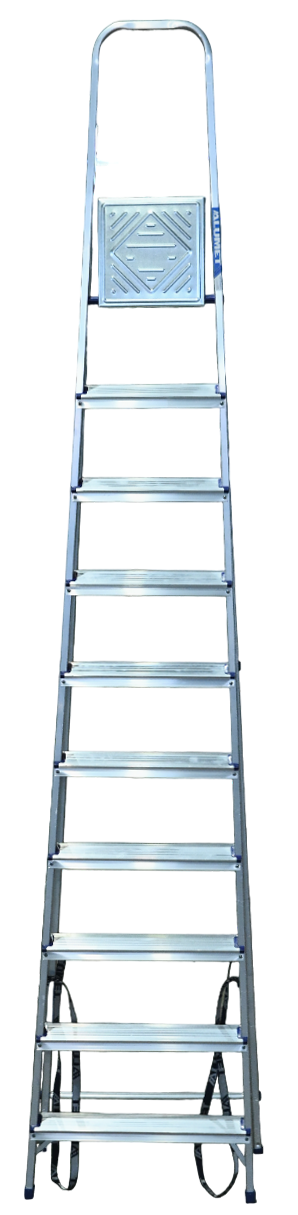

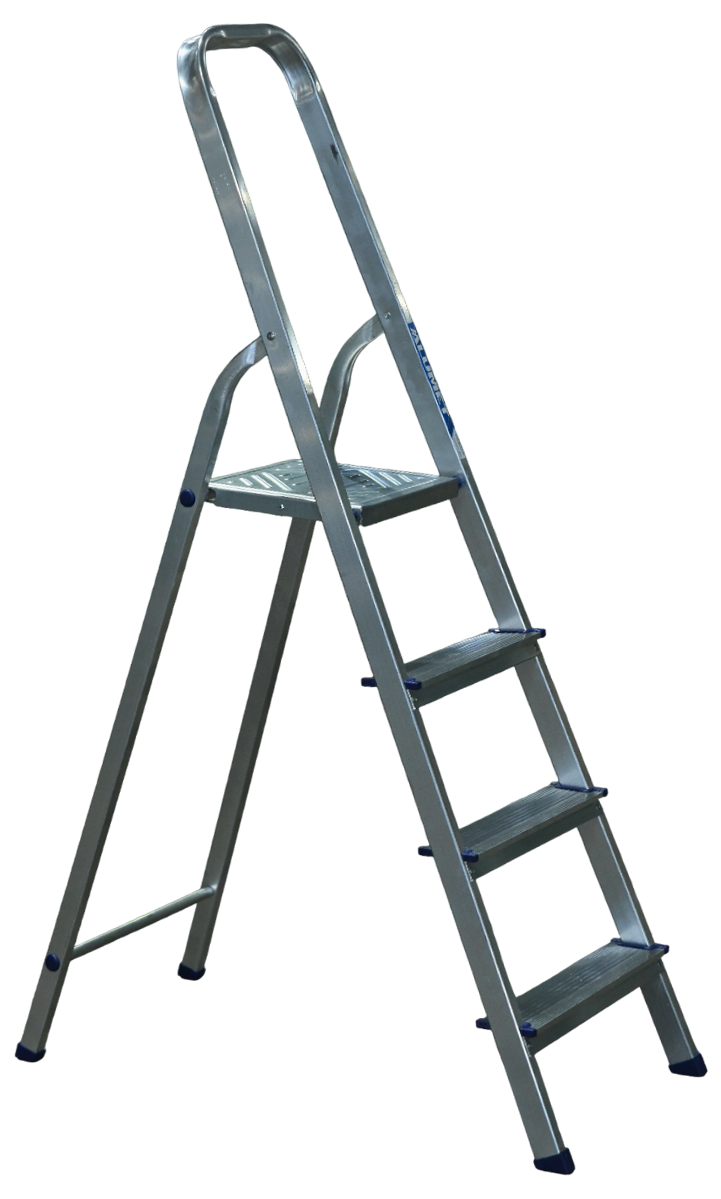

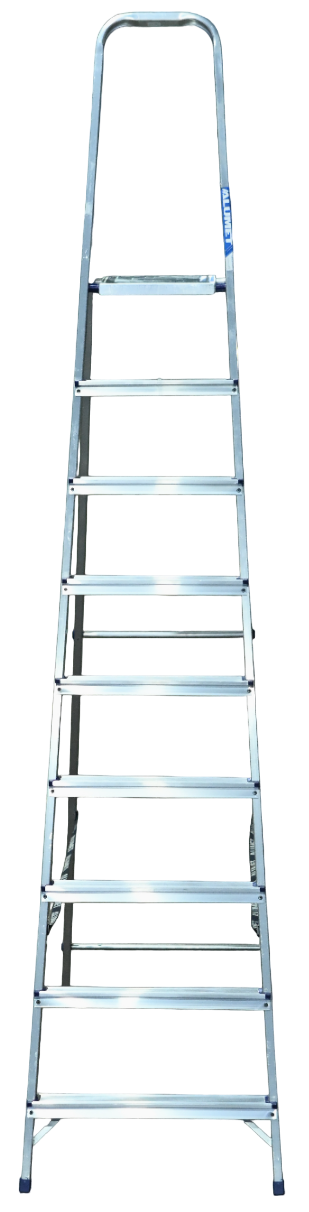

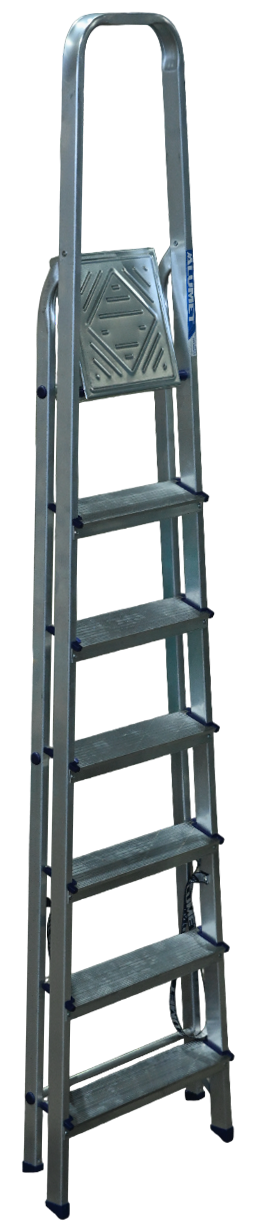

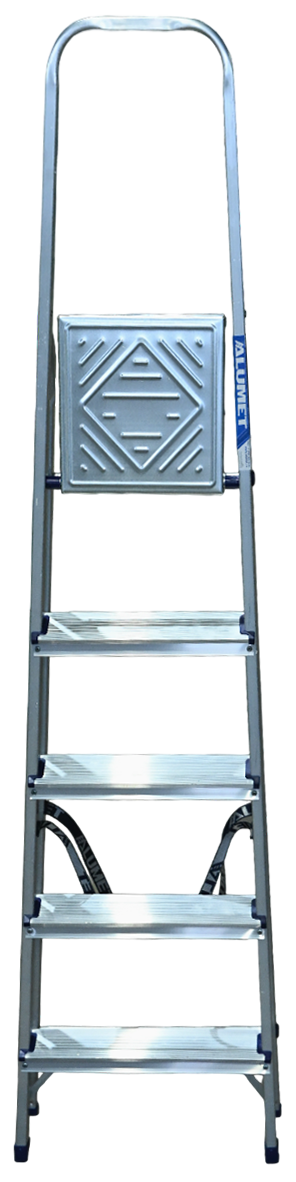

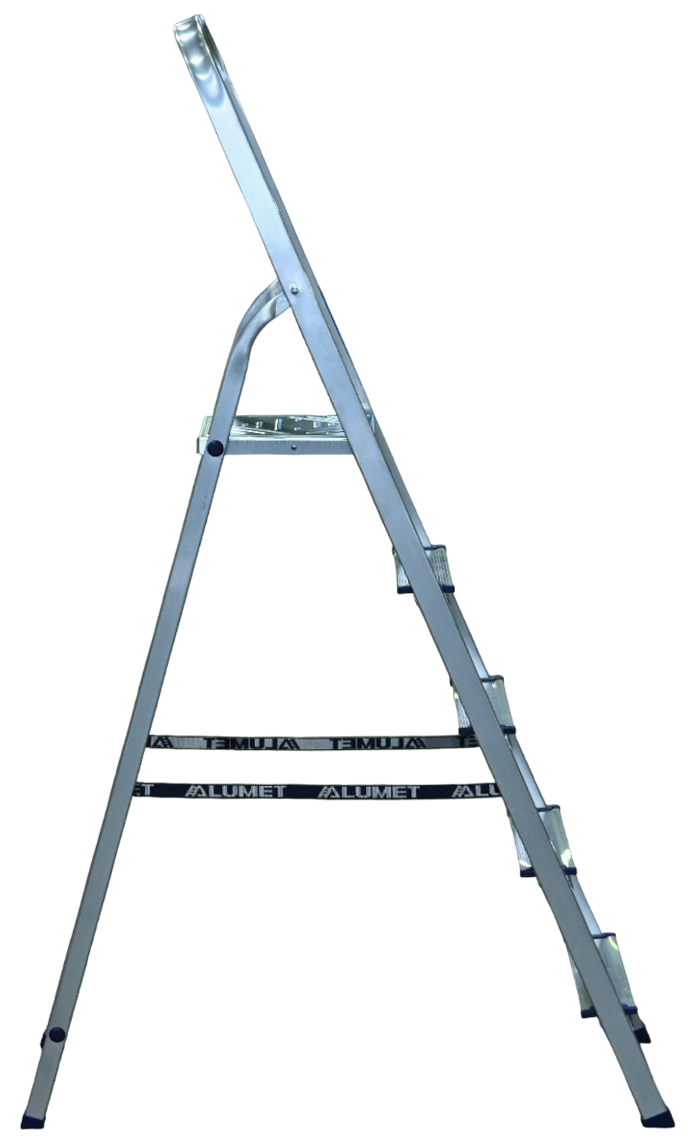

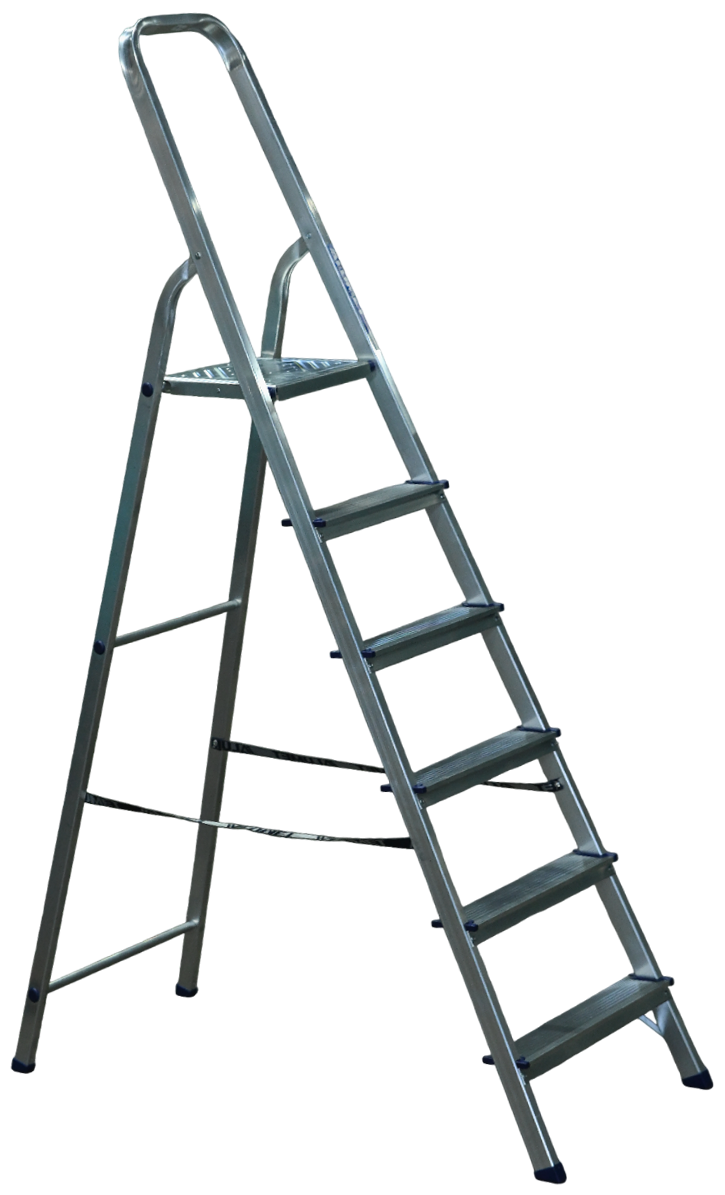

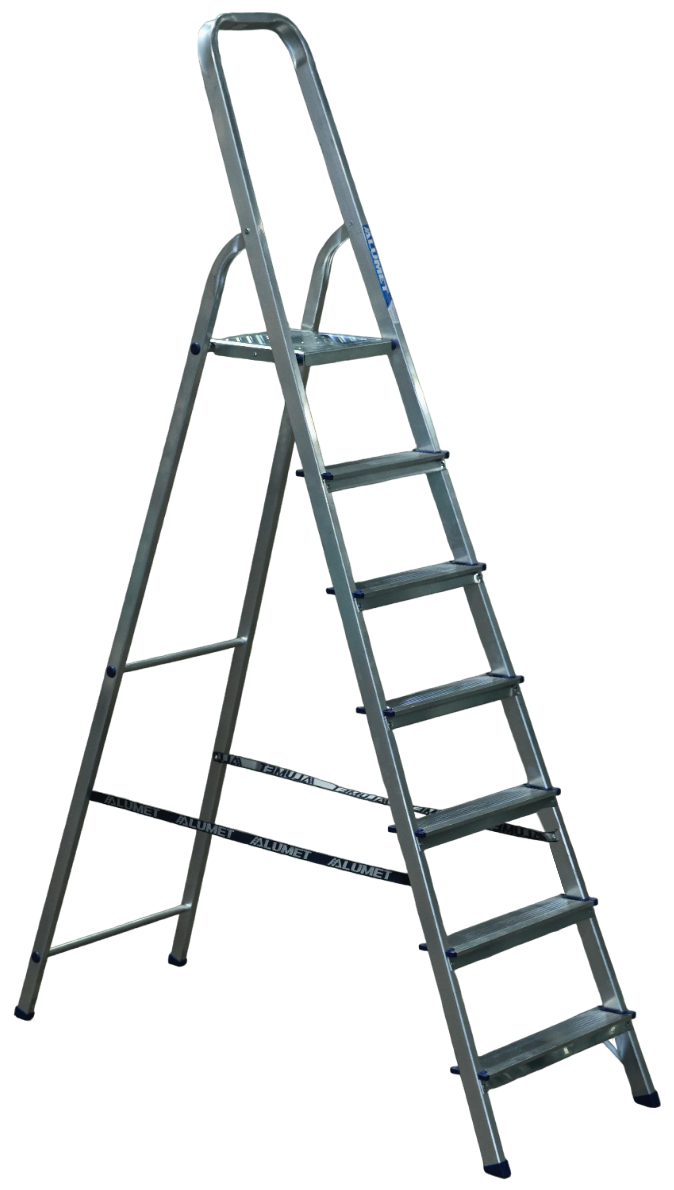

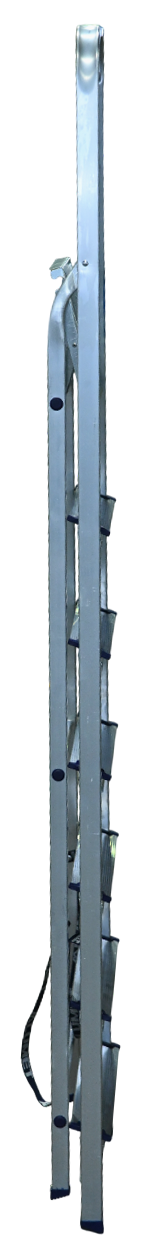

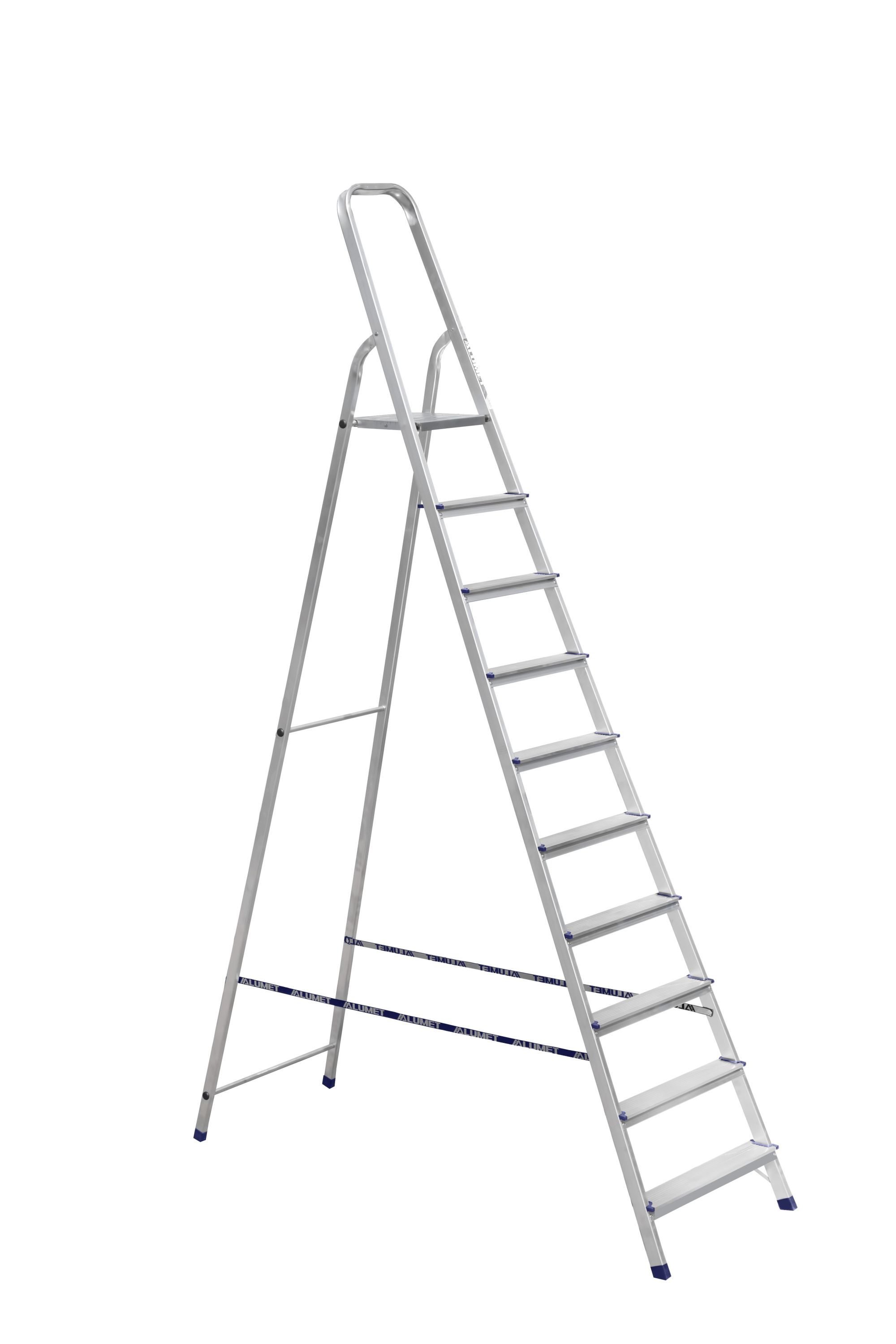

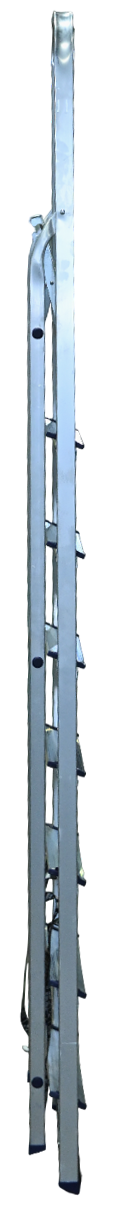

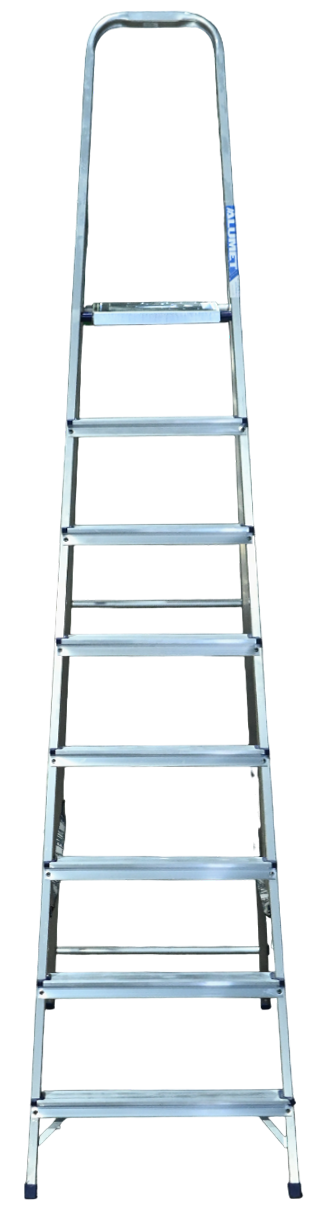

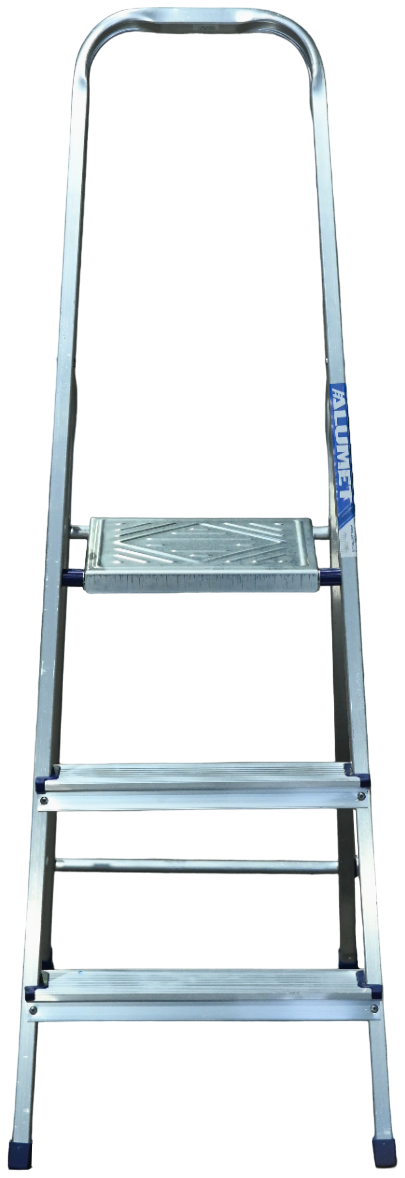

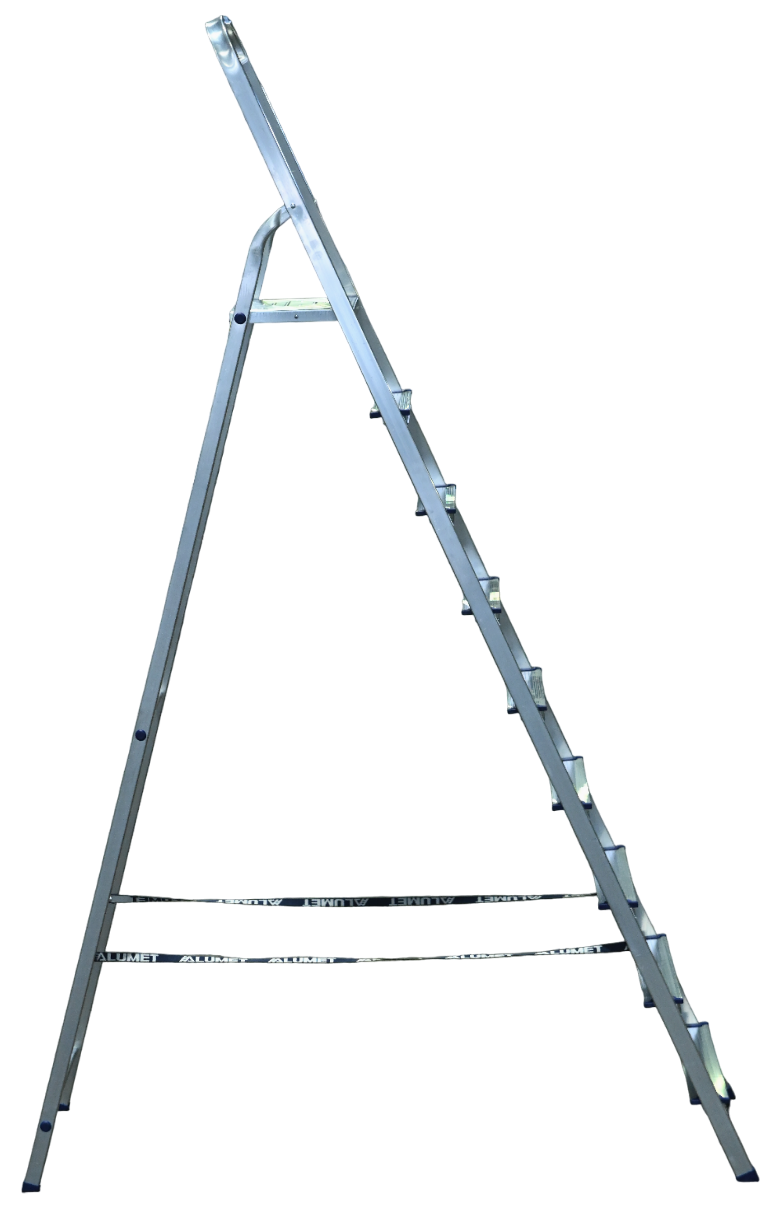

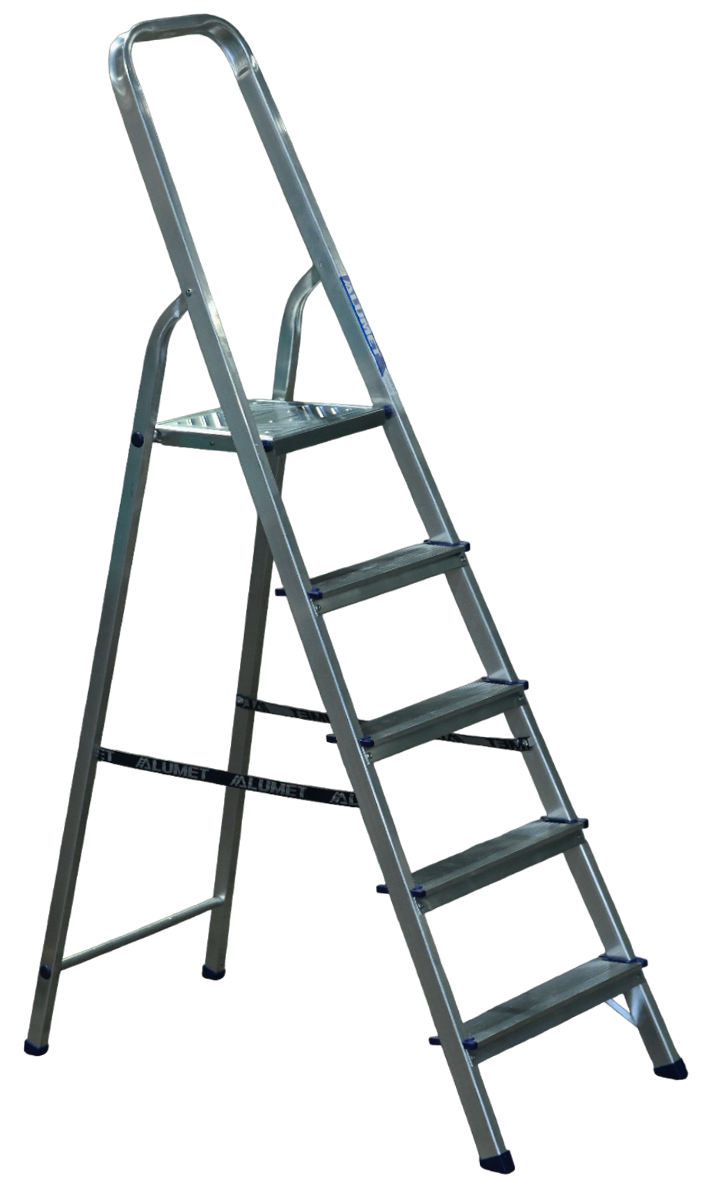

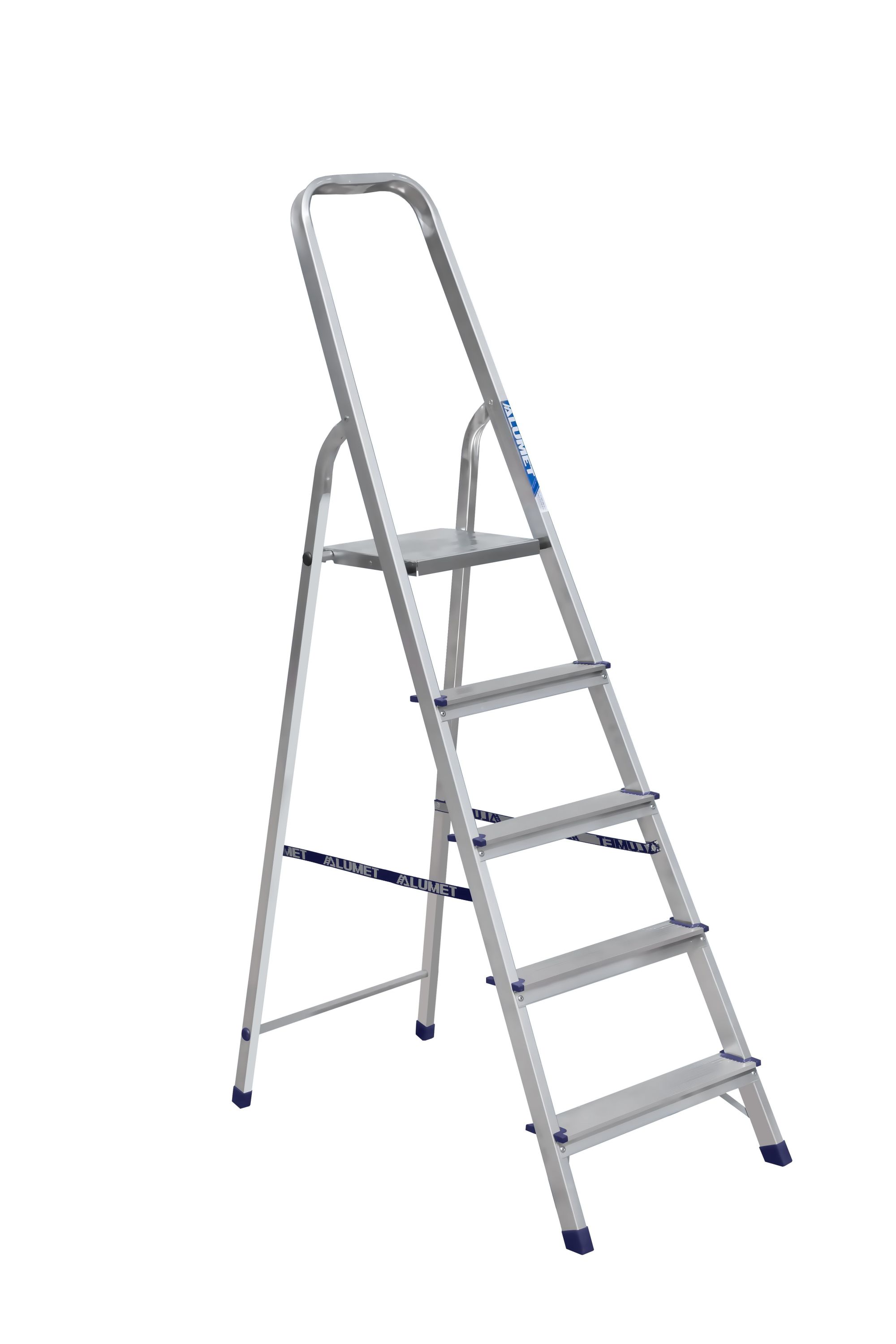

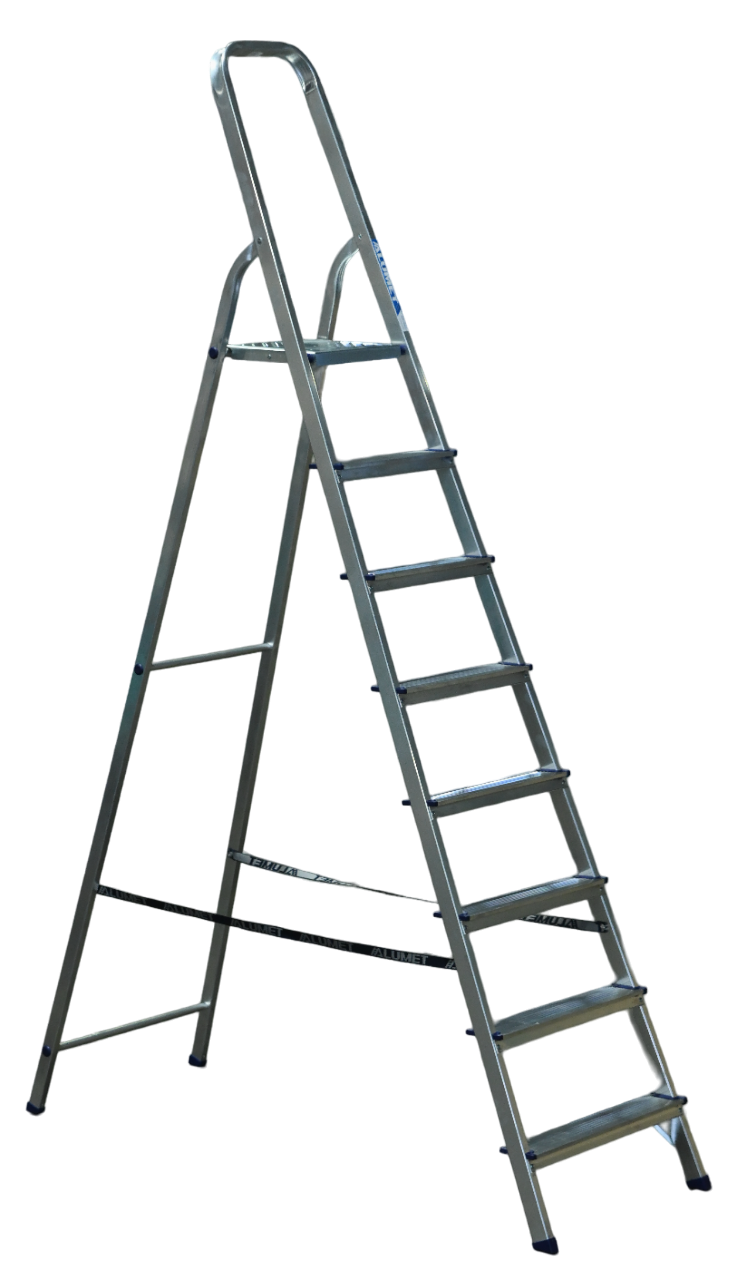

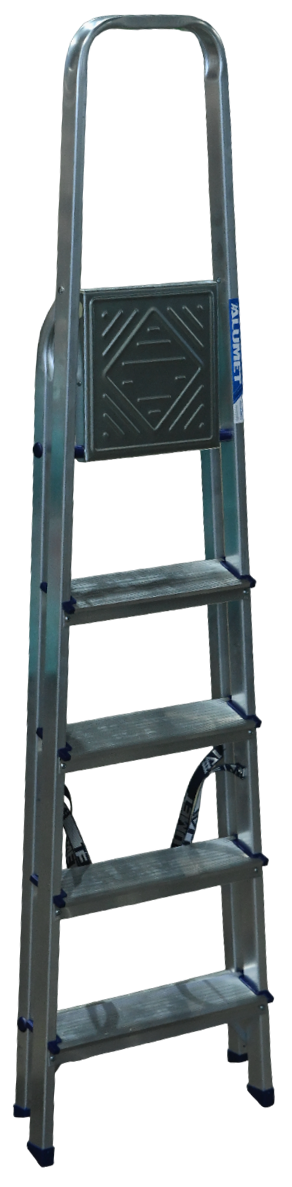

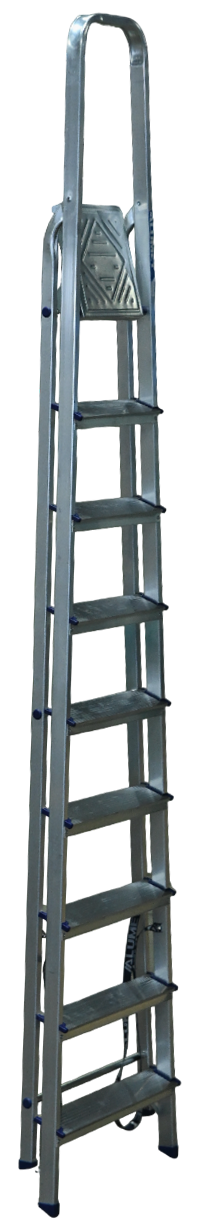

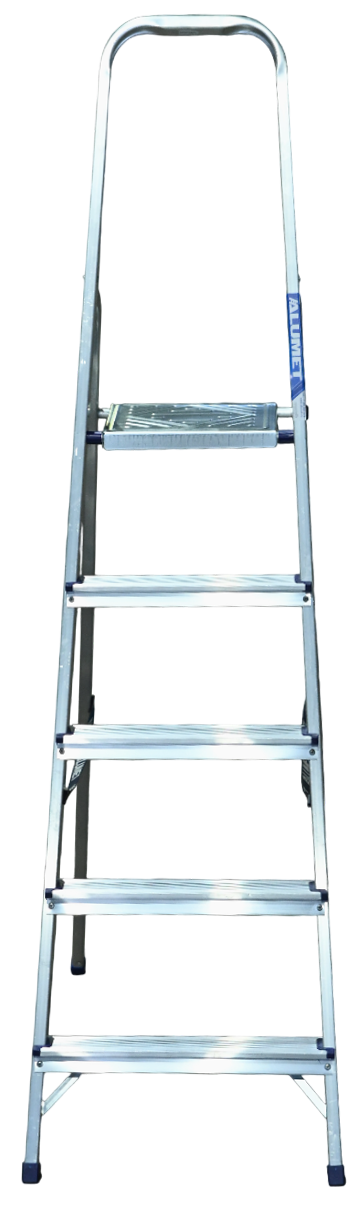

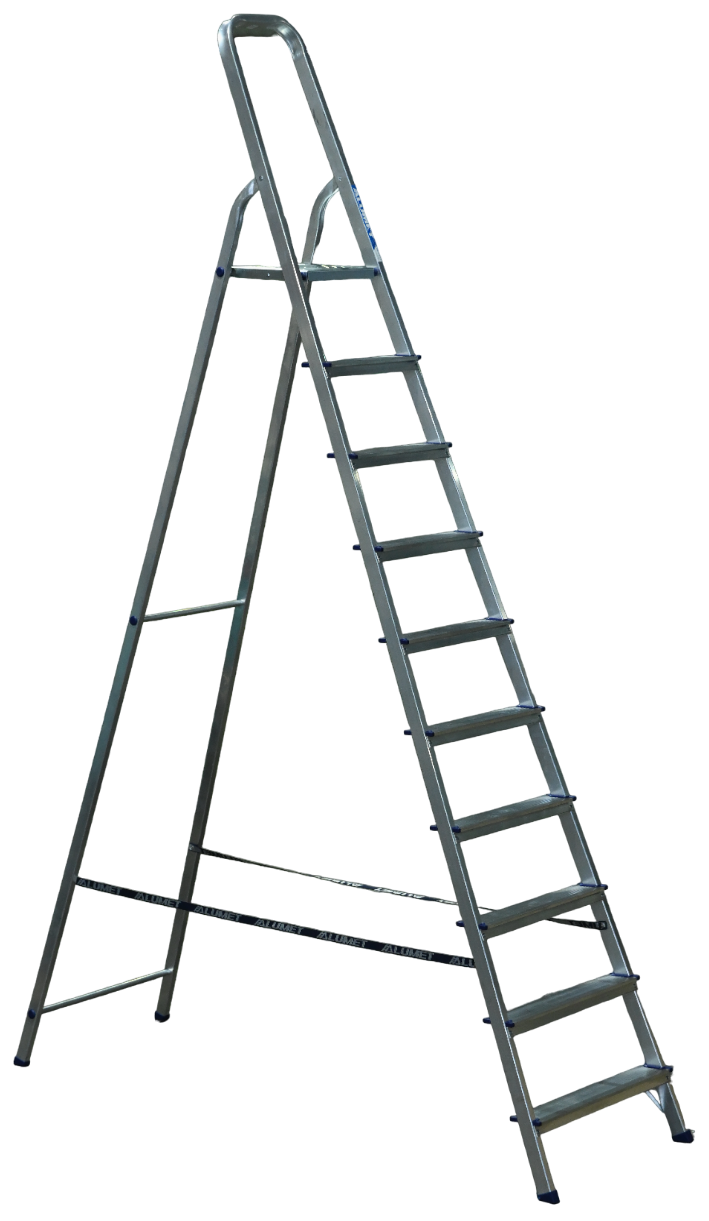

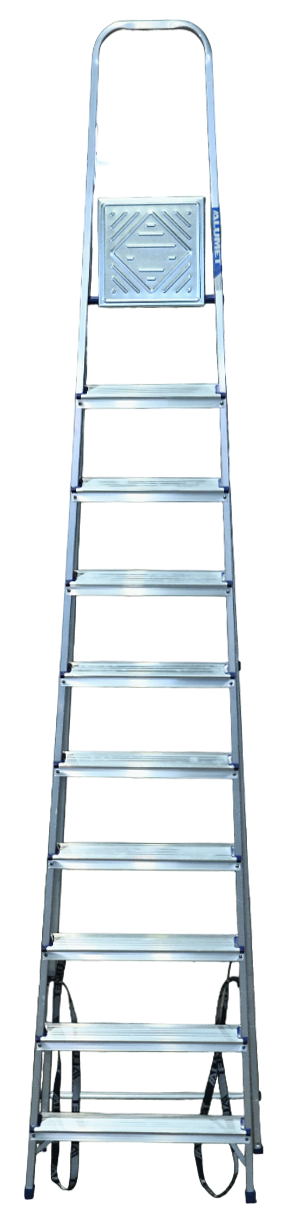

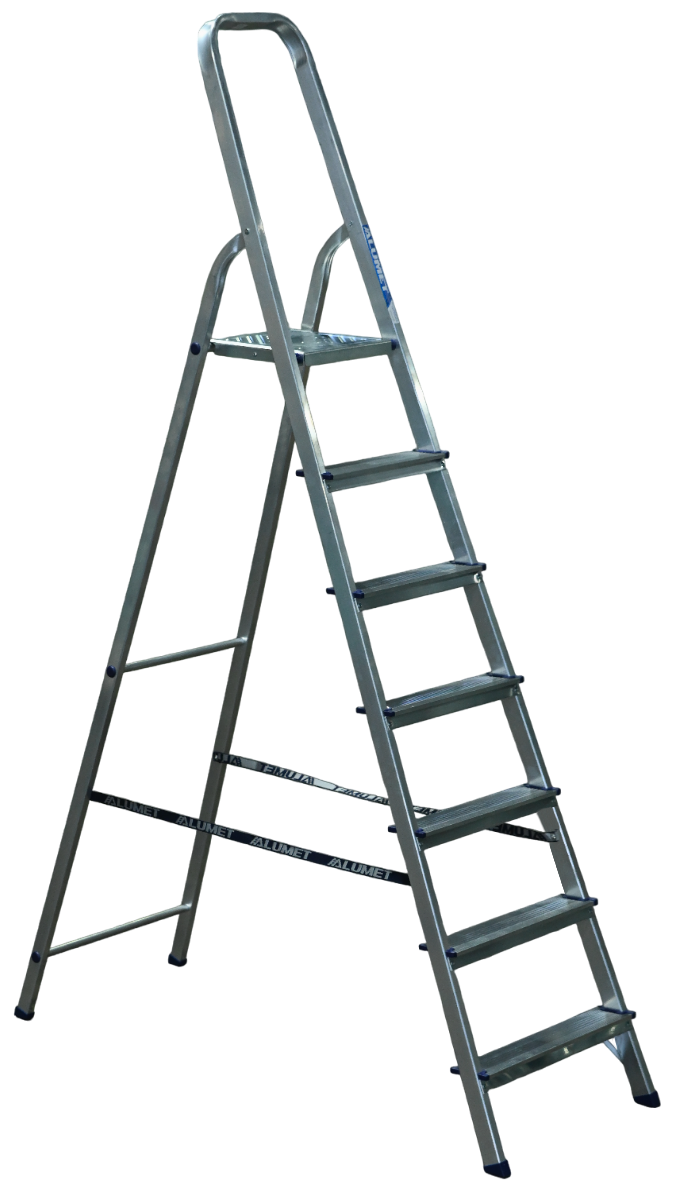

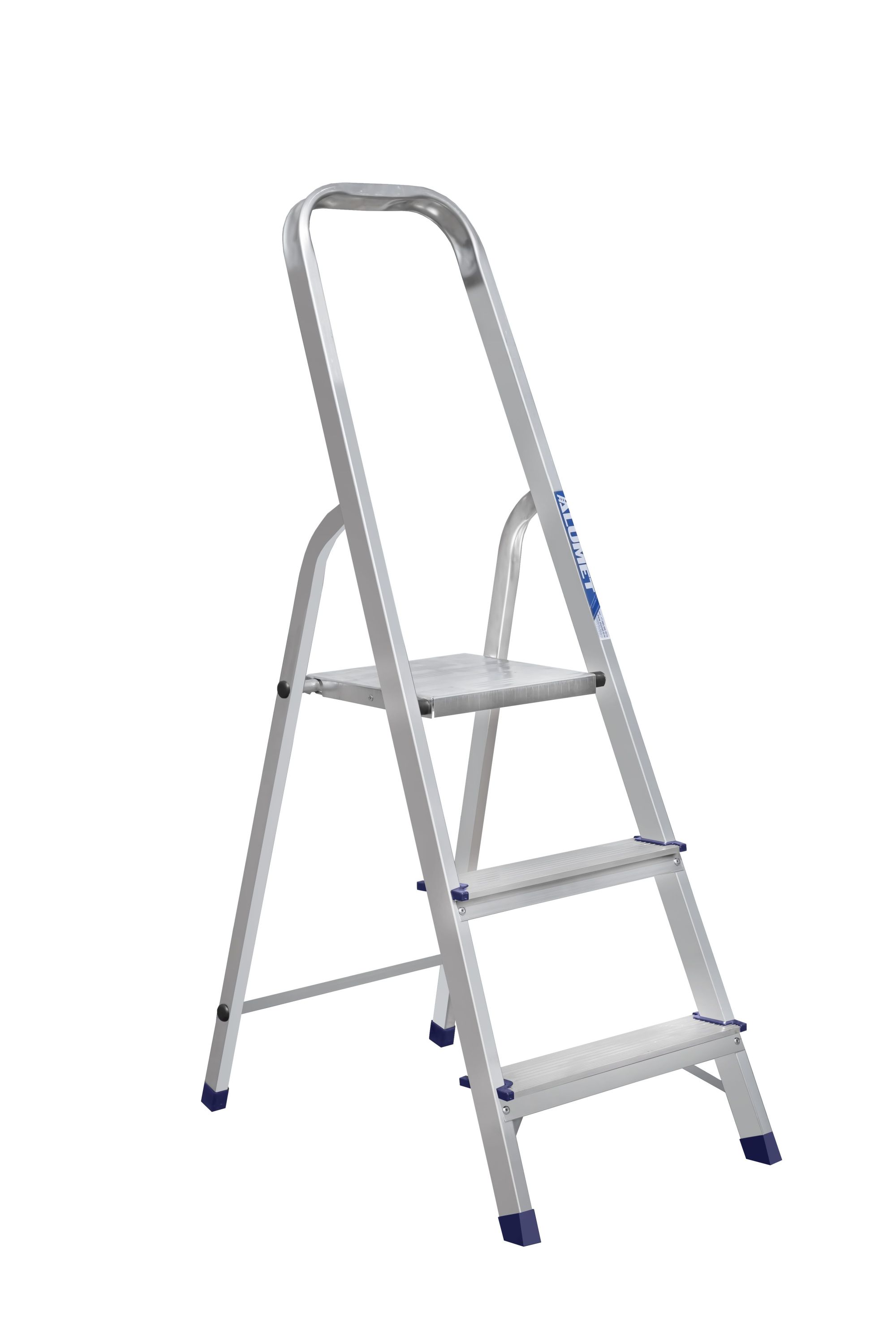

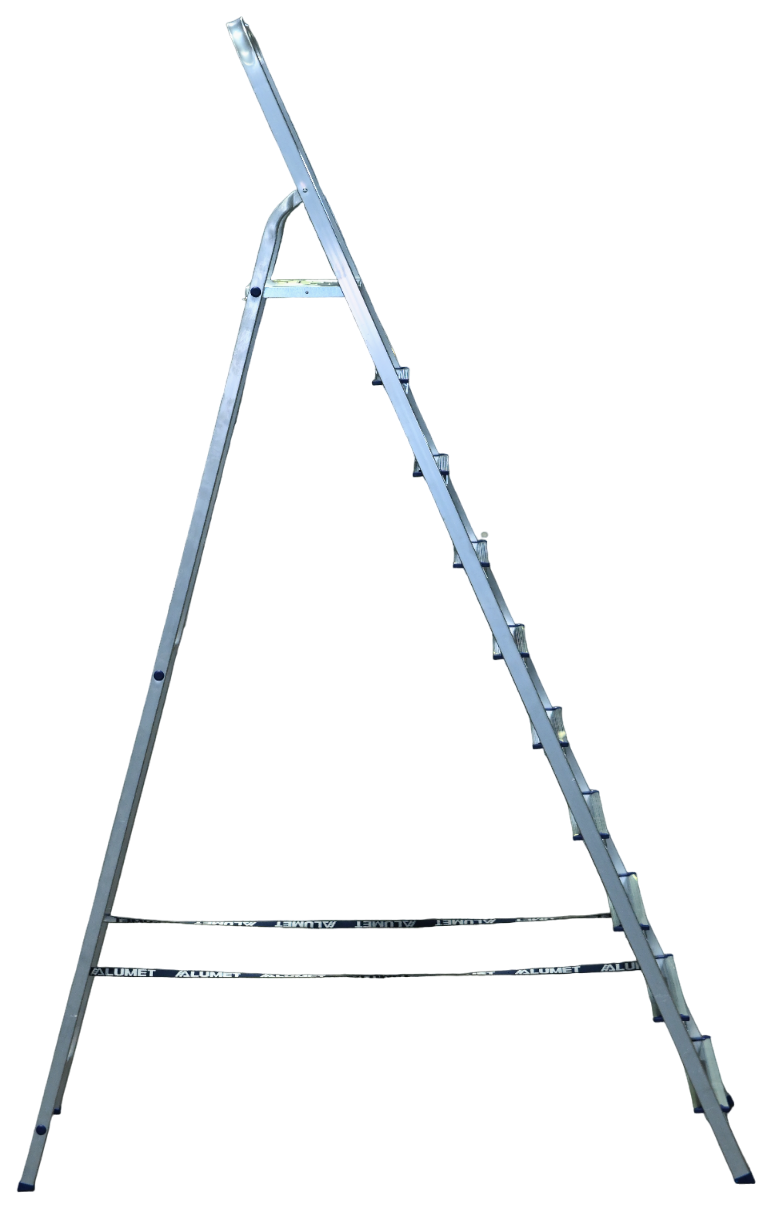

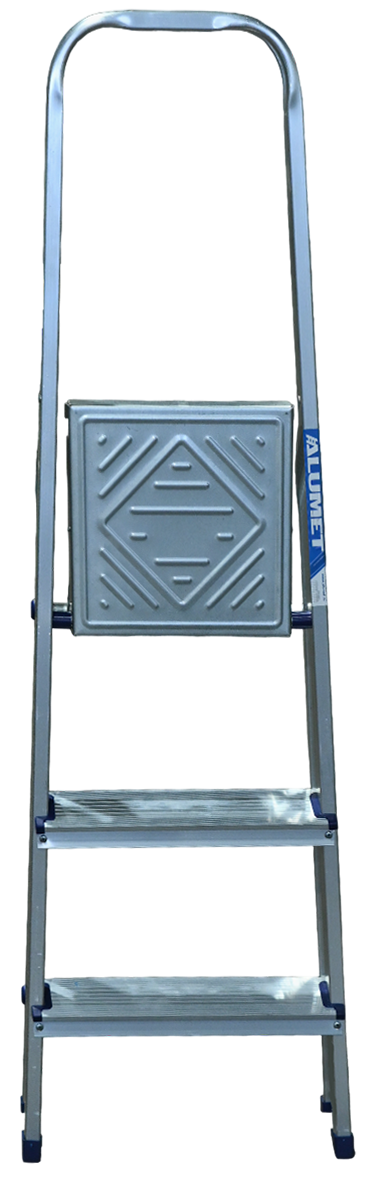

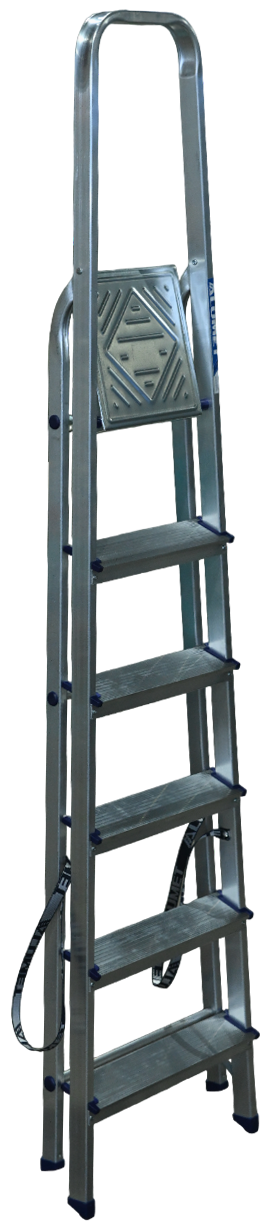

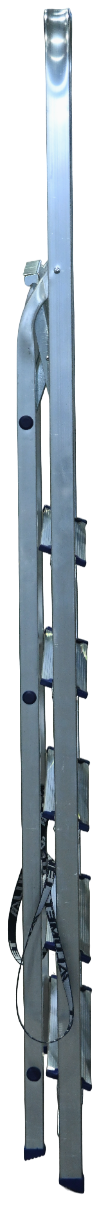

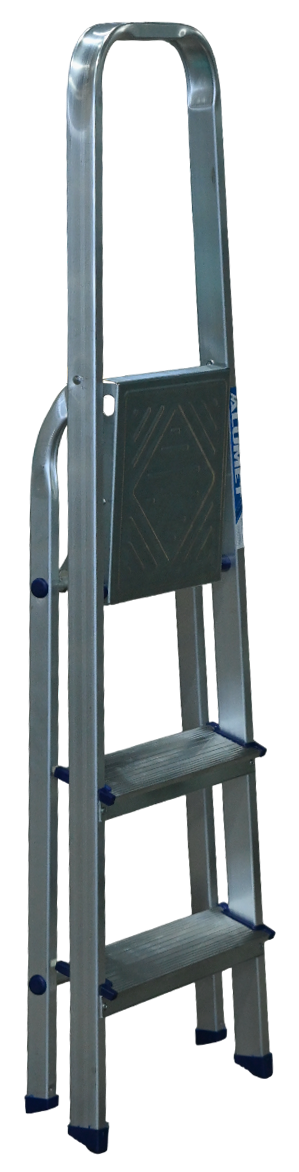

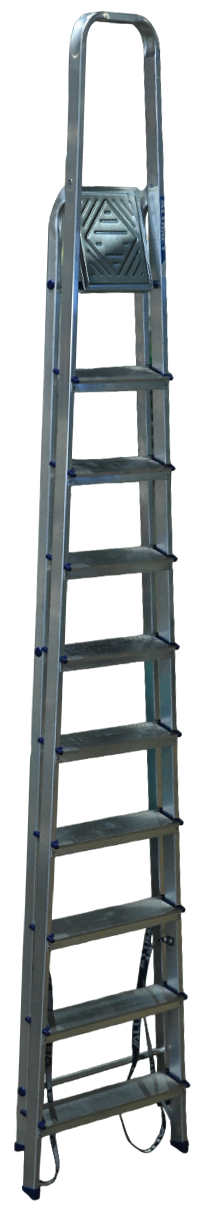

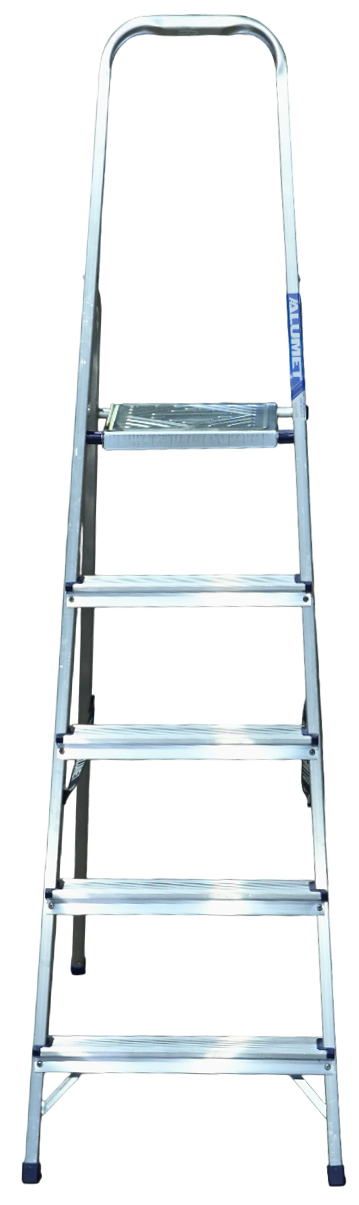

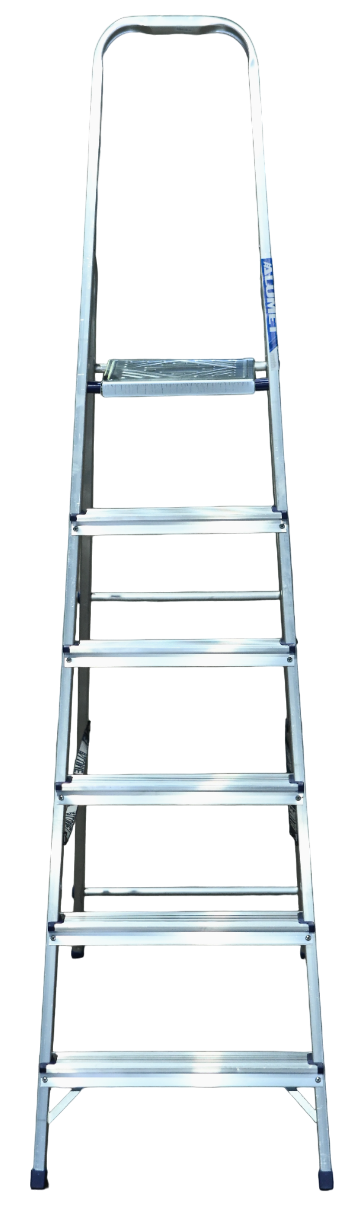

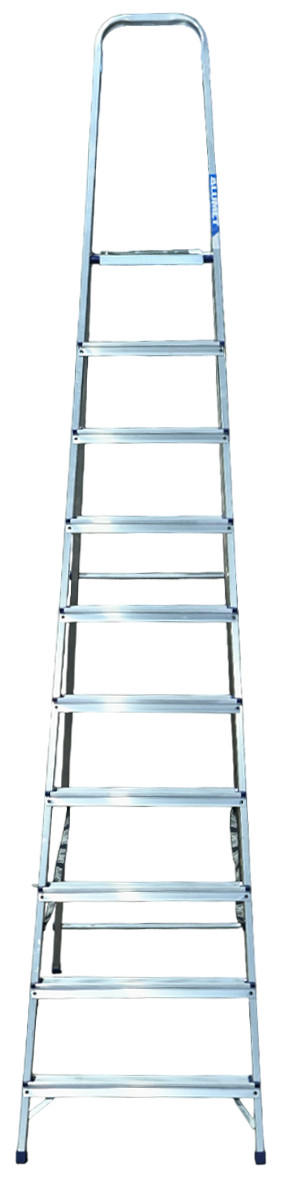

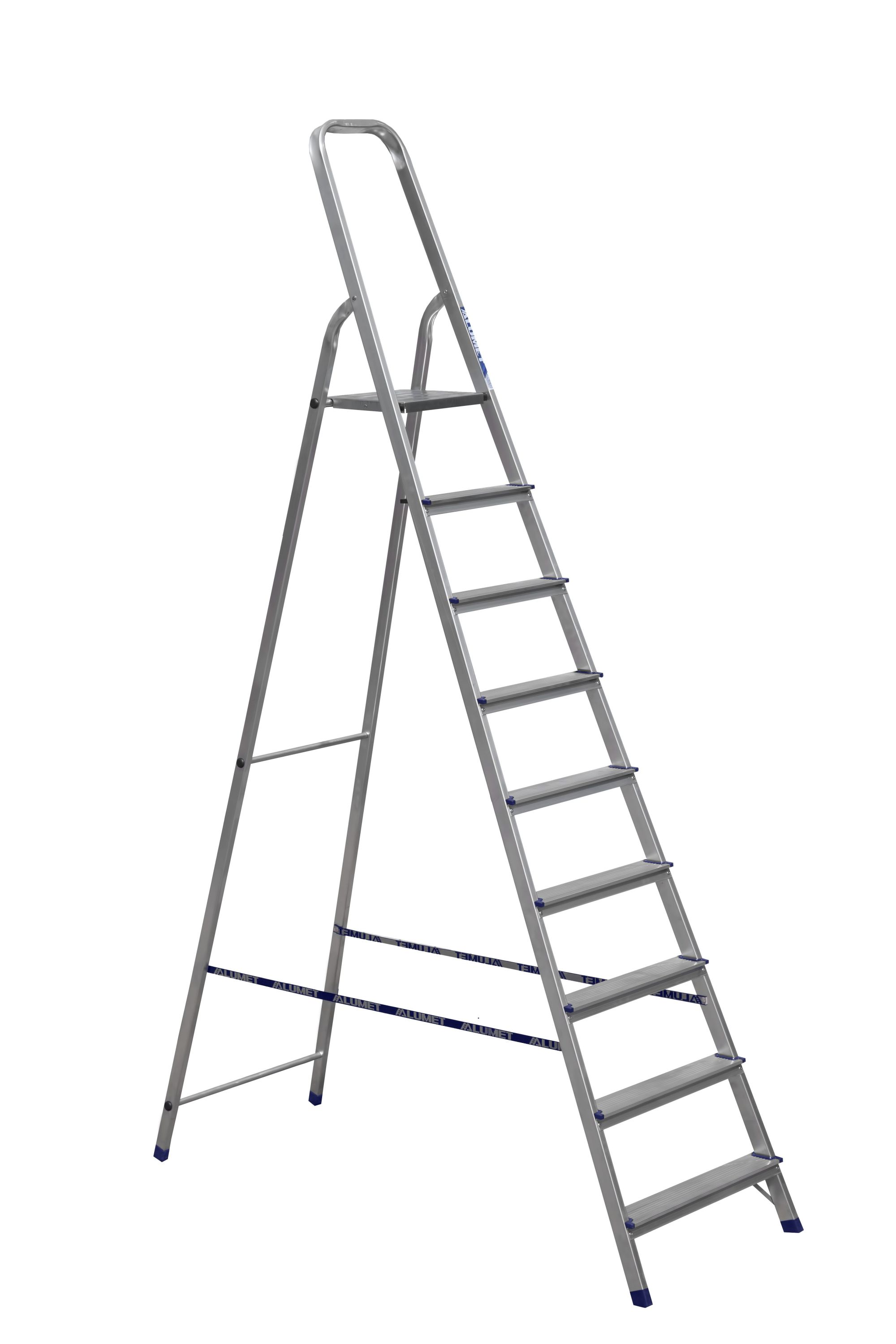

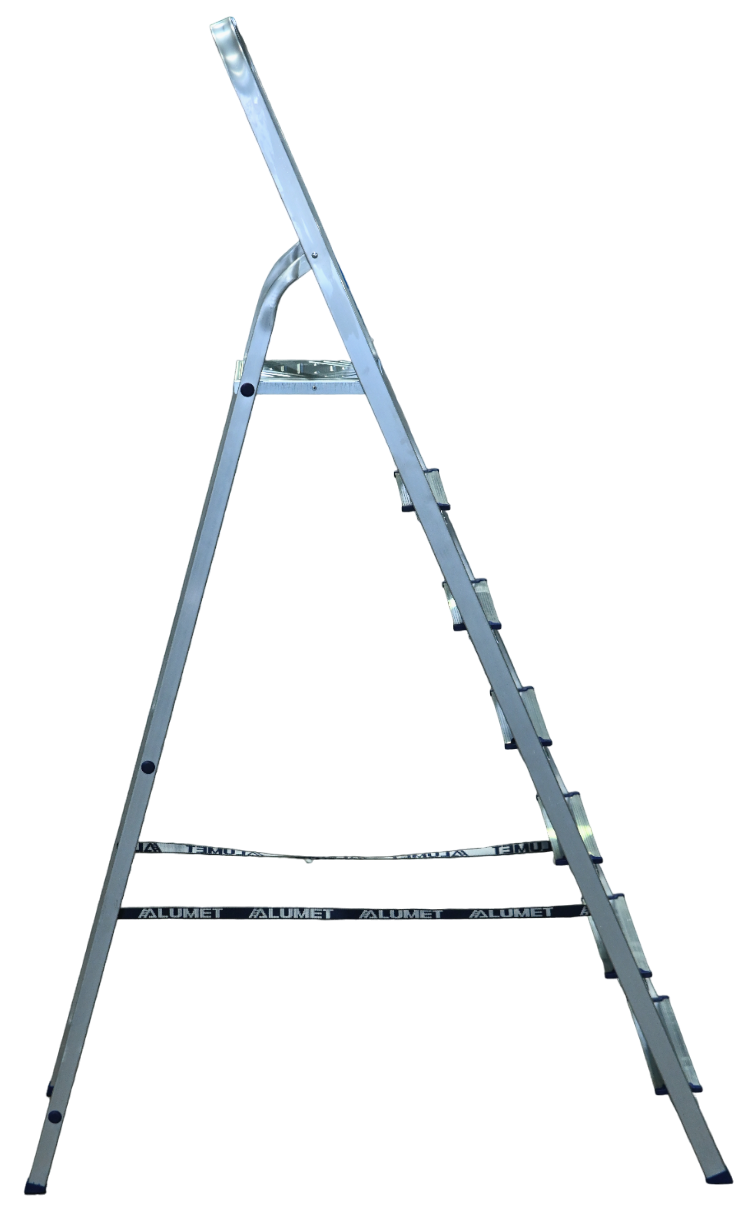

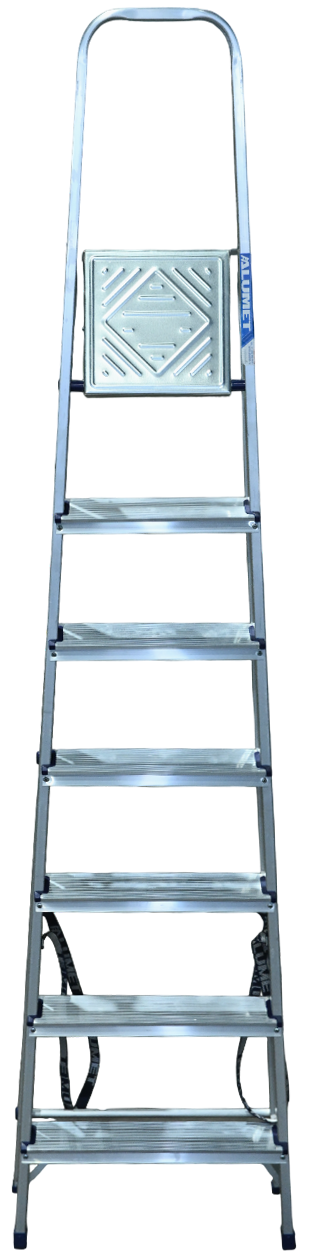

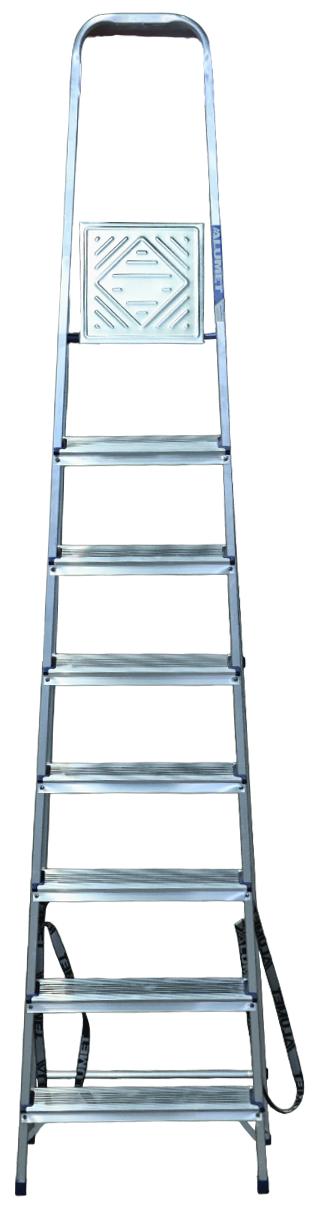

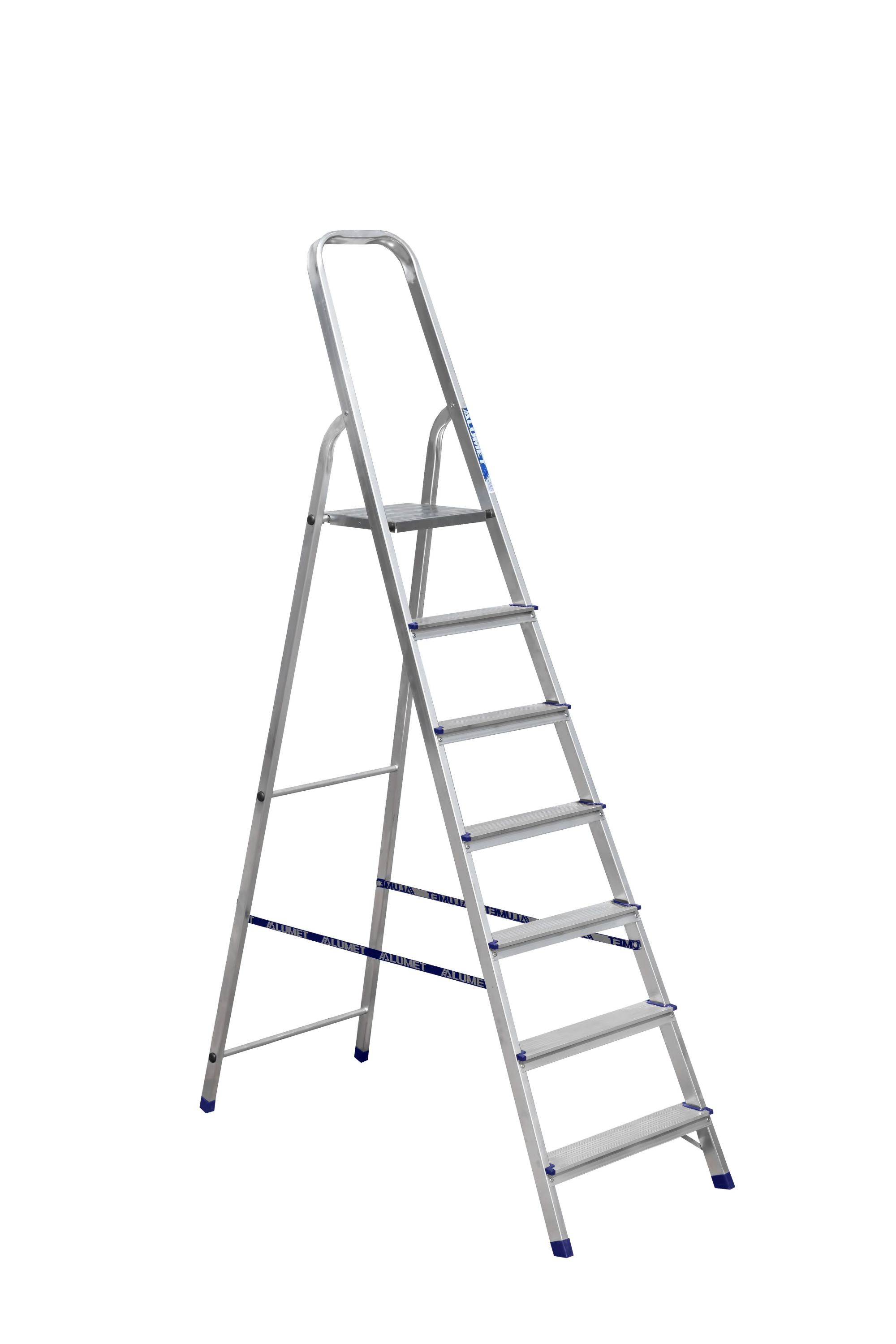

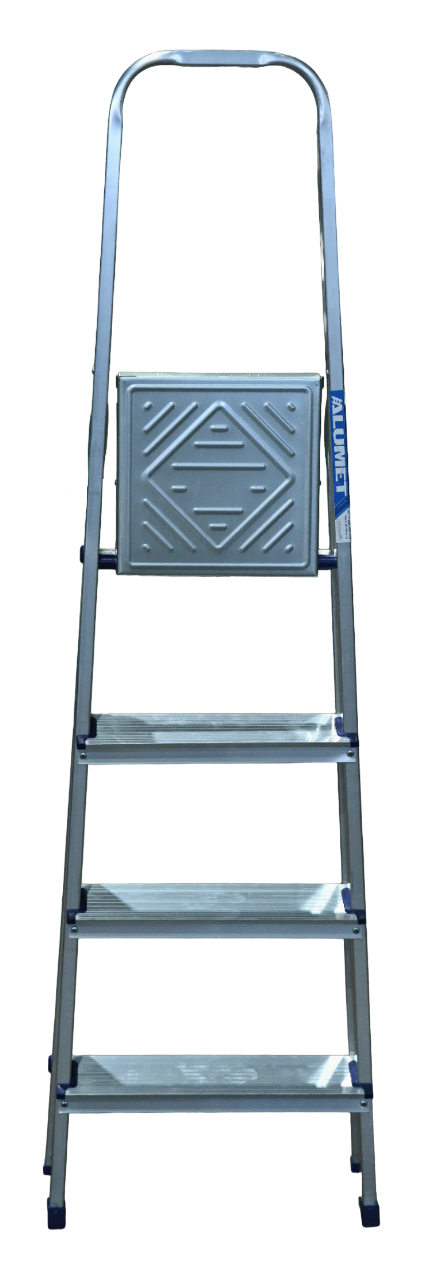

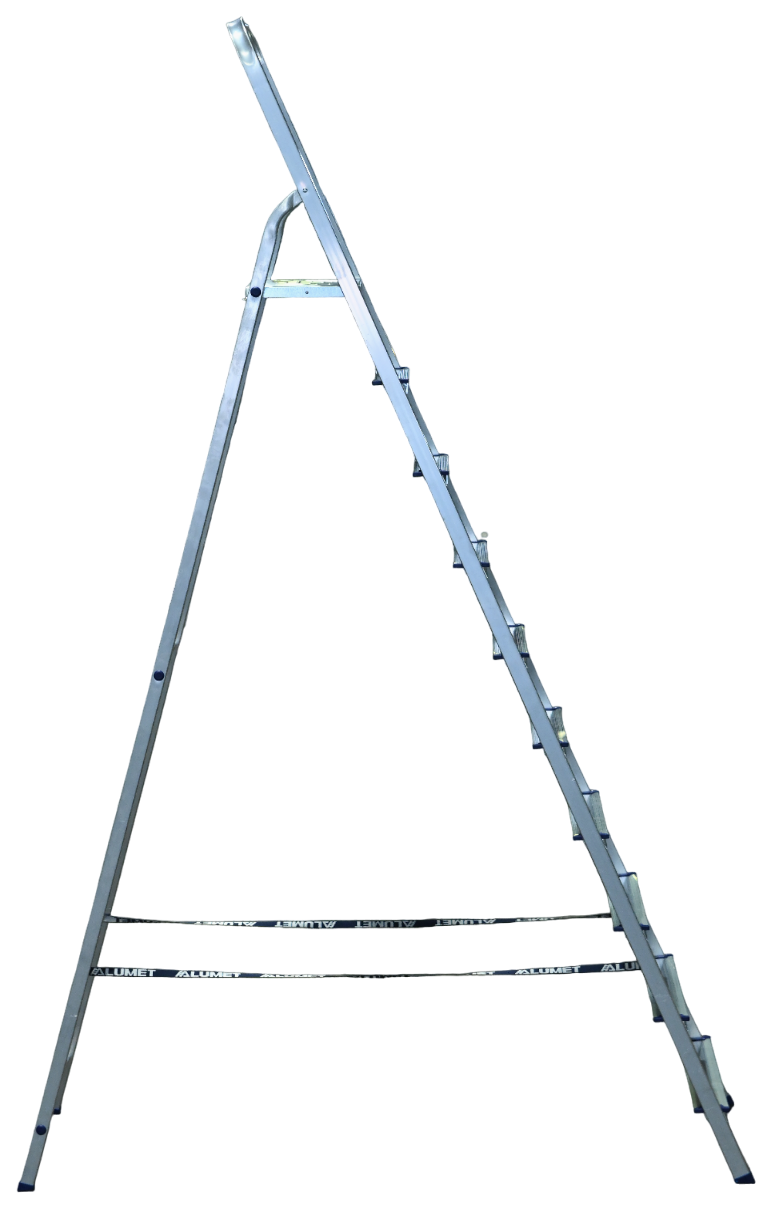

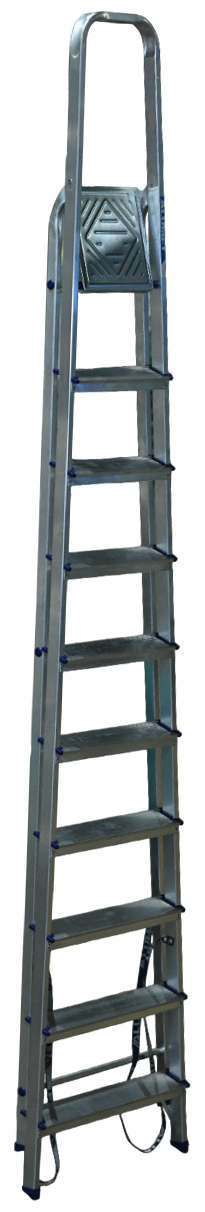

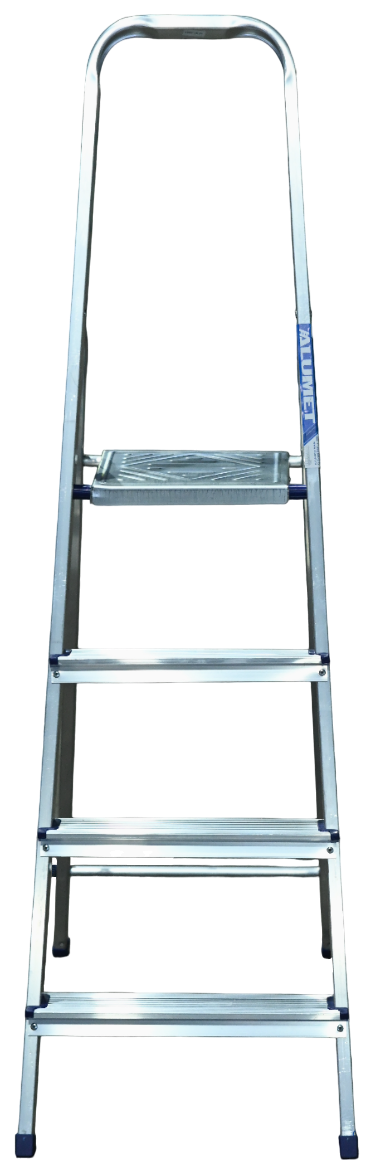

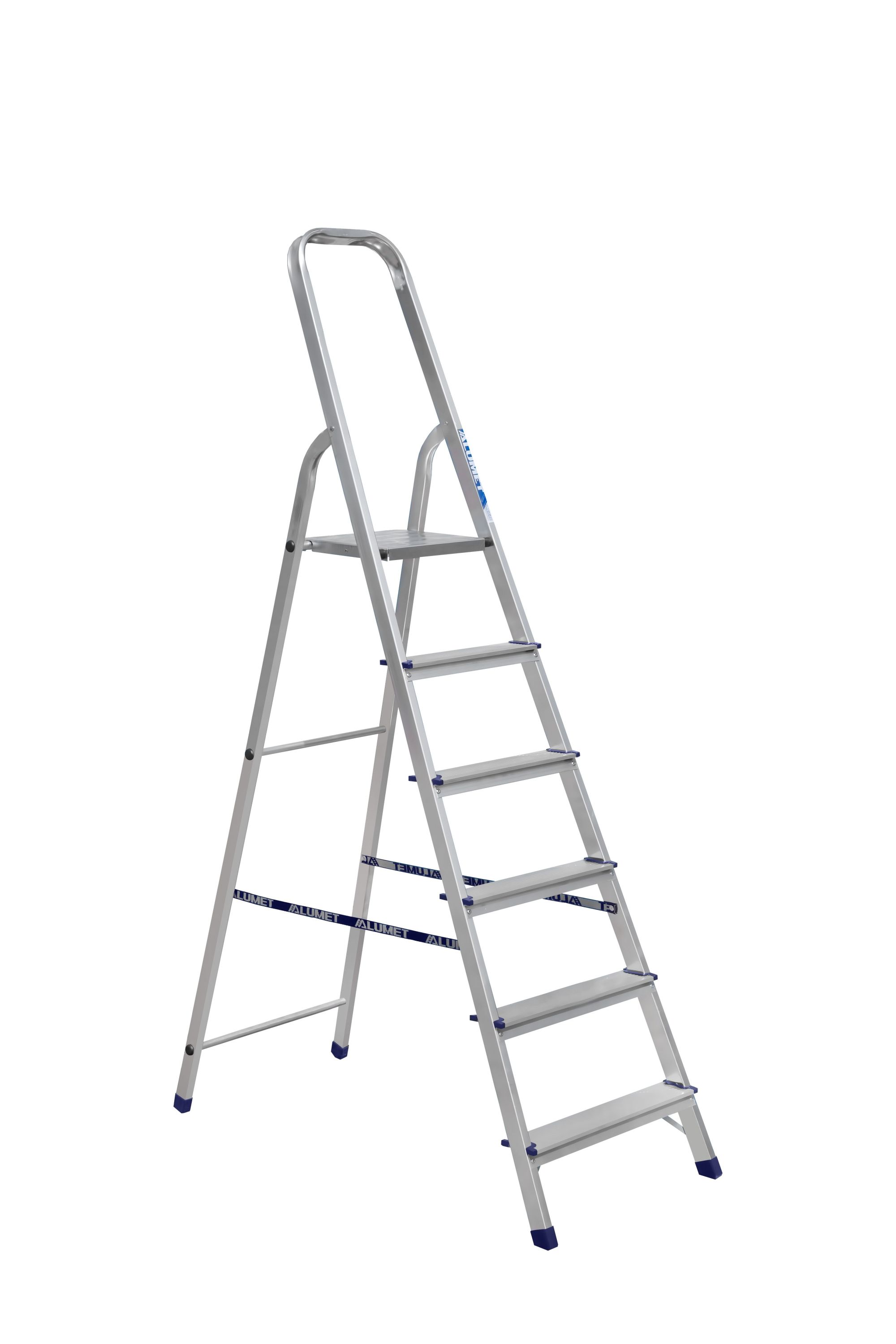

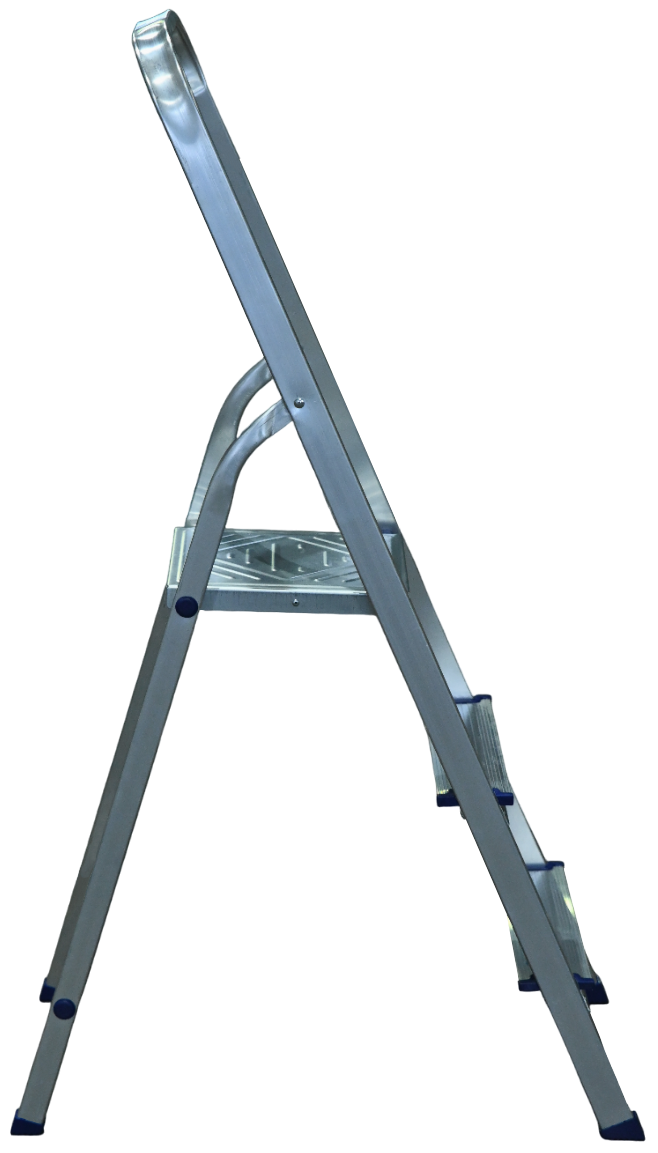

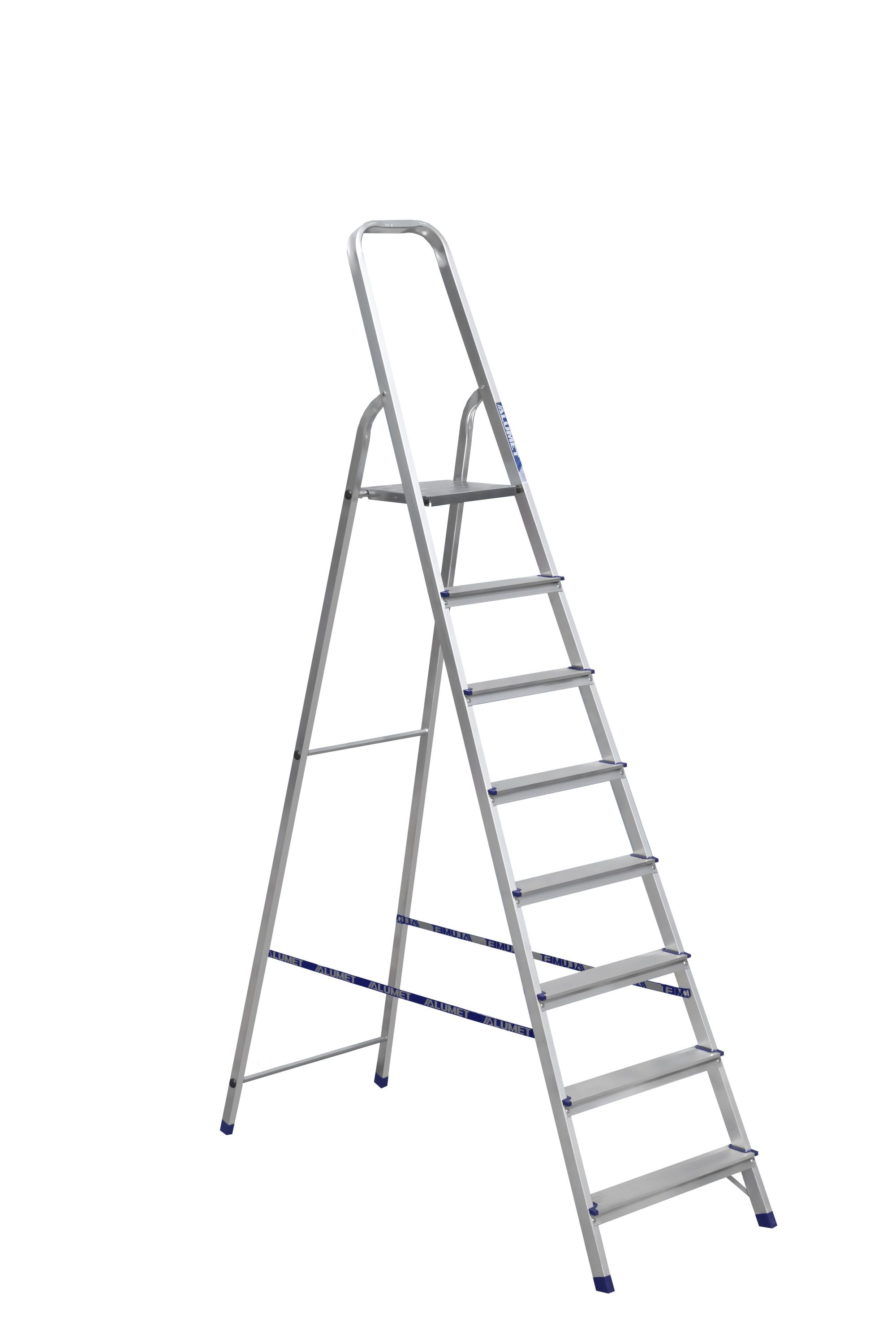

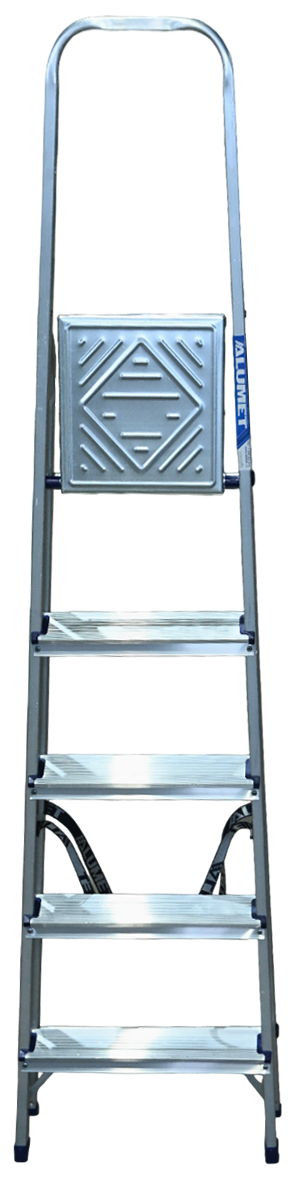

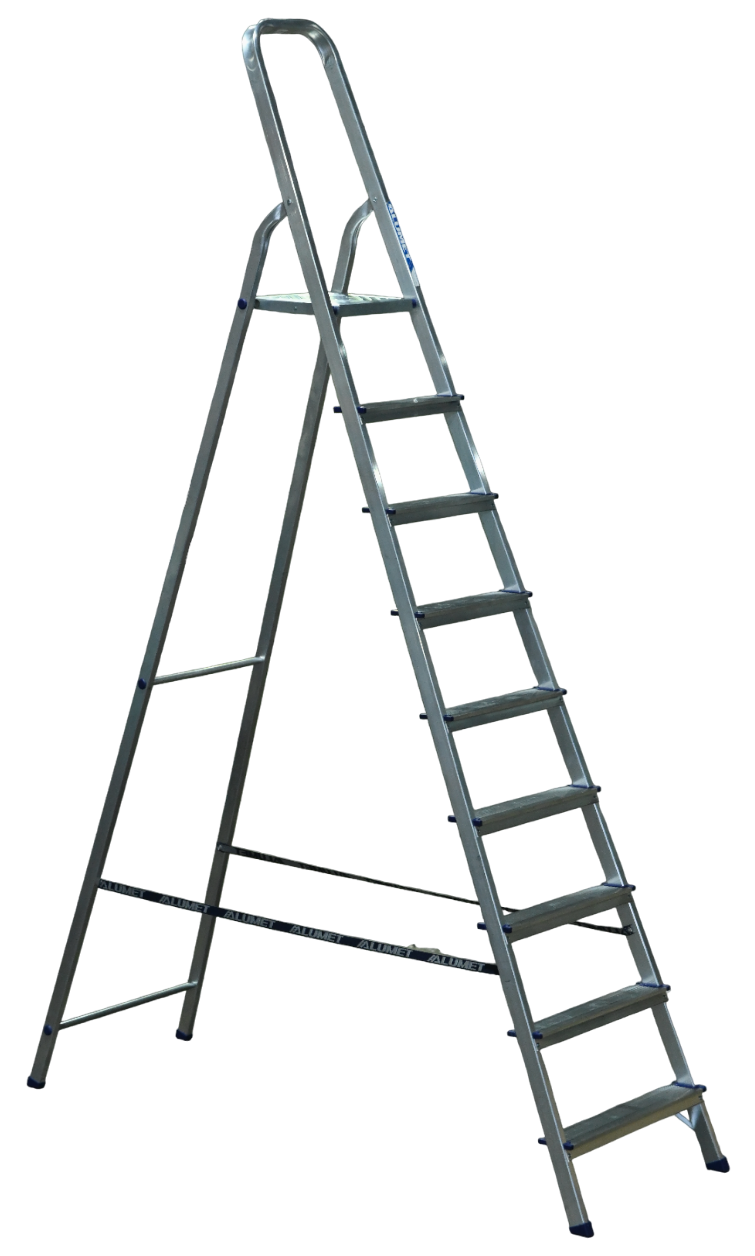

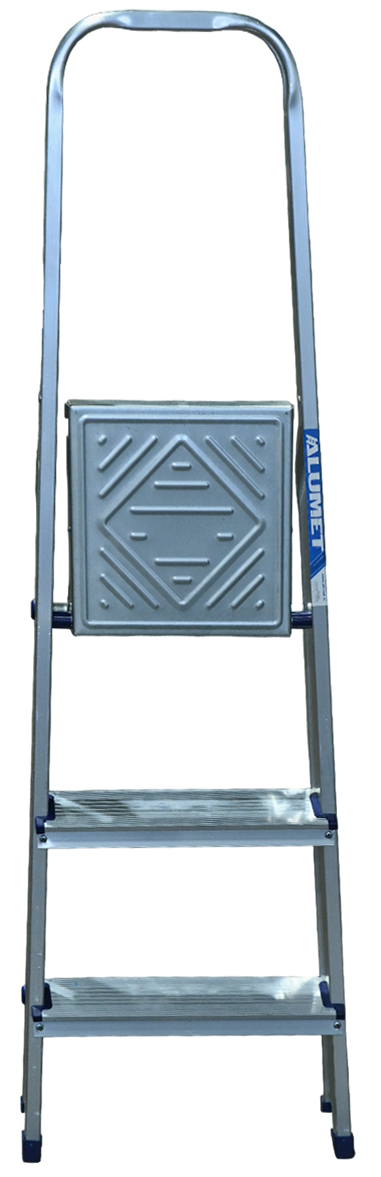

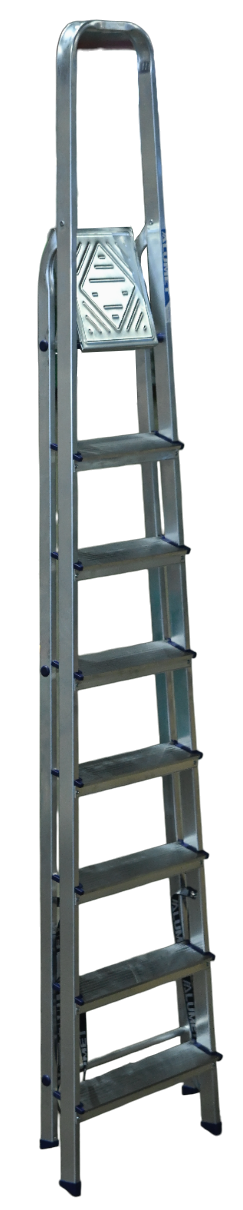

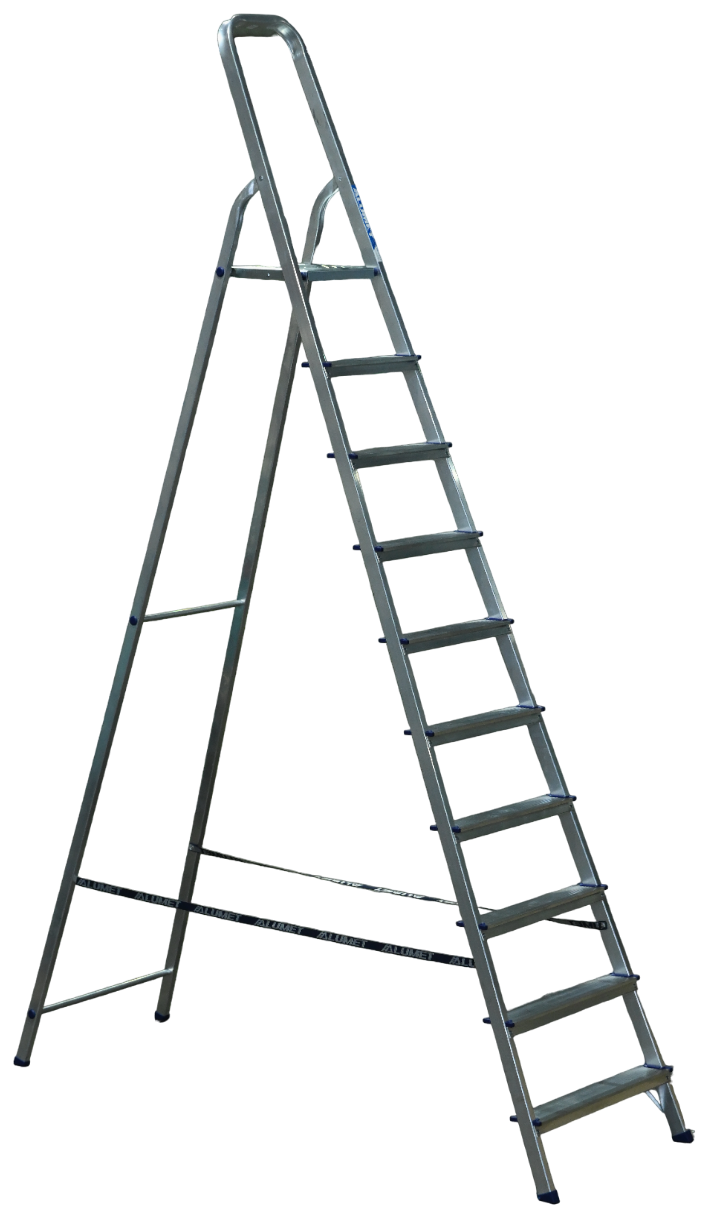

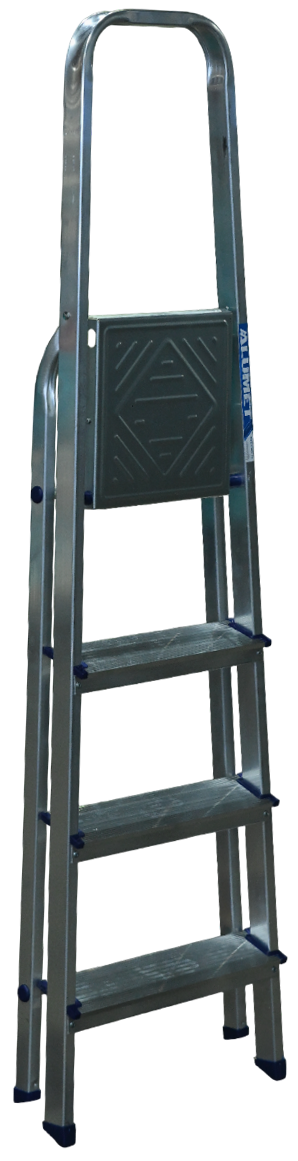

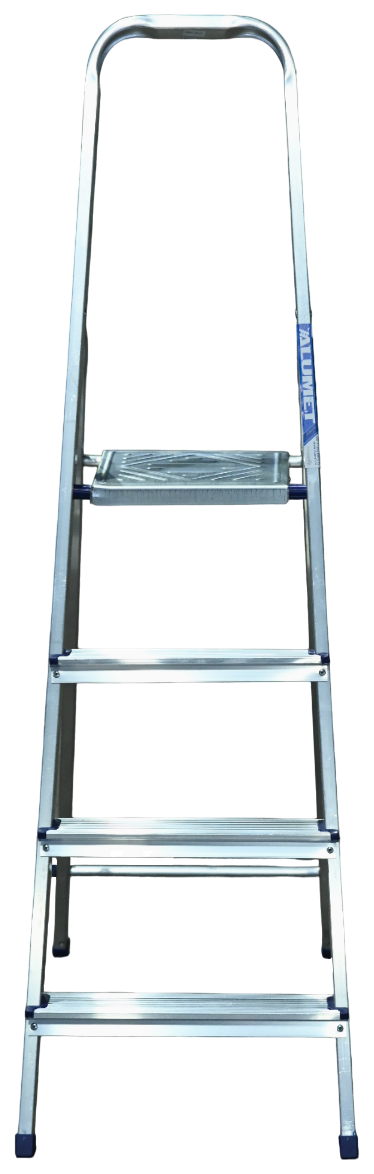

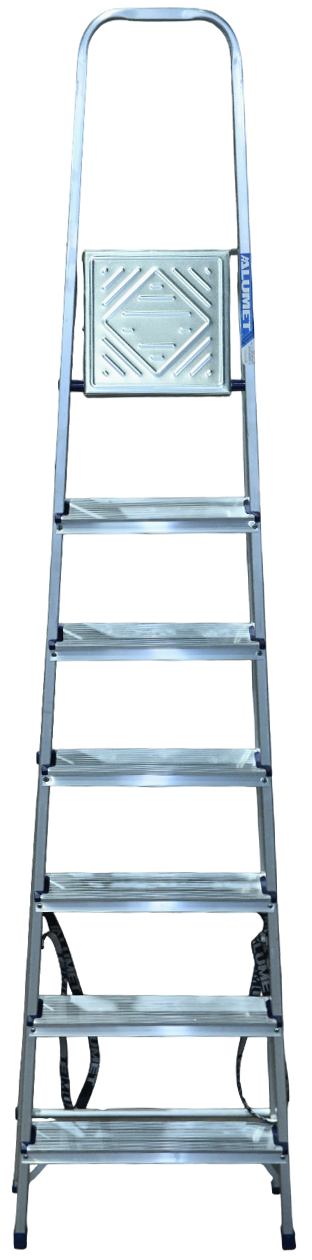

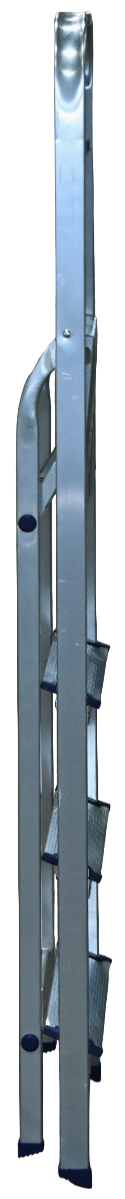

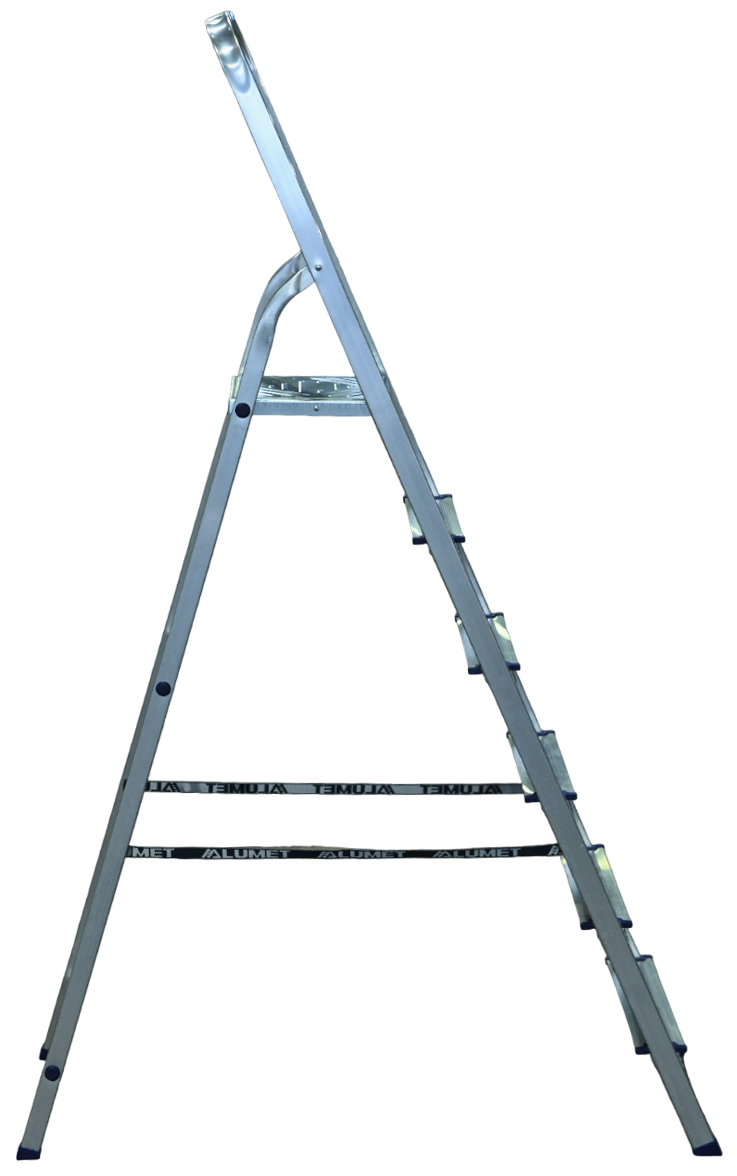

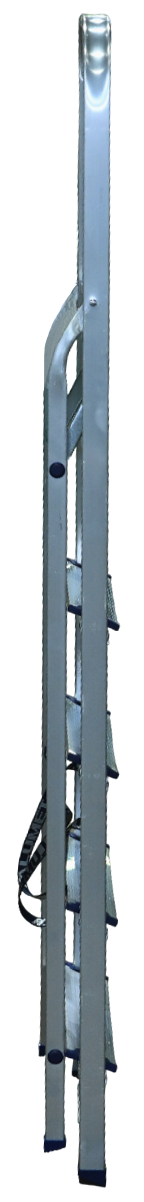

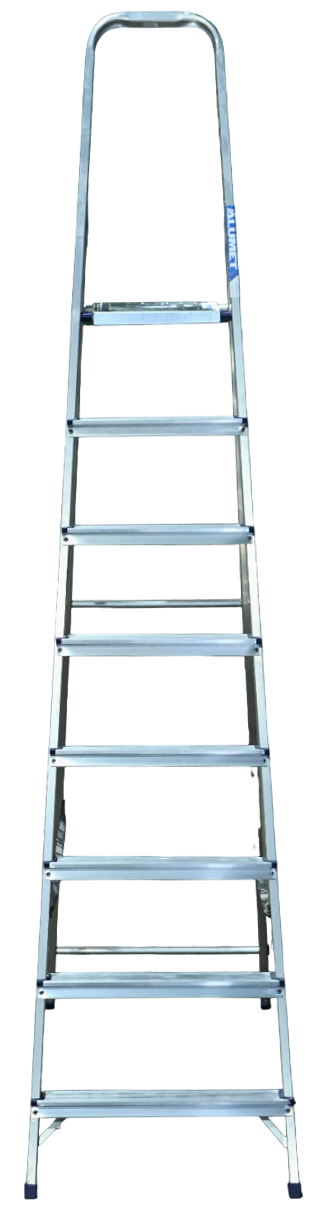

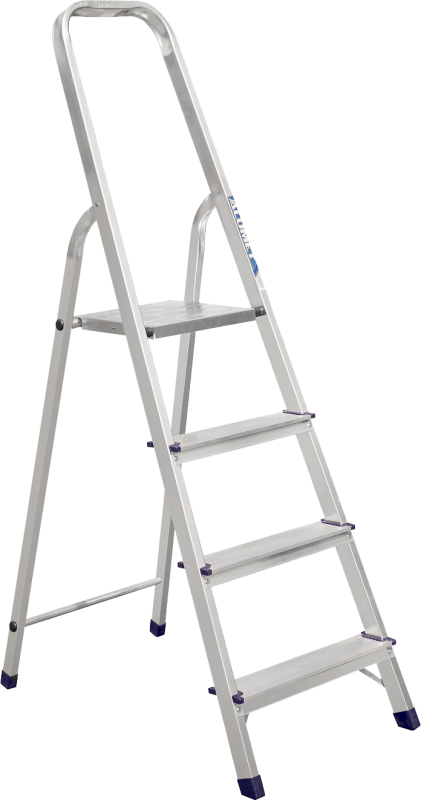

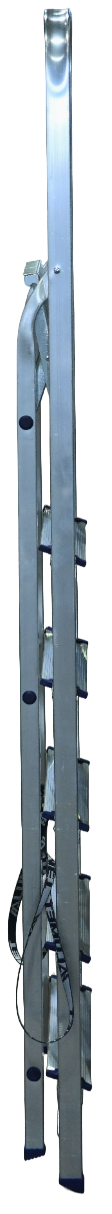

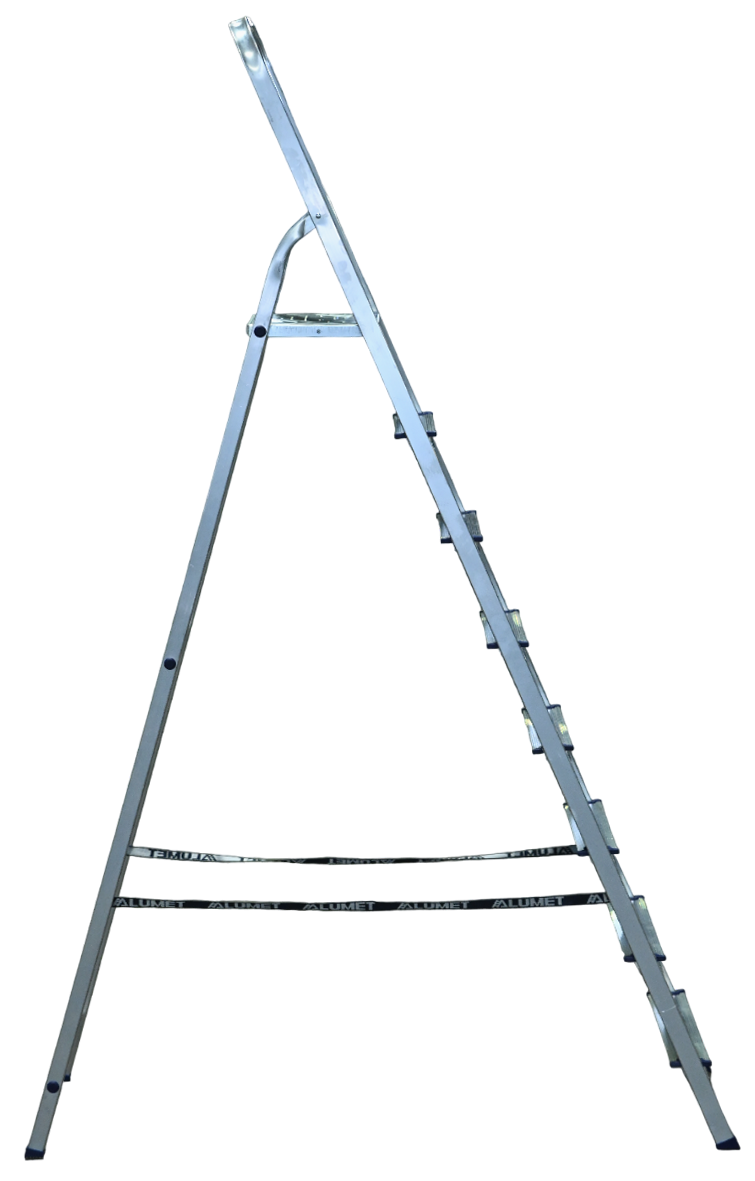

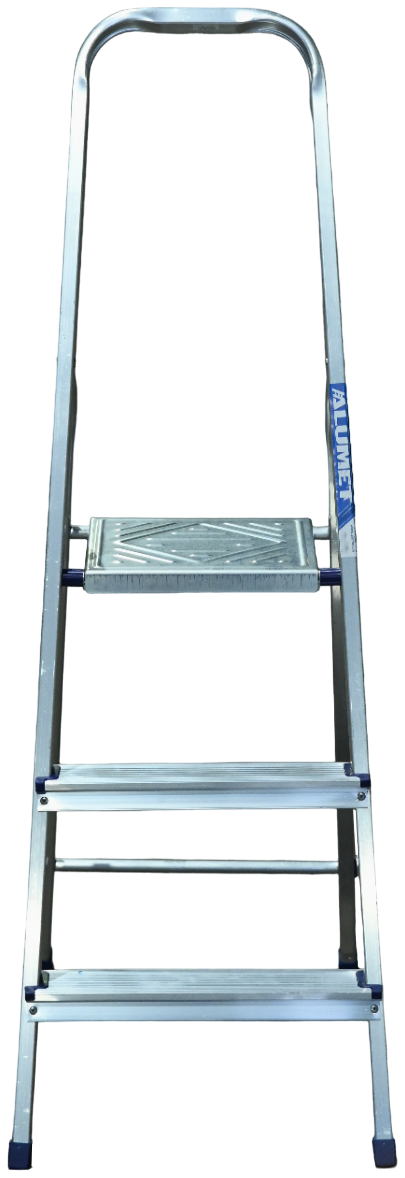

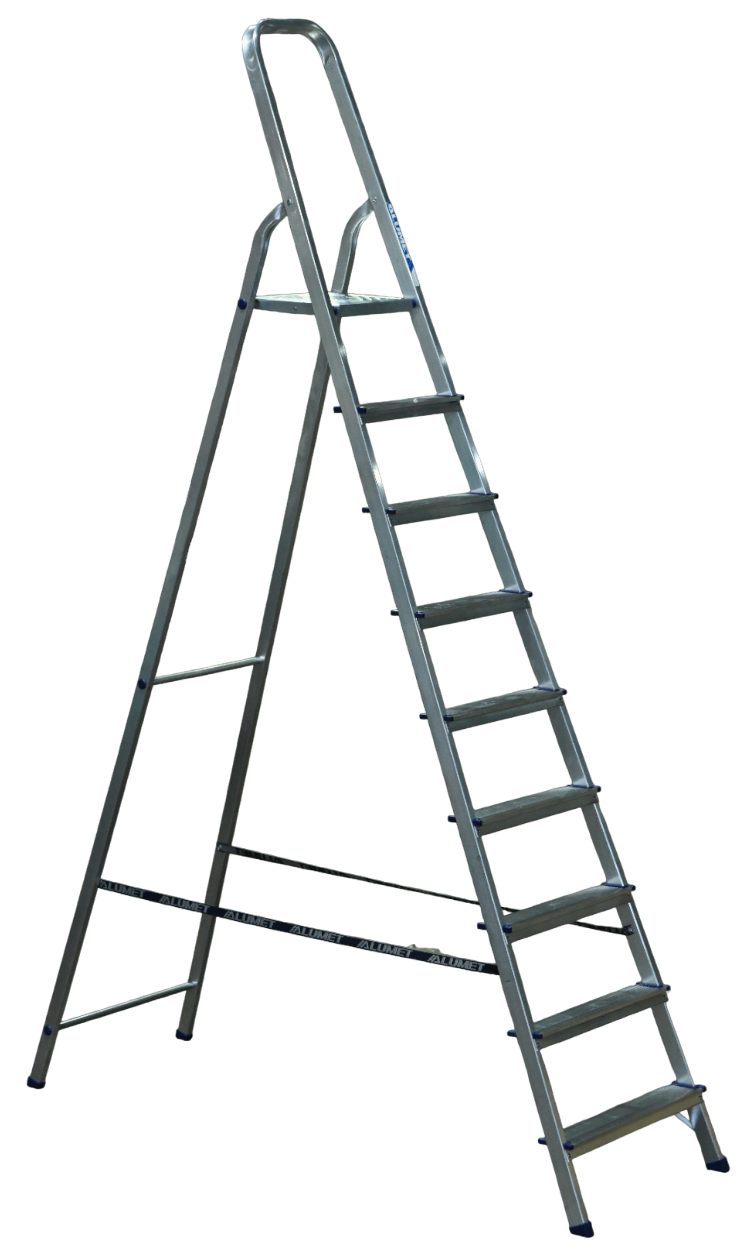

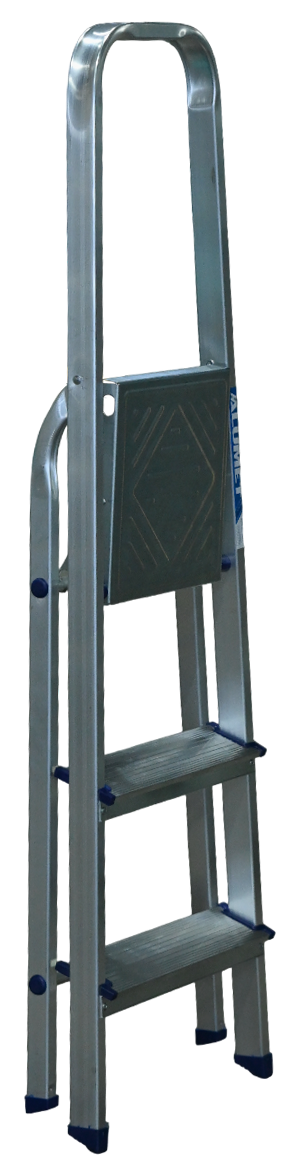

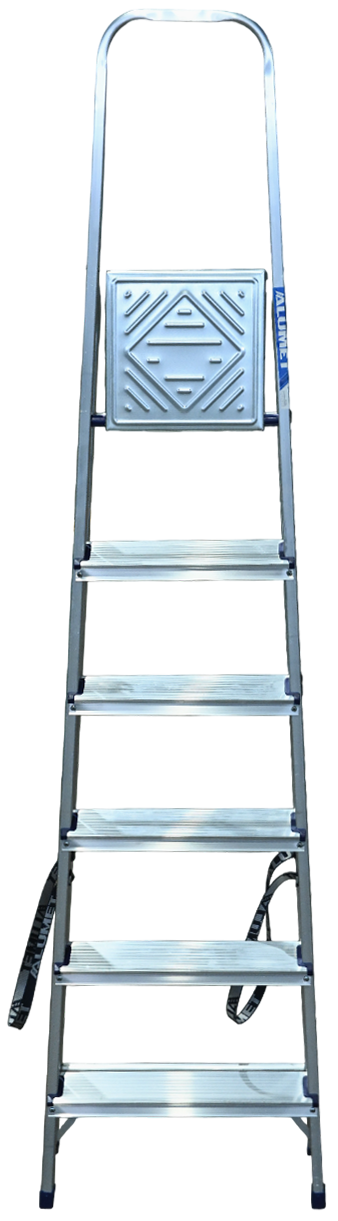

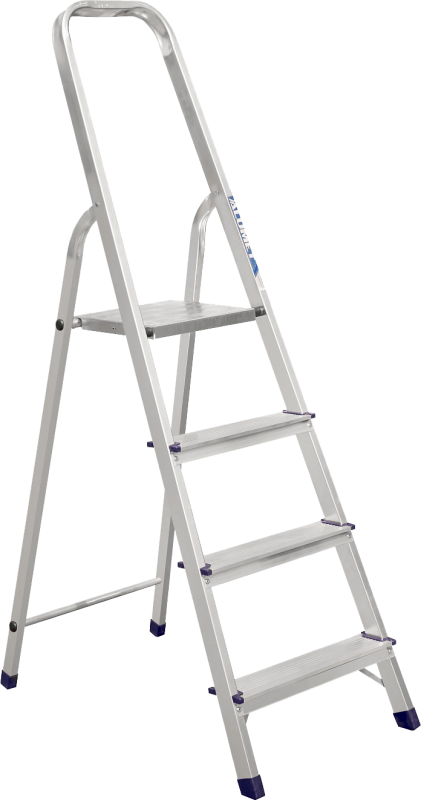

The step ladder is a self-supporting portable ladder, tapering off to the top, having a front side (a front foot), a support side (a support foot), and a work platform and spreading out for a specific task. The safety rail is structurally made in conjunction with the front side. The aluminum step ladder is made of high-strength aluminum shape. The back and front legs are interconnected. The work platform is made of galvanized steel. The rungs have a serrated surface. The shoes are made of high strength plastic. The step ladder in the working position is secured by the work platform; and for step ladders with five rungs and higher – by safety ropes. The number of rungs – from 3 to 10. AM series aluminum step ladder is designed for various types of domestic and industrial work at a height of up to 4 m. It should be noted that the production of step ladders has been automated, which excluded the influence of the ‘human error’ on product quality. At the same time, the step ladders acquired additional strength, increased reliability and durability.

Technical specifications

Vendor code	Number of steps	Height	Length	Height max	Width	Front arch profile	Rear leg profile	Weight

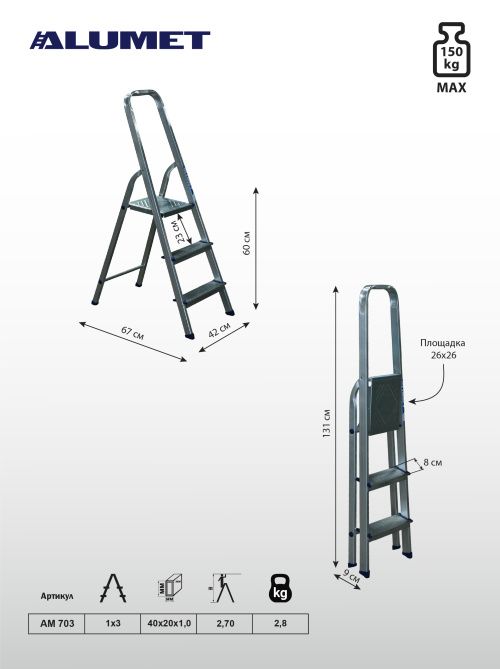

AM 703	3	0.6	1.31	2.7	0.42	40x20	30x20	2.8
AM 704	4	0.81	1.54	2.91	0.44	40x20	30x20	3.3
AM 705	5	1.02	1.77	3.12	0.46	40x20	30x20	3.7
AM 706	6	1.23	2.00	3.33	0.49	40x20	33x20	4.6
AM 707	7	1.45	2.23	3.55	0.51	40x20	33x20	5.4
AM 708	8	1.66	2.46	3.76	0.54	40x20	33x20	5.9

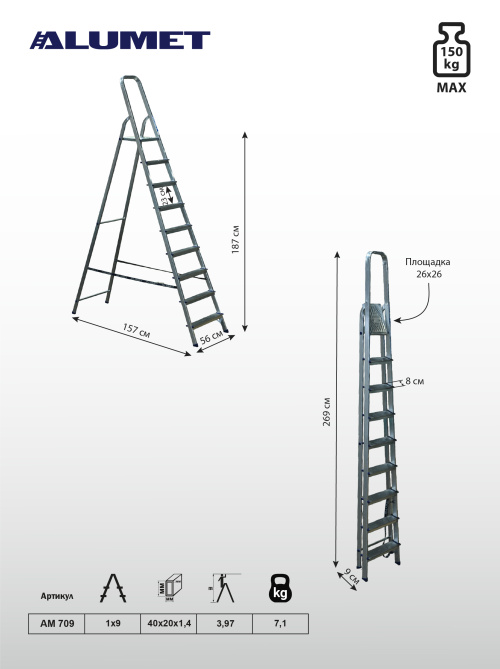

AM 709	9	1.87	2.69	3.97	0.56	40x20	33x20	7.1

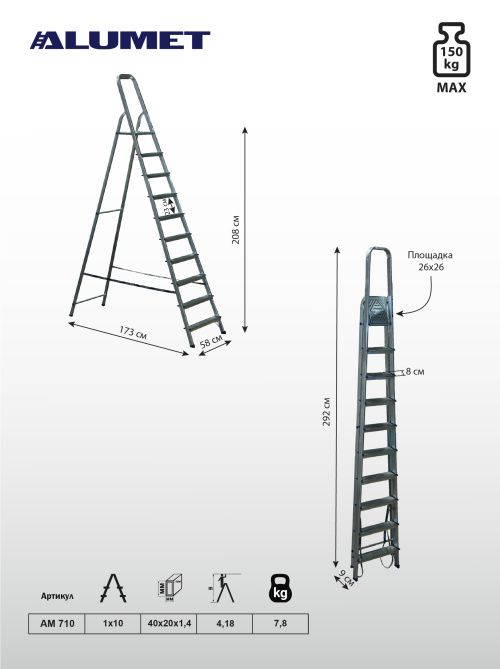

AM 710	10	2.08	2.92	4.18	0.58	40x20	33x20	7.8

Vendor code	Number of steps	Height	Length	Height max	Width	Front arch profile	Rear leg profile	Weight
AM 703AK	3	0.6	1.31	2.7	0.42	40x20	30x20	2.9
AM 704AK	4	0.81	1.54	2.91	0.44	40x20	30x20	3.4
AM 705AK	5	1.02	1.77	3.12	0.46	40x20	30x20	3.8
AM 706AK	6	1.23	2	3.33	0.49	40x20	33x20	4.7
AM 707AK	7	1.45	2.23	3.55	0.51	40x20	33x20	5.5
AM 708AK	8	1.66	2.46	3.76	0.54	40x20	33x20	6
AM 709AK	9	1.87	2.69	3.97	0.56	40x20	33x20	7.2
AM 710AK	10	2.08	2.92	4.18	0.58	40x20	33x20	7.9
