| Vendor code |
Number of steps |
Section length |
Height max |
Width |
Weight |
|---|---|---|---|---|---|
| HH1 5106 | 1x6 | 1,92 | 2,59 | 0,41 | 3.6 |
| HH1 5107 | 1x7 | 1,92 | 2,59 | 0,41 | 4.0 |
| HH1 5108 | 1x8 | 2,48 | 3,15 | 0,41 | 4.4 |
| HH1 5109 | 1x9 | 2,76 | 3,43 | 0,41 | 4.9 |
| HH1 5110 | 1x10 | 3,04 | 3,71 | 0,41 | 5,3 |
| HH1 5111 | 1x11 | 3,32 | 3,99 | 0,41 | 5,7 |
| HH1 5112 | 1x12 | 3,60 | 4,27 | 0,41 | 6,1 |
| HH1 5113 | 1x13 | 3,89 | 4,55 | 0,41 | 6,5 |
| HH1 5114 | 1x14 | 4,16 | 4,83 | 0,41 | 6,9 |
| HH1 5115 | 1x15 | 4,44 | 5,12 | 0,41 | 7,4 |
| HH1 5116 | 1x16 | 4,72 | 5,40 | 0,41 | 7,8 |
| HH1 5117 | 1x17 | 5,00 | 5,68 | 0,41 | 8,2 |
| HH1 5118 | 1x18 | 5,28 | 5,96 | 0,41 | 8,6 |

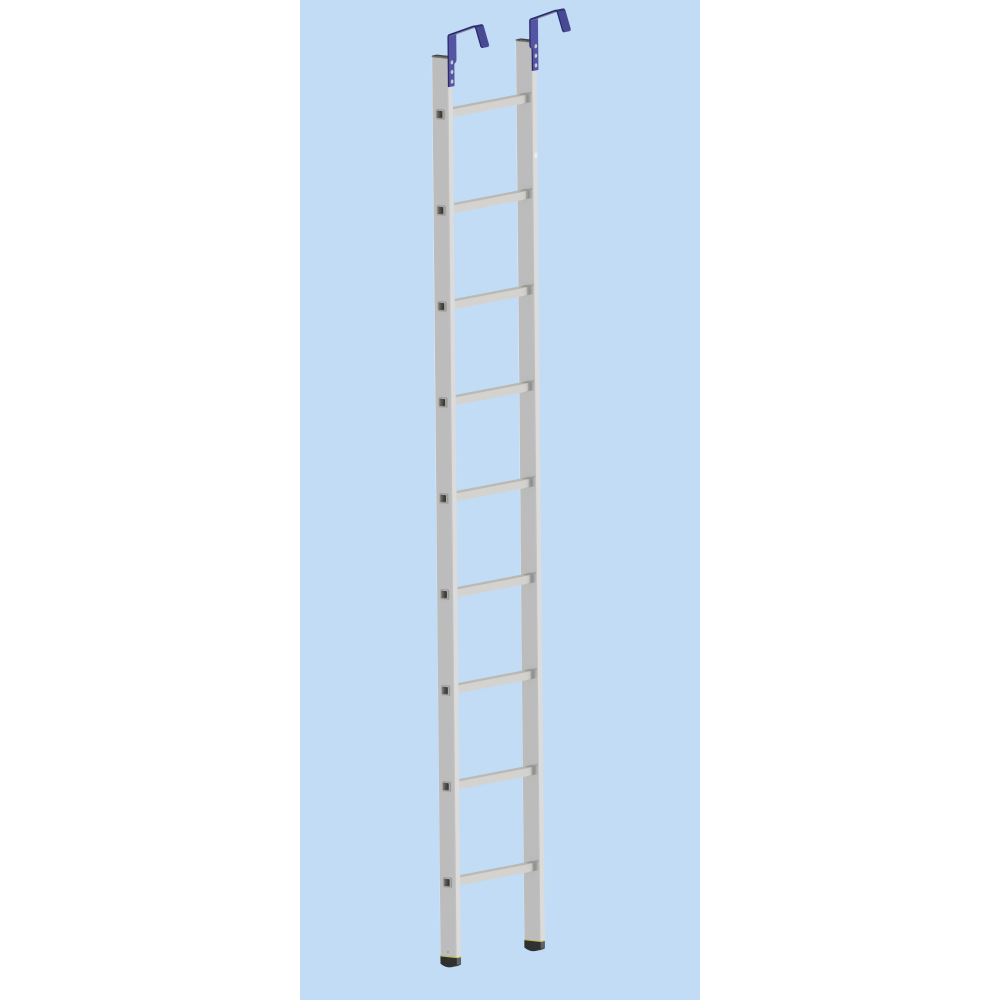

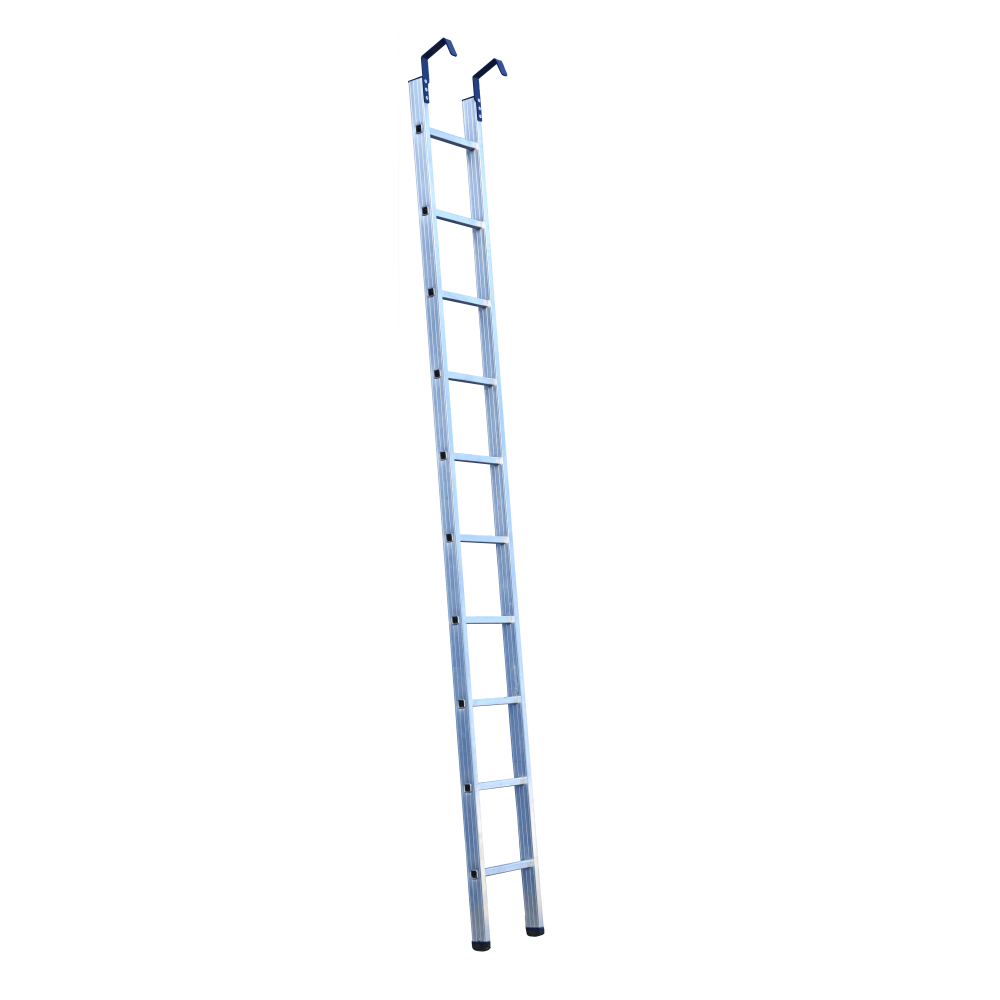

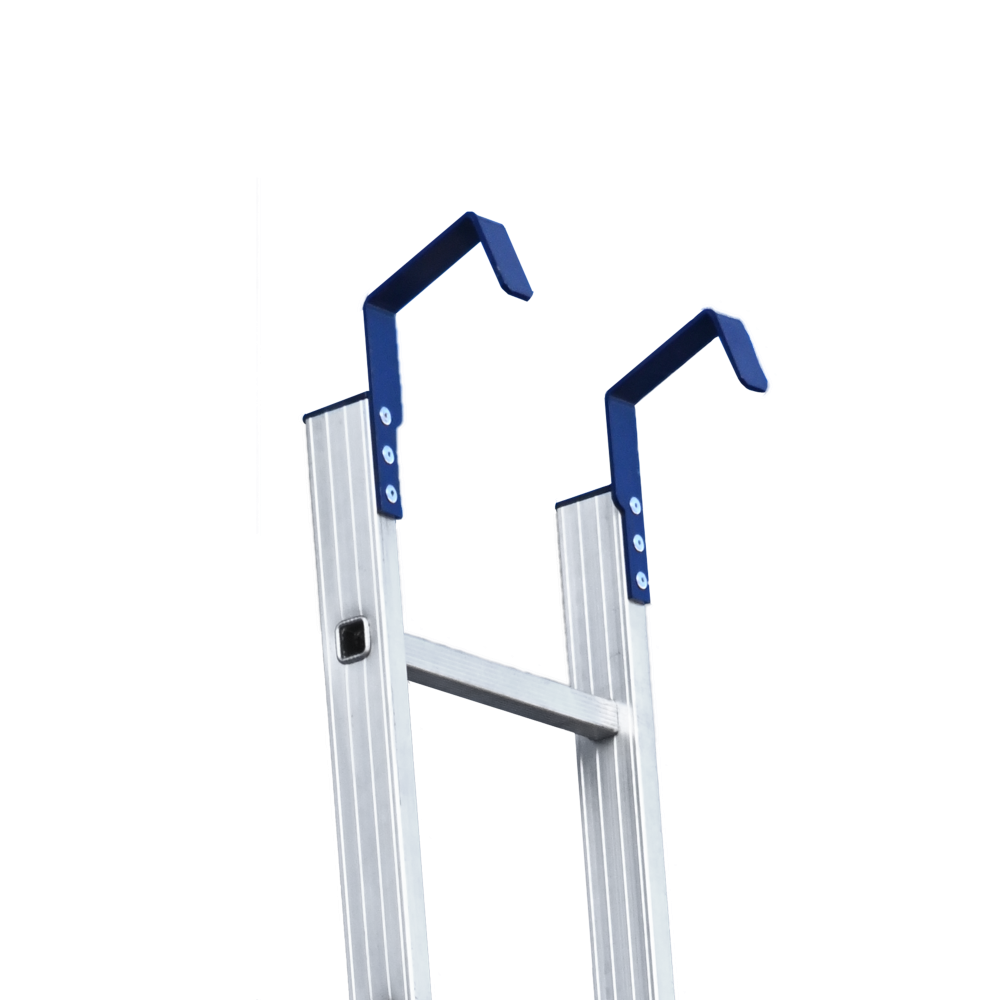

HH1 series aluminum ladder is a ladder in the upper part of which there are hooks for hanging on horizontal beam 100mm wide. The ladder can also be used as a side ladder (rest with hooks against vertical plane is prohibited).
The bowstrings and steps of the stairs are made of high-strength aluminum alloy, in in accordance with the requirements of GOST22233-2018. Steps 25x25 have an anti-slip relief surface. At the ends bowstrings on both sides have plastic plugs.
