Серия АМ 7xxAK011

Aluminum stepladder with plastic organizer

Article:

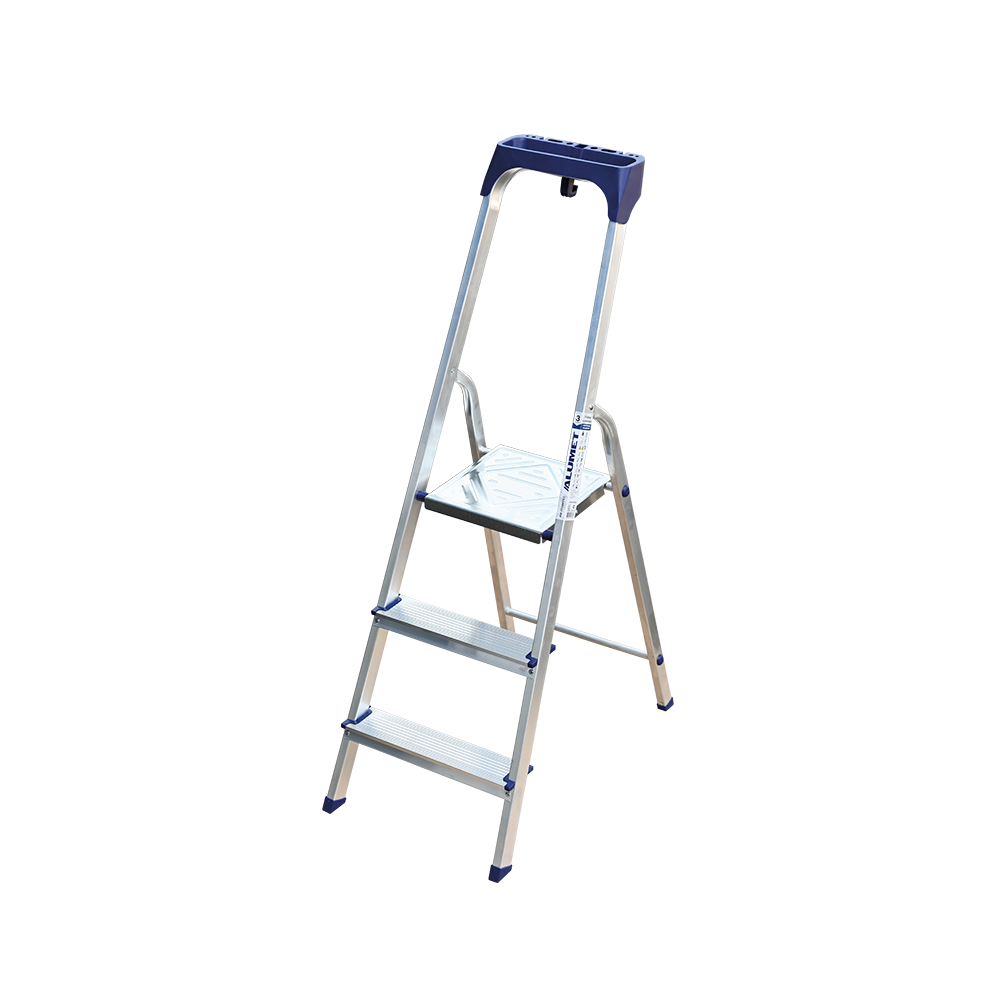

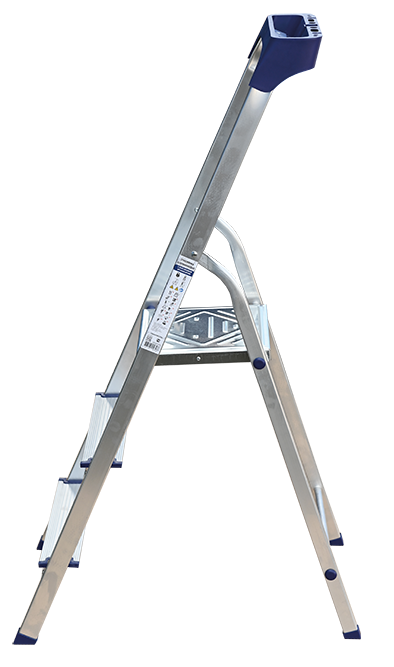

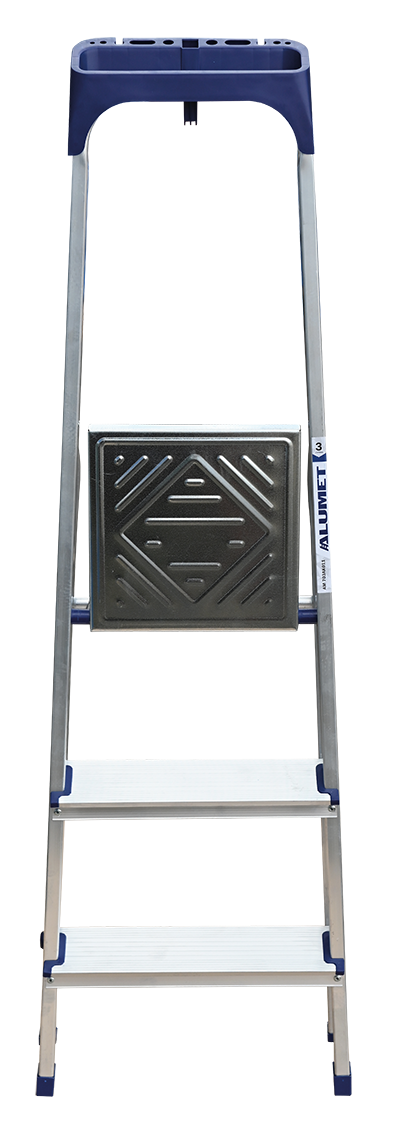

AM 703AK011

Vendor code AM 703AK011
Number of steps 1x3
Height when folded 1.36
Height to top platform 0.60
Working height 2.70
Width 0.42

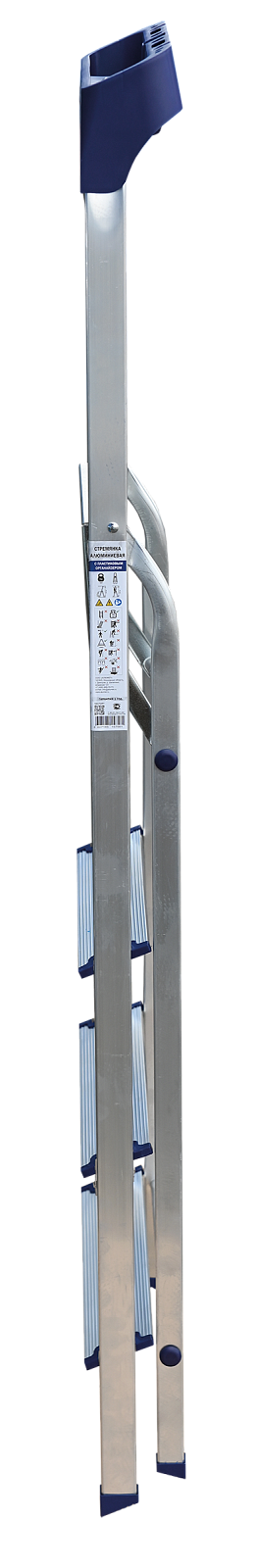

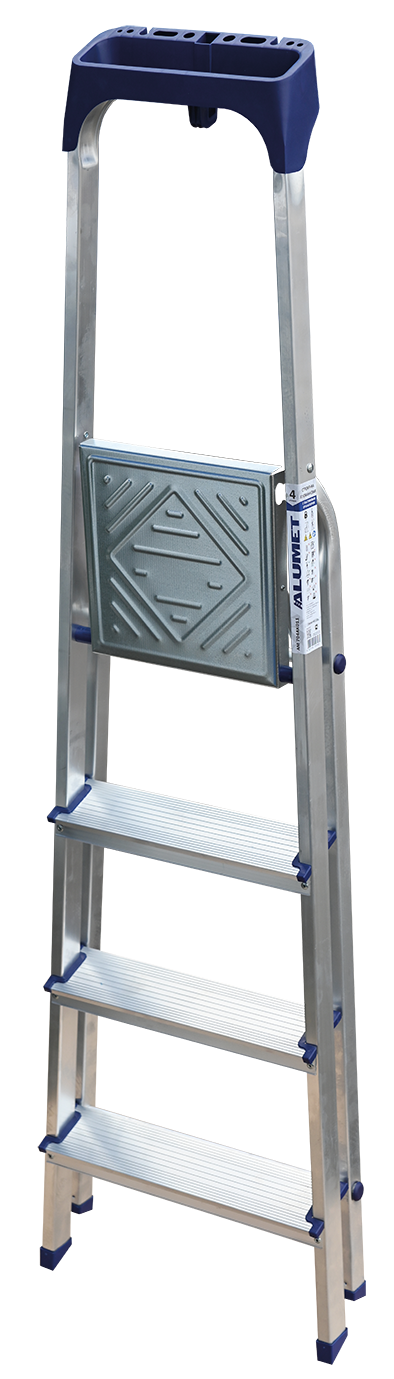

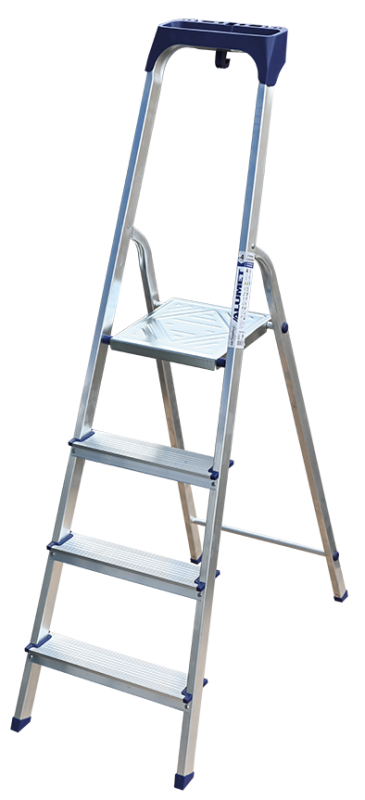

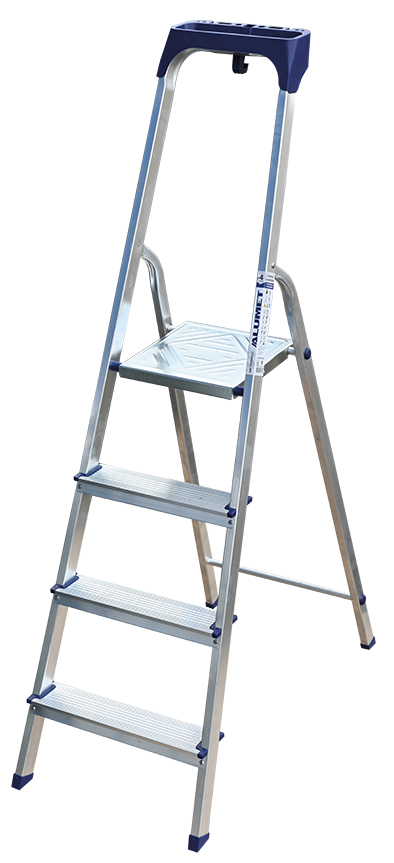

AM 704AK011

Vendor code AM 704AK011
Number of steps 1x4
Height when folded 1.59
Height to top platform 0.82
Working height 2.92
Width 0.44

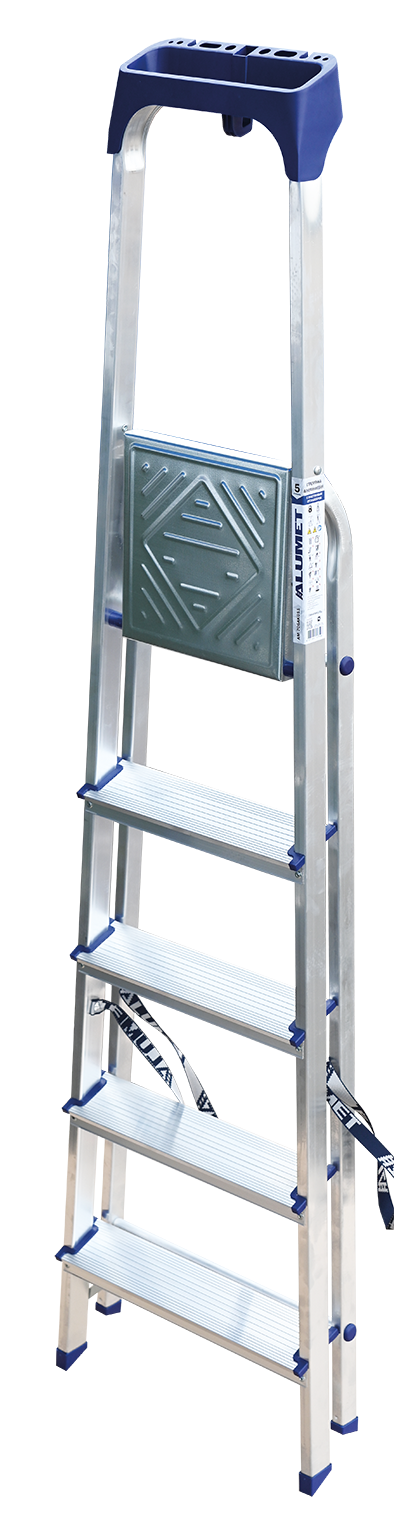

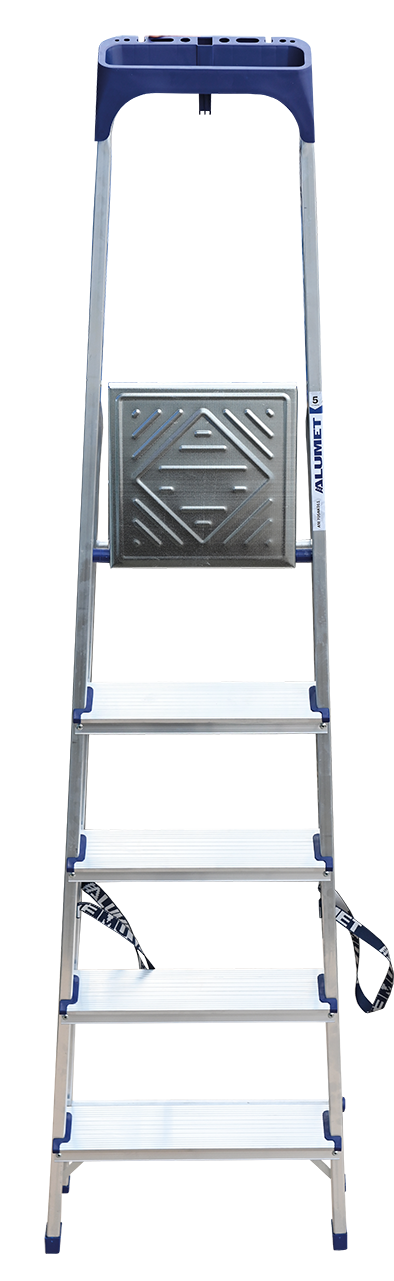

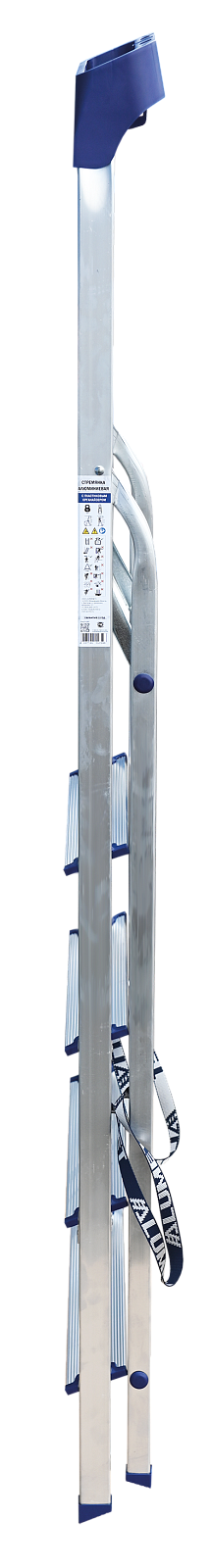

AM 705AK011

Vendor code AM 705AK011
Number of steps 1x5
Height when folded 1.82
Height to top platform 1.03
Working height 3.13
Width 0.46

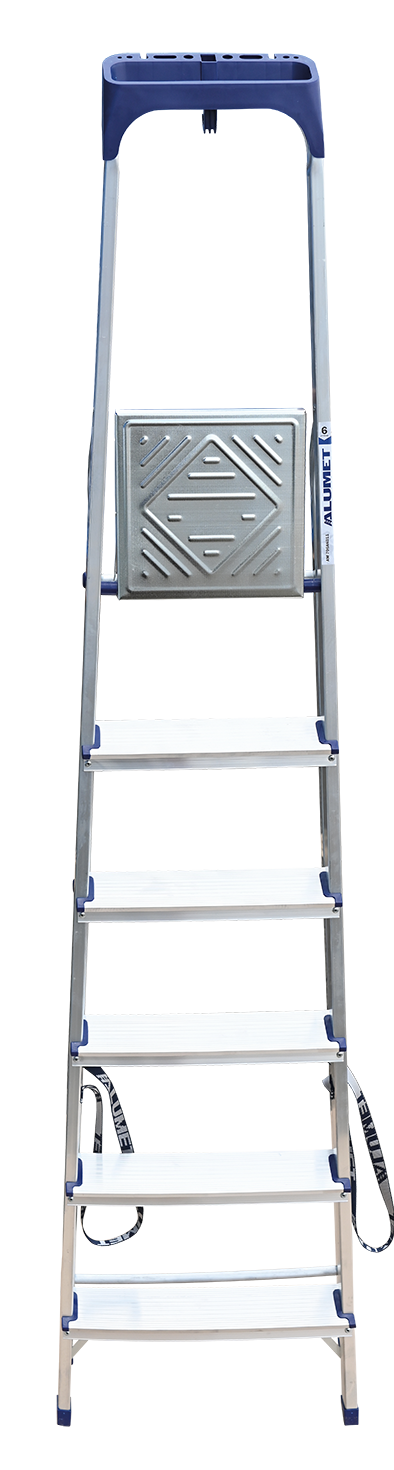

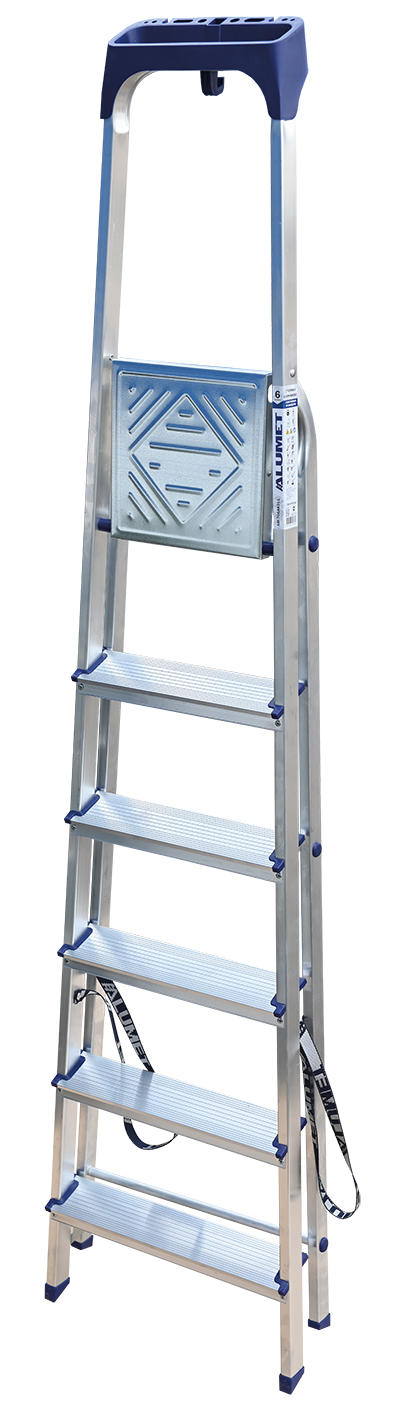

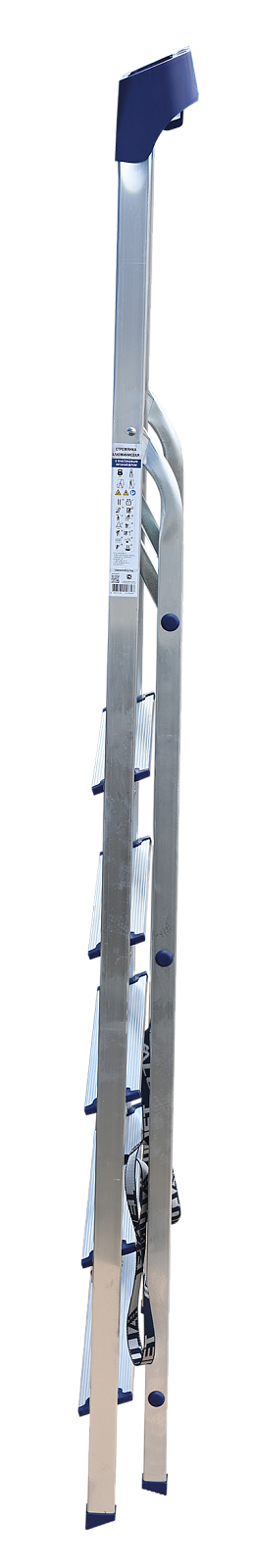

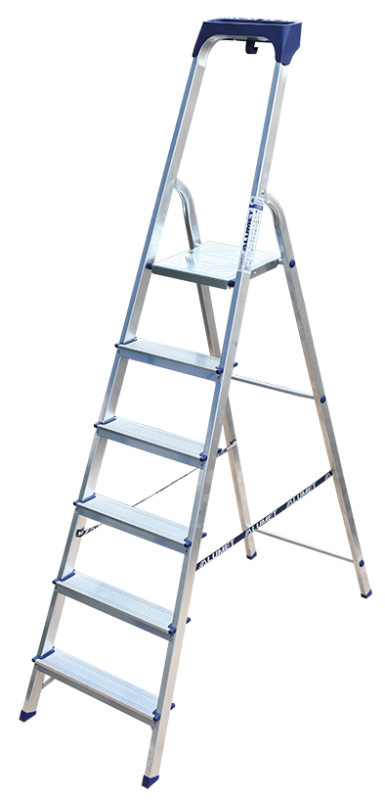

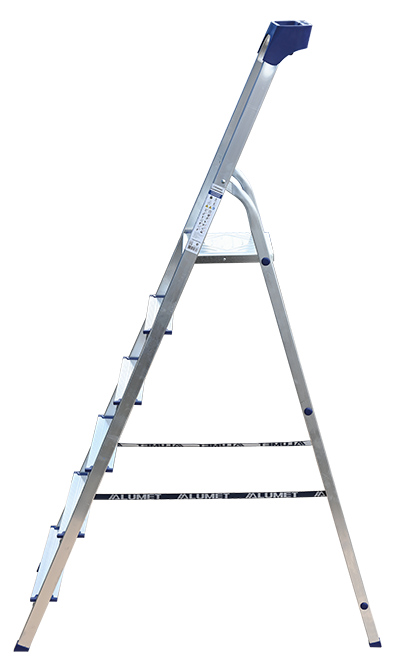

AM 706AK011

Vendor code AM 706AK011
Number of steps 1x6
Height when folded 2.05
Height to top platform 1.24
Working height 3.34
Width 0.49

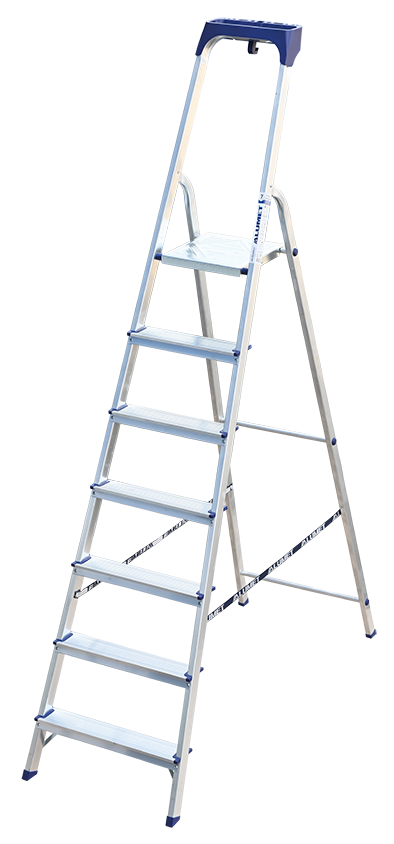

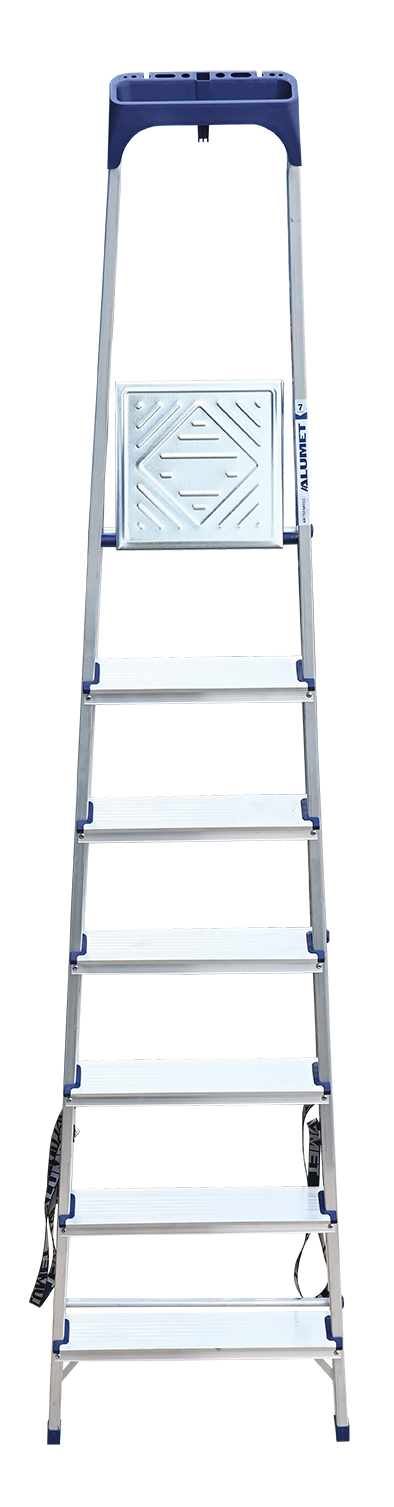

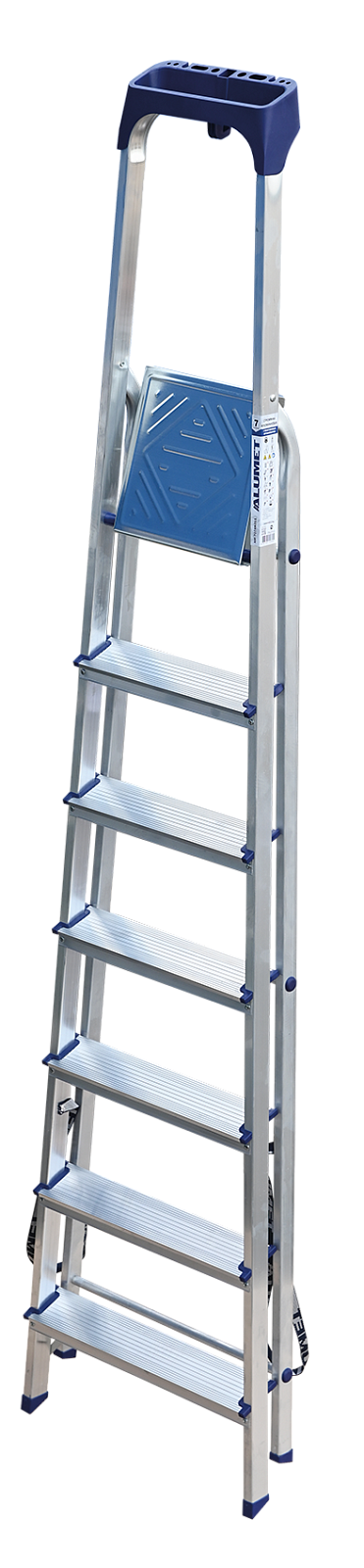

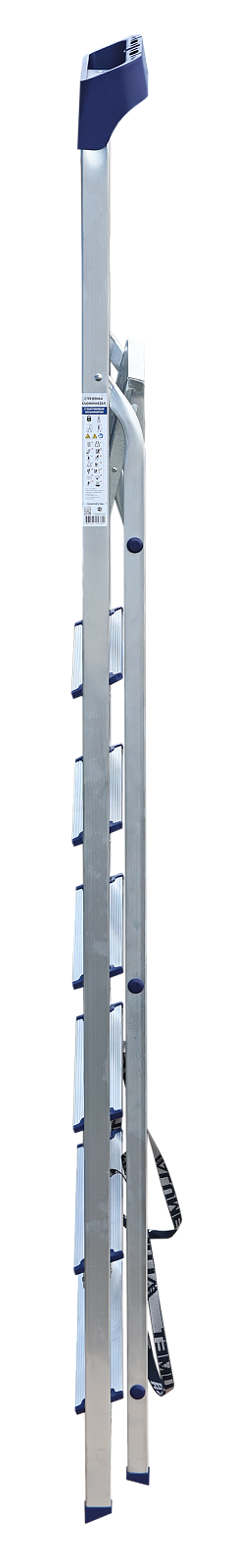

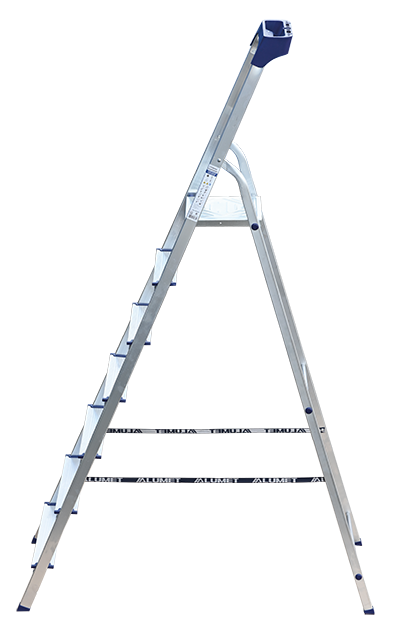

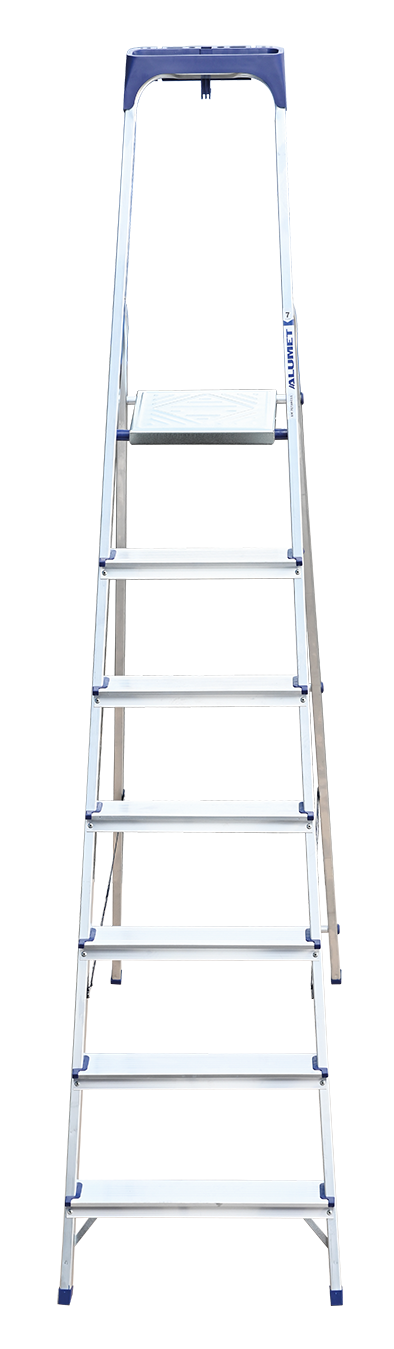

AM 707AK011

Vendor code AM 707AK011
Number of steps 1x7
Height when folded 2.28
Height to top platform 1.45
Working height 3.55
Width 0.51

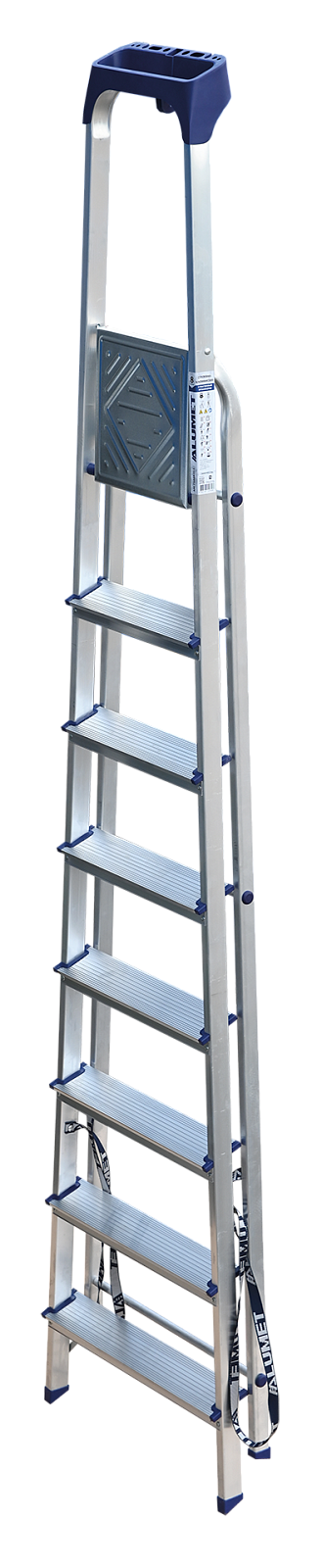

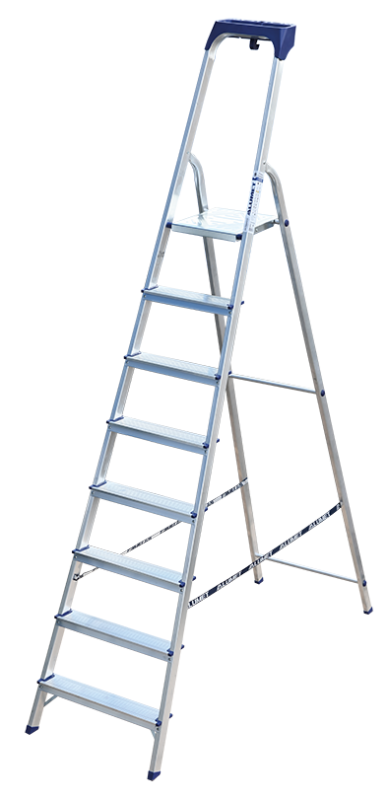

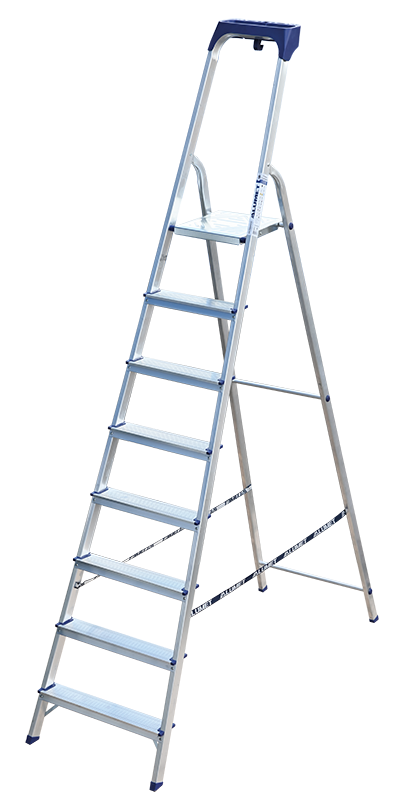

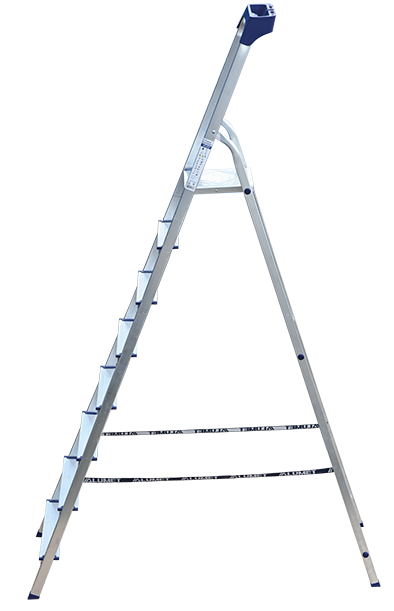

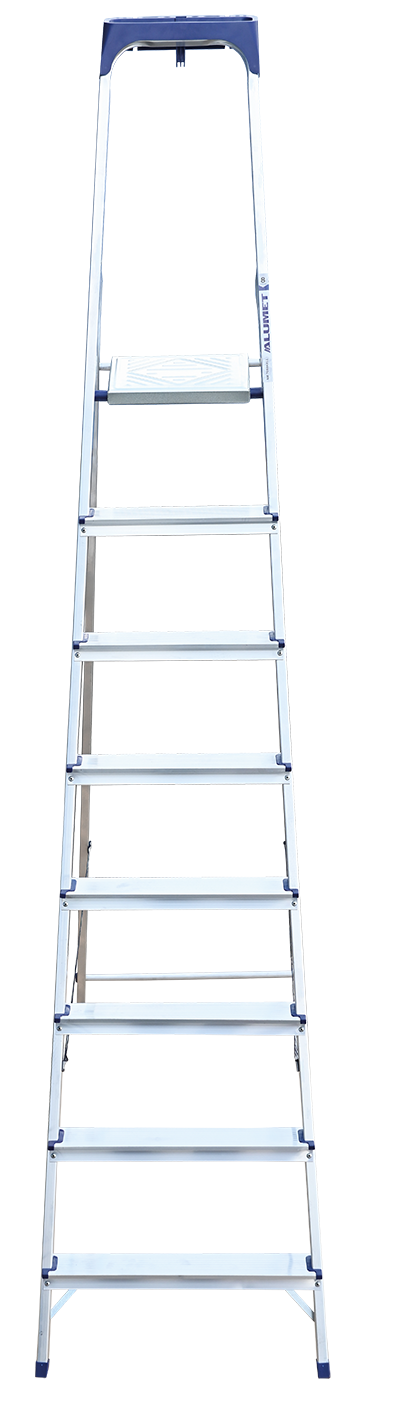

AM 708AK011

Vendor code AM 708AK011
Number of steps 1x8
Height when folded 2.51
Height to top platform 1.66
Working height 3.76
Width 0.54

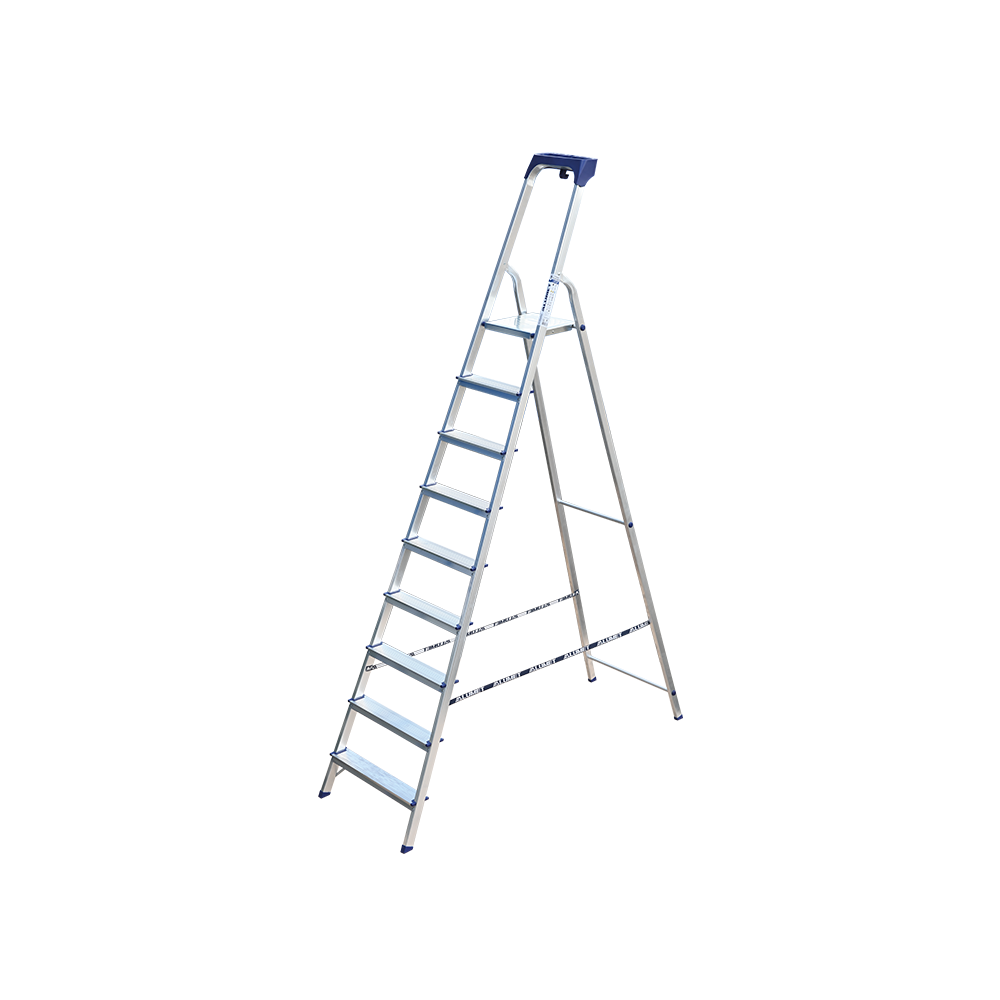

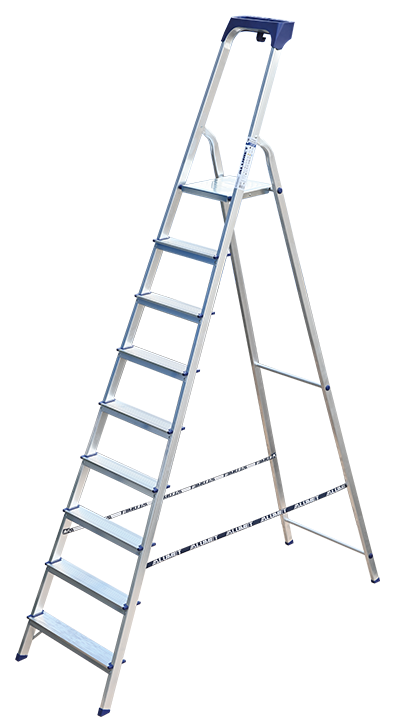

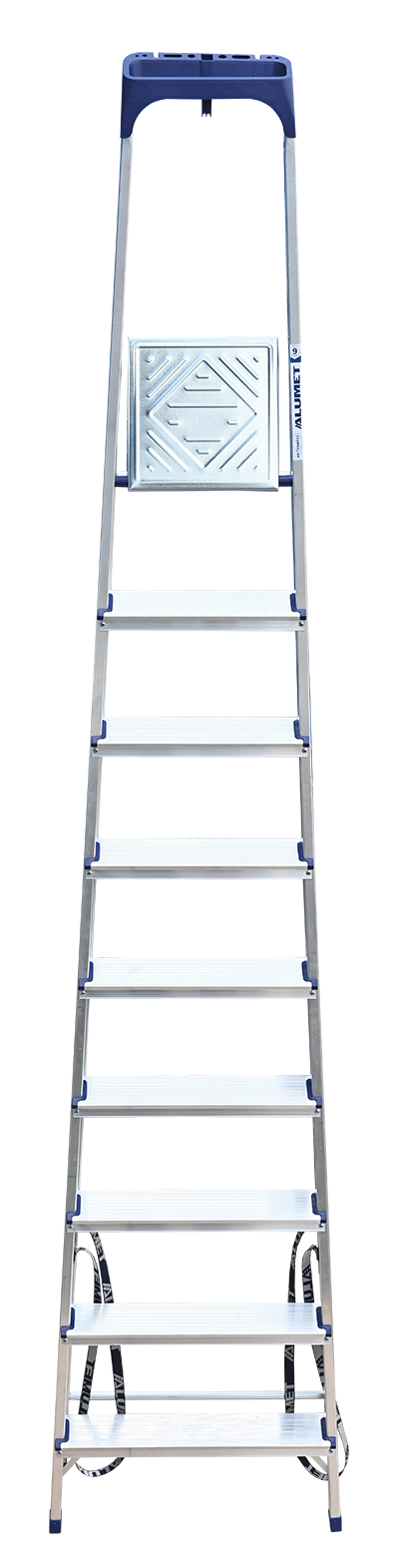

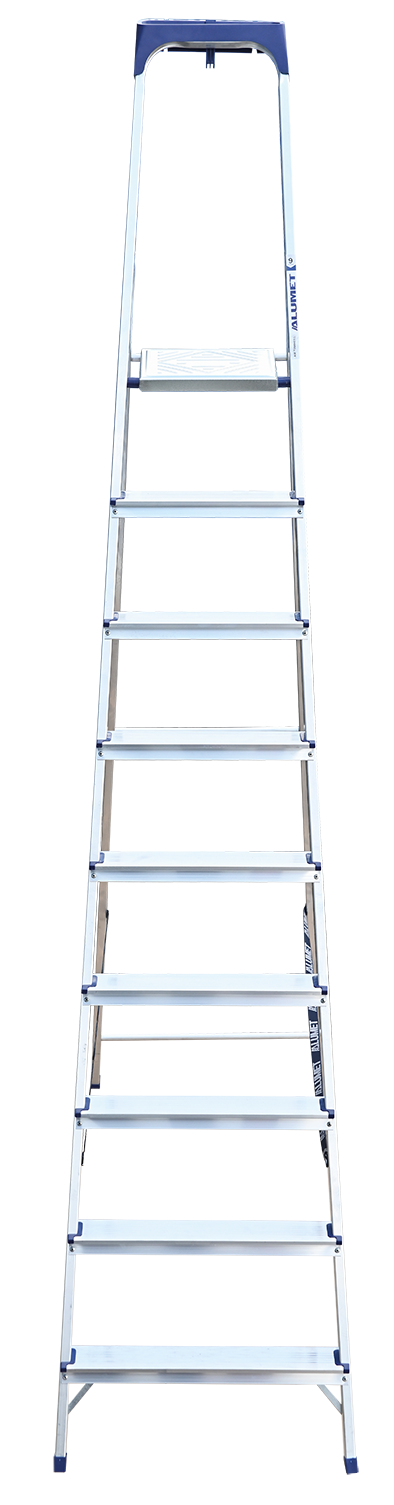

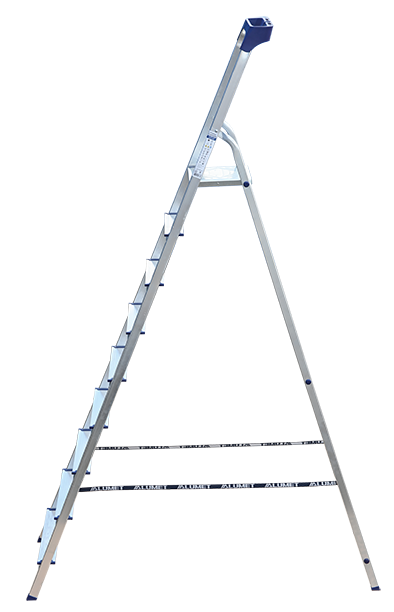

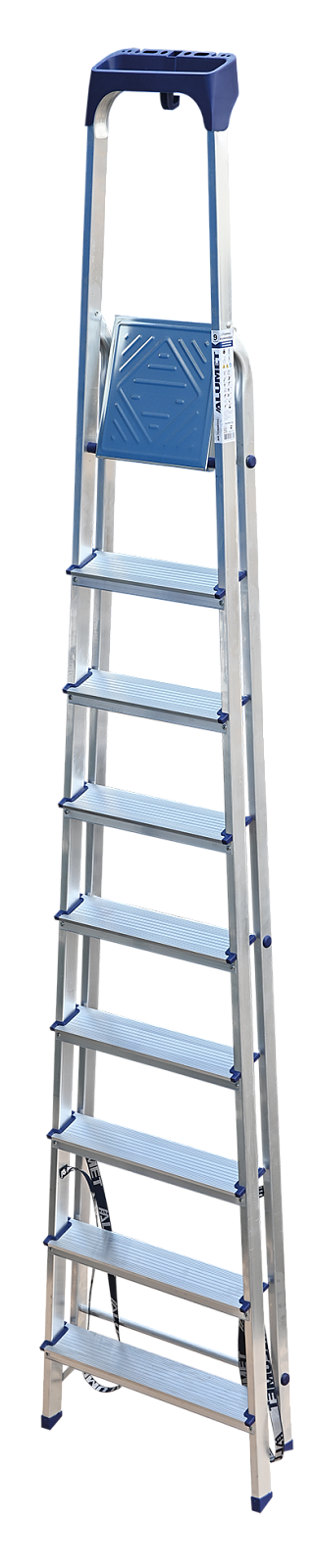

AM 709AK011

Vendor code AM 709AK011
Number of steps 1x9
Height when folded 2.74
Height to top platform 1.87
Working height 3.97
Width 0.56

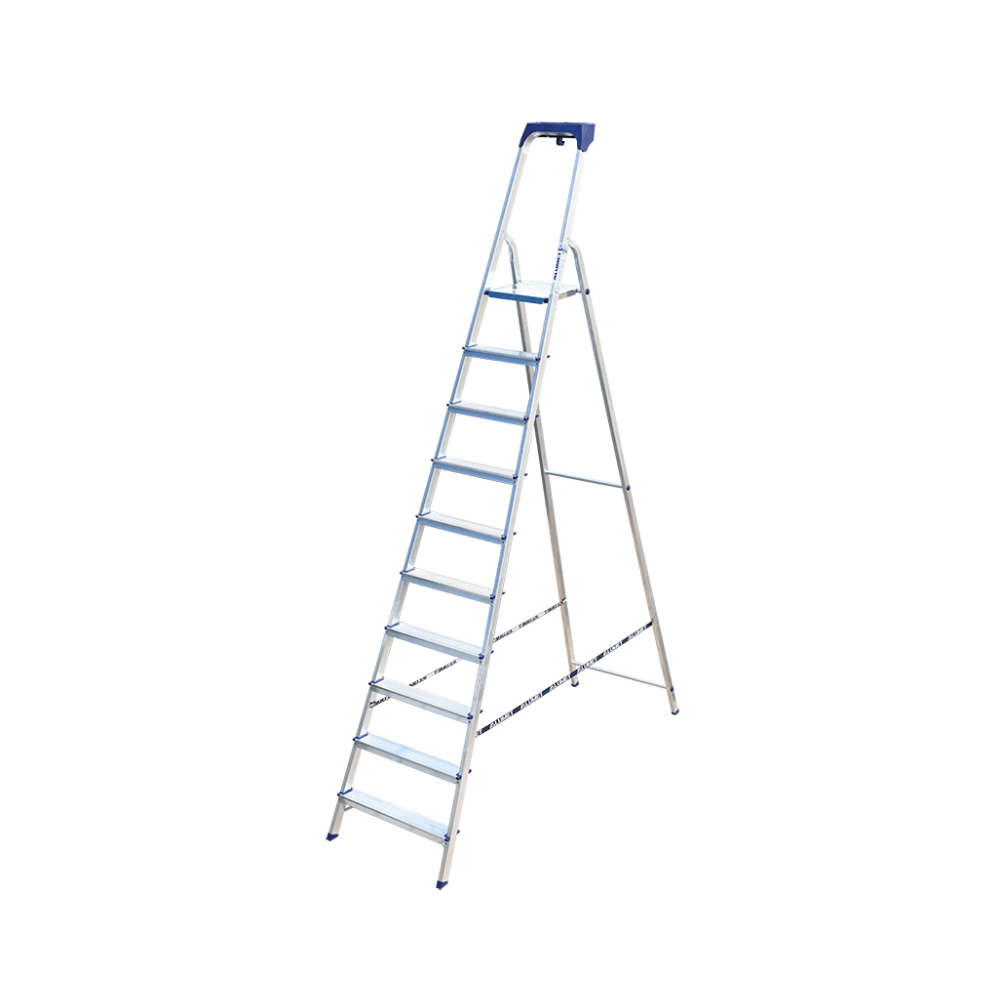

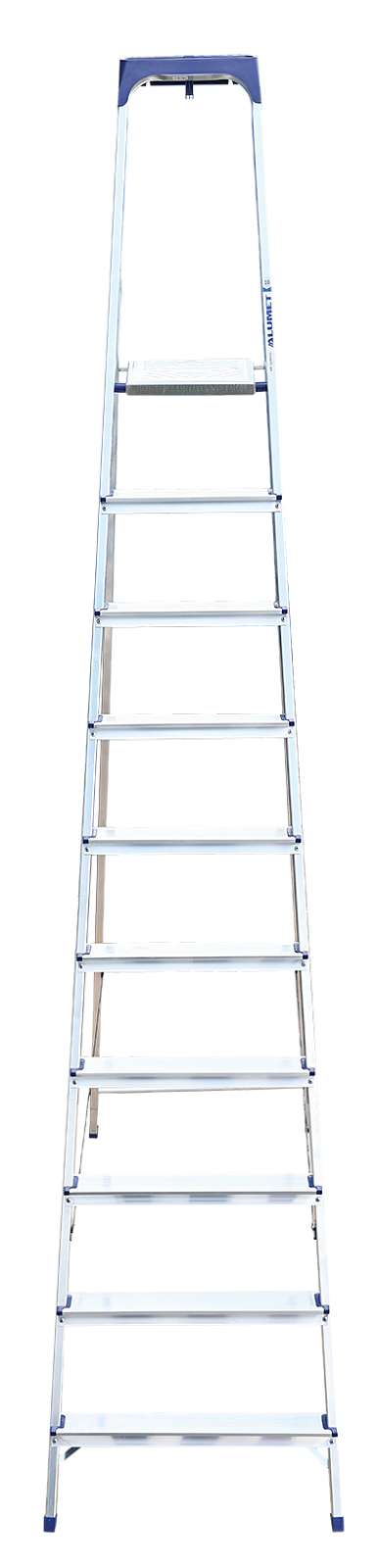

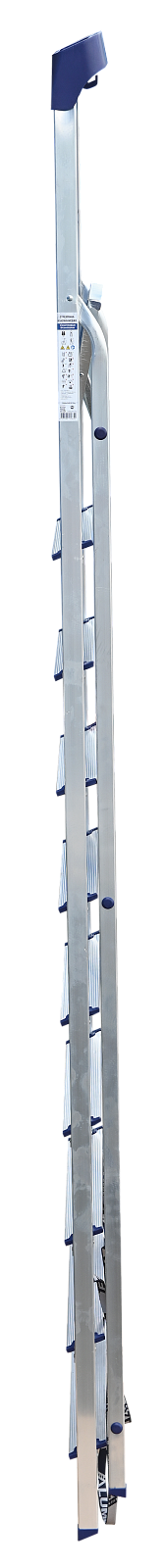

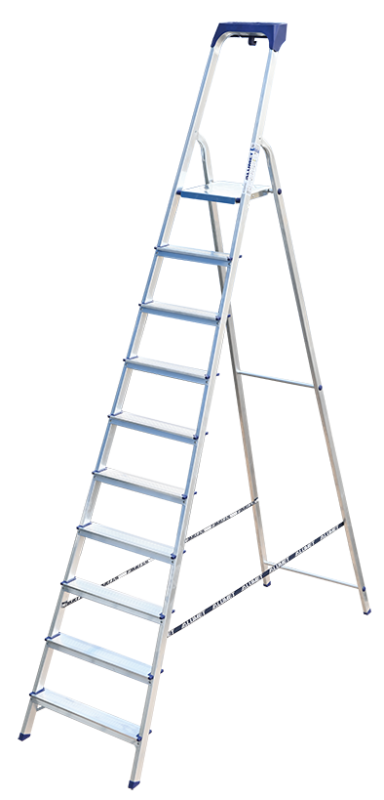

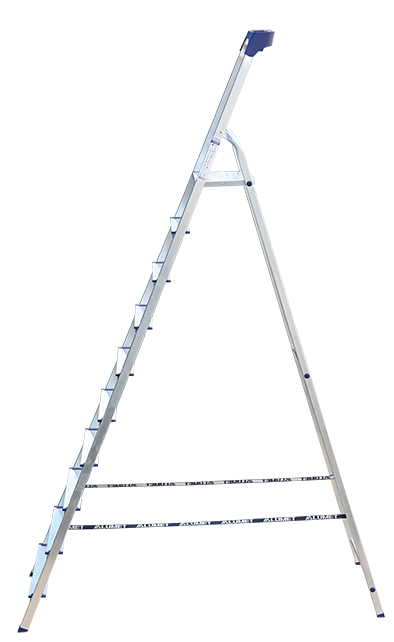

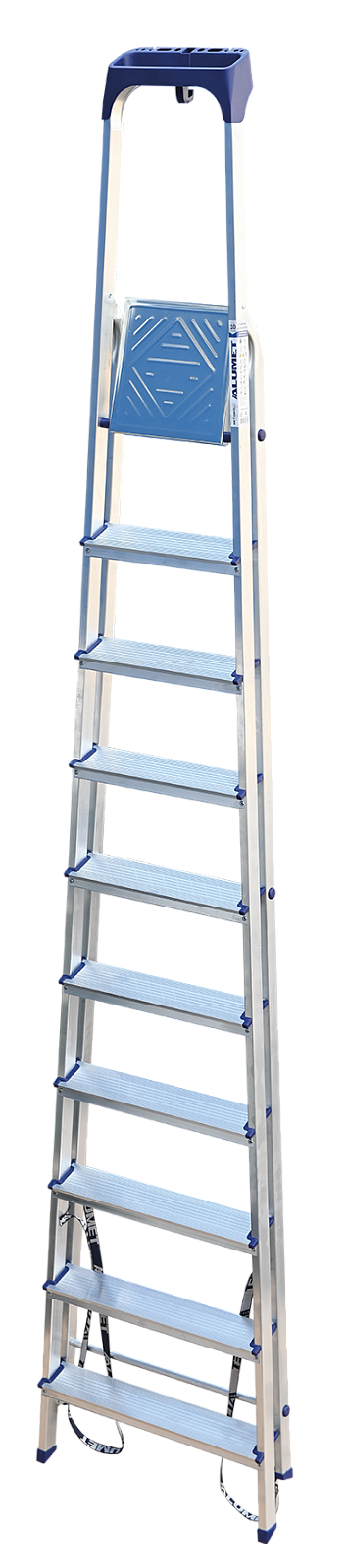

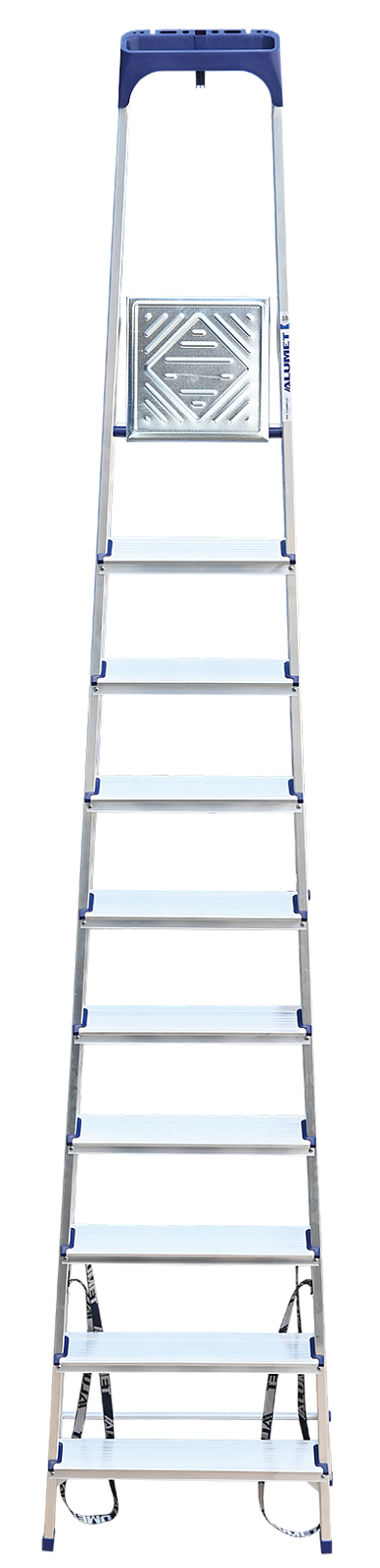

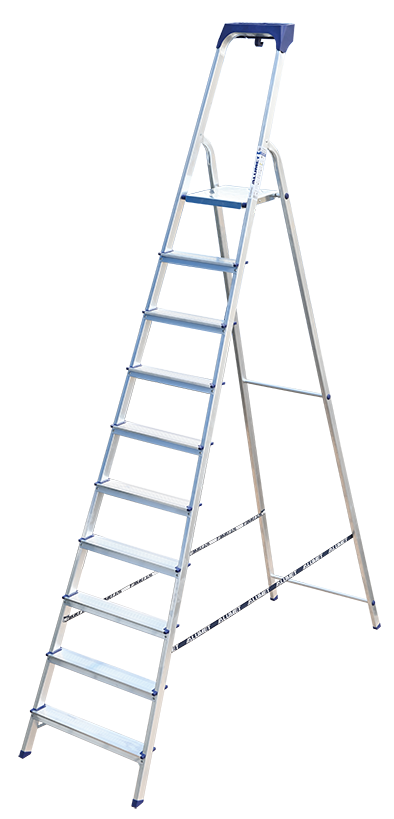

AM 710AK011

Vendor code AM 710AK011
Number of steps 1x10
Height when folded 2.97
Height to top platform 2.09
Working height 4.19
Width 0.59

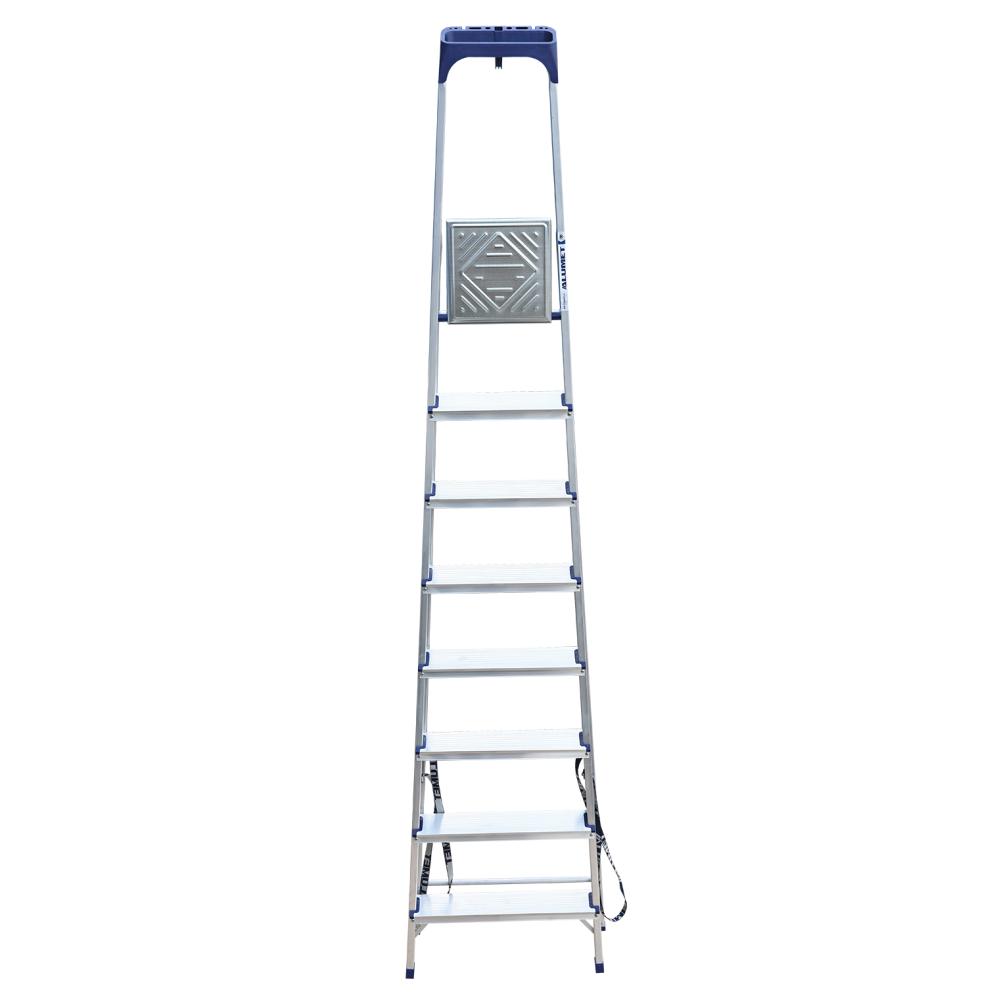

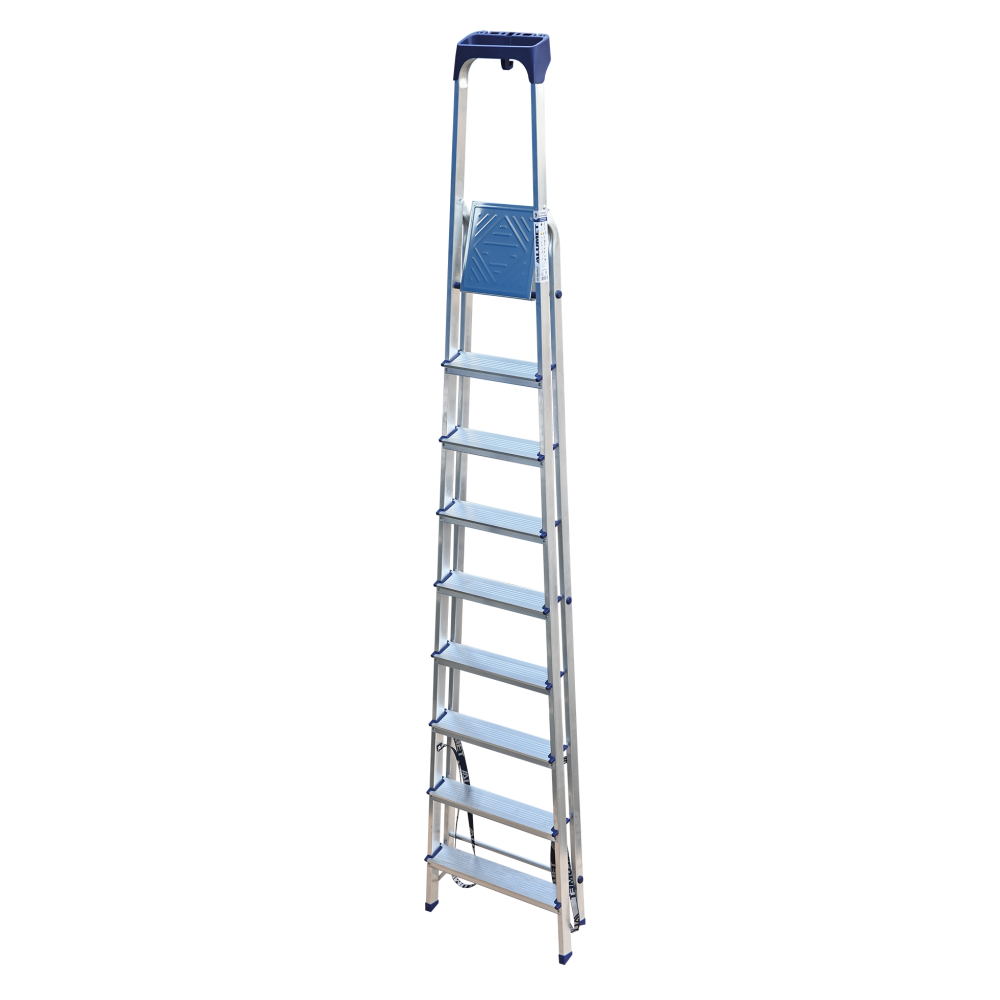

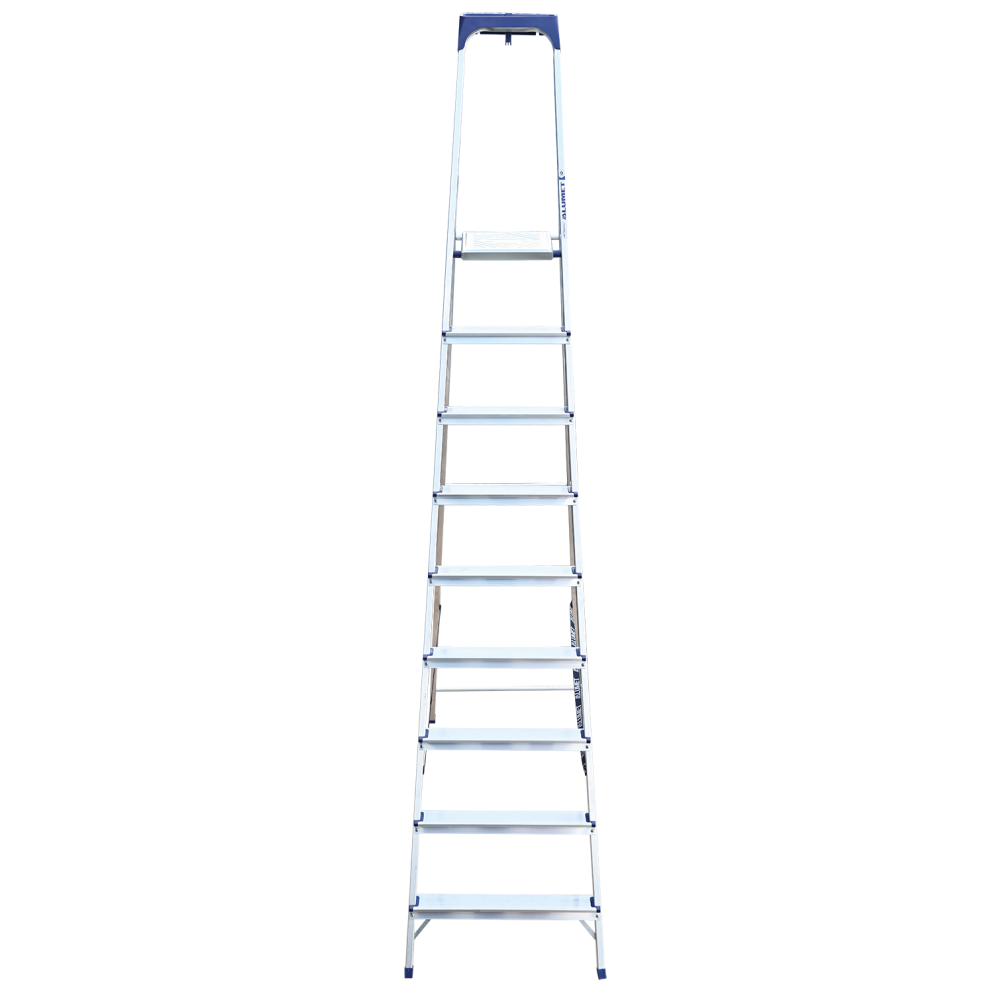

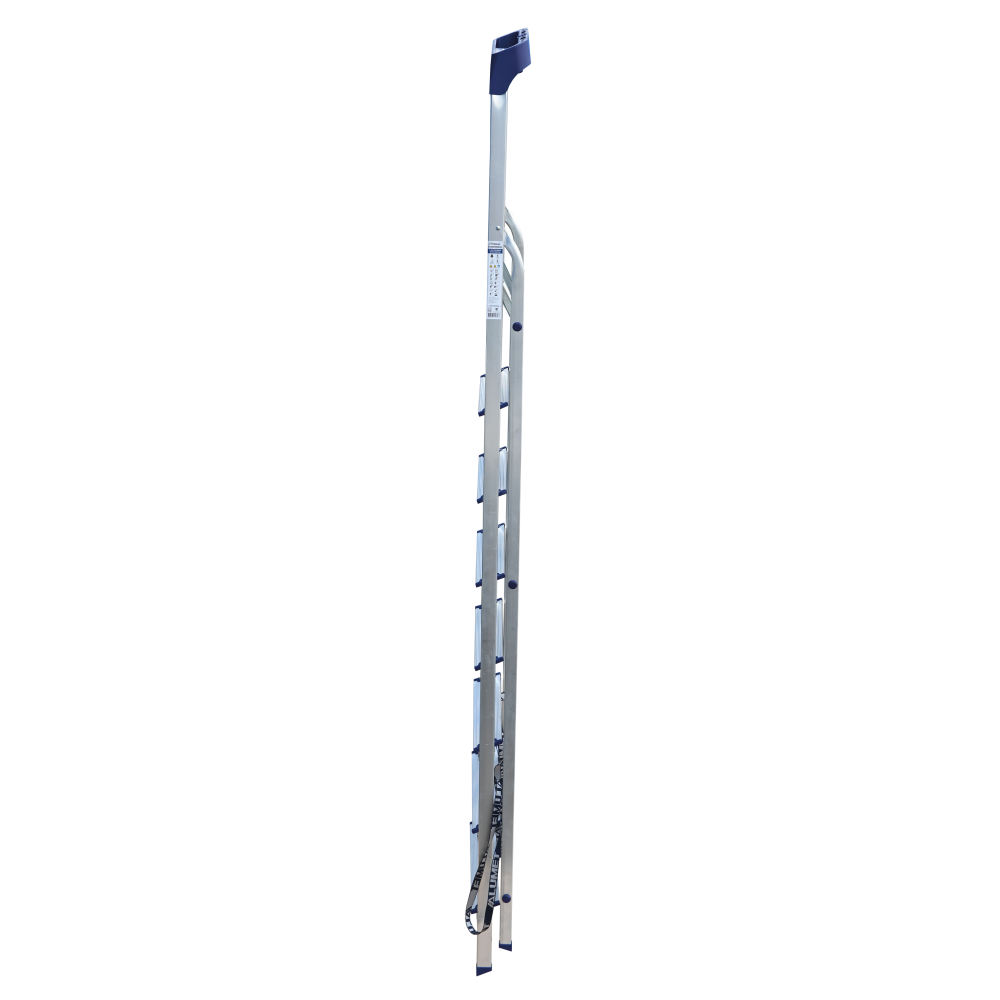

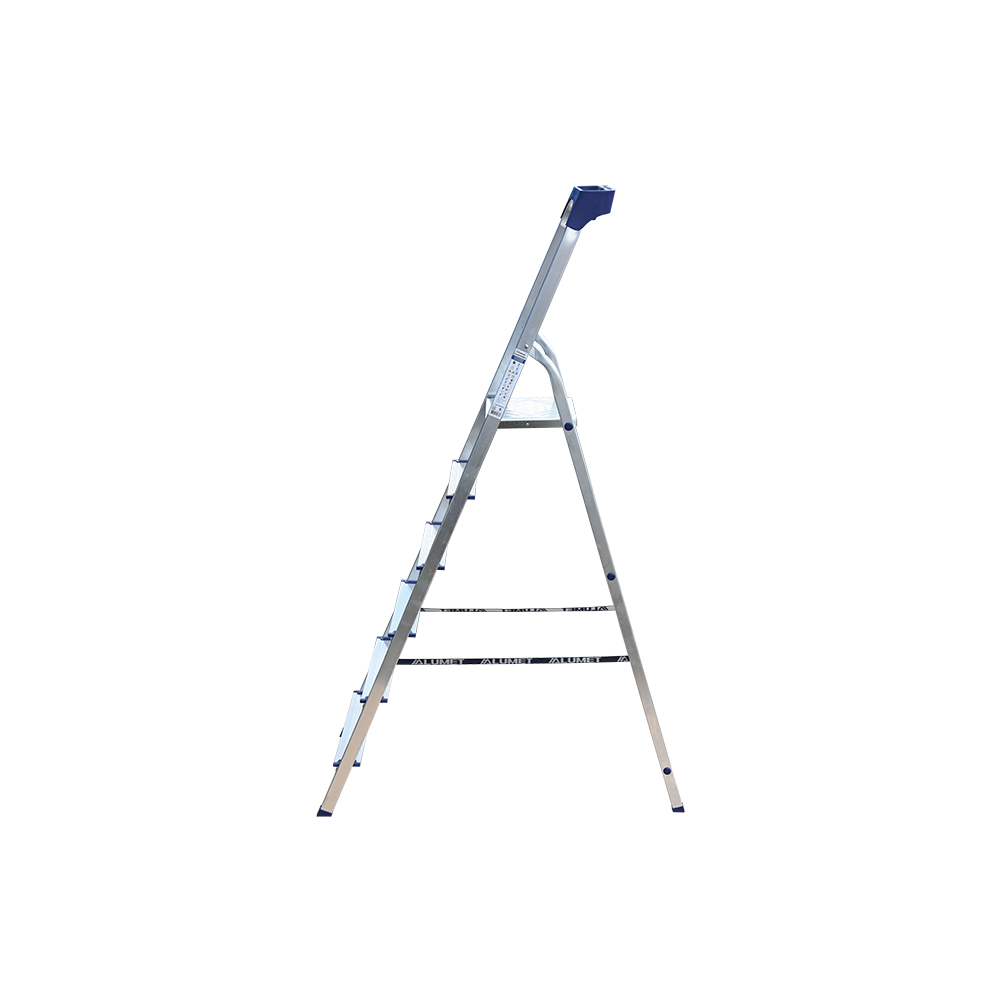

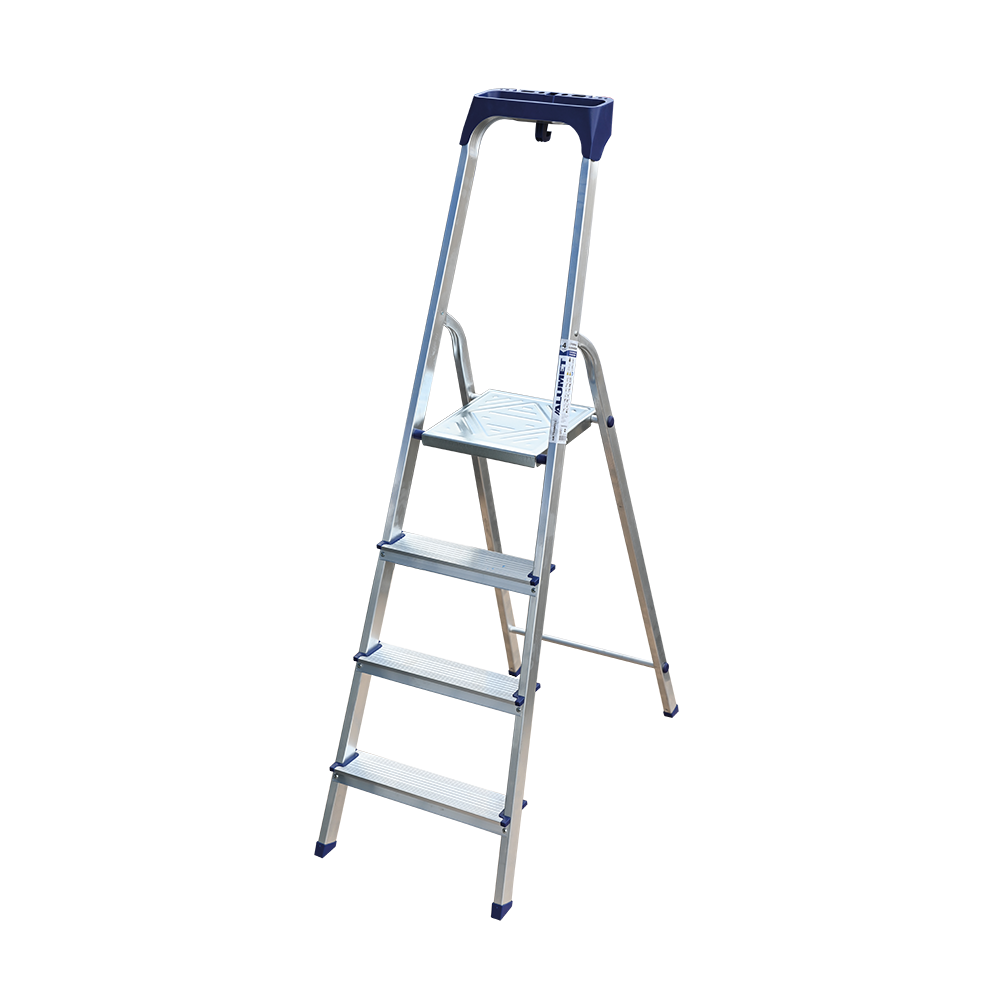

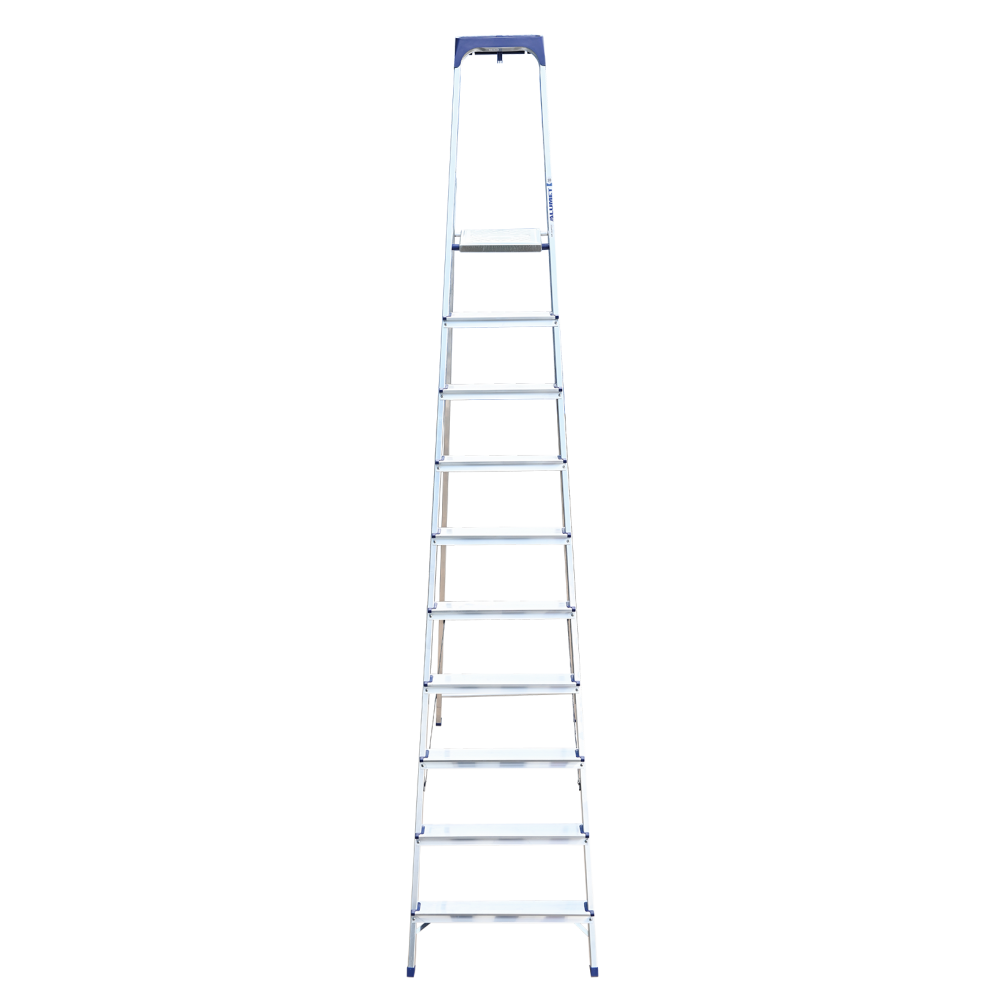

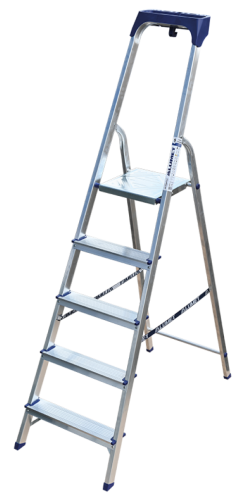

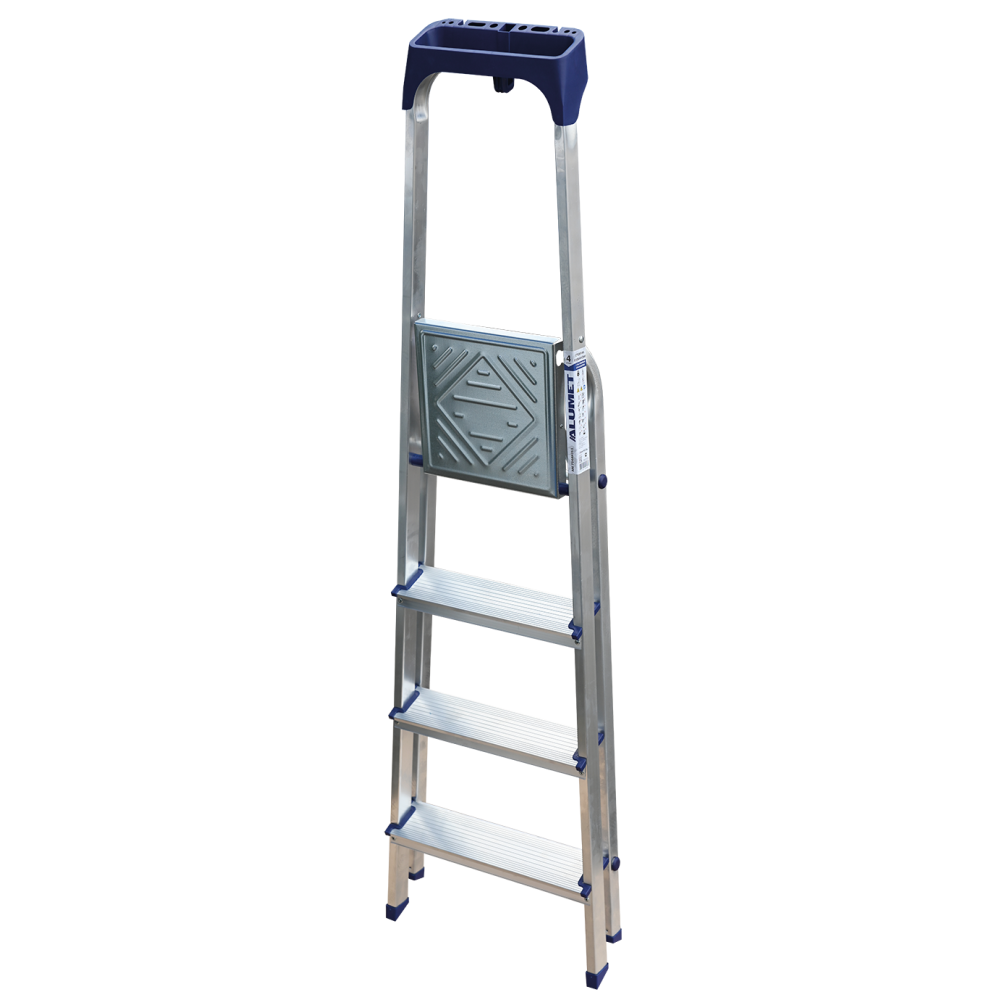

The step ladder is a self-supporting portable ladder, tapering off to the top, having a front side (a front foot), a support side (a support foot), and a work platform and spreading out for a specific task. The safety rail is structurally made in conjunction with the front side. The aluminum step ladder is made of high-strength aluminum shape. The back and front legs are interconnected. The work platform is made of galvanized steel. The rungs have a serrated surface. The shoes are made of high strength plastic. The step ladder in the working position is secured by the work platform; and for step ladders with five rungs and higher – by safety ropes. The number of rungs – from 3 to 10. АМ 7xxAK011 series aluminum step ladder is designed for various types of domestic and industrial work at a height of up to 4 m. It should be noted that the production of step ladders has been automated, which excluded the influence of the ‘human error’ on product quality. At the same time, the step ladders acquired additional strength, increased reliability and durability.

Technical specifications

Vendor code	Number of steps	Height when folded	Height to top platform	Working height	Width	Weight
AM 703AK011	1x3	1.36	0.60	2.70	0.42	3.0
AM 704AK011	1x4	1.59	0.82	2.92	0.44	3.5
AM 705AK011	1x5	1.82	1.03	3.13	0.46	3.9
AM 706AK011	1x6	2.05	1.24	3.34	0.49	4.8
AM 707AK011	1x7	2.28	1.45	3.55	0.51	5.6
AM 708AK011	1x8	2.51	1.66	3.76	0.54	6.1
AM 709AK011	1x9	2.74	1.87	3.97	0.56	7.3
AM 710AK011	1x10	2.97	2.09	4.19	0.59	8.0

Aluminum stepladder with plastic organizer
