TL ALUMET ladders - aluminum transformers

Aluminum Four Section Hinged Multipurpose Ladder (Transformer)

Product Features:

Profile: aluminum
Stage: aluminum

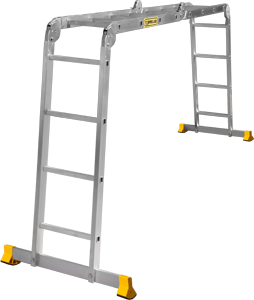

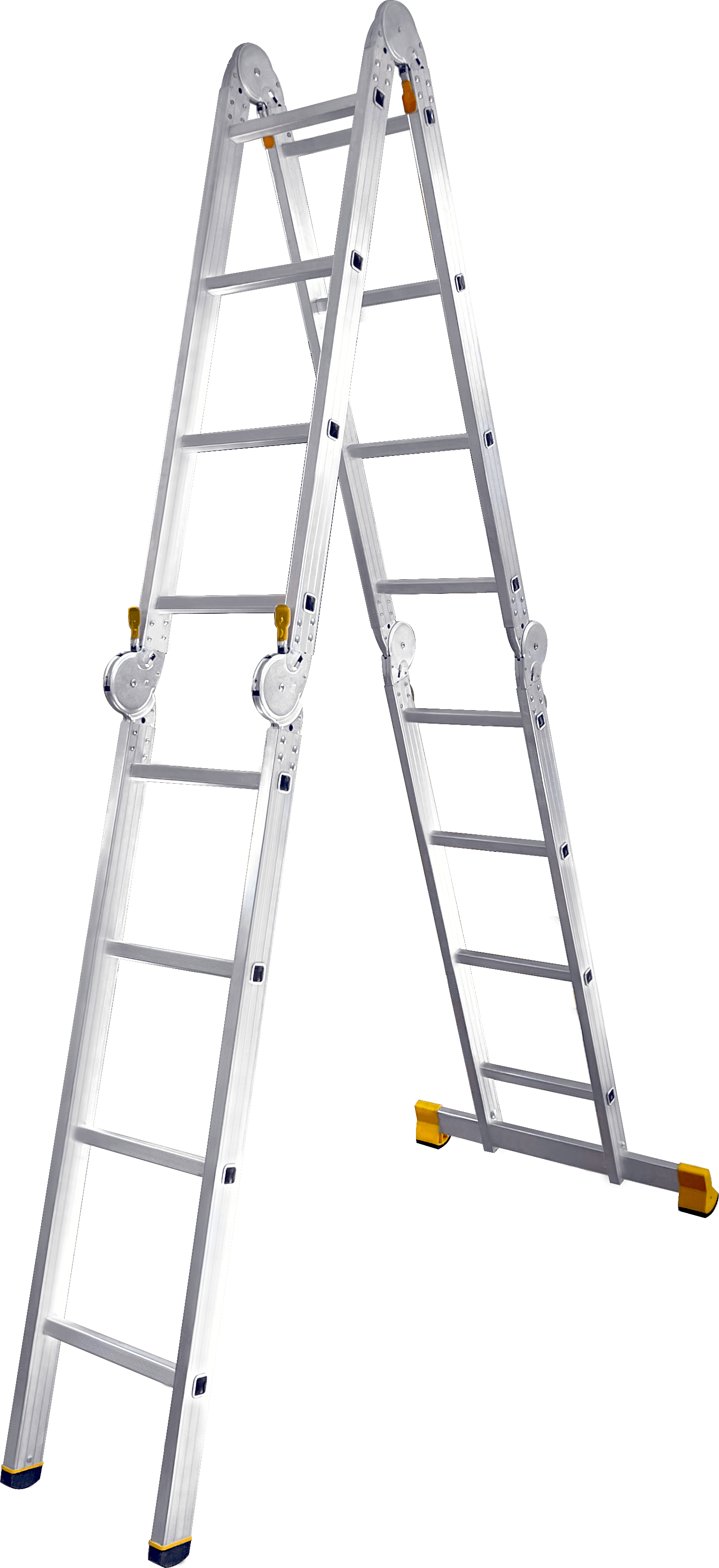

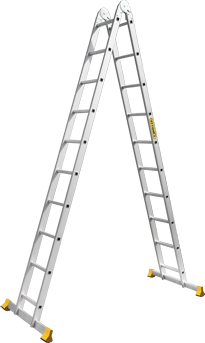

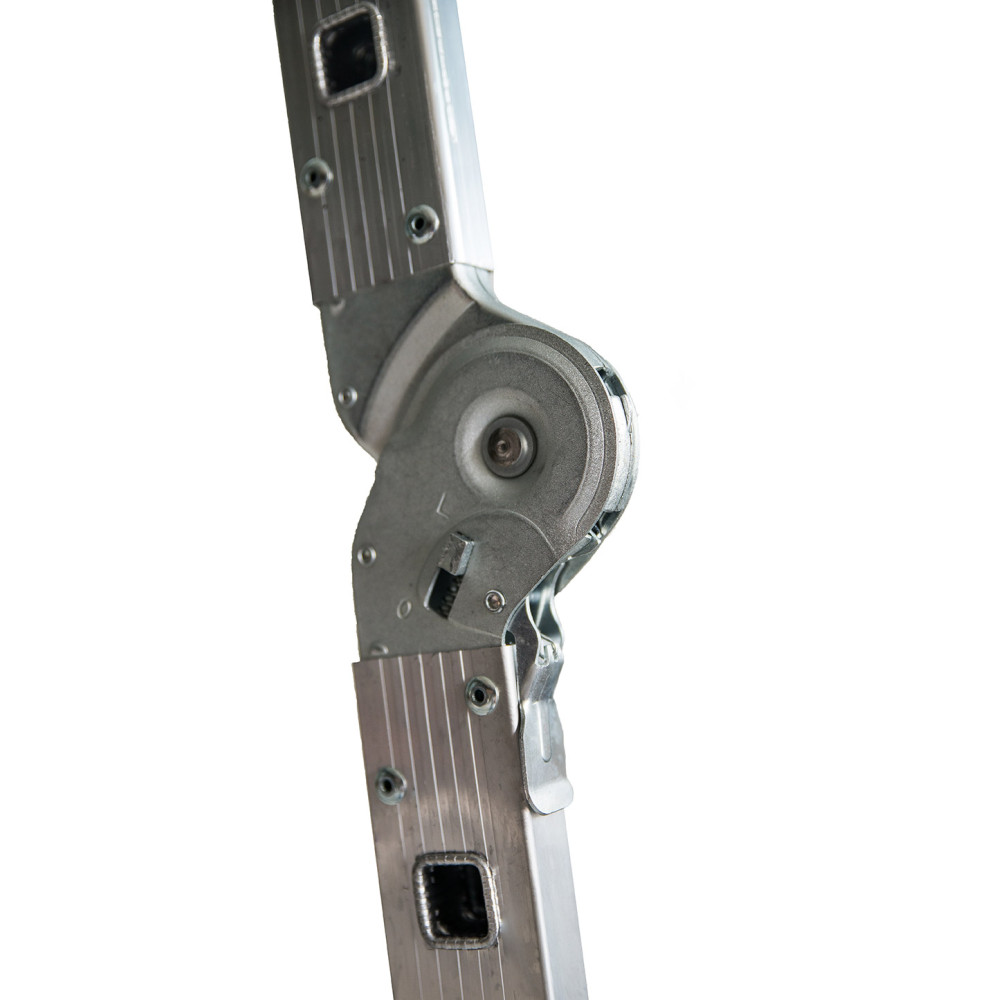

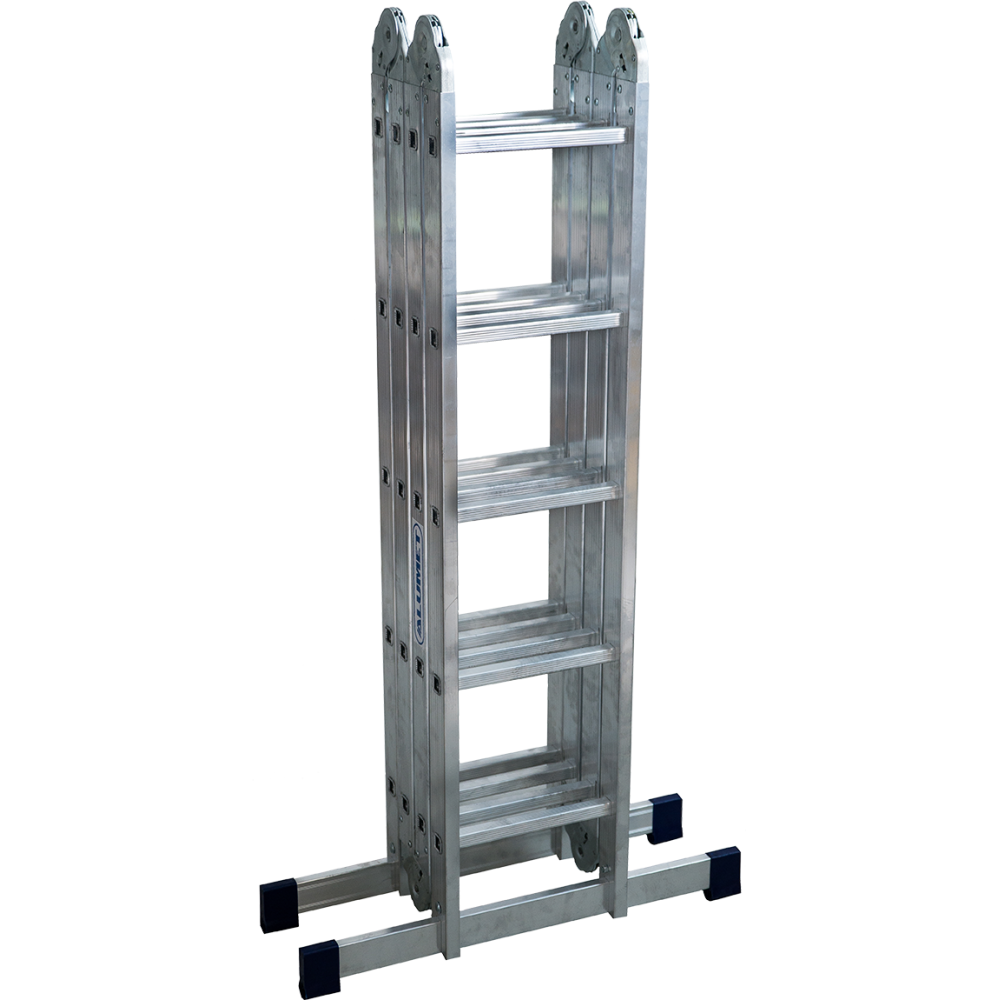

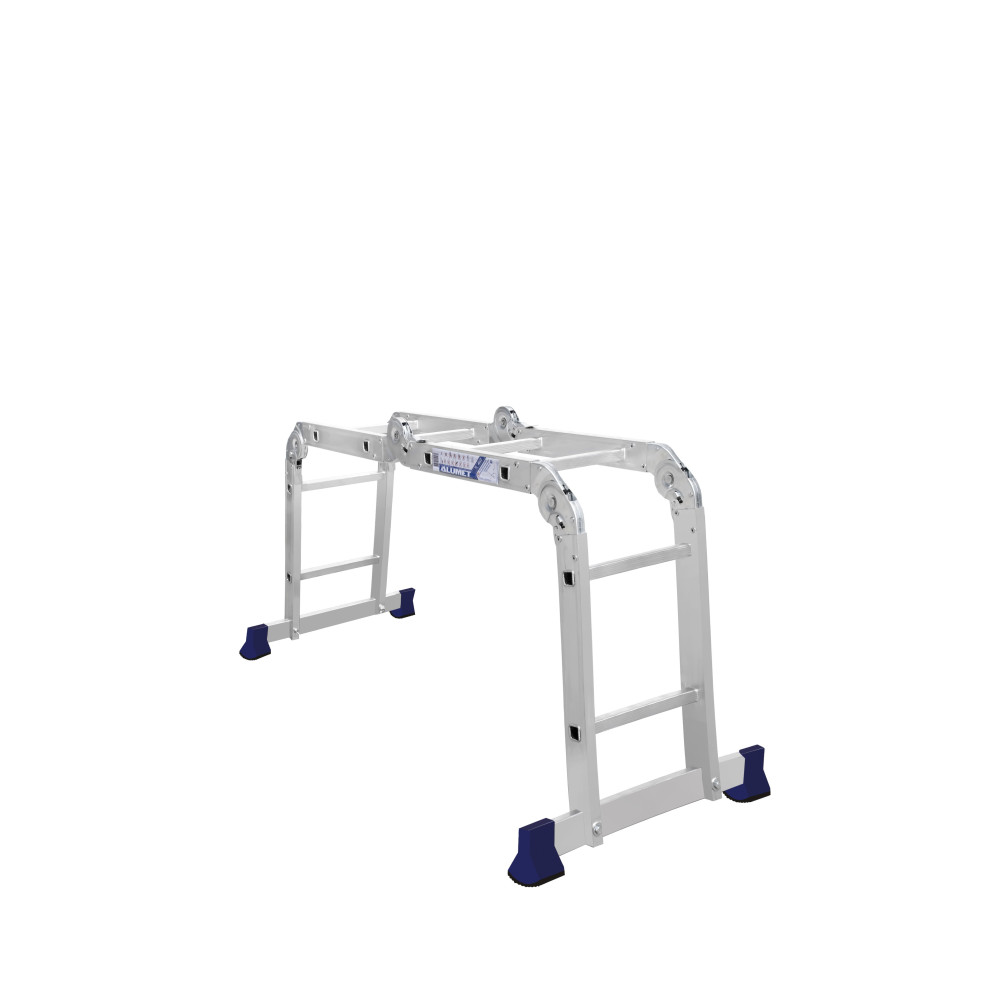

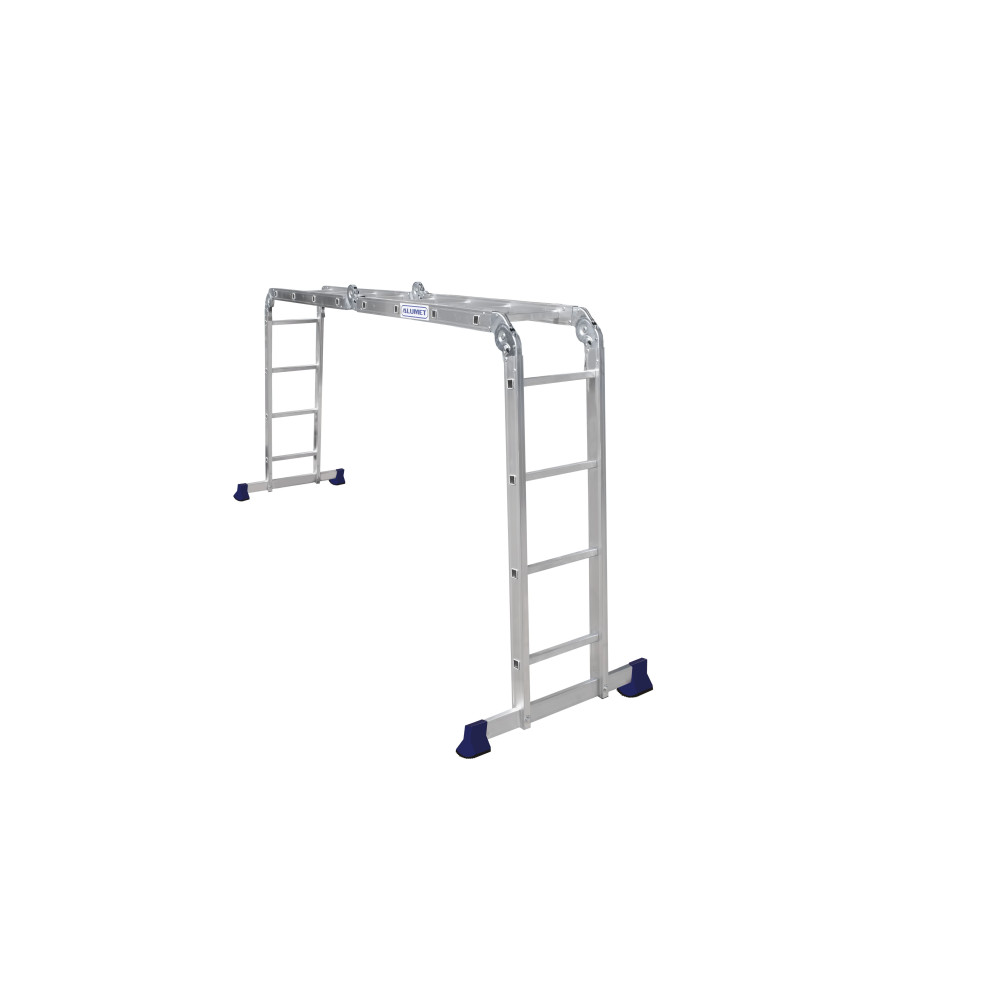

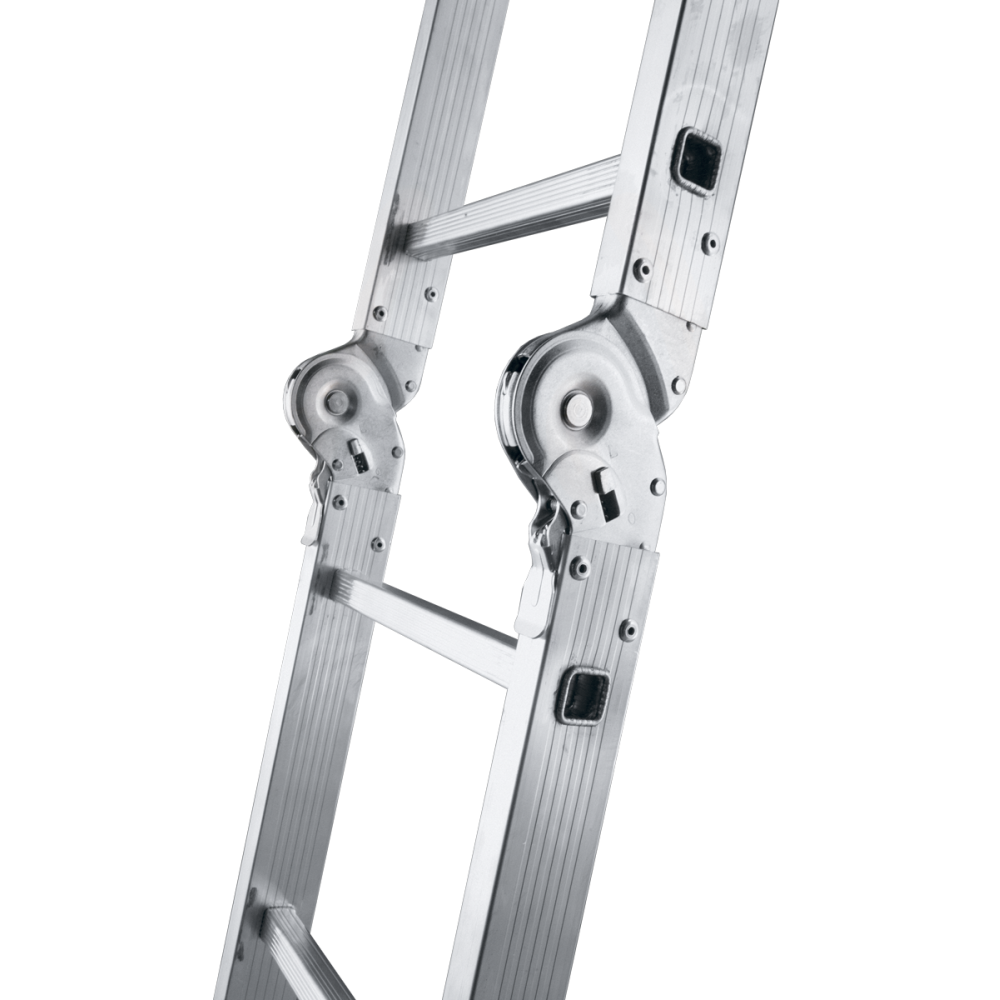

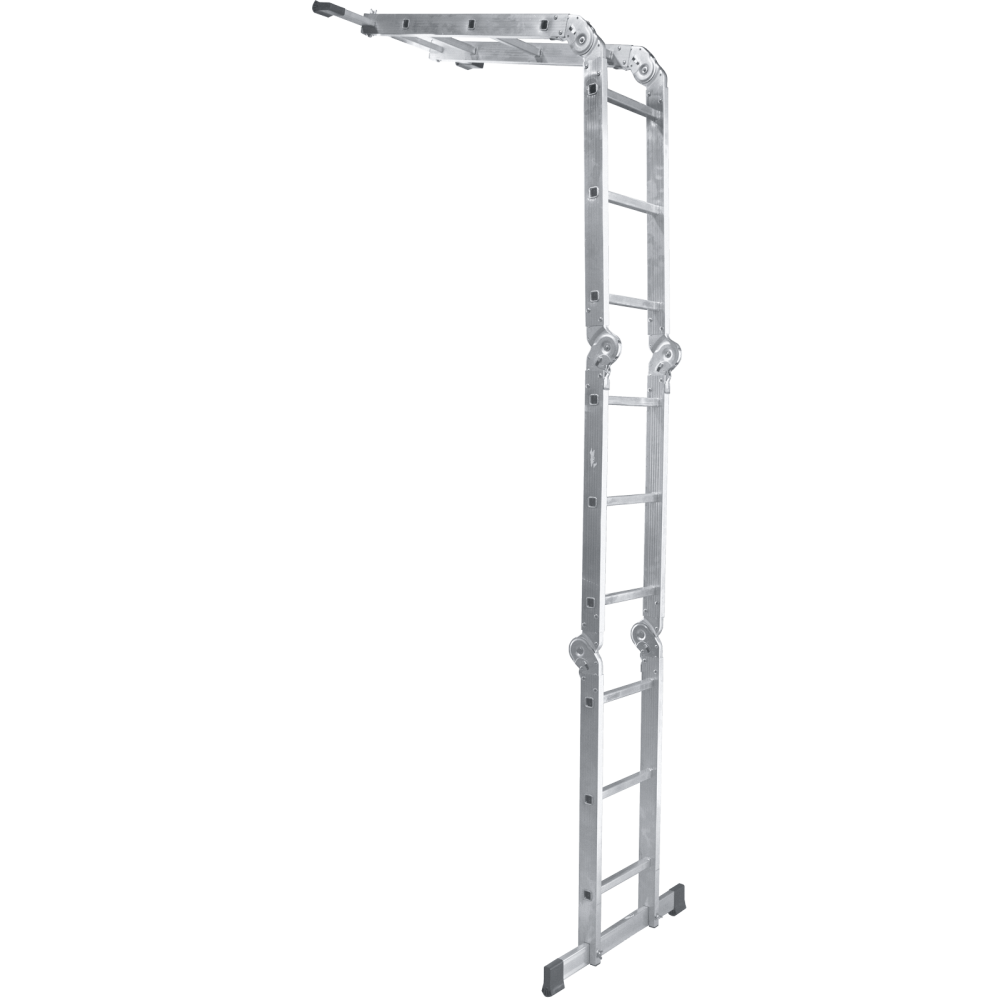

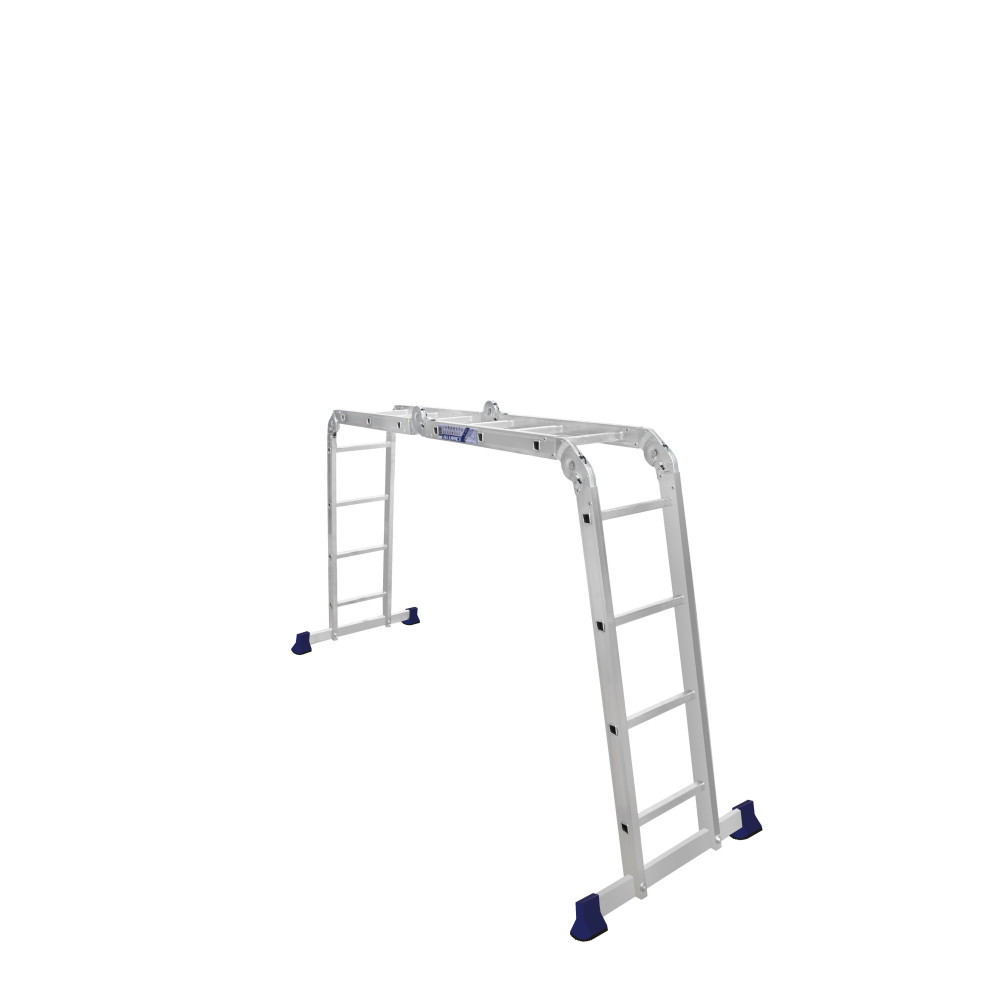

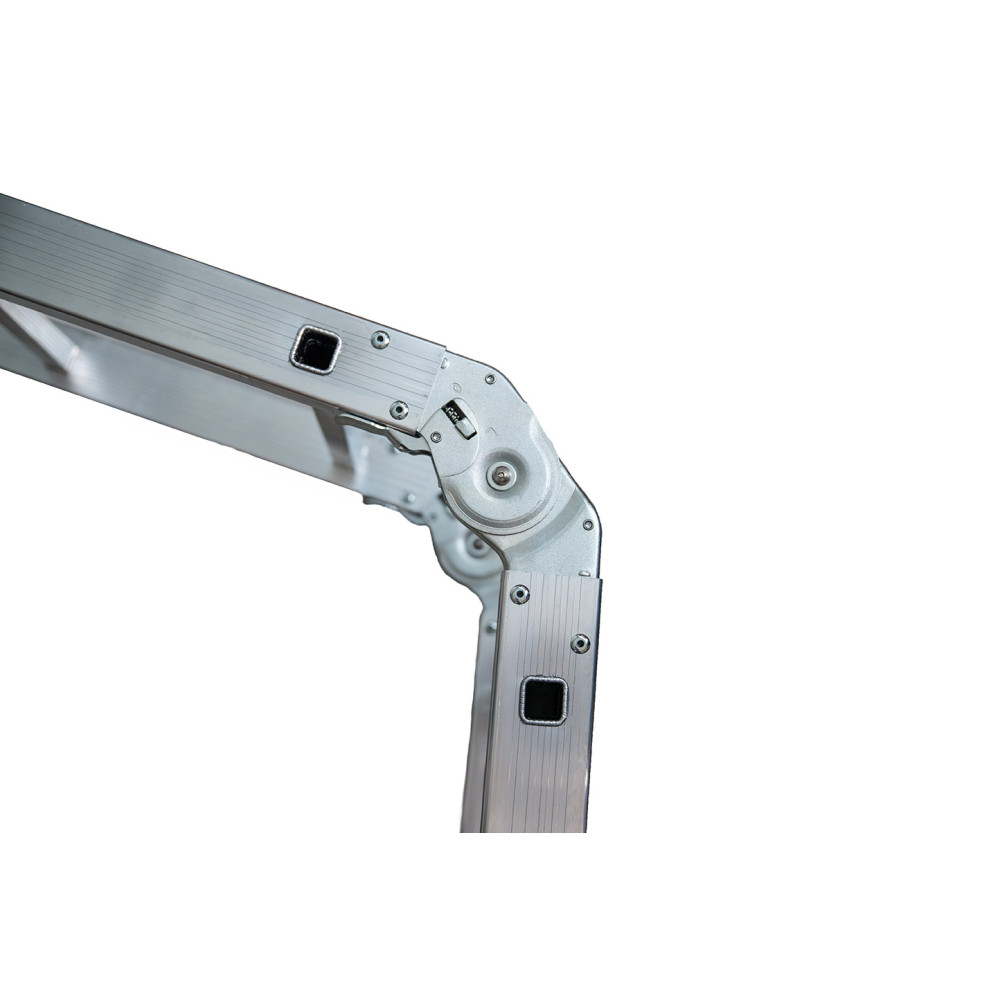

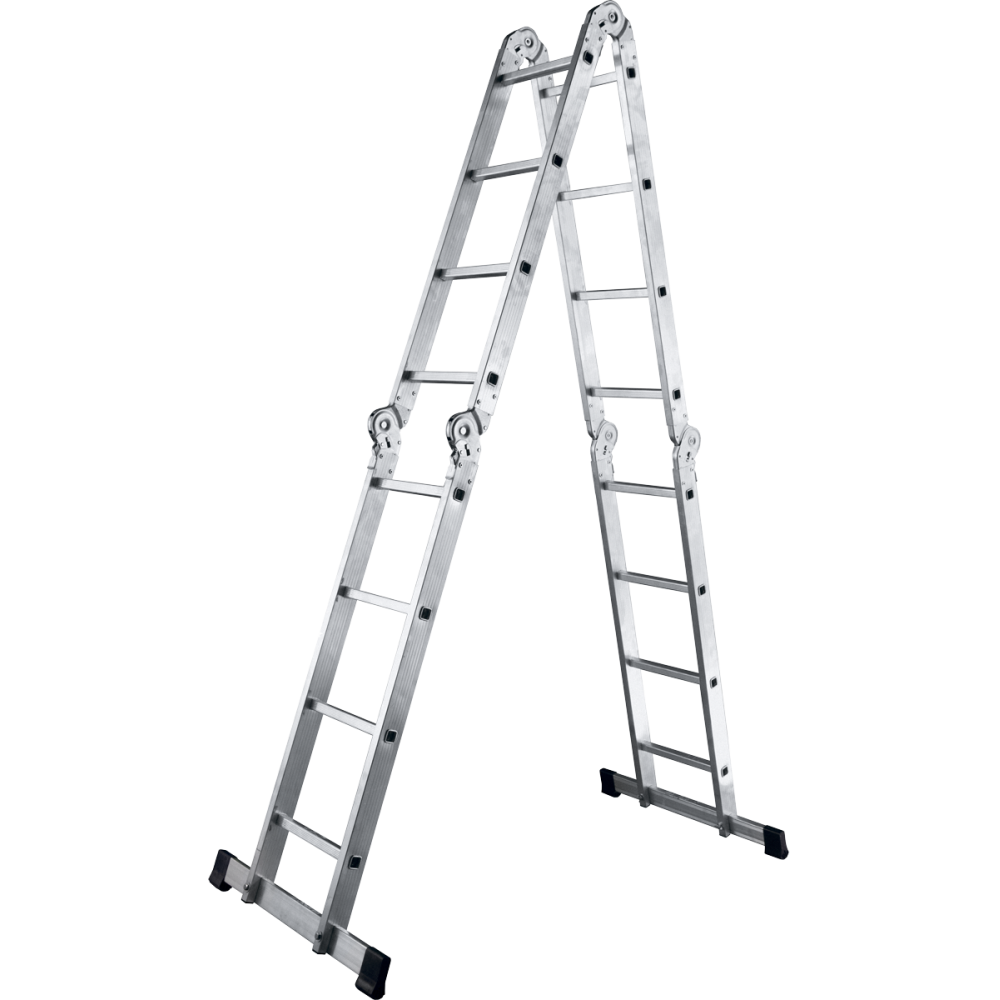

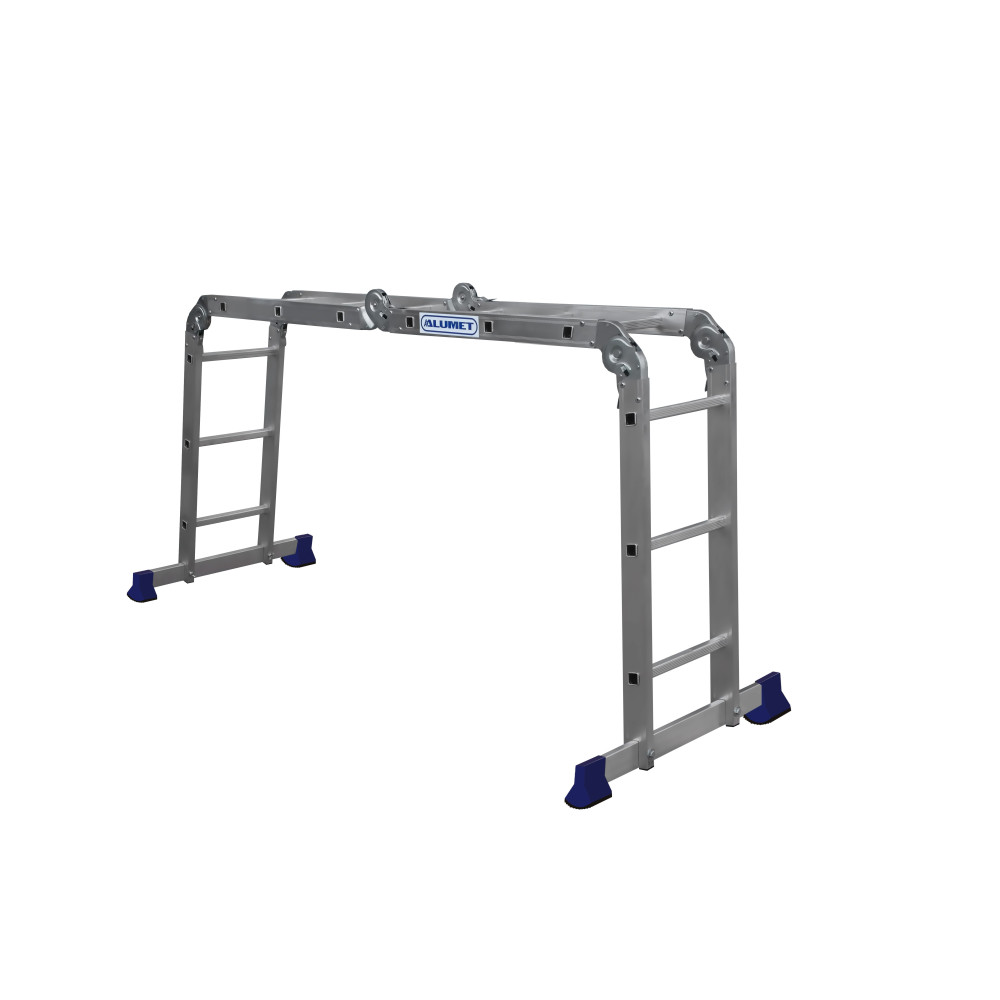

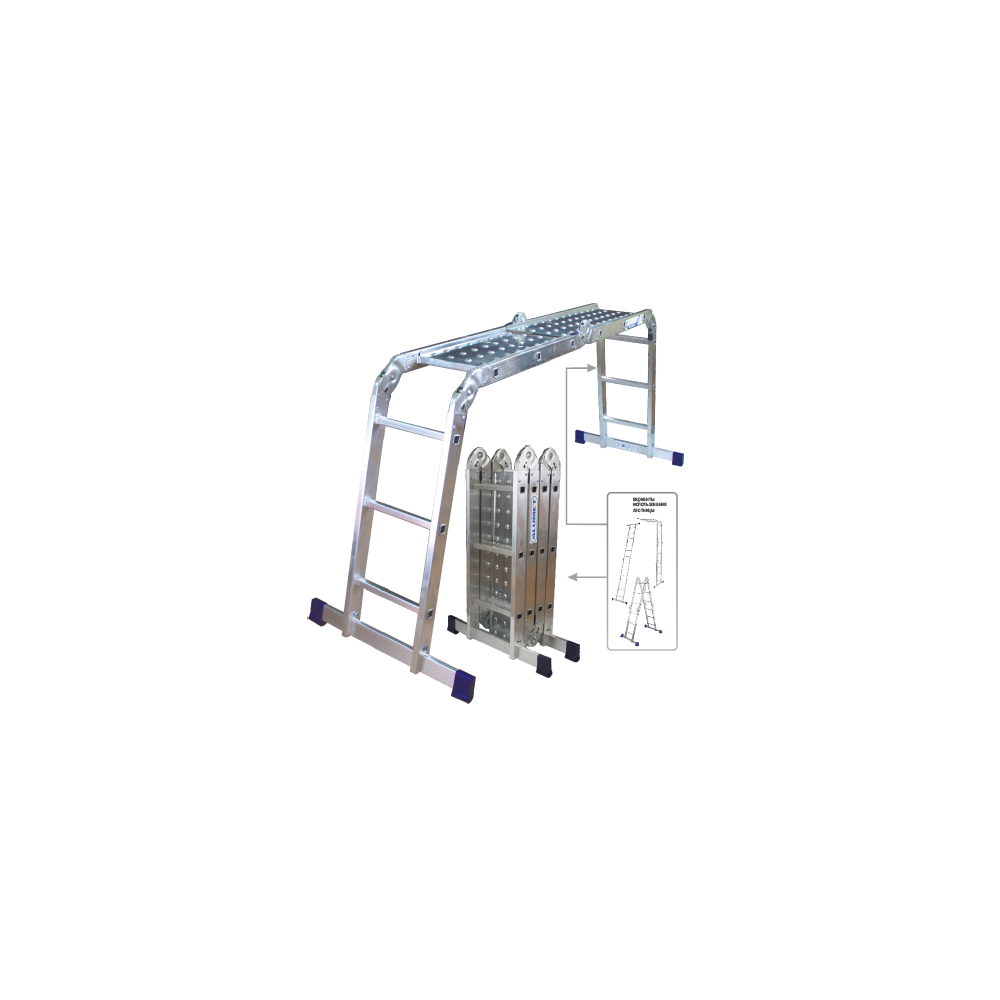

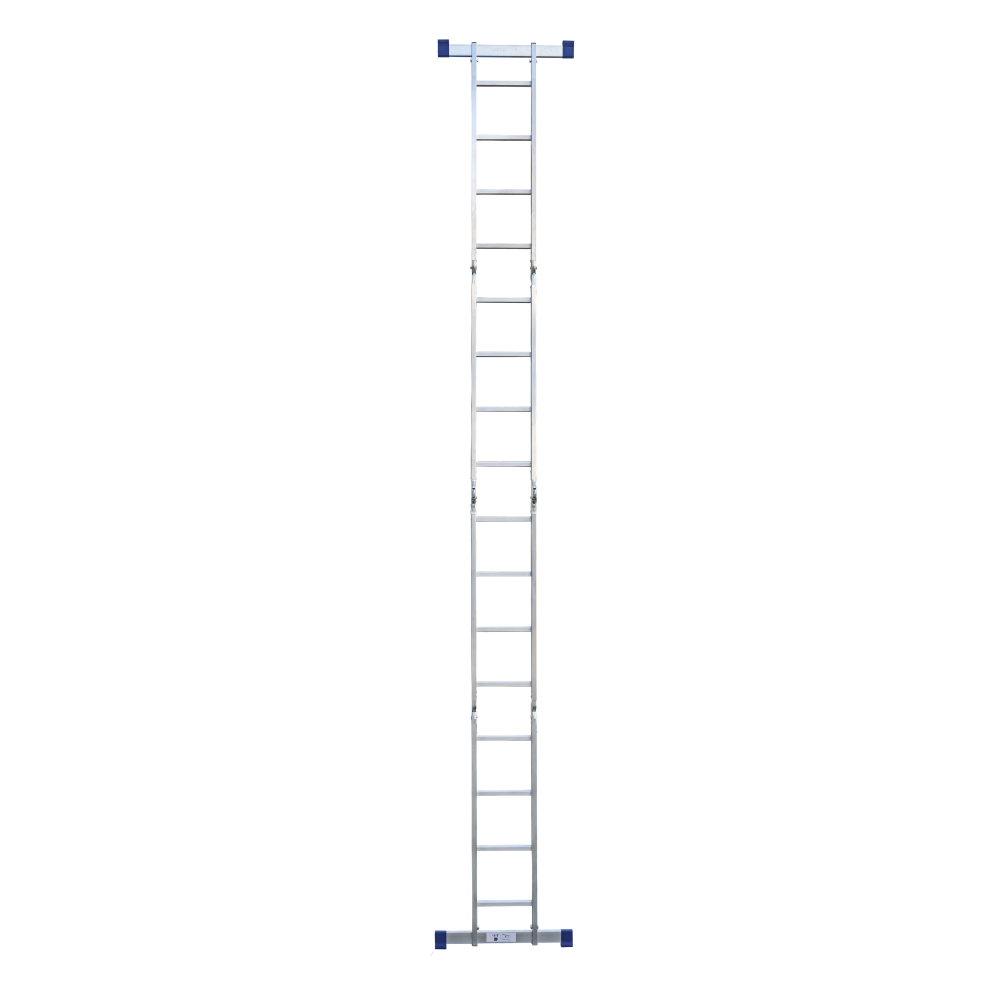

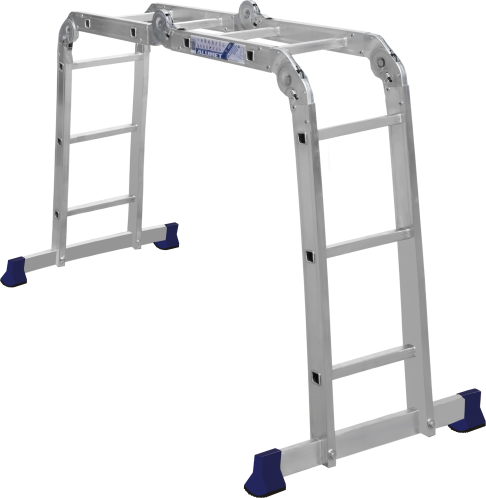

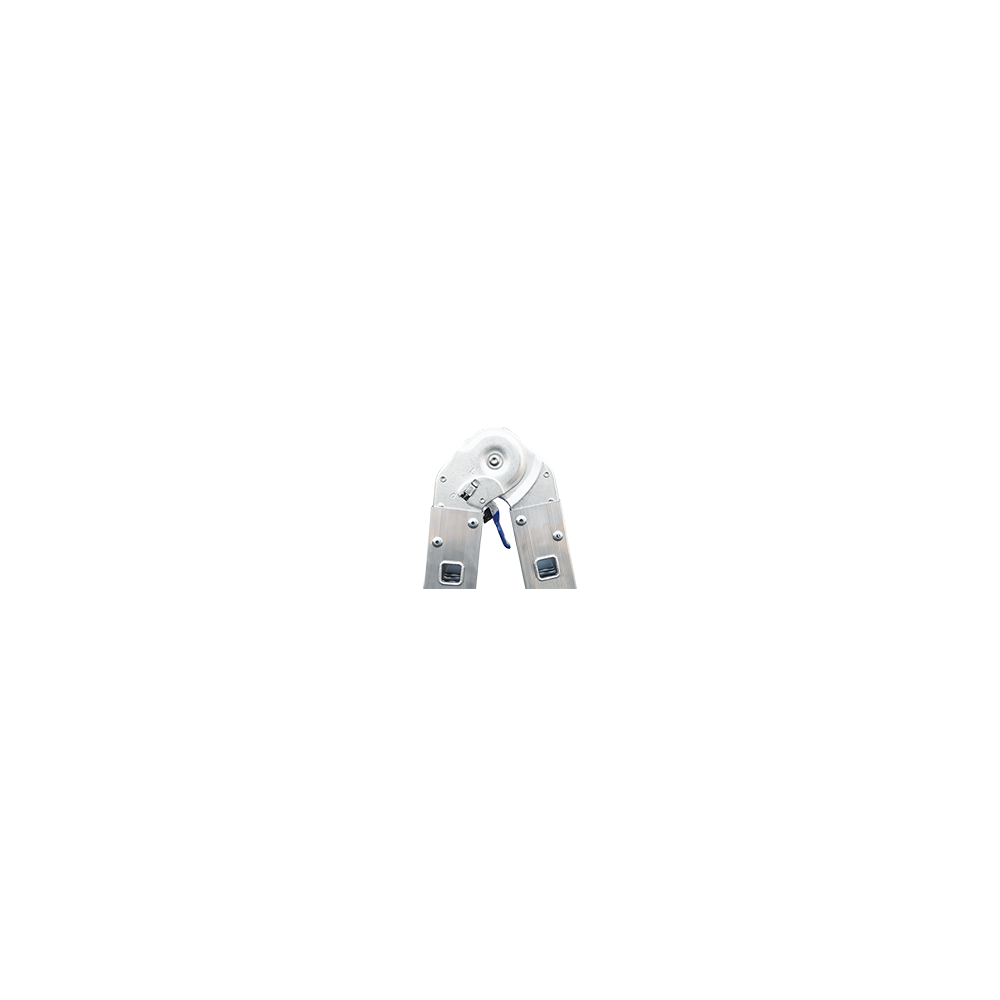

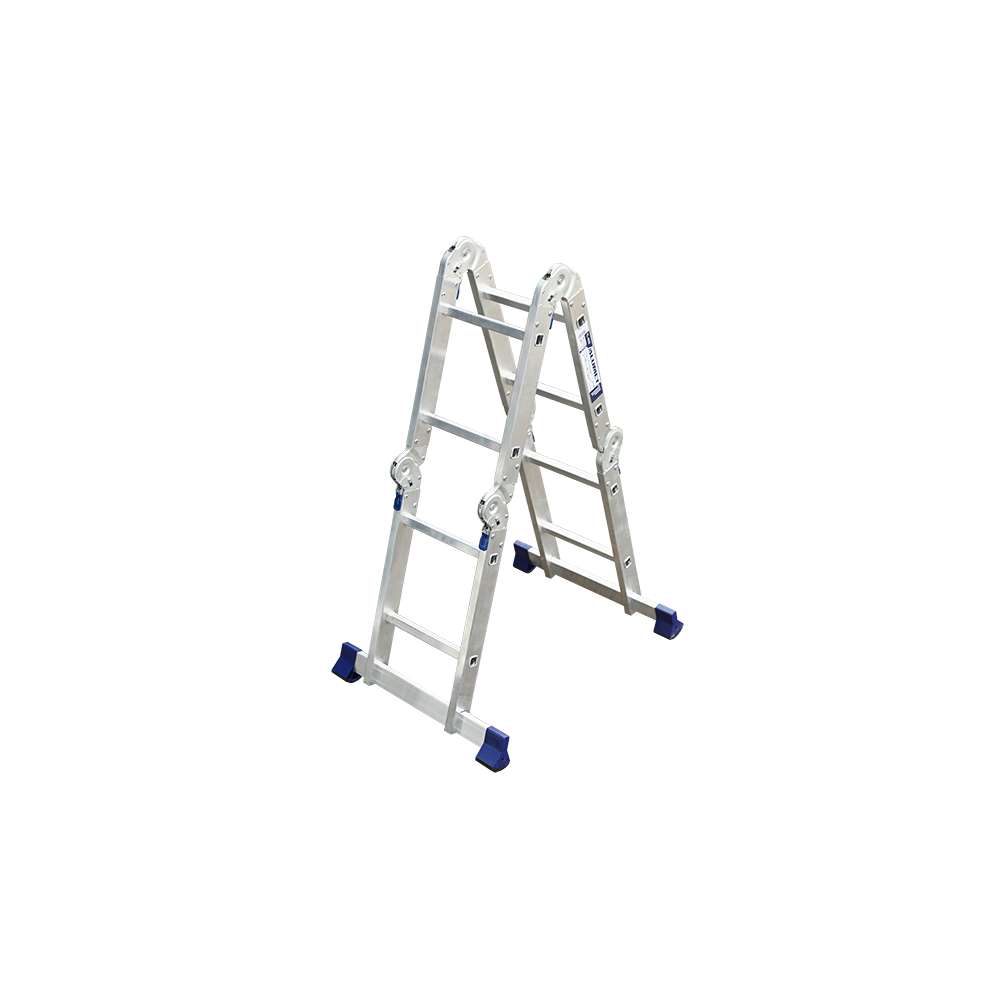

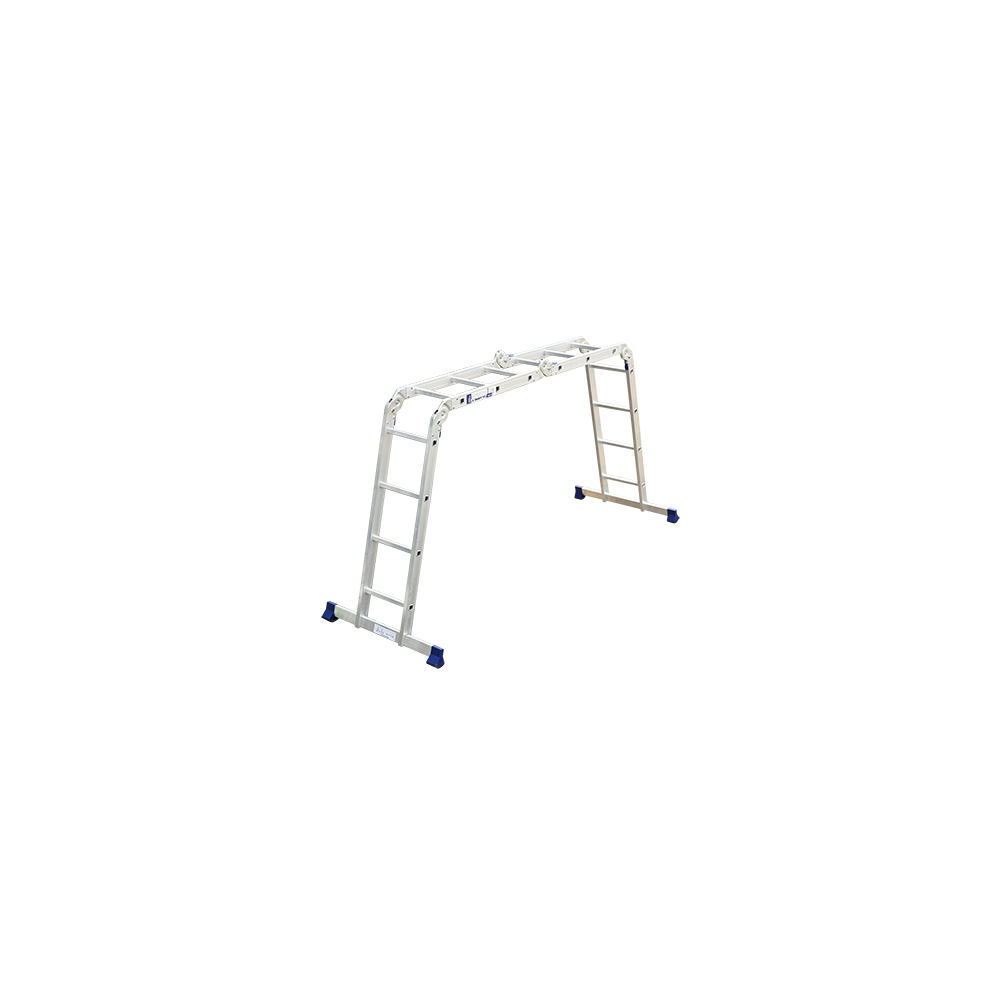

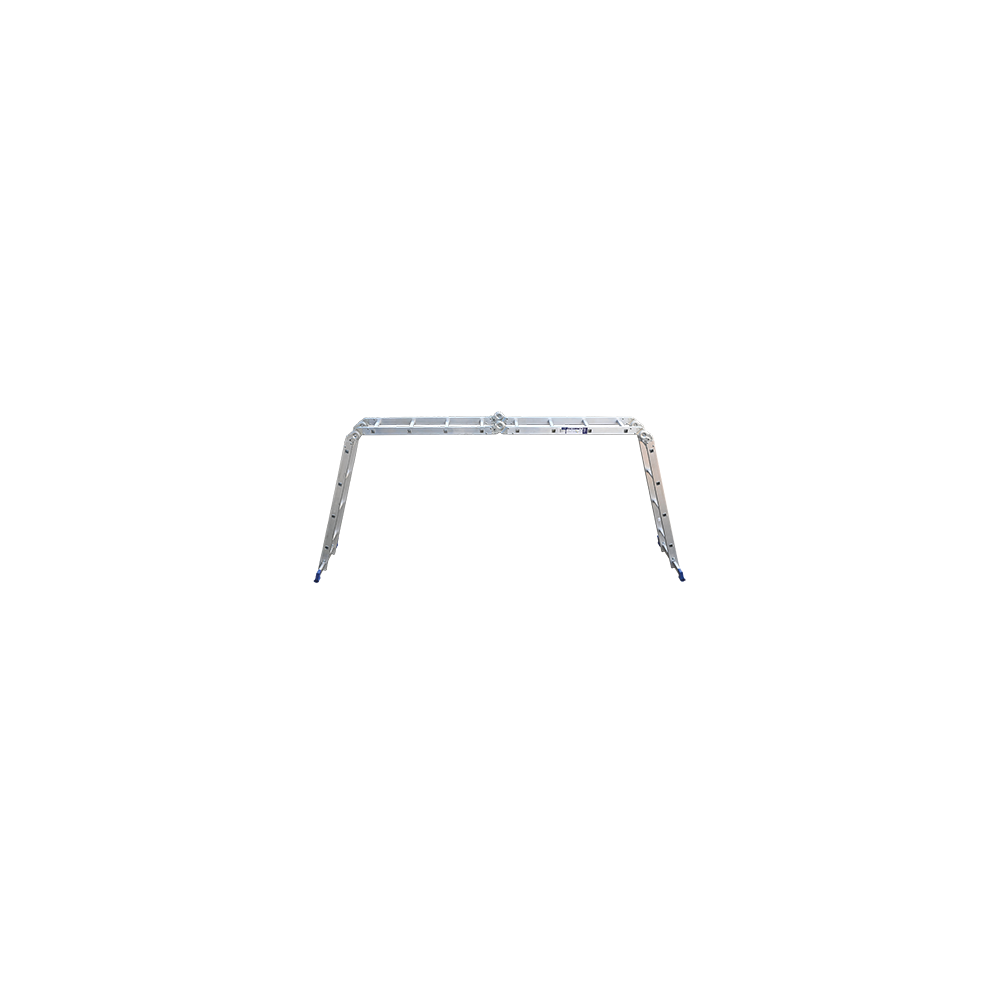

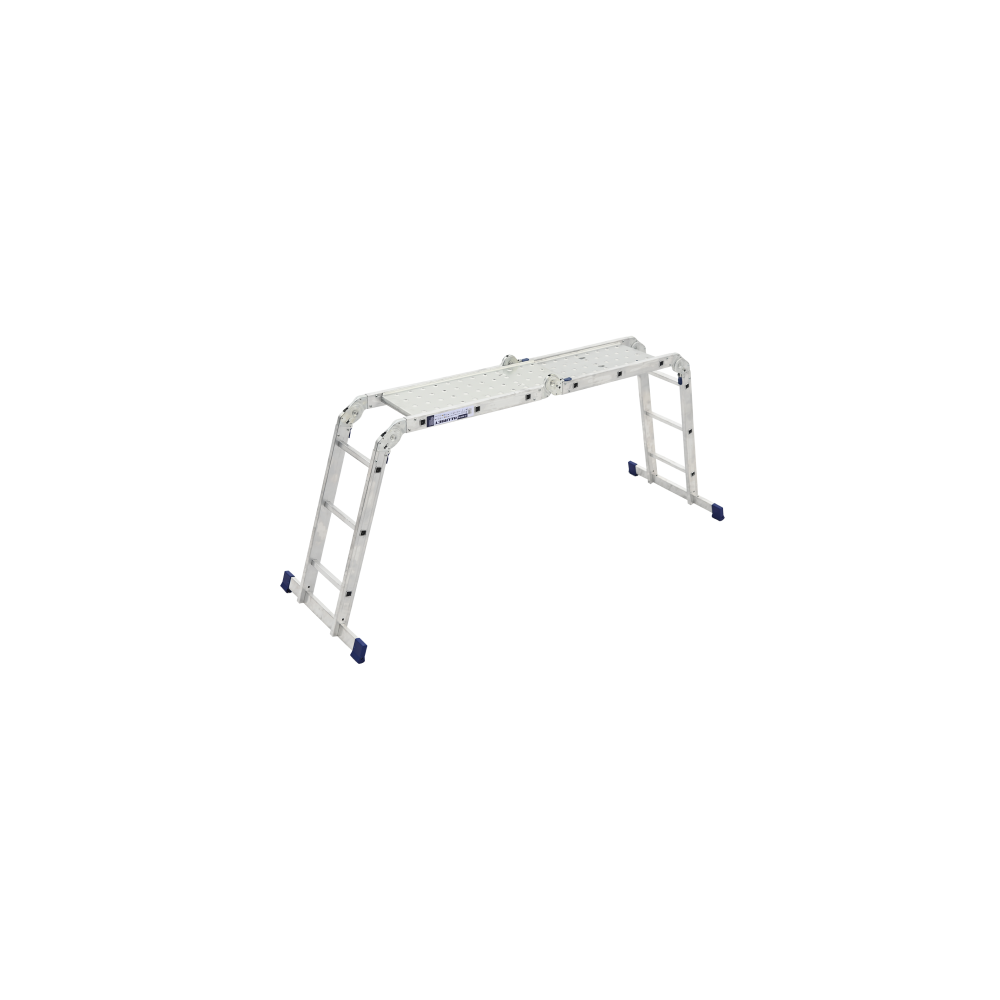

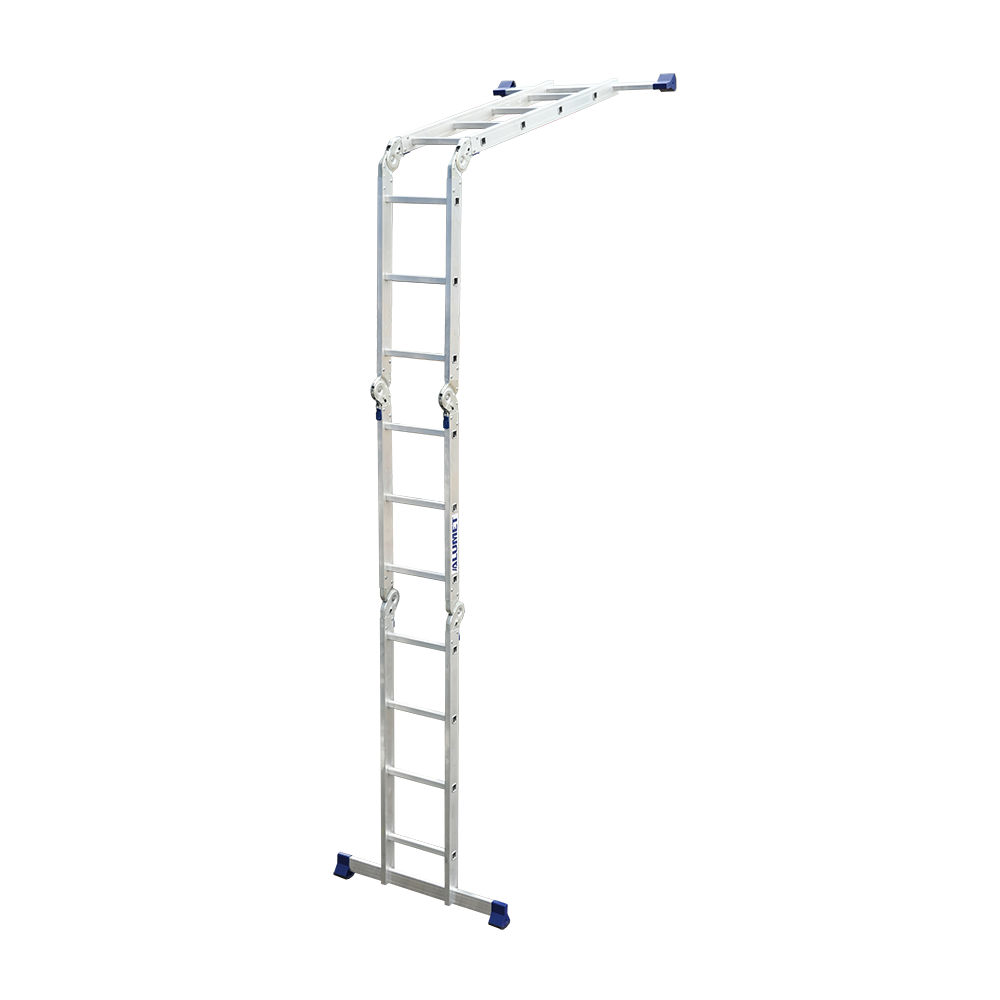

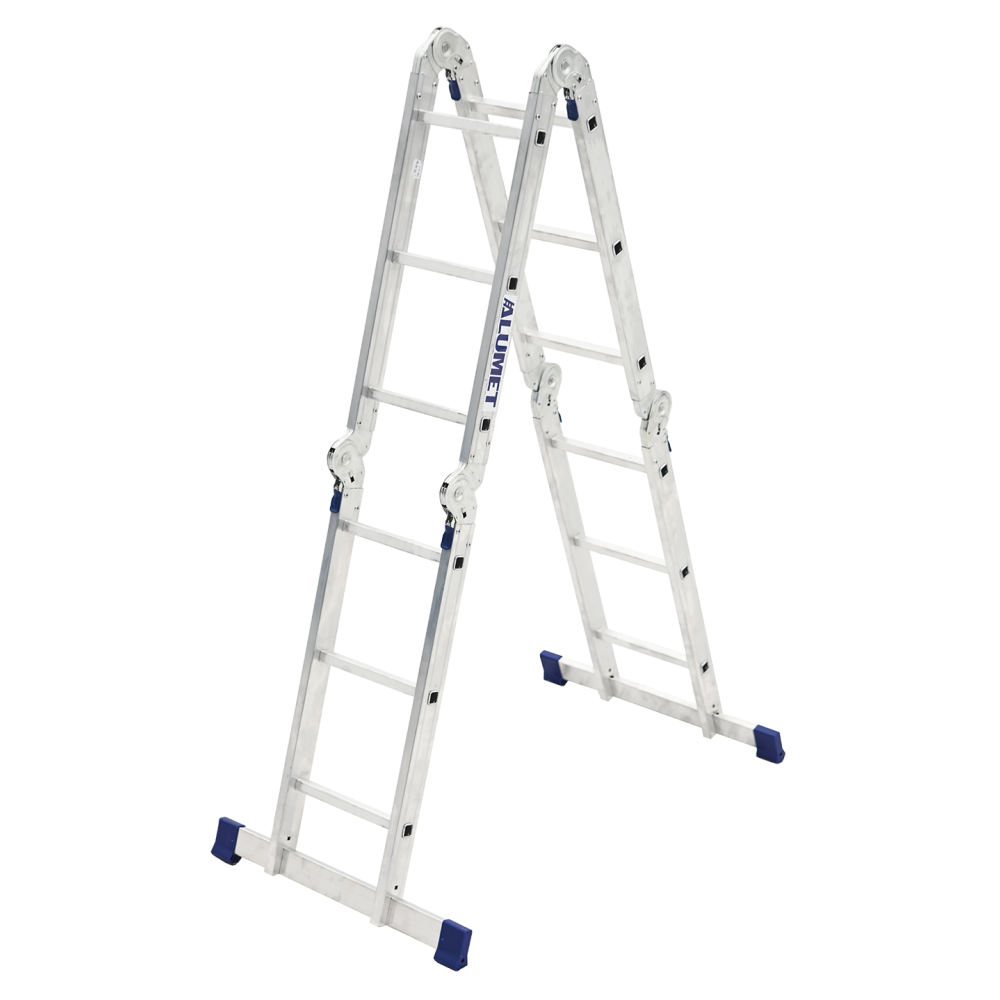

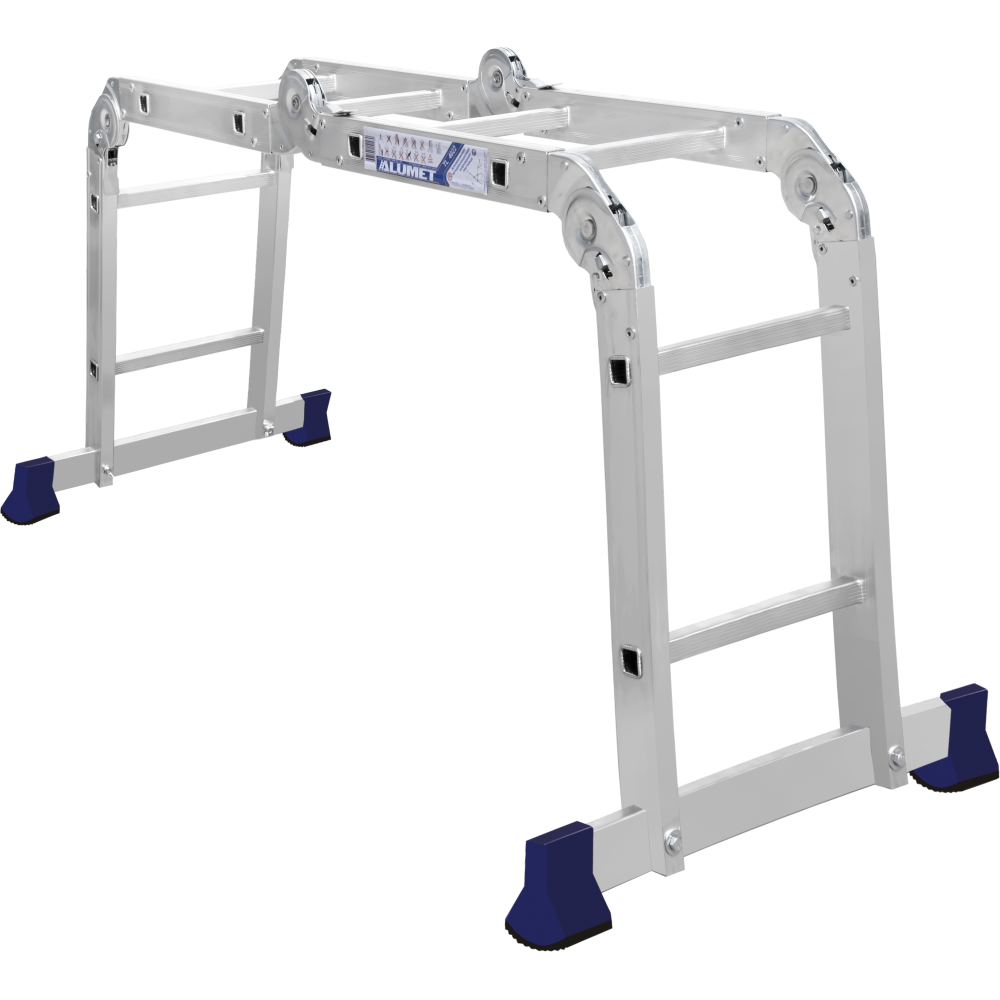

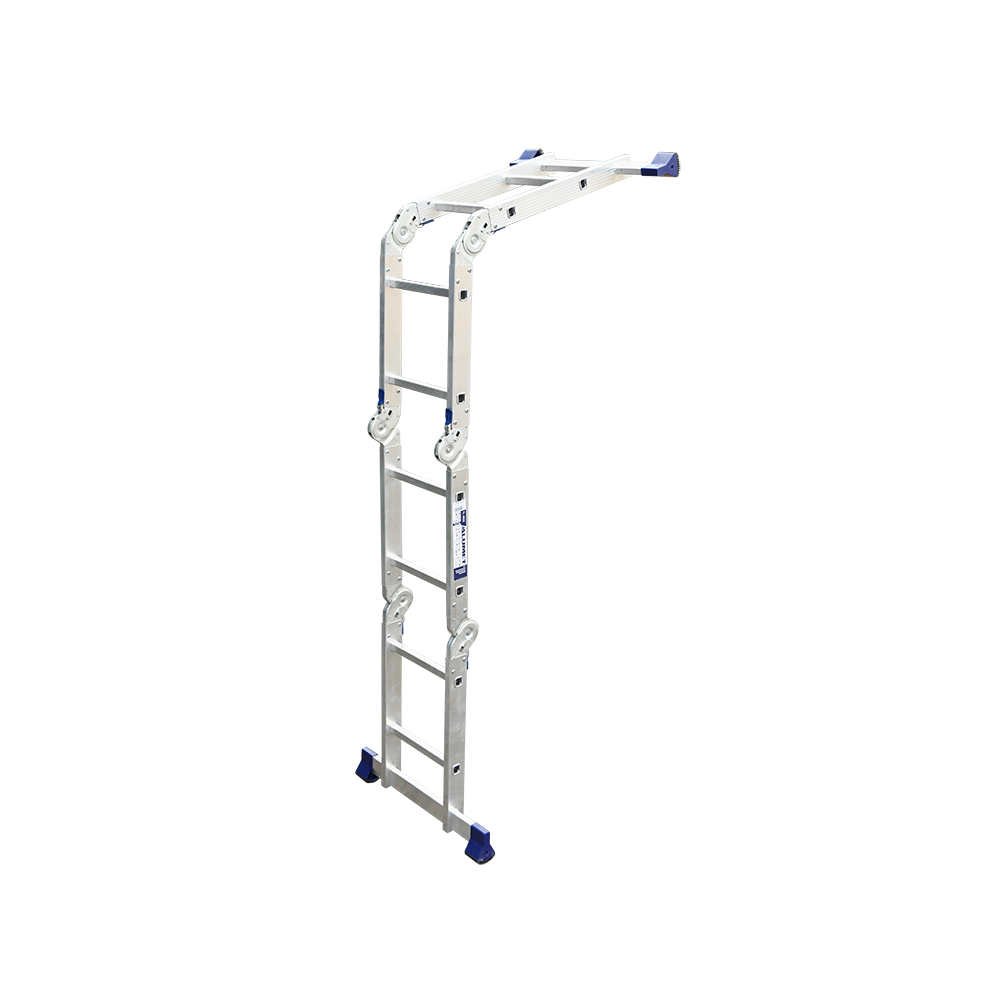

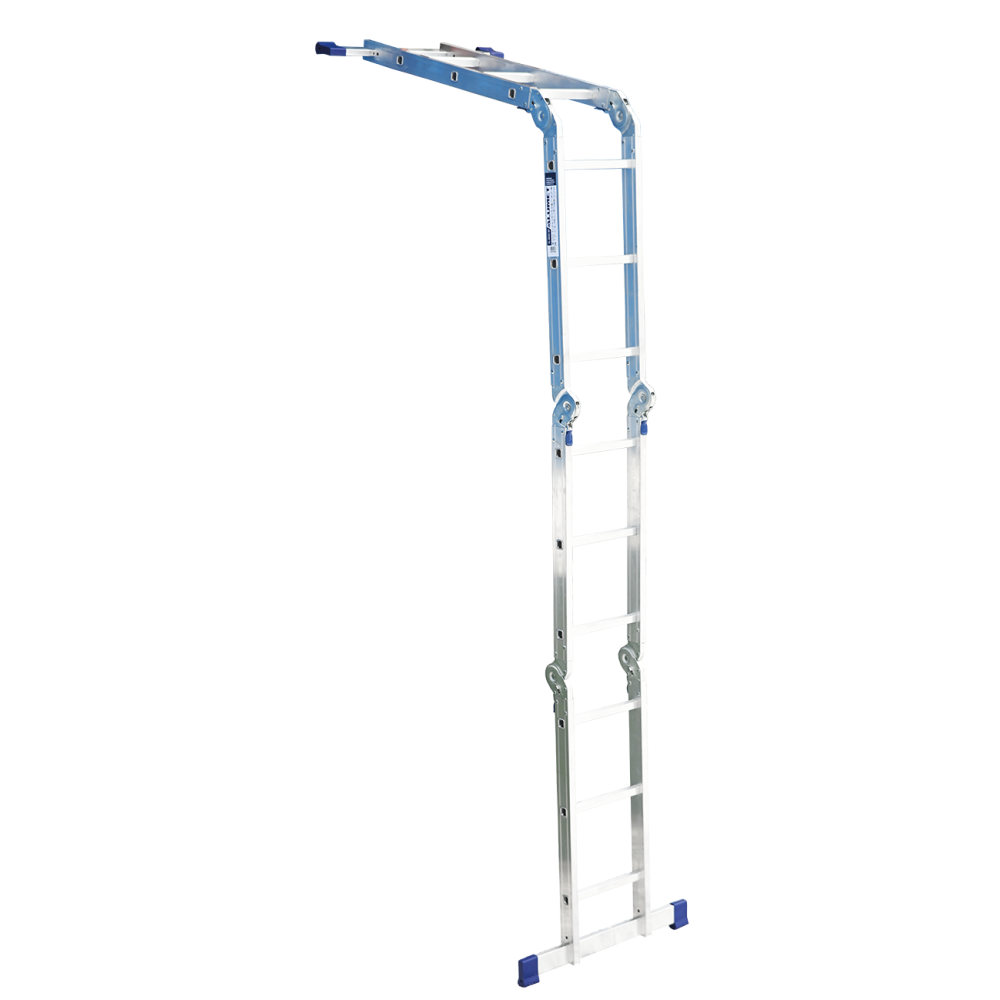

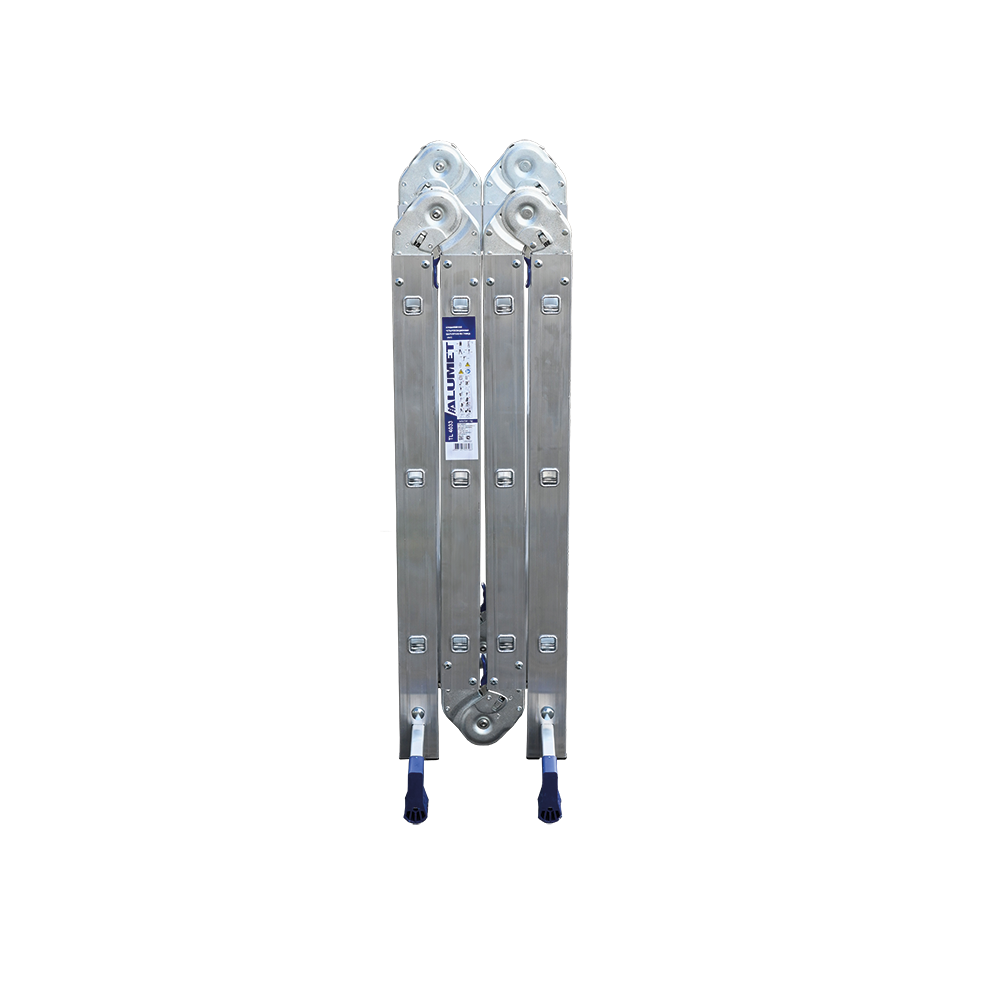

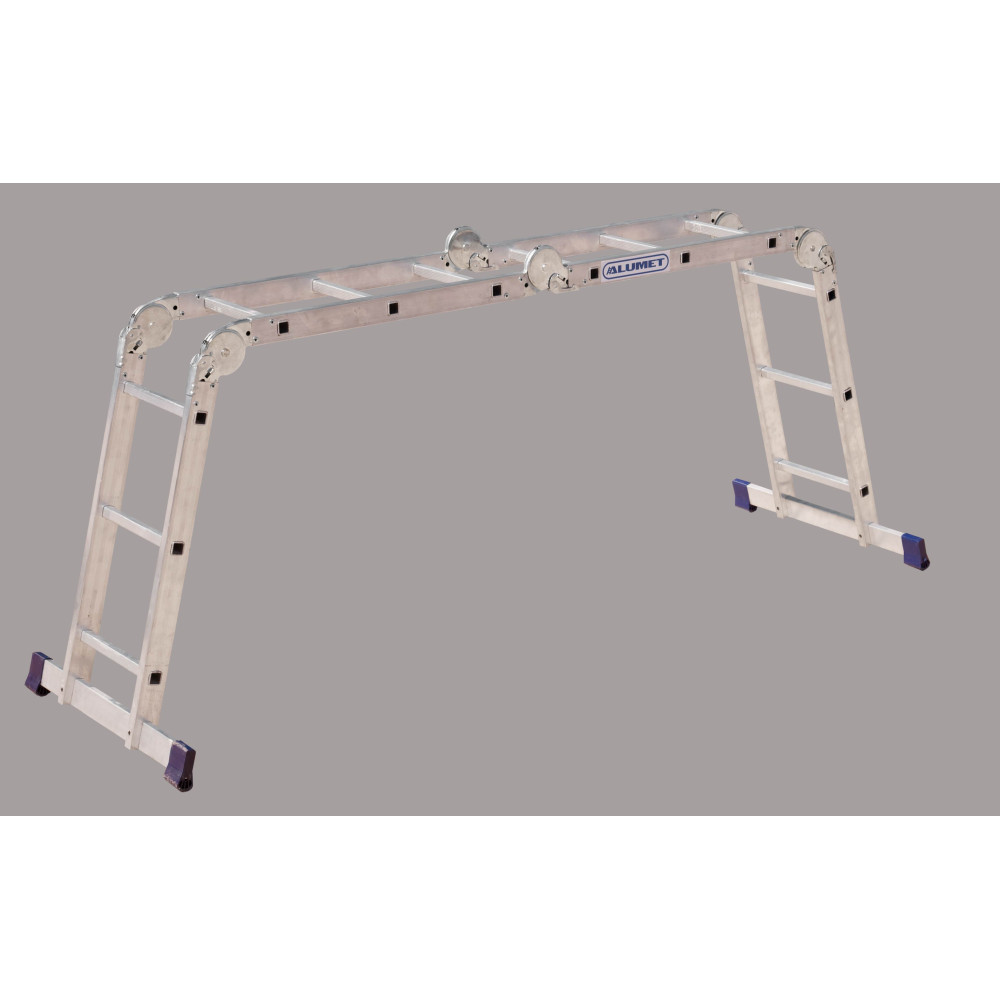

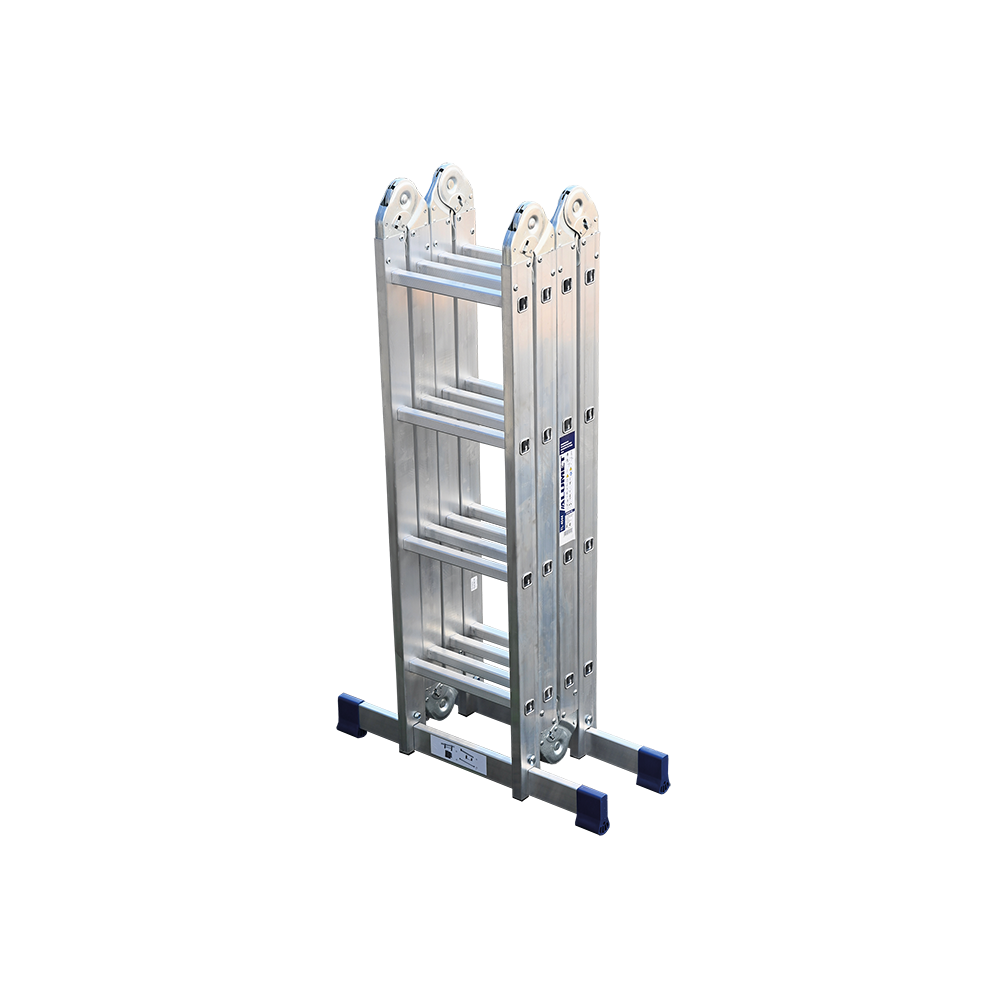

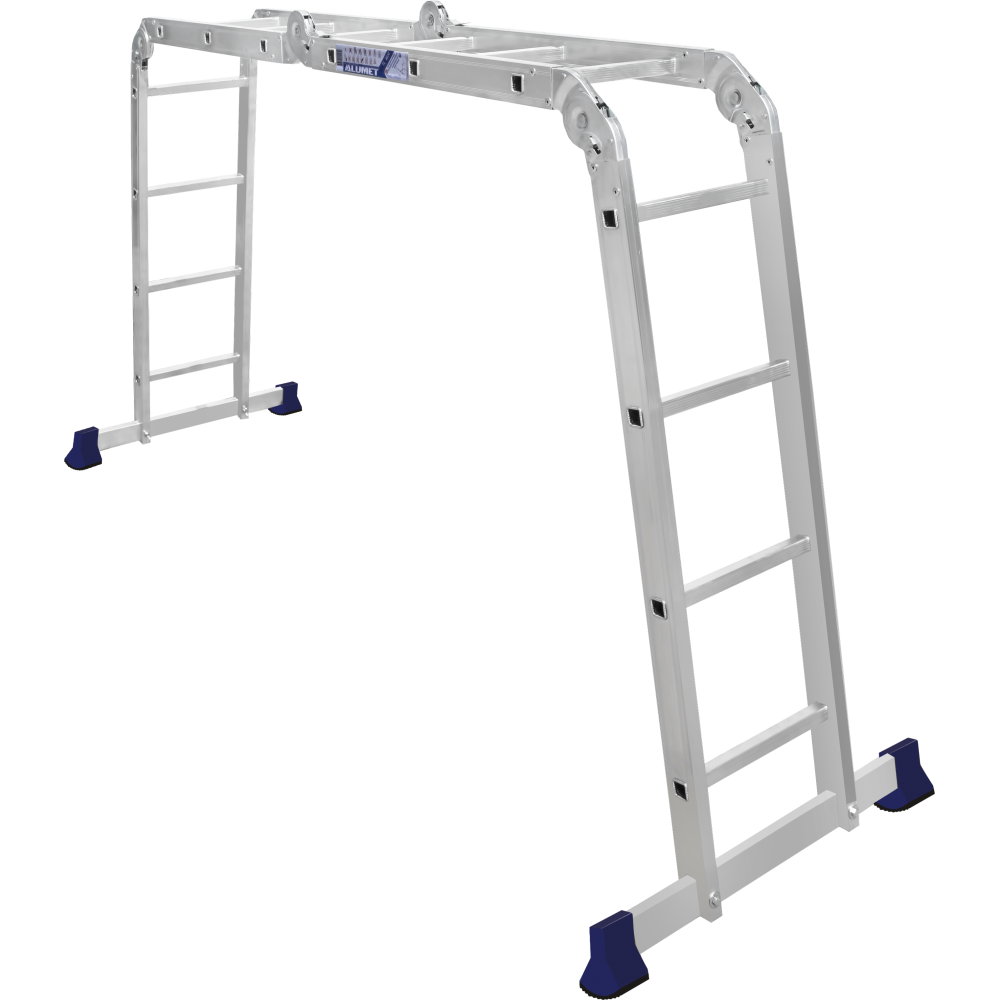

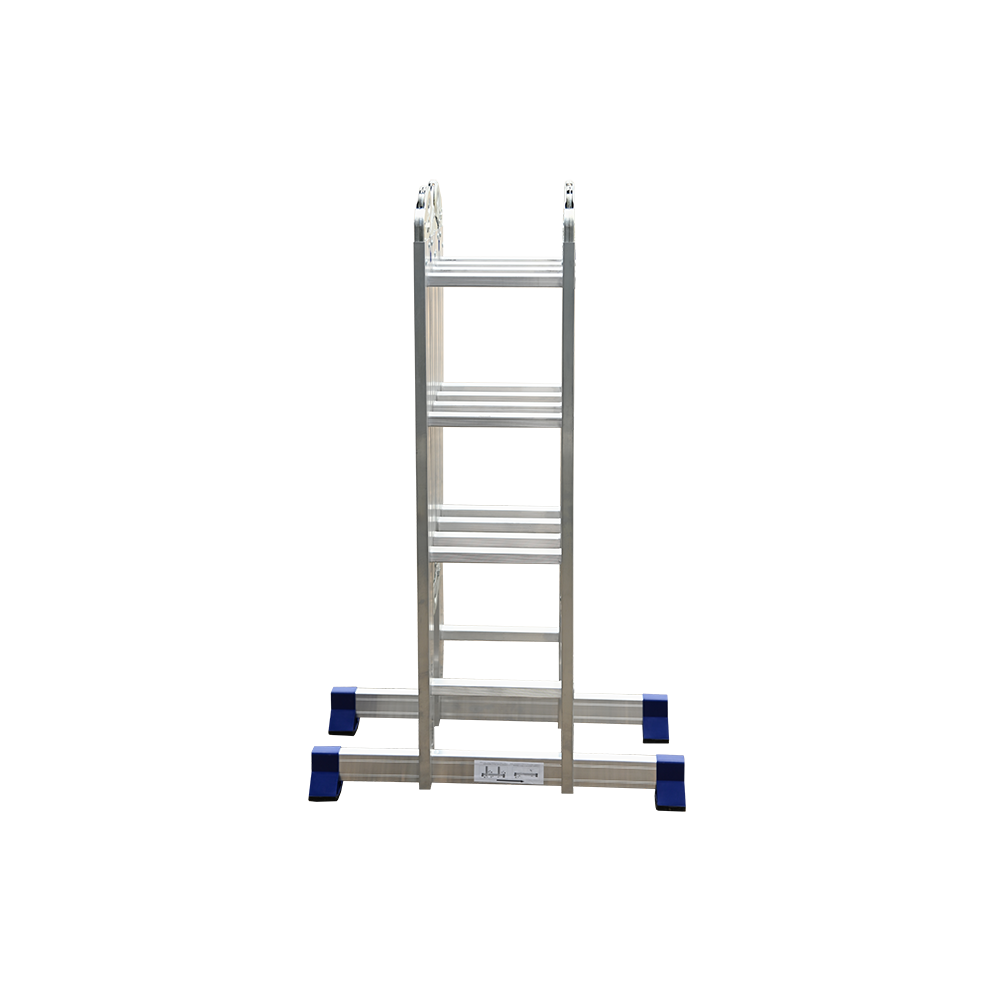

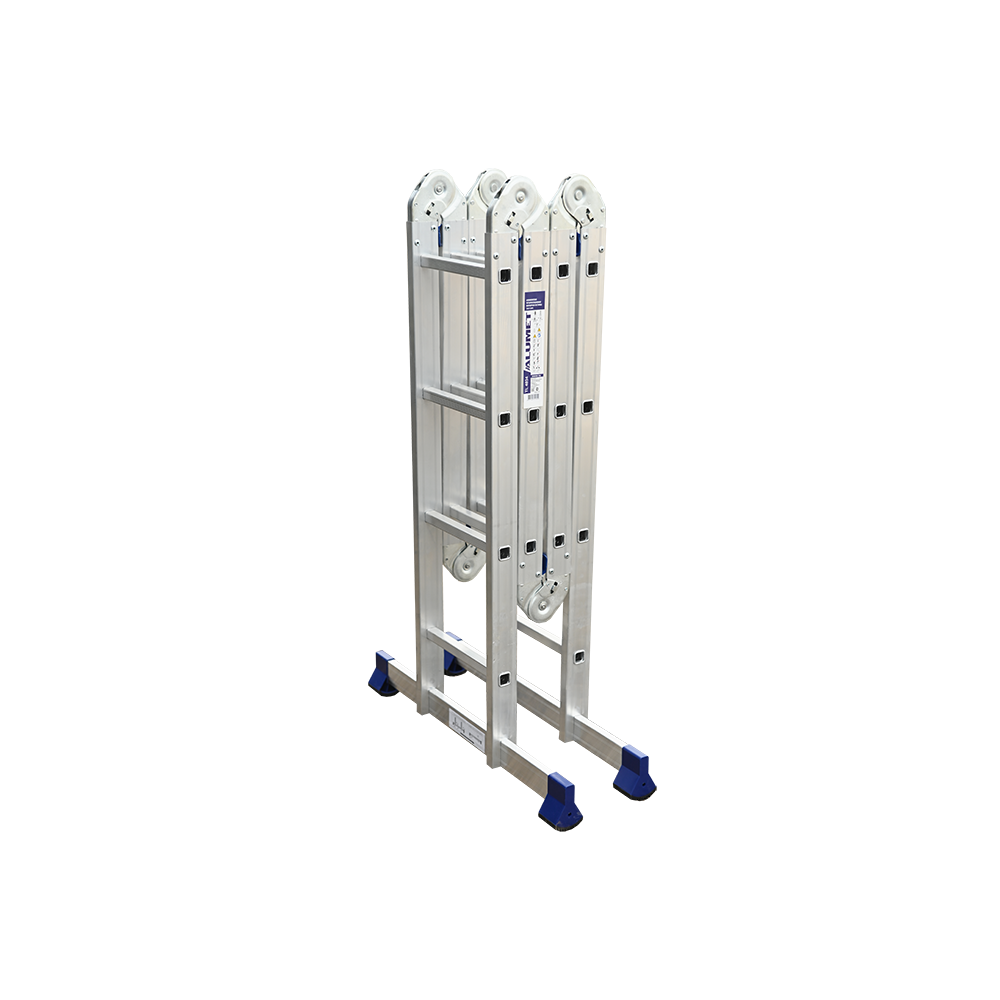

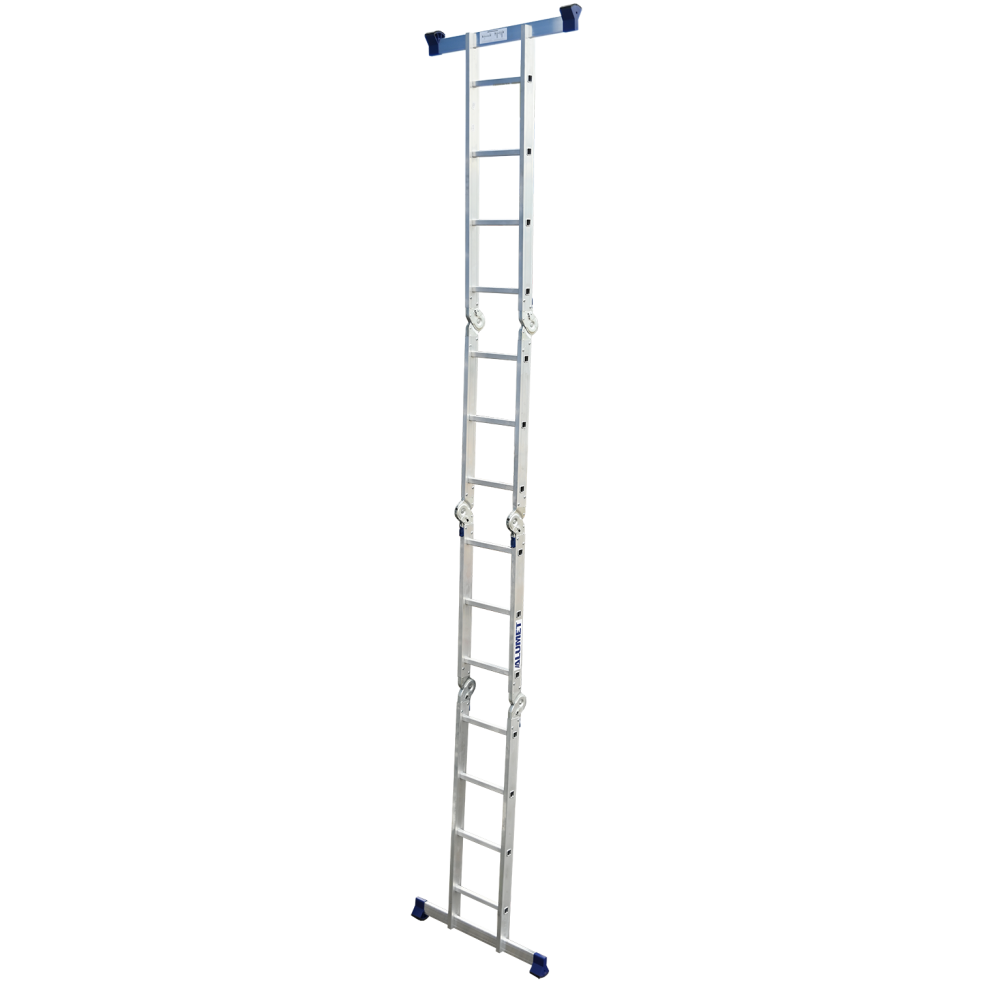

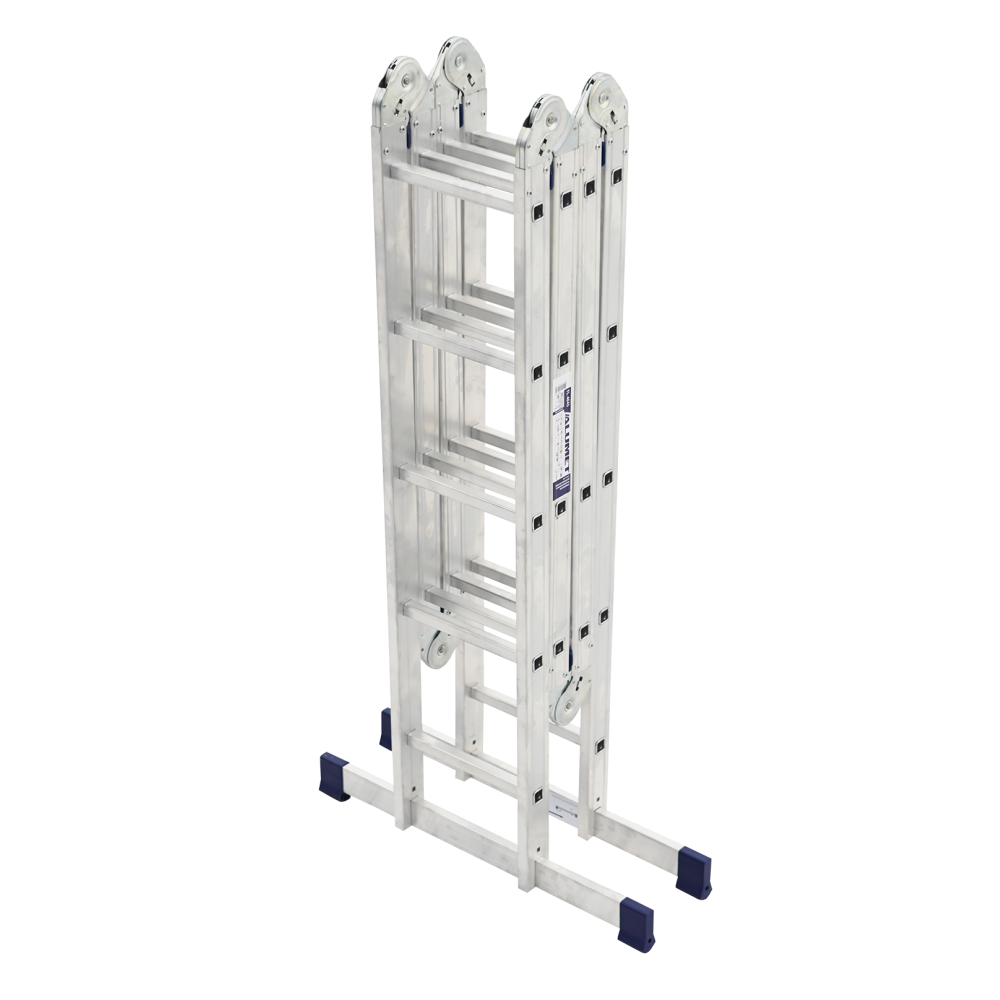

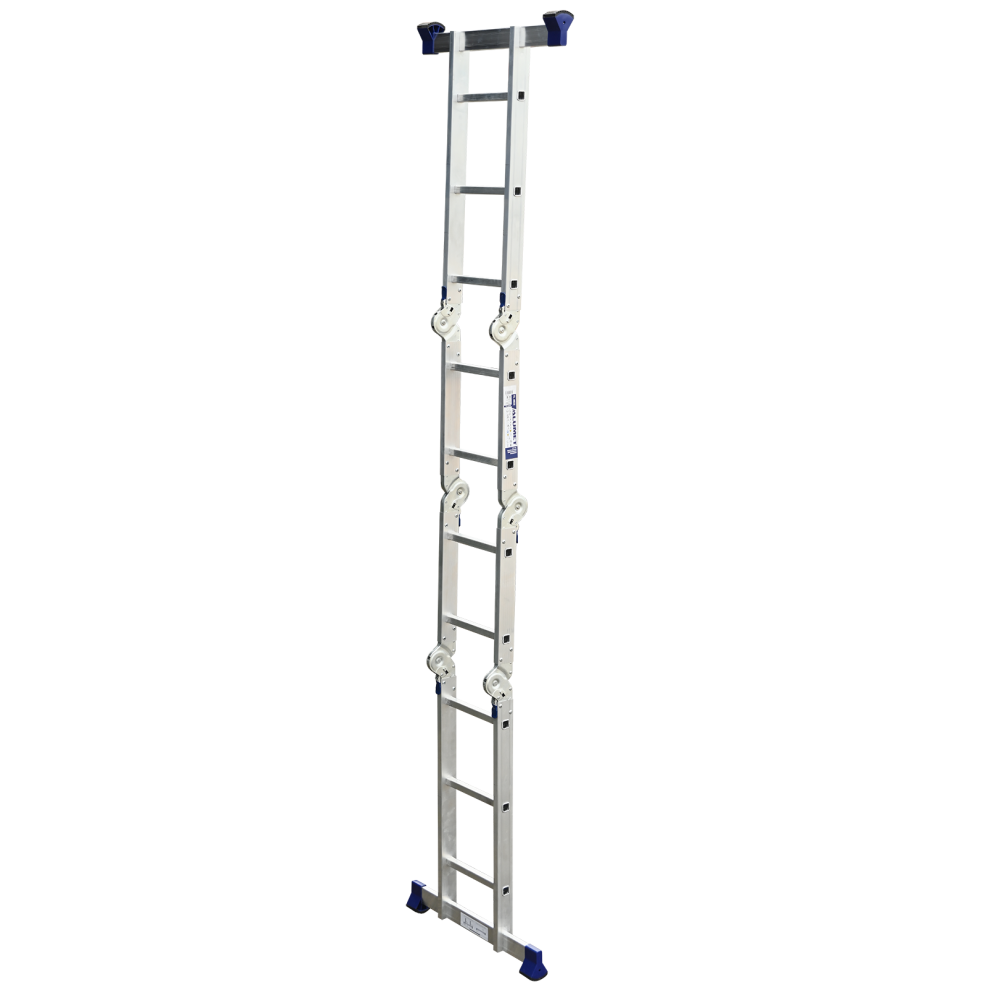

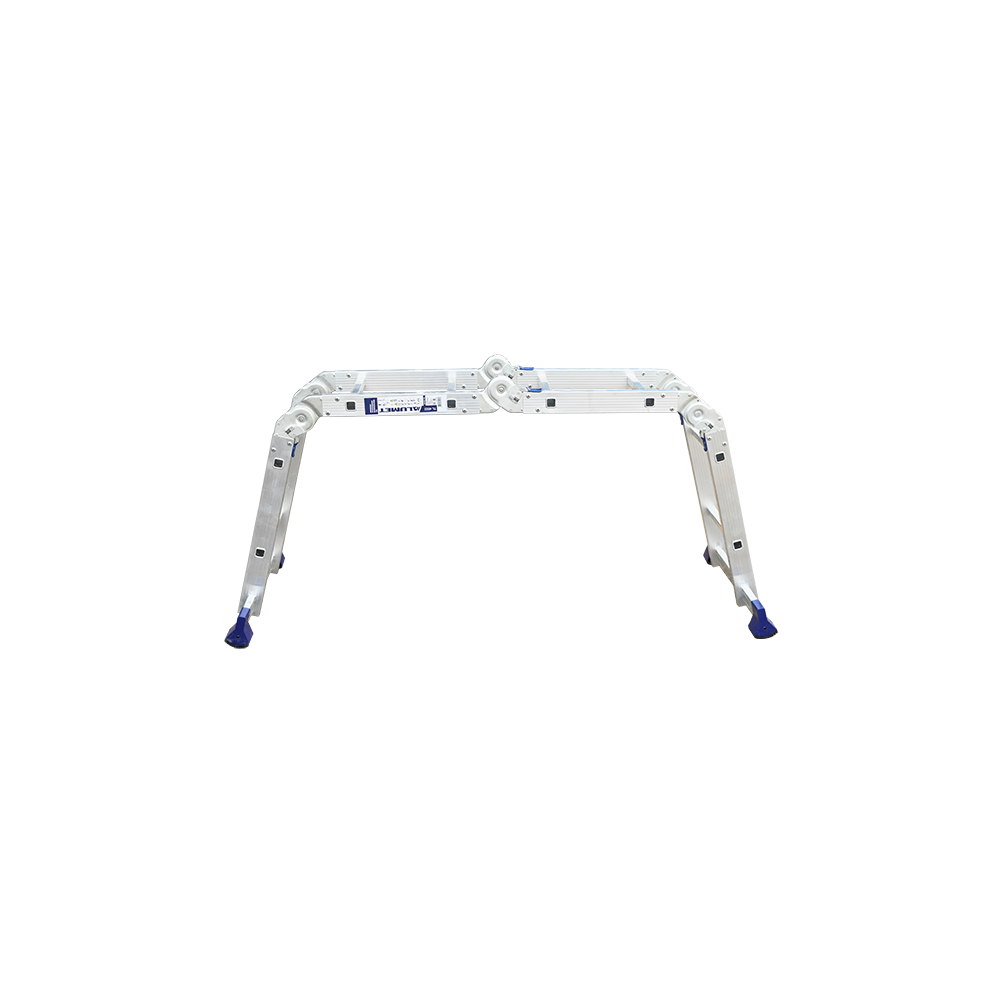

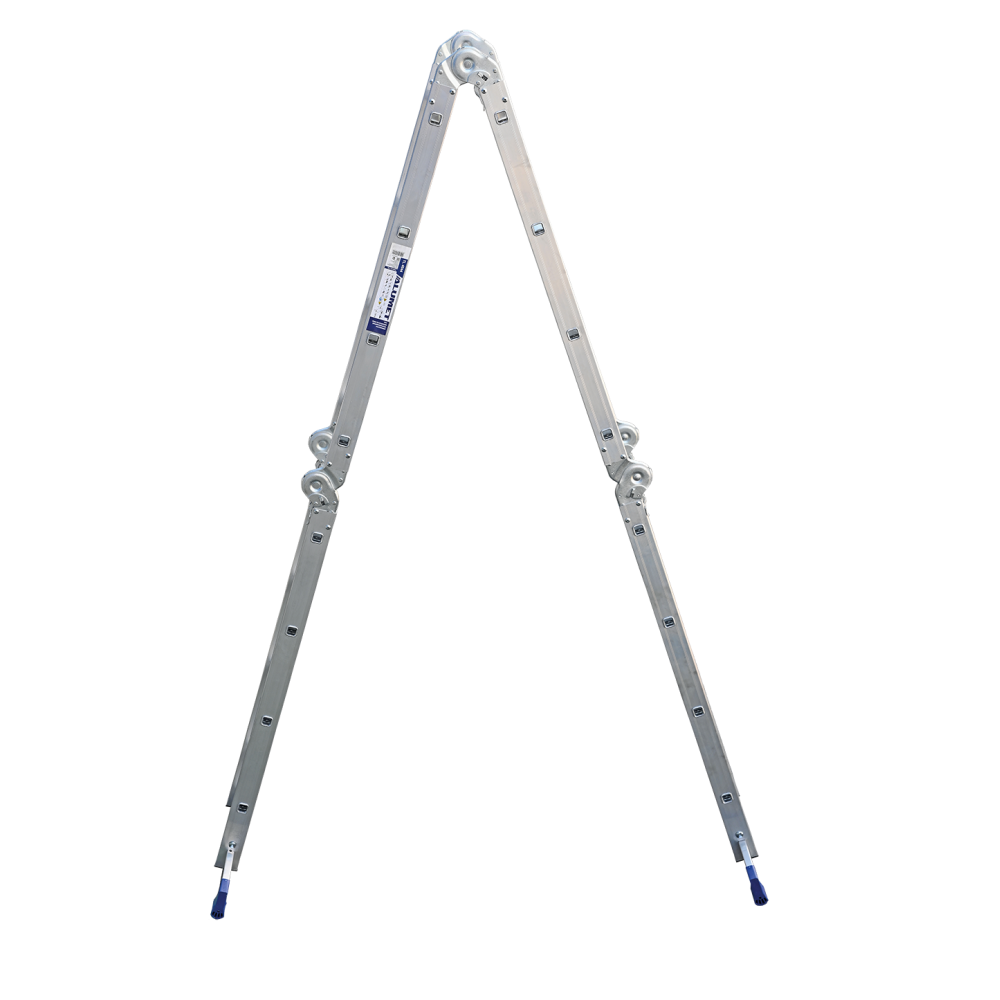

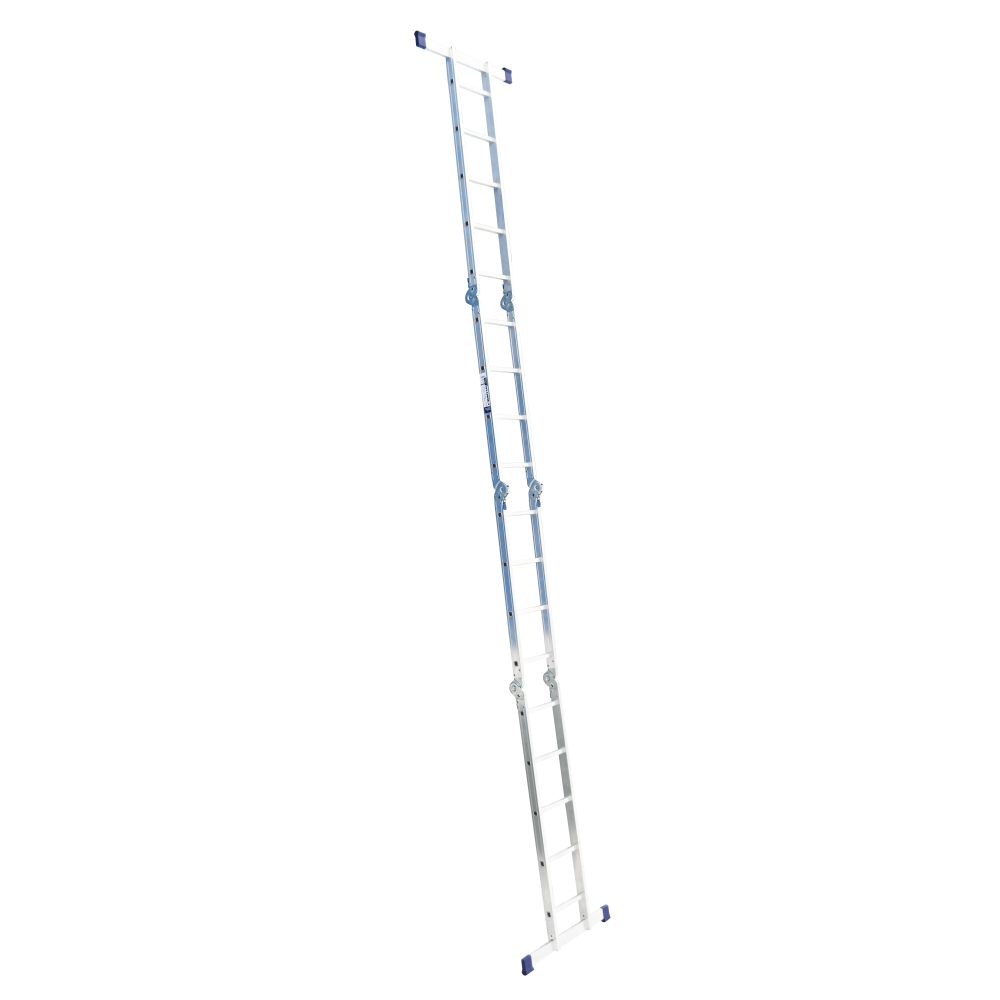

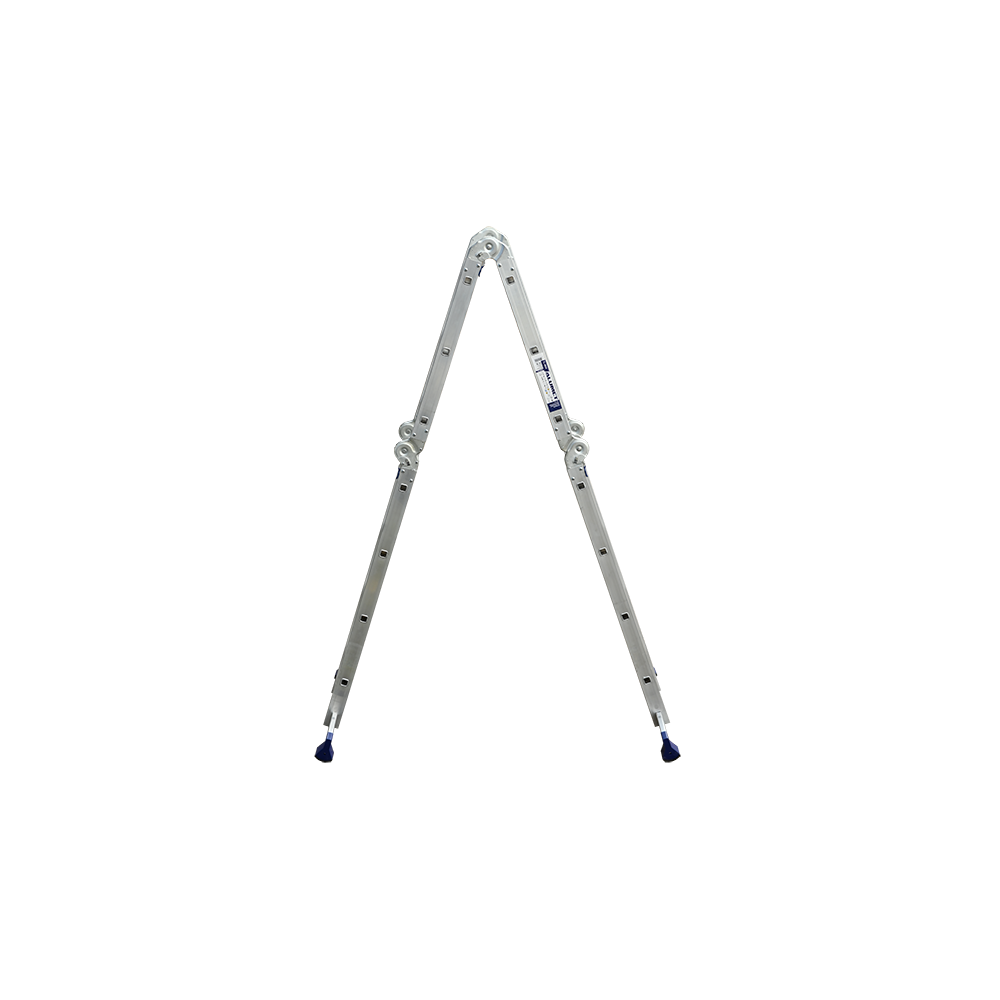

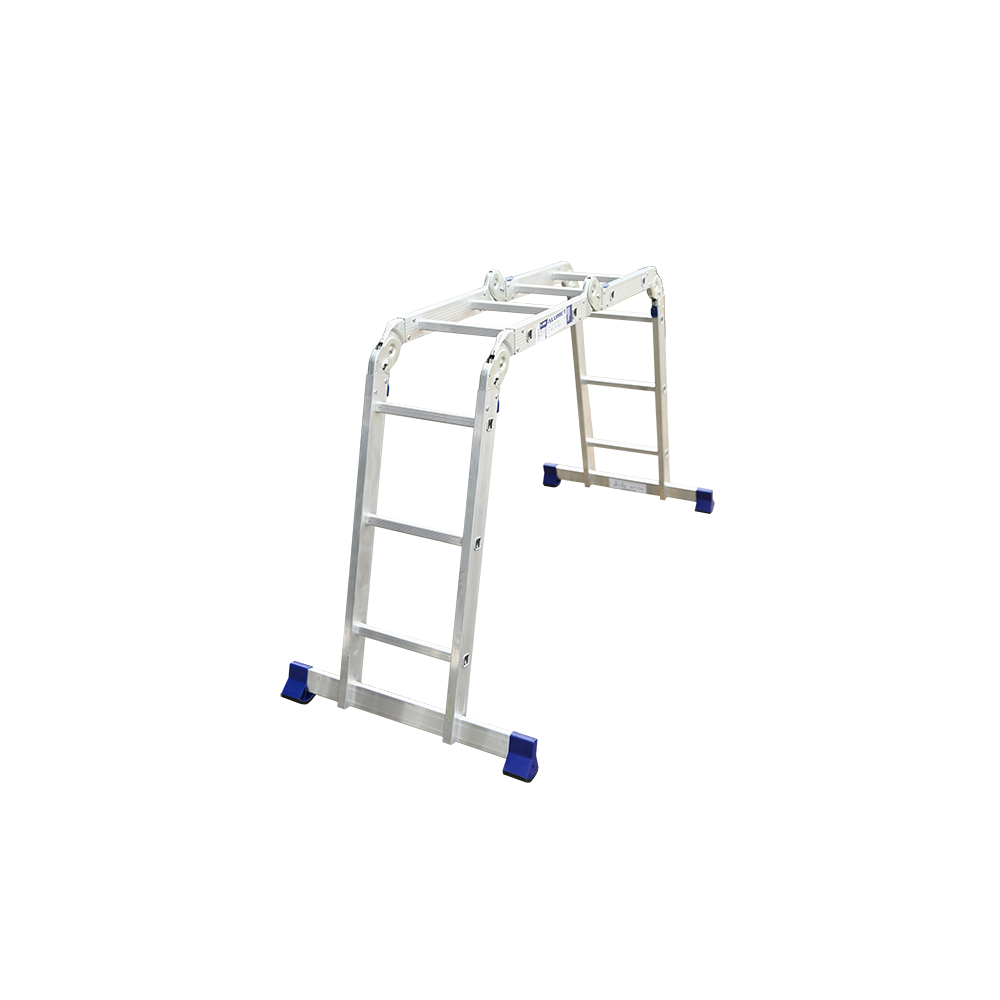

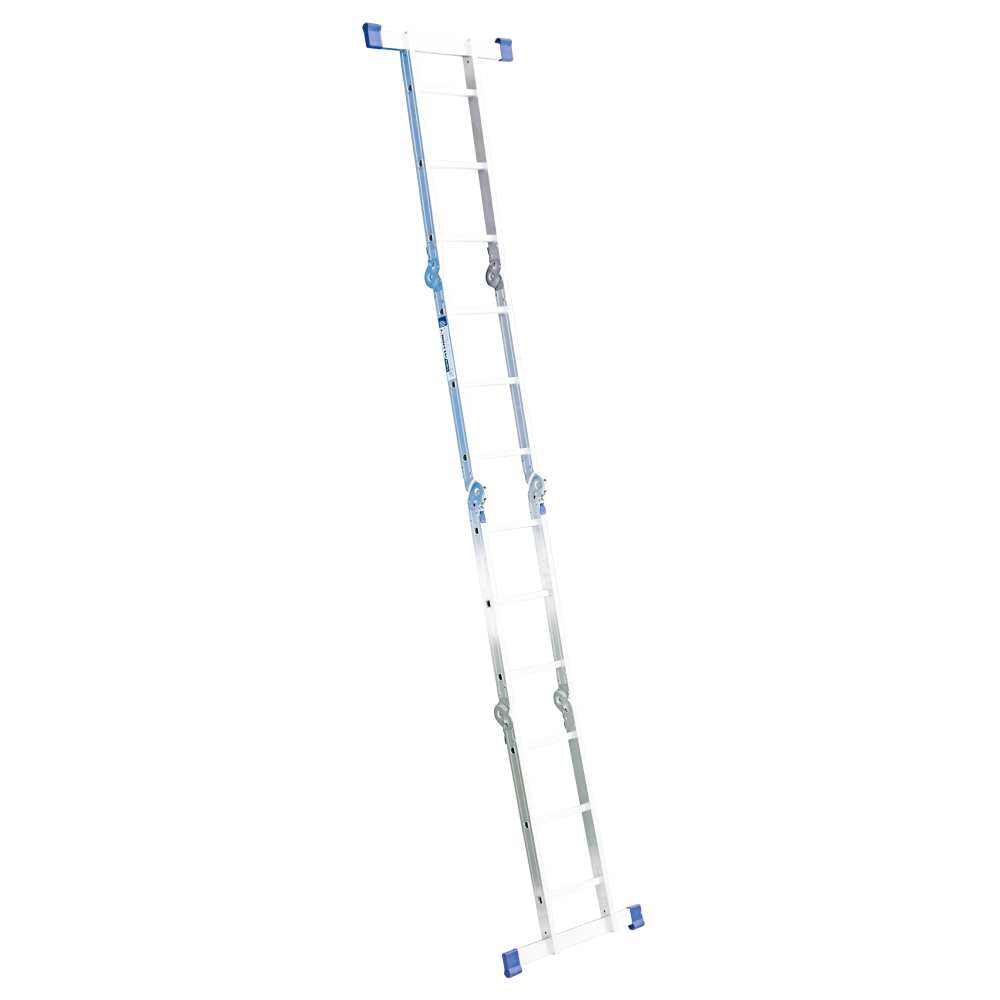

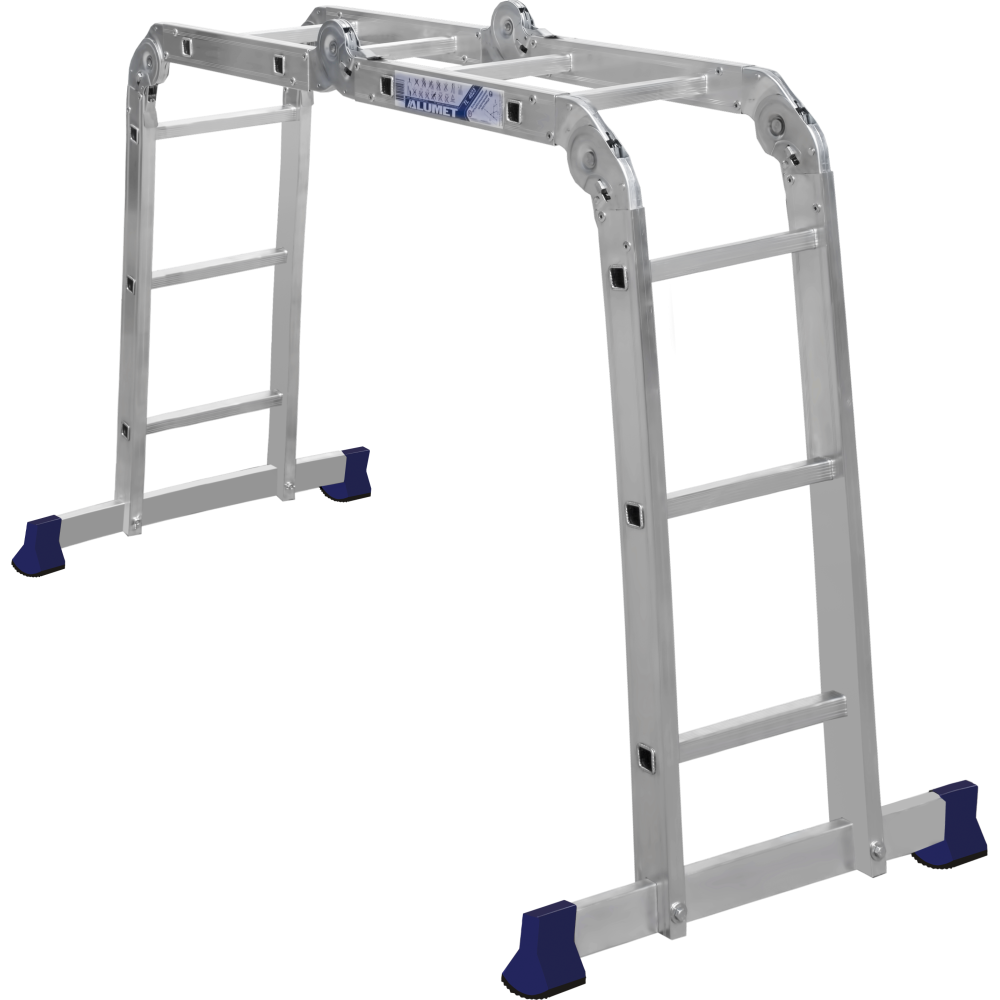

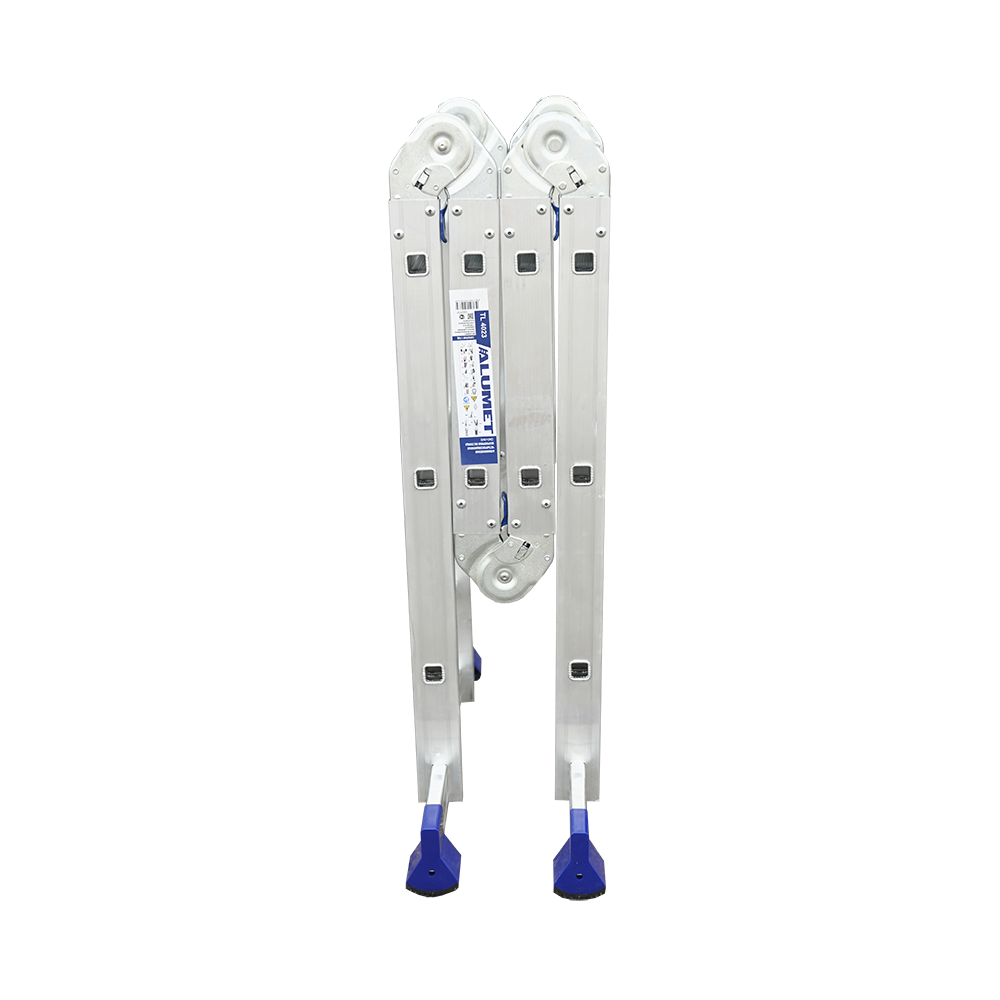

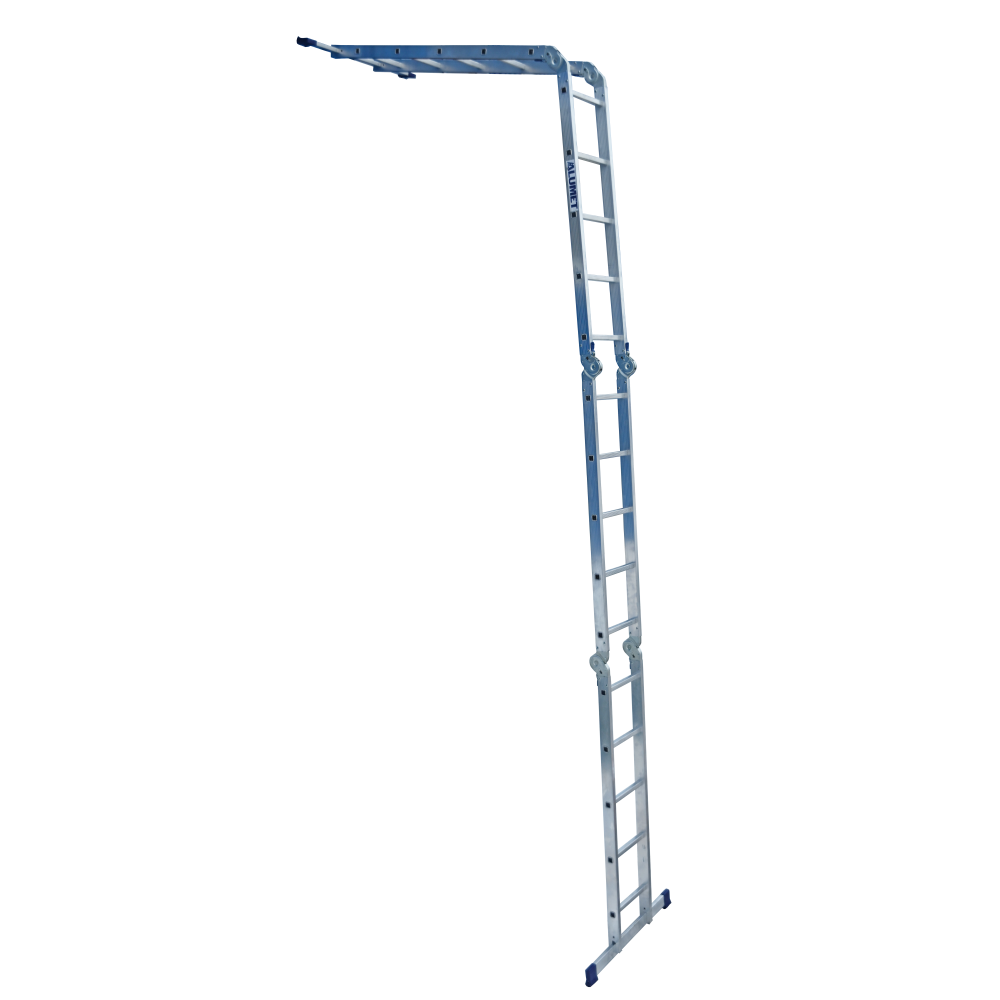

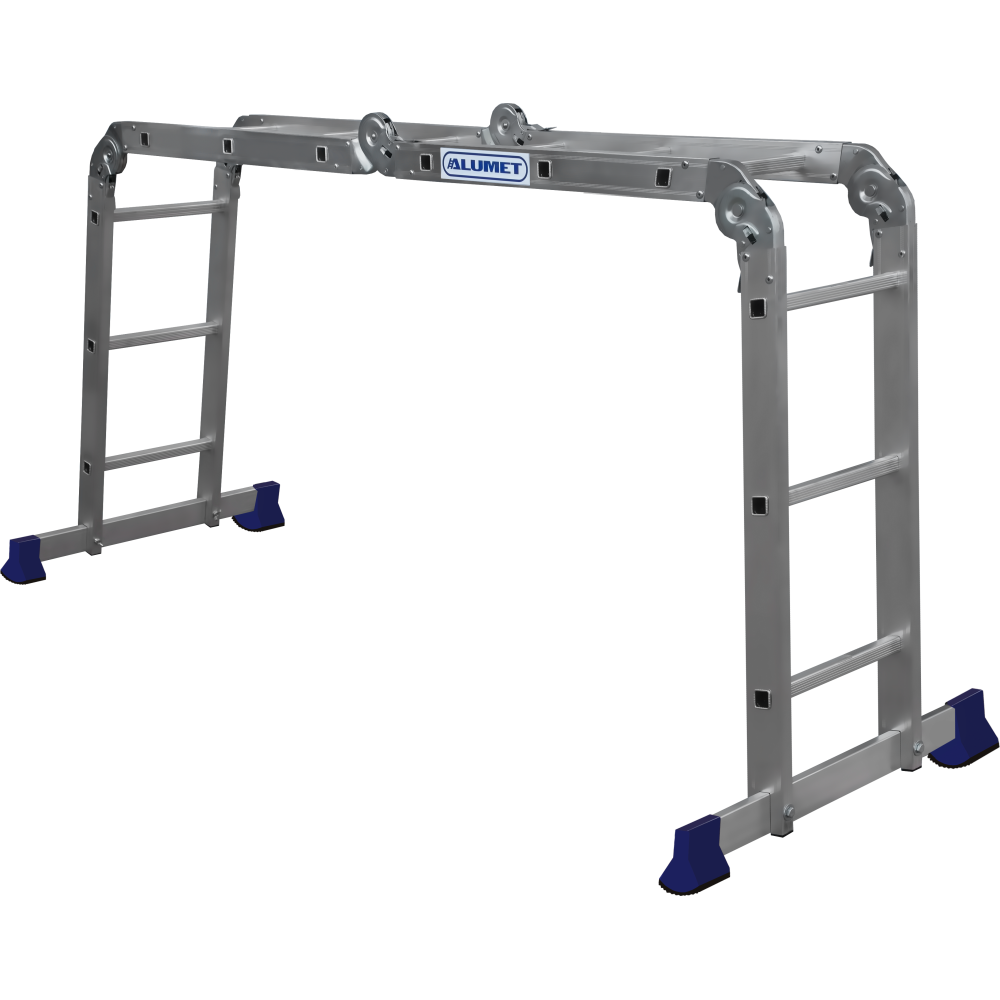

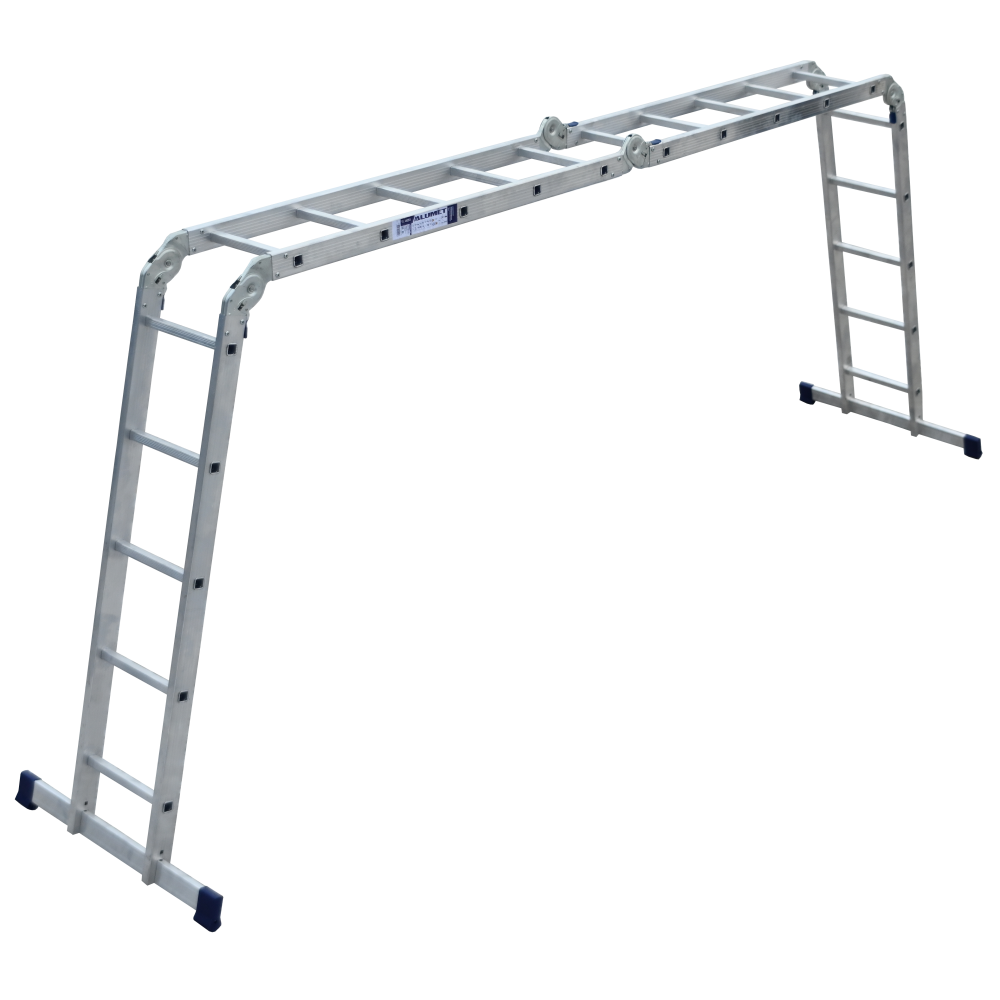

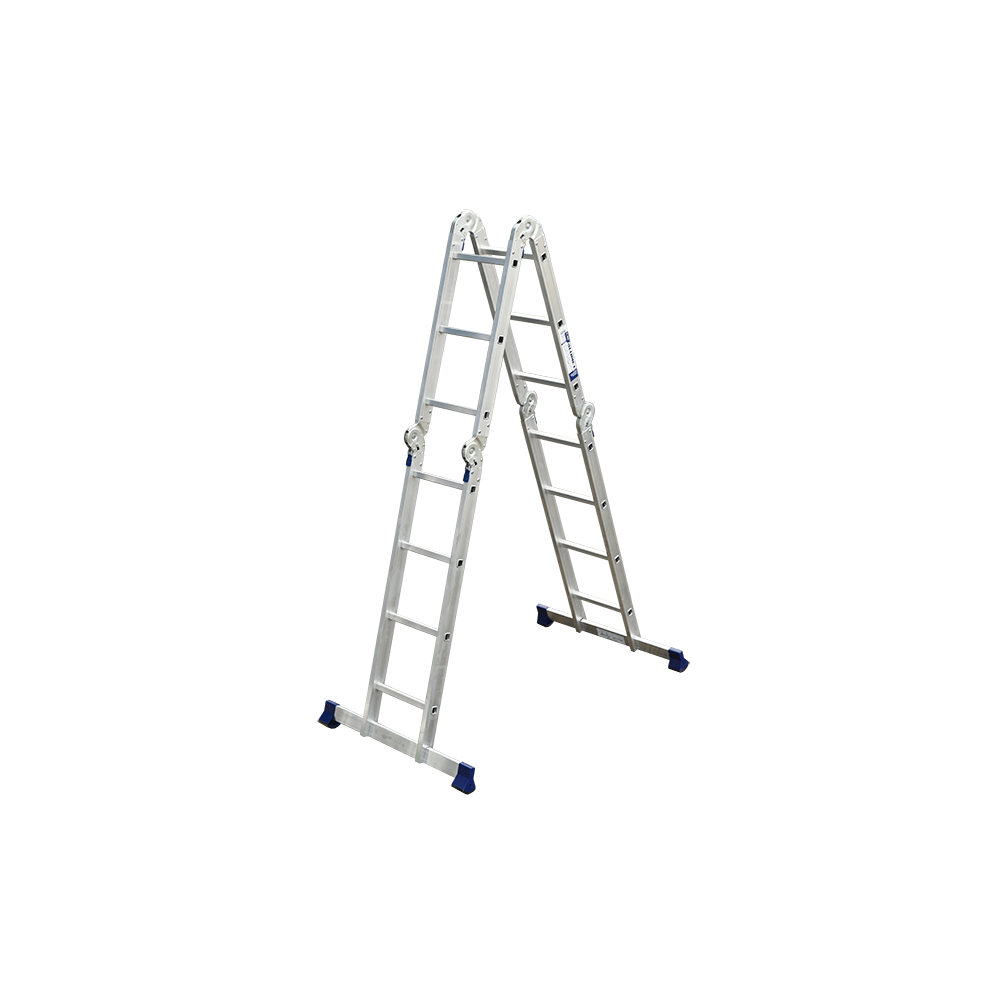

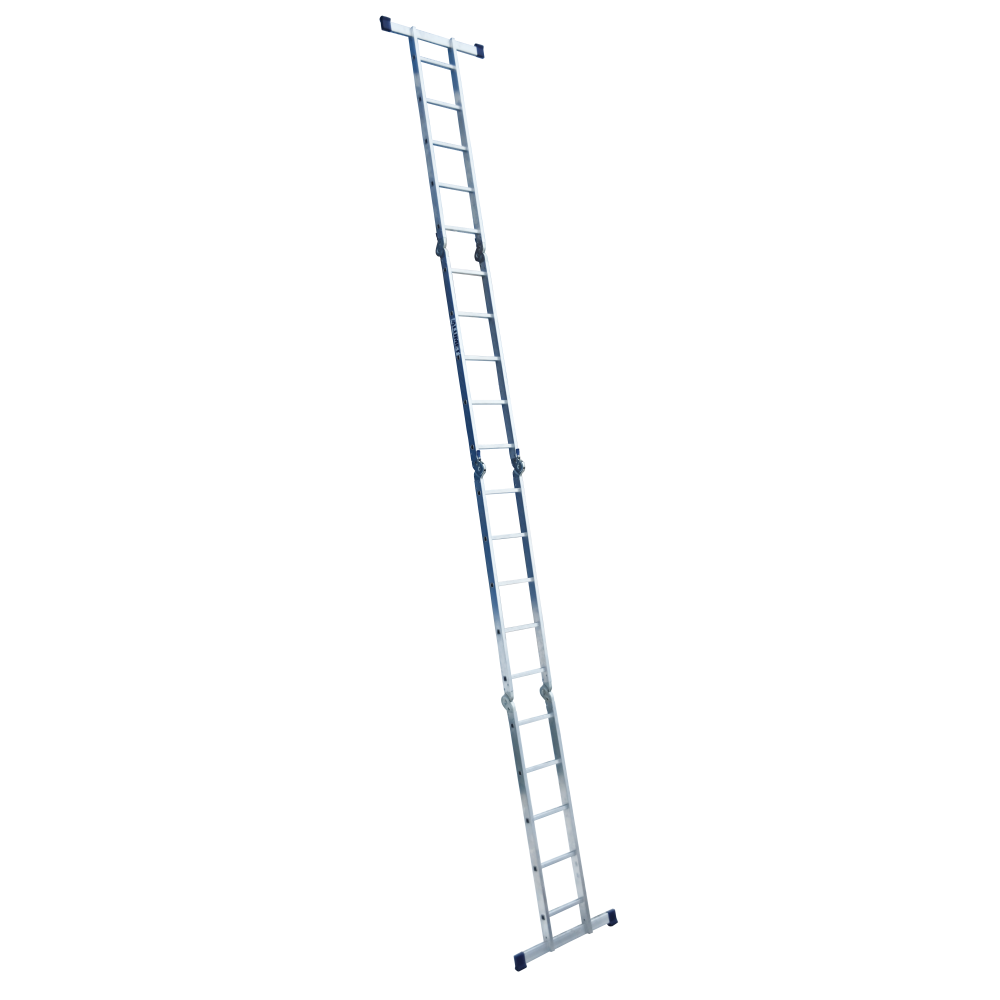

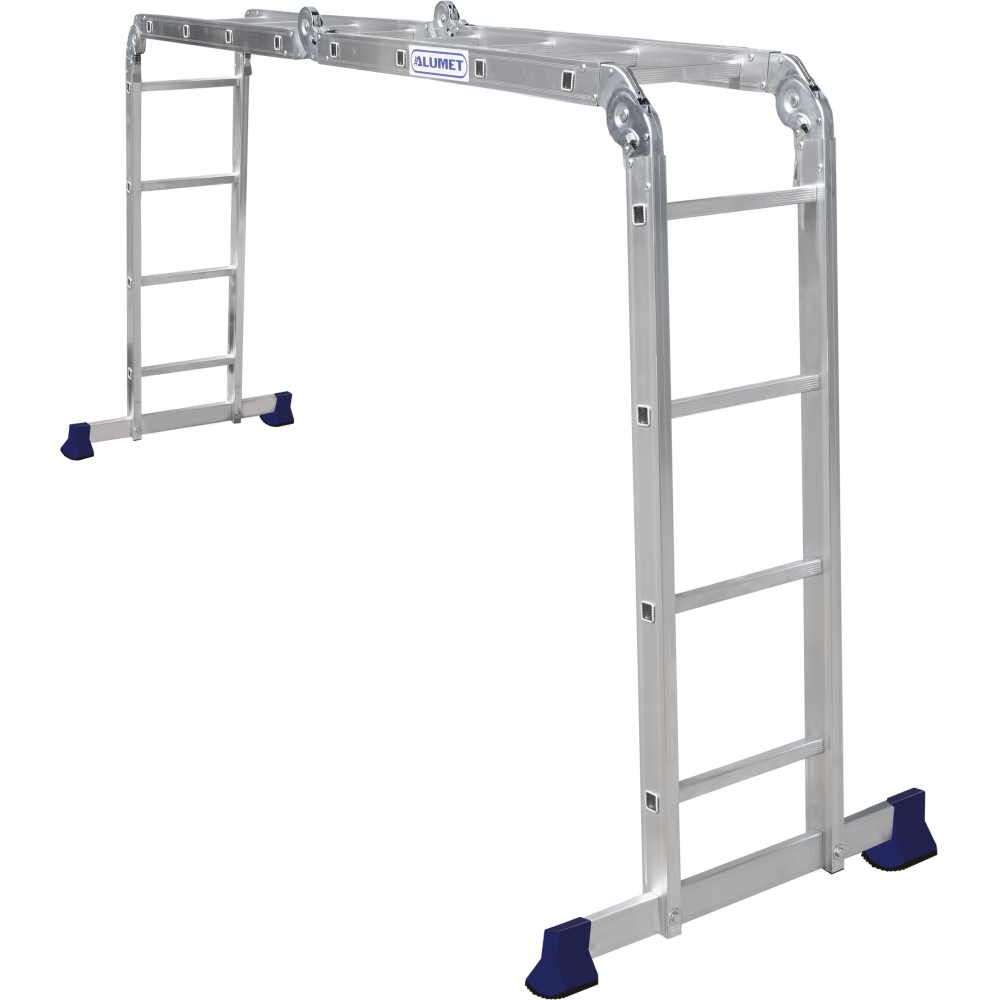

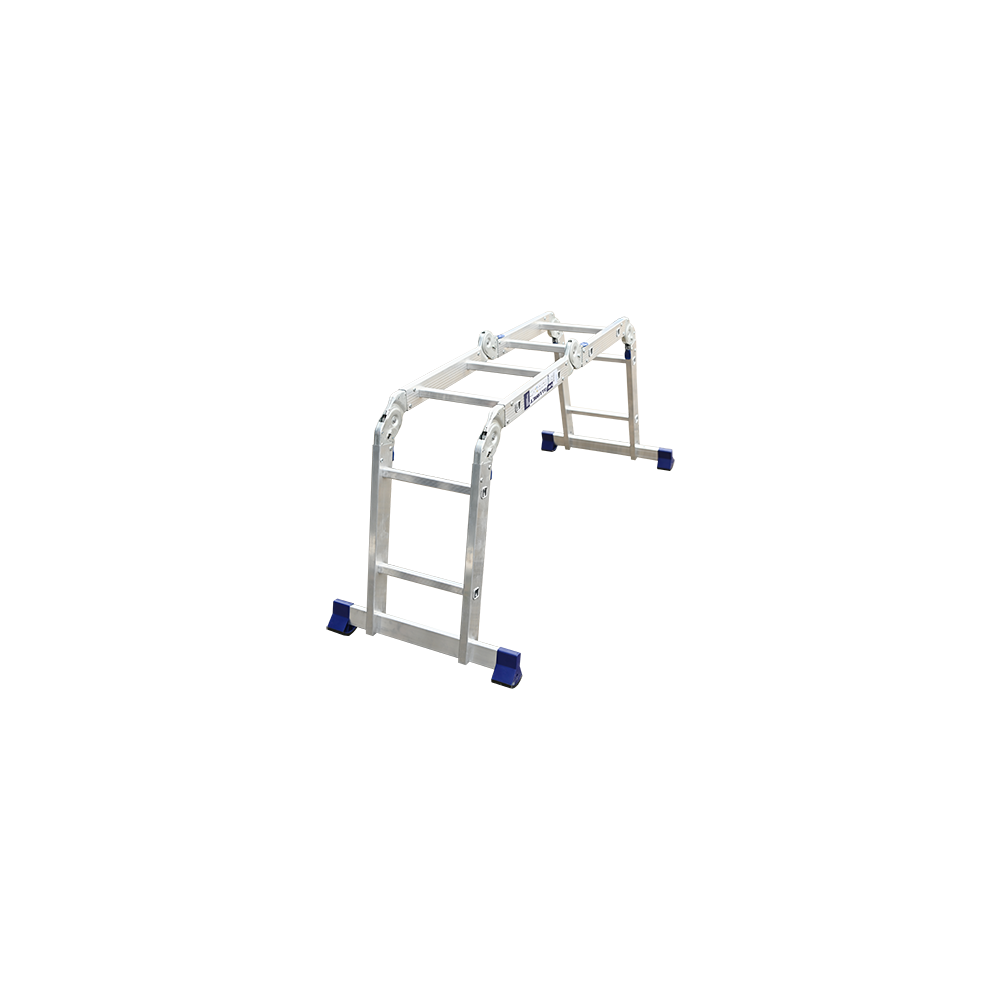

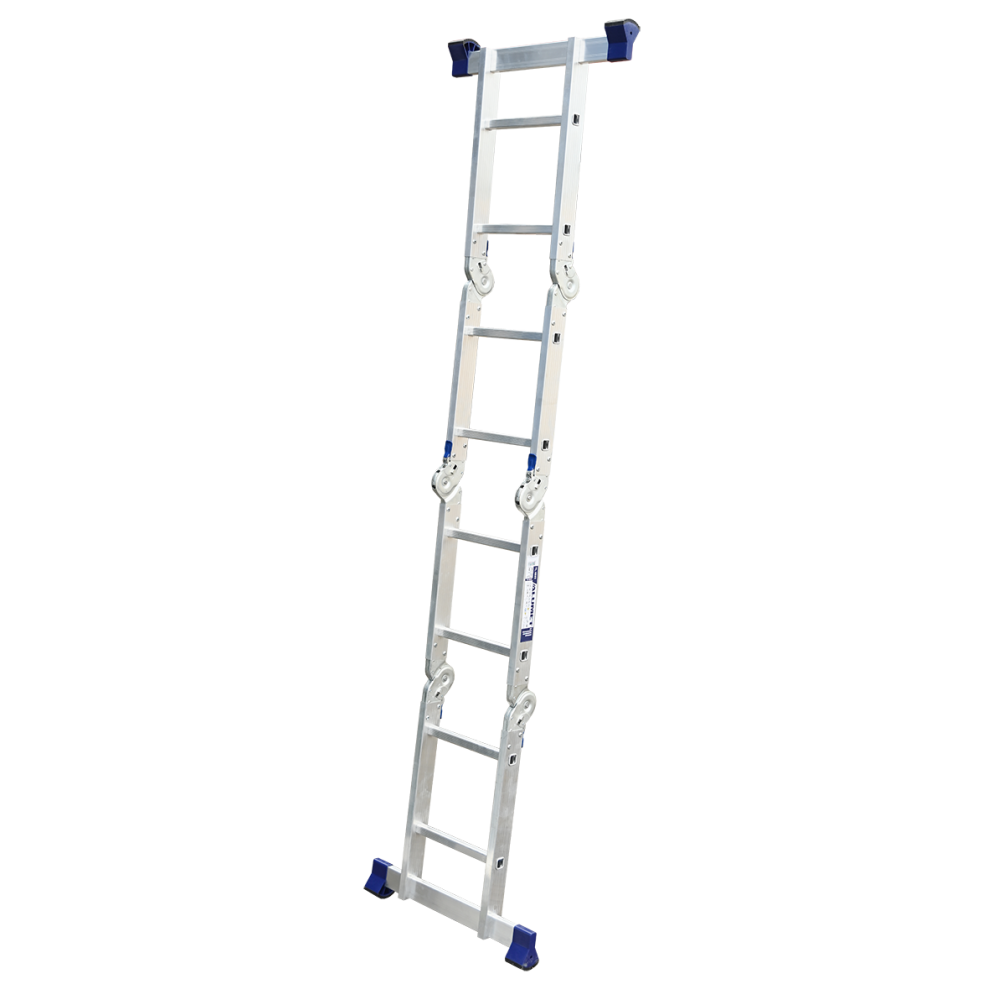

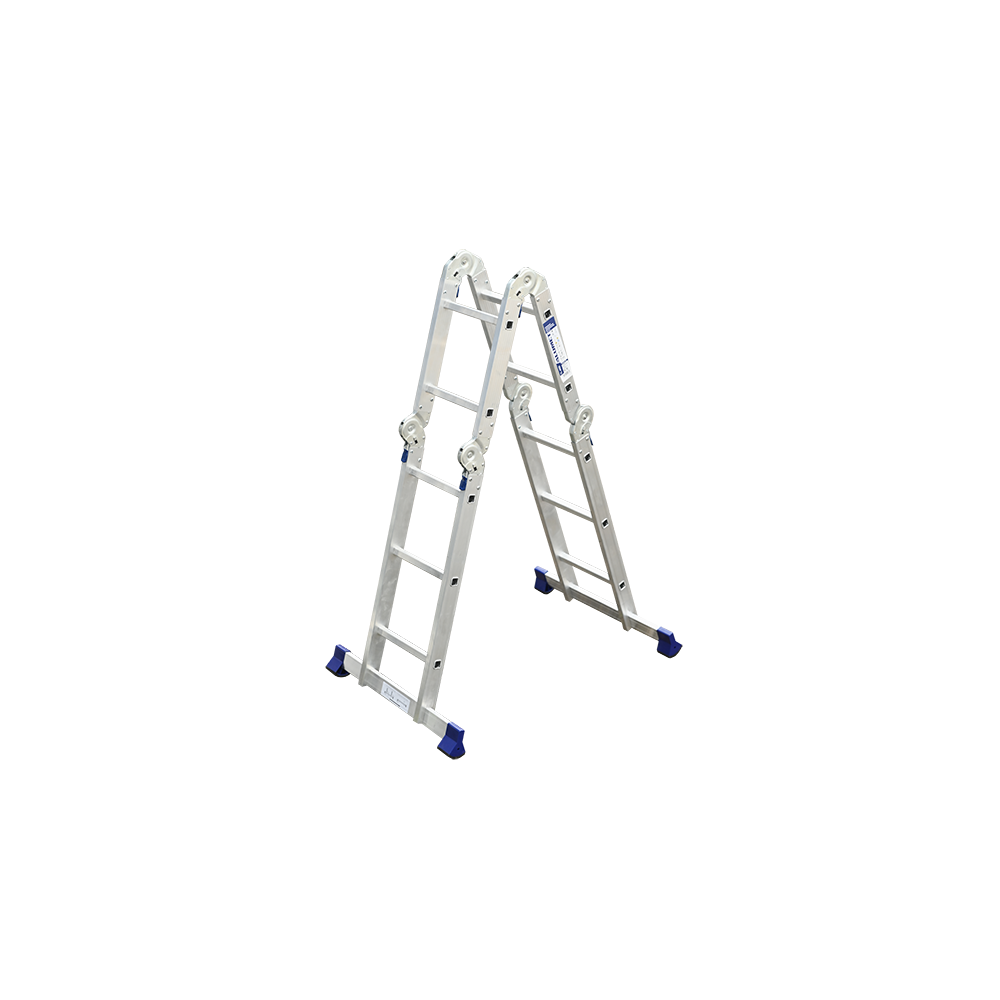

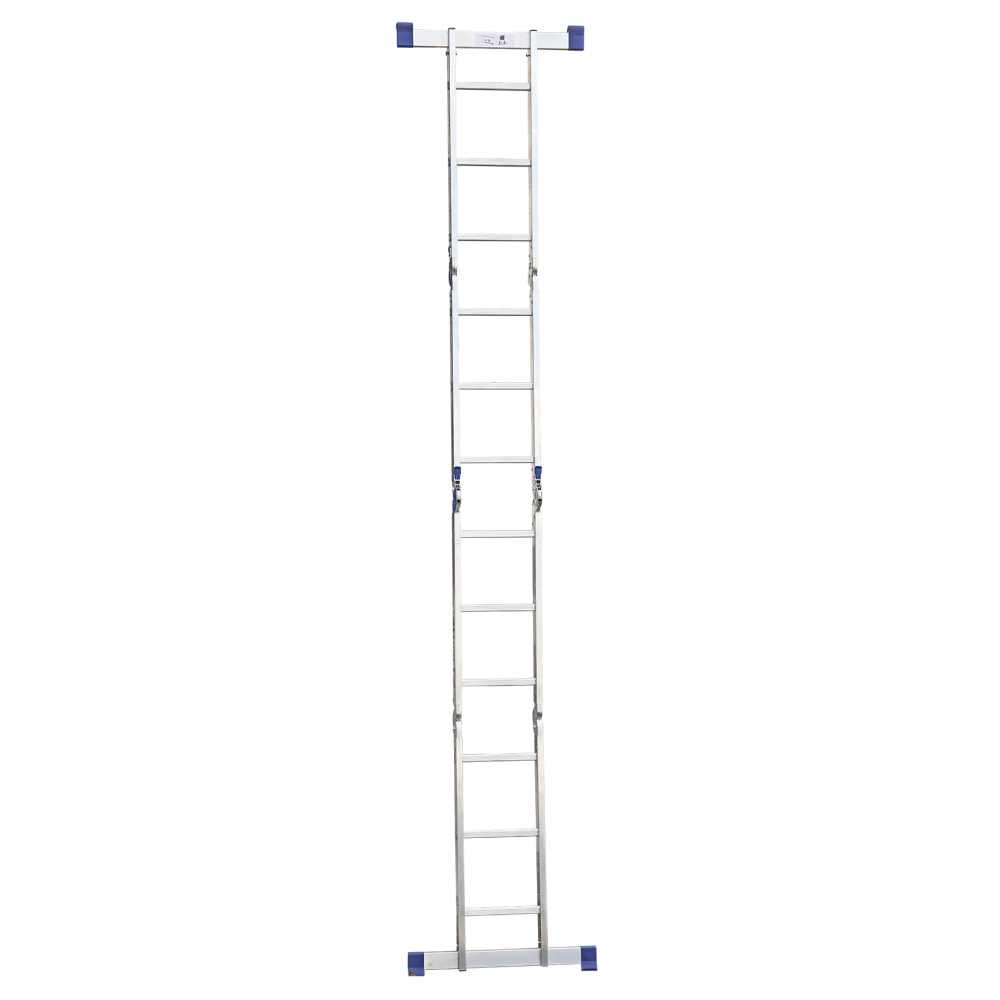

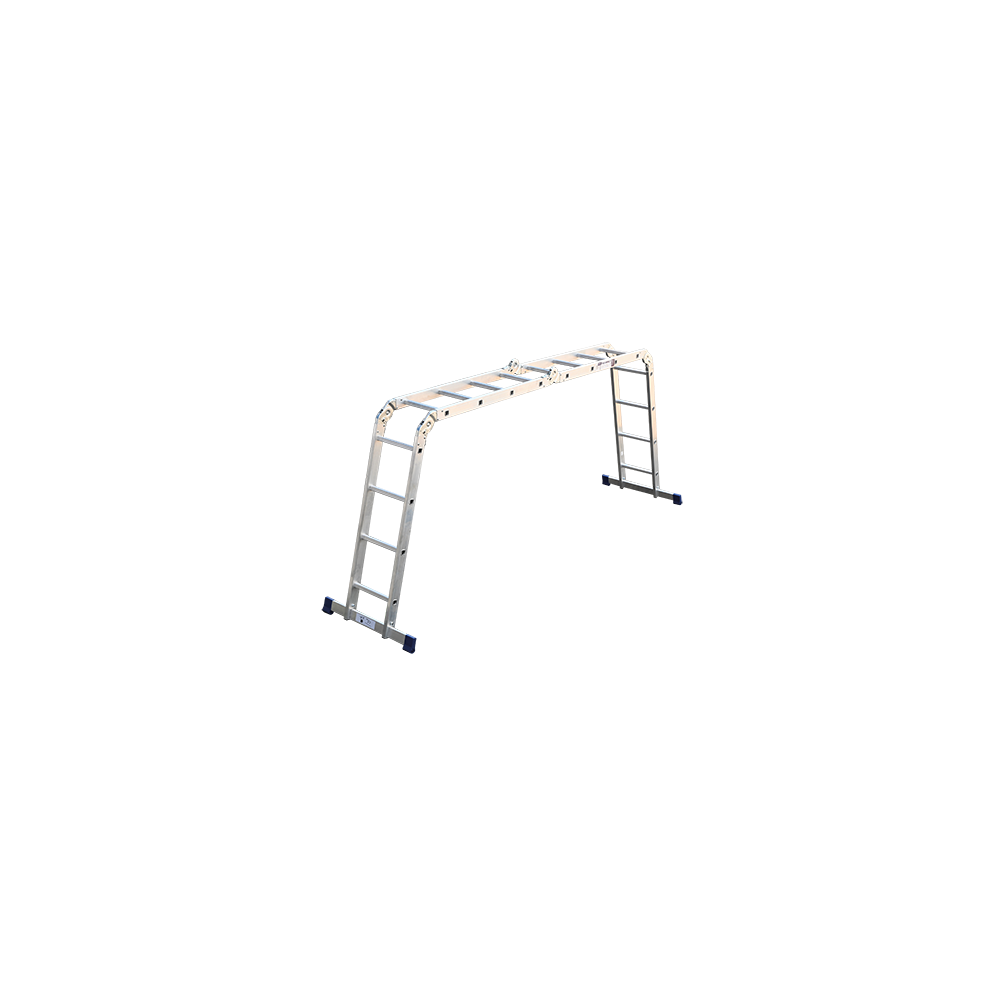

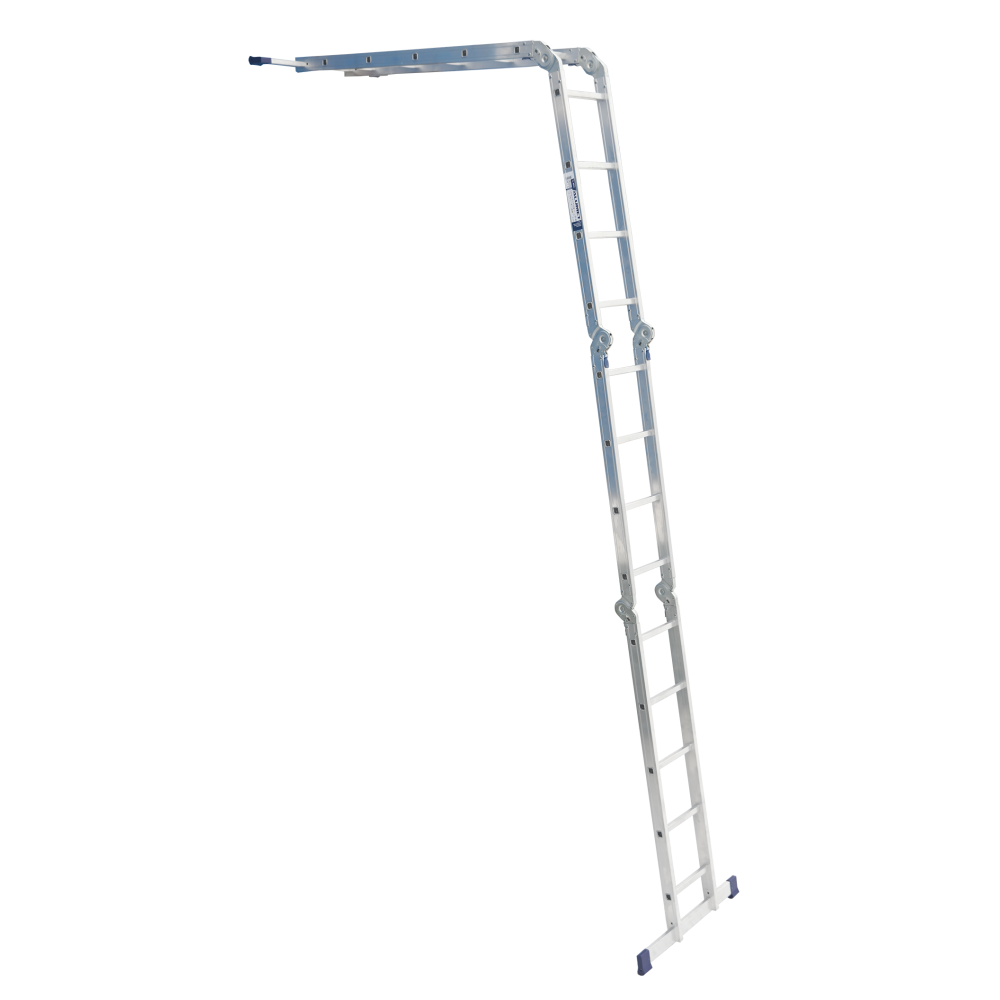

The ladder consists of four sections, interconnected by steel ladder hinges with fixing angles of 35, 105 and 180 degrees. Therefore, such ladder can take various shapes, such as shown in the Figu...

All features

Article number

TL 4022 TL 4023 TL 4033 TL 4034 TL 4044 TL 4055 TL 4045 TL 4033SP

Specifications

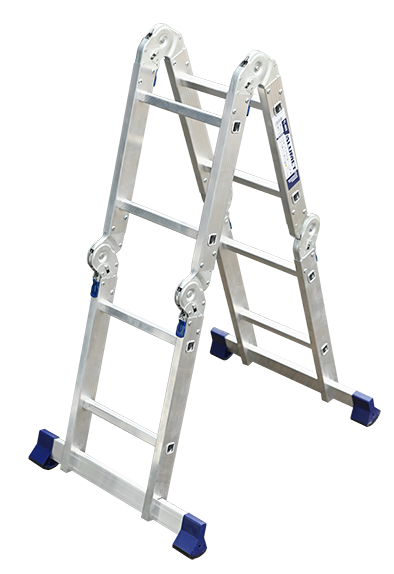

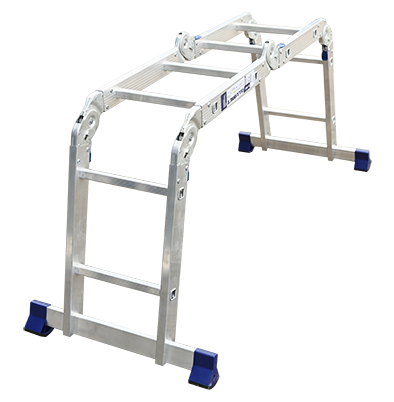

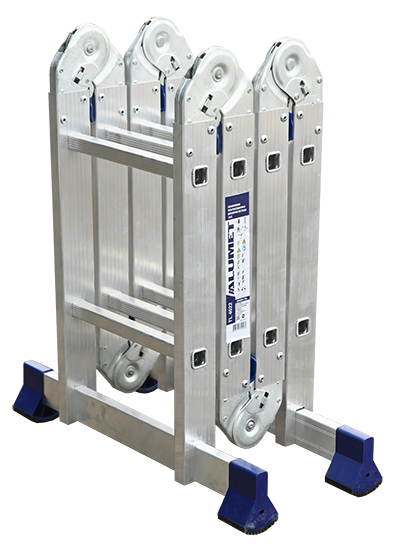

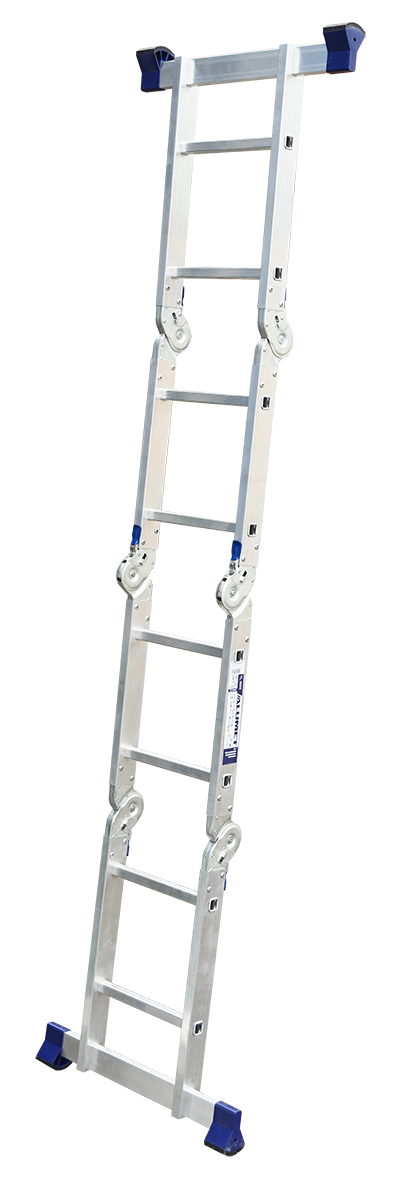

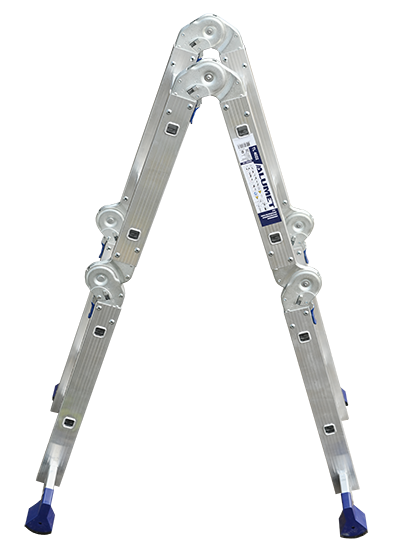

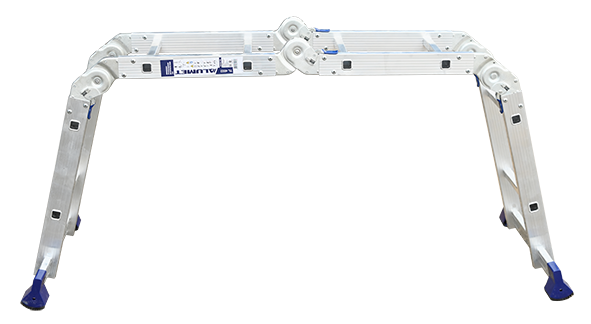

Vendor code: TL 4022
Number of steps: 4

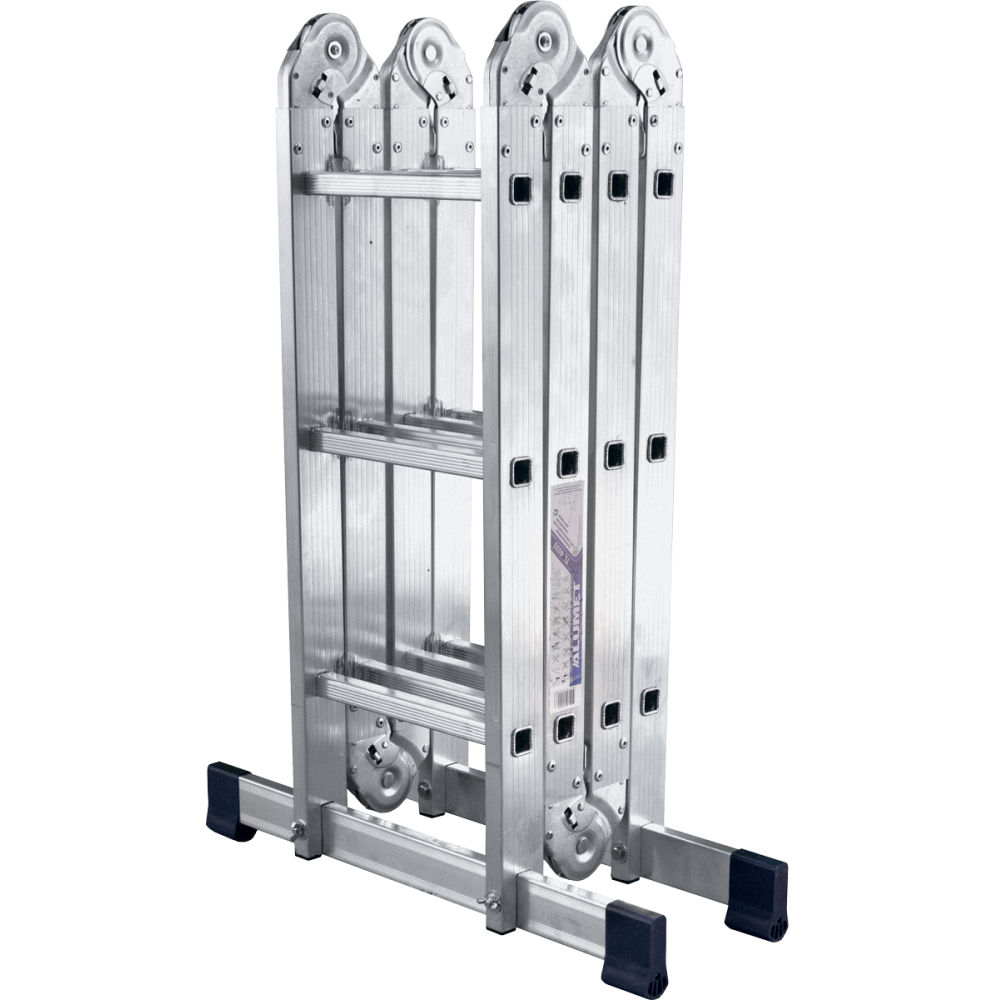

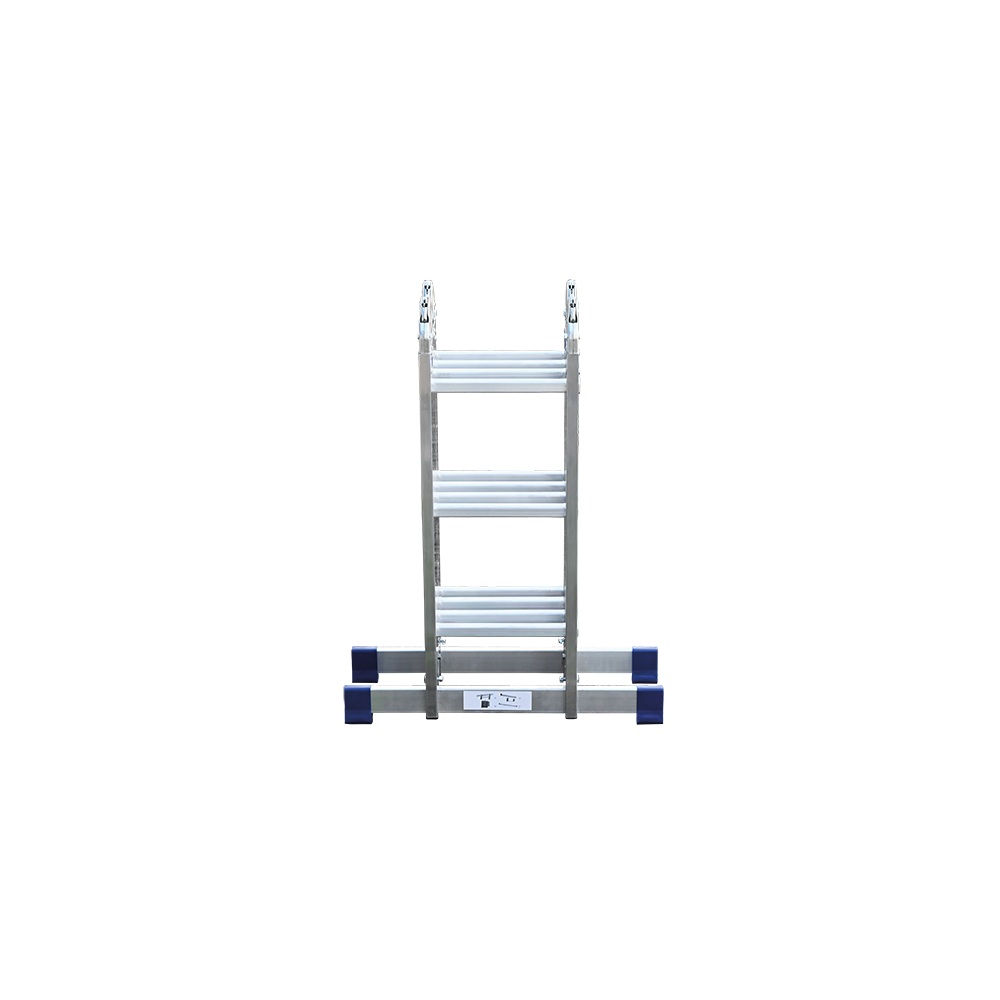

Length folded: 0.66
Folded width: 0.26
Height: 1.18

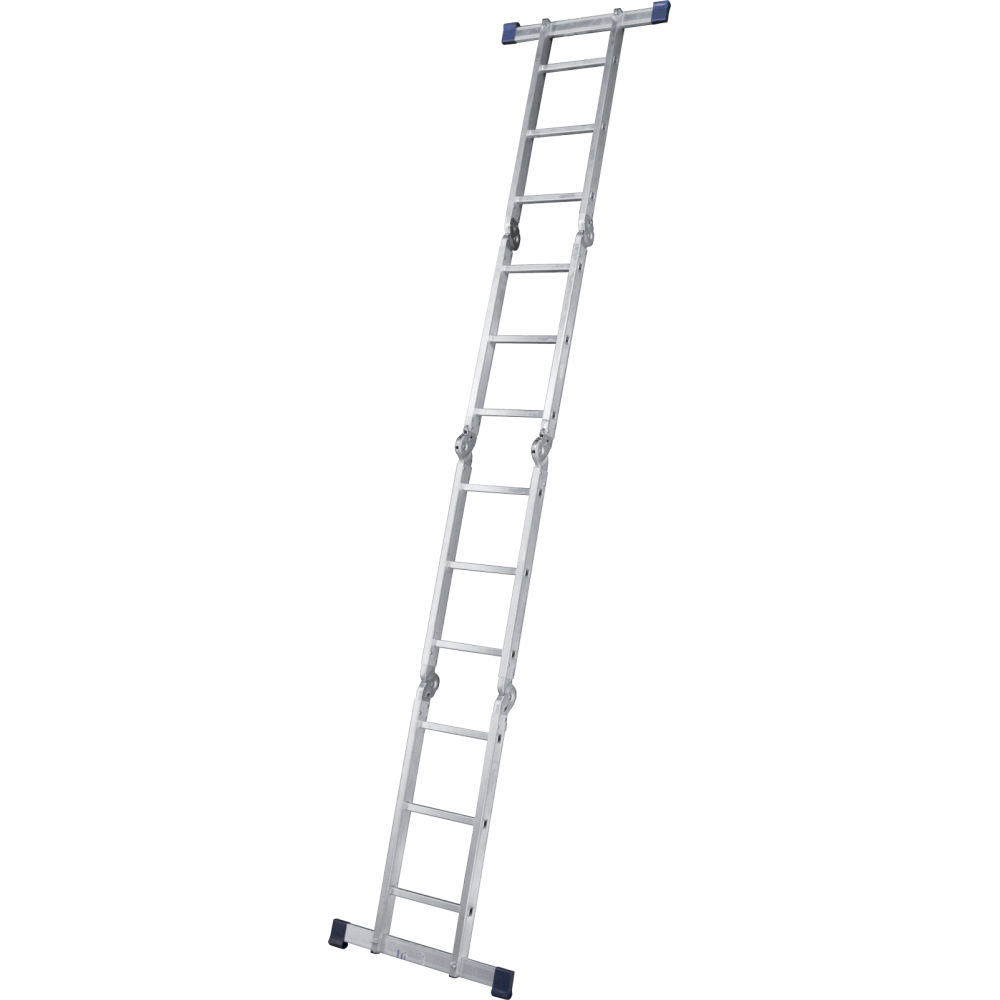

Length of four sections: 2.4
Height max: 2.28
Height max: 3.5
Width: 0.33

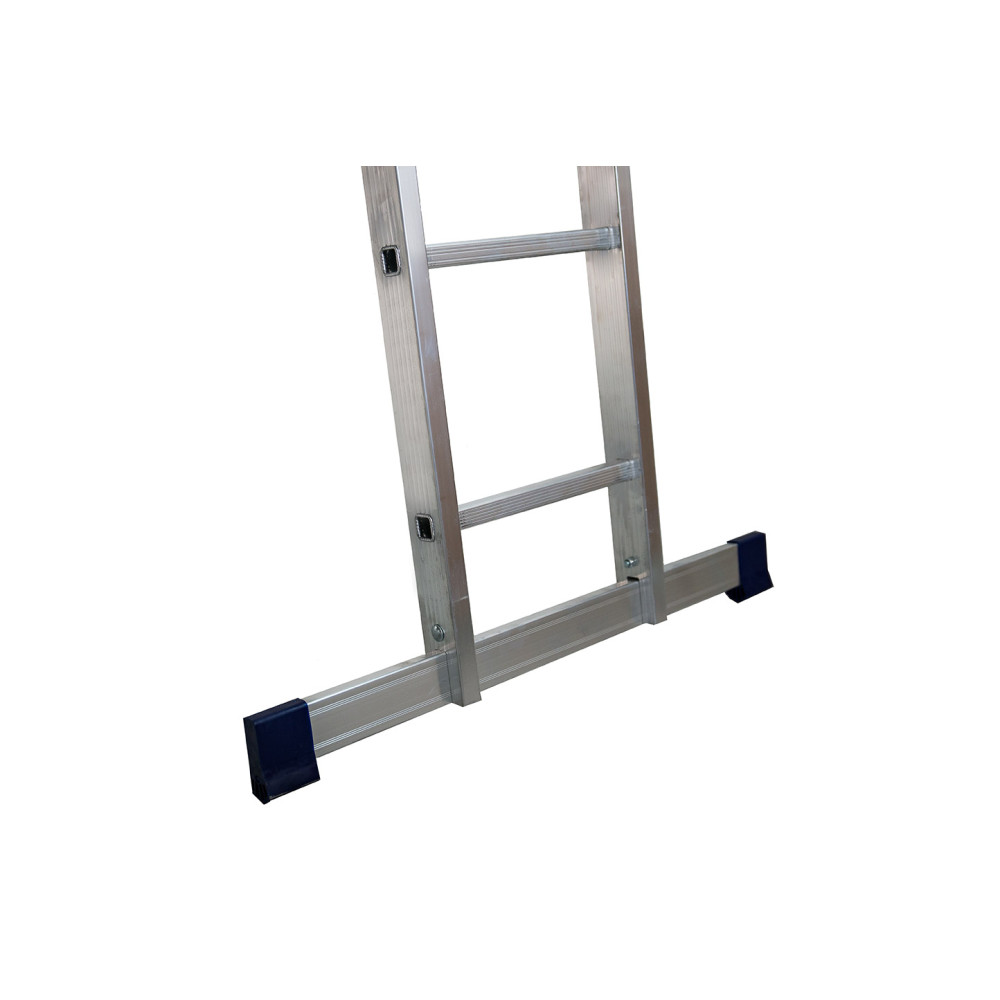

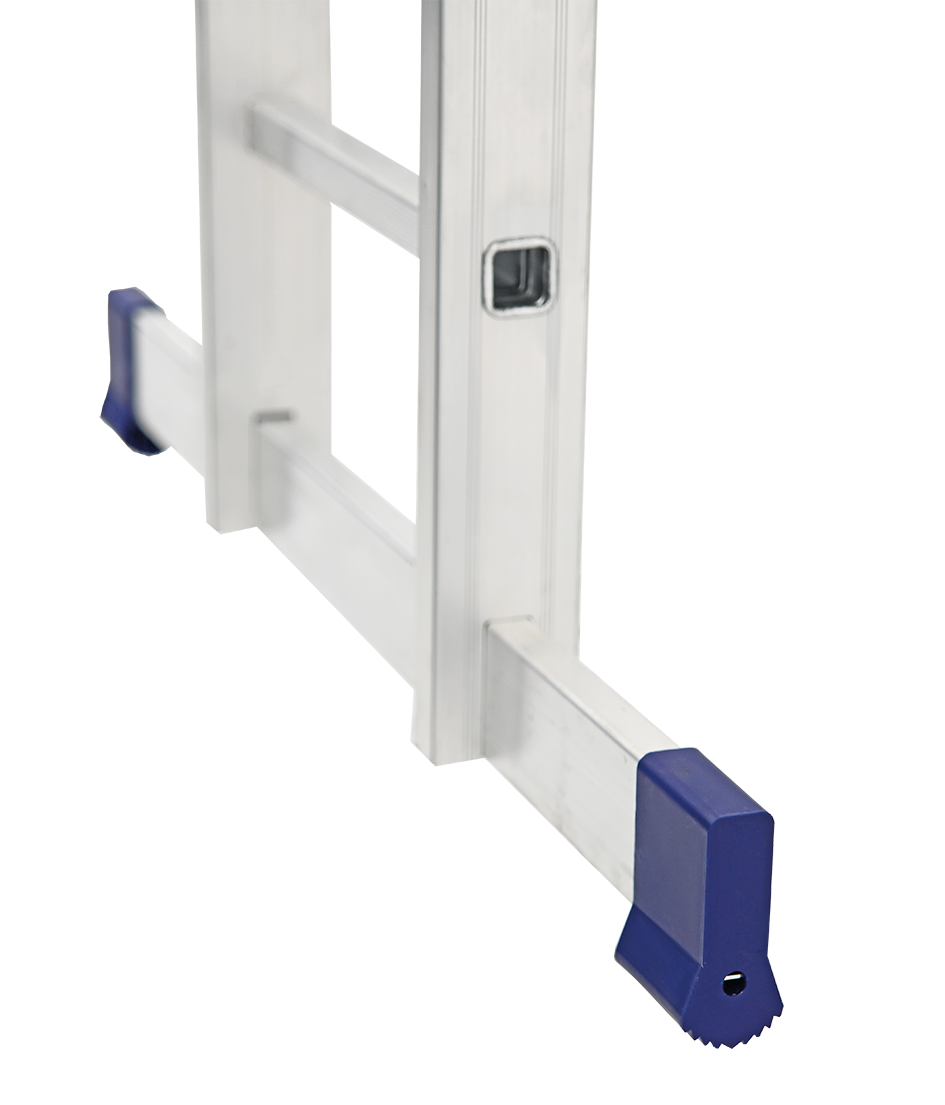

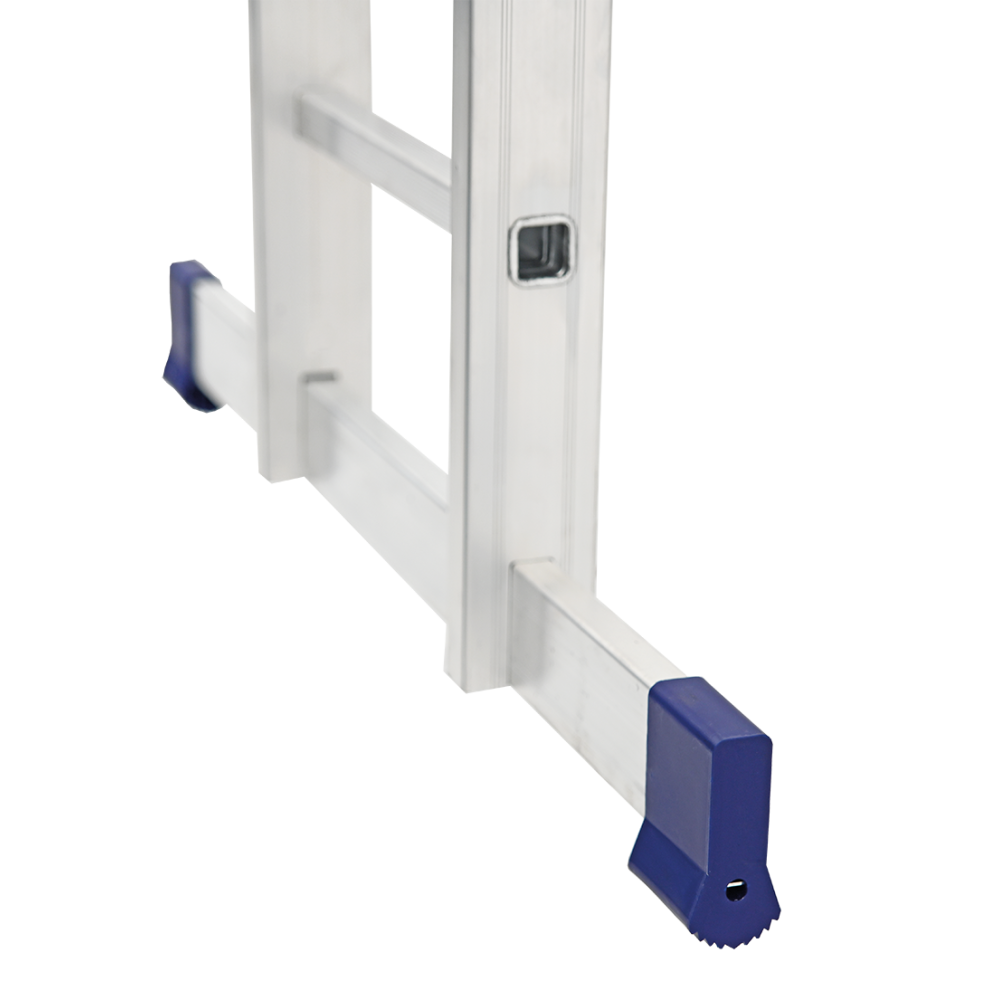

Stabilizer length: 0.6
Weight: 9.3

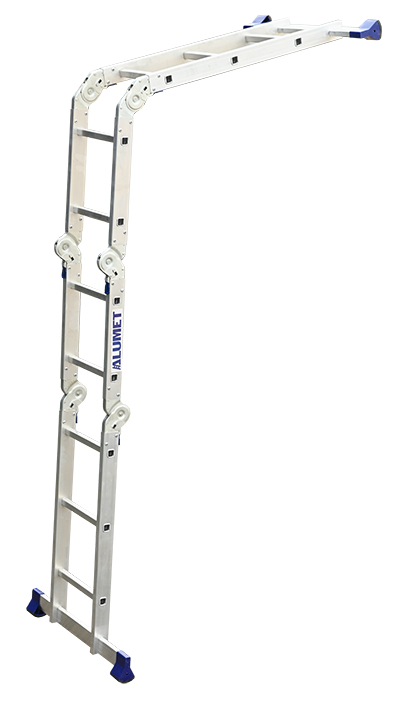

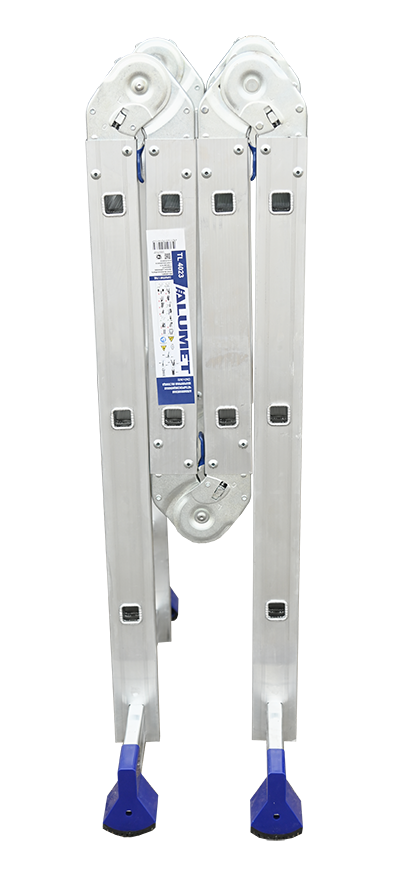

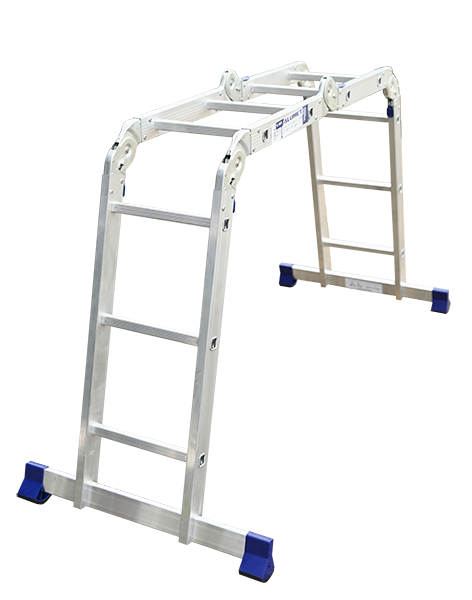

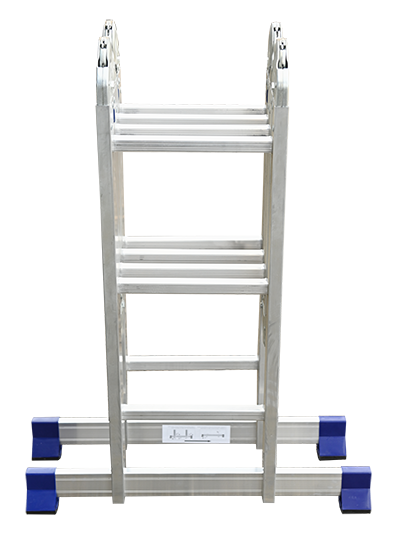

Vendor code: TL 4023
Number of steps: 2x2+2x3
Length folded: 0.94
Folded width: 0.26
Height: 1.44
Length of four sections: 2.96
Height max: 2.54
Height max: 4.06
Width: 0.33
Stabilizer length: 0.7
Weight: 10.1

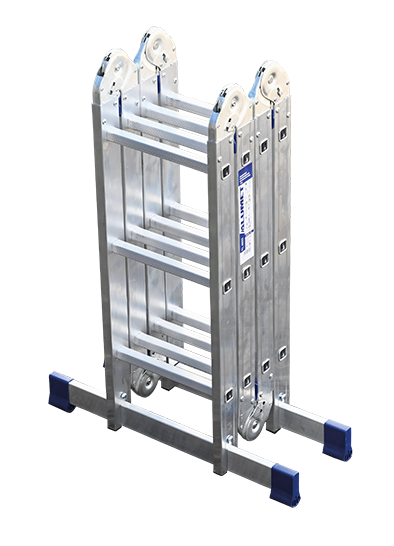

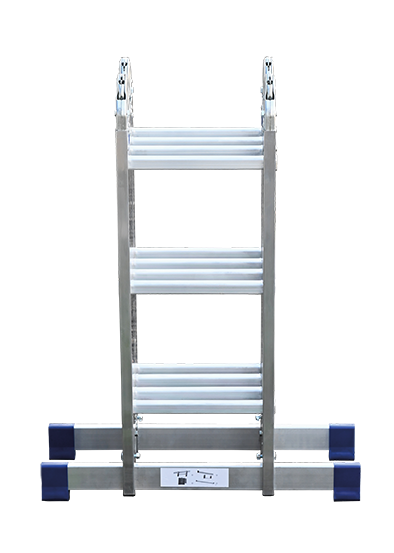

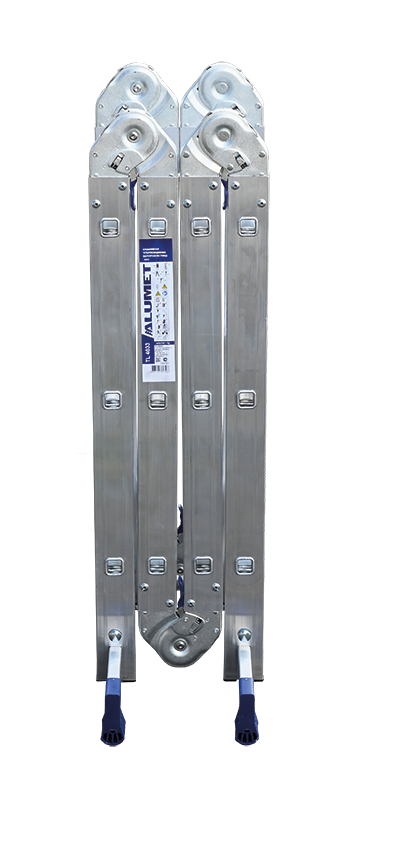

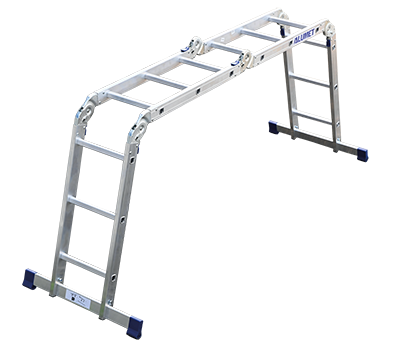

Vendor code: TL 4033
Number of steps: 4x3
Length folded: 0.94
Folded width: 0.26
Height: 1.71
Length of four sections: 3.52
Height max: 2.81
Height max: 4.62
Width: 0.33
Stabilizer length: 0.7
Weight: 10.9

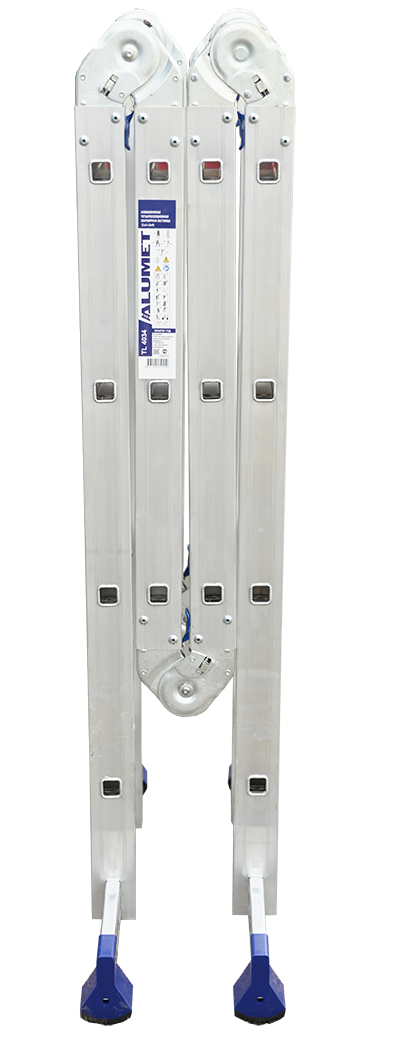

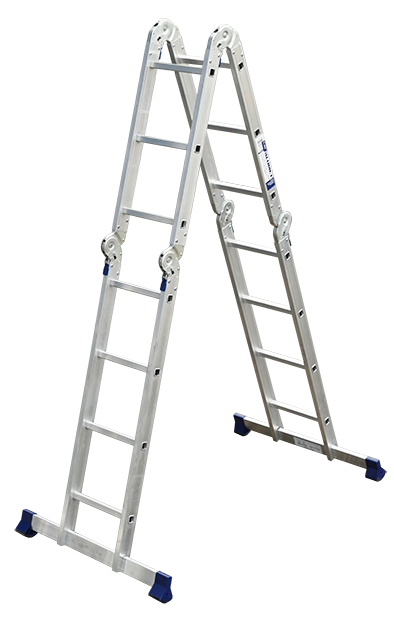

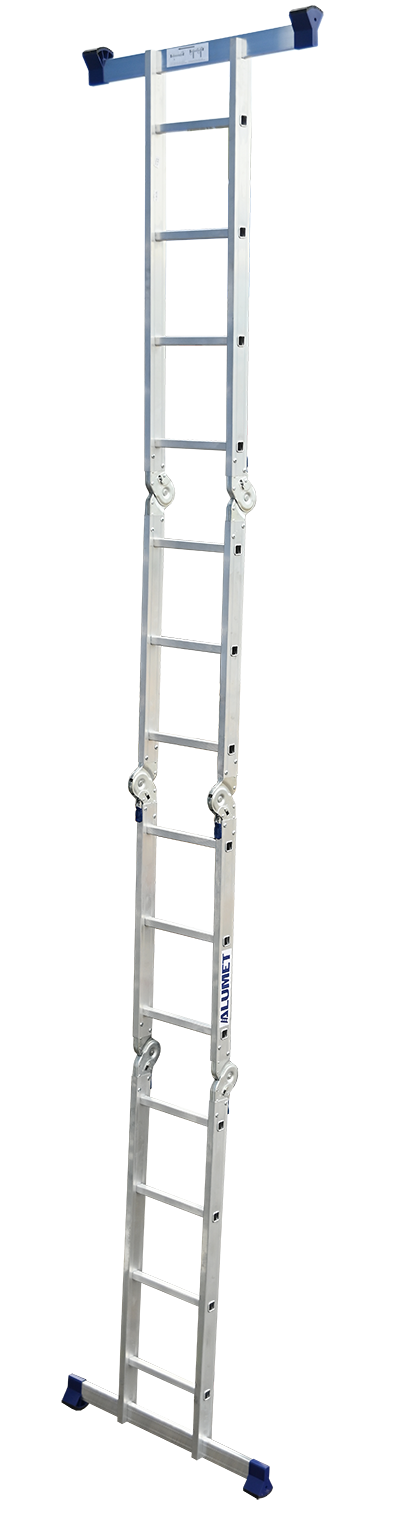

Vendor code: TL 4034
Number of steps: 2x3+2x4
Length folded: 1.22
Folded width: 0.26
Height: 1.98
Length of four sections: 4.08
Height max: 3.08
Height max: 5.18
Width: 0.33
Stabilizer length: 0.7
Weight: 11.6

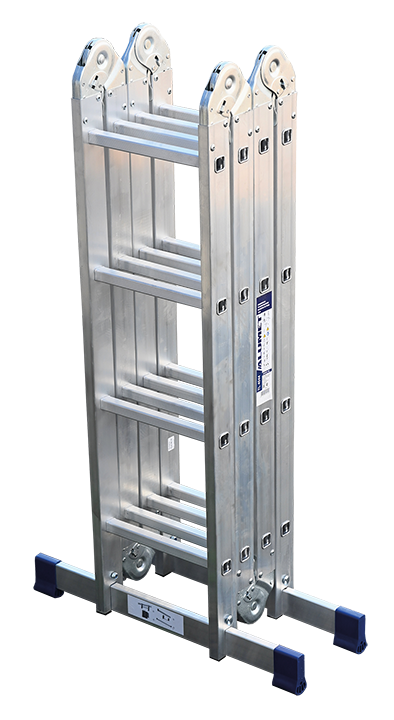

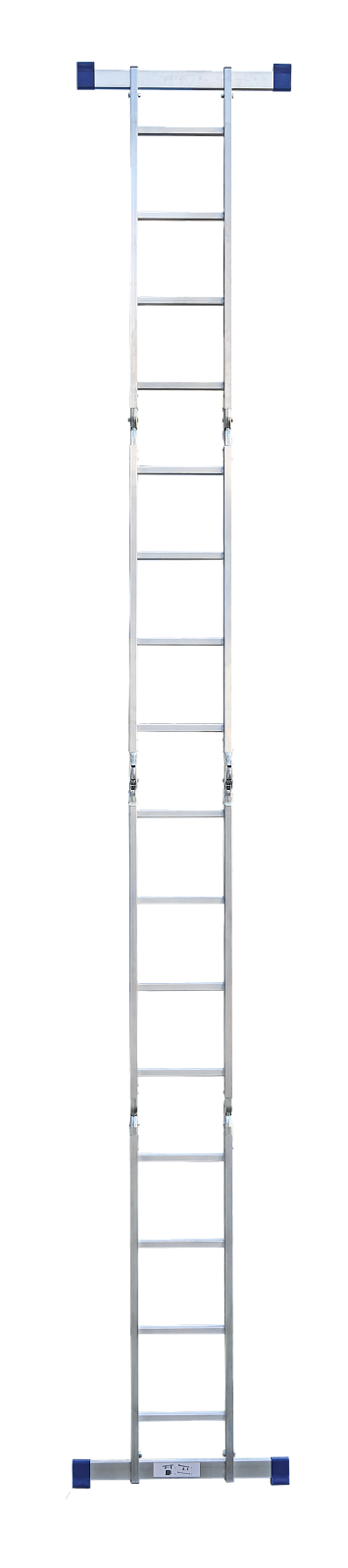

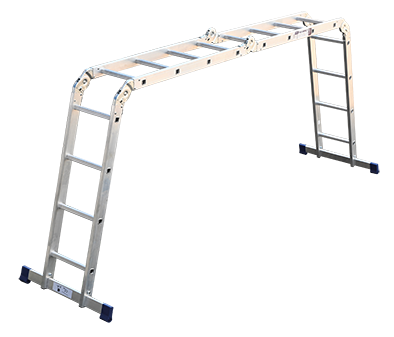

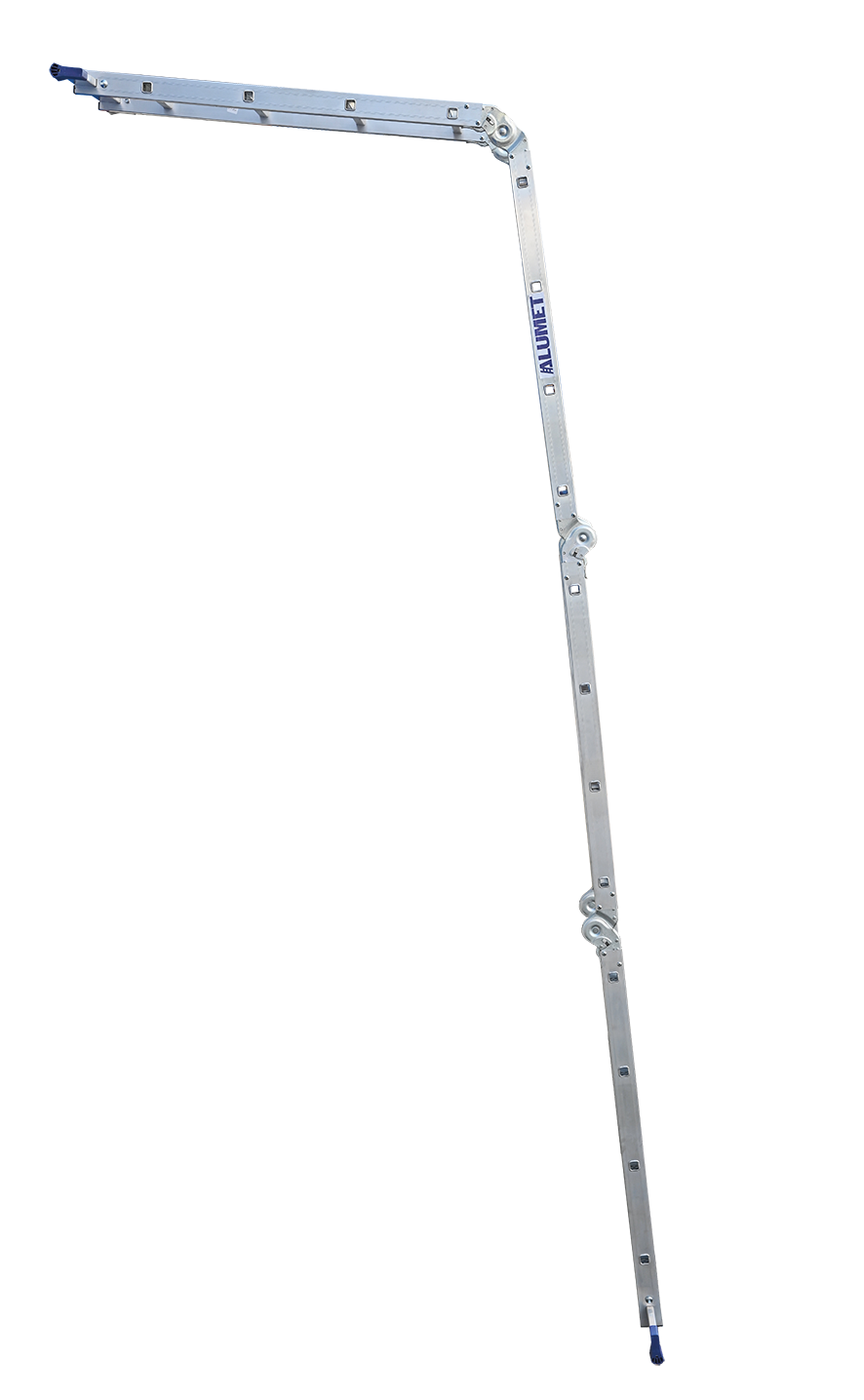

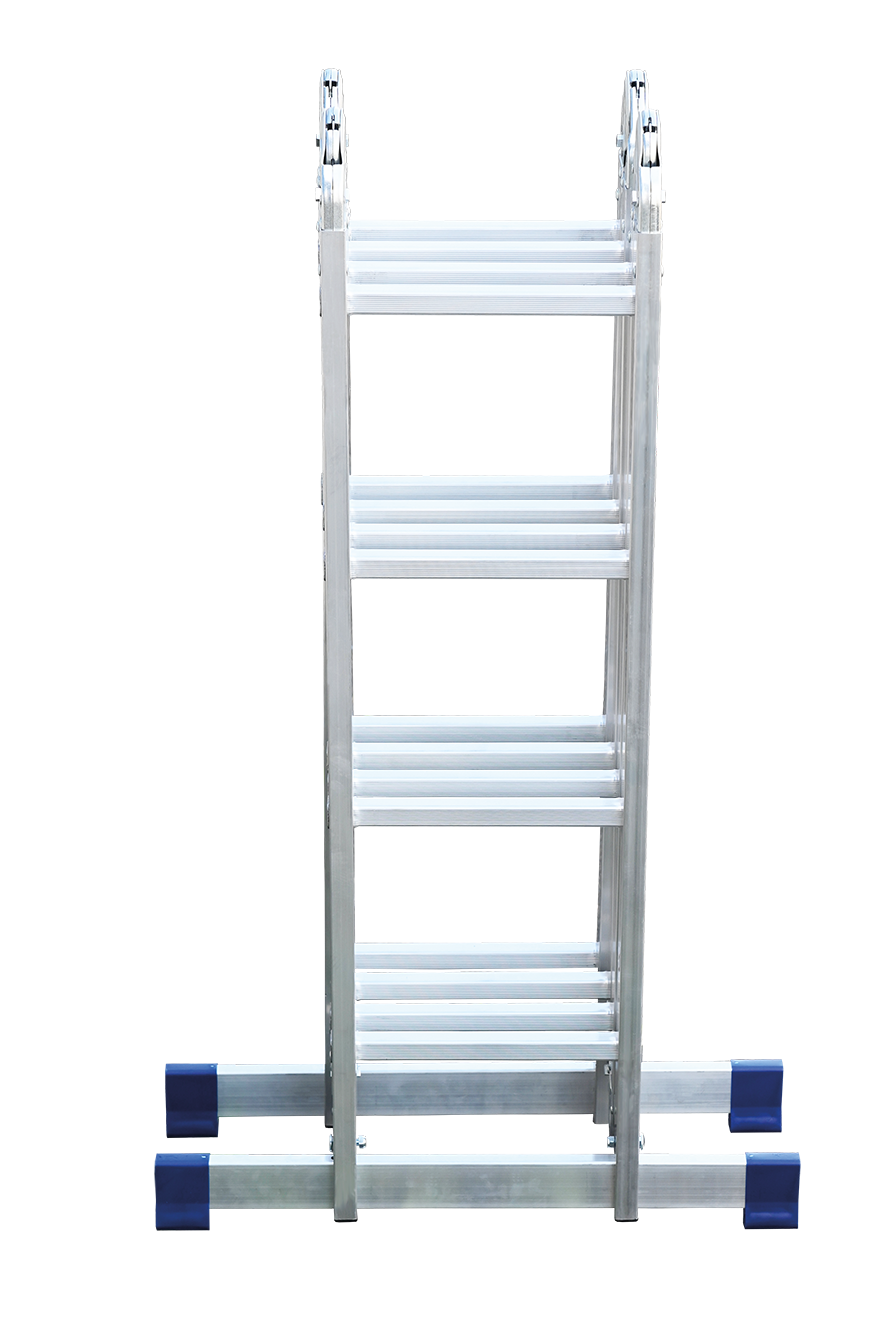

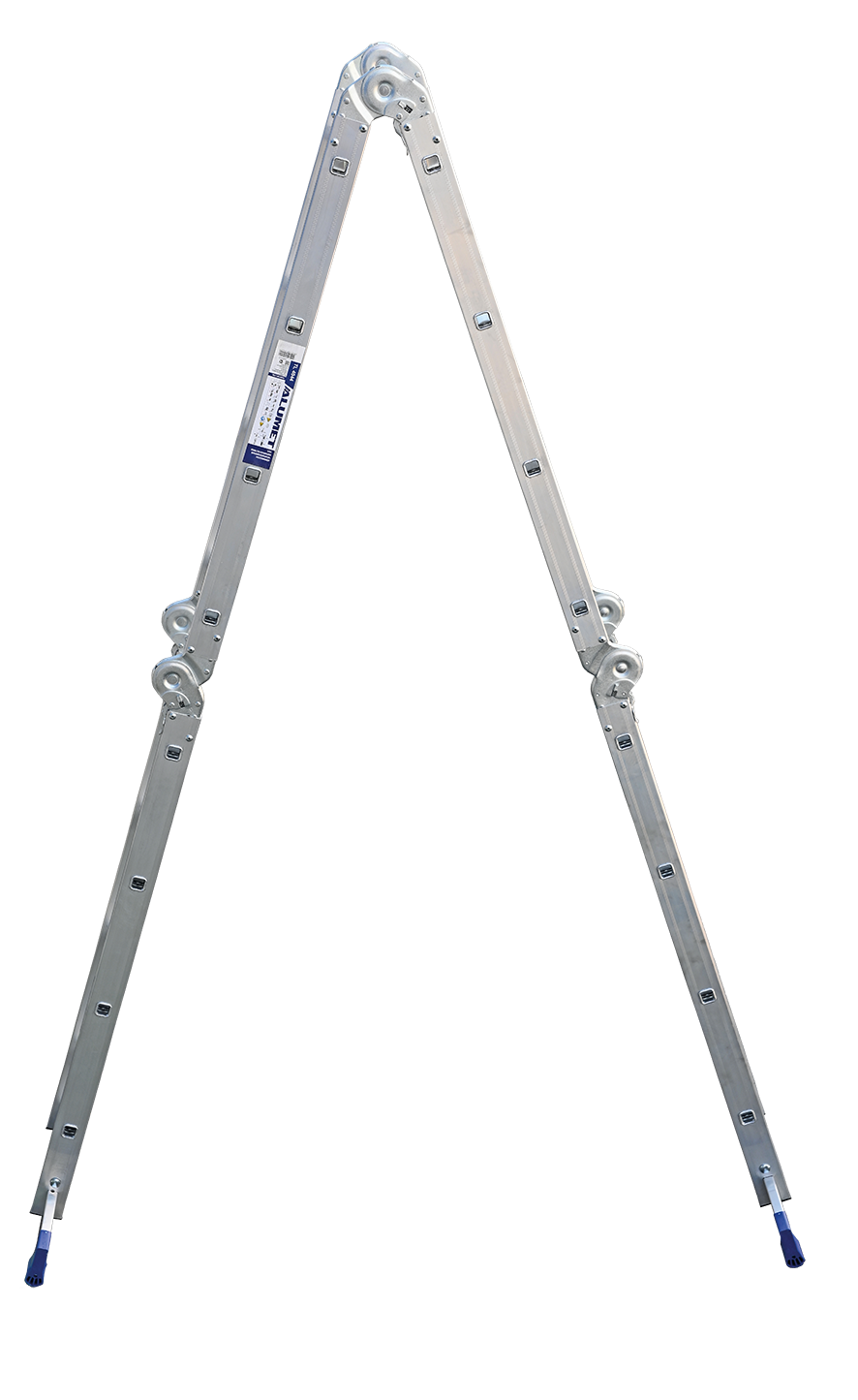

Vendor code: TL 4044
Number of steps: 4x4
Length folded: 1.22
Folded width: 0.26
Height: 2.24
Length of four sections: 4.64
Height max: 3.34
Height max: 5.74
Width: 0.33
Stabilizer length: 0.7
Weight: 12.5

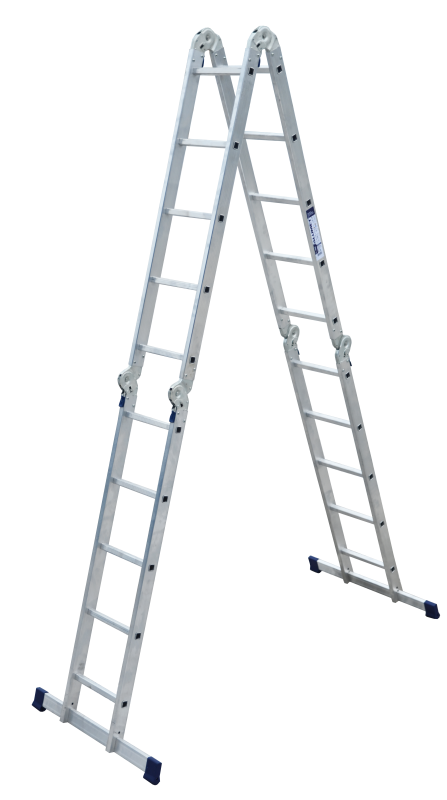

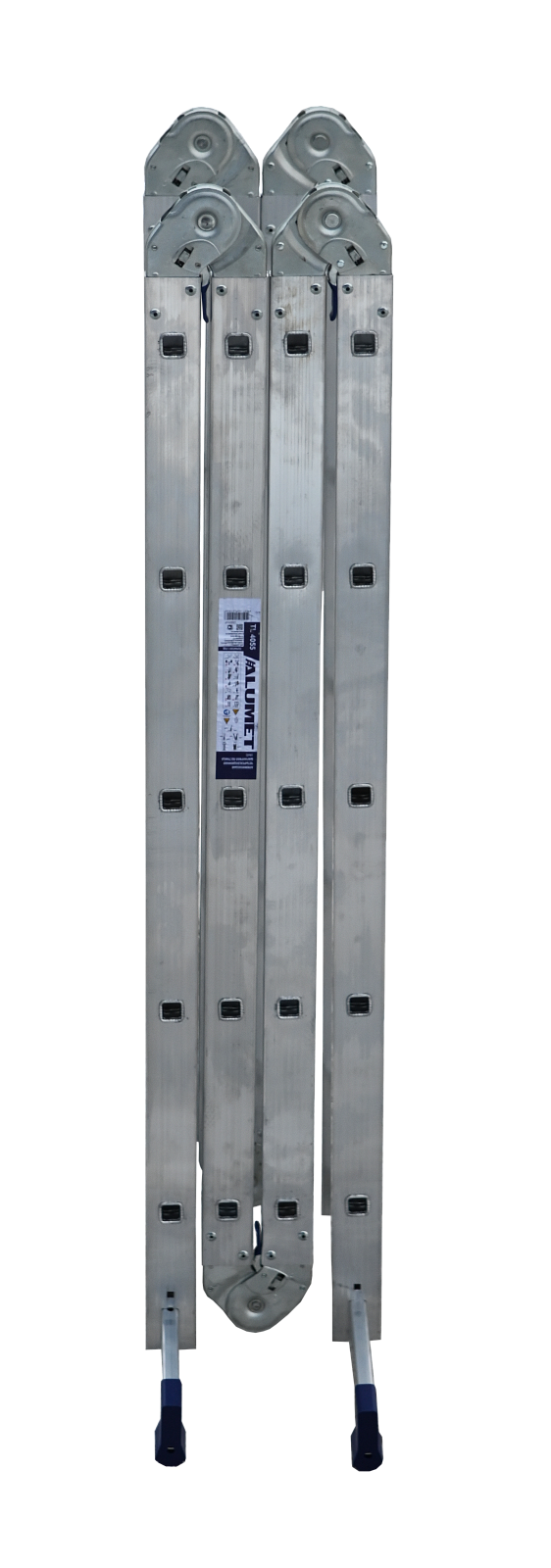

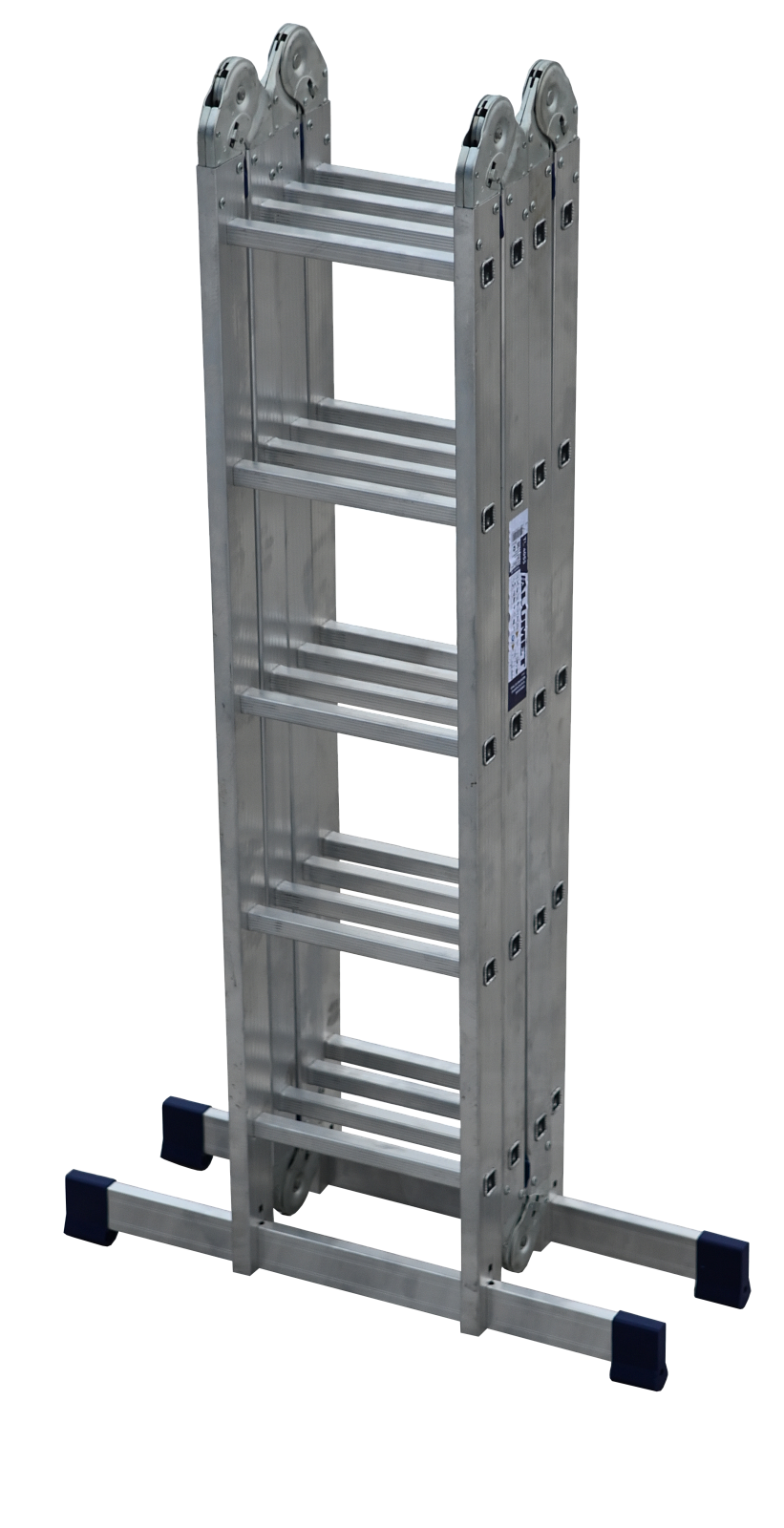

Vendor code: TL 4055
Number of steps: 4x5
Length folded: 1.52
Folded width: 0.26
Height: 2.78
Length of four sections: 5.76
Height max: 3.88
Height max: 6.86
Width: 0.33
Stabilizer length: 0.8
Weight: 15.1

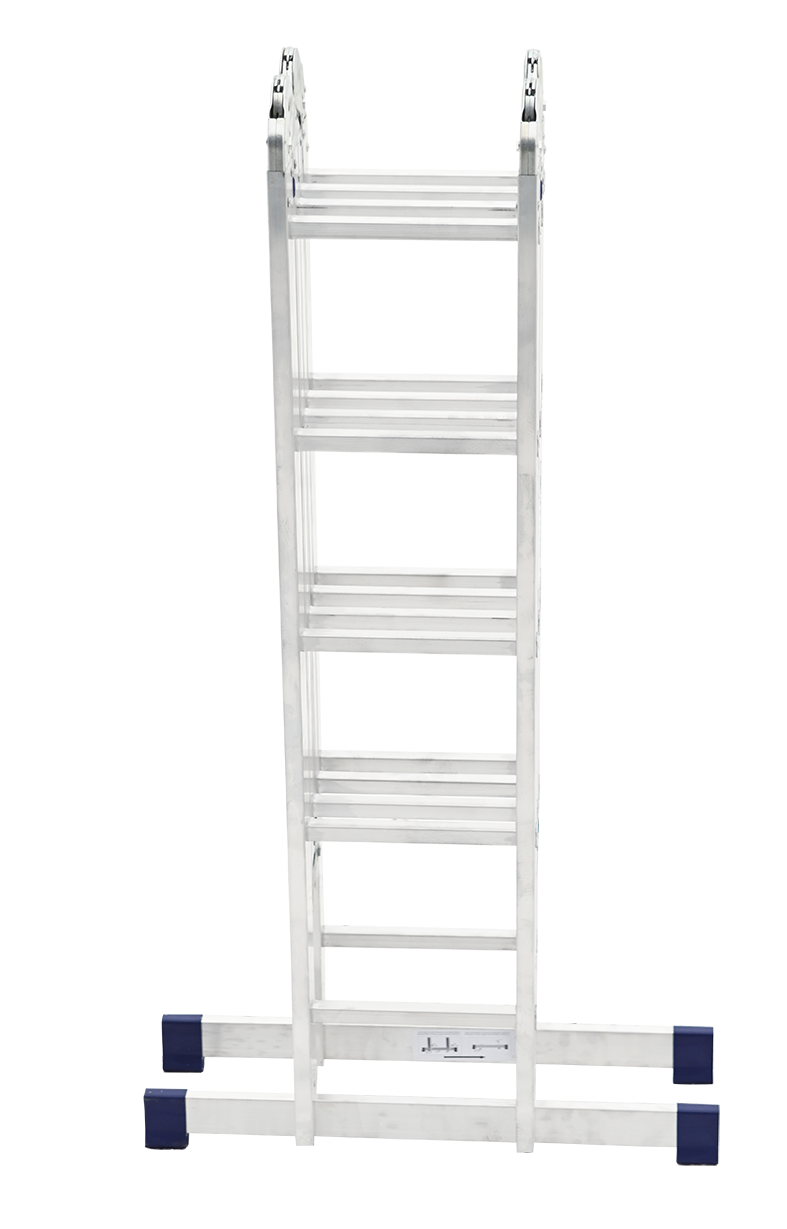

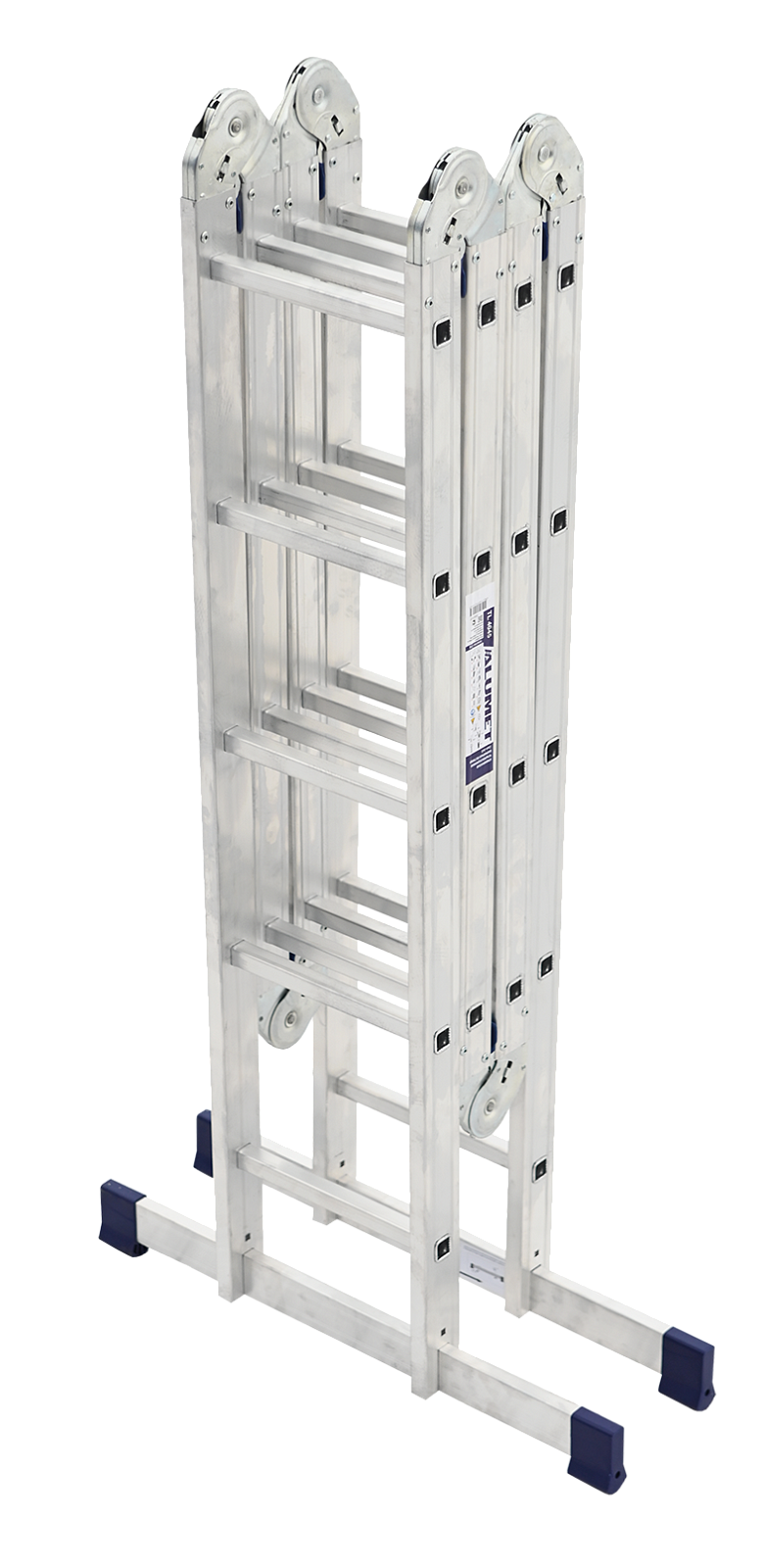

Vendor code: TL 4045
Number of steps: 2x4+2x5
Length folded: 1.52
Folded width: 0.26
Height: 2.51
Length of four sections: 5.20
Height max: 3.61
Height max: 6.30
Width: 0.33
Stabilizer length: 0.8
Weight: 14.5

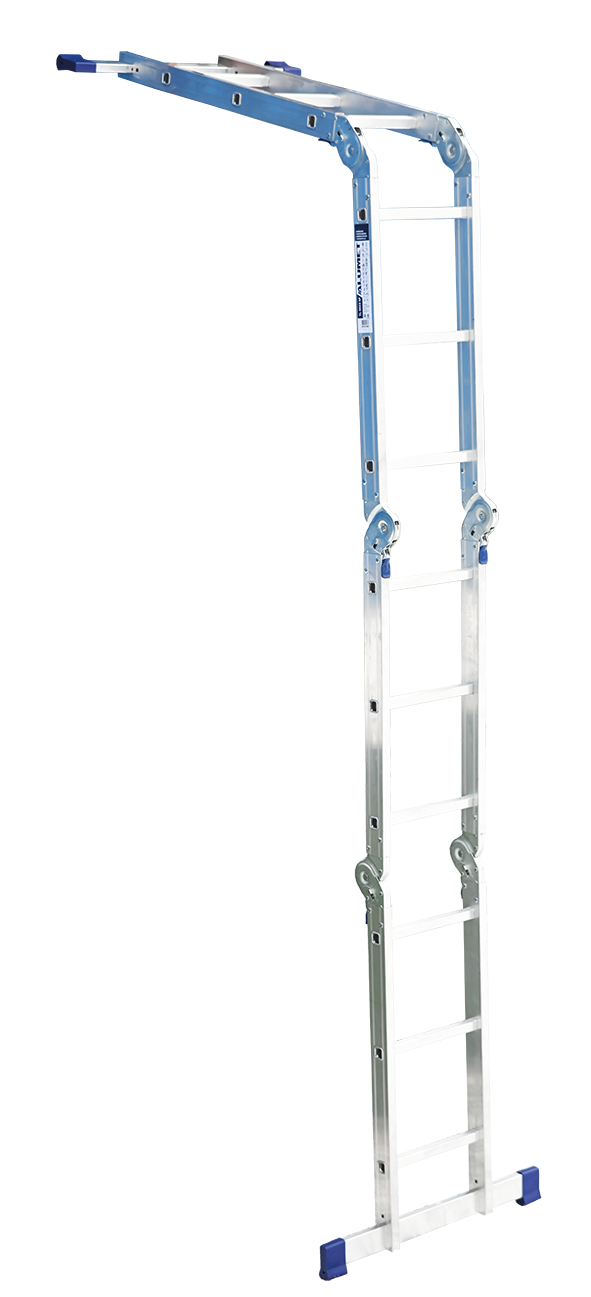

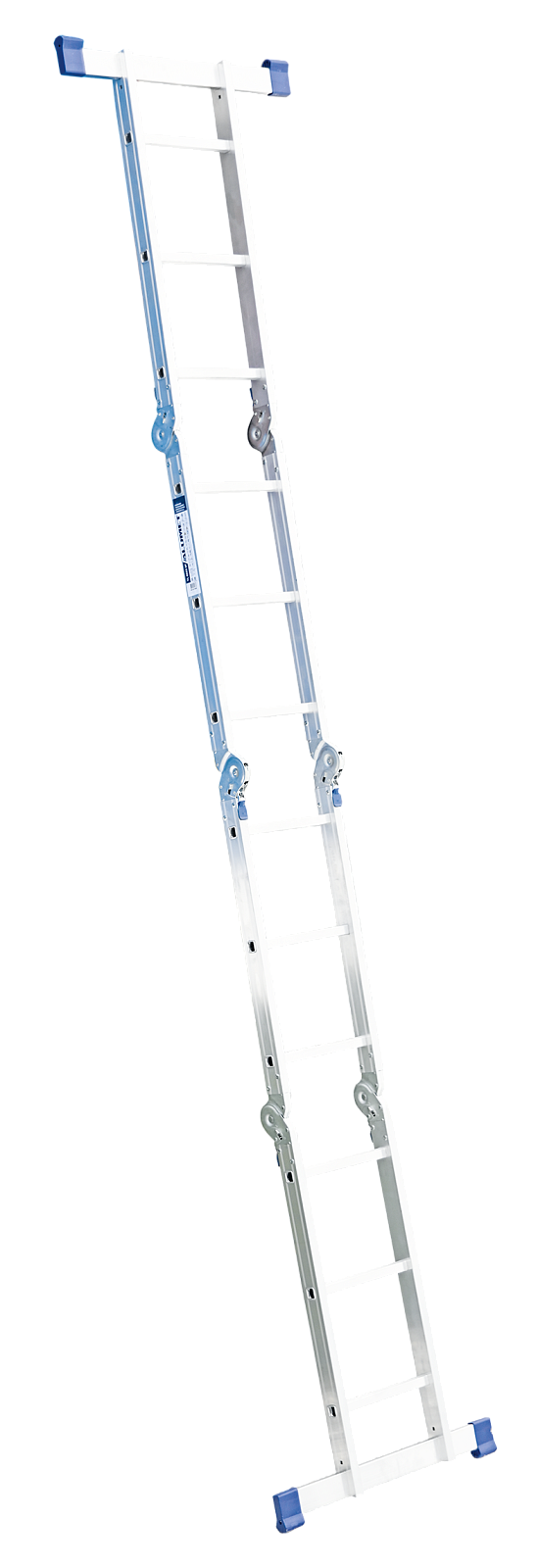

Vendor code: TL 4033SP
Number of steps: 4x3
Length folded: 0.94
Folded width: 0.26
Height: 1.71
Length of four sections: 3.52
Height max: 2.81
Height max: 4.62
Width: 0.33
Stabilizer length: 0.7
Weight: 14.3

Specifications

Series TL

Series TL4033SP

Лестницы 2024 - 2027г.г.

Vendor code	Number of steps	Length folded	Folded width	Height	Length of four sections	Height max	Height max	Width	Stabilizer length	Weight
TL 4022	4	0.66	0.26	1.18	2.4	2.28	3.5	0.33	0.6	9.3
TL 4023	2x2+2x3	0.94	0.26	1.44	2.96	2.54	4.06	0.33	0.7	10.1
TL 4033	4x3	0.94	0.26	1.71	3.52	2.81	4.62	0.33	0.7	10.9
TL 4034	2x3+2x4	1.22	0.26	1.98	4.08	3.08	5.18	0.33	0.7	11.6
TL 4044	4x4	1.22	0.26	2.24	4.64	3.34	5.74	0.33	0.7	12.5
TL 4055	4x5	1.52	0.26	2.78	5.76	3.88	6.86	0.33	0.8	15.1
TL 4045	2x4+2x5	1.52	0.26	2.51	5.20	3.61	6.30	0.33	0.8	14.5
