SeriesAPE Series

Professional Step Ladder

Product Features:
  • Profile: aluminum
  • Stage: aluminum
  • Handrails: aluminum
  • Playground: moisture resistant plywood
Stepladder-platform aluminum professional ARE series is designed for various types of work at a height of up to 4.75 m, both at home and at work. The ladder - platform is a free-standing portable lad...
All features
Article number
Specifications
  • Vendor code: APE 1403
  • Number of steps: 3
  • Height: 0.80
  • Width: 0.5
  • Height max: 2.90
  • Length: 1.91
  • Stabilizer Width: ---
  • Weight: 6.2
Specifications

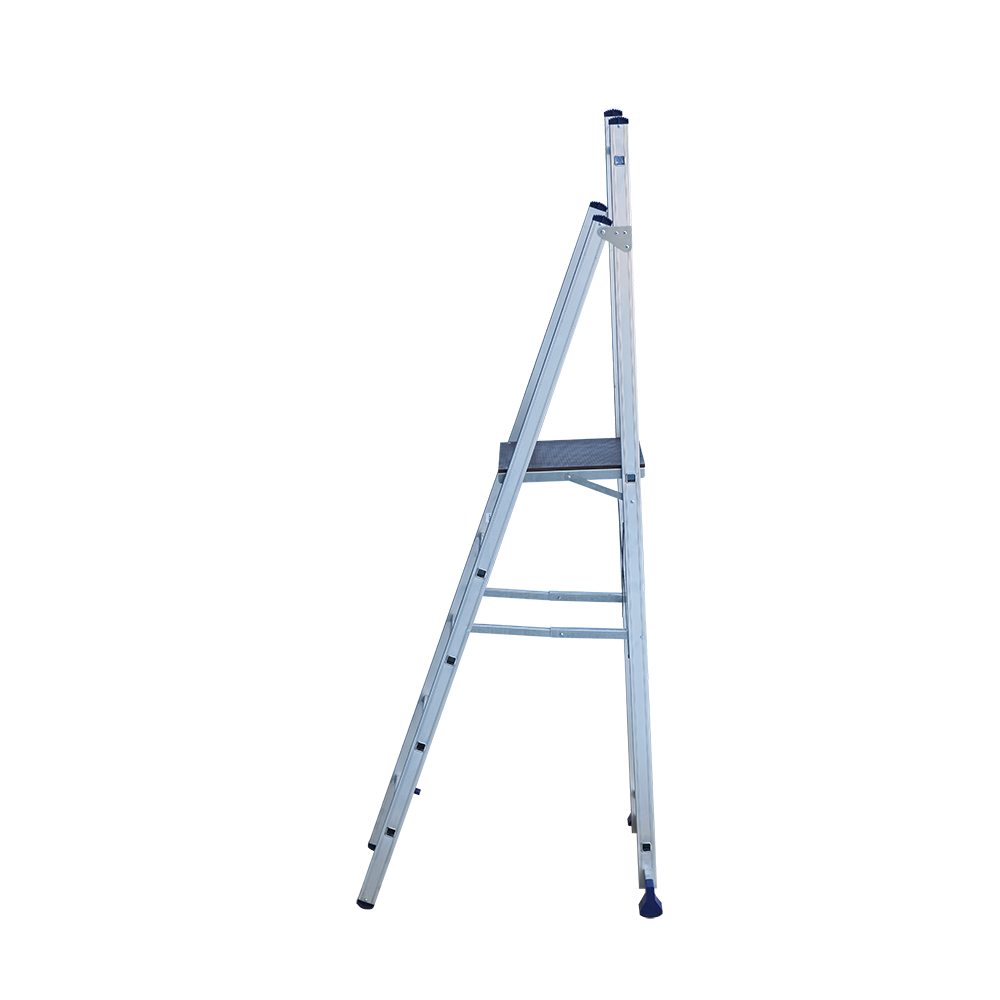

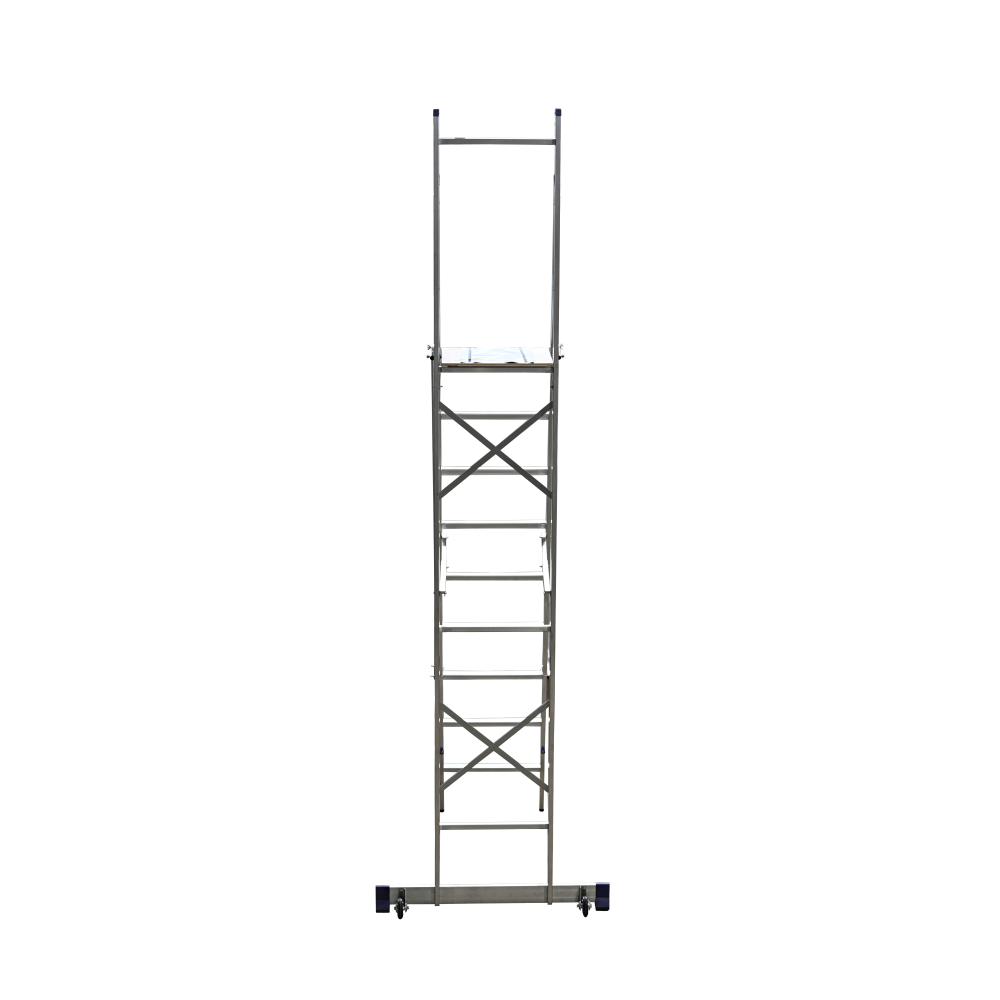

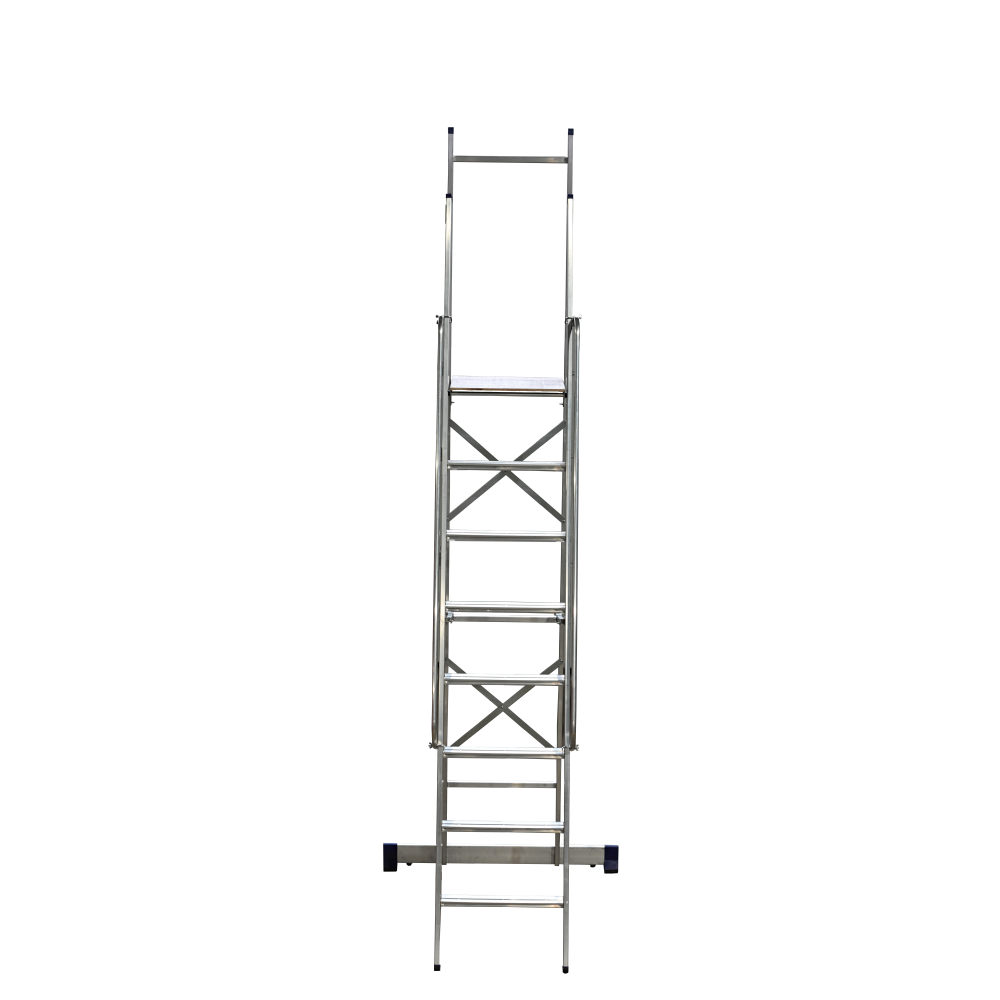

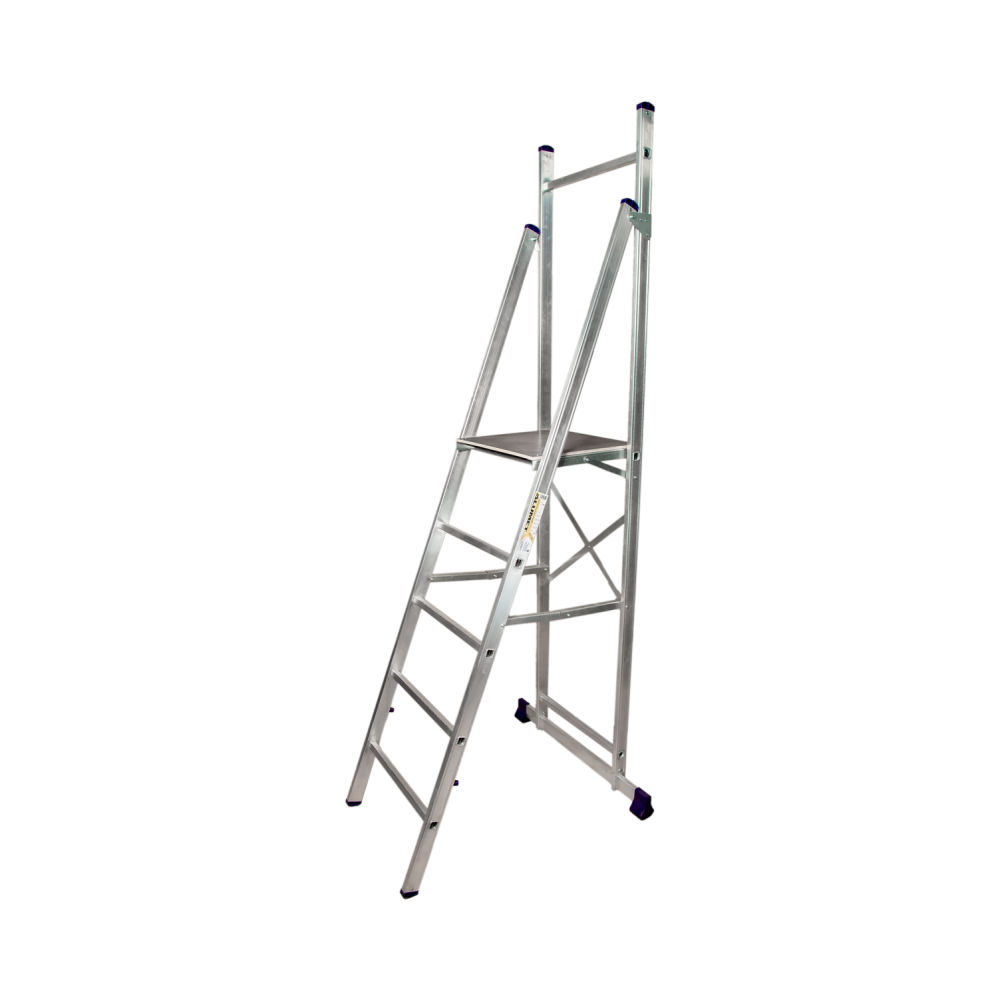

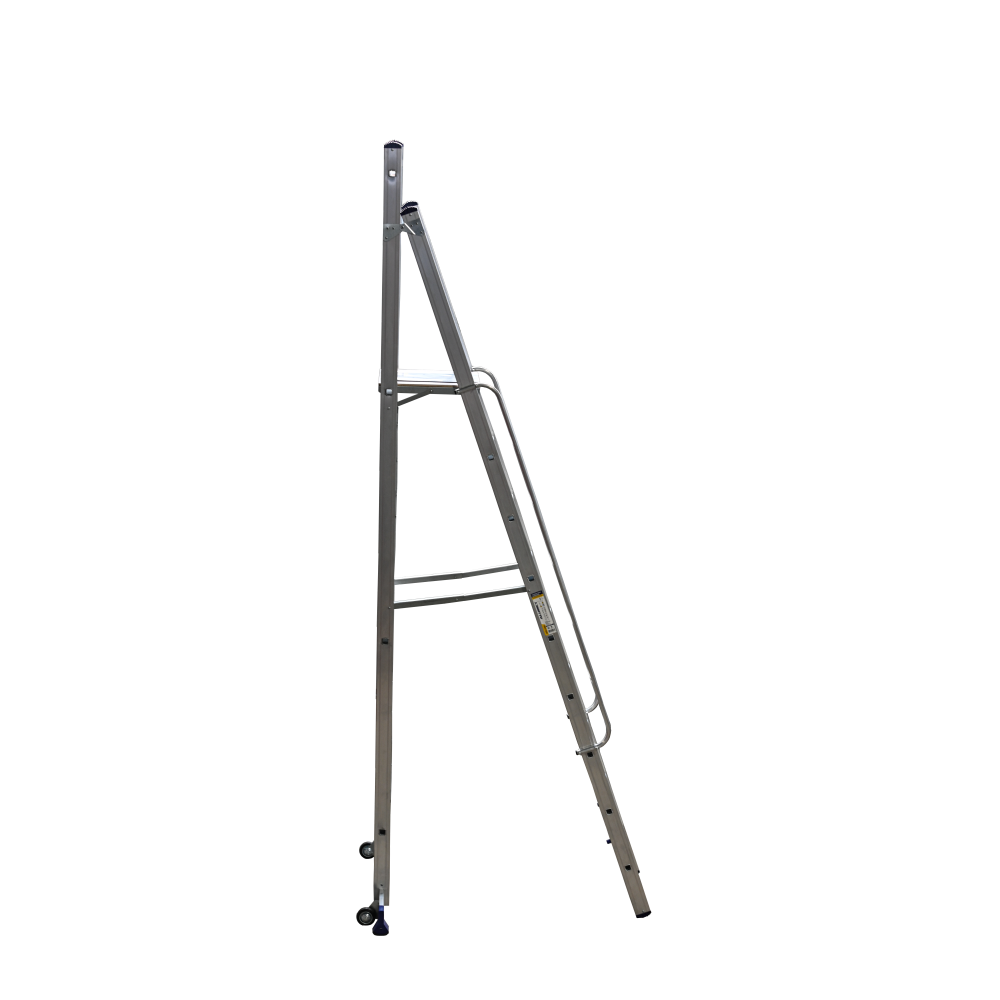

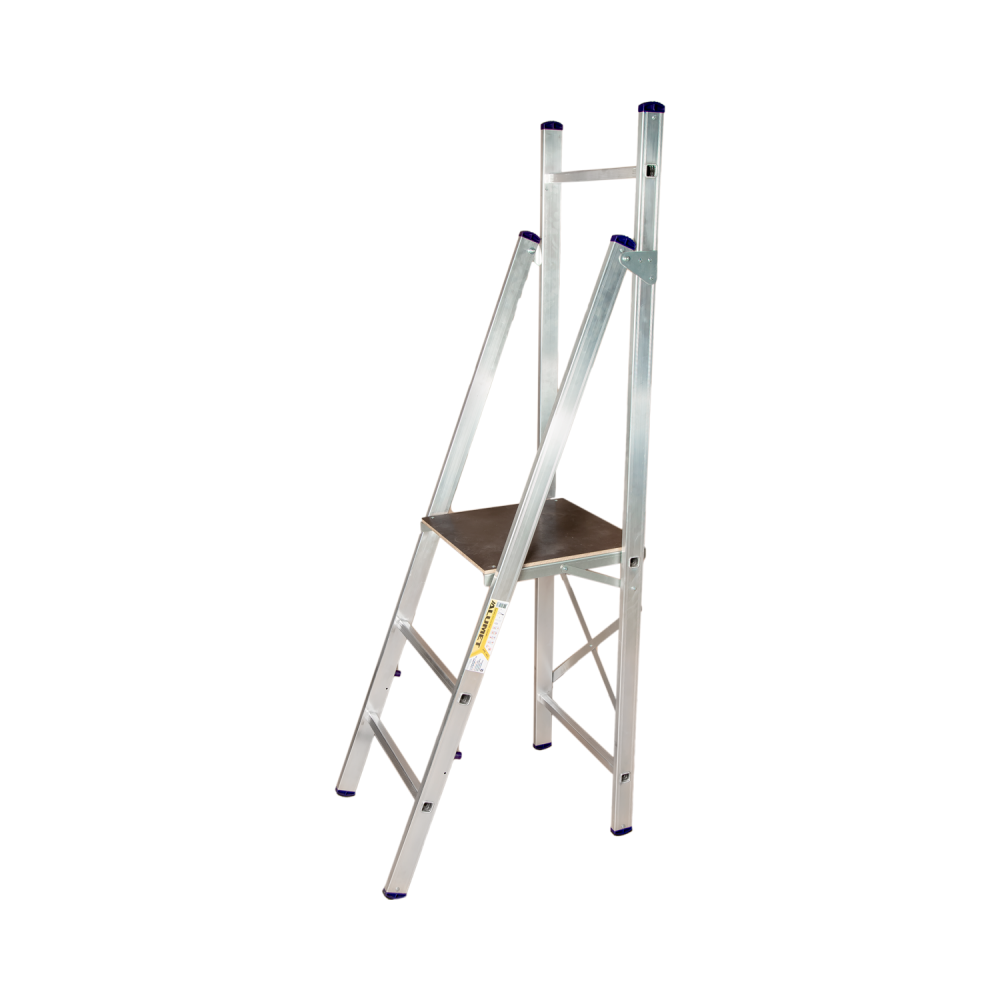

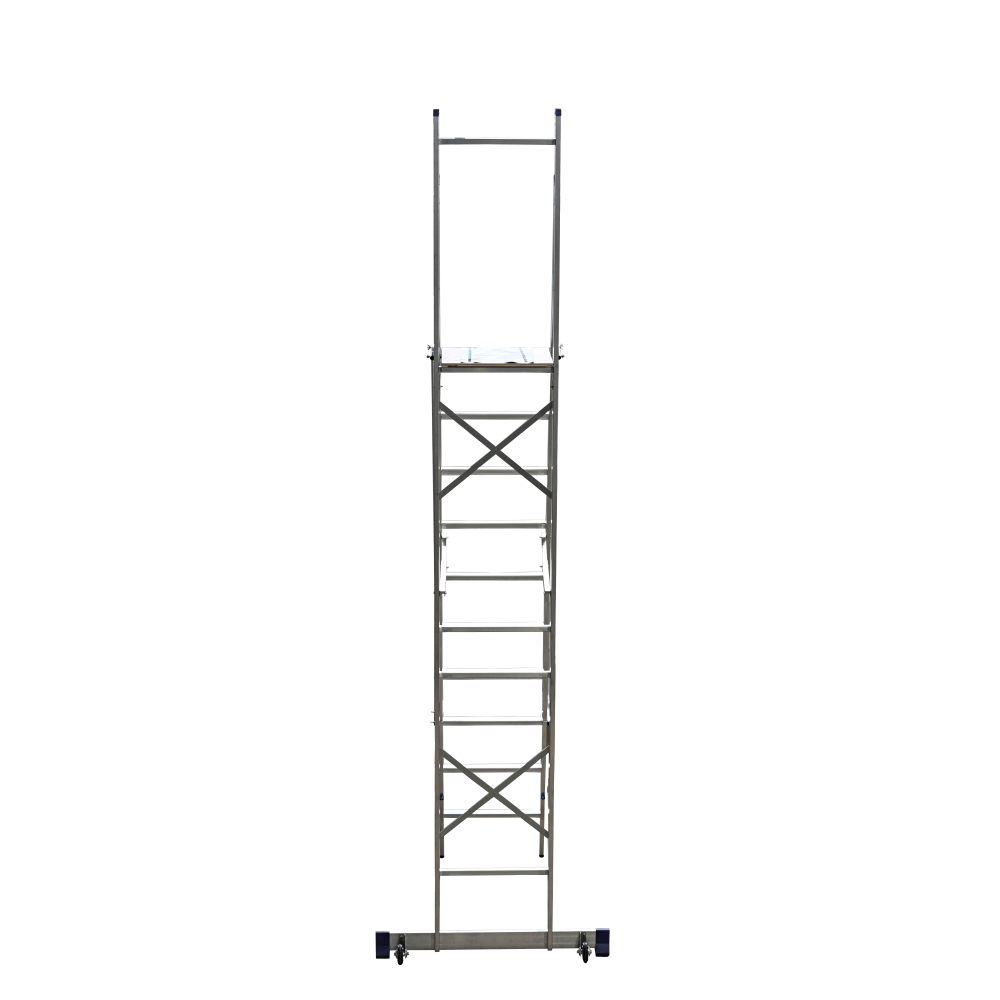

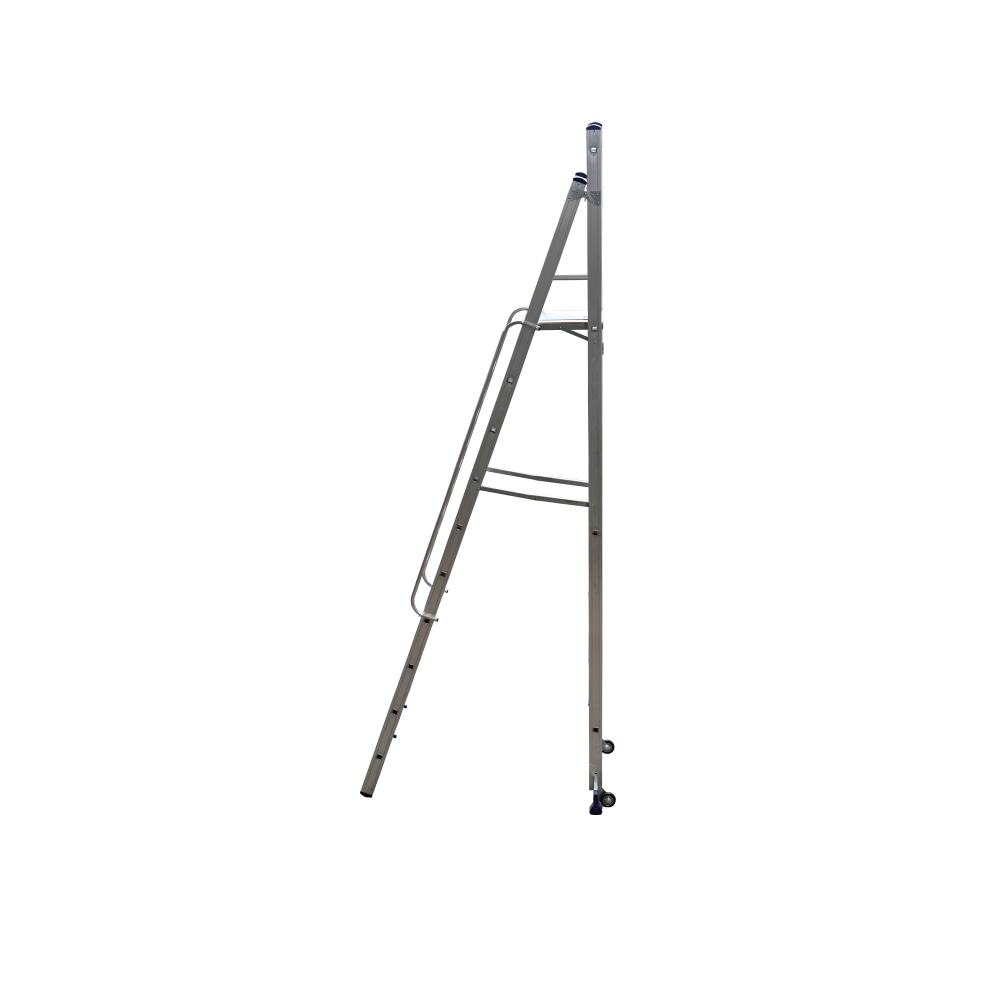

Photo gallery
Technical specifications

Series APE Series

Vendor code
Number of steps Number of steps
Height Height
Width Width
Height max Height max
Length Length
Stabilizer Width Stabilizer Width
Weight Weight
APE 1403
  • APE 1403
3 0.80 0.5 2.90 1.91 --- 6.2
APE 1404
  • APE 1404
4 1.07 0.5 3.17 2.21 0.8 7.6

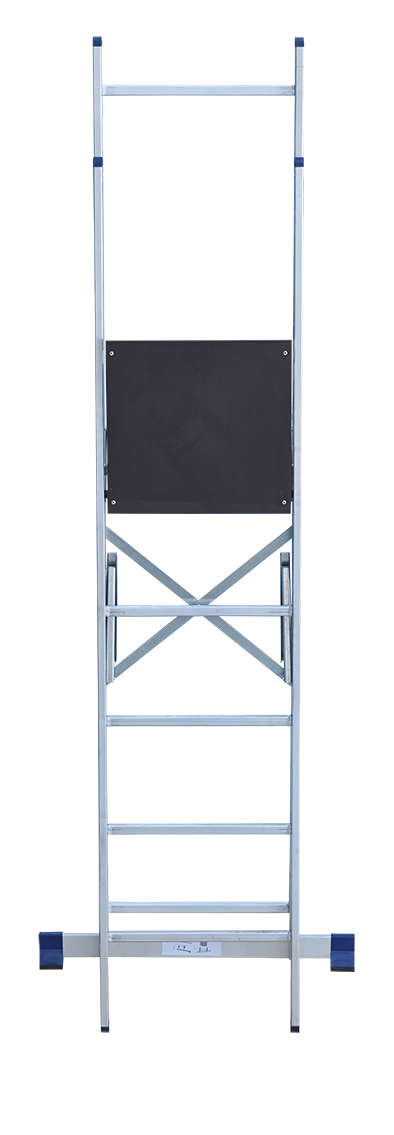

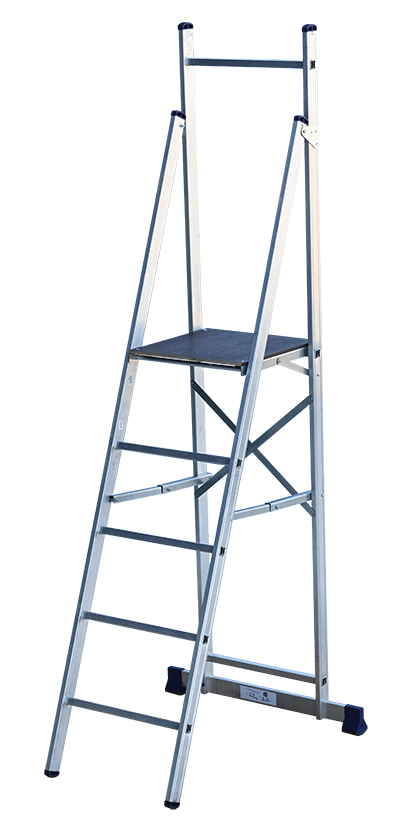

APE 1405
  • APE 1405
5 1.33 0.5 3.43 2.46 0.8 9.8
APE 1406*
  • APE 1406*
  • APE 1406*
  • APE 1406*
  • APE 1406*
  • APE 1406*
  • APE 1406*
  • APE 1406*
  • APE 1406*
6 1.6 0.5 3.7 2.76 1 14.6
APE 1407*
  • APE 1407*
  • APE 1407*
  • APE 1407*
  • APE 1407*
  • APE 1407*
  • APE 1407*
7 1.86 0.5 3.96 0.04 1 15.5
APE 1408*
  • APE 1408*
  • APE 1408*
  • APE 1408*
  • APE 1408*
  • APE 1408*
  • APE 1408*
8 2.12 0.5 4.22 3.32 1 17.3
APE 1409*
  • APE 1409*
  • APE 1409*
  • APE 1409*
  • APE 1409*
  • APE 1409*
  • APE 1409*
  • APE 1409*
  • APE 1409*
9 2.38 0.5 4.48 3.6 1 18.1
APE 1410*
  • APE 1410*
  • APE 1410*
  • APE 1410*
  • APE 1410*
  • APE 1410*
  • APE 1410*
  • APE 1410*
  • APE 1410*
10 2.65 0.5 4.75 3.66 1.0 18.8
Product Features

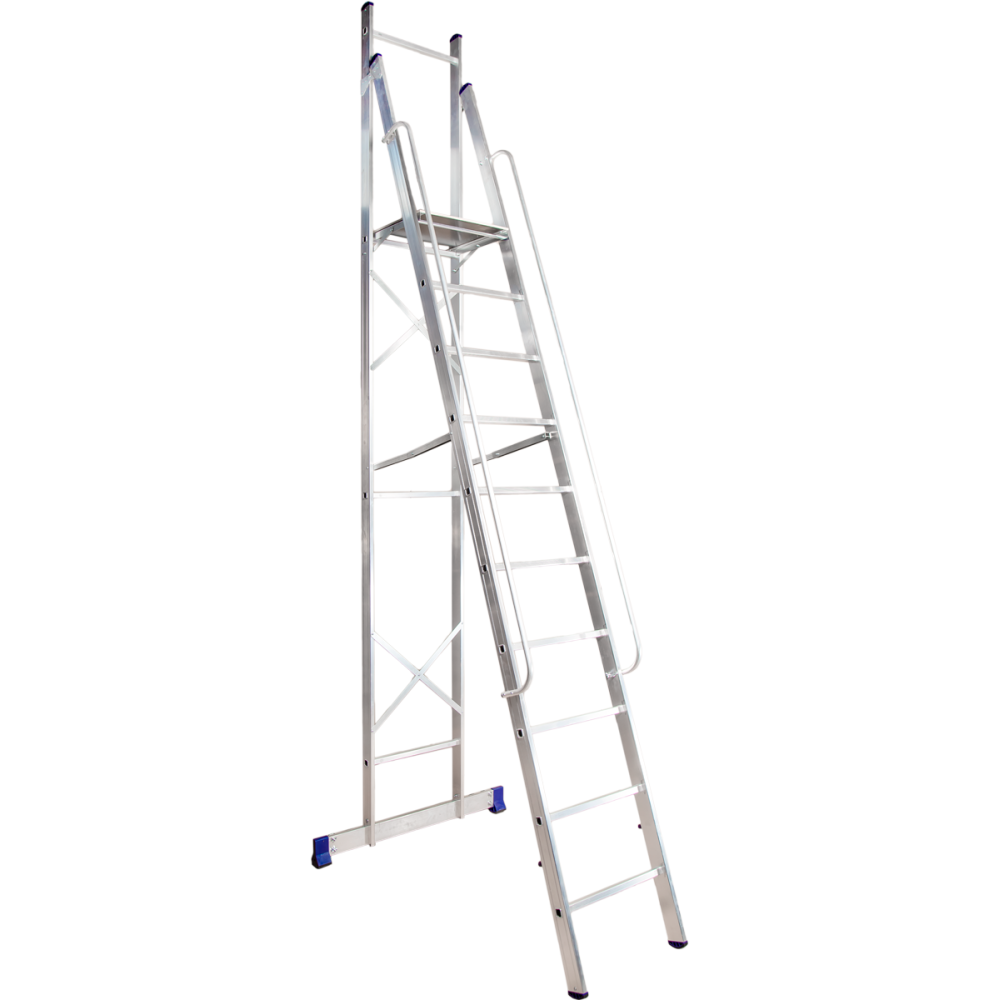

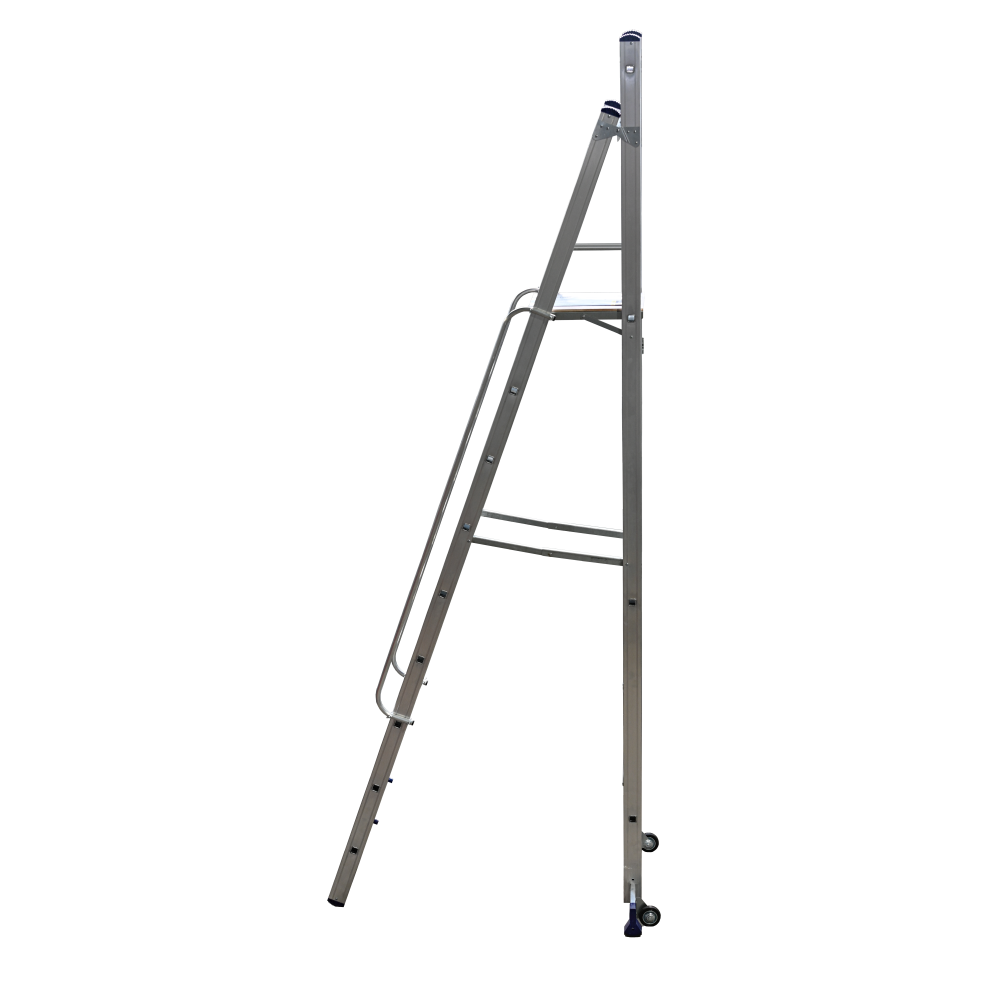

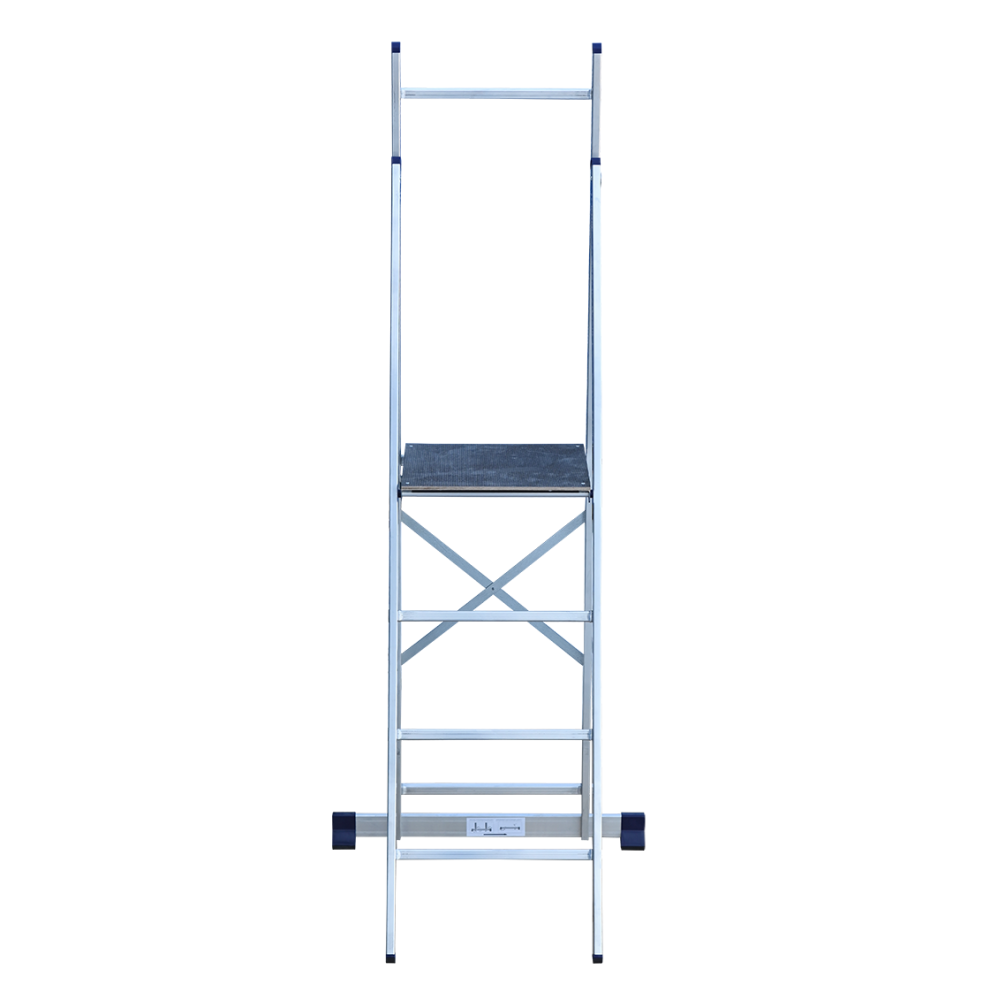

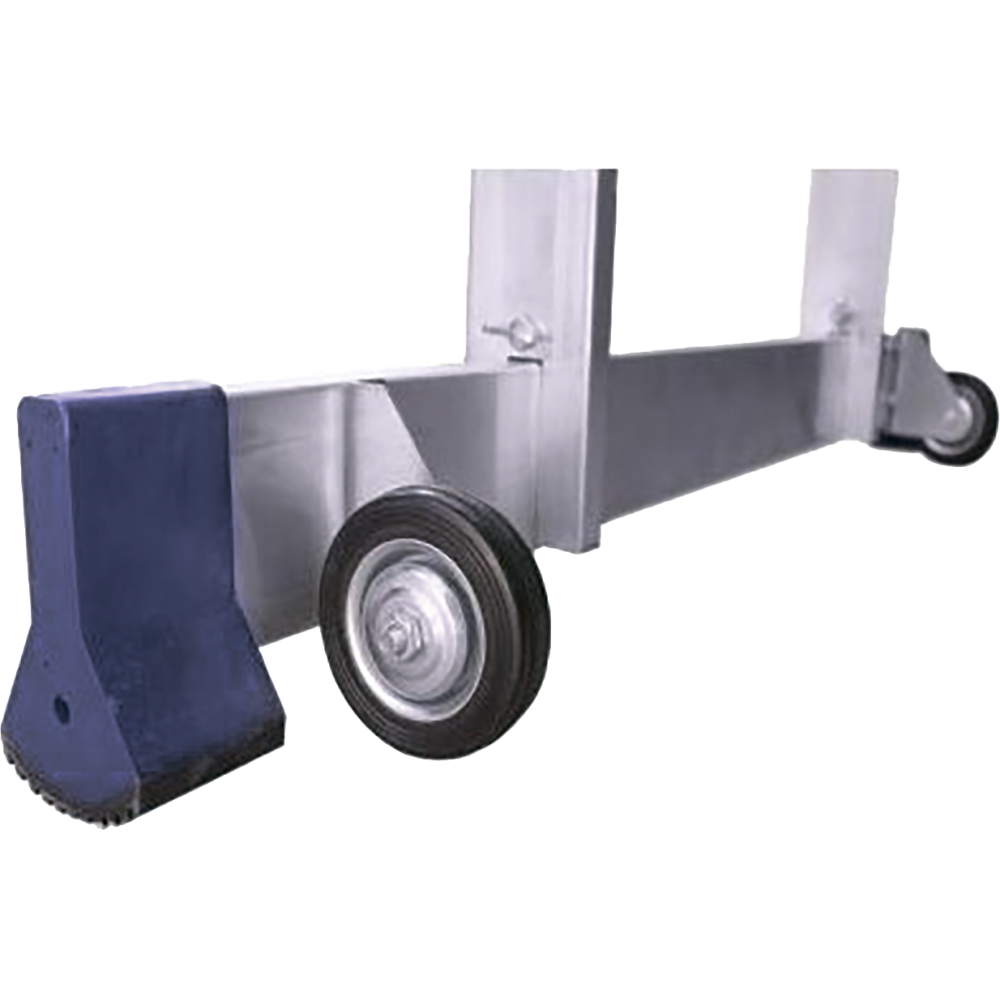

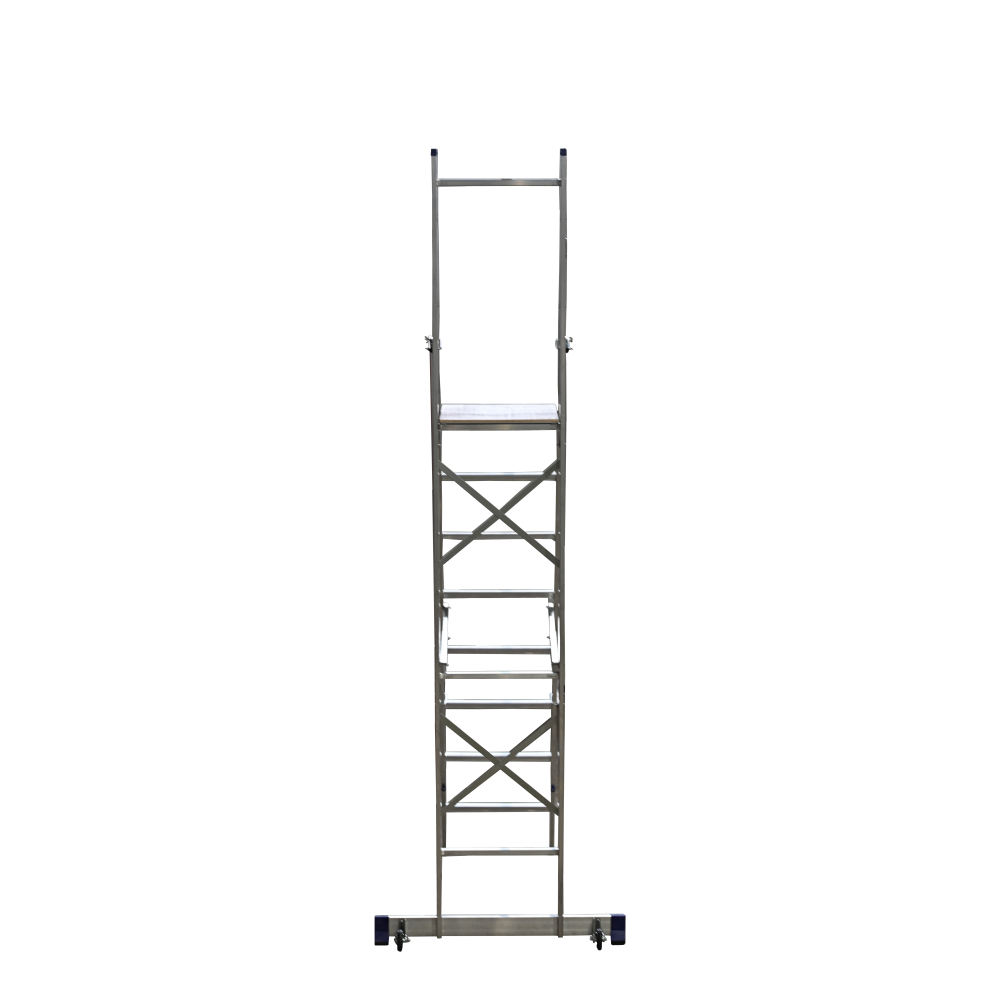

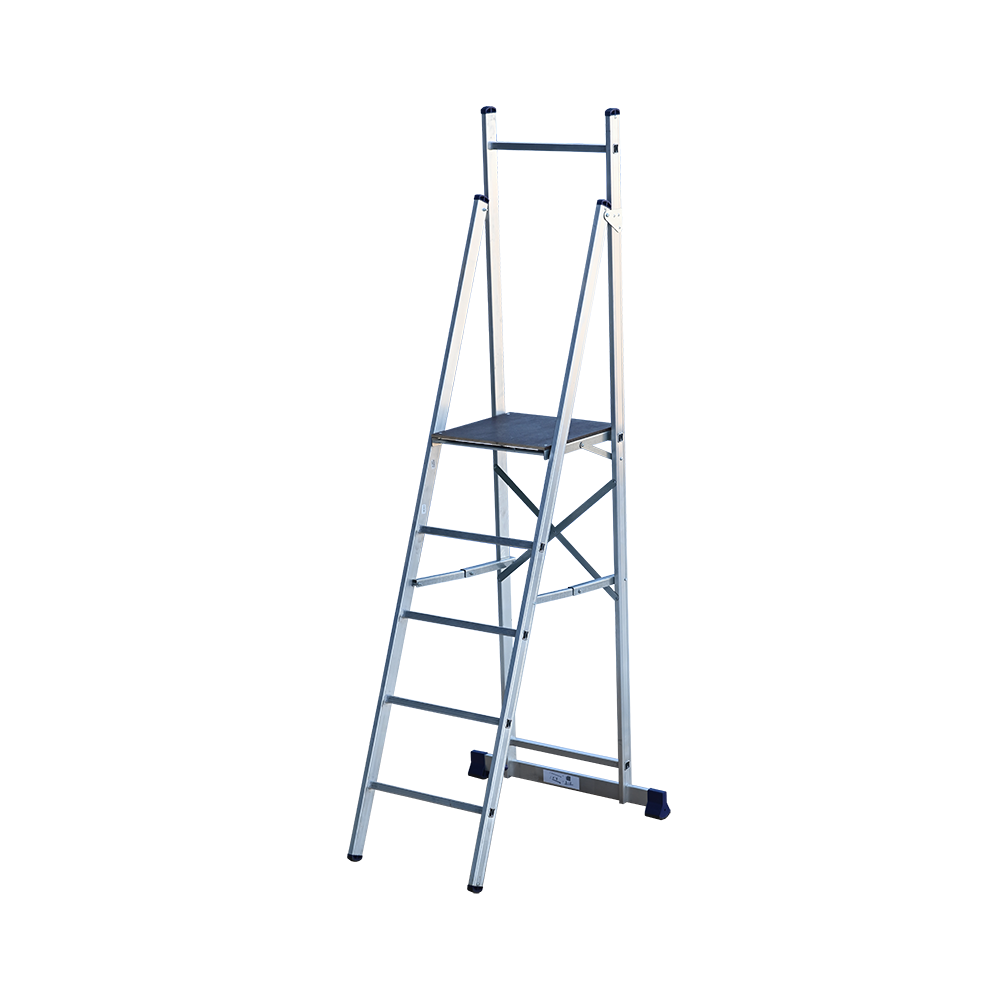

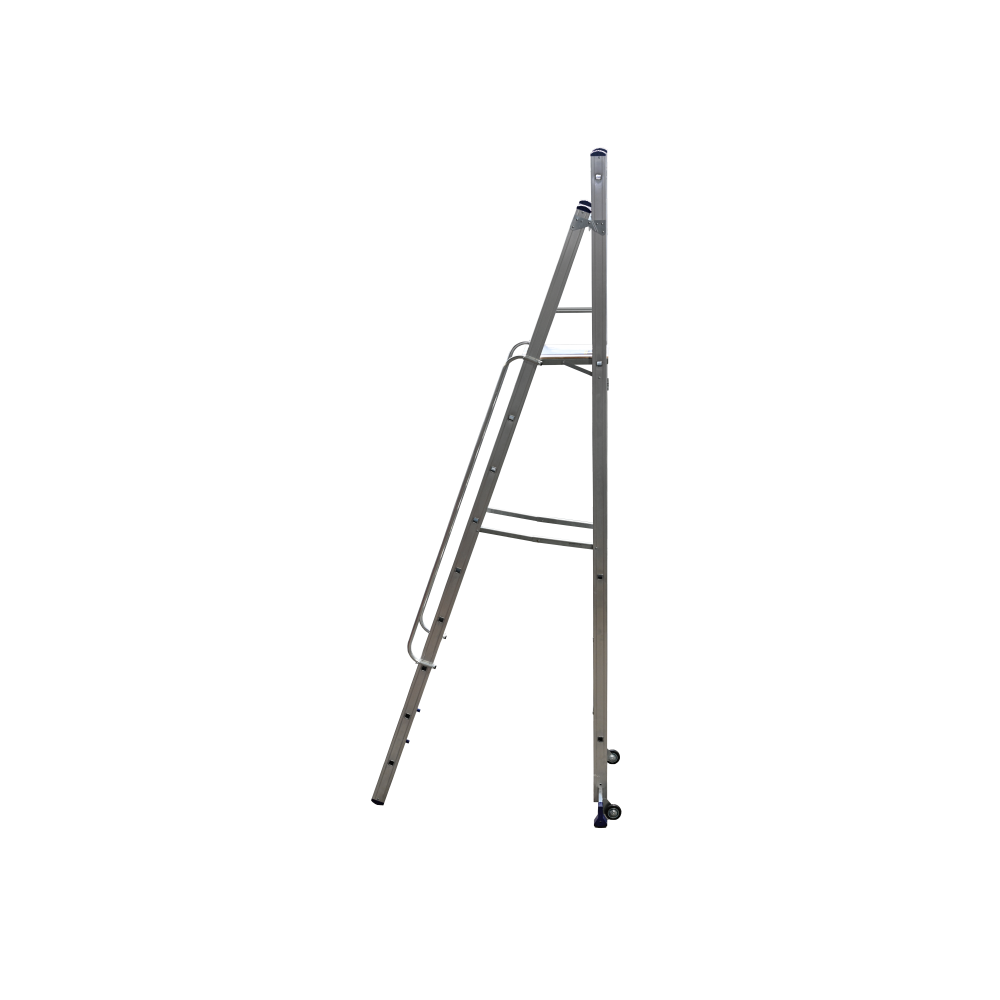

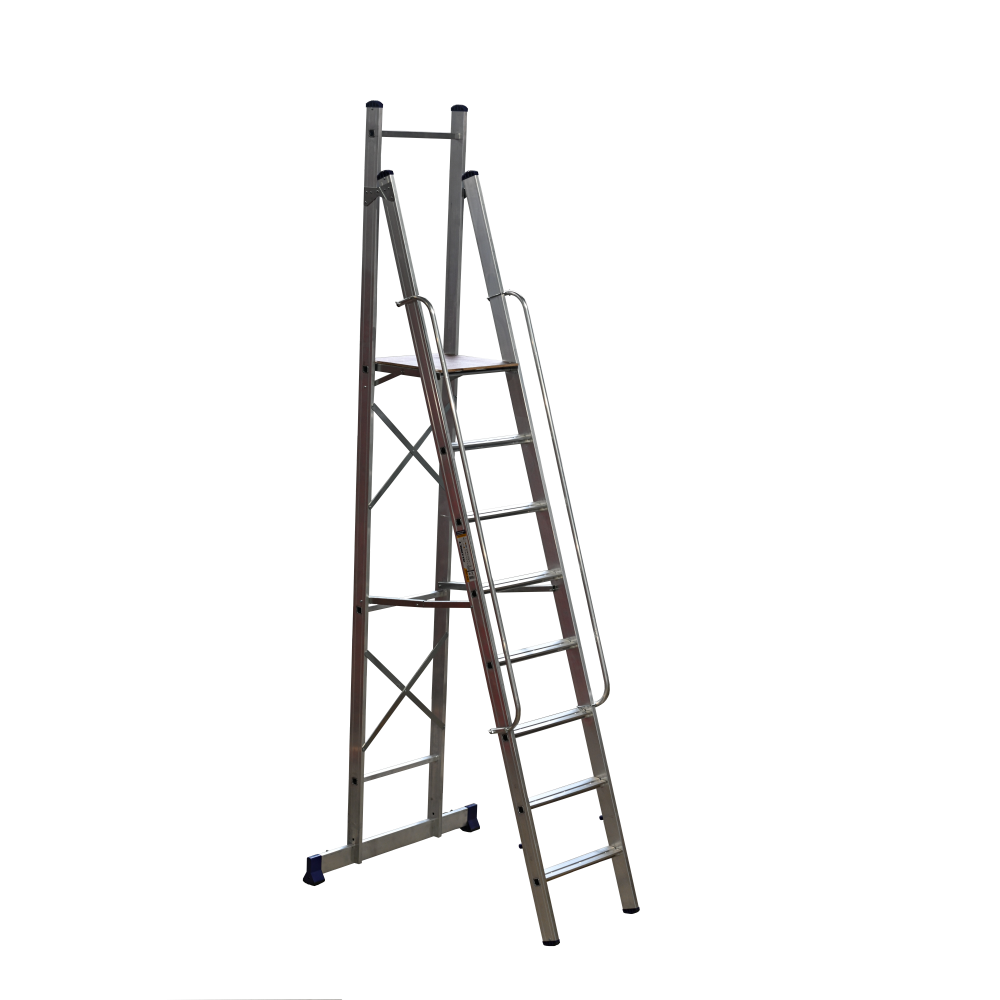

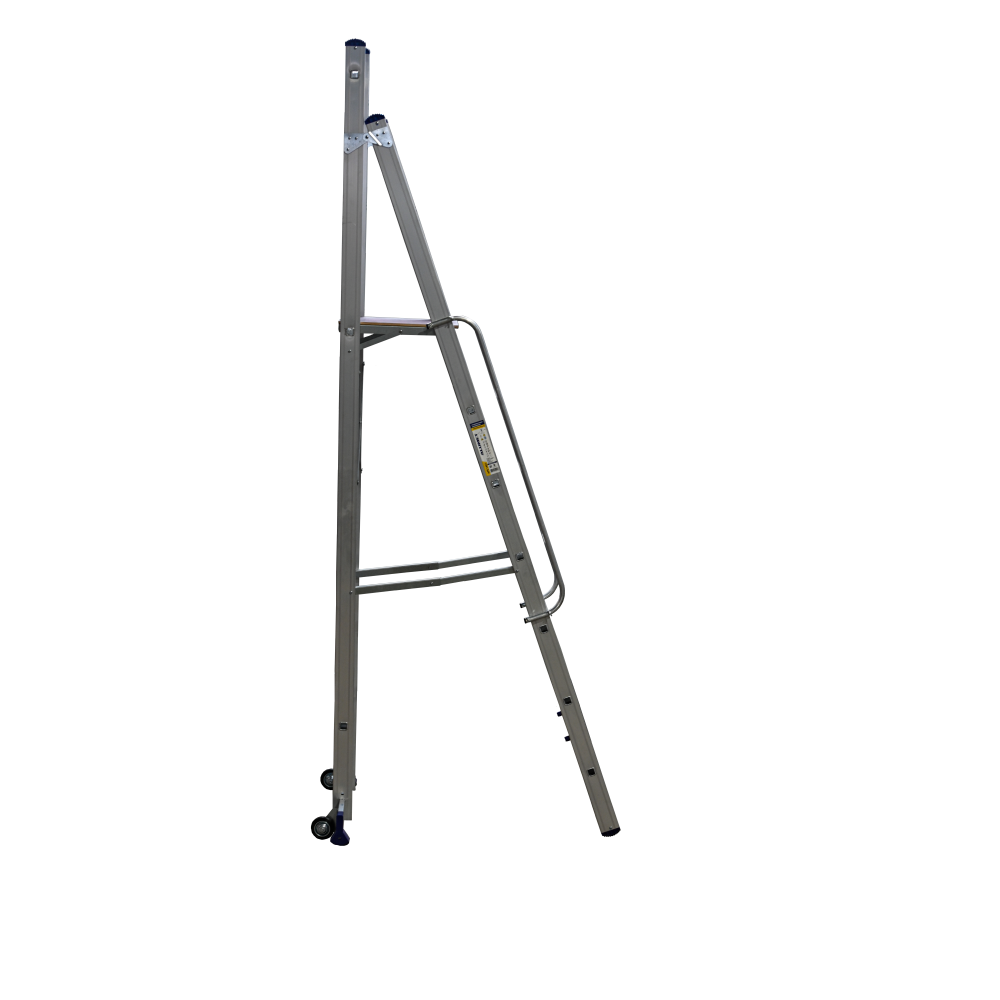

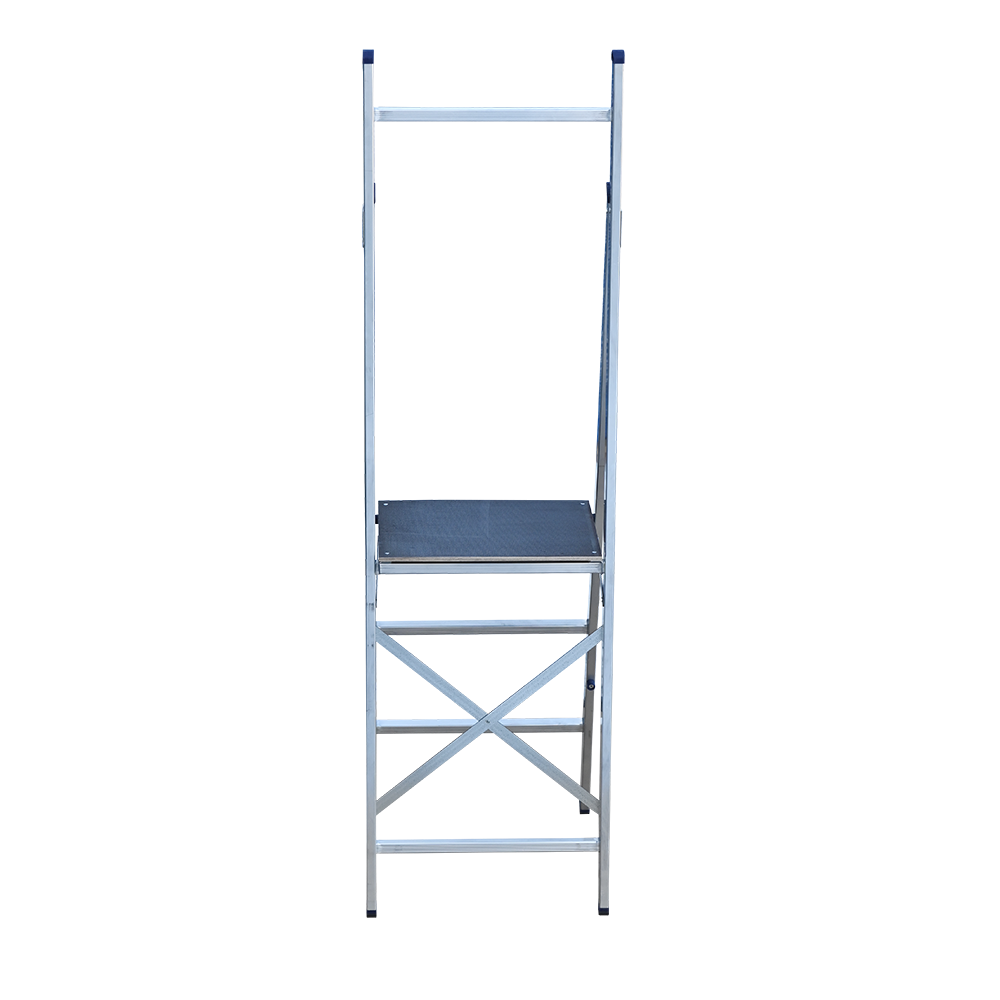

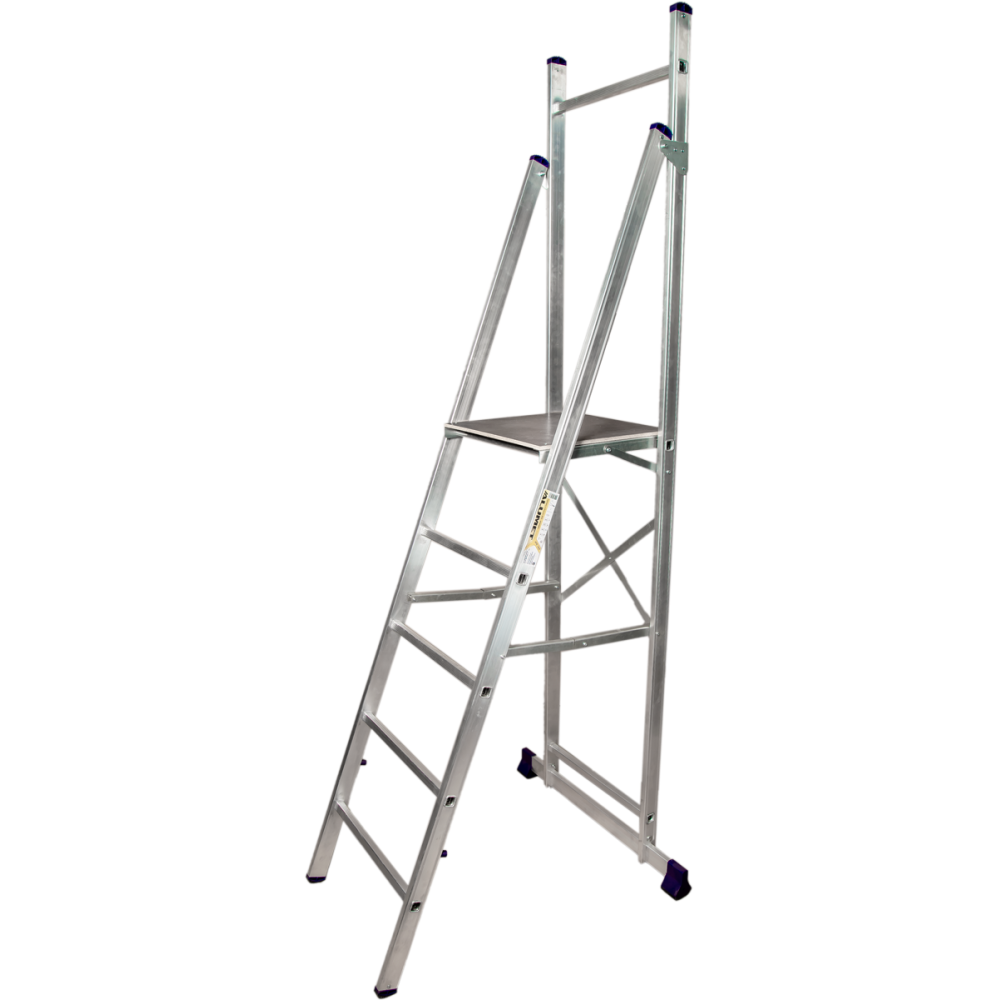

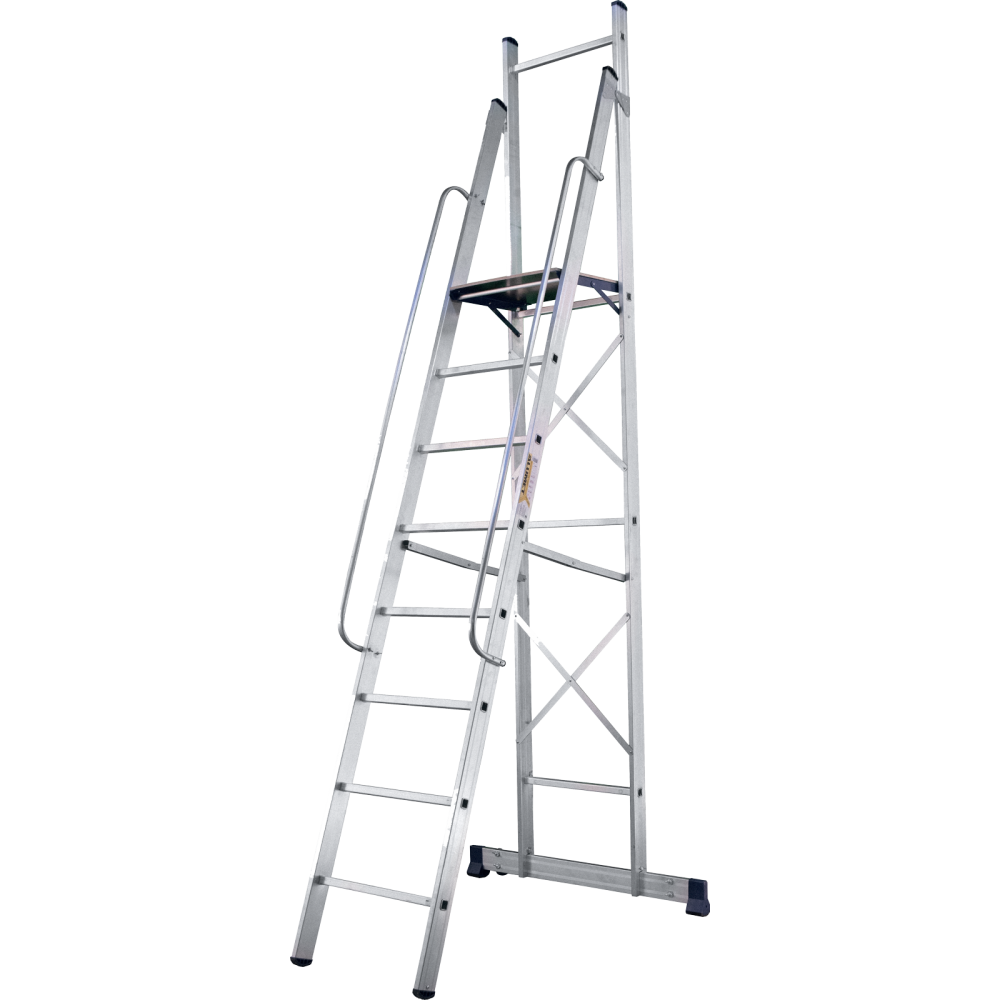

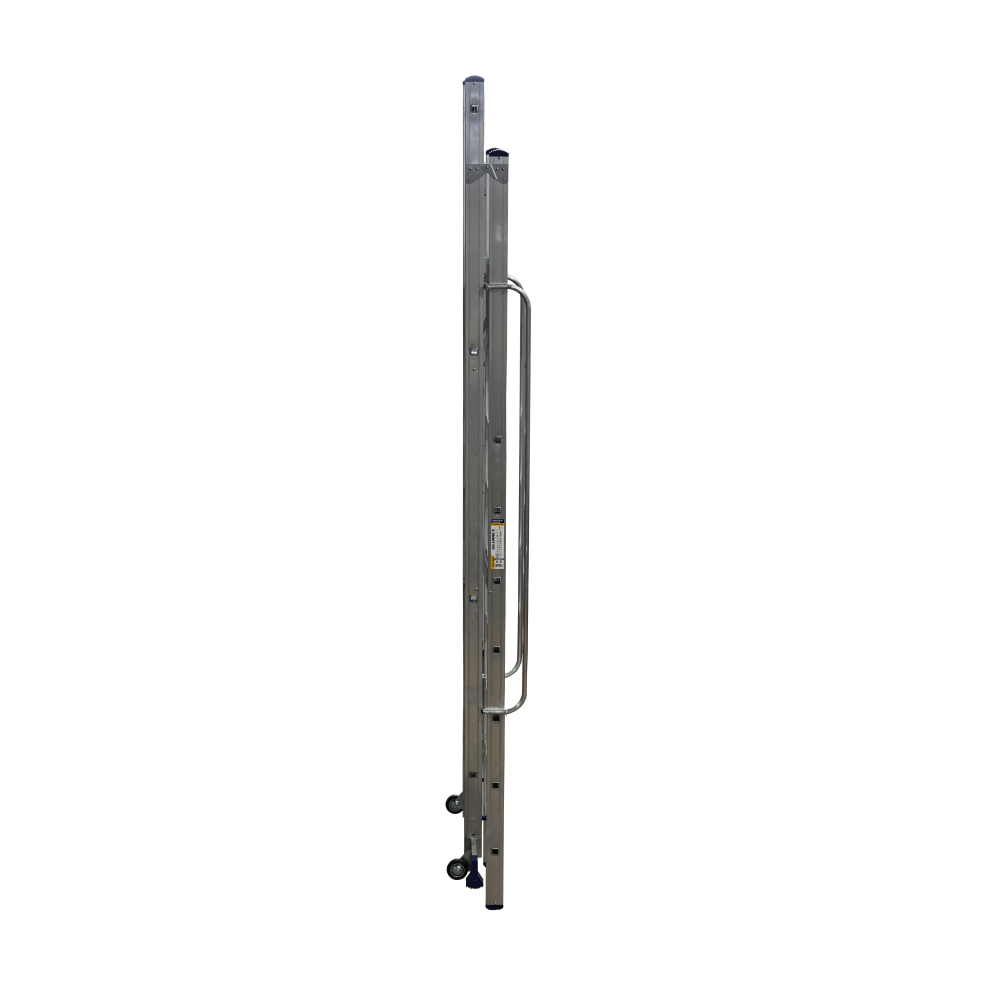

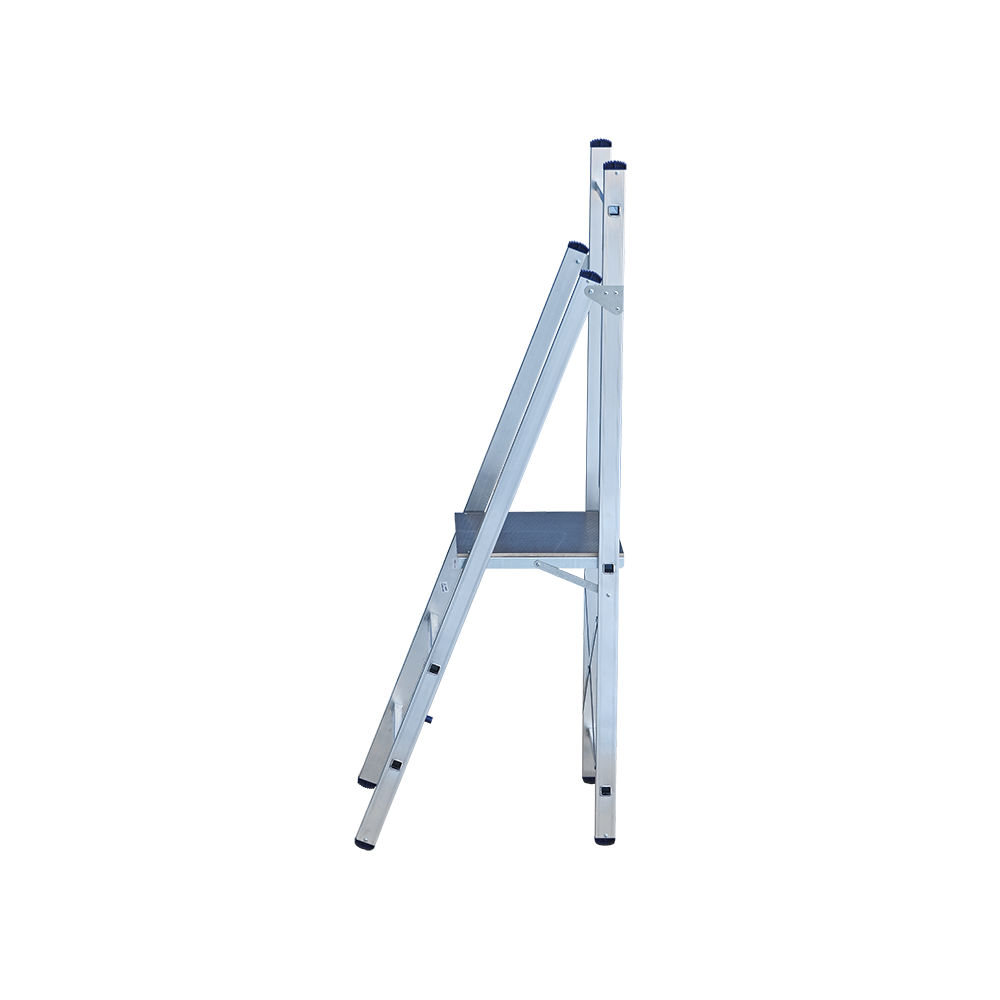

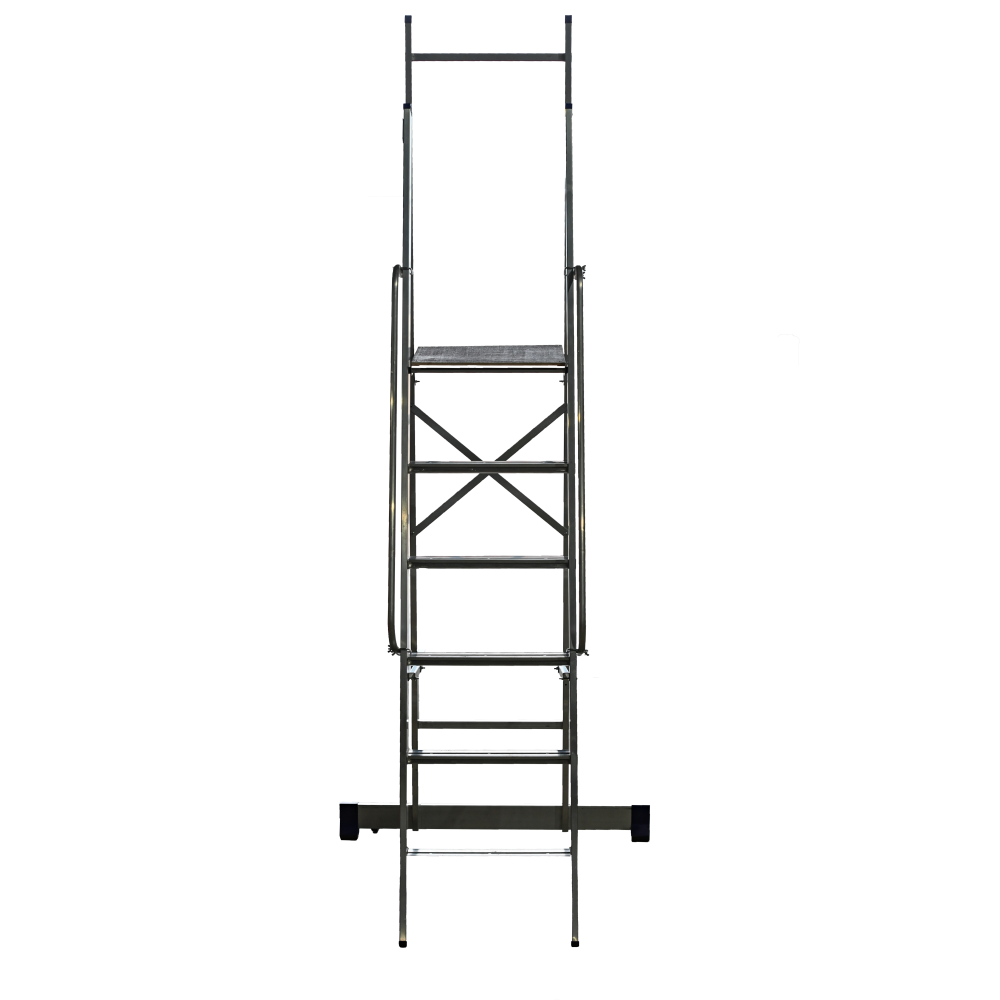

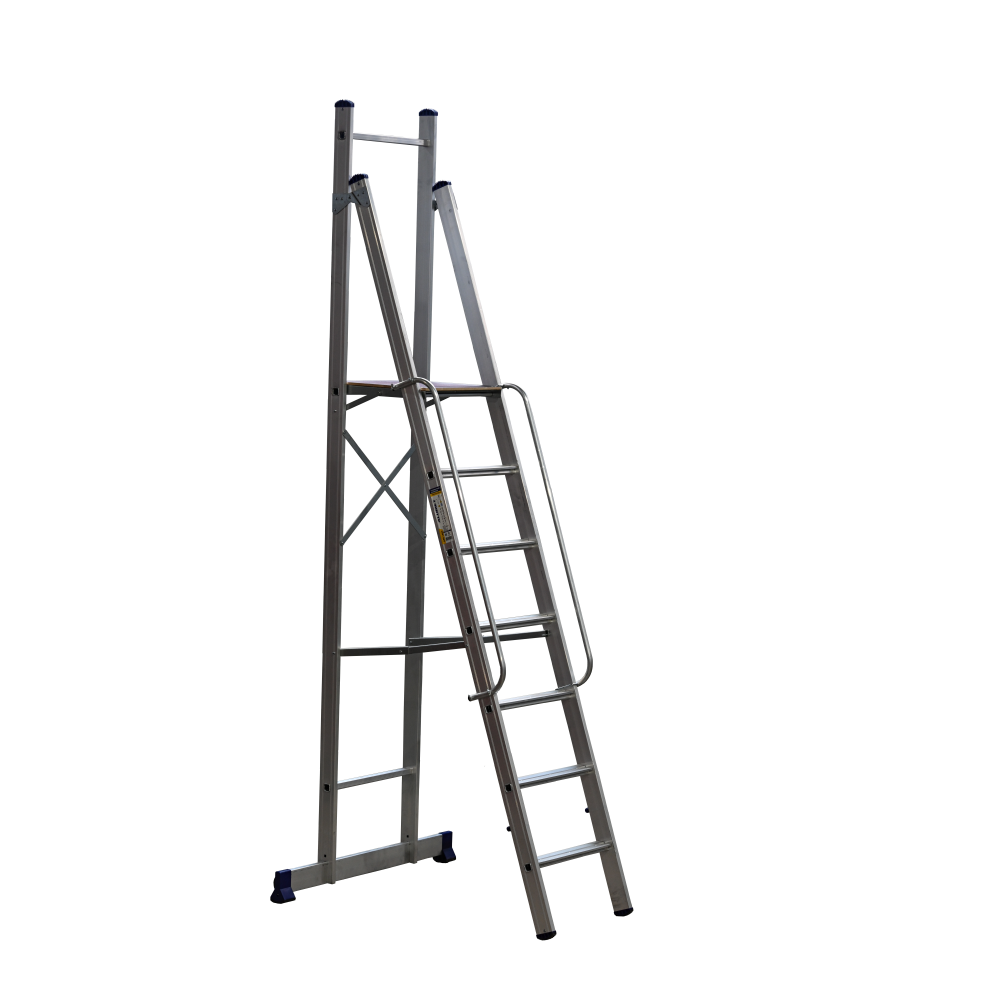

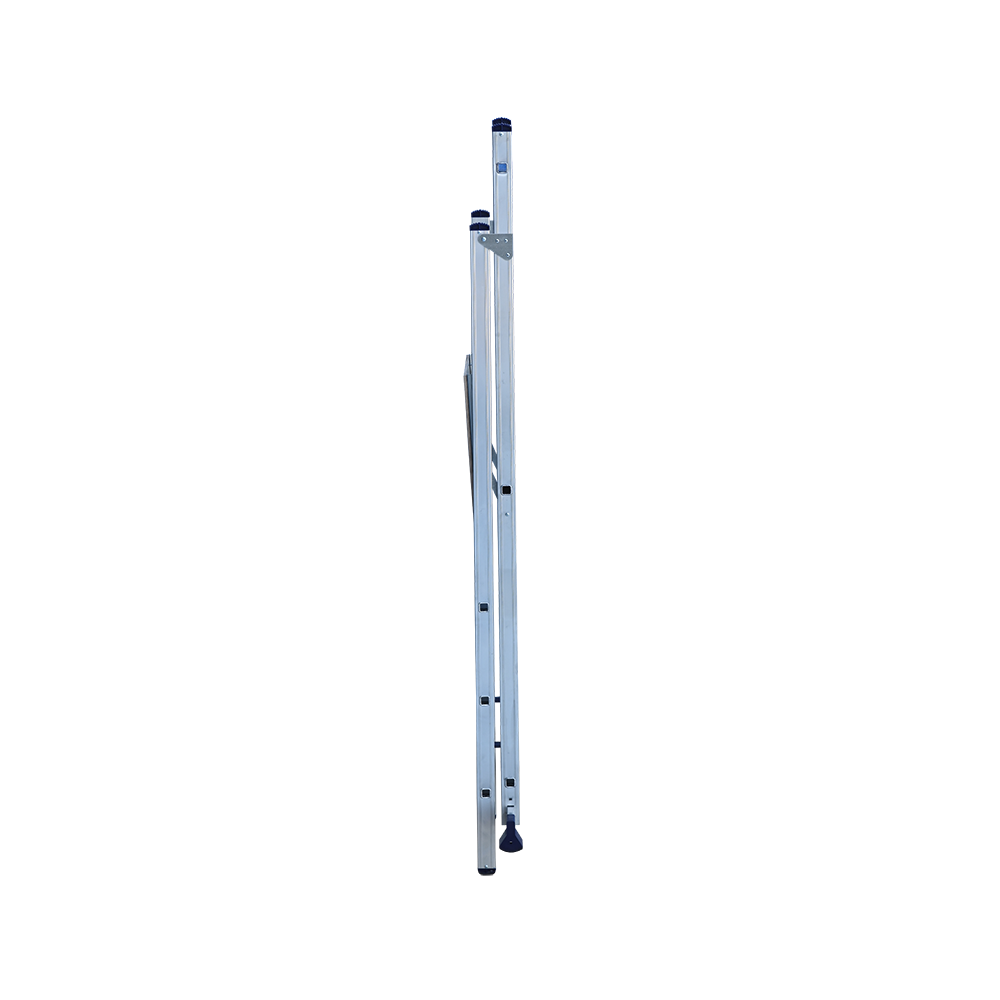

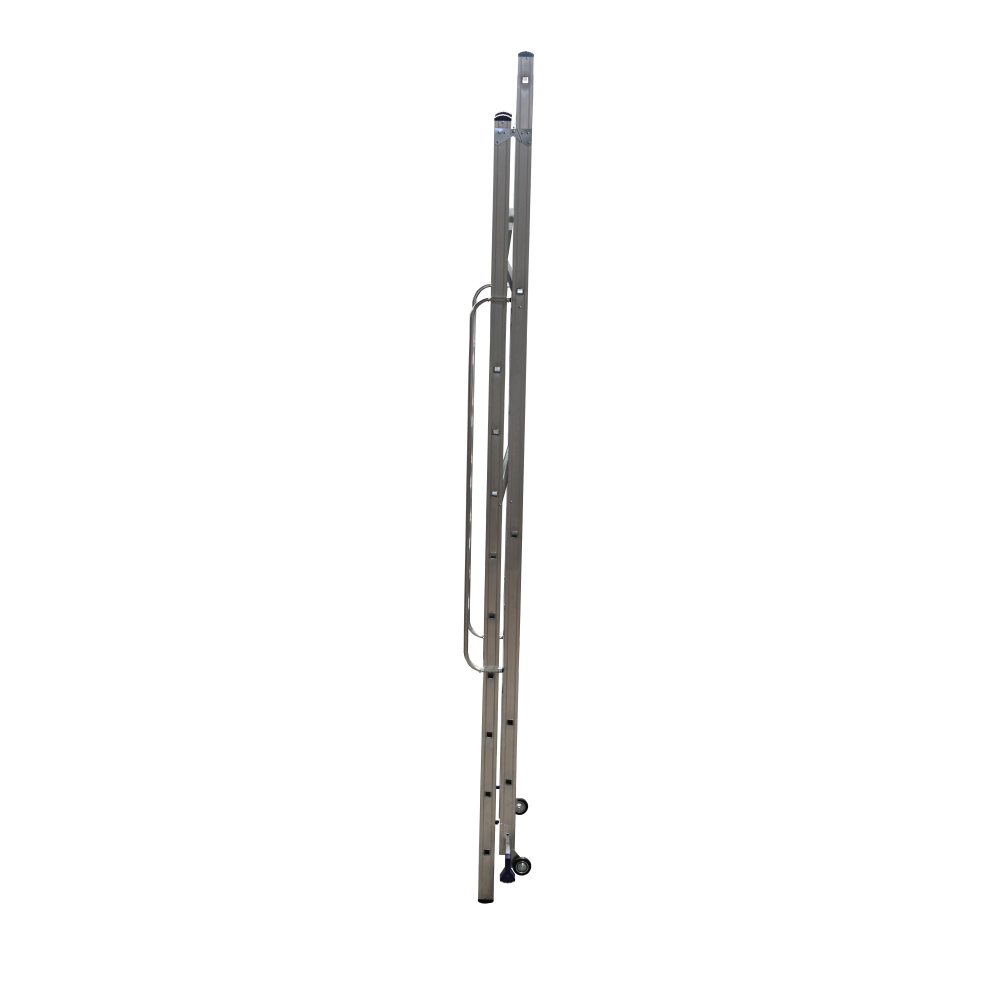

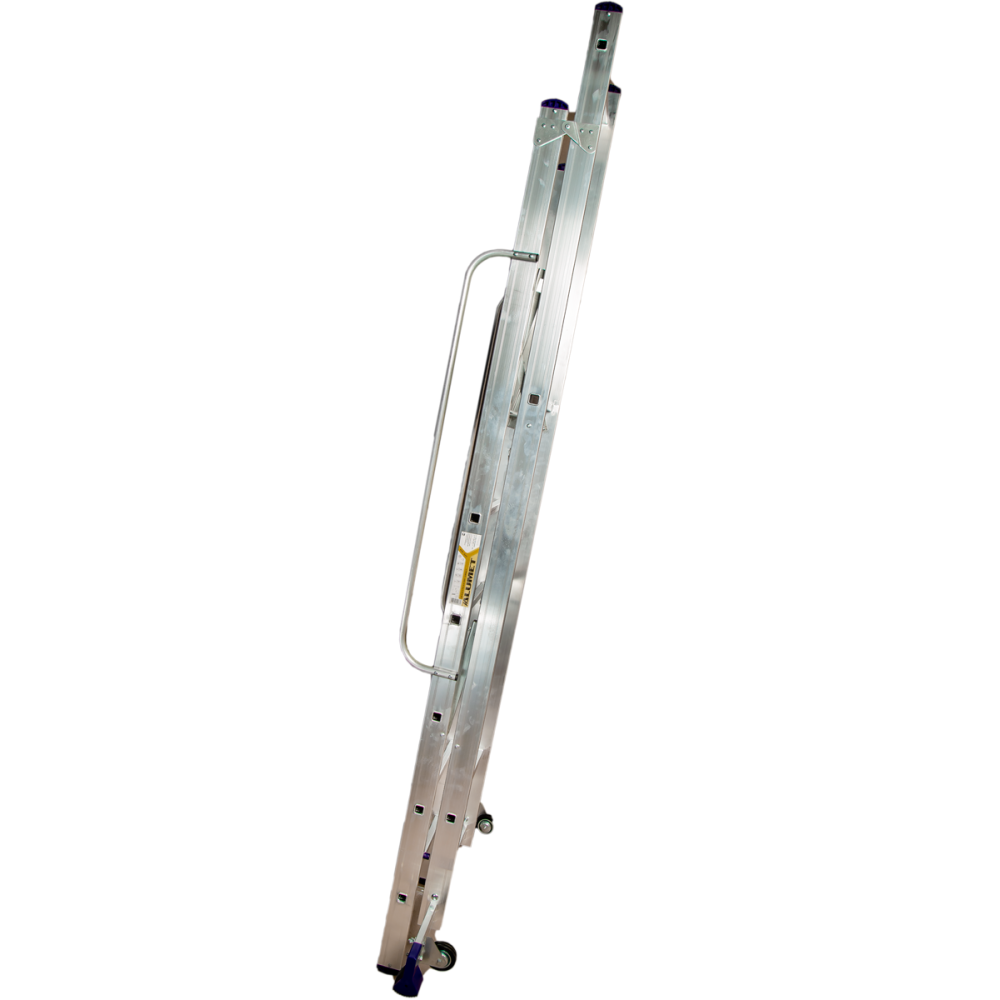

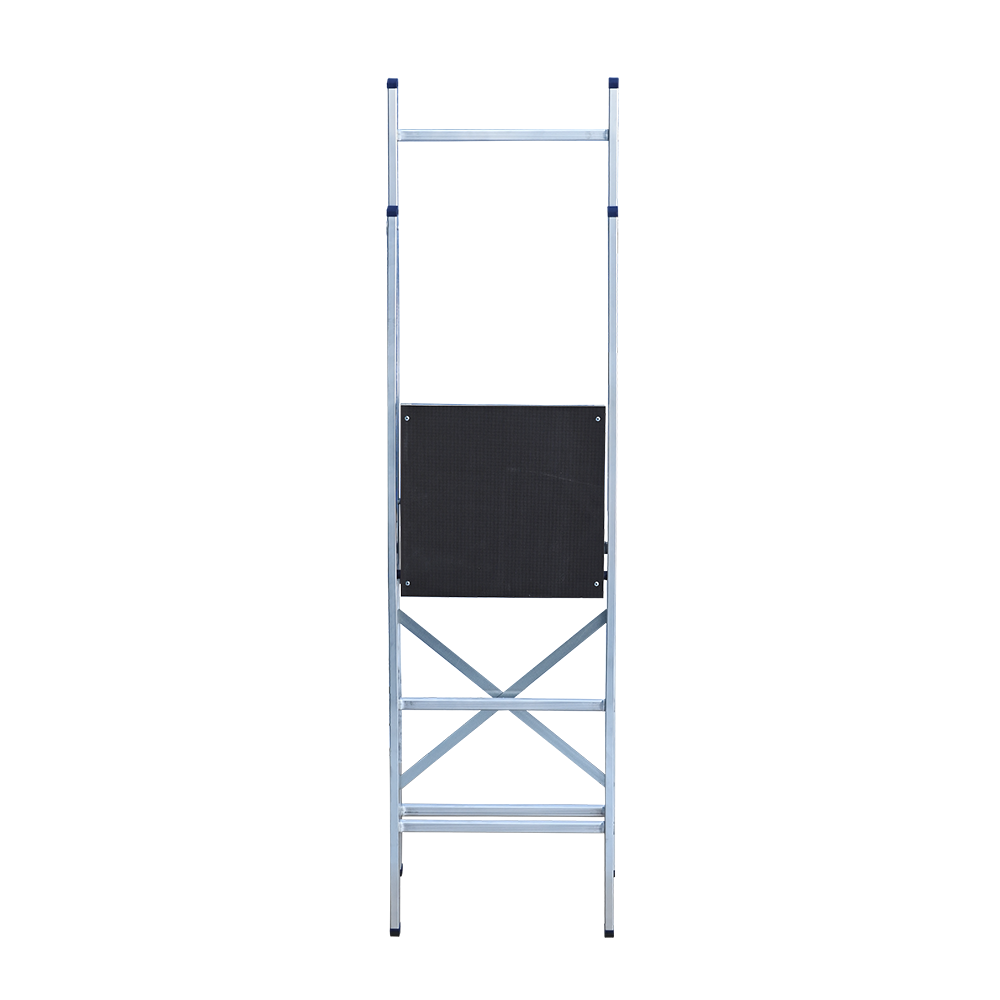

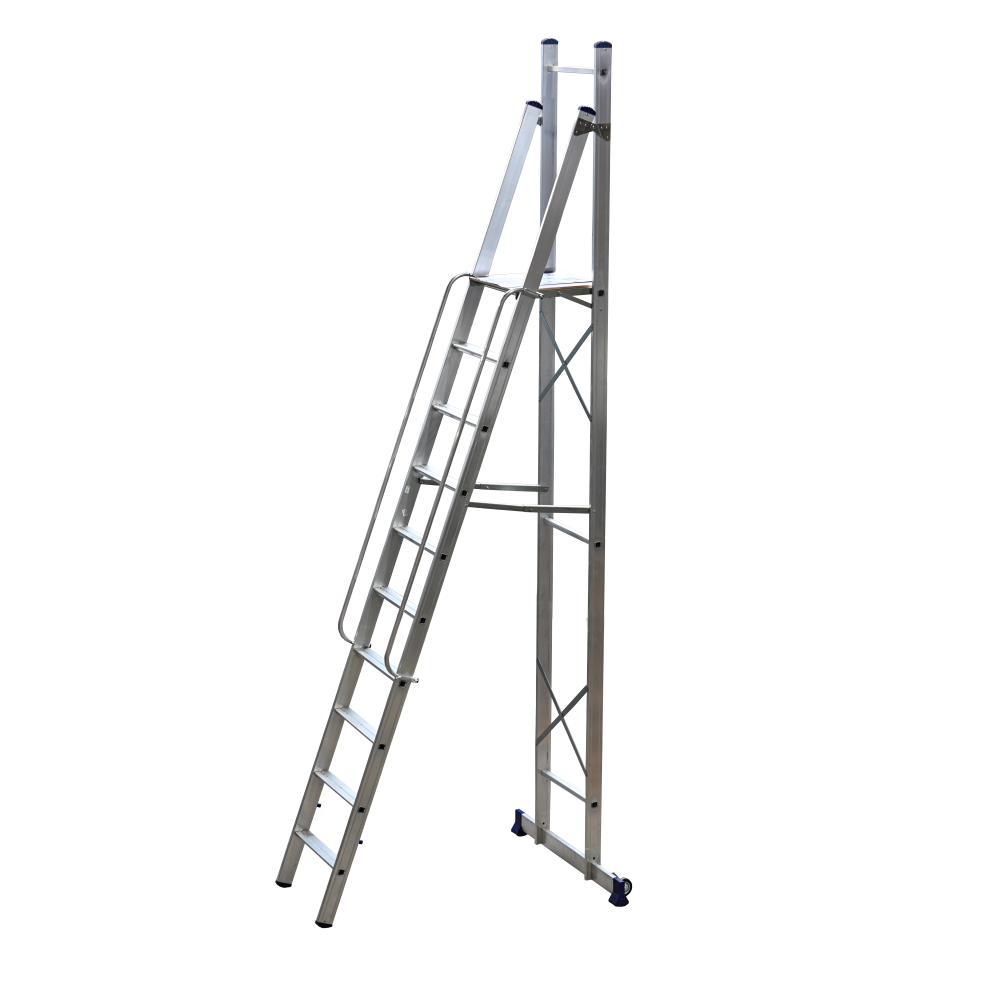

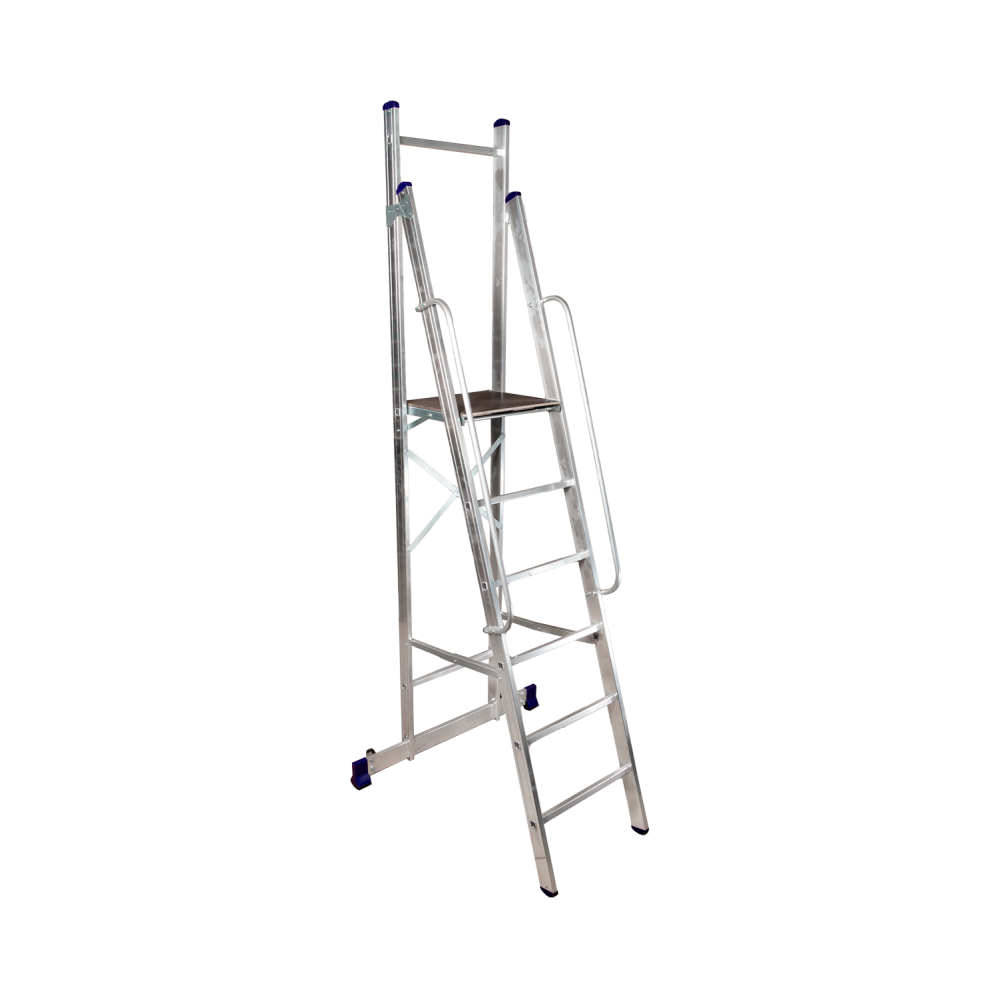

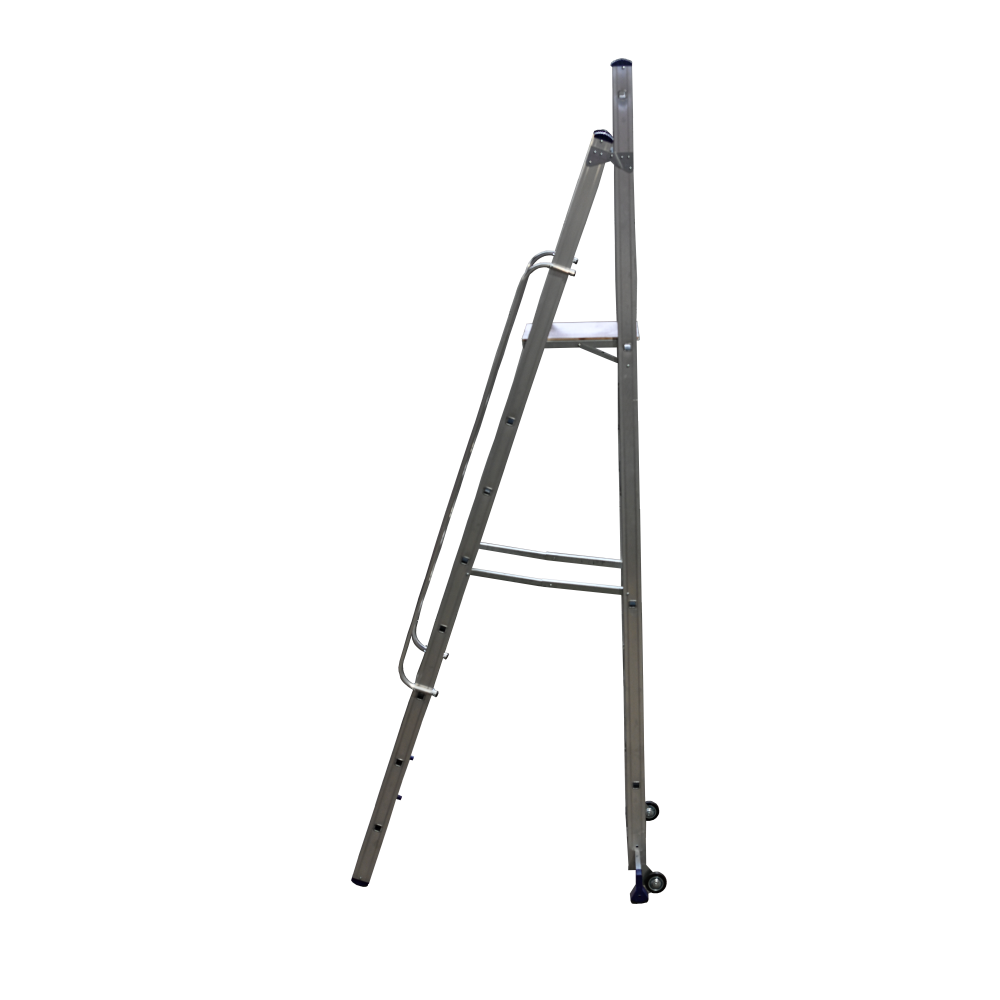

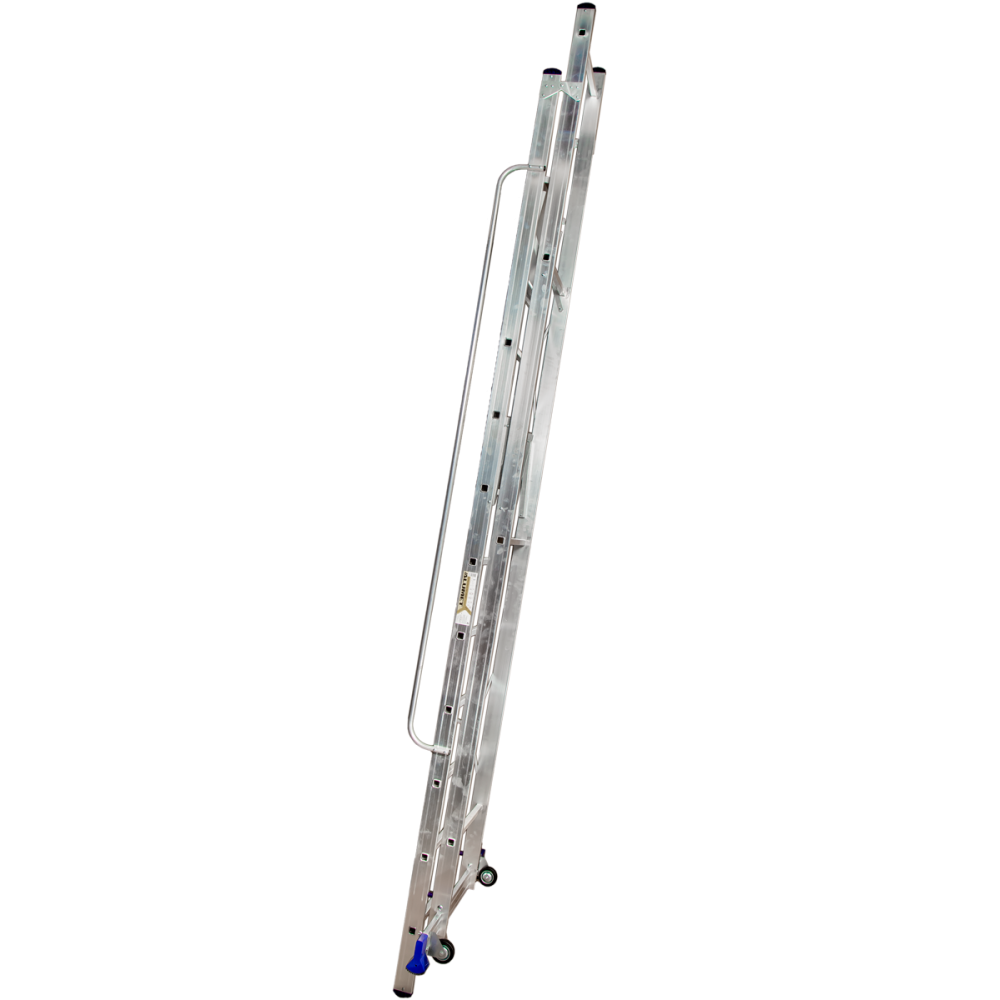

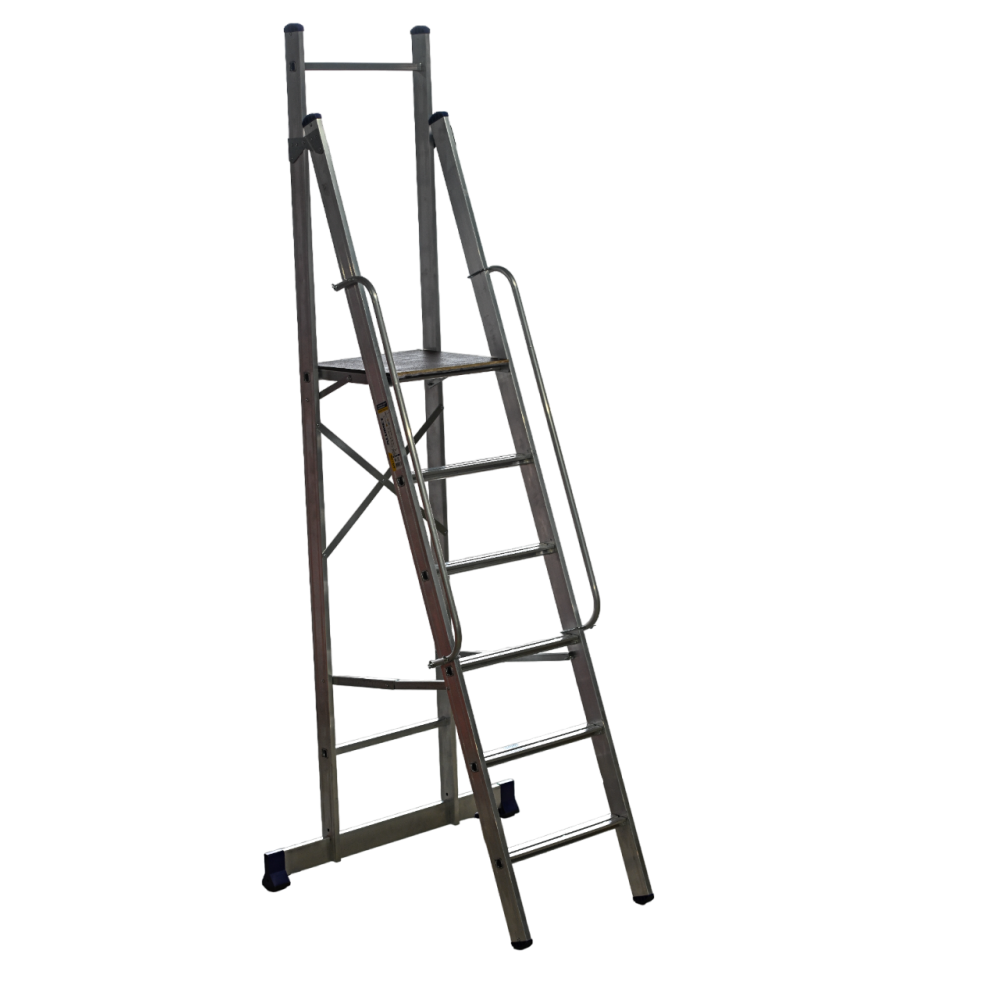

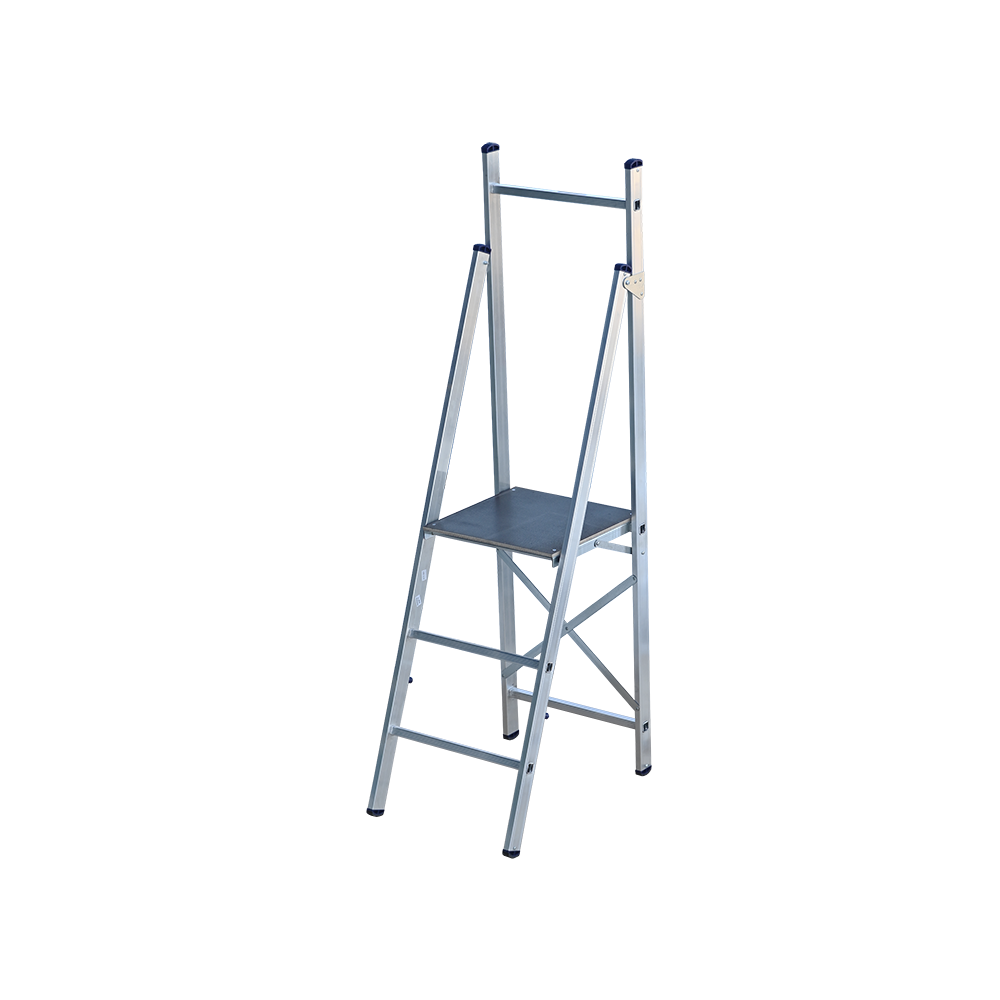

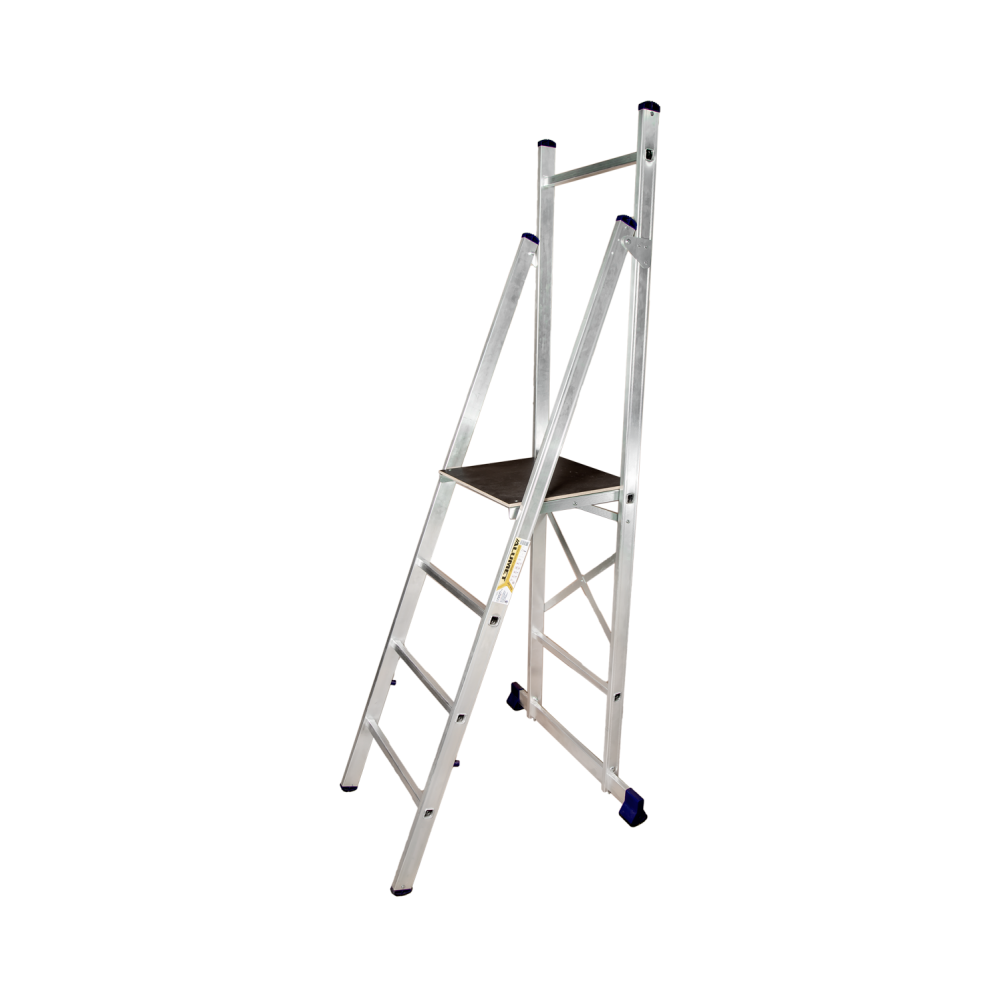

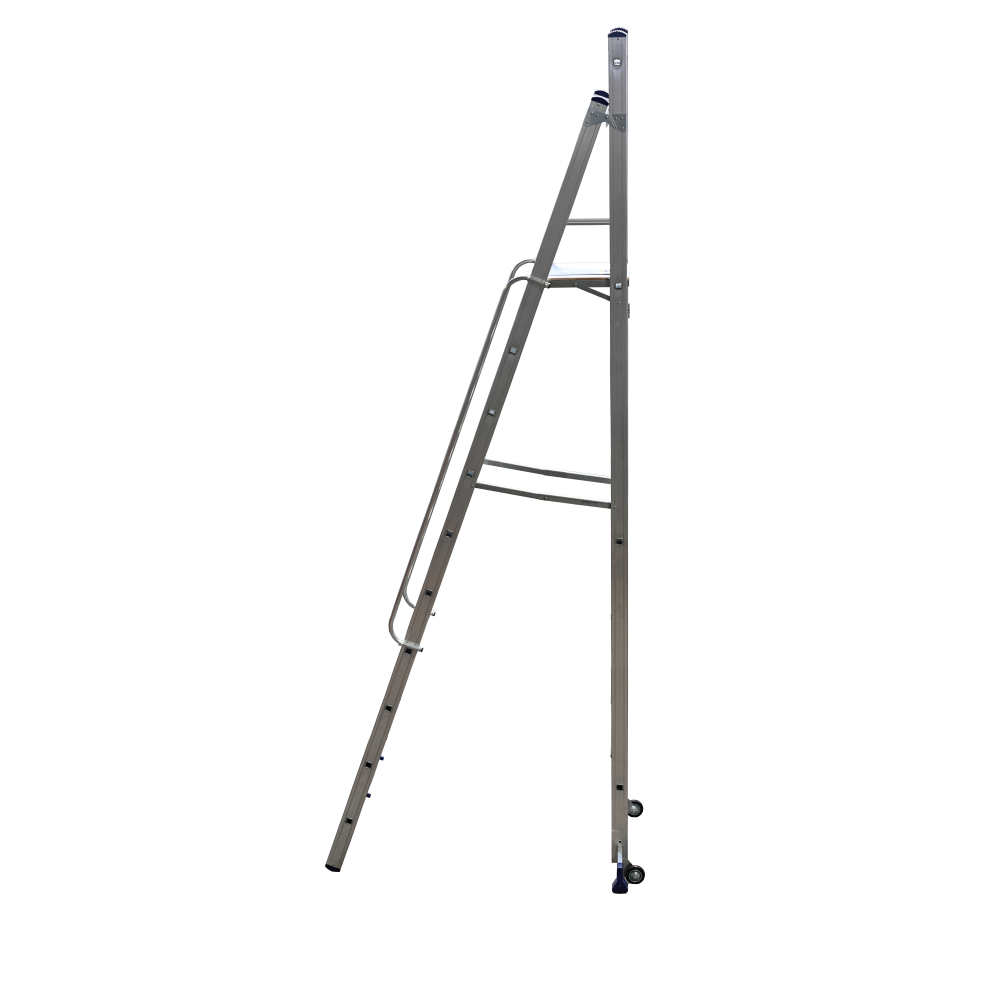

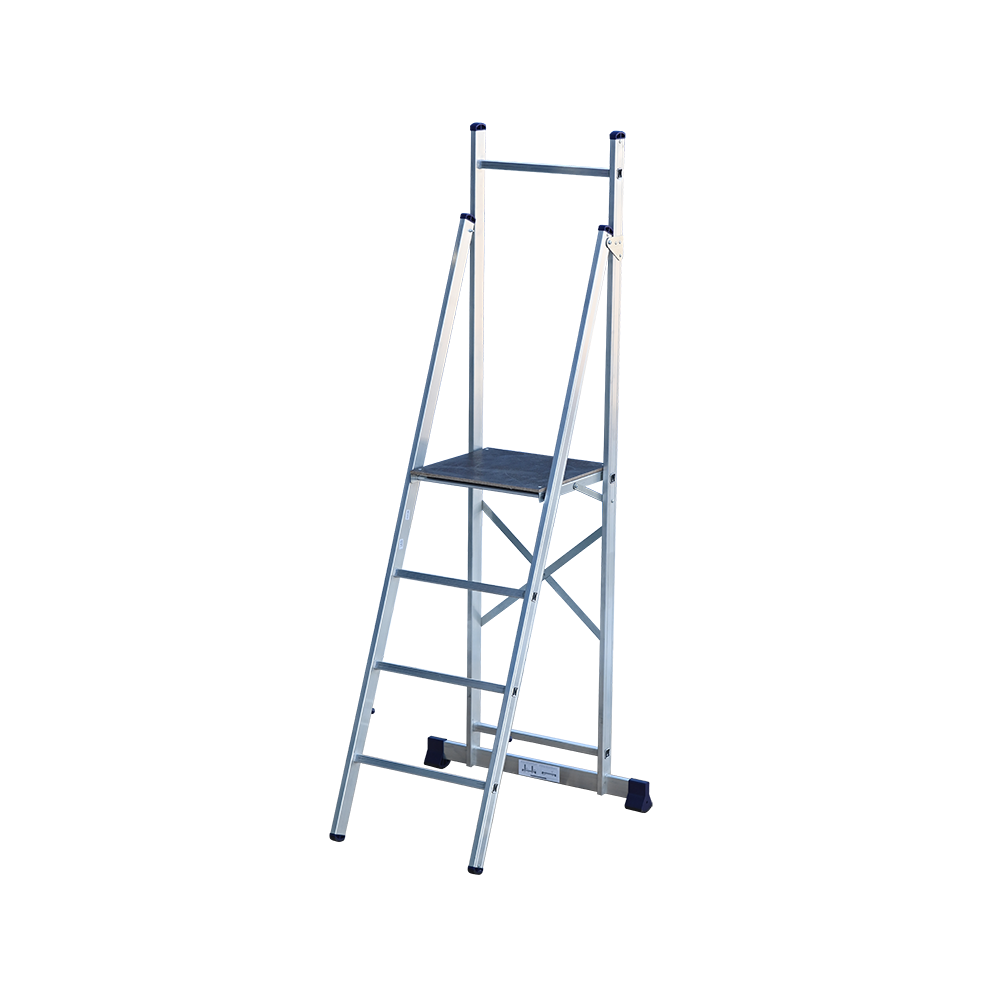

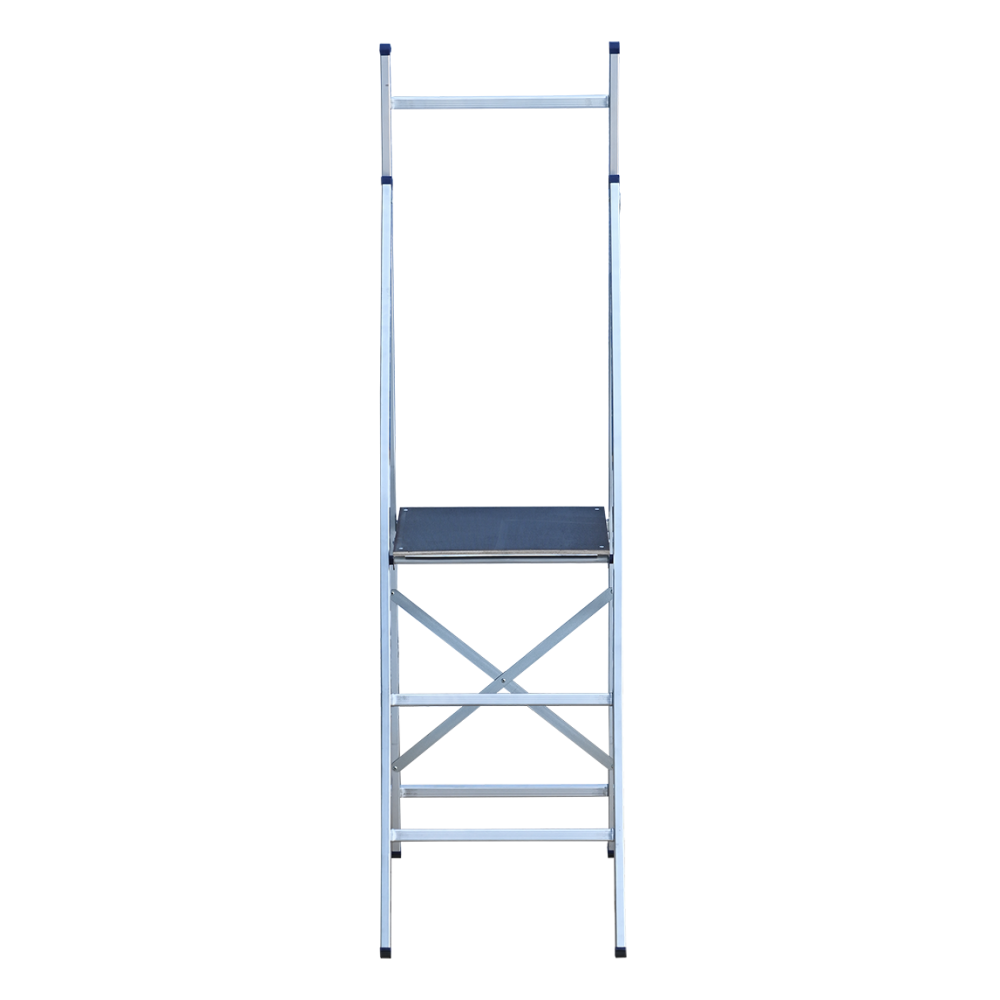

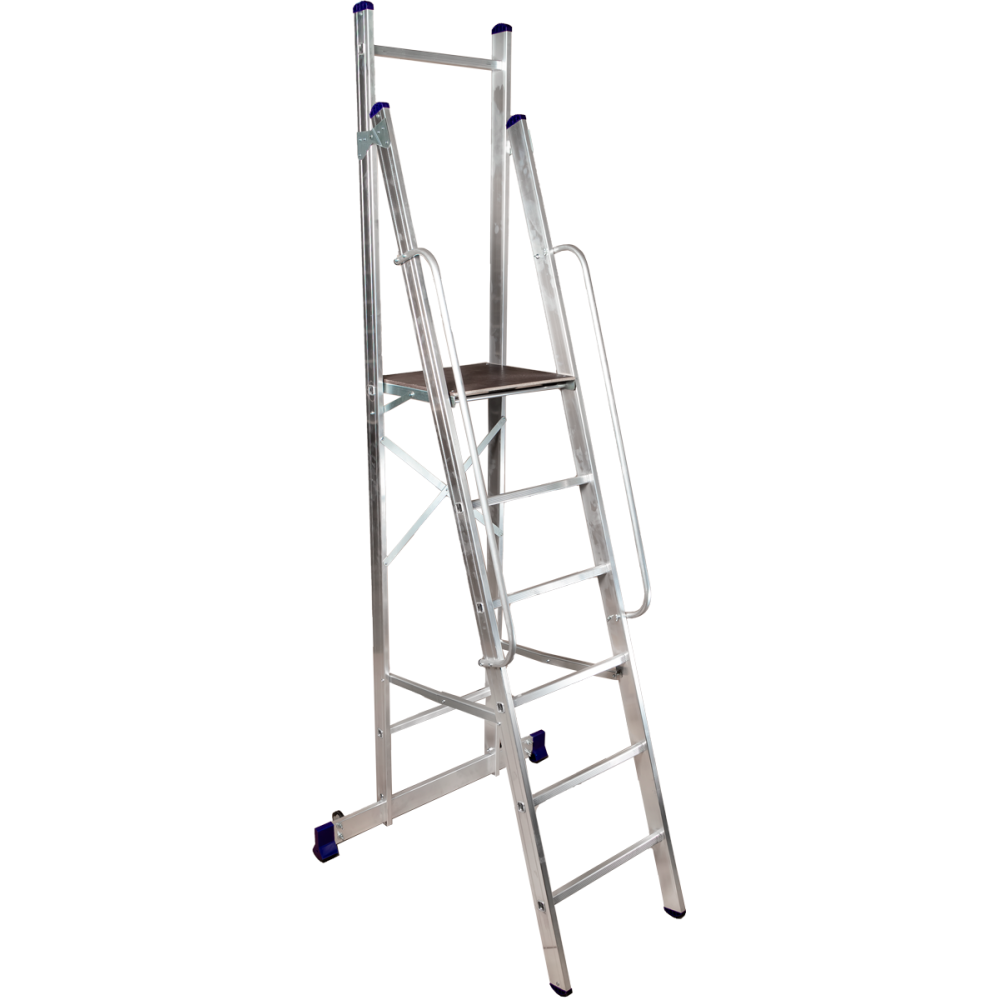

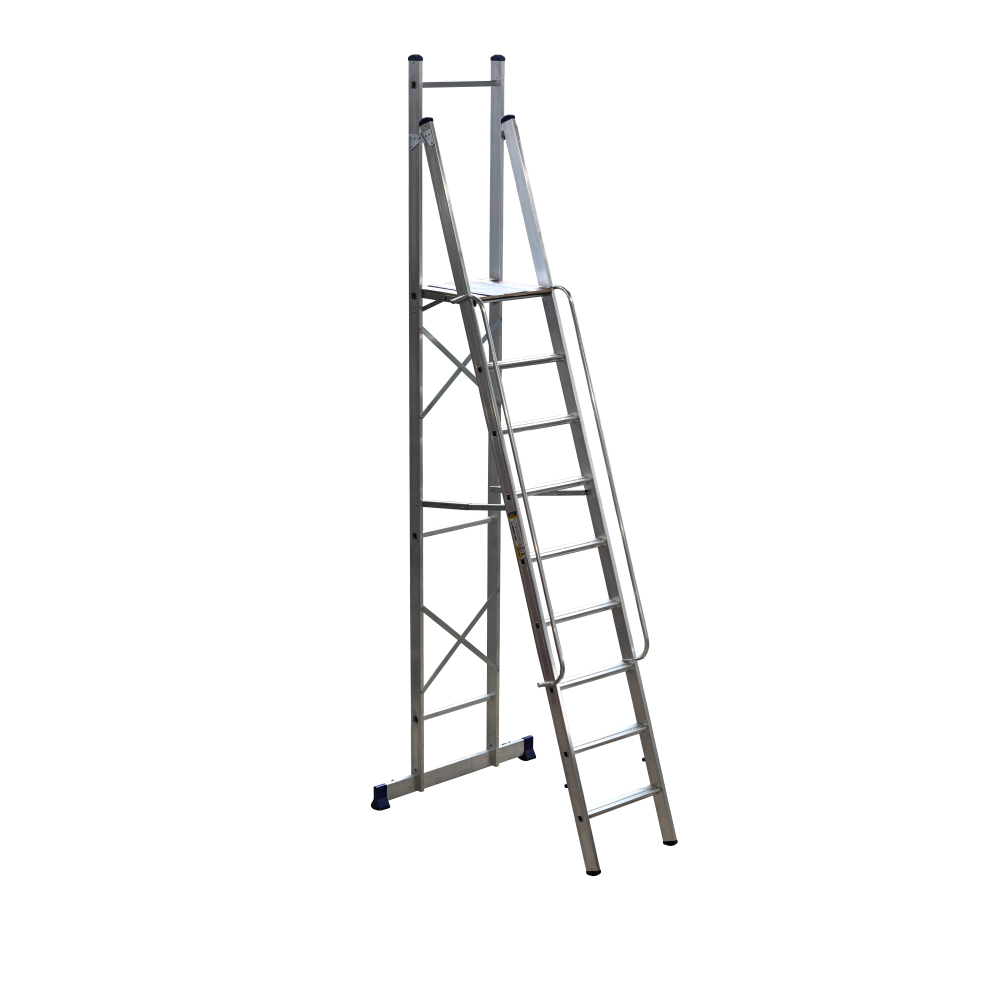

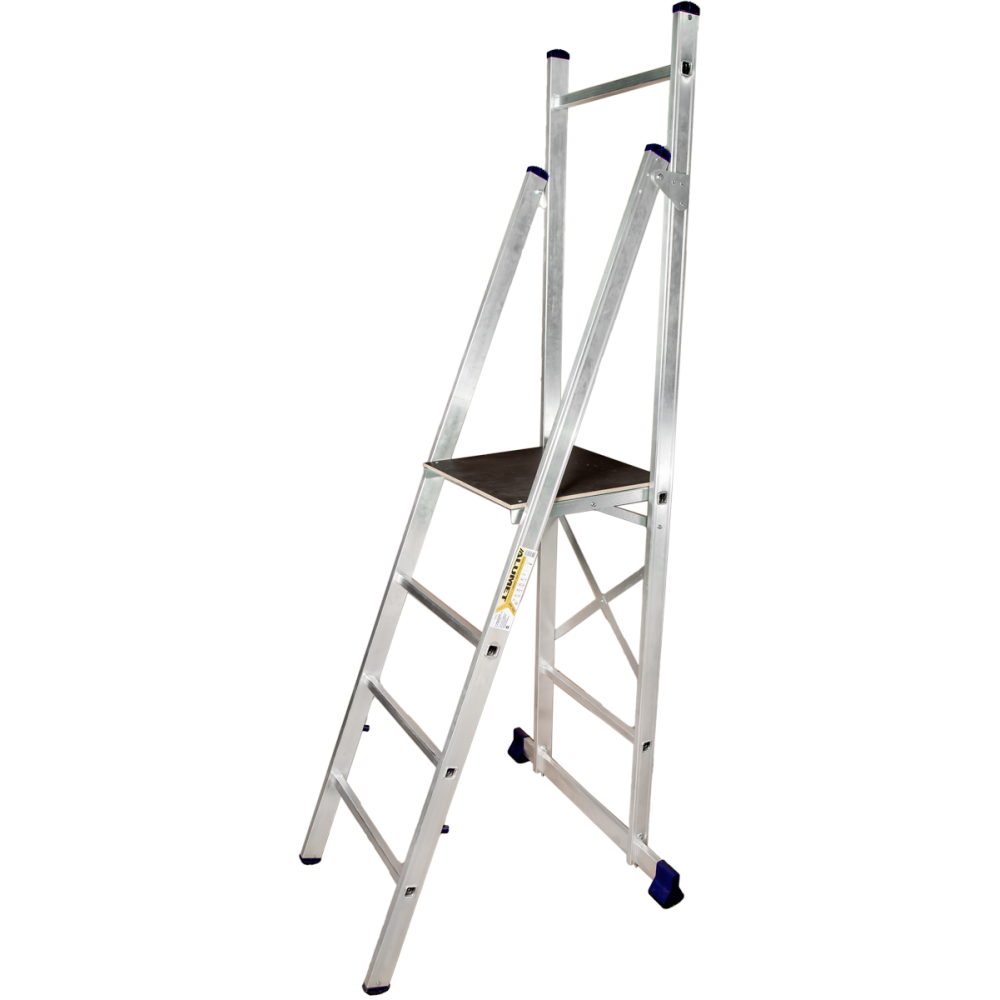

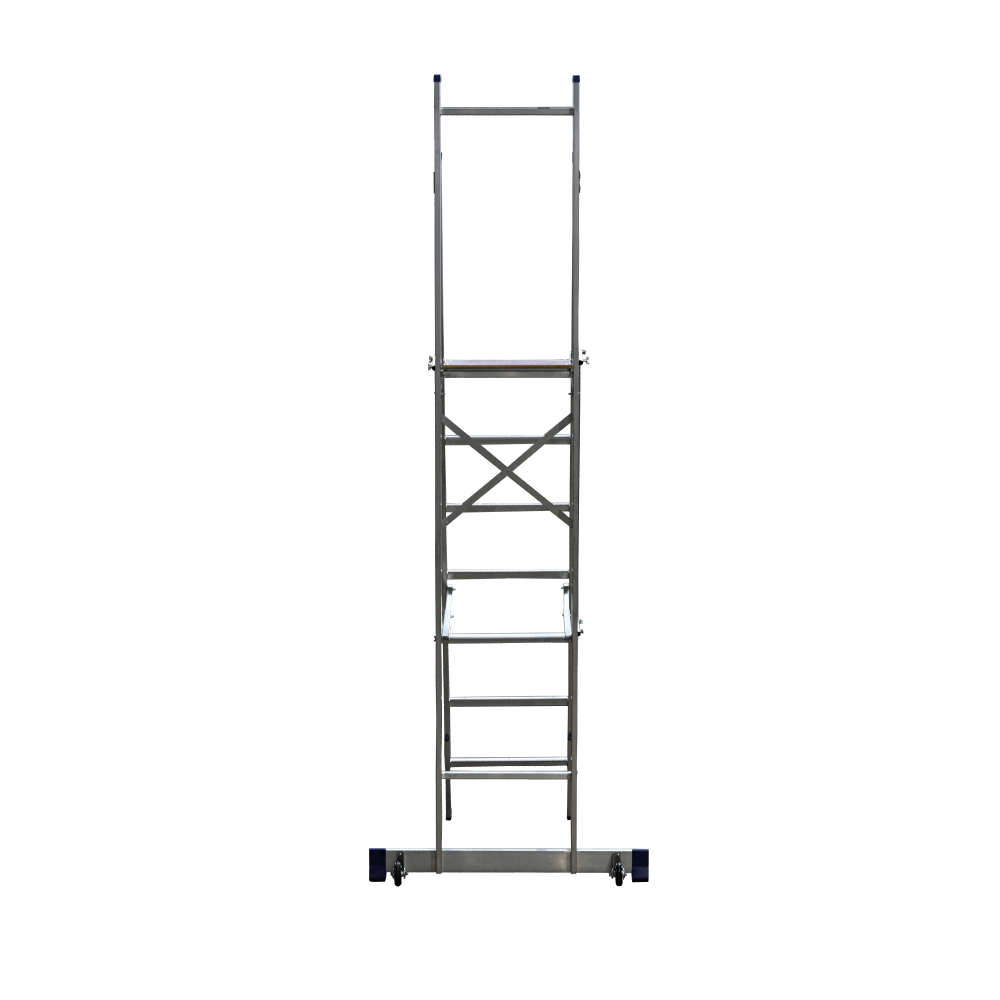

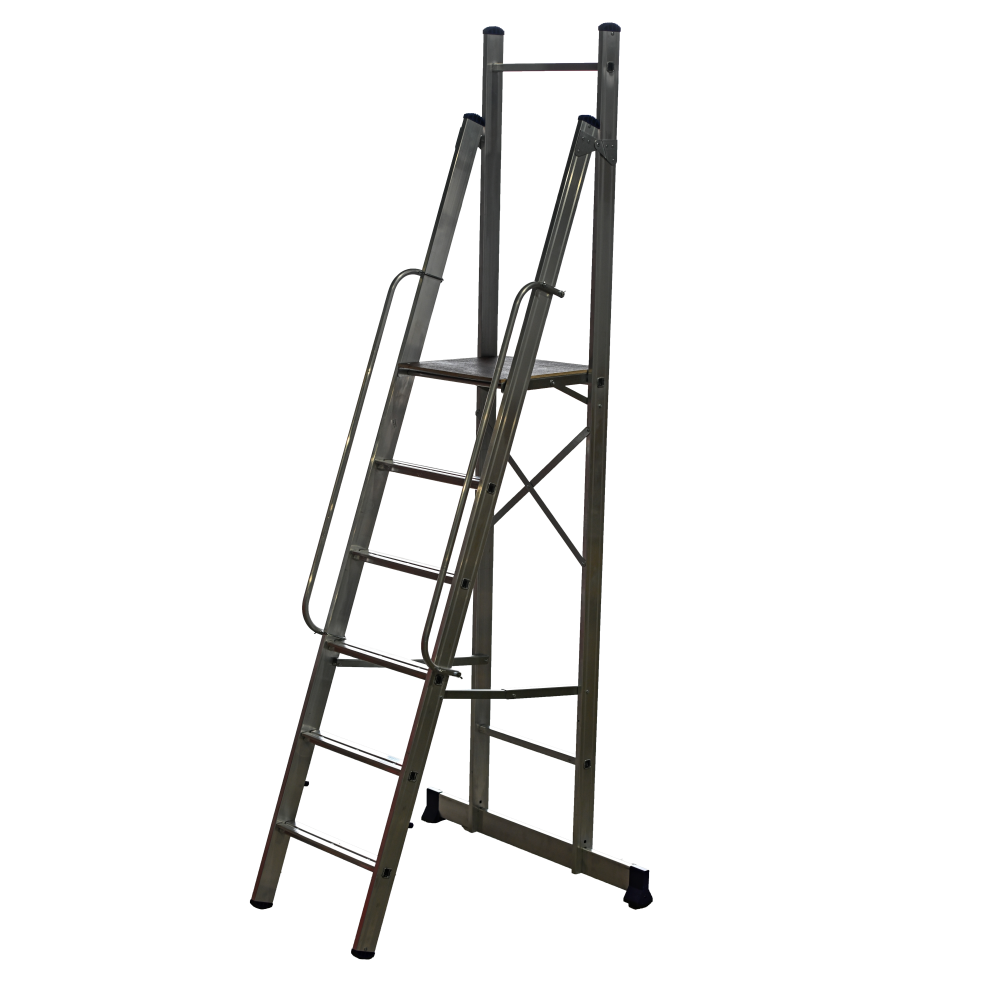

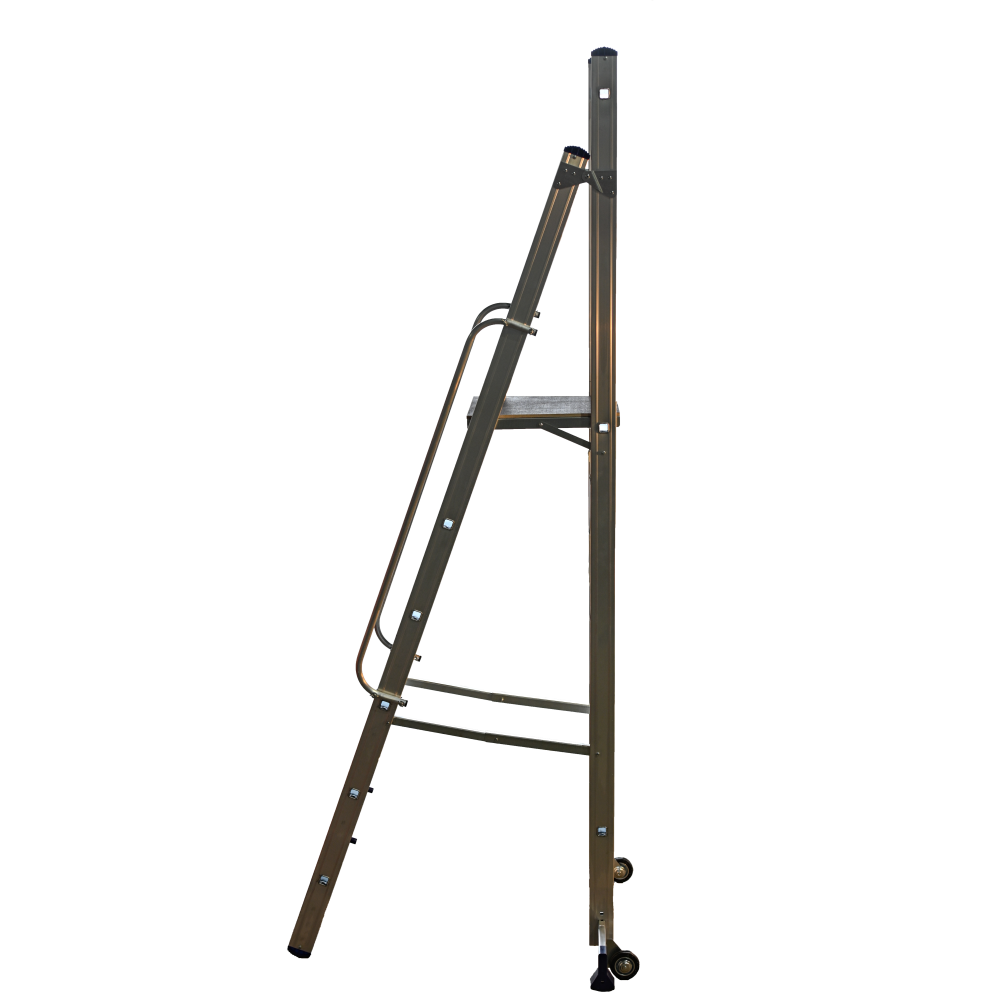

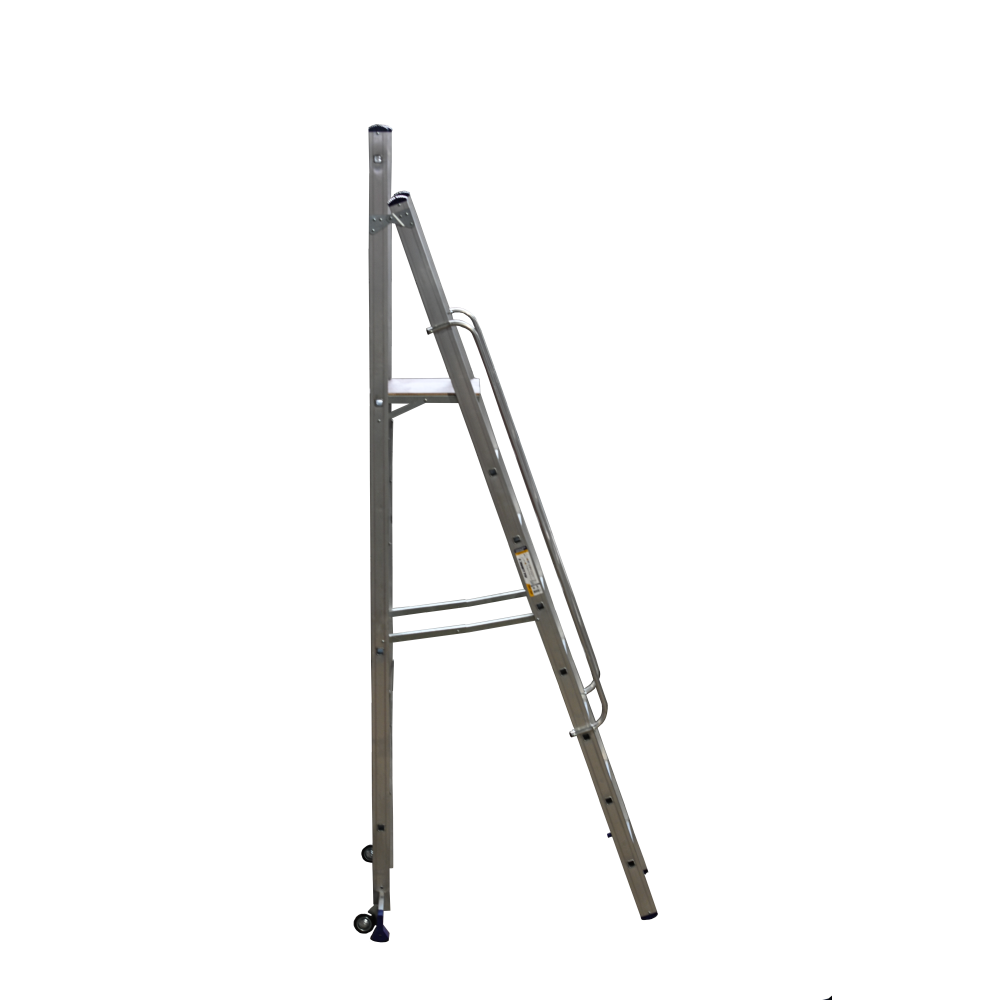

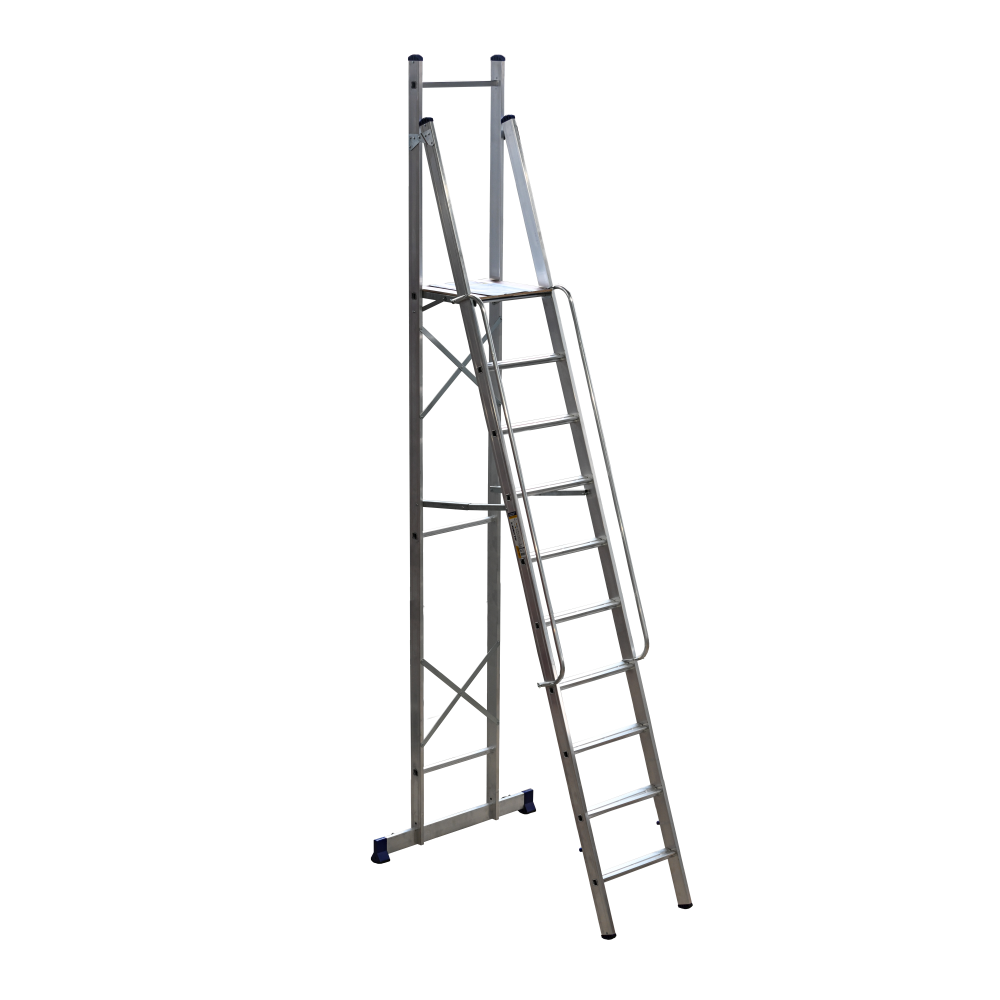

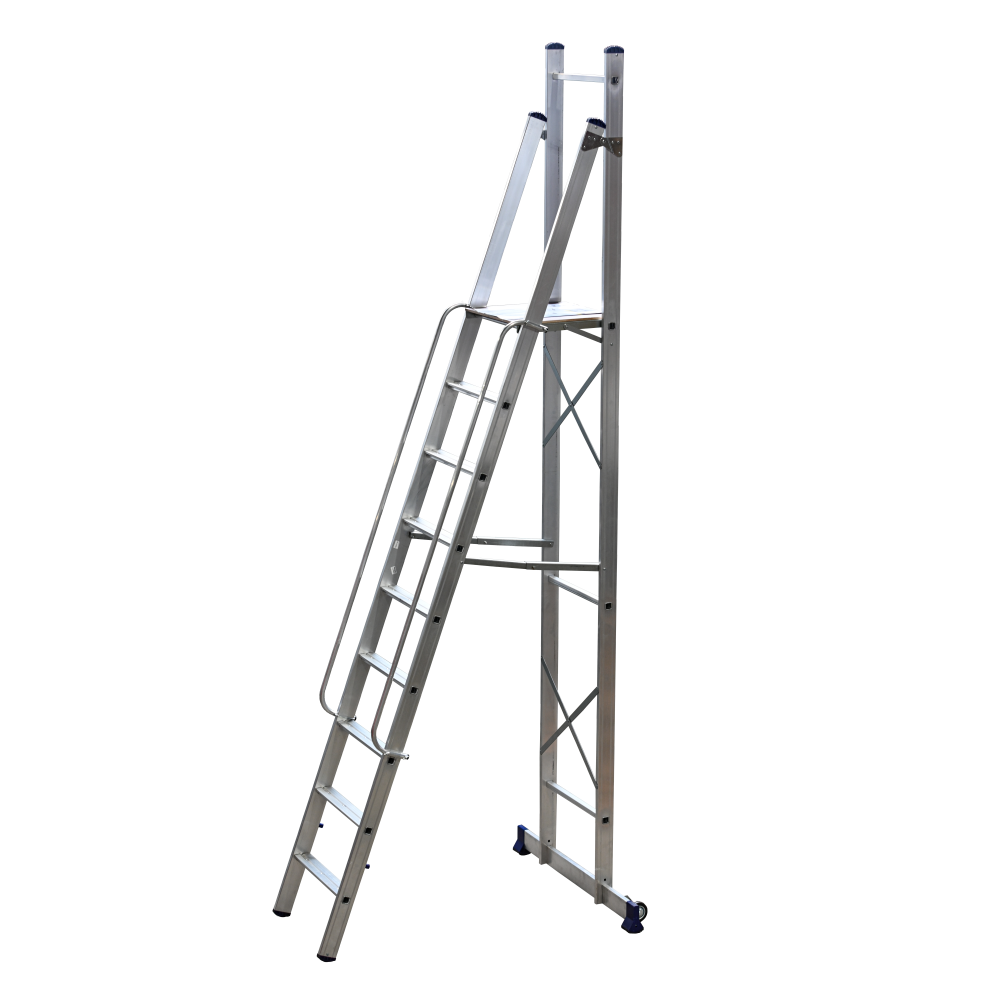

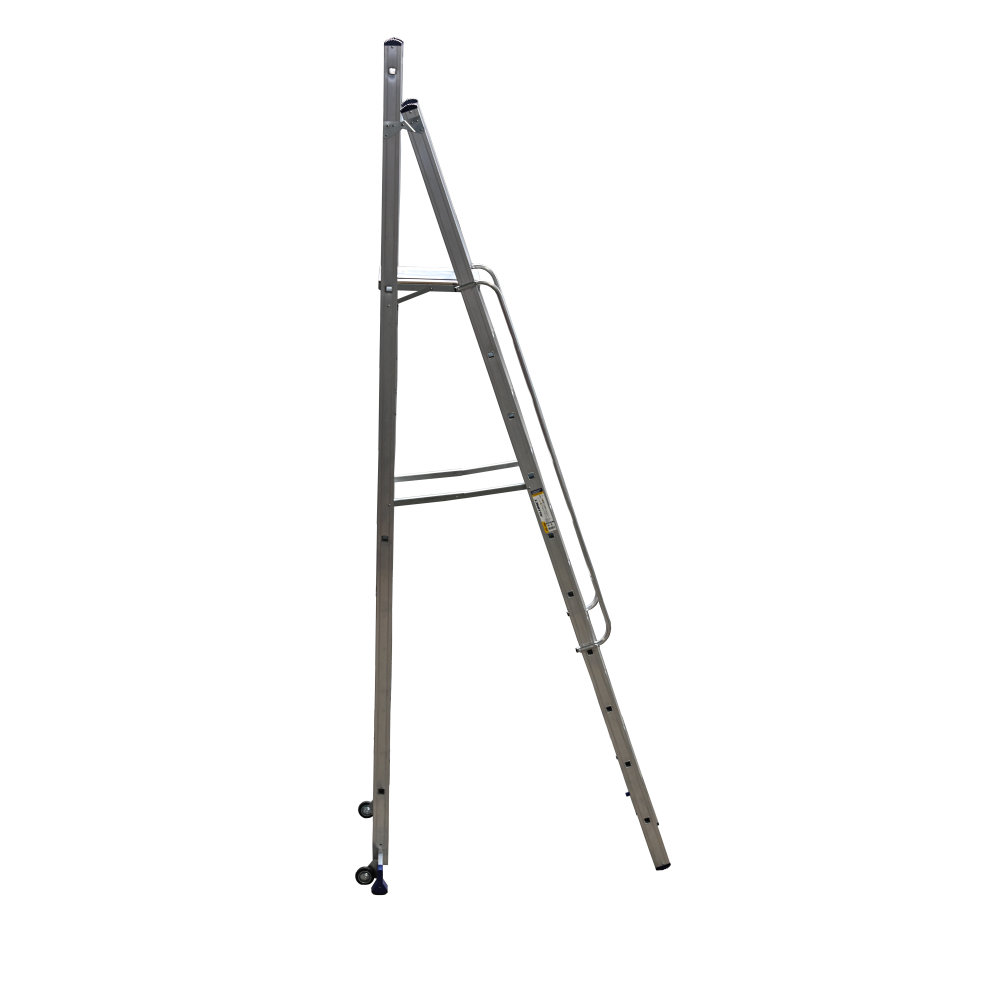

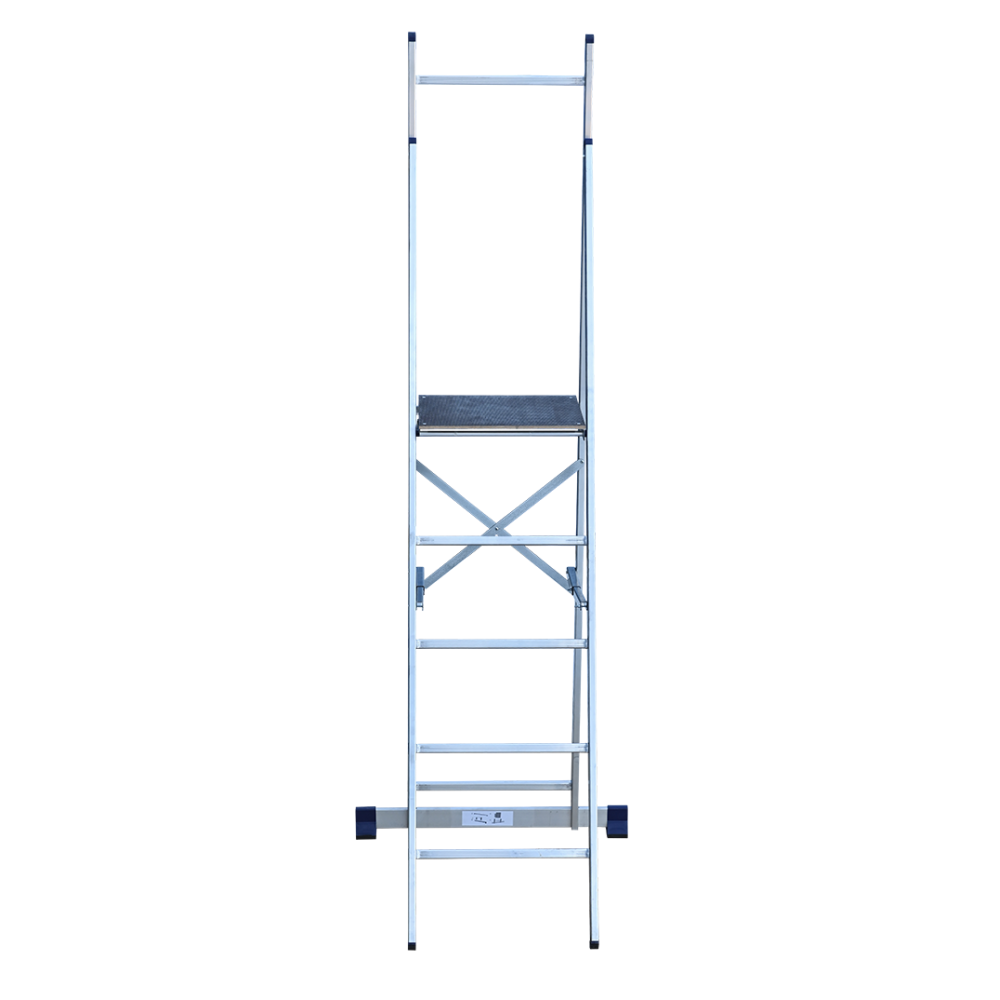

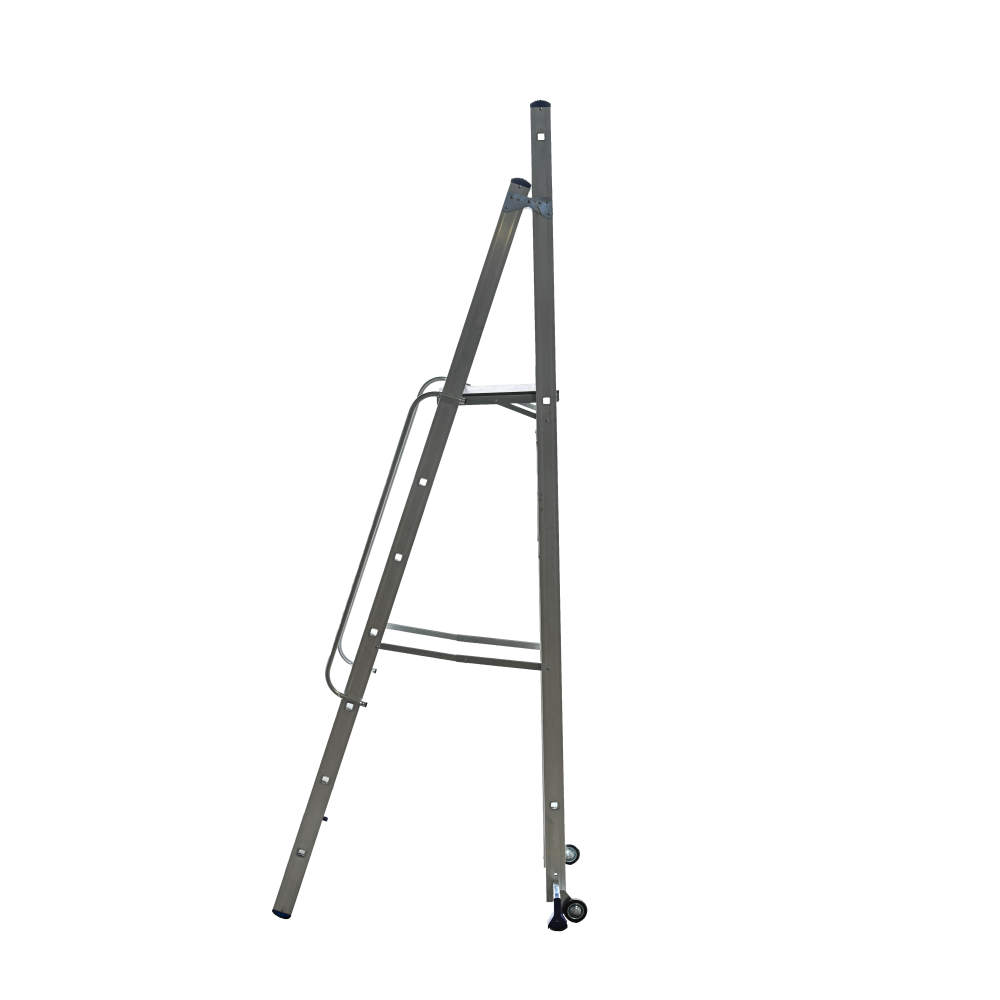

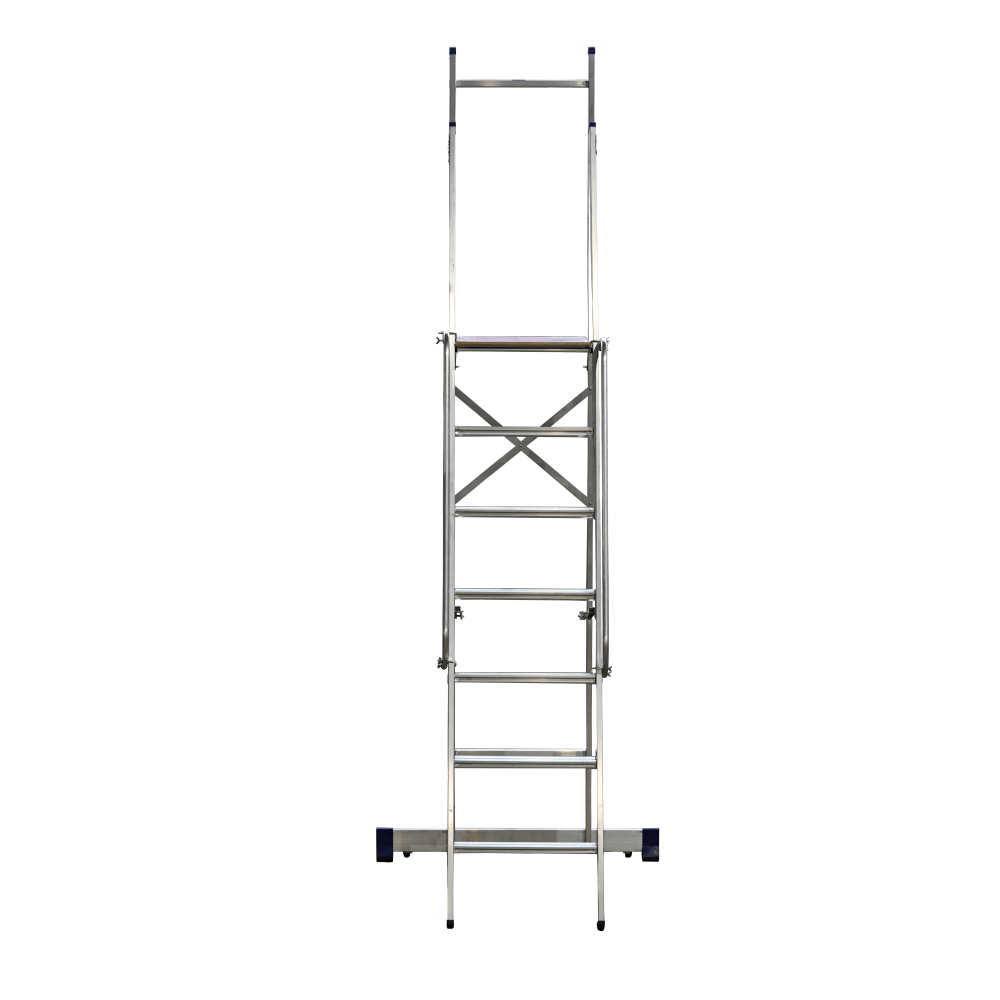

Stepladder-platform aluminum professional ARE series is designed for various types of work at a height of up to 4.75 m, both at home and at work. The ladder - platform is a free-standing portable ladder having a lifting side (front leg), a support side (back leg), a working platform and a folding one for lifting to a height. In the upper part of the back leg of the stepladder there is a crossbar that acts as a railing and ensures safety at work. For rigidity, there are diagonals on the back leg. On the back leg at the bottom there is a stabilizer with wheels for ARE 1406, ARE1407, ARE 1408, ARE1409, ARE 1410, for ARE 1404, ARE 1405 – a stabilizer without wheels (ARE1403 – without stabilizer). The back and front legs are connected to each other. For the convenience of lifting, handrails are attached to the bowstrings of the front leg (except ARE1403, ARE 1404, ARE1405). The stepladder in the working position is securely fixed by the working platform and safety folding metal ties (except ARE 1403, ARE 1404). The working platform is made of moisture-resistant laminated non-slip plywood, which is attached to steel corners. The bowstrings and steps of the stepladder are made of high-strength aluminum profile. The steps have a grooved surface. The massive shoes are made of high-strength rubberized plastic. In working condition, the ladder-platform can be tightly attached to the wall or other objects.
